- Pads - 255-1428 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-9032 |
14 x 28 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 02 |
255-9005 |
14 x 28 inch Premium Black Stripping Pad (pkg of 5) |
|
|
| 03 |
255-9017 |
14 x 28 inch Premium Blue Cleaning Pad (pkg of 5) |
|
|
| 04 |
255-9011 |
14 x 28 inch Premium Green Scrubbing Pad (pkg of 5) |
|
|
| 05 |
255-9023 |
14 x 28 inch Premium Red Pad (pkg of 5) |
|
|
| 06 |
255-9029 |
14 x 28 inch Premium White Polishing Pad (pkg of 5) |
|
|
| 07 |
255-9037 |
14 x 28 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 08 |
255-9042 |
14 x 28 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 09 |
255-0187 |
14 x 28 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 10 |
255-0188 |
14 x 28 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 11 |
255-0189 |
14 x 28 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 12 |
255-0190 |
14 x 28 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 13 |
255-0185 |
14 x 28 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 14 |
255-0186 |
14 x 28 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 15 |
255-0286 |
14 x 28 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 16 |
255-0287 |
14 x 28 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 17 |
255-0288 |
14 x 28 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 18 |
255-0289 |
14 x 28 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 19 |
255-0284 |
14 x 28 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 20 |
255-0285 |
14 x 28 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 21 |
255-9661 |
14 x 28 inch Diamond by Gorilla 100 Grit (pkg of 2) |
|
|
| 22 |
255-9669 |
14 x 28 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 23 |
255-9665 |
14 x 28 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 24 |
255-9662 |
14 x 28 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 25 |
255-9666 |
14 x 28 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 26 |
255-9663 |
14 x 28 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 27 |
255-9664 |
14 x 28 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 28 |
255-9667 |
14 x 28 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 29 |
255-9668 |
14 x 28 inch Diamond starter pack (1 of each grit) |
|
|
| 30 |
255-0292 |
14 x 28 inch Duala clean and shine pad -low speed (pkg of 5) |
|
|
| 31 |
255-0296 |
14 x 28 2001 Duala clean and shine pad -high speed (pkg 5) |
|
|
|
|
Upper Handle Assembly - 260-1005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
260-1027 |
Switch cover screw |
2 |
|
| 02 |
260-1224 |
Switch box bracket screws |
2 |
|
| 03 |
260-1335 |
Rubber bumper |
2 |
|
| 04 |
260-1018 |
Handle grip |
2 |
|
| 05 |
260-1207 |
Trigger end cap |
1 |
|
| 07 |
260-1328 |
Trigger guides (set of 2) |
2 |
|
| 08 |
260-1222 |
Switch box bracket |
1 |
|
| 09 |
260-1022 |
Microswitch |
1 |
|
| 10 |
260-1226 |
Micro switch screw |
2 |
|
| 11 |
260-1021 |
Switch spring |
2 |
|
| 13 |
N/A |
Not available |
2 |
(Screws) |
| 14 |
260-1028 |
Hour meter kit |
1 |
(includes 13) |
| 15 |
260-1336 |
Conduit nut |
1 |
|
| 16 |
260-1023 |
Strain relief |
1 |
|
| 17 |
260-1027 |
Switch cover screw |
2 |
|
|
|
Lower Handle Assembly - 260-1006 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 02 |
260-1228 |
Plastic flange bushing (pack of 2) |
8 |
|
| 03 |
260-1005 |
Axle collar |
2 |
|
| 04 |
260-1229 |
3/8 inch lock nut |
5 |
|
| 05 |
260-1230 |
3/8 inch pivot point bolts (pack of 2) |
4 |
|
| 06 |
260-1008 |
Wave washer |
2 |
|
| 07 |
260-1231 |
Handle yoke bolt |
7 |
|
| 08 |
260-1000 |
6 inch wheel |
2 |
|
| 09 |
260-1232 |
1 piece axle attachment bracket |
1 |
|
| 10 |
260-1233 |
Handle yoke nut |
2 |
|
| 11 |
260-1206 |
3/8 inch tension handle assembly |
1 |
|
| 12 |
260-1234 |
Left hand handle adjustment bar |
1 |
|
| 13 |
260-1235 |
Right hand handle adjustment bar |
1 |
|
| 14 |
260-1236 |
Handle yoke |
1 |
|
|
|

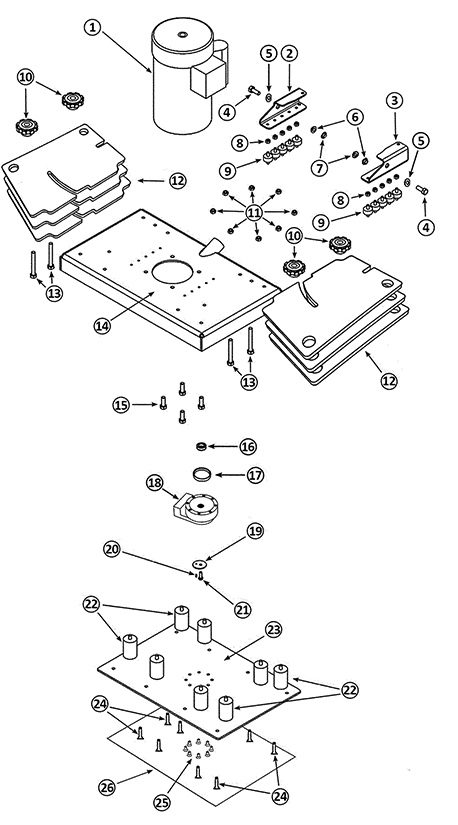

Base Assembly - 260-1007 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
260-1040 |
3450 RPM motor |
1 |
|
| 2 |
260-1239 |
Right hand pivot bracket |
1 |
|
| 3 |
260-1240 |
Left hand pivot bracket |
1 |
|
| 4 |
260-1241 |
3/8 inch pivot point bolt |
2 |
|
| 6 |
260-1228 |
Plastic flange bushing (pack of 2) |
2 |
|
| 7 |
260-1229 |
3/8 inch lock nut |
2 |
|
| 8 |
260-1244 |
1/4 inch lock nut |
10 |
|
| 9 |
260-1245 |
1/2 inch tall isolator (pkg of 10) |
10 |
|
| 11 |
260-1246 |
5/16 inch lock nut |
8 |
|
| 12 |
260-1249 |
28 inch top weight |
2 |
|
| 13 |
260-1009 |
Removable weight bolt |
4 |
|
| 14 |
260-1254 |
28 inch base |
1 |
|
| 15 |
260-1255 |
3/8 inch motor mount bolts |
4 |
|
| 16 |
260-1257 |
28 inch motor shaft spacer |
1 |
|
| 17 |
N/A |
Not available |
1 |
(ringer spacer) (available in Kit3) |
| 18 |
N/A |
Not available |
1 |
(28 in eccentric assembly) (available in Kit3) |
| 19 |
260-1037 |
Crush washer |
1 |
|
| 21 |
999-1054 |
Bolt 1/4-28 x 1 hex head stainless steel |
1 |
|
| 22 |
260-1260 |
2 1/4 inch isolator (no longer available see kit) |
8 |
|
| 23 |
260-1262 |
28 inch aluminum driver plate |
1 |
|
| 24 |
260-1263 |
Isolator bolt |
8 |
|
| 25 |
260-1264 |
Eccentric bearing cup bolt |
8 |
|
| 26 |
260-1035 |
28 inch grip face |
1 |
|
| N/S |
260-1003 |
Power cord assembly |
1 |
|
| N/S |
260-1036 |
28 inch dust skirt |
1 |
|
| Kit1 |
260-1331 |
28 inch pivot isolator repair kit |
1 |
(includes 11, 19-22, 24-26) |
| Kit2 |
260-1330 |
Pivot weight bolt kit |
1 |
(includes 11, 13, 19-22, 24-26) |
| Kit3 |
260-1012 |
28 inch base plate assembly |
1 |
(includes 11, 16-26) |
| Kit4 |
260-1245 |
1/2 inch tall isolator (pkg of 10) |
1 |
(includes 8 and 9) |
| Kit5 |
260-1311 |
28 inch isolator repair kit |
1 |
(includes 22) |
|
|
- Accessories - 260-9997 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
260-1051 |
3 way power adapter |
|
|
| 05 |
260-1050 |
6 qt cloth bag |
|
|
| 06 |
260-1210 |
Hepa dome filter |
|
|
| 07 |
260-1057 |
HEPA dry vacuum kit |
|
|
| 08a |
260-1339 |
Water tank system includes mounting hardware (EGB28) |
|
(EBG 28) |
| 08b |
260-1045 |
Water tank system includes mounting hardware (EGB20) |
|
(EBG 20) |
| 09 |
260-1079 |
28 inch SQP pad (pkg of 10) |
|
|
| 10 |
260-1080 |
28 inch SHO pad (purple) (pkg of 5) |
|
|
| 11 |
260-1081 |
28 inch tile and grout pad (blue) (sold each) |
|
|
| 12 |
260-1082 |
28 inch Xtreme sponge (pkg of 5) |
|
|
| 13 |
260-1083 |
28 inch SSE pad (pkg of 5) |
|
|
| 14 |
260-1053 |
28 inch driver pad (blue) (pkg of 5) |
|
|
| 15 |
260-1211 |
28 inch driver pad (white) (pkg of 10) |
|
|
| 17 |
260-1290 |
28 inch polishing pad (white) (pkg of 5) |
|
|
| 18 |
260-1291 |
28 inch driver pad (red) (pkg of 5) |
|
|
| 19 |
260-1279 |
28 inch standard sandpaper 20 grit (pkg of 20) |
|
|
| 20 |
260-1280 |
28 inch standard sandpaper 36 grit (pkg of 20) |
|
|
| 21 |
260-1213 |
28 inch standard sandpaper 60 grit (pkg of 20) |
|
|
| 22 |
260-1215 |
28 inch standard sandpaper 80 grit (pkg of 20) |
|
|
| 23 |
260-1217 |
28 inch standard sandpaper 100 grit (pkg of 10) |
|
|
| 24 |
260-1271 |
28 inch Pro Sandpaper 16 grit |
|
|
| 25 |
260-1272 |
28 inch Pro Sandpaper 24 grit |
|
|
| 26 |
260-1273 |
28 inch Pro Sandpaper 36 grit |
|
|
| 27 |
260-1274 |
28 inch Pro Sandpaper 60 grit (pkg of 10) |
|
|
| 28 |
260-1275 |
28 inch Pro Sandpaper 80 grit (pkg of 10) |
|
|
| 29 |
260-1276 |
28 inch Pro Sandpaper 100 grit (pkg of 10) |
|
|
| 30 |
260-1284 |
28 inch sandscreen 60 grit (pkg of 10) |
|
|
| 31 |
260-1285 |
28 inch sandscreen 80 grit (pkg of 10) |
|
|
| 32 |
260-1286 |
28 inch sandscreen 100 grit (pkg of 10) |
|
|
| 33 |
260-1219 |
28 inch sandscreen 120 grit (pkg of 10) |
|
|
| 34 |
260-1287 |
28 inch sandscreen 150 grit (pkg of 10) |
|
|
| 35 |
260-1288 |
28 inch sandscreen 180 grit (pkg of 10) |
|
|
| 36 |
260-1338 |
28 inch microfiber carpet pad |
|
|
|
|
Square Brushes 14 x 28 - 996-1801 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
996-1888 |
14 x 28 inch Sonic scrub mal-grit lite - 500 grit (red) |
|
|
|
996-1890 |
14 x 28 inch Sonic scrub mal-grit scrub - 120 grit (green) |
|
|
|
996-1889 |
14 x 28 inch Sonic scrub clean-grit - 180 grit (blue) |
|
|
|
996-1891 |
14 x 28 inch Sonic scrub mal-grit strip - 80 grit (black) |
|
|
|
|
