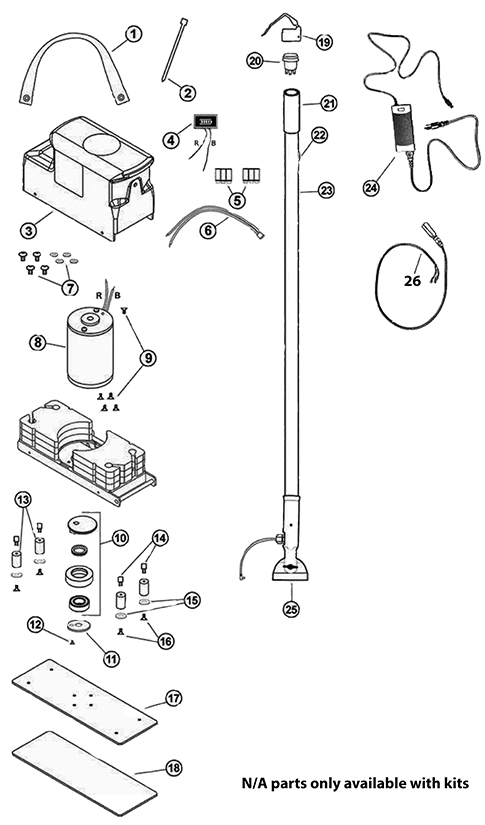

Entire Assembly - 260-6666 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
260-1202 |
Doodle scrub carry strap |
1 |
|
| 2 |
N/A |
Not available |
1 |
(zip tie) (included in KIT1) |
| 3 |
260-1324 |
Doodle scrub cover replacement kit |
1 |
|
| 4 |
260-1111 |
Battery meter |
1 |
(battery version) |
| 5 |
260-1112 |
3 wire connector |
2 |
(battery version) |
| 6 |
N/A |
Not available |
1 |
(motor cord) (only available in KIT1 and KIT5) |
| 7 |
N/A |
Not available |
4 |
(cover screw) (washers) (only available in KIT1, KIT3, and KIT5) |
| 8 |
N/A |
Not available |
1 |
(motor) (only available in KIT2) |
| 9 |
N/A |
Not available |
5 |
(motor bolt) (only available in KIT2) (corded/ electric version) |
| 10 |
N/A |
Not available |
1 |
(eccentric assembly) (only available in KIT3) |
| 11 |
N/A |
Not available |
1 |
(crush washer) (only available in KIT3) |
| 12 |
N/A |
Not available |
1 |
(motor shaft bolt) (only available in KIT2, KIT3, and KIT4) |
| 13 |
N/A |
Not available |
4 |
(isolator) (only available in KIT3 and KIT4) |
| 14 |
N/A |
Not available |
1 |
(top isolator bolt) (only available in KIT3 and KIT4) |
| 15 |
N/A |
Not available |
4 |
(isolator spacer) (only available in KIT3 and KIT4) |
| 16 |
N/A |
Not available |
4 |
(bottom isolator bolt) (only available in KIT3 and KIT4) |
| 19 |
260-1204 |
Handle trigger |
1 |
|
| 20 |
260-1200 |
Switch assembly |
1 |
|
| 21 |
260-1018 |
Handle grip |
1 |
|
| 22a |
N/A |
Not available |
1 |
(charging port) (battery version) |
| 22b |
N/A |
Not available |
1 |
(power cord) (only available with KIT5) (corded/electric version) |
| 23a |
260-1117 |
Battery pack handle |
1 |
(battery version) |
| 23b |
N/A |
Not available |
1 |
(handle) (only available with KIT5) (corded/electric version) |
| 24 |
260-1118 |
Charger |
1 |
(battery version) |
| 25 |
260-1325 |
Doodle scrub base clip |
1 |
|
| 26 |
N/A |
Not available |
1 |
(handle cord) (only available with KIT5) (corded/electric version) |
| KIT1a |
260-1114 |
Battery powered EGB9 cover replacement kit |
1 |
(includes 1a, 2-7) (battery version) |
| KIT1b |
260-1324 |
Doodle scrub cover replacement kit |
1 |
(includes 1b, 2-3, 6-7) |
| KIT2a |
260-1115 |
Motor replacement kit |
1 |
(includes 8-9,12) (battery version) |
| KIT2b |
260-1121 |
Motor replacement kit |
1 |
(includes 8-9, 12) |
| KIT3 |
260-1119 |
Base plate kit |
1 |
(includes 7, 10-18) |
| KIT4 |
260-1303 |
EBG-9 isolator repair kit (isolators, hardware, & gripface) |
1 |
(includes 7, 12-16, 18) |
| KIT5 |
260-1308 |
Handle assembly |
1 |
(includes 3, 6-7, 22b, 23b, 26) |
| N/S |
260-1120 |
Wiring harness |
1 |
(corded/electric version) |
|
|
- Pads - 260-6667 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
260-1058 |
Tile and grout pad 4.75 x 10 (blue) (each) |
1 |
|
|
260-1059 |
White driver pad 5.25 x 10.5 (pack of 48) |
1 |
|
|
260-1060 |
Blue driver pad 5.25 x 10.5 (pack of 18) |
1 |
|
|
260-1063 |
White pad 5.25 x 10.5 (pack of 16) |
1 |
|
|
260-1064 |
Xtreme sponge pad 5.25 x 10.5 (pack of 5) |
1 |
|
|
260-1061 |
SHO pad 5.25 x 10.5 (pkg of 20) (pink) |
1 |
|
|
260-1062 |
SQP pad 5.25 x 10.5 (pkg of 60) (orange) |
1 |
|
|
|
- Commonly Asked For Parts - 260-9999 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
260-1058 |
Tile and grout pad 4.75 x 10 (blue) (each) |
|
|
| 2 |
260-1059 |
White driver pad 5.25 x 10.5 (pack of 48) |
|
|
| 3 |
260-1060 |
Blue driver pad 5.25 x 10.5 (pack of 18) |
|
|
| 4 |
260-1061 |
SHO pad 5.25 x 10.5 (pkg of 20) (pink) |
|
The SHO pad should be used only for the heaviest of chemical stripping jobs. Extremely abrasive and heavy, dense fibers. Best when dirt and buildup are severe. Use wet with a blue driver pad on VCT and tile. |
| 5 |
260-1062 |
SQP pad 5.25 x 10.5 (pkg of 60) (orange) |
|
The SQP pad is a thin pad designed to remove several layers of acrylic finish to prep for re-coating. Use dry or wet on VCT and tile. |
| 6 |
260-1064 |
Xtreme sponge pad 5.25 x 10.5 (pack of 5) |
|
The Xtreme Sponge is for the removal of scuff marks on VCT or bathroom tile. Just add water and this melamine pad deep cleans between refinishing jobs. Use wet on VCT. |
| 7 |
260-1063 |
White pad 5.25 x 10.5 (pack of 16) |
|
|
| 8 |
260-1084 |
Doodle scrub grip face |
|
|
| 9a |
260-1089 |
Handle assembly with male plug (OBSOLETE) |
1 |
(The male plug was used on units until August 29th, 2016.) |
| 9b |
260-1297 |
Handle assembly with female plug |
1 |
(The female plug has been used on units since August 29th, 2016.) |
| 11 |
260-1202 |
Doodle scrub carry strap |
|
|
| 13 |
260-1103 |
Wiring harness |
|
|
| 14 |
260-1104 |
Base plate assembly |
|
|
| 15 |
260-1324 |
Doodle scrub cover replacement kit |
|
(comes with carry strap) |
| 16 |
260-1325 |
Doodle scrub base clip |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
|
