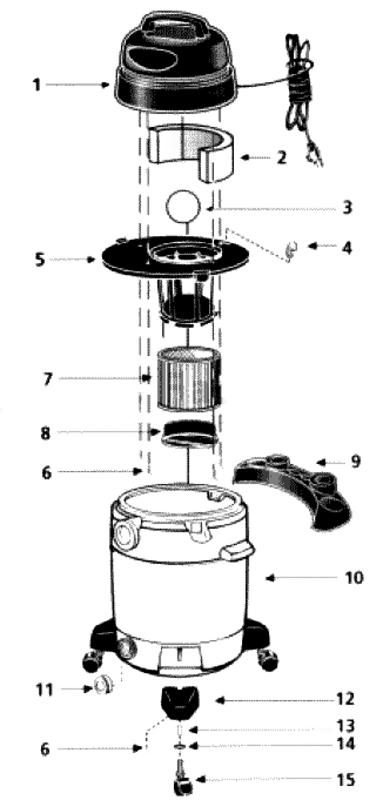

Entire Assembly - 228-7666 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
228-7008 |
Power unit assy (OBSOLETE) |
1 |
|
| 2 |
N/A |
Not available |
1 |
(Foam insert) |
| 3 |
N/A |
Not available |
1 |
(Ball float) |
| 4 |
N/A |
Not available |
1 |
(Lid) |
| 5 |
228-7666 |
Lid cage and latch assembly (OBSOLETE) |
1 |
|
| 6 |
228-7044 |
Screw #10 x 3/4 hex head (OBSOLETE) |
10 |
|
| 7 |
991-9104 |
Multi-fit pleated cartridge filter |
1 |
|
| 8 |
228-7027 |
Filter retainer (OBSOLETE) |
1 |
|
| 9 |
N/A |
Not available |
1 |
(Tool holder) |
| 10 |
N/A |
Not available |
1 |
(Tank) |
| 11 |
228-7667 |
Drain cap (OBSOLETE) |
1 |
|
| 12 |
228-7668 |
Caster foot (OBSOLETE) |
3 |
|
| 13 |
228-7669 |
Caster retainer |
3 |
|
| 14 |
228-7670 |
Flat washer (OBSOLETE) |
3 |
|
| 15 |
228-7671 |
Caster (pkg of 4) (OBSOLETE) |
3 |
|
|
|
