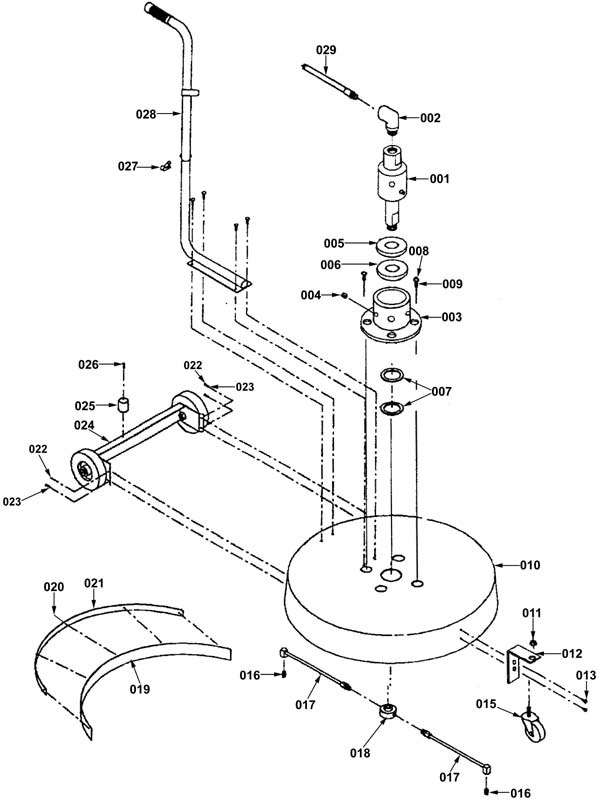

Entire Assembly 24 inch - 252-0000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
252-0241 |
Deublin spinner union |
1 |
|
| 002 |
252-0242 |
Elbow 3/8 inch x 90 degree |
1 |
|
| 003 |
252-0243 |
Union mount assembly |
1 |
(includes items 005 and 006) |
| 005 |
252-0245 |
Mounting spacer |
1 |
|
| 007 |
252-0247 |
Brass washer |
2 |
|
| 008 |
252-0248 |
Bolt 3/8 inch x 1 inch |
4 |
|
| 009 |
252-0249 |
Nut 3/8 inch - 16 nylock |
4 |
|
| 010 |
252-0250 |
Spinner deck 24 inch |
1 |
|
| 011 |
252-0218 |
Nut 1/2 serrated whizlock |
1 |
|
| 012 |
252-0252 |
Front caster bracket |
1 |
|
| 013 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
| 014 |
252-0217 |
Nut 1/4 nylock |
2 |
|
| 015 |
252-0222 |
Caster (3 inch) |
1 |
|
| 016 |
252-0254 |
Jet (1502.5) |
2 |
|
| 017 |
252-0255 |
Spinner arm assembly 24 inch (OBSOLETE) |
2 |
|
| 018 |
252-0256 |
Manifold (2 port) |
1 |
|
| 019 |
252-0257 |
Vinyl edge |
1 |
|
| 021 |
252-0258 |
Vinyl edge guard |
1 |
|
| 022 |
999-0320 |
Screw 1/4-20 x 3/4 socket head alloy plain finish |
4 |
|
| 023 |
252-0217 |
Nut 1/4 nylock |
4 |
|
| 024 |
252-0259 |
Rear wheel assembly |
1 |
|
| 025 |
252-0227 |
Gun holder |
1 |
|
| 026 |
252-0215 |
Screw #10 thread cutting |
1 |
|
| 028 |
252-0260 |
Handle assembly |
1 |
|
| 029 |
252-0221 |
Hose 1/4 x 60 |
1 |
|
|
|

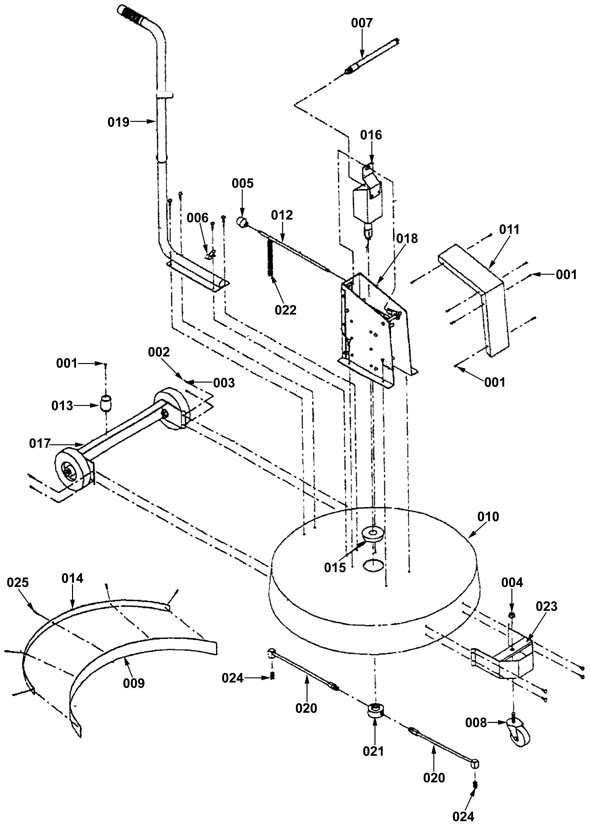

Entire Assembly 30 inch - 252-0004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
252-0215 |
Screw #10 thread cutting |
9 |
|
| 002 |
999-0320 |
Screw 1/4-20 x 3/4 socket head alloy plain finish |
16 |
|
| 003 |
252-0217 |
Nut 1/4 nylock |
16 |
|
| 004 |
252-0218 |
Nut 1/2 serrated whizlock |
1 |
|
| 007 |
252-0221 |
Hose 1/4 x 60 |
1 |
|
| 008 |
252-0222 |
Caster (3 inch) |
1 |
|
| 009 |
252-0223 |
Vinyl edge |
1 |
|
| 010 |
252-0224 |
Spinner deck |
1 |
|
| 011 |
252-0225 |
Housing cover |
1 |
|
| 013 |
252-0227 |
Gun holder |
1 |
|
| 014 |
252-0228 |
Vinyl edging guard |
1 |
|
| 015 |
252-0229 |
Plastic plug |
1 |
|
| 016 |
252-0230 |
Union assembly |
1 |
|
| 017 |
252-0231 |
Wheel assembly |
1 |
|
| 018 |
252-0232 |
Housing assembly |
1 |
|
| 019 |
252-0233 |
Handle assembly |
1 |
|
| 020 |
252-0234 |
Spinner arm assembly |
2 |
|
| 021 |
252-0240 |
Manifold (3 port) |
1 |
|
| 023 |
252-0237 |
Caster mount weldment |
1 |
|
| 024 |
252-0238 |
Jet (#1503) |
2 |
|
|
|
|
