Parts List Complete for SHARK SSG-503037E/G

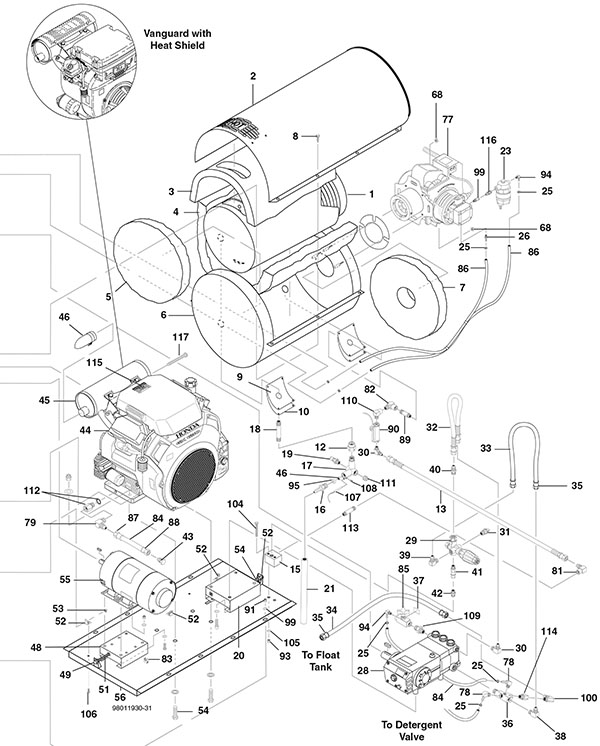

Body Assembly - 252-1137
RefNbr Part Number Description Req Notes
1 252-1528 Rodless coil 1
2a 252-1875 Top wrap 1 (includes 2b)
2b 252-1089 Trim 2 feet
3 252-1877 Insulation 28 x 24 inch 1
4 252-1878 Insulation 24 x 57 inch 1
5 252-1879 Burner head insulation without hole 1
6a 252-1880 Bottom wrap weldment 1 (includes 6b)
6b 252-1881 Bolt 3/8-16 x 1 3/4 2
7 252-1882 Burner head insulation with hole 1
8 999-1531 Screw 3/8-16 x 1 hex washer head zinc plated 8
9 252-1883 Burner plate gasket 2
10a 252-1884 Insulation retaining plate 2 (includes 10b)
10b 213-0071 Screw #10 x 1/2 hex head stainless steel 8
12 252-1886 Pipe cap 1
13 252-1529 2 wire pressure hose 3/8 x 48 inch 1
15 252-1887 Unloader block 1
16 352-1027 3/8 inch hose barb 1
17 252-1705 Discharge manifold 1
18 252-1888 Pipe nipple 1
19 252-1507 3/8 inch coupler with male threads 1
20 252-1889 Pump rail 1
21 252-1706 Conduit hose 2 feet
23 225-0450 Fuel filter 1
25 252-1109 Hose clamp 4
26 252-1890 Hosebarb 1
28 252-1081 Pump 1
29 225-0456 Unloader 1
30 252-1637 Nipple 1/2 x 3/8 inch 3
31 252-1113 Pump protector 1
32 252-1893 16 inch pressure hose 1
33 252-1597 Push on hose (sold by the inch) 17 inches
34 252-1597 Push on hose (sold by the inch) 2 feet
35a 252-1894 Push on swivel 4 (includes 35b-35d)
35b 252-1895 Snubbing washer 3
35c 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 3
35d 999-0034 Washer 3/8 split lock plain finish 3
36 252-1896 Street tee 1
37 252-1759 Open for steam decal 1
38 252-1599 Elbow 1/2 x 1/2 inch 1
39 252-1897 90 degree elbow 1
40 252-1637 Nipple 1/2 x 3/8 inch 1
41 252-1459 Female swivel 1
42 252-1898 Pipe nipple 1
43 252-1129 1/2 inch flare plug 1
44 252-0298 ENGINE, HONDA GX630R, NO THROTTLE 1
45a 352-1028 Right muffler (Honda) 1 (includes 45b-45d)
45b 252-1903 Bolt M8 x 20mm flange 2
45c 252-1904 Muffler 1
45d 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 4
46a 252-1985 Rupture disk 1 (includes 46c-46j)
46b 252-1908 Exhaust deflector 1
46c 252-1909 Screw #10 tek 1
46d 252-1647 Screw 1/4 x 1/2 whiz loc 5
46e 252-1936 Muffler guard 1
46f 252-1910 Brace 2
46g 252-1911 Heat shield 1
46h 252-1140 Nut 1/4 flange zinc 3
46i 252-1629 Cage nut 2
46j 252-0004 Key shaft 1
47 252-1142 Belt guard label 2 (1 for short)
48a 252-1913 Pump rail 1 (includes 48b-48d)
48b 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 7
48c 252-1895 Snubbing washer 3
48d 999-0034 Washer 3/8 split lock plain finish 3 (with generator)
49a 252-1914 Belt tension bracket 1 (2 with generator) (includes 49b-49c)
49b 273-9720 Nut 5/16 2 (4 with generator)
49c 252-1915 Bolt 5/16 4
49d 999-0024 Washer 5/16 flat stainless steel 2 (4 with generator)
51a 252-1916 Bolt 3/8 x 3 1/2 1 (2 with generator) (includes 51b-51c)
51b 999-0959 Nut 3/8-16 hex 4
51c 999-0120 Washer 3/8 SAE flat 2 (4 with generator)
52a 252-1917 Belt guard tab 3 (4 with generator) (includes 52b)
52b 252-1154 Screw 1/4 inch x 34 inch hex head 6 (7 with generator)
53 252-1629 Cage nut 10 (11 with generator)
54a 999-0550 Bolt 3/8-16 x 2 hex head stainless steel 4 (includes 54c-54f)
54b 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 4
54c 999-0120 Washer 3/8 SAE flat 9
54d 252-1158 Nut 3/8' inch ESNA 4
54e 273-9720 Nut 5/16 4
54f 999-0024 Washer 5/16 flat stainless steel 9
55a 252-1918 Generator 1 (includes 55b)
55b 352-1029 Molded cord 1
56 252-1162 Sub-frame weldment 1
68 252-1177 Nut 3/8 inch Flange whiz lock 4
85 252-1220 Flow contol w/metering valve 1
77a 352-1030 Burner assembly 1 (includes 77b-77c)
77b 252-1923 16/4 cord (sold by the foot) 3.66 feet
77c 252-1181 Strain relief, 1/2 inch 1
78 252-1739 90 degree hosebarb 2
79 252-0264 Elbow 1
81 252-1713 90 degree elbow 1
82 252-1925 Street elbow 1
83 252-1188 Ro-clip clamp 1/2 inch 1
84 252-1727 Push on hose 2 feet
86 252-1727 Push on hose 2
87 252-1894 Push on swivel 1
88 252-1751 Push on swivel 1
89 252-1729 Nipple 1
90 225-0424 Flow switch 1
91 273-9720 Nut 5/16 6
93 252-1158 Nut 3/8' inch ESNA 2
94 352-1031 Hose barb 1
95 352-1032 Rupture disk spacer 1
99 352-1033 1/4 inch adapter 1
100 252-1192 Male elbow 3/4 inch x 1/2 inch 1
104 252-1931 Bolt 3/8 x 2 1/2 zinc plated 2
105 999-0120 Washer 3/8 SAE flat 2
106 252-1647 Screw 1/4 x 1/2 whiz loc 2
107 252-1932 Thermostat 1
108 999-0448 Screw 10-24 x 1/4 cup point socket set alloy plain finish 1
109 252-1934 Nipple 1
110 252-1623 3/8 inch street elbow 1
111 252-1935 Plug 1
112 352-1034 Adapter (Honda) 1
113 352-1003 Galvanized nipple 1/2 inch x 4 inch 1
114 252-1636 Brass adapter 1
115 252-1701 Hot warning decal 1
116 352-1035 1/4 inch nipple 1
117 352-1036 Screw pan head 1

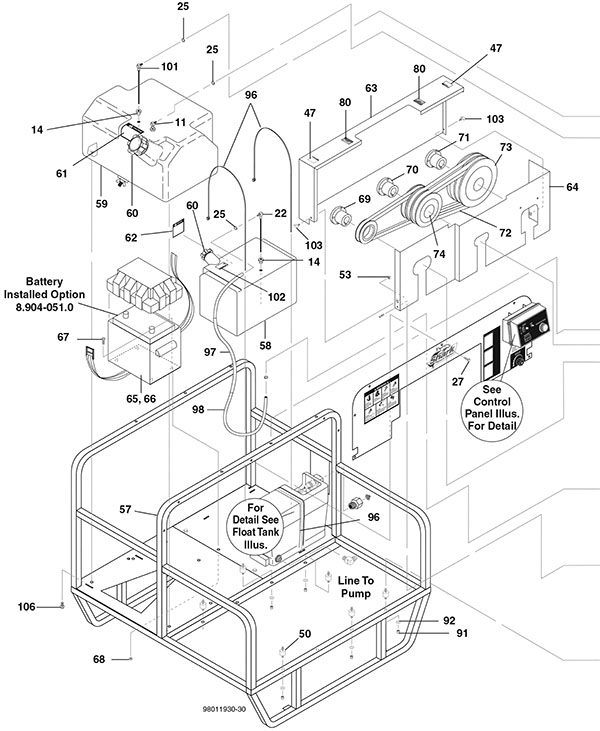

Frame Assembly - 252-1138
RefNbr Part Number Description Req Notes
11 252-1099 Zinc elbow 1
14 252-1102 Rubber bushing 3
22 252-1845 Plastic dip tube 1
25 252-1109 Hose clamp 4
27 252-1821 Screw #14 x 1 tek 11
47 252-1142 Belt guard label 1 (qty 2 for long)
50 252-1847 Rubber mount 6
53 252-1629 Cage nut 10 (qty 11 with generator)
57 252-1848 Frame weldment 1
58 252-1165 6 gallon burner diesel tank 1
59 352-1024 8 gallon fuel tank 1
60 252-1544 Fuel cap 2
61 352-1025 Diesel decal 1
62 252-1168 Unleaded caution label 1
63 252-1169 Long belt guard weldment 1
64 252-1172 Long face plate w/black weldment 1
65 252-1174 Battery box 1
66 252-1741 Battery box plate 1
67 252-1176 Screw 3/8 inch x 3/4 inch HH NC 4
68 252-1177 Nut 3/8 inch Flange whiz lock 4
69 252-1178 Bushing, H x 5/8 inch 1
70a 252-1859 20HP engine 1 (with generator)
70b 252-2092 Bushing 1 (without generator)
71 252-1179 Pump bushing, H x 24mm 1 1
72 225-0465 BX44 belt 1
73 252-1864 Pulley 1 (without generator)
74a 252-1861 Pulley 1 (with generator)
74b 252-1870 Pulley 1 (without generator)
80 252-1701 Hot warning decal 2 (qty 1 short belt guard)
91 273-9720 Nut 5/16 6
92 999-0024 Washer 5/16 flat stainless steel 12
96 252-1823 48 inch cable 2
97 252-1871 Insulation 30 inches
98 252-1727 Push on hose 1
101 252-1210 Dip tube, 10 3/4 inch 1
102 252-1211 Cool engine danger label 1
103 252-1873 Screw 1/4 x 1/2 thumb 4
106 252-1647 Screw 1/4 x 1/2 whiz loc 2

Control Panel Assembly - 252-1139
RefNbr Part Number Description Req Notes
1 252-1796 Rear control panel box 1
2 252-1797 Front control panel box (OBSOLETE) 1
3a 225-0451 Thermostat 1 (includes 3b)
3b 252-1139 Corrugated 1/4 inch conduit 36 inches
4 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 4
5 252-1799 120V control panel decal 1
6 252-1800 120V indicator light (green) 1
7 252-1644 Hour meter 1
8 252-1199 Curvette switch (OBSOLETE) 1
10 225-0459 24V relay 1
11 252-1223 Bridge rectifier 1
12a 252-1803 Control panel weldment (black) 1 (includes 12b-12c)
12b 252-1227 Screw 10-32 x 1 1/4 inch ground post 1
12c 213-0096 1 1/4 inch snap bushing 1
13 252-1229 Operating instructions decal 1
14 273-9436 Grommet 4
15 252-0094 Cleaning solution decal 1
16 252-1805 Shark decal 1
17 252-1806 Warning decal 1
18 213-0093 Clear lexan label 1
19 252-1246 Outdoor label 1
20 252-1200 Nut 4
21 225-0460 Metering valve 1
22 252-1810 Metering valve decal 1
23 252-1811 Braided vinyl hose 1/4 x 1/2 inch 24 inches
24 252-1812 Hose clamp 3
25 252-1251 Clear vinyl hose 6 feet
26 252-1813 Brass strainer 1
28 252-1814 Screw M4 x 10mm 4
29 N/A Not available 1 (see Hose and Spray Gun Assembly)
30 252-1222 Nut 10/32 keps 2
31 252-1662 Thermostat dial 1
32 252-1660 Thermostat mounting plate 1
33 252-1661 Screw M4 x 6mm 2
34 252-1140 Nut 1/4 flange zinc 4
35 252-0114 Screw 10/32 inch x 1/2 inch 1
36 252-1654 Screw 10-32 x 3/4 1
N/S 252-1659 Ground decal 1

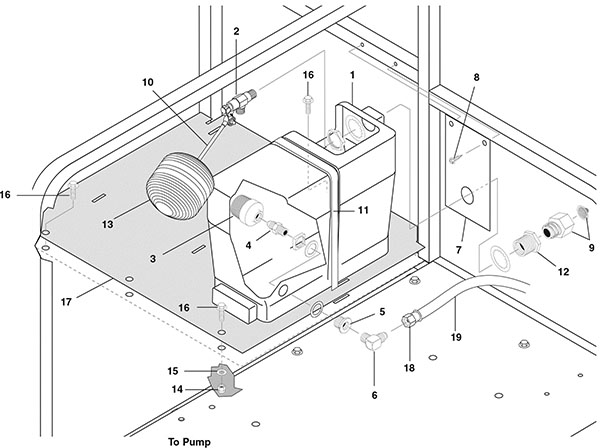

Float Tank Assembly - 252-1140
RefNbr Part Number Description Req Notes
1 252-1816 Float tank 1
2 252-1817 Float valve 1
3 252-1522 Float tank strainer with mesh filter 1
4 252-1257 Nipple 1/2 inch JIC x 1/2 inch MPT 1
5 352-1037 1/2 inch bulkhead 1
6 252-1192 Male elbow 3/4 inch x 1/2 inch 1
7 252-1820 Support plate 1
8 252-1821 Screw #14 x 1 tek 2
9 252-1260 Swivel 1/2 inch MP x 3/4 inch GHF w/strainer 1
10 252-1822 Float stem 1
11 252-1823 48 inch cable 1
12 252-1262 Connector anchor 1/2 inch 1
13 252-1263 Black plastic float ball 1
14 252-0109 Nut 1/4 inch ESNA 3
15 999-0123 Washer 1/4 SAE flat zinc plated 3
16 252-1154 Screw 1/4 inch x 34 inch hex head 3
17 252-1826 Plate 1
18 252-1593 Female swivel 1
19 252-1597 Push on hose (sold by the inch) 1

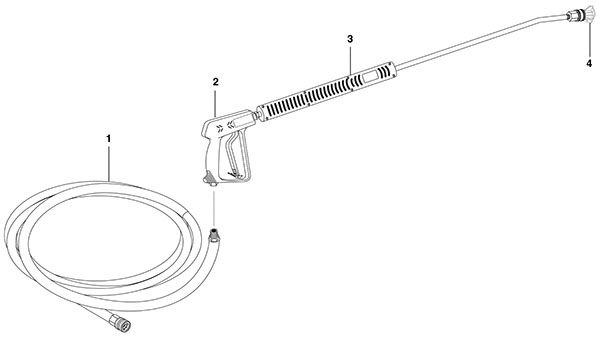

Hose and Spray Gun Assembly - 252-1141
RefNbr Part Number Description Req Notes
1 252-1356 50 foot wire reinforced flex hose 1
2 252-1676 Spray gun 1
3 252-1075 Lance 1
4a 252-1836 Nozzle (0005) (red) 1
4b 252-1232 Nozzle (1505) (yellow) 1
4c 252-1838 Nozzle (2505) (green) 1
4d 252-1839 Nozzle (4005) (white) 1

- Commonly Asked For Parts - 252-9983
RefNbr Part Number Description Req Notes
01 177-0496 Fuel filter
02 177-0521 Combination switch assembly for GX630
03 177-0532 Replacement key
04 252-9148 120V ignitor
