Parts List Complete for SHARK SSG 503027E

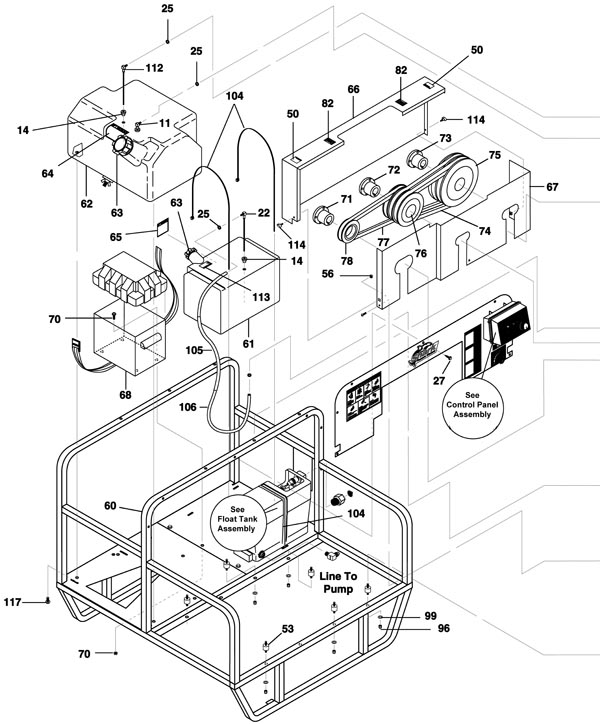

Frame Assembly - 252-1132
RefNbr Part Number Description Req Notes
11 252-1099 Zinc elbow 1
14 252-1102 Rubber bushing 3
22 252-1845 Plastic dip tube 1
25 252-1109 Hose clamp 8
27 252-1821 Screw #14 x 1 tek 11
50 252-1142 Belt guard label 2
53 252-1847 Rubber mount 6
56a 252-1629 Cage nut 10 (without generator)
56b 252-1629 Cage nut 11 (with generator)
60 252-1848 Frame weldment 1
61 252-1165 6 gallon burner diesel tank 1 (engine) (all models except for 600.0)
62 252-1849 9 gallon fuel tank 1 (burner)
63 252-1544 Fuel cap 2
64 252-1167 Diesel caution label 1
65 252-1168 Unleaded caution label 1
66a 252-1169 Long belt guard weldment 1 (602.0, 604.0 and 605.0 models with generator)
66b 252-1852 Short belt guard weldment 1 (601.0, 603.0 and 605.0 models)
66c 252-1853 Short belt guard weldment without relief 1 (600.0 model)
67a 252-1172 Long face plate w/black weldment 1 (602.0, 604.0 and 605.0 models without generator)
67b 252-1855 Short face plate weldment 1 (600.0, 601.0, 603.0 and 605.0)
68a 252-1174 Battery box 1
68b 252-1741 Battery box plate 1
68c 162-0114 12V 50Ah AGM battery 1
70a 252-1176 Screw 3/8 inch x 3/4 inch HH NC 4
70b 252-1177 Nut 3/8 inch Flange whiz lock 4
71 252-1178 Bushing, H x 5/8 inch 1 (602.0, 604.0 and 605.0 models with generator)
72 252-1858 Bushing 1 (engine)
73 252-1179 Pump bushing, H x 24mm 1 1 (pump) (all models)
74a 225-0465 BX44 belt 2 (engine) (600.0, 603.0, 604.0, 605.0 and 606.0 models)
75a 252-1861 Pulley 1 (pump) (600.0, 603.0 and 604.0 models)
75b 213-0133 Pump pulley 1 (pump) (601.0, 602.0, 605.0 and 606.0 models)
76a 252-1863 Pulley 1 (engine) (600.0 and 601.0 models)
76b 252-1864 Pulley 1 (engine) (602.0 and 604.0 models)
76c 252-1865 Pulley 1 (engine) (603.0 model)
76d 252-1866 Pulley 1 (engine) (605.0 model)
76e 252-1867 Pulley 1 (engine) (606.0 model)
77a 991-0034 BX32 Belt 1 (generator) (602.0 model)
77b 991-0035 BX34 Belt 1 (generator) (604.0 and 606.0 models)
78a 252-1870 Pulley 1 (generator) (602.0 and 604.0 models)
78b 252-1874 Pulley 1 (generator) (606.0 model)
82a 252-1701 Hot warning decal 2 (long belt guard)
82b 252-1701 Hot warning decal 1 (short belt guard)
96 273-9720 Nut 5/16 12
99 999-0024 Washer 5/16 flat stainless steel 2
104 252-1823 48 inch cable 2
105 252-1871 Insulation 30 in
106 252-1727 Push on hose 1
112 252-1210 Dip tube, 10 3/4 inch 1
113 252-1211 Cool engine danger label 1
114 252-1873 Screw 1/4 x 1/2 thumb 4
117 252-1647 Screw 1/4 x 1/2 whiz loc 4

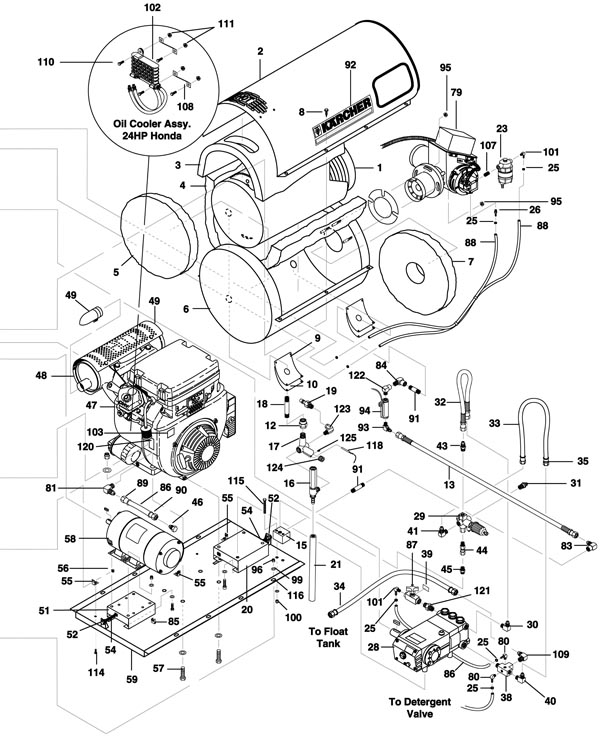

Engine Assembly - 252-1133
RefNbr Part Number Description Req Notes
1 252-1528 Rodless coil 1
2a 252-1875 Top wrap 1
2b 252-1089 Trim 6 ft
3 252-1877 Insulation 28 x 24 inch 1
4 252-1878 Insulation 24 x 57 inch 1
5 252-1879 Burner head insulation without hole 1
6a 252-1880 Bottom wrap weldment 1
6b 252-1881 Bolt 3/8-16 x 1 3/4 2
7 252-1882 Burner head insulation with hole 1
8 999-1531 Screw 3/8-16 x 1 hex washer head zinc plated 8
9 252-1883 Burner plate gasket 2
10a 252-1884 Insulation retaining plate 2
10b 213-0071 Screw #10 x 1/2 hex head stainless steel 8
12 252-1886 Pipe cap 1
13 252-1529 2 wire pressure hose 3/8 x 48 inch 1
15 252-1887 Unloader block 1
16 225-0446 Safety relief valve 1
17 252-1705 Discharge manifold 1
18 252-1888 Pipe nipple 1
19 252-1507 3/8 inch coupler with male threads 1 (from machine to hose)
20 252-1889 Pump rail 1
21 252-1706 Conduit hose 2 ft
23 225-0450 Fuel filter 1
26 252-1890 Hosebarb 1
28a 252-1891 Pump 1 (600.0 model)
28b 252-1081 Pump 1 (601.0, 602.0, 603.0, 604.0, 605.0 and 606.0 models)
28c 273-7784 Pump 1 Model 1.110-083.0
29 225-0456 Unloader 1
30 252-0264 Elbow 1
31 252-1113 Pump protector 1
32 252-1893 16 inch pressure hose 1
33 252-1597 Push on hose (sold by the inch) 17 in Order 2 ft
34 252-1597 Push on hose (sold by the inch) 2 ft
35a 252-1894 Push on swivel 4
35b 252-1895 Snubbing washer 3 (hardware for swivel)
35c 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 3 (hardware for swivel)
35d 999-0034 Washer 3/8 split lock plain finish 3 (hardware for swivel)
38 252-1896 Street tee 1
39 252-1759 Open for steam decal 1
40 252-1599 Elbow 1/2 x 1/2 inch 1
41 252-1897 90 degree elbow 1
43 252-1637 Nipple 1/2 x 3/8 inch 1
44 252-1459 Female swivel 1
45 252-1898 Pipe nipple 1
46a 252-1129 1/2 inch flare plug 1 (601.0, 602.0, 603.0, 604.0, 605.0 and 606.0 models)
46b 252-1752 Plug 1 (600.0 model)
47a 252-1899 13HP engine 1 (600.0 model)
47b 252-1900 16HP engine 1 (601.0 and 602.0 models)
47c 252-1859 20HP engine 1 (603.0 and 604.0 models)
47d 252-1901 24HP engine 1 (605.0 and 606.0 models)
47d 252-0298 ENGINE, HONDA GX630R, NO THROTTLE 1 Model 1.103-828.0
48a 252-1902 Muffler 1 (Honda 20HP and 24HP)
48b 252-1903 Bolt M8 x 20mm flange 2 (Honda 20HP and 24HP)
48c 252-1904 Muffler 1 (Vanguard)
48d 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 4 (Vanguard)
49a 252-1906 Heat shield 1 (Honda 20HP and 24HP)
49b 252-1907 Screw M6 x 20mm button head 4 (Honda 20HP and 24HP)
49c 252-1908 Exhaust deflector 1 (Honda 20HP and 24HP)
49d 252-1909 Screw #10 tek 1 (Honda 20HP and 24HP)
49e 252-1647 Screw 1/4 x 1/2 whiz loc 5 (Vanguard)
49f 252-1936 Muffler guard 1 (Vanguard)
49g 252-1910 Brace 2 (Vanguard)
49h 252-1911 Heat shield 1 (Vanguard)
49i 252-1140 Nut 1/4 flange zinc 3 (Vanguard)
49j 252-1629 Cage nut 2 (Vanguard)
49k 252-0004 Key shaft 1 (both engines)
51a 252-1913 Pump rail 1 (with generator)
51b 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 7 (with generator)
51c 252-1895 Snubbing washer 3 (with generator)
51d 999-0034 Washer 3/8 split lock plain finish 3 (with generator)
52a 252-1914 Belt tension bracket 1 (without generator)
52b 252-1914 Belt tension bracket 2 (with generator)
52c 252-1915 Bolt 5/16 1 (after 2001)
52d 273-9720 Nut 5/16 4 (with generator)
52e 252-1915 Bolt 5/16 2 (without generator)
52f 252-1915 Bolt 5/16 4 (with generator)
52g 999-0024 Washer 5/16 flat stainless steel 2 (without generator)
52h 999-0024 Washer 5/16 flat stainless steel 4 (with generator)
54a 252-1916 Bolt 3/8 x 3 1/2 1 (without generator)
54b 252-1916 Bolt 3/8 x 3 1/2 2 (with generator)
54c 999-0959 Nut 3/8-16 hex 2 (without generator)
54d 999-0959 Nut 3/8-16 hex 4 (with generator)
54e 999-0120 Washer 3/8 SAE flat 2 (without generator)
54f 999-0120 Washer 3/8 SAE flat 4 (with generator)
55a 252-1917 Belt guard tab 3 (without generator)
55b 252-1917 Belt guard tab 4 (with generator)
55c 252-1154 Screw 1/4 inch x 34 inch hex head 6 (without generator)
55d 252-1154 Screw 1/4 inch x 34 inch hex head 7 (with generator)
56a 252-1629 Cage nut 10 (without generator)
56b 252-1629 Cage nut 11 (with generator)
57a 999-0550 Bolt 3/8-16 x 2 hex head stainless steel 4 (Honda engine)
57b 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 4 (Vanguard engine)
57c 999-0120 Washer 3/8 SAE flat 9 (Honda engine)
57d 252-1158 Nut 3/8' inch ESNA 4 (Honda engine)
57e 273-9720 Nut 5/16 4 (Vanguard engine)
57f 999-0024 Washer 5/16 flat stainless steel 9 (Vanguard engine)
58a 252-1918 Generator 1 (E/G models)
58b 352-1029 Molded cord 1 (for generator)
59 252-1162 Sub-frame weldment 1
79a 252-1921 Burner assembly 1 (600.0, 601.0, 603.0 and 605.0 models)
79b 252-1922 Burner assembly 1 (602.0, 604.0 and 606.0 models)
79c 252-1923 16/4 cord (sold by the foot) 4 ft (602.0, 604.0 and 606.0 models)
79d 252-1181 Strain relief, 1/2 inch 1 (602.0, 604.0 and 606.0 models)
80 252-1739 90 degree hosebarb 2
81a 252-1924 Elbow 1 (603.0, 604.0, 605.0 and 606.0 models)
81b 252-0264 Elbow 1 (601.0 and 602.0 models)
81c 252-0079 Oil drain plug 1
83 252-1713 90 degree elbow 1
84 252-1925 Street elbow 1
85 252-1188 Ro-clip clamp 1/2 inch 1 (all models except 600.0)
86 252-1727 Push on hose 2 ft
87 252-1220 Flow contol w/metering valve 1
88 252-1727 Push on hose 10 ft
89 252-1894 Push on swivel 1 (all models except 600.0)
90 252-1751 Push on swivel 1 (600.0 model)
91 252-1729 Nipple 2
92 252-1927 Stripe decal 1
93 252-0264 Elbow 1
94 225-0424 Flow switch 1
95 252-1177 Nut 3/8 inch Flange whiz lock 3
96 273-9720 Nut 5/16 12
99 999-0024 Washer 5/16 flat stainless steel 12
100 252-1158 Nut 3/8' inch ESNA 2
101 252-1768 Elbow 1
102 252-1928 Bolt M6 x 12mm socket head 2 (605.0 and 606.0 models)
103 252-1769 Decal 1
108 252-1206 24 HP Honda bracket oil cooler 2 (606.0 model)
109 252-1192 Male elbow 3/4 inch x 1/2 inch 1
110 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2 (606.0 model)
111 252-1140 Nut 1/4 flange zinc 2 (606.0 model)
114 252-1873 Screw 1/4 x 1/2 thumb 4
115 252-1931 Bolt 3/8 x 2 1/2 zinc plated 2
116 999-0120 Washer 3/8 SAE flat 2
118 252-1932 Thermostat 1
120 252-1933 EPA decal 1
121 252-1934 Nipple 1
122 252-1623 3/8 inch street elbow 1
123 252-1623 3/8 inch street elbow 1
124 252-1935 Plug 1
125 999-0448 Screw 10-24 x 1/4 cup point socket set alloy plain finish 1
N/S 177-0521 Combination switch assembly for GX630 1

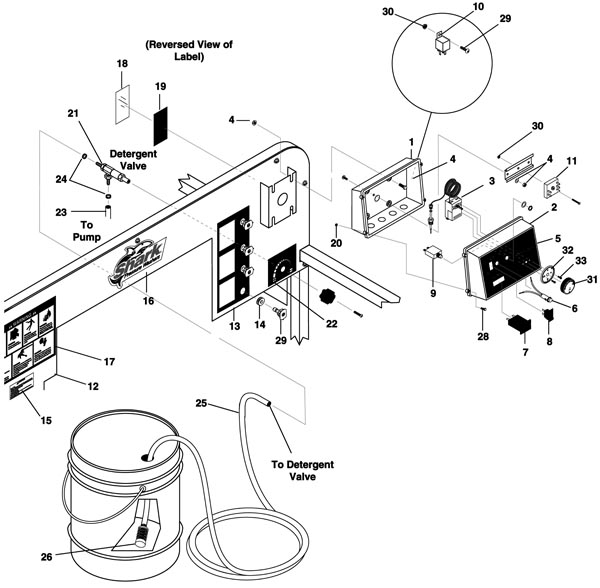

Control Panel Assembly - 252-1134
RefNbr Part Number Description Req Notes
1 252-1796 Rear control panel box 1
2 252-1797 Front control panel box (OBSOLETE) 1
3a 225-0451 Thermostat 1
3b 252-1139 Corrugated 1/4 inch conduit 4 ft
4a 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 4
4b 252-1140 Nut 1/4 flange zinc 4
5a 252-1798 12V control panel decal 1 (600.0, 601.0, 603.0 and 605.0 models)
5b 252-1799 120V control panel decal 1 (602.0, 604.0 and 606.0 models)
6a 252-1191 Green 12V indicator light (OBSOLETE) 1 (600.0, 601.0, 603.0 and 605.0 models)
6b 252-1800 120V indicator light (green) 1 (602.0, 604.0 and 606.0 models)
7a 252-1644 Hour meter 1 (600.0, 601.0, 603.0 and 605.0 models)
7b 252-1644 Hour meter 1 (602.0, 604.0 and 606.0 models)
8 252-1199 Curvette switch (OBSOLETE) 1
10a 225-0459 24V relay 1 (601.0, 603.0 and 605.0 models)
10b 225-0453 12V relay 1 (600.0 model)
11a 252-1223 Bridge rectifier 1 (600.0, 601.0, 603.0 and 605.0 models)
11b 252-0114 Screw 10/32 inch x 1/2 inch 1 (600.0, 601.0, 603.0 and 605.0 models)
11c 252-1224 Din rail (sold by the inch) 1 (600.0, 601.0, 603.0 and 605.0 models)
12 252-1803 Control panel weldment (black) 1
13 252-1229 Operating instructions decal 1
14 273-9436 Grommet 4
15 252-0094 Cleaning solution decal 1
16 252-1805 Shark decal 1
17 252-1806 Warning decal 1
18 213-0093 Clear lexan label 1
19 252-1246 Outdoor label 1
20 252-1200 Nut 4
21 225-0460 Metering valve 1
22 252-1810 Metering valve decal 1
23 252-1811 Braided vinyl hose 1/4 x 1/2 inch 2 ft
24 252-1812 Hose clamp 3
25 252-1251 Clear vinyl hose 6 ft
26 252-1813 Brass strainer 1
28 252-1814 Screw M4 x 10mm 4
29 252-0114 Screw 10/32 inch x 1/2 inch 1
30 252-1222 Nut 10/32 keps 2
31 252-1662 Thermostat dial 1
32 252-1660 Thermostat mounting plate 1
33 252-1661 Screw M4 x 6mm 2
N/S 252-1227 Screw 10-32 x 1 1/4 inch ground post 1
N/S 213-0096 1 1/4 inch snap bushing 1
N/S 252-1659 Ground decal 1

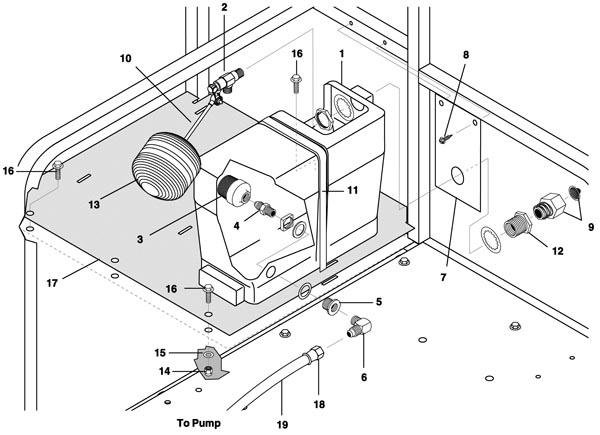

Float Tank Assembly - 252-1135
RefNbr Part Number Description Req Notes
1 252-1816 Float tank 1
2 252-1817 Float valve 1
3 252-1522 Float tank strainer with mesh filter 1
4 252-1257 Nipple 1/2 inch JIC x 1/2 inch MPT 1
5 352-1037 1/2 inch bulkhead 1
6 252-1192 Male elbow 3/4 inch x 1/2 inch 1
7 252-1820 Support plate 1
8 252-1821 Screw #14 x 1 tek 2
9 252-1260 Swivel 1/2 inch MP x 3/4 inch GHF w/strainer 1
10 252-1822 Float stem 1
11 252-1823 48 inch cable 1
12 252-1262 Connector anchor 1/2 inch 1
13 252-1263 Black plastic float ball 1
14 252-0109 Nut 1/4 inch ESNA 3
15 999-0123 Washer 1/4 SAE flat zinc plated 3
16 252-1154 Screw 1/4 inch x 34 inch hex head 3
17 252-1826 Plate 1
18 252-1593 Female swivel 1
19 252-1597 Push on hose (sold by the inch) 1 ft

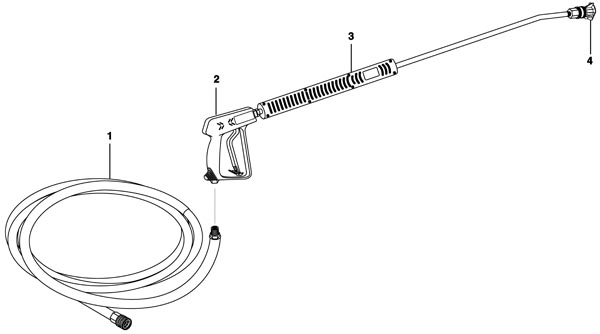

Hose and Spray Gun Assembly - 252-1136
RefNbr Part Number Description Req Notes
1a 252-1356 50 foot wire reinforced flex hose 1
1b 991-4033 100 foot non marking double wire braid high pressure hose 1
1c 252-2004 150 foot pressure hose 1
2 252-1676 Spray gun 1
3a 252-1075 Lance 1
3b 252-2000 60 inch lance 1
3c 252-2001 79 inch lance 1
3d 991-8186 Dual lance wand 1 With a handle
4a 252-1828 Nozzle (0004.5) (red) 1 (600.0 model)
4b 252-1829 Nozzle (1504.5) (yellow) 1 (600.0 model)
4c 252-1830 Nozzle (2504.5) (green) 1 (600.0 model)
4d 252-1831 Nozzle (4004.5) (white) 1 (600.0 model)
4e 991-8190 0 degree nozzle (red) (0005.5) 1 (601.0 and 602.0 models)
4f 991-8191 15 degree nozzle (yellow) (1505.5) 1 (601.0 and 602.0 models)
4g 991-8192 25 degree nozzle (green) (2505.5) 1 (601.0 and 602.0 models)
4h 991-8193 40 degree nozzle (white) (4005.5) 1 (601.0 and 602.0 models)
4i 252-1836 Nozzle (0005) (red) 1 (603.0 and 604.0 models)
4j 252-1232 Nozzle (1505) (yellow) 1 (603.0 and 604.0 models)
4k 252-1838 Nozzle (2505) (green) 1 (603.0 and 604.0 models)
4l 252-1839 Nozzle (4005) (white) 1 (603.0 and 604.0 models)
4m 252-1239 Red nozzle 1 (605.0 and 606.0 models)
4n 252-1841 Nozzle (1506) (yellow) 1 (605.0 and 606.0 models)
4o 252-1842 Nozzle (2506) (green) 1 (605.0 and 606.0 models)
4p 252-1843 Nozzle (4006) (white) 1 (605.0 and 606.0 models)
N/S 252-1674 O-ring 1
N/S 252-2096 3/8 inch Gun swivel stainless steel 1
N/S 252-2097 3/8 inch brass swivel 1
Webpage Problem Reporting
