Parts List Complete for SERVICEMAS SWATHOVAC 3

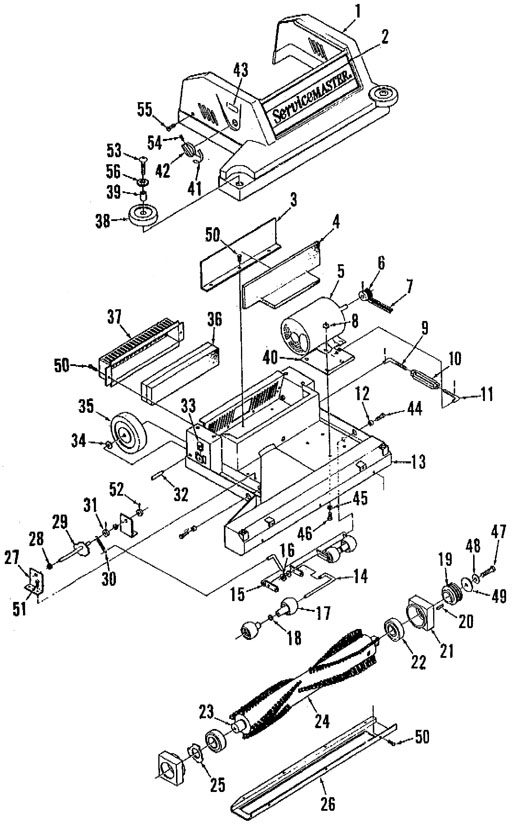

Base Assembly - 272-1132
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Shroud)
2 N/A Not available 1 (Decal)
3 272-1704 Plate (OBSOLETE) 1
4 272-1705 Foam (OBSOLETE) 1
5 272-1693 Brush motor (OBSOLETE) 1
6 172-8202 Pulley (OBSOLETE) 1
7 172-6254 Belt (OBSOLETE) 1
8 999-0069 Nut 5/16-18 hex 4
9 272-1707 Rod (OBSOLETE) 1
10 172-2296 Turn buckle 1
11 272-1708 Rod (OBSOLETE) 1
12 172-0400 Bushing 2
13 N/A Not available 1 (Bumper)
14 272-1710 Formed pin (OBSOLETE) 2
15 272-1711 Bracket weldment (OBSOLETE) 1
16 172-6058 Nut stud (OBSOLETE) 2
17 272-1712 Roller (OBSOLETE) 4
18 172-4512 Washer 17/64 x 1/2 bowed 2
19 272-1713 Sheave (OBSOLETE) 1
20 181-0339 Square keyway 1
21 172-6257 Bearing block 2
22 172-0249 Bottom bearing 2
23 272-1715 Shaft 1
24 172-6253 Brush (OBSOLETE) 1
25 272-1717 Spring load (OBSOLETE) 1
26 272-1718 Vacuum shoe 1
27 272-1719 Bracket (OBSOLETE) 2
28 172-4031 Nylon bushing 2
29 272-1720 Cam weldment (OBSOLETE) 1
30 272-1721 Spring (OBSOLETE) 1
31 172-0071 Collar 2
33 172-4074 Spring nut 2
34 172-4550 Washer 33/64 x 1/64 bowed 2
35 272-1722 6 inch wheel (OBSOLETE) 2
36 272-1723 Filter 2
37 272-1724 Grill (OBSOLETE) 1
38 172-0274 Guide wheel 2
39 172-0044 Bushing (OBSOLETE) 2
40 N/A Not available 1 (Motor mounting base)
41 N/A Not available 1 (Adjusting knob decal)
42 172-6088 Knob (OBSOLETE) 1
43 172-8285 Brush decal (OBSOLETE) 1
44 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated 2
45 172-2884 Washer 5/16 lock 4
46 172-2885 Screw 5/16-18 X 1/2 4
47 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated 1
48 172-2884 Washer 5/16 lock 1
49 999-0024 Washer 5/16 flat stainless steel 1
50 N/A Not available 12 (Screw)
51 172-2886 Screw 3/8-16 X 5/8 4
52 172-2887 Screw 10-24 X 3/16 2
53 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated 2
54 172-2888 Screw 8-32 X 5/16 1
55 N/A Not available 4 (Screw)
56 999-0016 Washer 1/4 flat plain finish 2
N/S 272-1716 Brush assembly (OBSOLETE) 1 (includes 19 - 25 and 47 - 49)

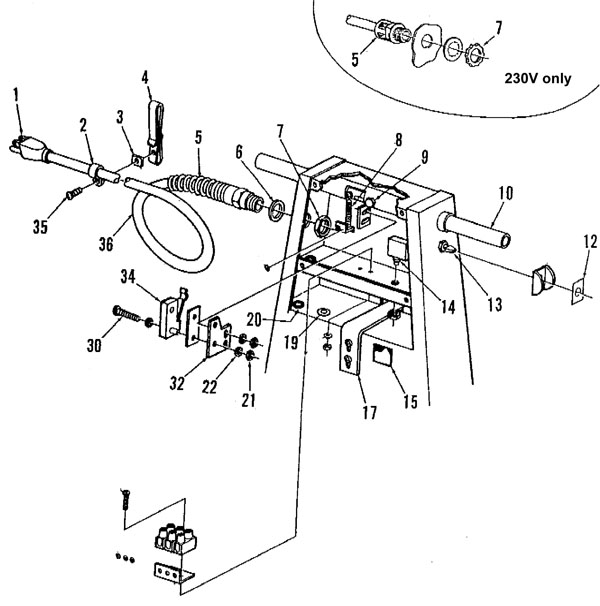

Rear Handle Assembly - 272-1133
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Plug connector)
2 181-0978 Cable clamp 1
3 N/A Not available 1 (Nut 6-32 spring)
4 N/A Not available 1 (Belt clip)
5a N/A Not available 1 Strain relief
5b 174-3053 Strain relief 1
6 172-2856 Washer (OBSOLETE) 1
7a 172-2857 Nut (OBSOLETE) 1
7b N/A Not available 1
8 172-8197 Extension spring 1
9 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 1
10 172-2859 Tube (OBSOLETE) 1
12 N/A Not available 1 (Wear items decal)
13 272-1687 Main switch 1
14 272-1692 Circuit breaker 1 (brush)
15 N/A Not available 1 (Reset decal)
17 172-2863 Latch (OBSOLETE) 1
19 172-2847 Grommet (OBSOLETE) 1
20 172-2830 Bushing (OBSOLETE) 6
21 999-0195 Nut 6-32 hex plain 2
22 N/A Not available 2 (Washer)
30 N/A Not available 2 (Screw)
32 172-2870 Plate 1
34 172-0270 Snap switch (OBSOLETE) 1
35 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 5
36 172-6258 14/3 power cord 75 foot 1

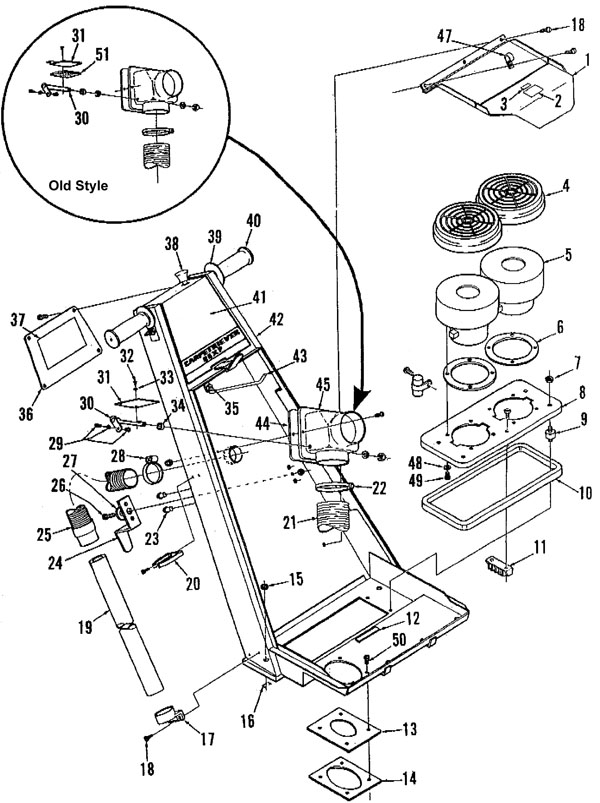

Front Handle Assembly - 272-1134
RefNbr Part Number Description Req Notes
1 172-2822 Tray weldment (OBSOLETE) 1
2 N/A Not available 1 (Filter decal)
3 N/A Not available 1 (Caution decal)
4 991-5119 Vacuum motor filter 2
5a 172-6251 120V vacuum motor 2
5b 172-6012 Carbon brush (pkg of 2) 4
6 172-0351 Vacuum motor gasket 2
7 999-0190 Nut 1/4-20 hex plain finish 8
8 172-2826 Mounting plate (OBSOLETE) 1
9 172-2827 Mount 4
10 N/A Not available 1
11 272-1699 Terminal block (OBSOLETE) 1
12 172-0032 Gasket 1/16 x 1/2 x 120 (OBSOLETE) 3
13 172-2825 Gasket (OBSOLETE) 1
14 172-2829 Nut plate (OBSOLETE) 1
15 172-2830 Bushing (OBSOLETE) 6
16 172-6016 Strain relief (OBSOLETE) 4
17 172-2831 Wand holder 1
18 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 13
19 172-2833 Wand (OBSOLETE) 1
20 172-2834 Clamp 1
21 172-2835 Hose 1
22 997-2009 Hose clamp 2
23 172-6044 Catch (OBSOLETE) 2
24 172-2832 Cord hook (OBSOLETE) 1
25 172-6035 Vacuum hose assembly (OBSOLETE) 1
26 999-0078 Screw 10-24 x 3/4 round head slotted zinc 1
27 172-2836 Bushing (OBSOLETE) 1
28 997-2000 Hose clamp 1
29 172-2837 Wire swivel 1
30a N/A Not available (Lever) (Old style - see 30b)
30b 172-2839 Lever weldment (new style) (OBSOLETE) 1 (new style)
31a N/A Not available (Plate) (Old style - see 31b)
31b 172-2841 Plate (new style) (OBSOLETE) 1
32 172-2889 Screw 6-32 X 3/16 2
33 N/A Not available 2 (Washer)
34 172-2631 Bushing 1
35 172-2845 Cable 6
36 172-2842 Cover (OBSOLETE) 1
37 N/A Not available 1 (115V wiring decal)
38 N/A Not available 1
39 N/A Not available 2 (rubber washer)
40 172-2849 Handle grip (OBSOLETE) 2
41 N/A Not available 1
42 N/A Not available 1
43 172-2852 Bag hook (OBSOLETE) 1
44 172-2853 Gasket (OBSOLETE) 1
45 172-2854 Housing (OBSOLETE) 1
47 172-0230 P-clamp 1
48 172-2891 Washer 10 shakeproof 14
49 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 8
50 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 4
51 172-2848 Gasket (OBSOLETE) 1
N/S 172-2846 Cable support bracket (OBSOLETE) 2
N/S 172-2847 Grommet (OBSOLETE) 2
N/S 172-0230 P-clamp 1

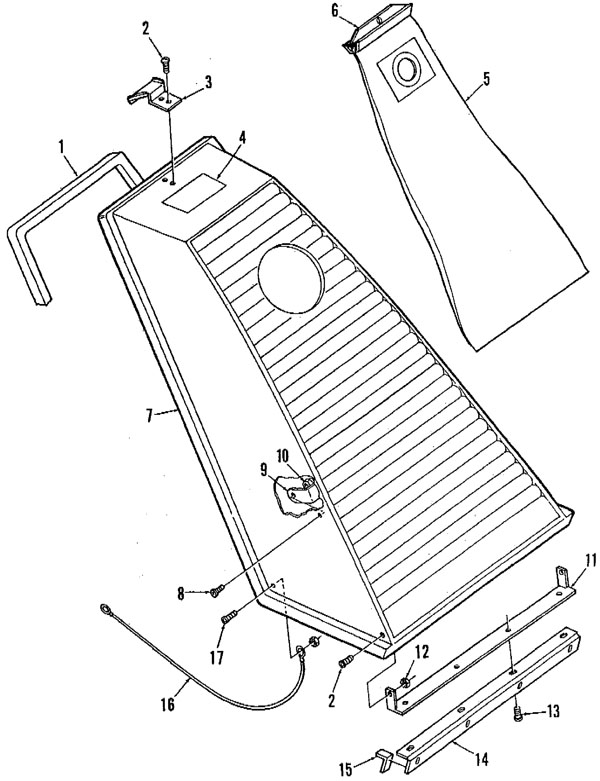

Shroud Assembly - 272-1135
RefNbr Part Number Description Req Notes
1 172-2872 7 foot gasket (OBSOLETE) 7
2 172-2893 Screw 6-32 x 5/16 4
3 172-2874 Latch (OBSOLETE) 1
4 N/A Not available 1 (Warning decal)
5a 172-2882 Cloth bag 1
5b 172-6255 Paper bags (pkg of 6) 1 (optional) (OEM)
5c 991-9032 Paper vacuum bags (pkg of 3) 1 (NON-OEM)
6 172-2883 Bag clip for cloth bag 1
7 N/A Not available 1 (shroud)
8 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
9 172-2878 Strap (OBSOLETE) 1
10 999-0062 Nut 10-24 hex 2
11 172-2879 Nut plate (OBSOLETE) 1
12 999-0195 Nut 6-32 hex plain 4
13 N/A Not available 4 (Screw)
14 N/A Not available 1 (Hinge)
15 172-2881 Gasket material 1/8 x 3/8 1
16 172-9013 12 inch wire rope 1
17 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated 2

- Frequently Replaced Parts - 999-5012
RefNbr Part Number Description Req Notes
1 172-6258 14/3 power cord 75 foot (OEM)
2 991-5005 14/3 replacement power cord 50 foot (yellow) (NON-OEM) (does not include strain relief)
3 N/A Not available Strain relief
4 172-8202 Pulley (OBSOLETE)
5 172-6254 Belt (OBSOLETE)
6 991-5119 Vacuum motor filter
7 172-6255 Paper bags (pkg of 6) (OEM)
8 991-9032 Paper vacuum bags (pkg of 3) (NON-OEM)
9 172-2882 Cloth bag
10 272-1722 6 inch wheel (OBSOLETE)
11 172-2849 Handle grip (OBSOLETE)
12 172-2874 Latch (OBSOLETE)
13 172-0249 Bottom bearing
14 172-6253 Brush (OBSOLETE)
