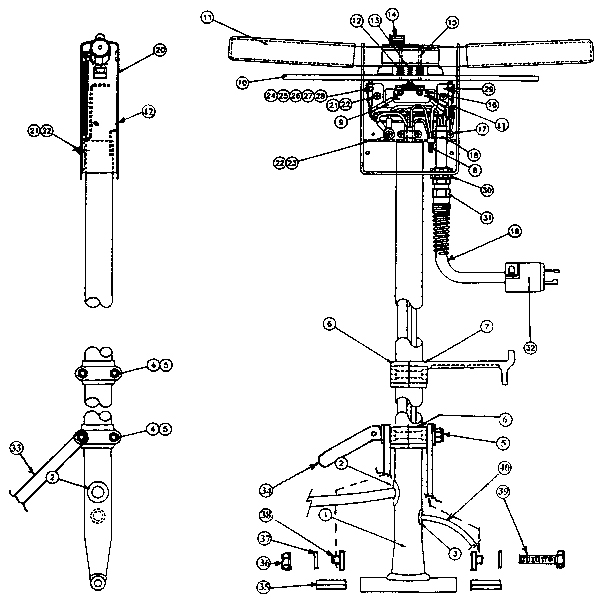

Handle Assembly - 163-0019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
163-0332 |
Handle weldment |
1 |
|
| 6 |
163-0156 |
Painted cord hook cap |
3 |
|
| 7 |
163-0141 |
Cord hook arm body |
1 |
|
| 9 |
163-0336 |
Insulation paper |
1 |
|
| 10 |
163-0155 |
Switch lever |
1 |
|
| 11 |
163-0066 |
Handle grip (black) (pkg of 2) |
2 |
|
| 14 |
163-0065 |
Safety switch kit |
1 |
|
| 16 |
163-0054 |
On/off switch kit |
1 |
|
| 18 |
163-0339 |
Cable clamp |
2 |
|
| 19a |
163-0744 |
Pigtail cord |
1 |
|
| 19b |
163-0117 |
14/3 extension cord with twist lock plug 50 foot |
1 |
|
| 20 |
163-0340 |
Switch box cover assembly |
1 |
|
| 21 |
163-0341 |
Lock washer |
2 |
|
| 24 |
163-0116 |
Microswitch |
2 |
|
| 25 |
163-0344 |
Solenoid switch insulation |
2 |
|
| 28 |
163-0145 |
Lock washer |
4 |
|
| 29 |
163-0142 |
Microswitch bracket |
1 |
|
| 31 |
163-0346 |
Strain relief |
1 |
|
| 32 |
992-1016 |
Male replacement twist lock plug |
1 |
|
| 33 |
163-0347 |
Handle support strut |
2 |
|
| 34 |
163-0077 |
Cam lock assembly |
1 |
|
| 40 |
163-0282 |
Electro valve interconnect cord |
1 |
|
| 41 |
163-0352 |
Jumper wire connector assembly |
1 |
|
| 42 |
163-0353 |
Warning decal |
1 |
|
|
|

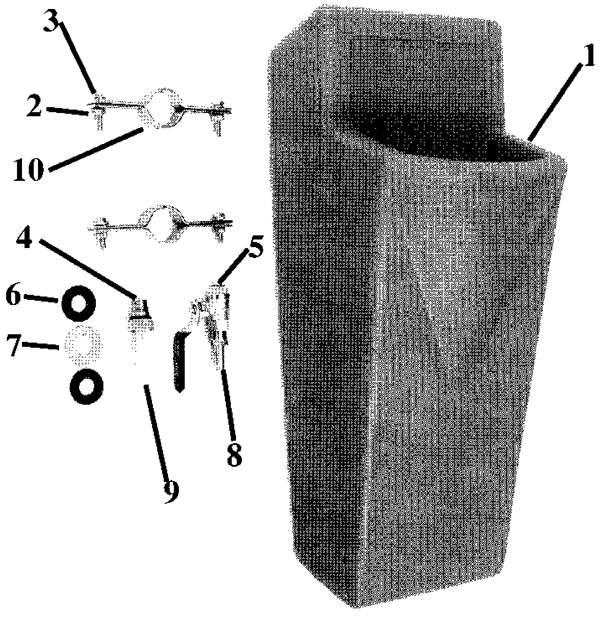

Solution Tank Assembly - 163-0020 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
163-0123 |
Solution tank assembly |
1 |
|
| 2 |
999-0609 |
Nut 1/4-20 hex stainless steel |
4 |
|
| 3 |
999-1260 |
Screw 1/4-20 x 1 1/2 hex cap stainless steel |
4 |
|
| 4 |
163-0130 |
Bulk head connector |
1 |
|
| 8 |
163-0133 |
Hose barb 3/8 x 3/8 inch |
1 |
|
| 9 |
163-0119 |
Filter screen |
1 |
|
| 10 |
163-0354 |
Curved tank bracket |
4 |
|
| N/S |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
2 |
|
| N/S |
999-0273 |
Screw 1/4-20 x 1/2 hex washer head thread rolling zinc |
2 |
|
|
|
- Commonly Asked For Parts - 163-9800 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
163-0229 |
Complete handle assembly (for aluminum base) |
|
|
| 03 |
163-0320 |
Drip cover |
|
(Motor housing) |
| 05 |
163-0090 |
20 inch bumper (black) |
|
|
| 06 |
163-0121 |
Solution hose |
|
|
| 07 |
163-0130 |
Bulk head connector |
|
|
| 09 |
996-1847 |
19 inch power pad/clean-grit scrubbing brush |
|
|
| 10 |
996-1851 |
Pad driver facing |
|
|
| 11 |
996-1852 |
18 inch nylon carpet scrubbing brush |
|
|
| 12 |
996-1852 |
18 inch nylon carpet scrubbing brush |
|
|
| 13 |
996-1853 |
Pad driver assembly (includes big mouth pad holder) |
|
|
| 14 |
996-1854 |
Union mix scrubbing brush |
|
|
| 15 |
996-0047 |
18 inch heavy grit stripping brush - 80 grit |
|
|
| 16 |
163-0234 |
Electro valve assembly |
|
|
| 17 |
163-0128 |
Electro valve |
|
|
| 18 |
163-0159 |
Start capacitor |
|
|
|
|
Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
- Pads - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
