- Commonly Asked For Parts - 163-9802 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
172-4444 |
Pin spring .375 x 1.50 (OBSOLETE) |
|
|
| 02 |
996-1850 |
20 inch splash guard |
|
|
| 04 |
996-1846 |
20 inch mighty-lok pad driver |
|
|
| 05 |
163-0054 |
On/off switch kit |
|
|
| 06 |
163-0234 |
Electro valve assembly |
|
|
| 07 |
163-0054 |
On/off switch kit |
|
|
| 08 |
172-0891 |
Cord hook body (OBSOLETE) |
|
|
| 09 |
172-0890 |
Cord hook cap (OBSOLETE) |
|
|
| 10 |
999-0834 |
Screw 3/8-16 x 2 1/4 hex head plain finish |
|
|
| 12 |
163-0360 |
Bracket with hardware |
|
Leeson motor |
| 13 |
163-0252 |
Chrome motor cover |
|
Leeson motor |
|
|
Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
Brushes - 172-3104 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
996-0712 |
20 inch polypropelene scrubbing brush |
1 |
|
| 2 |
996-0047 |
18 inch heavy grit stripping brush - 80 grit |
1 |
|
| 3 |
996-0020 |
18 inch medium grit scrubbing brush - 180 grit |
1 |
|
| 4 |
996-0377 |
18 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 5 |
172-4600 |
Plastic clutch plate for NP92 |
|
|
| 5 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
|
|
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|

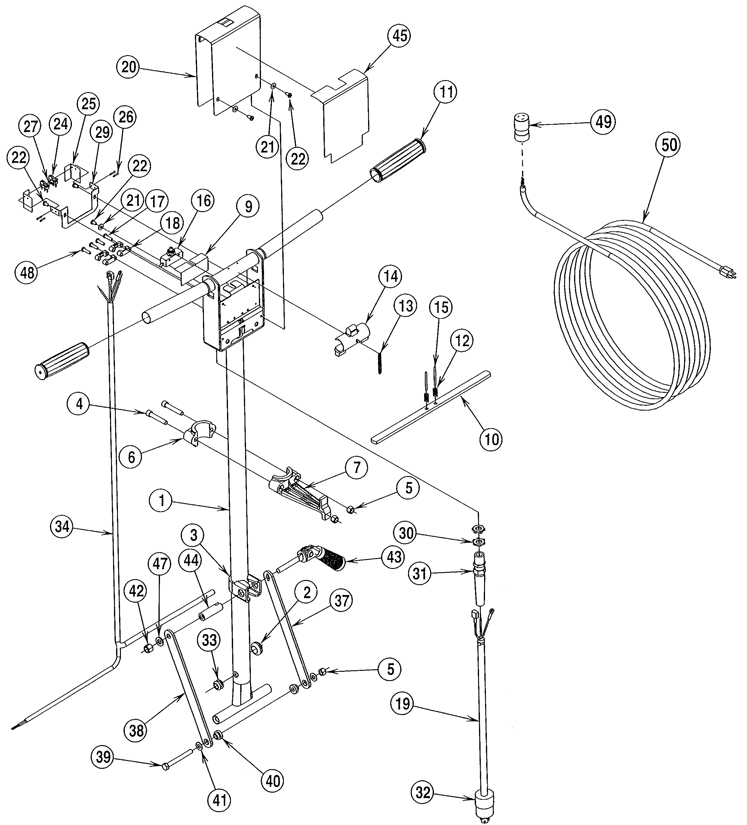

Handle Assembly - 272-9113 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(handle weldment) |
| 3 |
172-0885 |
Handle lock clamp (OBSOLETE) |
1 |
|
| 4 |
999-0446 |
Screw 5/16-18 x 1 3/4 round head slotted zinc plated |
2 |
|
| 6 |
172-0890 |
Cord hook cap (OBSOLETE) |
1 |
|
| 7 |
172-0891 |
Cord hook body (OBSOLETE) |
1 |
|
| 8 |
172-4513 |
Wire connector |
1 |
|
| 9 |
N/A |
Not available |
1 |
(insulation paper) |
| 10 |
N/A |
Not available |
1 |
(trigger bar) |
| 11 |
181-0290 |
Handle grip |
2 |
|
| 12 |
181-0288 |
Compressed Spring |
2 |
|
| 13 |
172-6270 |
Spring ext (OBSOLETE) |
1 |
|
| 14 |
172-1746 |
Lock off switch (OBSOLETE) |
1 |
|
| 16 |
163-0054 |
On/off switch kit |
1 |
|
| 17 |
999-1680 |
Screw 10-24 x 1 pan thread rolling |
2 |
|
| 18 |
N/A |
Not available |
4 |
(cable clamp) |
| 19 |
163-0118 |
14/3 pigtail cord with twist lock 20 inch |
1 |
(power cord) |
| 20 |
N/A |
Not available |
1 |
(switch box cover) |
| 22 |
999-1152 |
Screw 10-24 x 3/8 pan head phillips thread rolling zinc |
5 |
|
| 24 |
N/A |
Not available |
2 |
(micro switch) |
| 25 |
N/A |
Not available |
2 |
(solenoid switch) |
| 26 |
N/A |
Not available |
4 |
(screw #2-56 x 1/2) |
| 27 |
172-4924 |
Screw 2-56 x 1/2 pan head phillips (OBSOLETE) |
4 |
|
| 29 |
N/A |
Not available |
1 |
(mounting switch plate) |
| 30 |
N/A |
Not available |
2 |
(nut) |
| 31 |
172-4534 |
Strain relief |
1 |
|
| 32 |
N/A |
Not available |
1 |
(switch lock plug) |
| 34 |
N/A |
Not available |
1 |
(electrical cable) |
| 37 |
N/A |
Not available |
1 |
(right strut) |
| 38 |
N/A |
Not available |
1 |
(left strut) |
| 41 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 42 |
999-0199 |
Nut 10-24 nylon insert lock zinc plated |
1 |
|
| 43 |
181-0565 |
Cam lock assembly (OBSOLETE) |
1 |
|
| 44 |
172-0892 |
Spacer guide (OBSOLETE) |
1 |
|
| 45 |
N/A |
Not available |
1 |
(warning decal) |
| 47 |
181-0015 |
Washer flat |
1 |
|
| 48 |
999-1104 |
Screw 10-24 x 3/4 pan head phillips thread rolling zinc |
2 |
|
| 49 |
N/A |
Not available |
1 |
(Connector) |
| 50 |
163-0117 |
14/3 extension cord with twist lock plug 50 foot |
1 |
(power cord) |
| N/S |
N/A |
Not available |
1 |
(black wire) (connects the main switch to the solenoid switch) |
| N/S |
N/A |
Not available |
1 |
(black wire) (connects solenoid switches) |
|
|

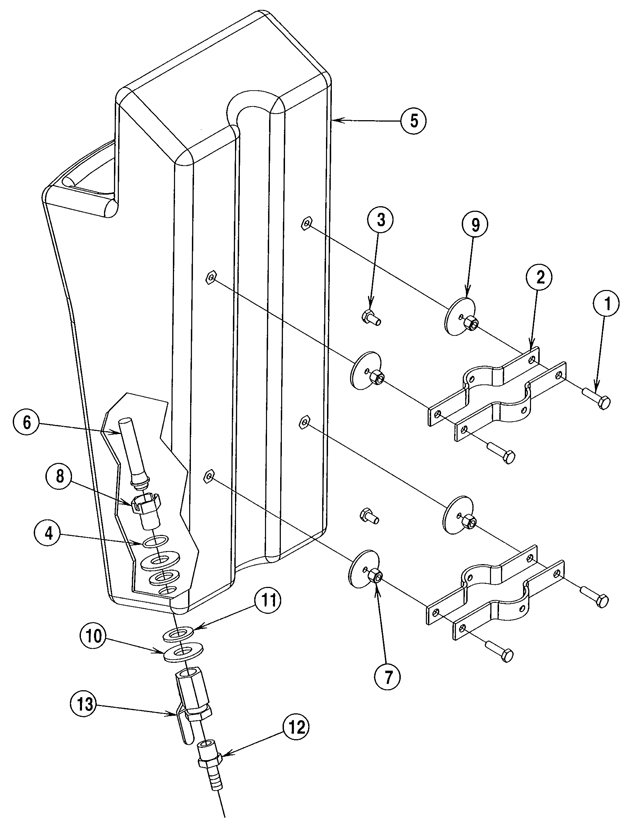

Solution Tank Assembly - 272-9114 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
N/A |
Not available |
4 |
(tank bracket) |
| 3 |
272-9677 |
Screw 1/4-20 x 1/2 hex head |
2 |
|
| 4 |
N/A |
Not available |
1 |
(o-ring) |
| 5 |
N/A |
Not available |
1 |
(solution tank) |
| 6 |
N/A |
Not available |
1 |
(solution tank filter) |
| 7 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
| 8 |
N/A |
Not available |
1 |
(bulkhead connector) |
| 9 |
N/A |
Not available |
4 |
(stainless steel washer) |
| 10 |
N/A |
Not available |
2 |
(washer) |
| 11 |
N/A |
Not available |
2 |
(washer) |
| 12 |
N/A |
Not available |
1 |
(fitting) |
| 13 |
N/A |
Not available |
1 |
(solution tank valve) |
|
|

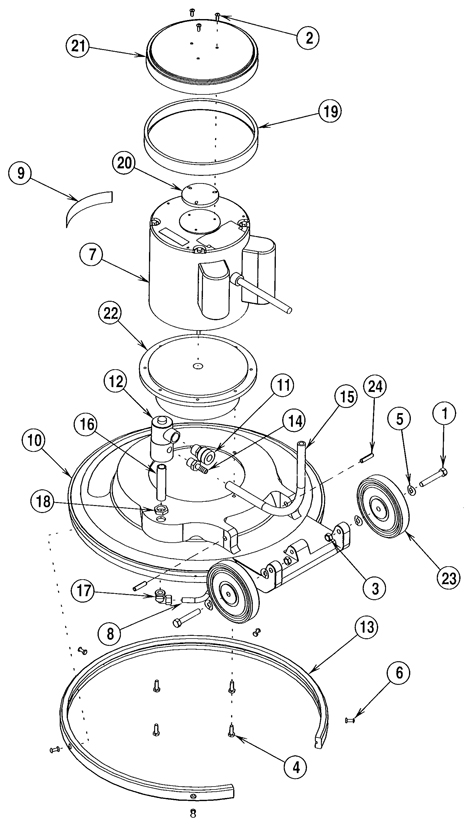

Base Assembly - 272-9115 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0834 |
Screw 3/8-16 x 2 1/4 hex head plain finish |
2 |
|
| 2 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
3 |
|
| 3 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
2 |
|
| 4 |
272-1596 |
Bolt 1/4-20 x 3/4 hex head lock |
4 |
|
| 5 |
172-6237 |
Washer 3/8 bowed (OBSOLETE) |
4 |
|
| 6 |
172-4433 |
Nut 10-24 insert |
5 |
|
| 7 |
N/A |
Not available |
1 |
(115V 1.5HP motor) |
| 8 |
172-7443 |
Copper tube (OBSOLETE) |
1 |
|
| 9 |
N/A |
Not available |
1 |
(ServiceMaster decal) |
| 10 |
N/A |
Not available |
1 |
(ServiceMaster brush housing) |
| 11 |
N/A |
Not available |
1 |
(connector) |
| 12 |
N/A |
Not available |
1 |
(solenoid valve assembly) |
| 13a |
N/A |
Not available |
1 |
(bumper strip) |
| 13b |
163-0090 |
20 inch bumper (black) |
1 |
(Can be used as a replacement for the obsolete part on some models) |
| 15 |
272-9681 |
Vinyl tubing (OBSOLETE) |
1 |
|
| 18 |
N/A |
Not available |
1 |
(nut) |
| 19 |
N/A |
Not available |
1 |
(motor cover bumper) |
| 20 |
N/A |
Not available |
1 |
(cork spacer) |
| 21 |
N/A |
Not available |
1 |
(motor cover) |
| 22 |
N/A |
Not available |
1 |
(gear unit assembly) |
| 23 |
N/A |
Not available |
2 |
(wheel) |
| 24 |
172-4444 |
Pin spring .375 x 1.50 (OBSOLETE) |
2 |
|
|
|

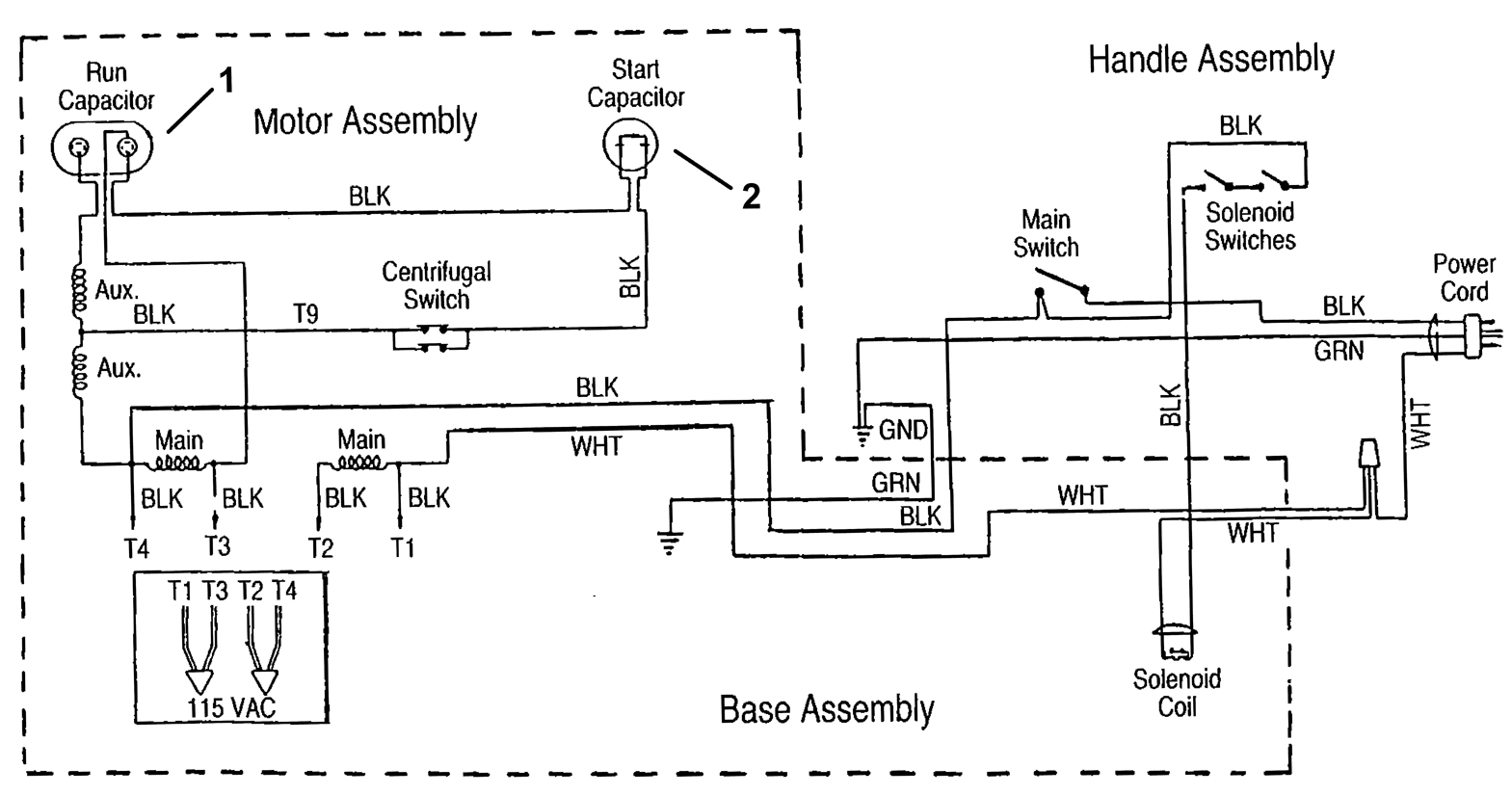

Wiring Diagram - 272-9116 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
|
(Capacitor) |
| 2 |
N/A |
Not available |
|
(Capacitor) |
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
