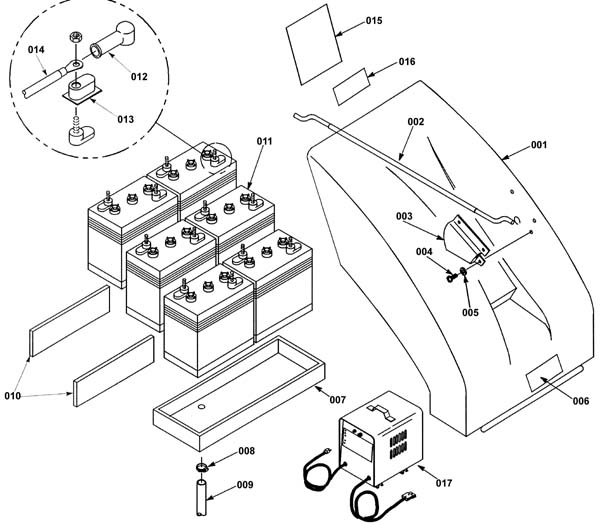

Battery Cable Assembly - 175-0400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-7039 |
Hood (OBSOLETE) |
1 |
|
| 002 |
175-7040 |
Hood support rod (OBSOLETE) |
1 |
|
| 003 |
175-7041 |
Rod retaining bracket (OBSOLETE) |
1 |
|
| 004 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
3 |
|
| 005 |
999-0053 |
Washer #10 split lock plain finish |
3 |
|
| 006 |
175-0912 |
Nobles decal (OBSOLETE) |
1 |
|
| 007 |
175-7042 |
Battery tray (OBSOLETE) |
1 |
|
| 008 |
175-5118 |
Hose clamp (OBSOLETE) |
1 |
|
| 009 |
175-1334 |
Clear vinyl tubing |
1 |
|
| 010 |
175-7043 |
Battery foam spacer |
2 |
|
| 011 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
6 |
|
| 012a |
175-1103 |
Battery cable boot (black) |
5 |
|
| 012b |
175-1103 |
Battery cable boot (black) |
5 |
|
| 013 |
175-2121 |
Battery terminal cover (clear) |
12 |
|
| 015 |
175-7044 |
Wiring diagram decal (OBSOLETE) |
1 |
|
| 016 |
175-7045 |
Battery connect decal (OBSOLETE) |
1 |
|
| 017 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
1 |
|
|
|

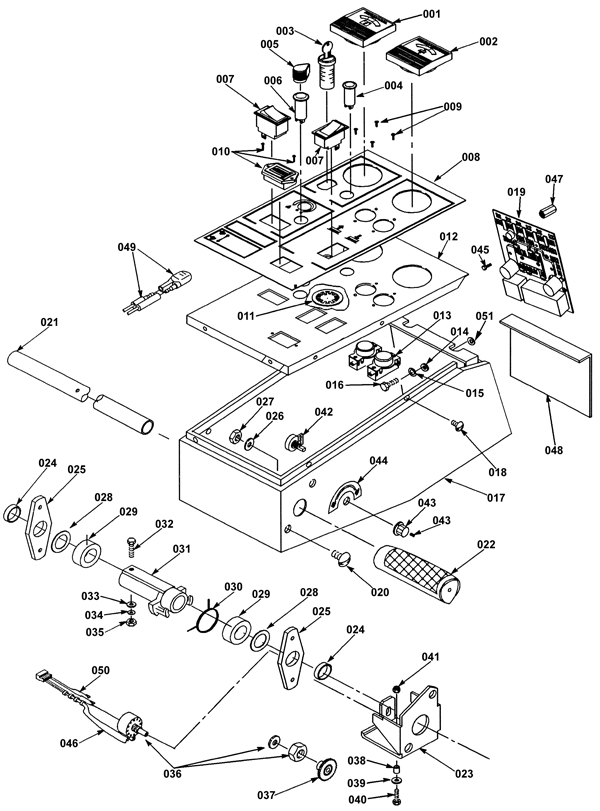

Control Console Assembly - 175-0401 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-1414 |
Battery meter |
1 |
|
| 002 |
175-0392 |
19amp ammeter (OBSOLETE) |
1 |
|
| 003a |
175-3727 |
Key switch (OBSOLETE) |
1 |
(includes 003b and 003c) |
| 003b |
175-4287 |
Key switch assembly (OBSOLETE) |
1 |
|
| 003c |
175-0185 |
Double sided key (steel) |
1 |
|
| 004 |
175-0393 |
Pilot light (green) |
1 |
|
| 005 |
175-9027 |
Solution control knob |
1 |
|
| 006 |
175-6677 |
36V pilot light (blue) (OBSOLETE) |
1 |
|
| 007 |
175-1326 |
15amp rocker switch |
2 |
(brush and solution) |
| 008 |
175-6678 |
Console decal with symbols |
1 |
|
| 009 |
999-1145 |
Screw 6-32 x 1/4 truss head phillips zinc plated |
4 |
|
| 010 |
175-1213 |
Hour meter |
1 |
|
| 011 |
999-0804 |
Washer M20 internal lock |
1 |
|
| 012 |
175-6679 |
Console cover (OBSOLETE) |
1 |
|
| 014 |
999-1261 |
Washer M6 flat stainless steel |
6 |
|
| 015 |
999-0632 |
Washer 1/4 split lock stainless steel |
6 |
|
| 016 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
6 |
|
| 018 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
6 |
|
| 019a |
175-1348 |
40amp control board |
1 |
|
| 019b |
175-6687 |
PC board cover (OBSOLETE) |
1 |
|
| 020 |
999-1146 |
Screw 5/16-18 x 3/4 truss head phillips stainless steel |
4 |
|
| 021 |
175-6681 |
16 inch handlebar (OBSOLETE) |
1 |
|
| 022a |
675-9894 |
Handle grip |
2 |
|
| 022b |
991-8571 |
Handle grip |
2 |
(NON-OEM) |
| 023 |
175-6682 |
Potentiometer bracket (OBSOLETE) |
1 |
|
| 024 |
175-0380 |
Bushing (OBSOLETE) |
2 |
|
| 025 |
175-0379 |
Bearing block (OBSOLETE) |
2 |
|
| 026 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 027 |
999-0593 |
Nut 5/16-18 hex stainless steel |
4 |
|
| 028 |
175-0385 |
Nylon washer |
2 |
|
| 029 |
175-1417 |
Shaft collar |
2 |
|
| 030 |
175-4260 |
Torsion spring |
1 |
|
| 031 |
175-6683 |
Hub and gear (OBSOLETE) |
1 |
|
| 032 |
999-1147 |
Bolt M6-1 x 40mm hex head stainless steel |
1 |
|
| 033 |
999-1261 |
Washer M6 flat stainless steel |
2 |
|
| 034 |
999-1117 |
Washer M6 split lock stainless steel |
1 |
|
| 035 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
1 |
|
| 036 |
N/A |
Not available |
1 |
Potentiometer assembly |
| 039 |
999-1158 |
Washer #6 flat stainless steel |
1 |
|
| 040 |
999-0779 |
Screw M6-1 x 25mm hex head plain finish |
1 |
|
| 041 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
1 |
|
| 042 |
175-5450 |
Speed control resistor |
1 |
|
| 043 |
175-4281 |
Potentiometer knob |
1 |
|
| 044 |
175-1169 |
Speed control decal |
1 |
|
| 045 |
999-1148 |
Screw 8-32 x 1/2 filister head slotted stainless steel |
2 |
|
| 046 |
175-4902 |
Fuse decal (OBSOLETE) |
1 |
|
| 048 |
175-1527 |
Shield (OBSOLETE) |
1 |
|
| 049 |
175-5194 |
Diode (pkg of 2) |
1 |
|
| 050 |
175-4901 |
Connection decal (OBSOLETE) |
1 |
|
|
|

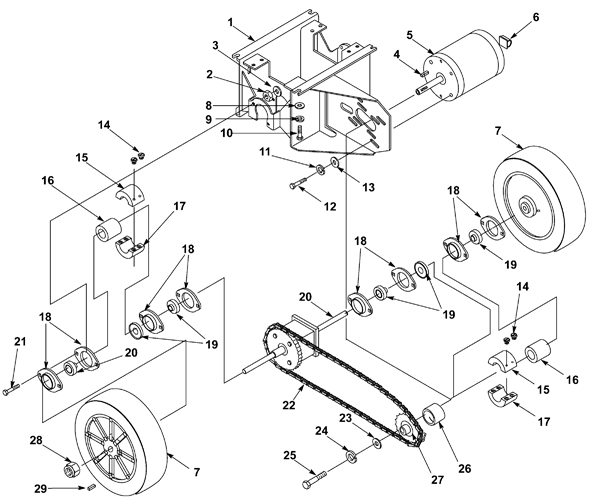

Carriage and Drive Assembly - 175-0402 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-1330 |
Carriage weldment (OBSOLETE) |
1 |
|
| 2 |
999-0593 |
Nut 5/16-18 hex stainless steel |
8 |
|
| 3 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
8 |
|
| 4 |
175-0373 |
Key shaft (OBSOLETE) |
1 |
|
| 5 |
N/A |
Not available |
1 |
(motor) |
| 7 |
175-0418 |
11 inch wheel |
2 |
|
| 8 |
999-0032 |
Washer 3/8 USS flat plain finish |
4 |
|
| 10 |
999-1372 |
Bolt M10-1.5 x 25mm hex head stainless steel |
4 |
|
| 11 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 12 |
175-1331 |
Screw 1/4-20 x 8/9 hex head (OBSOLETE) |
4 |
|
| 13 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 14 |
175-6698 |
Screw 1/4-28 x 1/2 socket head (OBSOLETE) |
8 |
|
| 15 |
175-6699 |
Thru-bolt collar (OBSOLETE) |
2 |
|
| 16 |
175-6700 |
Differential spacer (OBSOLETE) |
2 |
|
| 17 |
175-6702 |
Thru-bolt collar (OBSOLETE) |
2 |
|
| 18 |
175-6701 |
Flanged bearing (OBSOLETE) |
8 |
|
| 19 |
175-2015 |
Ball bearing (OBSOLETE) |
4 |
|
| 20 |
N/A |
Not available |
1 |
Differential with axle |
| 21 |
175-0410 |
Carriage bolt (OBSOLETE) |
8 |
|
| 22a |
991-0101 |
Chain (sold by the link) |
66 |
|
| 22b |
991-0103 |
Master link |
1 |
|
| 23 |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
|
| 24 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 25 |
999-1343 |
Screw 5/16-18 x 5/8 hex head stainless steel |
1 |
|
| 26 |
175-0425 |
Spacer (OBSOLETE) |
1 |
|
| 27 |
175-1332 |
10 toothed sprocket (OBSOLETE) |
1 |
|
| 28 |
175-0420 |
Nut hex lock nylon insert (OBSOLETE) |
2 |
|
| 29 |
175-0419 |
Square key (OBSOLETE) |
2 |
|
|
|

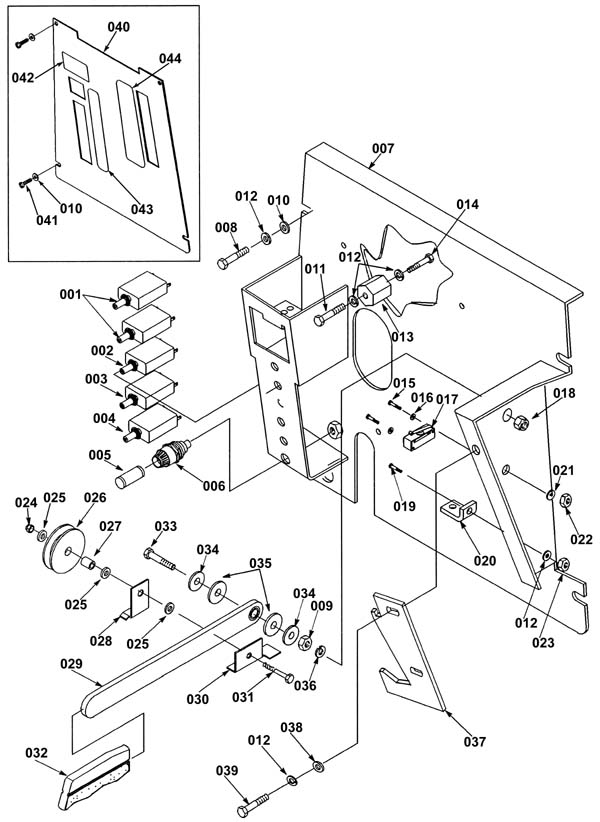

Electrical Panel 1 - 175-0403 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-1482 |
17amp circuit breaker |
2 |
(brush) |
| 002 |
175-5008 |
10amp circuit breaker (OBSOLETE) |
1 |
(drive) |
| 003 |
175-7046 |
15amp circuit breaker (OBSOLETE) |
1 |
(main) |
| 004 |
175-7047 |
19amp circuit breaker (OBSOLETE) |
1 |
(vacuum) |
| 005 |
175-5447 |
2amp fast blow fuse (OBSOLETE) |
1 |
|
| 006 |
175-5010 |
Fuse holder |
1 |
|
| 007 |
175-7012 |
Electrical panel (OBSOLETE) |
1 |
|
| 008 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
| 009 |
999-1428 |
Nut M10-1.5 hex zinc finish |
1 |
|
| 010 |
999-1261 |
Washer M6 flat stainless steel |
8 |
|
| 011 |
999-1099 |
Bolt 1/4-20 x 3/4 hex head stainless steel |
1 |
|
| 012 |
999-0632 |
Washer 1/4 split lock stainless steel |
9 |
|
| 013 |
175-3226 |
Insulated stand off |
1 |
|
| 014 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
1 |
|
| 015 |
175-5034 |
Screw M3 x 30mm |
2 |
|
| 016 |
999-0377 |
Washer 6 SAE flat plain finish |
2 |
|
| 017 |
175-2049 |
25amp roller switch (OBSOLETE) |
1 |
|
| 018 |
999-1550 |
Nut M10-1.5 nylon insert lock |
1 |
|
| 019 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
| 020 |
175-5031 |
Cable bracket (OBSOLETE) |
1 |
|
| 021 |
999-0051 |
Washer #6 medium split lock |
2 |
|
| 022 |
999-0768 |
Nut M3-.5 hex coarse thread plain finish |
2 |
|
| 023 |
999-1308 |
Nut M6-1 hex stainless steel |
1 |
|
| 024 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
2 |
|
| 025 |
999-1261 |
Washer M6 flat stainless steel |
2 |
|
| 026 |
175-4797 |
Cable pulley (OBSOLETE) |
1 |
|
| 028 |
175-7049 |
Cable retainer bracket (OBSOLETE) |
1 |
|
| 029 |
175-7050 |
Squeegee lifting arm (OBSOLETE) |
1 |
|
| 030 |
175-7051 |
Switch bracket (OBSOLETE) |
1 |
|
| 031 |
999-1116 |
Bolt M6-1 x 50mm hex head stainless steel |
1 |
|
| 032 |
N/A |
Not available |
1 |
Squeegee lift grip |
| 033 |
999-1557 |
Bolt M10-1.5 x 45mm hex head stainless steel |
1 |
|
| 034 |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
| 035 |
175-5149 |
Nylon washer |
2 |
|
| 036 |
999-1081 |
Washer M10 split lock stainless steel |
1 |
|
| 037 |
175-7052 |
Squeegee catch bracket (OBSOLETE) |
1 |
|
| 038 |
999-0006 |
Washer 3/16 flat zinc plated |
2 |
|
| 039 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 040 |
175-7053 |
Rear cover (OBSOLETE) |
1 |
|
| 041 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
4 |
|
| 042 |
175-5110 |
Warning decal (OBSOLETE) |
1 |
|
| 043 |
175-7054 |
Circuit breaker decal (OBSOLETE) |
1 |
|
| 044 |
175-7055 |
Squeegee lift decal (OBSOLETE) |
1 |
|
|
|

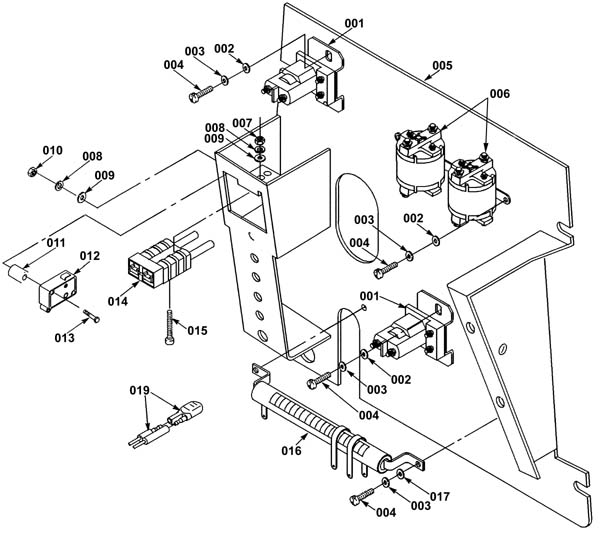

Electrical Panel 2 - 175-0404 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-5017 |
36V contactor |
2 |
|
| 002 |
999-0006 |
Washer 3/16 flat zinc plated |
9 |
|
| 003 |
999-0053 |
Washer #10 split lock plain finish |
9 |
|
| 004 |
999-1040 |
Screw M3-.5 x 20mm pan head |
9 |
|
| 005 |
175-7012 |
Electrical panel (OBSOLETE) |
1 |
|
| 006 |
175-5020 |
100amp contactor (OBSOLETE) |
2 |
|
| 007 |
999-0195 |
Nut 6-32 hex plain |
2 |
|
| 008 |
999-0051 |
Washer #6 medium split lock |
4 |
|
| 009 |
999-0377 |
Washer 6 SAE flat plain finish |
4 |
|
| 010 |
999-0768 |
Nut M3-.5 hex coarse thread plain finish |
2 |
|
| 011 |
175-7013 |
Plastic nylon spacer (OBSOLETE) |
2 |
|
| 012 |
175-5142 |
Snap switch (OBSOLETE) |
1 |
|
| 013 |
175-5034 |
Screw M3 x 30mm |
2 |
|
| 014 |
175-7014 |
Charger plug with cable assembly (OBSOLETE) |
1 |
|
| 015 |
175-0457 |
Screw 6-32 x 1 socket head (OBSOLETE) |
2 |
|
| 016 |
175-2001 |
Resistor (OBSOLETE) |
1 |
|
| 017 |
999-0006 |
Washer 3/16 flat zinc plated |
2 |
|
| 019 |
175-5194 |
Diode (pkg of 2) |
2 |
|
| N/S |
175-7015 |
Main wiring harness (OBSOLETE) |
1 |
|
|
|

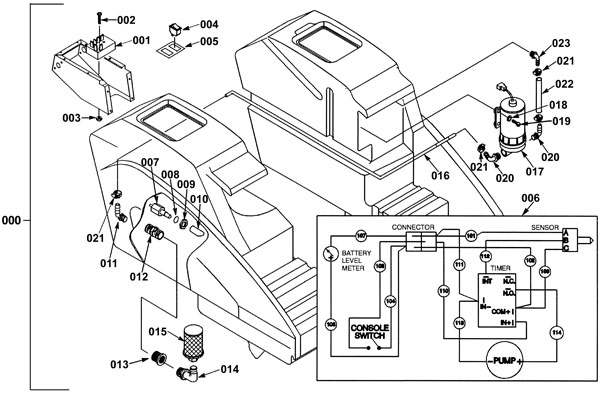

Optional Components - 175-0405 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-7003 |
Extended scrub kit (OBSOLETE) |
1 |
(includes 001-023) |
| 001 |
175-7004 |
36V timer (OBSOLETE) |
1 |
|
| 002 |
999-1085 |
Screw M5-.8 x 30mm pan head phillips zinc plated |
1 |
|
| 003 |
999-0495 |
Nut M5-.8 nylon insert lock zinc plated |
1 |
|
| 004 |
175-1326 |
15amp rocker switch |
1 |
|
| 005 |
175-7005 |
Switch decal (OBSOLETE) |
1 |
|
| 006 |
175-7006 |
Wiring harness (OBSOLETE) |
1 |
|
| 007 |
175-4626 |
Water level sensor (OBSOLETE) |
1 |
|
| 008 |
175-4668 |
O-ring seal |
1 |
|
| 009 |
175-9036 |
Sensor nut |
1 |
|
| 010 |
175-7007 |
Water deflector (OBSOLETE) |
1 |
|
| 011 |
175-7008 |
Plastic fitting (OBSOLETE) |
1 |
|
| 012 |
175-2837 |
3/4 inch nipple fitting (OBSOLETE) |
1 |
|
| 013 |
175-7009 |
Fitting (OBSOLETE) |
1 |
|
| 014 |
175-7010 |
Elbow fitting (OBSOLETE) |
1 |
|
| 015 |
175-6462 |
Mesh filter (OBSOLETE) |
1 |
|
| 016 |
175-8985 |
Clear tubing (sold by the inch) (OBSOLETE) |
26 in |
|
| 018 |
999-0006 |
Washer 3/16 flat zinc plated |
4 |
|
| 019 |
999-0389 |
Screw 10-32 x 1 round head slotted zinc plated |
4 |
|
| 020 |
175-3685 |
90 degree elbow fitting |
2 |
|
| 021 |
175-6081 |
Hose clamp |
4 |
|
| 022 |
175-8985 |
Clear tubing (sold by the inch) (OBSOLETE) |
7 in |
|
| 023 |
175-7834 |
Plastic fitting |
1 |
|
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

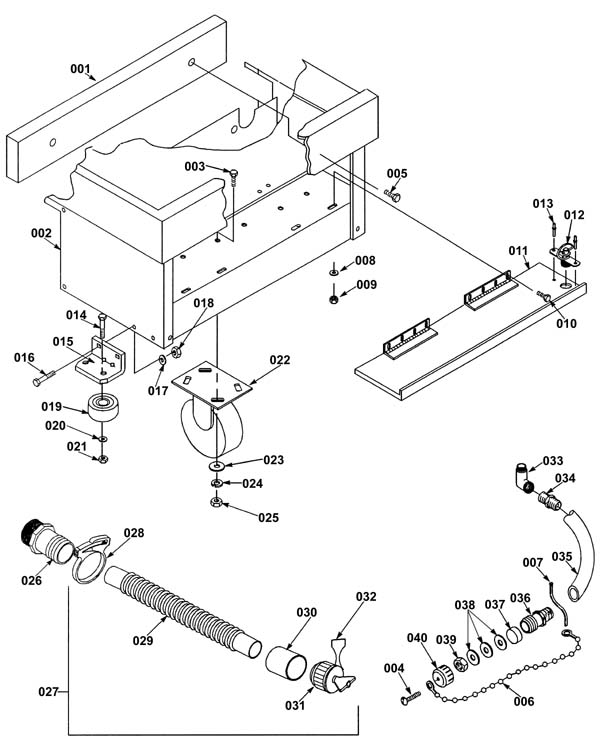

Front Frame Assembly - 175-0407 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-7026 |
Counter weight (OBSOLETE) |
1 |
|
| 002 |
175-7027 |
Frame weldment (OBSOLETE) |
1 |
|
| 003 |
999-1372 |
Bolt M10-1.5 x 25mm hex head stainless steel |
8 |
|
| 004 |
999-1559 |
Screw M4-.7 x 12mm pan head slotted stainless steel |
1 |
|
| 005 |
999-1146 |
Screw 5/16-18 x 3/4 truss head phillips stainless steel |
2 |
|
| 006 |
175-5129 |
Ball chain #10 stainless steel |
1 |
|
| 008 |
999-0311 |
Washer #10 external star lock zinc plated |
4 |
|
| 009 |
999-0960 |
Nut 10-24 hex stainless steel |
4 |
|
| 010 |
999-1069 |
Bolt 10-24 x 1/2 hex head stainless steel |
4 |
|
| 011 |
175-7028 |
Front recovery door (OBSOLETE) |
1 |
|
| 012 |
175-1231 |
Spring latch |
1 |
|
| 013 |
175-7029 |
Blind rivet (OBSOLETE) |
2 |
|
| 014 |
999-0551 |
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
2 |
|
| 015 |
175-7030 |
Front wheel bracket (OBSOLETE) |
2 |
|
| 016 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
4 |
|
| 017 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 018 |
999-0593 |
Nut 5/16-18 hex stainless steel |
4 |
|
| 019 |
175-0117 |
Guide wheel with bushing |
2 |
|
| 020 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 021 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 022 |
175-0464 |
Caster wheel |
2 |
|
| 023 |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
| 025 |
999-1428 |
Nut M10-1.5 hex zinc finish |
8 |
|
| 026 |
175-7031 |
PVC straight fitting |
1 |
|
| 027 |
175-4671 |
Drain hose assembly (OBSOLETE) |
1 |
(includes 028-032) |
| 028 |
175-2057 |
Hose clamp |
1 |
|
| 029 |
175-2656 |
Drain hose |
1 |
|
| 030 |
175-2655 |
Drain hose sleeve |
1 |
|
| 031 |
175-2653 |
1 1/2 inch expansion plug |
1 |
|
| 032 |
175-2654 |
Drain hose strap |
1 |
|
| 032 |
175-2654 |
Drain hose strap |
1 |
|
| 033 |
175-7010 |
Elbow fitting (OBSOLETE) |
1 |
|
| 034 |
175-7032 |
Plastic straight fitting |
1 |
|
| 035 |
175-7033 |
Hose (OBSOLETE) |
1 |
|
| 036 |
175-4746 |
Straight fitting |
1 |
|
| 037 |
175-5631 |
Drain cap seal |
1 |
|
| 038 |
175-5012 |
Flat plastic washer |
3 |
|
| 039 |
999-0955 |
Nut M4-.7 hex nylon lock |
1 |
|
| 040 |
175-5632 |
3/4 inch plastic cap with hole |
1 |
|
|
|
Rear Frame Assembly - 175-0408 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-7027 |
Frame weldment (OBSOLETE) |
1 |
|
| 002 |
999-0377 |
Washer 6 SAE flat plain finish |
4 |
|
| 003 |
999-0051 |
Washer #6 medium split lock |
2 |
|
| 004 |
999-0195 |
Nut 6-32 hex plain |
4 |
|
| 005 |
675-9886 |
Snap switch |
2 |
|
| 006 |
175-7056 |
Water flow control cable (OBSOLETE) |
1 |
|
| 007 |
175-3696 |
Hose (OBSOLETE) |
1 |
|
| 008 |
999-1167 |
Bolt 6-32 x 1 hex head stainless steel |
4 |
|
| 009 |
999-0869 |
Nut M4-.7 hex coarse thread plain finish |
2 |
|
| 010 |
999-0051 |
Washer #6 medium split lock |
4 |
|
| 011 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 012 |
175-6297 |
Solution valve |
1 |
|
| 013 |
175-0483 |
Actuator linkage switch bracket (OBSOLETE) |
1 |
|
| 014 |
175-0499 |
1 1/2 inch pulley block |
1 |
|
| 017 |
999-1158 |
Washer #6 flat stainless steel |
1 |
|
| 018 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
1 |
|
| 019 |
999-9104 |
Screw M4-.7 x 10mm hex head stainless steel |
1 |
|
| 020 |
175-1238 |
Moving parts decal |
1 |
|
| 021 |
175-7058 |
Squeegee lifting cable (OBSOLETE) |
1 |
|
| 022 |
175-7059 |
Bolt 1/4-20 x 1 5/8 eye zinc plated |
1 |
|
| 023 |
999-0181 |
Nut 1/4-20 hex jam plain finish |
2 |
|
| 024 |
175-7060 |
Lower skirt (OBSOLETE) |
1 |
|
| 025 |
999-0807 |
Screw M6-1 x 10mm flat head phillips |
4 |
|
|
|

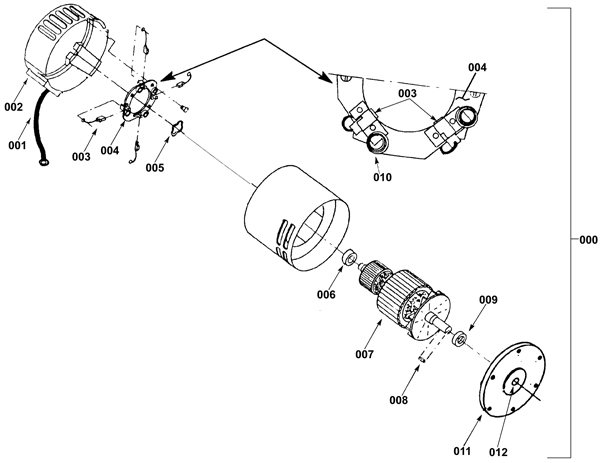

Pad and Drive Motor - 175-0409 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-3226 |
Insulated stand off |
1 |
(includes 001-012) |
| 001 |
175-0366 |
Lead assembly (OBSOLETE) |
1 |
|
| 002 |
N/A |
Not available |
1 |
(Commutator bracket) |
| 003 |
175-0368 |
Carbon brush (sold individually) |
4 |
|
| 004 |
175-0369 |
Brush board assembly (OBSOLETE) |
1 |
(includes 003 and 010) |
| 005 |
175-0370 |
Helical washer |
1 |
|
| 006 |
175-0957 |
Brush bearing |
1 |
|
| 007 |
175-0372 |
Armature assembly (OBSOLETE) |
1 |
(includes 006 and 009) |
| 008 |
175-0373 |
Key shaft (OBSOLETE) |
1 |
|
| 009 |
175-2781 |
Wheel bearing |
1 |
|
| 010 |
175-0375 |
Brush spring (pkg of 4) |
1 |
|
| 011 |
175-0376 |
Back end bracket |
1 |
|
|
|

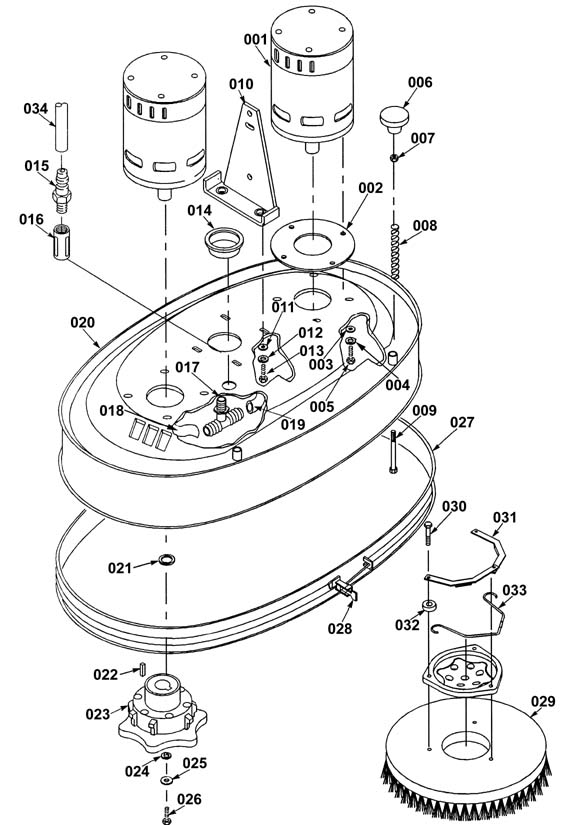

Scrub Head Assembly - 175-0410 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-3226 |
Insulated stand off |
2 |
NON-OEM option not available at this time. |
| 002 |
175-7016 |
End bell gasket |
2 |
|
| 003 |
999-0016 |
Washer 1/4 flat plain finish |
8 |
|
| 004 |
999-0632 |
Washer 1/4 split lock stainless steel |
8 |
|
| 005 |
175-1331 |
Screw 1/4-20 x 8/9 hex head (OBSOLETE) |
8 |
|
| 006 |
175-7017 |
Round knob (OBSOLETE) |
2 |
|
| 007 |
999-0628 |
Nut 3/8-16 hex jam stainless steel |
2 |
|
| 008 |
175-7018 |
Compression spring |
2 |
|
| 009 |
999-1566 |
Screw 3/8-16 x 4 3/4 hex head zinc plated |
2 |
|
| 010 |
175-7019 |
Head lifting bracket (OBSOLETE) |
2 |
|
| 011 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 012 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
8 |
|
| 013 |
999-0581 |
Bolt M8-1.25 x 25mm hex head full thread zinc |
4 |
|
| 014 |
175-5059 |
Plug (OBSOLETE) |
1 |
|
| 015 |
175-8668 |
Plastic fitting |
1 |
|
| 016 |
175-5054 |
Coupling fitting |
1 |
|
| 017 |
175-5053 |
Tee fitting (OBSOLETE) |
1 |
|
| 018 |
175-1043 |
3 inch hose |
1 |
|
| 020 |
175-5047 |
Scrub head (OBSOLETE) |
1 |
|
| 021 |
175-7020 |
Steel plated spacer (OBSOLETE) |
2 |
|
| 022 |
175-2601 |
Square keyway |
2 |
|
| 023 |
175-7021 |
Brush drive hub |
2 |
|
| 024 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 025 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 026 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
| 027 |
175-7022 |
Scrub head skirt |
1 |
|
| 028 |
175-1429 |
Skirt strap assembly |
1 |
|
| 029 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
2 |
|
| 030 |
999-1147 |
Bolt M6-1 x 40mm hex head stainless steel |
6 |
|
| 031 |
175-7024 |
Spring retainer bracket |
4 |
|
| 032 |
175-7025 |
Spacer (Tennant Industrial) |
4 |
|
| 033 |
175-8609 |
Brush retaining wire spring |
2 |
|
| 034 |
175-3530 |
Vacuum hose with cuffs 1 1/2 x 46 inch |
1 |
|
|
|

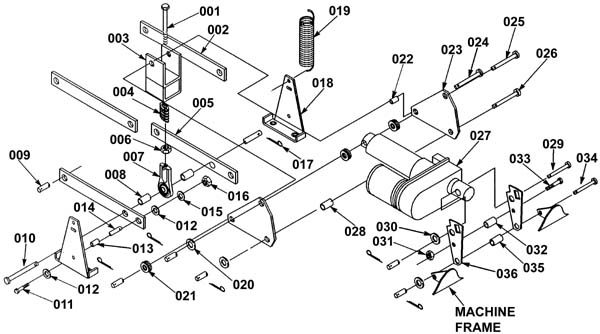

Scrub Head Mounting Assembly - 175-0411 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-1560 |
Bolt 1/2-20 x 4 1/2 hex head stainless steel |
1 |
|
| 002 |
175-5067 |
Head arm (OBSOLETE) |
2 |
|
| 003 |
175-5084 |
Spring holder (OBSOLETE) |
1 |
|
| 004 |
175-5087 |
Compression spring |
1 |
|
| 005 |
175-5067 |
Head arm (OBSOLETE) |
2 |
|
| 006 |
999-0182 |
Nut 1/2-20 hex plain finish |
1 |
|
| 008 |
175-5094 |
Spacer (OBSOLETE) |
2 |
|
| 009 |
175-5070 |
Sleeved bearing |
6 |
|
| 010 |
175-5095 |
Clevis pin |
1 |
|
| 011 |
999-0786 |
Screw M8-1.25 x 35mm hex head stainless steel |
8 |
|
| 012 |
999-1156 |
Washer M12-.7 nylon |
18 |
|
| 014 |
175-1456 |
Sleeved bearing |
2 |
|
| 015 |
999-0024 |
Washer 5/16 flat stainless steel |
8 |
|
| 016 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
10 |
|
| 017 |
175-5080 |
Cotter pin |
6 |
|
| 018 |
175-7019 |
Head lifting bracket (OBSOLETE) |
2 |
|
| 019 |
175-5097 |
Extension spring (OBSOLETE) |
2 |
|
| 020 |
999-0120 |
Washer 3/8 SAE flat |
3 |
|
| 021 |
999-0114 |
Washer 1/2 SAE flat |
1 |
|
| 023 |
175-5081 |
Head linkage bellcrank (OBSOLETE) |
2 |
|
| 024 |
175-5089 |
Clevis pin (OBSOLETE) |
1 |
|
| 025 |
175-5083 |
Clevis pin |
1 |
|
| 026 |
175-5093 |
Clevis pin (OBSOLETE) |
1 |
|
| 027 |
175-5074 |
Linear actuator (OBSOLETE) |
1 |
|
| 028 |
175-5094 |
Spacer (OBSOLETE) |
1 |
|
| 029 |
175-5078 |
Clevis pin (OBSOLETE) |
1 |
|
| 030 |
999-0114 |
Washer 1/2 SAE flat |
4 |
|
| 031 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
1 |
|
| 032 |
175-5036 |
Spacer (OBSOLETE) |
1 |
|
| 033 |
999-1116 |
Bolt M6-1 x 50mm hex head stainless steel |
1 |
|
| 034 |
175-5091 |
Clevis pin (OBSOLETE) |
1 |
|
| 036 |
175-5075 |
Actuator linkage (OBSOLETE) |
2 |
|
|
|

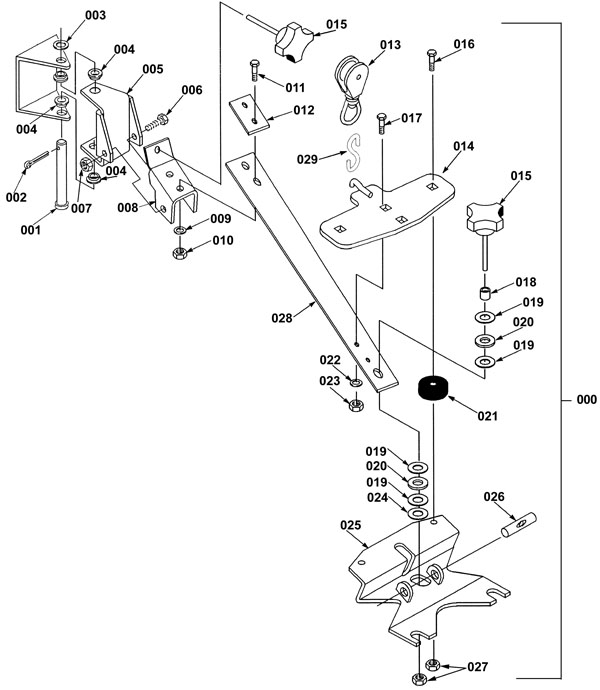

Squeegee Arm Assembly - 175-0412 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-6688 |
Squeegee swivel arm assembly (OBSOLETE) |
1 |
(includes 001-028) |
| 001 |
175-5172 |
Clevis pin |
1 |
|
| 002 |
175-5080 |
Cotter pin |
1 |
|
| 003 |
999-0120 |
Washer 3/8 SAE flat |
1 |
|
| 004 |
175-5163 |
Flanged bearing |
4 |
|
| 005 |
175-6689 |
Squeegee swivel bracket (OBSOLETE) |
1 |
|
| 006 |
999-1155 |
Screw M8-1.25 x 60mm hex head |
1 |
|
| 007 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
| 008 |
175-6690 |
Spring mounting bracket (OBSOLETE) |
1 |
|
| 009 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 010 |
999-0439 |
Nut M6-1 hex coarse thread |
2 |
|
| 011 |
999-1154 |
Bolt M8-1.25 x 12mm hex head cap brass |
2 |
|
| 012 |
175-5167 |
Spring back-up plate (OBSOLETE) |
1 |
|
| 013 |
175-6672 |
Pulley (OBSOLETE) |
1 |
|
| 014 |
175-6691 |
Squeegee bracket (OBSOLETE) |
1 |
|
| 015 |
175-6692 |
Knob assembly |
2 |
|
| 016 |
999-0919 |
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
2 |
|
| 017 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
| 019 |
999-1156 |
Washer M12-.7 nylon |
4 |
|
| 020 |
175-6693 |
Washer 1/2 x 1 x 1/8 rubber |
2 |
|
| 021 |
175-6694 |
Washer 5/8 rubber |
2 |
|
| 022 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 023 |
999-0593 |
Nut 5/16-18 hex stainless steel |
2 |
|
| 024 |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
|
| 025 |
175-6296 |
Squeegee mounting bracket (OBSOLETE) |
1 |
|
| 026 |
175-6695 |
Floating threaded pin (OBSOLETE) |
1 |
|
| 027 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
| 028 |
175-6673 |
Flat squeegee spring (OBSOLETE) |
1 |
|
|
|

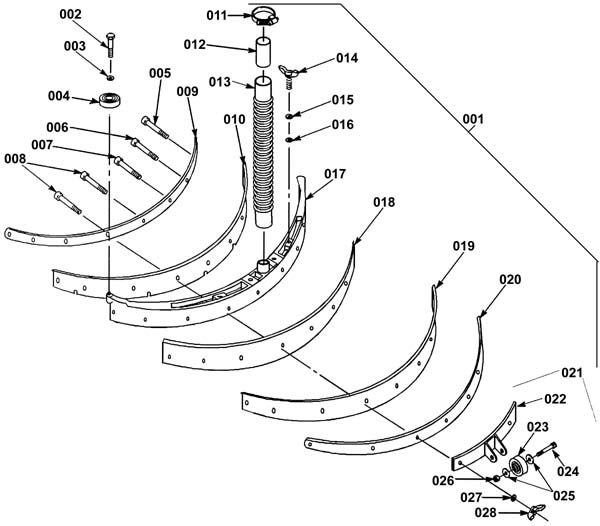

Squeegee Assembly - 175-0413 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-5160 |
26 inch (600mm) squeegee assembly (OBSOLETE) |
1 |
(includes 002-028) |
| 002 |
999-0551 |
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
2 |
|
| 003 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 004 |
175-0117 |
Guide wheel with bushing |
2 |
|
| 005 |
999-0604 |
Screw 1/4-20 x 1 1/2 carriage head stainless steel |
2 |
|
| 006 |
999-0605 |
Screw 1/4-20 x 2 carriage head stainless steel |
2 |
|
| 007 |
999-0606 |
Screw 1/4-20 x 2 1/2 carriage head stainless steel |
2 |
|
| 008 |
999-0607 |
Screw 1/4-20 x 3 carriage head stainless steel |
2 |
|
| 009 |
175-5153 |
Front retainer strip (OBSOLETE) |
1 |
|
| 010 |
175-6669 |
Squeegee blade 37 inch gum rubber front |
1 |
|
| 011 |
175-2057 |
Hose clamp |
1 |
|
| 012 |
175-6667 |
Squeegee hose sleeve (OBSOLETE) |
1 |
|
| 013 |
175-3530 |
Vacuum hose with cuffs 1 1/2 x 46 inch |
1 |
|
| 014 |
999-1676 |
Screw 1/2-13 x 1 wing |
2 |
|
| 015 |
999-0187 |
Washer 1/2 flat plain finish |
2 |
|
| 016 |
175-5149 |
Nylon washer |
2 |
|
| 017 |
175-5148 |
Squeegee weldment |
1 |
|
| 018 |
175-6670 |
Squeegee blade 40 inch gum rubber rear (tan) |
1 |
|
| 019 |
175-6671 |
Squeegee back-up blade neoprene |
1 |
|
| 020 |
175-5152 |
Squeegee band (OBSOLETE) |
1 |
|
| 021 |
175-6674 |
Squeegee wheel kit (OBSOLETE) |
1 |
(includes 022-028) |
| 022 |
175-6675 |
Squeegee wheel bracket (OBSOLETE) |
1 |
|
| 024 |
175-3719 |
Screw 3/8 x 1 1/4 shoulder |
1 |
|
| 025 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
2 |
|
| 026 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 027 |
999-0016 |
Washer 1/4 flat plain finish |
8 |
|
| 028 |
999-0603 |
Nut 1/4-20 wing stainless steel |
8 |
|
| N/S |
175-5161 |
26 inch squeegee blade kit |
1 |
(includes 010, 018, and 019) |
|
|

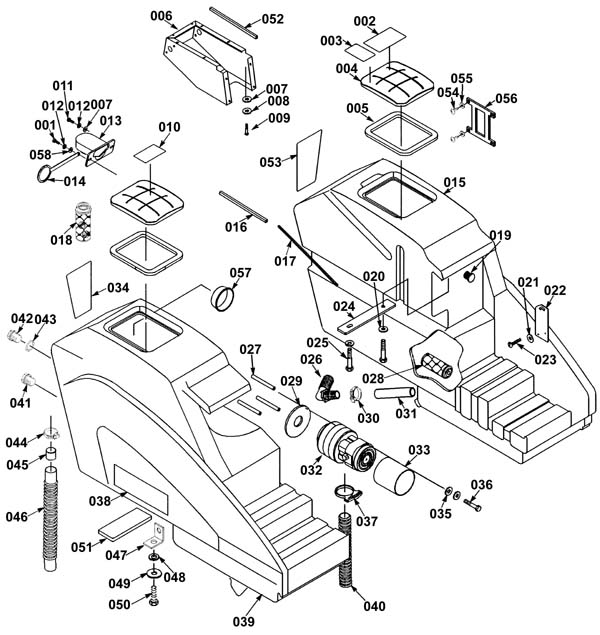

Tank Assembly - 175-0414 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-1168 |
Screw M6-1 x 20mm pan head phillips stainless steel |
1 |
|
| 002 |
175-5121 |
Hot water decal |
1 |
|
| 003 |
275-2370 |
Read manual decal |
1 |
|
| 004 |
175-5796 |
Recovery tank lid and decal assembly |
2 |
|
| 005 |
175-4673 |
Recovery tank lid gasket |
2 |
|
| 007 |
999-1261 |
Washer M6 flat stainless steel |
9 |
|
| 008 |
999-0632 |
Washer 1/4 split lock stainless steel |
6 |
|
| 009 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
6 |
|
| 010 |
275-2369 |
Flammable material decal |
1 |
|
| 011 |
999-1041 |
Screw M6-1 x 12mm pan head phillips stainless steel |
2 |
|
| 012 |
999-1117 |
Washer M6 split lock stainless steel |
2 |
|
| 013 |
175-4232 |
Float cage mount |
1 |
|
| 014 |
175-1805 |
Float cage strap (OBSOLETE) |
1 |
|
| 015 |
175-7062 |
Solution tank kit with decal (OBSOLETE) |
1 |
|
| 016 |
175-7063 |
13 inch gasket strip (OBSOLETE) |
1 |
|
| 017 |
175-7064 |
36 inch gasket strip (OBSOLETE) |
1 |
|
| 018a |
175-1804 |
Shut-off float |
1 |
|
| 018b |
991-3108 |
Shut off float |
1 |
(NON-OEM) |
| 019 |
175-7065 |
Plastic plug fitting |
1 |
|
| 020 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 021 |
999-0053 |
Washer #10 split lock plain finish |
2 |
|
| 022 |
N/A |
Not available |
1 |
Ros support plate |
| 023 |
999-1561 |
Screw M5-.8 x 14mm flat head slotted zinc plated |
2 |
|
| 024 |
175-7068 |
Tank tie strap (OBSOLETE) |
1 |
|
| 025 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 026 |
175-7834 |
Plastic fitting |
1 |
|
| 028 |
175-4743 |
Mesh screen filter |
1 |
|
| 029 |
675-9893 |
Vacuum motor gasket |
1 |
|
| 030 |
997-2007 |
Hose clamp |
1 |
|
| 031 |
175-7069 |
1/2 inch spacer |
1 |
|
| 032a |
175-7205 |
36V vacuum motor with terminal |
1 |
|
| 032b |
175-5182 |
Carbon brush (sold individually) |
2 |
|
| 033 |
175-7070 |
Vacuum fan extension (OBSOLETE) |
1 |
|
| 034 |
175-7071 |
Operation decal (OBSOLETE) |
1 |
|
| 035 |
999-0632 |
Washer 1/4 split lock stainless steel |
3 |
|
| 036 |
999-1169 |
Bolt M6-1 x 100mm hex head full thread plain finish |
3 |
|
| 037 |
997-2003 |
Hose clamp |
1 |
|
| 038 |
175-7072 |
Model decal |
2 |
|
| 039 |
175-7073 |
Recovery tank kit with decal |
1 |
|
| 040 |
N/A |
Not available |
1 |
PVC hose |
| 041 |
175-4670 |
3/4 inch plug |
1 |
|
| 042 |
175-4669 |
Plug fitting |
1 |
|
| 043 |
175-4668 |
O-ring seal |
1 |
|
| 044 |
175-2057 |
Hose clamp |
1 |
|
| 045 |
175-6667 |
Squeegee hose sleeve (OBSOLETE) |
1 |
|
| 046 |
175-3530 |
Vacuum hose with cuffs 1 1/2 x 46 inch |
1 |
|
| 047 |
175-7074 |
Tank support bracket (OBSOLETE) |
2 |
|
| 048 |
999-0671 |
Washer M10 split lock plain finish |
8 |
|
| 049 |
999-0032 |
Washer 3/8 USS flat plain finish |
8 |
|
| 050 |
999-1170 |
Bolt M10-1.5 x 20mm hex head stainless steel |
8 |
|
| 051 |
175-7075 |
Tank spacer pad |
1 |
|
| 052 |
175-7076 |
6 inch gasket strip (OBSOLETE) |
1 |
|
| 053 |
175-7077 |
Maintenance decal (OBSOLETE) |
1 |
|
| 054 |
999-0336 |
Screw 6-32 x 3/8 pan head phillips stainless steel |
8 |
|
| 055 |
175-5797 |
Washer 1/6 flat zinc |
8 |
|
| 056 |
175-1803 |
Tank lid hinge |
2 |
|
| 057 |
175-7078 |
Tapered cap |
1 |
|
| 058 |
999-1261 |
Washer M6 flat stainless steel |
1 |
|
|
|
Wall Roller Assembly - 175-0415 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-7034 |
Roller kit (OBSOLETE) |
1 |
(includes 001-009) |
| 001a |
175-9422 |
Left side roller bracket (OBSOLETE) |
1 |
|
| 001b |
175-7035 |
Right side roller bracket (OBSOLETE) |
1 |
|
| 002 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
12 |
|
| 003 |
175-7036 |
Spanner (OBSOLETE) |
4 |
|
| 004 |
175-7037 |
Upper roller (OBSOLETE) |
6 |
|
| 005 |
999-0114 |
Washer 1/2 SAE flat |
6 |
|
| 006 |
999-1297 |
Screw M8 x 50mm hex head stainless steel |
4 |
|
| 007 |
999-0517 |
Bolt M8-1.25 x 16mm hex head full thread zinc |
8 |
|
| 008 |
175-5178 |
Push-on cap (OBSOLETE) |
4 |
|
| 009 |
175-7038 |
Roller shaft |
2 |
|
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pads - 255-1300 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1340 |
13 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1335 |
13 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1364 |
13 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1342 |
13 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1312 |
13 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1377 |
13 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1338 |
13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1321 |
13 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1350 |
13 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1365 |
13 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1330 |
13 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1387 |
13 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1390 |
13 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1370 |
13 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1392 |
13 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1380 |
13 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1360 |
13 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1352 |
13 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1320 |
13 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1311 |
13 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1395 |
13 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1347 |
13 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1355 |
13 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1323 |
13 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0198 |
13 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0199 |
13 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0200 |
13 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0201 |
13 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0202 |
13 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0203 |
13 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0196 |
13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE |
|
|
| 32 |
255-0197 |
13 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0113 |
13 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0114 |
13 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0115 |
13 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0116 |
13 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0117 |
13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE) |
|
|
| 38 |
255-0118 |
13 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0111 |
13 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0112 |
13 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1324 |
13 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9542 |
13 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9539 |
13 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9536 |
13 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9540 |
13 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9537 |
13 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9538 |
13 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9541 |
13 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9638 |
13 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1382 |
13 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1315 |
13 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1316 |
13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE) |
|
|
|
|
- Batteries, Brushes, and Chargers - 275-2323 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
6 |
|
| 2 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
6 |
|
| 3 |
162-5062 |
36V 20amp battery charger with small SB50 gray plug |
1 |
(charger is configured for wet batteries; can be changed to support AGM batteries) |
|
162-9024 |
36V 12amp battery charger with small SB50 gray plug |
|
|
| 4.5 |
991-2105 |
SB50 50amp charger plug with pins (gray) |
1 |
|
| 5 |
996-1596 |
12 inch heavy grit stripping brush - 80 grit |
2 |
|
| 6 |
996-1513 |
12 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 7 |
996-1598 |
12 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 8 |
996-1599 |
12 inch polypropelene scrubbing brush |
2 |
|
| 9 |
996-1600 |
12 inch pad driver |
2 |
|
| 10 |
996-0077 |
Clutch plate |
2 |
|
| 11 |
996-1030 |
Medium grit scrubbing brush - 180 grit (set of 2) (OBSOLETE) |
2 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
