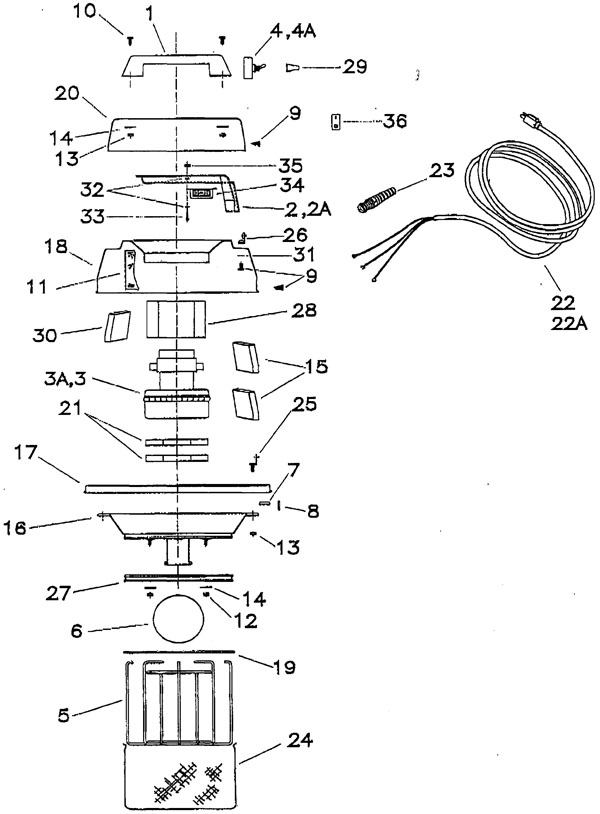

Tank Assembly - Internal - 214-0014 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
174-8527 |
Cooling duct |
1 |
|
| 2A |
174-8528 |
Cooling duct (CE) |
1 |
|
| 3 |
174-8513 |
120V 2 stage vacuum motor |
1 |
|
| 3A |
174-8529 |
240V vacuum motor |
1 |
|
| 4 |
174-5198 |
Toggle switch 1.5 HP |
1 |
|
| 5 |
174-1931 |
Cage float assembly |
1 |
|
| 6 |
174-1930 |
Hollow rubber ball |
1 |
|
| 7 |
174-2915 |
Gasket 1/4 x 7/8 x 1/2 |
1 |
|
| 8 |
174-2914 |
Rubber locating ring |
1 |
|
| 9 |
999-0509 |
Screw 1/4-20 x 3/8 pan head phillips zinc plated |
12 |
|
| 10 |
174-5718 |
Bolt 1/4 20 x 5/8 hex head |
2 |
|
| 12 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 13 |
999-0595 |
Nut 1/4-20 flange lock serrated zinc plated |
8 |
|
| 15 |
174-0840 |
Optional diffuser |
2 |
|
| 16 |
N/A |
Not available |
1 |
Water shutoff adapter |
| 17 |
174-8531 |
Lid assembly |
1 |
|
| 18 |
174-8532 |
Motor holdown |
1 |
|
| 19 |
174-2895 |
Bag spring retainer |
1 |
|
| 20 |
174-8533 |
Motor cooling cover |
1 |
|
| 21 |
174-1435 |
Gasket 2 1/2 x 5/8 neoprene |
2 |
|
| 22 |
174-8466 |
16/3 power cord 50 foot |
1 |
|
| 23 |
175-0001 |
Strain relief |
1 |
|
| 25 |
174-8473 |
Mounting bracket |
6 |
|
| 26 |
174-8534 |
Mounting bracket lid |
3 |
|
| 27 |
174-8492 |
Bag retaining ring |
1 |
|
| 29 |
174-0851 |
Switch cover |
1 |
|
| 30 |
174-8535 |
Fiberglass insulation |
1 |
|
| 31 |
174-5227 |
Washer 1/4 steel plated |
3 |
|
| 32 |
999-0266 |
Washer #8 SAE flat stainless steel |
4 |
|
| 33 |
174-2592 |
Screw 8 x 32 x 5/8 |
2 |
|
| 35 |
999-0151 |
Nut 8-32 nylon insert lock zinc plated |
2 |
|
| 36 |
174-8536 |
On/off decal |
1 |
|
| 37 |
272-0563 |
Carbon brush |
2 |
|
|
|
Tank Assembly - External - 214-0015 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
174-8507 |
15 gallon tank |
1 |
|
| 2 |
174-8545 |
Handle assembly |
1 |
|
| 3 |
174-1167 |
Washer 9/32 x 19/32 flat stainless steel |
4 |
|
| 5 |
174-2253 |
Intake deflector |
1 |
|
| 8 |
999-6667 |
Bolt 1/4-20 x 1 hex zinc |
2 |
|
| 9 |
174-3187 |
Screw 10-24 x 1 stainless steel |
4 |
|
| 10 |
999-6667 |
Bolt 1/4-20 x 1 hex zinc |
4 |
|
| 11 |
174-8548 |
Screw 10-24 x 3/4 nickel plated |
1 |
|
| 12 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
4 |
|
| 13 |
999-0429 |
Nut 1/4-20 acorn nickel plated |
4 |
|
| 14 |
175-2907 |
Nut 1 1/2 flanged hex |
1 |
|
| 15 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 16 |
174-5159 |
Washer 33/64 x 1/64 wave |
2 |
|
| 17 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 18 |
999-0855 |
Washer 9/16 SAE flat |
2 |
|
| 19 |
174-0178 |
1/2 inch external retaining ring |
2 |
|
| 21 |
174-8510 |
8 inch wheel |
2 |
|
| 22 |
174-2259 |
3 inch caster wheel (gray) |
2 |
|
| 24 |
174-8549 |
Weldnut 1/4-20 plated |
4 |
|
| 25 |
174-2261 |
Back clamp plate |
2 |
|
| 26 |
174-2262 |
Diecut poron intake gasket |
1 |
|
| 27 |
174-8537 |
Intake assembly (OBSOLETE) |
1 |
|
| 28 |
174-0051 |
Washer stainless steel |
4 |
|
| 29 |
N/A |
Not available |
1 |
Backing plate |
| 30 |
175-1304 |
Drain valve gasket |
2 |
|
| 31 |
174-8538 |
Mounting bracket weldment |
1 |
|
| 32 |
174-8539 |
Plastic tool holder basket |
1 |
|
|
|

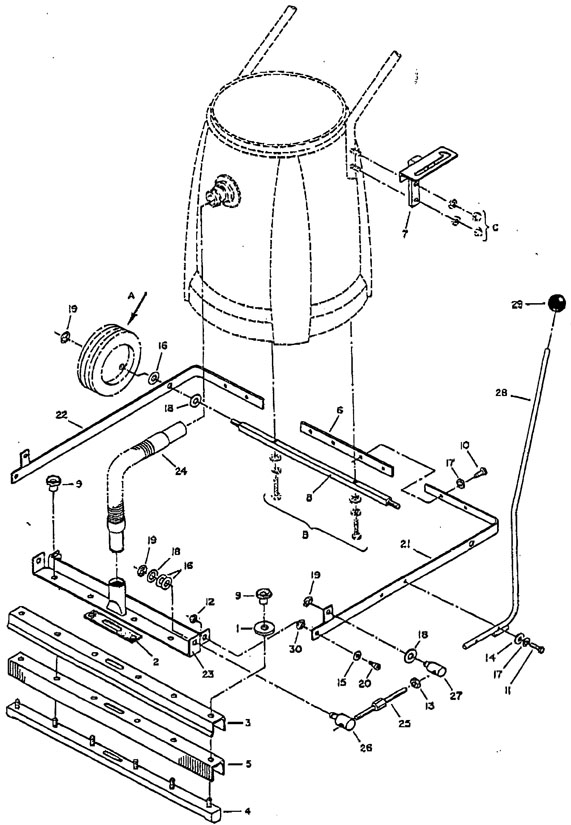

Squeegee Assembly - 214-0016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
174-0786 |
Squeegee bumper wheel |
2 |
|
| 2 |
174-0781 |
Back diecut gasket |
1 |
|
| 4 |
174-0785 |
Squeegee assembly casting |
1 |
|
| 5 |
174-0696 |
Squeegee blade 27 1/4 inch gum rubber (tan) |
1 |
|
| 7 |
174-8471 |
Log lever assembly |
1 |
|
| 8 |
174-8542 |
Axle squeegee assembly |
1 |
|
| 10 |
174-5718 |
Bolt 1/4 20 x 5/8 hex head |
4 |
|
| 11 |
174-6289 |
Bolt 1/4-20 x 7/8 hex head steel plated |
2 |
|
| 12 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 13 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
2 |
|
| 14 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 15 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 16 |
174-5159 |
Washer 33/64 x 1/64 wave |
6 |
|
| 17 |
999-0060 |
Washer 1/4 split lock plain finish |
6 |
|
| 18 |
999-0855 |
Washer 9/16 SAE flat |
6 |
|
| 19 |
174-0178 |
1/2 inch external retaining ring |
6 |
|
| 20 |
174-5160 |
Bolt 1/4-20 x .44 x 3/8 shoulder |
2 |
|
| 21 |
174-8543 |
Left arm squeegee assembly bracket |
1 |
|
| 22 |
174-8544 |
Right arm squeegee assembly bracket |
1 |
|
| 23 |
174-1339 |
Squeegee mounting bracket assembly |
1 |
|
| 24 |
174-8467 |
Vacuum hose |
1 |
|
| 25 |
174-1338 |
Adjusting stud |
2 |
|
| 27 |
174-3037 |
Adjusting nut |
2 |
|
| 30 |
174-3040 |
Nylon flanged bushing |
2 |
|
|
|

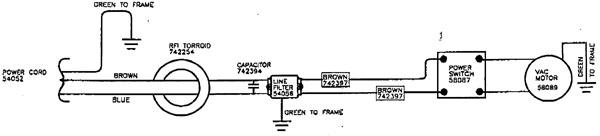

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Frequently Replaced Parts - 999-5020 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
174-8466 |
16/3 power cord 50 foot |
|
(OEM) |
| 2 |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) |
| 2.25 |
174-2307 |
Complete wand assembly |
|
|
| 2.5 |
174-2312 |
14 inch squeegee assembly |
|
|
| 2.75 |
174-2365 |
14 inch brush tool |
|
|
| 2.9 |
174-2371 |
Combination floor tool |
|
|
| 4 |
174-5198 |
Toggle switch 1.5 HP |
|
(power) |
| 5 |
174-8513 |
120V 2 stage vacuum motor |
|
(Servicemaster) |
| 6 |
991-1208 |
120V 2 stage vacuum motor peripheral |
|
(Ametek-Lamb) |
| 7 |
272-0563 |
Carbon brush |
|
(2) |
| 9 |
174-1931 |
Cage float assembly |
|
|
| 10 |
174-1930 |
Hollow rubber ball |
|
|
| 11 |
174-2259 |
3 inch caster wheel (gray) |
|
|
|
|
