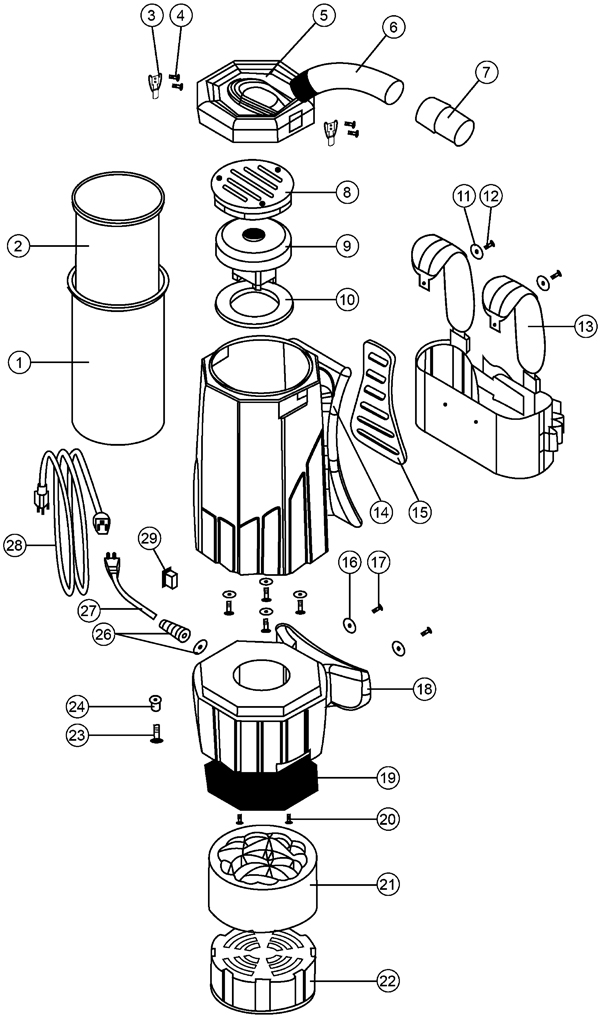

Entire Assembly - 228-4996 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
228-8014 |
Cloth bag |
1 |
(6 quart) |
| 1b |
183-4216 |
Cloth filter bag (Obsolete) |
1 |
(10 quart) |
| 2a |
991-6013 |
6 quart paper bag (pkg of 10) |
1 |
(6 quart) |
| 2b |
991-9003 |
Paper vacuum bags (pkg of 10) (VP10 & SuperCoach) |
1 |
(10 quart) |
| 2c |
228-4035 |
HEPA microlined bags (pkg of 10) |
1 |
|
| 5a |
228-4036 |
Backpack lid (6 qt) |
1 |
|
| 5b |
228-4037 |
Backpack lid (10 qt) |
1 |
|
| 6 |
228-4007 |
4 foot vacuum hose |
4 |
|
| 7 |
228-4009 |
Swivel cuff (OBSOLETE) |
1 |
|
| 8a |
228-4003 |
Complete dome filter w/bag support |
1 |
|
| 8b |
228-8043 |
HEPA filter |
1 |
(6 quart) |
| 8c |
228-4011 |
HEPA filter |
1 |
(10 quart) |
| 9 |
228-4004 |
120V vacuum motor |
1 |
|
| 10 |
228-4019 |
Vacuum motor gasket |
1 |
|
| 11 |
228-8012 |
Screw (for shoulder and waist belts 228-7021) |
4 |
|
| 12 |
228-8013 |
Washer (for shoulder and waist belts 228-7021) |
4 |
|
| 13 |
228-7021 |
Shoulder and waist belt |
1 |
|
| 14a |
228-4038 |
Backpack tank (6 qt) |
1 |
|
| 14b |
228-4039 |
Backpack tank (10 qt) |
1 |
|
| 15 |
189-6069 |
Cushioned back pad |
1 |
|
| 16 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 17 |
228-4020 |
Motor screw |
4 |
|
| 18a |
228-4040 |
6 quart backpack bottom (black granite) |
1 |
|
| 18b |
228-4041 |
Backpack bottom (10 qt) |
1 |
|
| 19a |
228-8011 |
Exhaust filter |
1 |
|
| 19b |
228-4034 |
Deflector plate (10 qt) |
1 |
|
| 20 |
228-4022 |
Deflector screw |
3 |
|
| 21 |
228-4023 |
Sound dampening band |
1 |
|
| 22 |
228-7020 |
Noise filter |
1 |
|
| 23 |
228-4024 |
Well nut screw |
1 |
|
| 24 |
228-4025 |
Cord lock well nut |
1 |
|
| 26 |
228-4018 |
Pigtail cord with strain relief and nut |
1 |
|
| 28 |
228-2008 |
Electric cord |
1 |
|
| 30 |
228-4033 |
Body rivet washer |
6 |
|
| 31 |
228-4032 |
Backpack body rivet |
6 |
|
| 32 |
228-4031 |
2 pc head attachment |
1 |
|
| N/S |
228-4010 |
Standard hose cuff |
1 |
(6 quart) |
| N/S |
228-4005 |
Standard tool kit |
1 |
5-piece tool kit |
| N/S |
228-4026 |
Upholstery tool 5 inch |
1 |
|
| N/S |
228-4000 |
Scalloped floor tool 14in |
1 |
|
| N/S |
228-4027 |
Crevice tool 17 inch |
1 |
|
| N/S |
228-4028 |
Dust brush round 3 inch |
1 |
|
|
|
|
