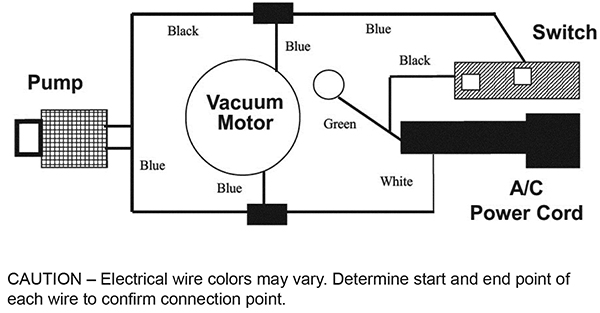

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Entire Assembly - 228-4000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
228-4084 |
3 gallon solution tank (black) |
1 |
(Tank does not come with hose fittings will need to order 228-4045, 228-4046, and 228-4044) |
| 2 |
228-4210 |
3 gallon recovery tank (grey) |
1 |
|
| 3 |
999-1018 |
Screw 6-32 x 1/4 pan head phillips stainless steel |
6 |
|
| 6 |
228-4212 |
Spotter handle rivet |
4 |
|
| 7 |
228-4213 |
Washer 1/8 nylon |
4 |
|
| 9 |
999-0412 |
Washer #8 SAE flat |
5 |
|
| 10 |
228-4215 |
Screw allen head |
4 |
|
| 12 |
228-4216 |
1 1/2 inch PVC slip thread |
1 |
|
| 13 |
228-4217 |
Spotter hatch cover gasket |
1 |
|
| 14 |
228-4104 |
1 1/2 inch stand pipe |
0.6 ft |
|
| 15 |
228-4058 |
Spotter cap and float assembly |
1 |
|
| 17 |
228-4229 |
3 gallon spotter handle (black) |
1 |
|
| 18 |
228-4044 |
90 degree nylon barb |
2 |
|
| 19 |
228-4045 |
Bulk head fitting |
1 |
|
| 20 |
228-4046 |
1/8 inch brass female coupler |
1 |
|
| 21 |
228-4047 |
1/8 inch male quick disconnect |
1 |
|
| 22 |
228-4048 |
Threaded hose (sold by the foot) |
2.5 ft |
|
| 23 |
228-4050 |
1/8 inch straight nylon barb |
4 |
|
| 25 |
228-8024 |
55 PSI pump assembly |
1 |
|
| 26 |
228-4221 |
Left hand bracket |
1 |
|
| 27 |
228-4243 |
Oetiker clamp |
4 |
|
| 28 |
228-4079 |
Roller blade wheel |
2 |
|
| 30 |
228-8012 |
Screw (for shoulder and waist belts 228-7021) |
1 |
|
| 31 |
228-4022 |
Deflector screw |
1 |
|
| 32 |
228-4244 |
Bottom base plate |
1 |
|
| 34 |
228-4020 |
Motor screw |
2 |
|
| 35 |
228-4230 |
Screw 10-32 x 3/8 inch |
2 |
|
| 36 |
228-4231 |
Motor mount plate |
1 |
|
| 37 |
228-8036 |
Vacuum motor with gasket |
1 |
|
| 38 |
228-8037 |
Stamped motor screen |
1 |
|
| 39 |
228-4051 |
Motor gasket |
1 |
|
| 40 |
228-4162 |
Strain relief nut |
1 |
|
| 41 |
228-4233 |
Switch plate |
1 |
|
| 42 |
228-4018 |
Pigtail cord with strain relief and nut |
1 |
|
| 43 |
228-4232 |
Air mover cord |
1 |
|
| N/S |
228-4045 |
Bulk head fitting |
1 |
|
| N/S |
228-4046 |
1/8 inch brass female coupler |
1 |
|
| N/S |
228-4044 |
90 degree nylon barb |
1 |
|
|
|

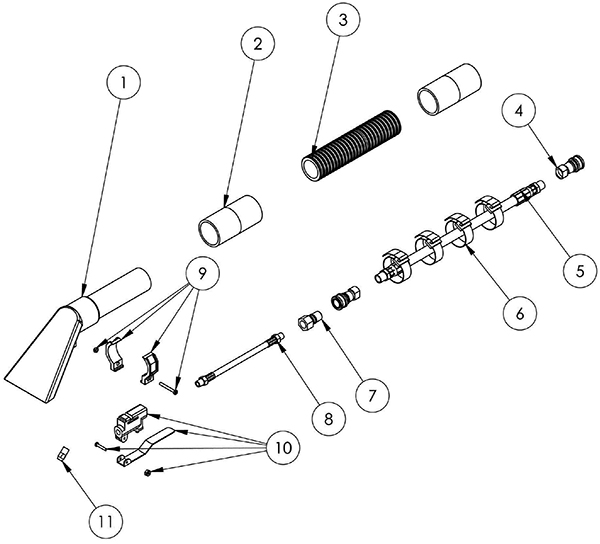

Hoses and Hand Tools Assembly - 228-4001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
228-4016 |
Complete hand tool internal solution |
1 |
|
| 2 |
228-4234 |
Slip hose cuff (black) |
2 |
|
| 3 |
228-4246 |
7 foot hose (black) |
1 |
|
| 4 |
228-4247 |
1/8 inch female quick connect |
1 |
|
| 5 |
228-4248 |
Solution hose |
1 |
|
| 6 |
228-4237 |
Velcro strap |
1 |
|
| 7 |
228-4047 |
1/8 inch male quick disconnect |
1 |
|
| 8 |
228-4046 |
1/8 inch brass female coupler |
1 |
|
|
|
