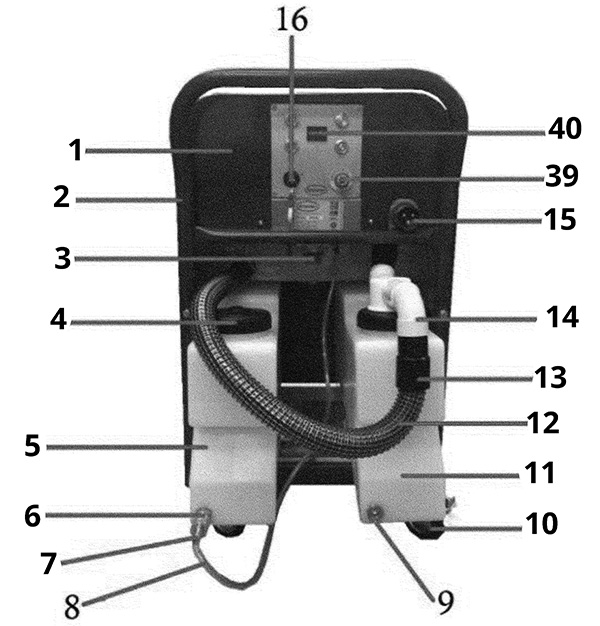

Rear Assembly - 281-0008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
281-1350 |
Main cover (OBSOLETE) |
1 |
|
| 2 |
281-1351 |
Platform trolley |
1 |
|
| 3 |
281-1352 |
Chemical filter |
1 |
|
| 5 |
281-1230 |
Solution tank |
1 |
|
| 6 |
281-1059 |
Female connector |
1 |
|
| 7 |
281-1089 |
Quick release male connector |
1 |
|
| 8 |
281-1090 |
6mm PVC chemical pipe |
1 |
|
| 9 |
281-1050 |
Tank plug and o-ring |
1 |
|
| 10 |
281-1353 |
Caster wheel |
1 |
|
| 11 |
281-1231 |
Recovery tank |
1 |
|
| 12 |
281-1266 |
Suction hose |
1 |
|
| 14 |
281-1354 |
Vacuum tank lid assembly |
1 |
|
| 15 |
281-1355 |
230V 3 pin plug (blue) |
1 |
|
| 39 |
281-1156 |
Emergency stop switch |
1 |
|
|
|

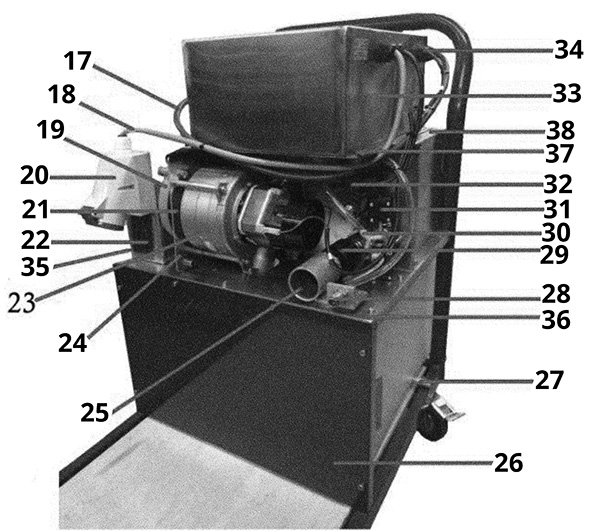

Front Assembly - 281-0009 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 17 |
281-1356 |
Main cable (blue) |
1 |
|
| 19 |
281-1268 |
Vacuum filter housing (grey) |
1 |
|
| 20 |
281-1357 |
4-pin socket |
1 |
|
| 23 |
281-1265 |
230V vacuum motor |
1 |
|
| 24 |
281-1072 |
Vacuum motor mounting plate |
1 |
|
| 25 |
281-1358 |
Mounting assembly (FOR PRODUCTION ONLY) |
1 |
(not available to purchase) |
| 26 |
281-1359 |
Rear cover plate (blue) (FOR PRODUCTION ONLY) |
1 |
(not available to purchase) |
| 27 |
281-1360 |
Tank retaining bar (FOR PRODUCTION ONLY) |
1 |
(not available to purchase) |
| 28 |
281-1361 |
Female coupling |
1 |
|
| 30 |
281-1051 |
Y connector |
2 |
|
| 32 |
281-1175 |
Solenoid valve |
1 |
|
| 33 |
281-1362 |
Control box housing (FOR PRODUCTION ONLY) |
1 |
(not available to purchase) |
| 35 |
281-1363 |
Long sweep elbow (FOR PRODUCTION ONLY) |
1 |
(not available to purchase) |
| 36 |
281-1364 |
Chassis top |
1 |
|
| 37 |
281-1173 |
Protective trim |
1 |
|
| 38 |
281-1365 |
Chassis bridge |
1 |
|
|
|

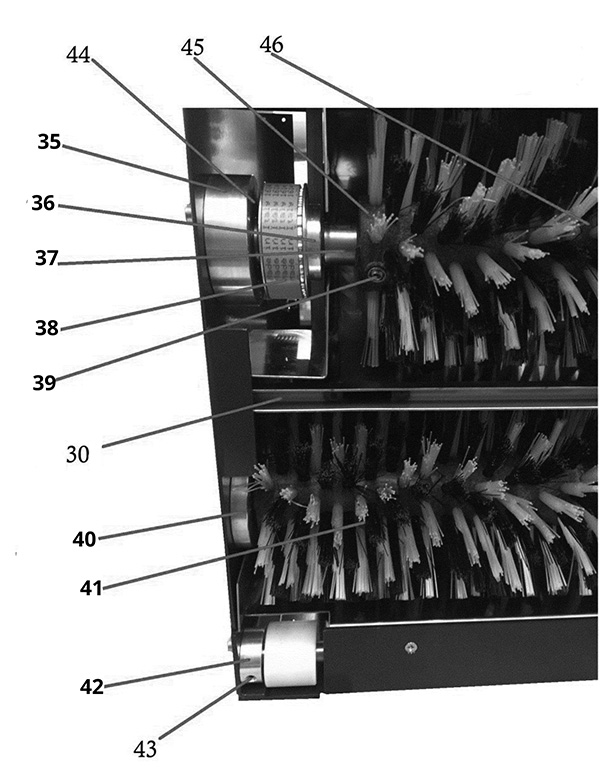

Brush Assembly - 281-0010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 35 |
281-1366 |
18 mm brush shaft bearing housing |
2 |
|
| 36 |
281-1367 |
Large pulley |
2 |
|
| 37 |
281-1368 |
Brush shaft |
2 |
|
| 38 |
281-1369 |
Brush drive belt |
2 |
|
| 40 |
281-1370 |
9mm brush shaft bearing housing |
2 |
|
| 42 |
281-1371 |
Glide wheel shaft mount |
4 |
|
| 44 |
281-1148 |
Ball bearing |
6 |
|
| 45 |
281-1372 |
Brush (flat end) |
4 |
|
| 46 |
281-1373 |
Brush (v end) |
6 |
|
| N/S |
281-1399 |
T shape spanner (belt tightning tool) |
1 |
|
|
|

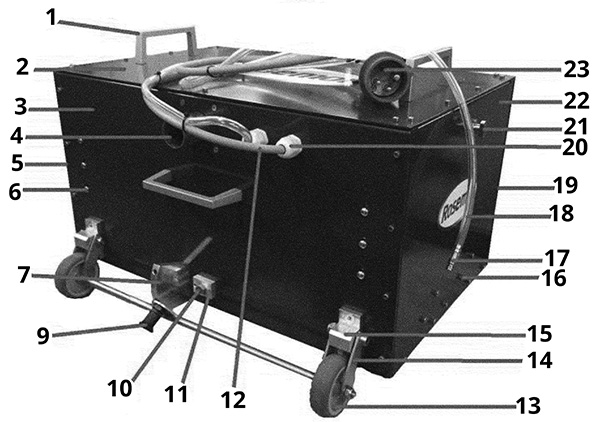

Outside Front Attachment - Optional - 281-0011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 4 |
281-1386 |
Dirty exit pipe |
1 |
|
| 5 |
281-1376 |
Left hand panel |
1 |
|
| 6 |
999-1403 |
Screw M8 x 16mm torx head |
12 |
|
| 9 |
281-1382 |
Adjuster bar and castor spindle |
2 |
|
| 11 |
281-1384 |
Glider adjuster plate |
2 |
|
| 14 |
281-1380 |
Wheel plate |
8 |
|
| 15 |
281-1381 |
Wheel bracket |
4 |
|
| 17 |
281-1089 |
Quick release male connector |
1 |
|
| 18 |
281-1090 |
6mm PVC chemical pipe |
5 |
|
| 21 |
281-1385 |
Transit pin |
2 |
|
| 22 |
281-1377 |
Right hand panel |
1 |
|
| 23 |
281-1357 |
4-pin socket |
1 |
|
|
|

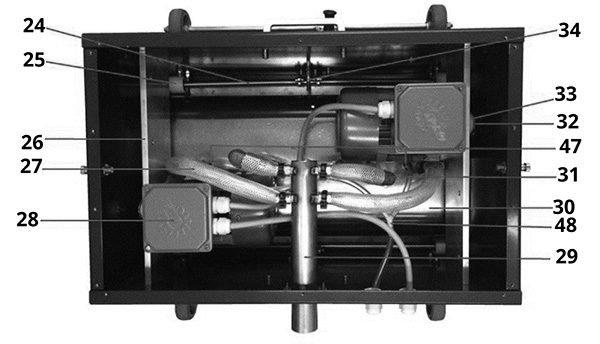

Inside Front Attachment - Optional - 281-0012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 24 |
281-1389 |
Glider wheel shaft |
2 |
|
| 25 |
281-1392 |
Glider wheel |
4 |
|
| 26 |
281-1390 |
Motor mounting plate |
2 |
|
| 27 |
281-1266 |
Suction hose |
1 |
|
| 28 |
281-1395 |
Breakless brush motor |
2 |
|
| 29 |
281-1386 |
Dirty exit pipe |
1 |
|
| 30 |
281-1388 |
Main brush cover |
1 |
|
| 31 |
281-1396 |
3/4 inch elbow |
2 |
|
| 32 |
281-1393 |
Small pulley |
2 |
|
| 33 |
281-1369 |
Brush drive belt |
2 |
|
| 34 |
281-1391 |
Glider adjuster nut |
2 |
|
| 47a |
281-1394 |
Jet nozzle |
3 |
|
| 47b |
281-1397 |
Jet housing with ball and spring |
3 |
|
| 48 |
281-1051 |
Y connector |
2 |
|
| N/S |
281-1399 |
T shape spanner (belt tightning tool) |
1 |
|
|
|
