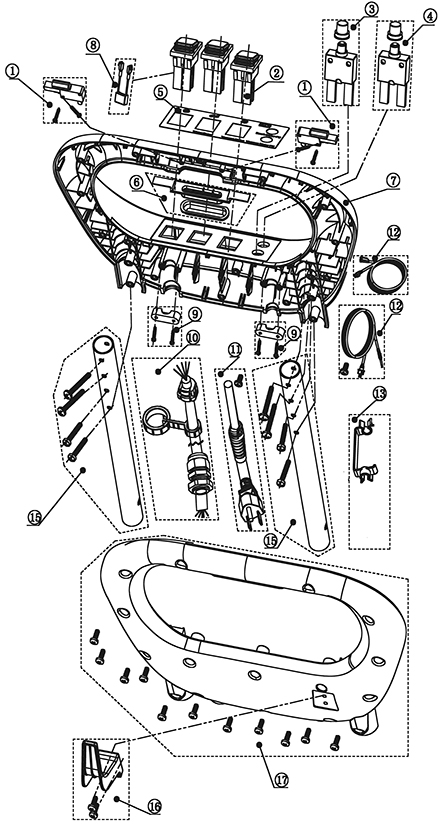

Handle Assembly - 240-1055 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
240-1154 |
Micro switch |
2 |
|
| 2 |
240-1155 |
Rocker switch |
3 |
|
| 3 |
240-1156 |
12amp circuit breaker |
1 |
|
| 4 |
240-1157 |
6amp circuit breaker |
1 |
|
| 5 |
240-1158 |
Control panel decal |
1 |
|
| 6 |
240-1159 |
Plastic button kit |
1 |
|
| 7 |
240-1160 |
Handle front cover |
1 |
|
| 8 |
240-1161 |
Emc capacitor kit |
1 |
|
| 9 |
240-1162 |
Wire clip kit |
1 |
|
| 10 |
240-1163 |
Main cable kit |
1 |
|
| 11 |
240-1164 |
Pigtail cord kit |
1 |
|
| 13 |
240-1165 |
Power cord connection plate kit |
1 |
|
| 15 |
240-1166 |
Handle iron pipe kit |
2 |
|
| 16 |
240-1167 |
Cord hook kit |
1 |
|
| 17 |
240-1168 |
Rear handle cover kit |
1 |
|
|
|

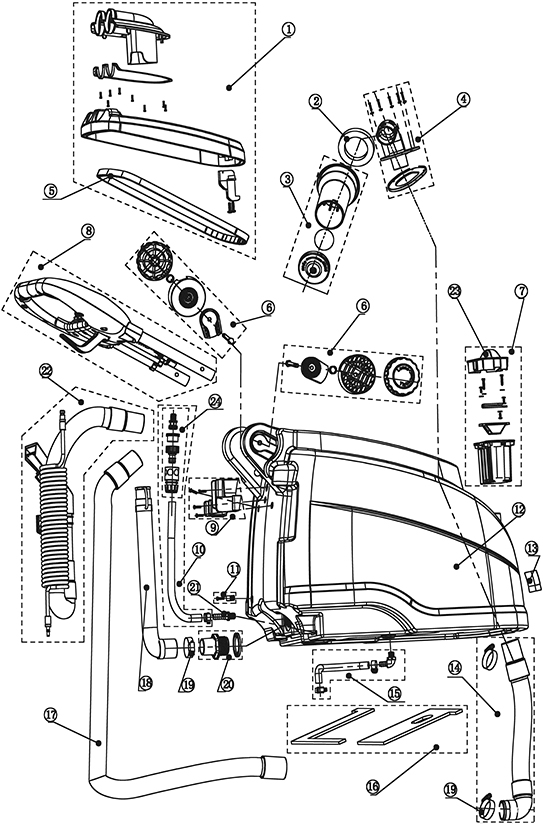

Water Tank Assembly - 240-1056 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
240-1169 |
Recovery tank lid kit |
1 |
(includes 5) |
| 2 |
240-1170 |
Float ball cage filter sponge |
1 |
|
| 3 |
240-1171 |
Float ball cage kit |
1 |
|
| 4 |
240-1172 |
Float mounting bracket kit |
1 |
|
| 5 |
240-1173 |
Recovery tank lid gasket |
1 |
|
| 6 |
240-1174 |
Handle adjusting parts kit |
2 |
|
| 7 |
240-1175 |
Solution lid kit |
1 |
(includes 23) |
| 8 |
240-1176 |
Handle assembly kit |
1 |
|
| 9 |
240-1177 |
Hose clip kit |
1 |
|
| 10 |
240-1178 |
Solution tank water level hose kit |
1 |
(includes 24) |
| 11 |
240-1179 |
Main cord sleeve kit |
1 |
|
| 13 |
240-9159 |
Renown logo decal |
1 |
|
| 14 |
240-1182 |
Exhaust hose kit |
1 |
(includes 19 (2pcs)) |
| 15 |
240-1183 |
PVC hose with spring kit |
1 |
|
| 16 |
240-1184 |
Water tank EVA sealing mat kit |
1 |
|
| 17 |
240-1185 |
Vacuum hose |
1 |
|
| 20 |
240-1187 |
Drain hose connector kit |
1 |
|
| 21 |
240-1188 |
Water level hose connector |
1 |
|
| 22 |
240-1189 |
Hand tool kit |
1 |
(optional) |
| 23 |
240-1190 |
Solution lid |
1 |
|
| 24 |
240-1191 |
Plastic quick connector kit |
1 |
|
|
|

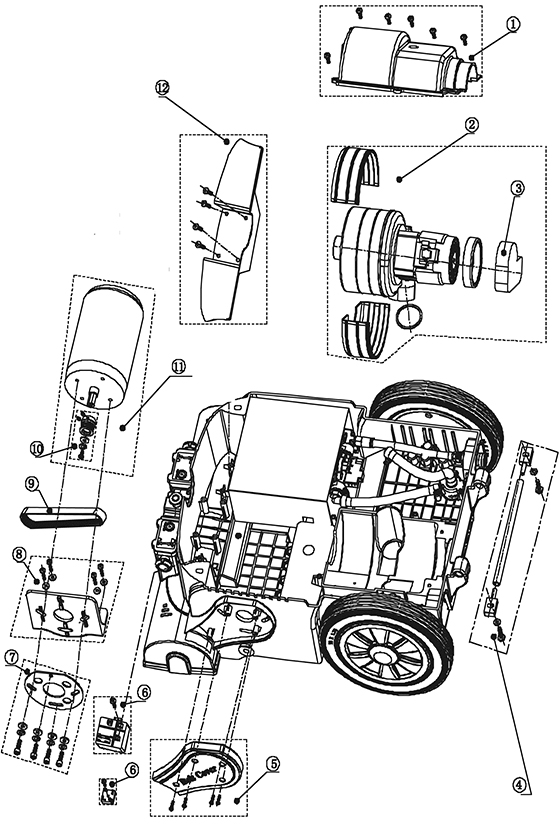

Base Assembly-1 - 240-1057 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
240-1192 |
Vacuum motor cover kit |
1 |
|
| 2 |
240-1193 |
120V vacuum motor kit |
1 |
(includes 3) |
| 3 |
240-1194 |
Motor suction gate sponge |
1 |
|
| 4 |
240-1195 |
Water tank rotation shaft kit |
1 |
|
| 5 |
240-1196 |
Belt cover kit |
1 |
|
| 6 |
240-1197 |
US rectifier kit |
1 |
|
| 7 |
240-1198 |
Brush motor attachment kit |
1 |
|
| 8 |
240-1199 |
Brush mounting base kit |
1 |
|
| 10 |
240-1201 |
Main sheave kit |
1 |
|
| 11 |
240-1202 |
120V brush motor kit |
1 |
(includes 10) |
| 12 |
240-1203 |
Waterproof baffle kit |
1 |
|
|
|

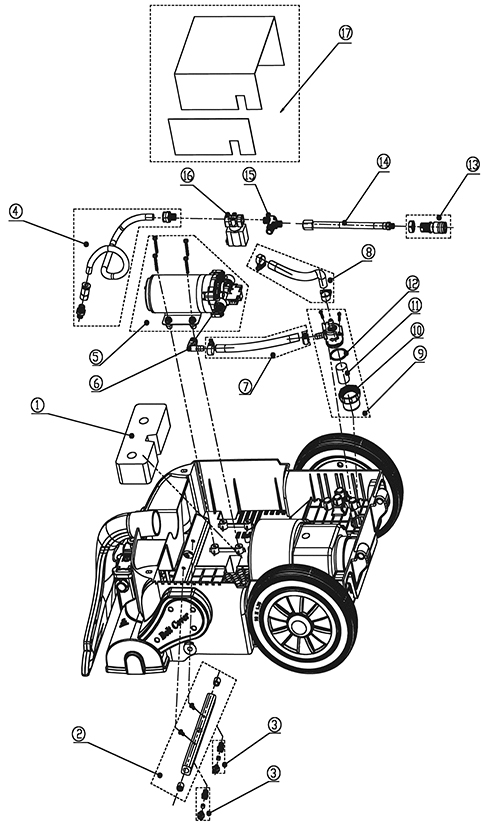

Base Assembly-2 - 240-1058 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
240-1204 |
Sponge for exhaust hose |
1 |
|
| 2 |
240-1205 |
Spray tube kit |
1 |
|
| 3 |
240-1206 |
Spray nozzle kit |
2 |
|
| 4 |
240-1207 |
High pressure water hose kit |
1 |
|
| 5 |
240-1208 |
120V pump kit |
1 |
(includes 6) |
| 6 |
240-1209 |
90 degree plastic connector |
1 |
|
| 7 |
240-1210 |
Low pressure pvc hose kit |
1 |
|
| 8 |
240-1211 |
Water hose with spring kit |
1 |
|
| 9 |
240-1212 |
Solution filter kit |
1 |
(includes 10-12) |
| 10 |
240-6214 |
Filter cover |
1 |
|
| 13 |
240-1213 |
Female quick connector kit |
1 |
|
| 14 |
240-6617 |
Water hose with connector kit |
1 |
|
| 15 |
240-1216 |
Three way connector |
1 |
|
| 16 |
240-1217 |
120V solution solenoid |
1 |
|
| 17 |
240-1218 |
Pump water proof parts kit |
1 |
|
|
|

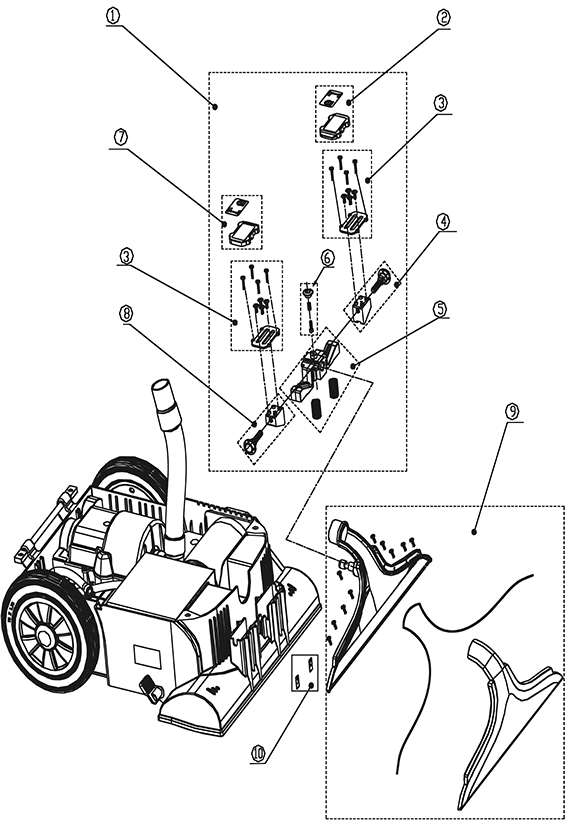

Base Assembly-3 - 240-1059 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
240-1219 |
Vacuum shoe holder kit |
1 |
(includes 2-8) |
| 2 |
240-1220 |
Right hand adjusting cover kit |
1 |
|
| 3 |
240-1221 |
Adjusting pressing plate kit |
2 |
|
| 4 |
240-1222 |
Right hand adjusting rotary knob |
1 |
|
| 5 |
240-1223 |
Vacuum shoe bracket kit |
1 |
|
| 6 |
240-1224 |
Vacuum shoe releasing knob kit |
1 |
|
| 7 |
240-1225 |
Left hand adjusting cover kit |
1 |
|
| 8 |
240-1226 |
Left hand adjusting rotary knob kit |
1 |
|
| 9 |
240-1227 |
Vacuum shoe kit |
1 |
|
| 10 |
240-1228 |
Scale decal kit |
1 |
|
|
|

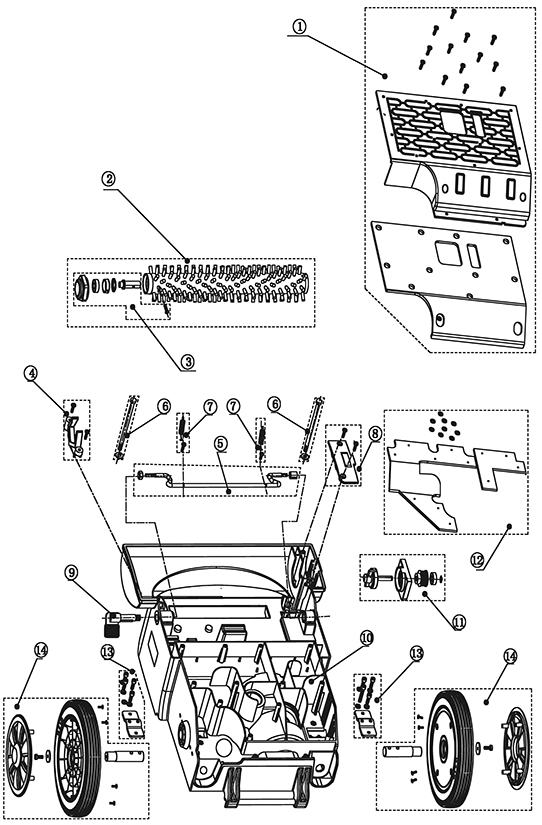

Base Assembly-4 - 240-1060 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
240-1229 |
Bellows cover plate kit |
1 |
|
| 2 |
240-1230 |
Roller brush assembly kit |
1 |
(includes 3) |
| 3 |
240-1231 |
Roller brush shaft assembly kit |
1 |
|
| 4 |
240-1232 |
Roller brush mounting clip kit |
1 |
|
| 5 |
240-1233 |
Storage base kit |
1 |
|
| 6 |
240-1234 |
Locking water tank screw kit |
2 |
|
| 7 |
240-1235 |
Storage stand spring kit |
2 |
|
| 8 |
240-1236 |
Roller brush cover kit |
1 |
|
| 10 |
240-1238 |
Bottom base |
1 |
|
| 11 |
240-1239 |
Driven pulley kit |
1 |
|
| 12 |
240-1240 |
Bottom mute sponge kit |
1 |
|
| 13 |
240-1241 |
Shaft pressing plate |
2 |
|
| 14 |
240-1242 |
Wheel assembly kit |
2 |
|
|
|
Hand Tool Assembly-optional - 240-1061 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
240-1189 |
Hand tool kit |
1 |
(includes 2-11) |
| 2 |
240-1243 |
Hand tool assembly |
1 |
|
| 4 |
240-1245 |
Solution hose kit |
1 |
|
| 5 |
240-1246 |
Stainless tube and triangle part kit |
1 |
|
| 6 |
240-1247 |
Female stainless steel quick connector |
1 |
|
| 7 |
240-1248 |
Control valve kit |
1 |
|
| 8 |
240-1249 |
Spray kit |
1 |
(includes 9-11) |
| 9 |
240-1250 |
Nut M10 x 1 inch bend tube fixing |
1 |
|
| 11 |
240-1252 |
Spray jet kit |
1 |
|
|
|

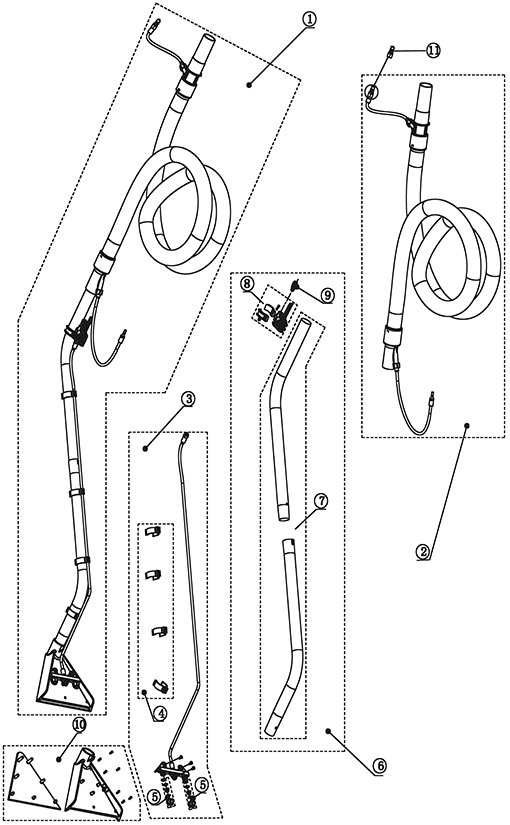

Big Triangle Suction Tool Assembly-optional - 240-1062 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
240-1253 |
Floor tool kit |
1 |
(includes 2-11) |
| 2 |
240-1254 |
2.5m hose kit |
1 |
(includes 11) |
| 3 |
240-1255 |
Solution hose kit |
1 |
(includes 4-5) |
| 4 |
240-1256 |
Solution clip kit |
1 |
|
| 5 |
240-1257 |
Spray jet kit |
2 |
|
| 6 |
240-1258 |
Stainless tube and control valve kit |
1 |
(includes 7-9) |
| 7 |
240-1259 |
Stainless bend tube kit |
1 |
|
| 8 |
240-1248 |
Control valve kit |
1 |
|
| 9 |
240-1247 |
Female stainless steel quick connector |
1 |
|
| 11 |
240-6619 |
Quick male coupler |
1 |
|
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Commonly Asked For Parts - 240-9999 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 02 |
240-1047 |
Upholstery tool assembly |
|
|
| 03 |
170-9286 |
15 foot vacuum hose assembly |
|
|
| 04 |
170-9287 |
15 foot solution hose assembly |
|
|
| 05 |
240-1027 |
115V 100PSI pump |
|
|
| 06 |
240-1031 |
120V 3 stage vacuum motor tangential |
|
|
| 07 |
240-1118 |
Carpet pickup tool (OBSOLETE) |
|
|
| 08 |
240-1119 |
Stainless steel shoe |
|
|
| 1 |
240-1217 |
120V solution solenoid |
|
|
|
|
