Parts List Complete for PULLMNHOLT ES2000

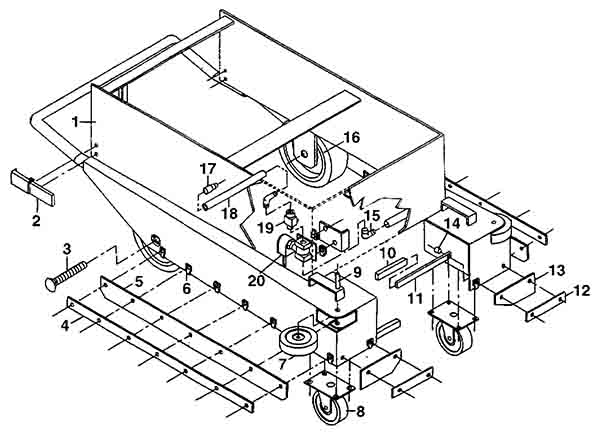

Chassis Assembly - 186-1003
RefNbr Part Number Description Req Notes
1 186-0602 Chassis 1
2 186-0603 Clamp 2
3 186-0604 Wheel axle 2
4 186-0605 Skirt retainer 2
5 186-0177 Skirt (OBSOLETE) 2
6 186-0606 Speed nut 18
7 186-0152 Wheel and spacer 2
8 186-0607 Caster 2
9 186-0608 Wheel pin 2
10 186-0609 Support arm boot 2
11 186-0610 Support arm 2
12 186-0611 Front skirt retainer (OBSOLETE) 2
13 186-0612 Front skirt (OBSOLETE) 2
14 186-0613 Spring 2
15 186-0614 Elbow 2
16 186-0615 6 inch wheel 2
17 186-0616 Hose adaptor 2
18 186-0617 Hose (OBSOLETE) 1
19 186-0618 Needle valve 1
20 186-0127 Solenoid valve (OBSOLETE) 1

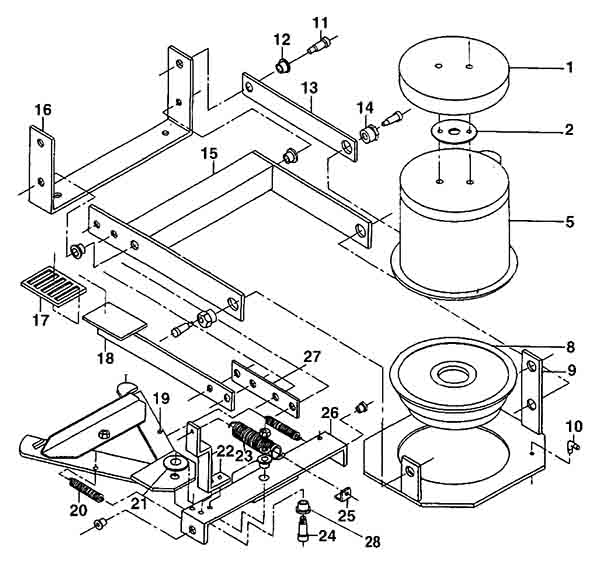

Brush Lift Assembly - 186-1004
RefNbr Part Number Description Req Notes
1 186-0593 Motor canopy (OBSOLETE) 1
2 186-0594 Spacer 1
N/S 186-0620 Capacitor cover 1
5A 186-0621 115V brush motor 1
5B 186-0622 220V brush motor 1
8 186-0623 Gear box 1
9 186-0624 Mounting plate 1
10 186-0614 Elbow 1
11 186-0625 Shoulder bolt 1
13 186-0627 Motor lift link 7
14 186-0628 Eccentric nut 1
15 186-0629 Motor lift yoke 3
16 186-0630 Motor pivot yoke 1
17 186-0631 Pedal pad 1
18 186-0632 Pedal lift 1
19 186-0633 Squeegee trailing arm 1
20 186-0634 Spring 2
21 N/A Not available 2
22 186-0635 Squeegee tension arm 1
23 186-0636 Tension spring 1
24 186-0637 Pivot bolt 1
25 186-0638 Tension spring clip 1
26 186-0639 Pivot yoke 1
27 186-0640 Link 1
N/S 186-0470 18 inch pad driver (OBSOLETE) 1

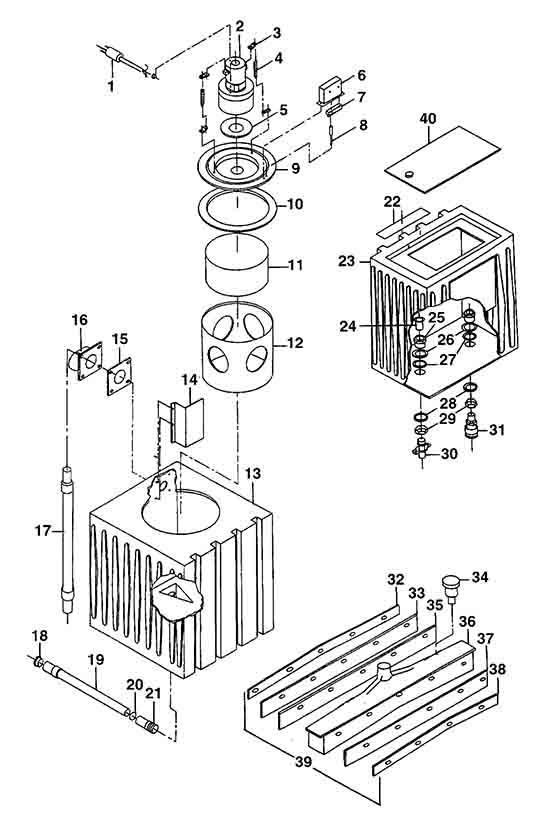

Solution Recovery Assembly - 186-1005
RefNbr Part Number Description Req Notes
1 186-0642 Cordset 1
2A 186-0643 115V motor (OBSOLETE) 1
2B 186-0644 220V motor 1
3 186-0645 Spring clip 4
4 186-0634 Spring 2
5 186-0062 Vac motor gasket (OBSOLETE) 1
6 186-0646 Float switch housing (OBSOLETE) 1
7 186-0647 Float switch (OBSOLETE) 1
8 186-0648 Float switch actuator
9 186-0498 Mounting plate (OBSOLETE) 1
10 186-0649 Gasket (OBSOLETE) 1
11 186-0499 Float body (OBSOLETE) 1
12 186-0500 Float housing (OBSOLETE) 1
13 186-0650 Recovery tank 1
14 186-0651 Inlet baffle 1
15 186-0652 Inlet gasket 1
16 186-0653 Tank inlet 1
17 186-0654 Inlet hose assembly 1
18 186-0655 Hose cap 1
19 186-0656 Drain hose 1
20 186-0657 Drain hose clamp 1
21 186-0658 Drain hose connector 1
23 186-0660 Solution tank 1
24 N/A Not available 1
25 186-0186 Drain body 2
26 N/A Not available 2
27 186-0185 Solution tank gasket 2
28 N/A Not available 2
29 N/A Not available 2
30 186-0184 Drain valve 1
31 N/A Not available 1
32 186-0661 Rear strap 1
33 186-0178 Backup squeegee blade (OBSOLETE) 1
34 186-0183 Knob 2
35 186-0180 Squeegee blade rear (set of 2) (OBSOELTE) 1
36 186-0662 Squeegee 1
37 186-0179 Squeegee blade front (OBSOLETE) 1
38 186-0663 Front strap 1
39 186-0664 Squeegee assembly (OBSOLETE) 1

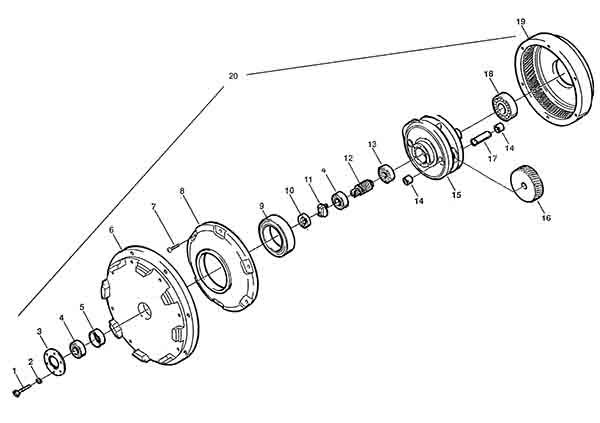

Gear Assembly - 186-1006
RefNbr Part Number Description Req Notes
1 186-0666 Screw socket head 6
2 186-0667 Washer locking 6
3 186-0668 Retainer plate 1
4 186-0064 Bearing (OBSOLETE) 2
5 186-0065 Spacer sleeve 1
6 186-0669 Endshield 1
7 186-0670 Screw round head 6
8 186-0671 Housing cover 1
9 186-0672 Bearing 1
10 186-0066 Retainer (OBSOLETE) 1
11 170-0694 Odum coupling 1
12 186-0124 Pinion gear 1
13 186-0673 Bearing 1
14 186-0674 Needle bearing 4
15 186-0675 Cage (OBSOLETE) 1
16 186-0092 Idler pulley (Doerr ONLY) (OBSOLETE) 2
17 186-0676 Shaft 2
18 186-0677 Bearing (OBSOLETE) 1
19 186-0678 Drive housing 1
20 186-0623 Gear box 1

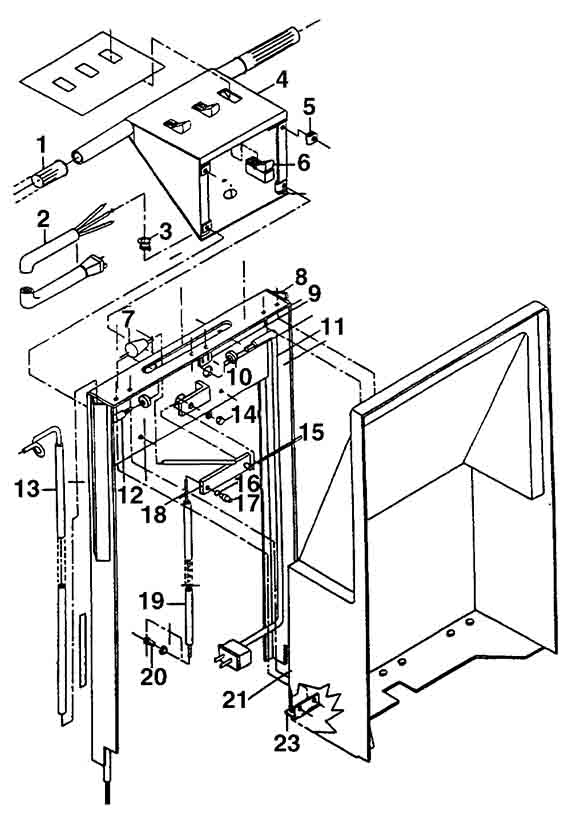

Handle Assembly - 186-1007
RefNbr Part Number Description Req Notes
1 186-0096 Right handle grip (OBSOLETE) 2
2 186-0679 75 foot cordset 1
3 186-0188 Strain relief 2
4 186-0680 Console 1
5 186-0681 Speed nut 4
6 186-0117 Rocker switch 3
7 186-0682 Lift handle knob 1
8 186-0683 Post and panel assembly 1
9 186-0684 115V receptacle 1
10 186-0685 Strain relief 1
11 186-0686 54 inch cordset 1
12 186-0687 Solution valve cord assembly 1
13 186-0688 Cord trailing arm assembly (OBSOLETE) 1
14 186-0191 Nut nylon lock 1
15 186-0689 Squeegee lift cable 1
16 186-0690 Insulator 1
17 186-0691 Cable retainer 1
18 186-0692 Squeegee lift cable 1
19 186-0693 Cable shield 1
20 186-0694 Cable clamp 1
N/S 186-0695 Cover 1
22 186-0696 Left hand hinge 1
23 186-0189 Hinge 2

- Commonly Asked For Parts - 186-9989
RefNbr Part Number Description Req Notes
01 996-1385 19 inch heavy grit stripping brush - 80 grit 1
02 996-0124 19 inch medium grit scrubbing brush - 180 grit 1
03 996-1386 19 inch lite grit scrubbing brush - 500 grit 1
04 996-1387 19 inch polypropylene scrubbing brush 1
05 996-0605 19 inch Pad driver 1
06 996-0341 Drive lugs - plastic (pkg of 3) 1
07 186-0036 120v motor
08 186-0177 Skirt (OBSOLETE)
09 186-0178 Backup squeegee blade (OBSOLETE)
10 186-0179 Squeegee blade front (OBSOLETE)
11 186-0180 Squeegee blade rear (set of 2) (OBSOELTE)
12 186-0183 Knob
13 186-0184 Drain valve
14 186-0185 Solution tank gasket
15 186-0186 Drain body
16 N/A Not available (Check valve)
17 186-0117 Rocker switch 3

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
