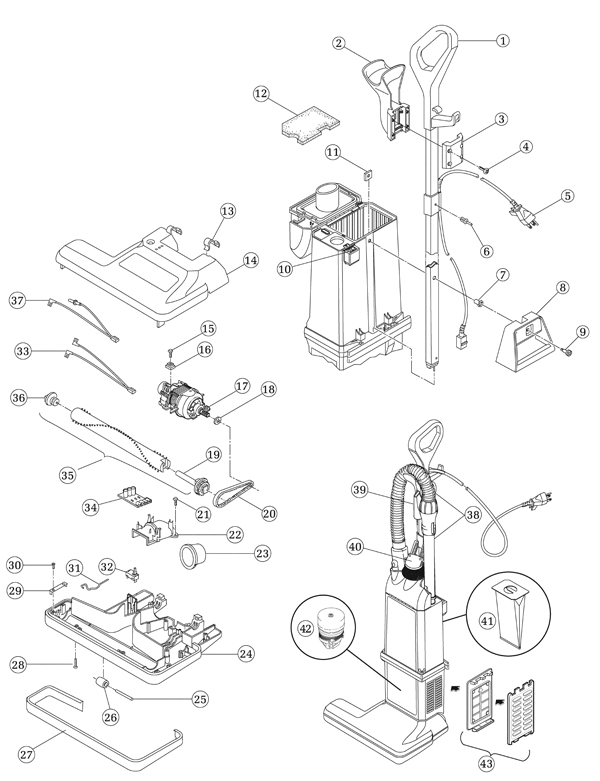

Entire Assembly - 199-3211 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
199-0177 |
Handle assembly |
1 |
|
| 2 |
N/A |
Not available |
1 |
(Front tool/hose holder) |
| 3 |
N/A |
Not available |
1 |
(Rear tool/hose holder) |
| 4 |
N/A |
Not available |
1 |
(Screw) |
| 5 |
199-0171 |
16/3 power cord 50 foot |
1 |
|
| 6 |
N/A |
Not available |
1 |
(Rivet) |
| 7 |
N/A |
Not available |
1 |
(Handle bushing) |
| 8 |
N/A |
Not available |
1 |
(Carry handle) |
| 9 |
N/A |
Not available |
1 |
(Screw) |
| 10 |
186-0053 |
Toggle on/off switch |
1 |
|
| 11 |
N/A |
Not available |
1 |
(Nut plate) |
| 12 |
199-0298 |
Filter (OBSOLETE) |
1 |
|
| 13 |
N/A |
Not available |
1 |
(Spring) |
| 14 |
N/A |
Not available |
1 |
(Base cover) |
| 15 |
N/A |
Not available |
1 |
(Screw) |
| 16 |
N/A |
Not available |
1 |
(Grommet) |
| 17 |
199-0168 |
120V brush motor |
1 |
|
| 18 |
N/A |
Not available |
1 |
(Belt retainer) |
| 19 |
199-0295 |
Pulley assembly |
1 |
|
| 21 |
N/A |
Not available |
1 |
(Screw) |
| 22 |
N/A |
Not available |
1 |
(Nozzle Cover) |
| 23 |
N/A |
Not available |
1 |
(Hose sleeve) |
| 24 |
N/A |
Not available |
1 |
(Base) |
| 25 |
N/A |
Not available |
1 |
(Front roller shaft) |
| 26 |
199-0456 |
Front roller kit |
1 |
|
| 27 |
199-0299 |
Front bumper |
1 |
|
| 28 |
N/A |
Not available |
1 |
(Screw) |
| 29 |
N/A |
Not available |
1 |
(Retainer) |
| 30 |
N/A |
Not available |
1 |
(Screw) |
| 31 |
N/A |
Not available |
1 |
(Wire form) |
| 32 |
199-0106 |
Circuit breaker |
1 |
|
| 33 |
N/A |
Not available |
1 |
(Lead assembly) |
| 34 |
N/A |
Not available |
1 |
(Performance indicator) |
| 36 |
199-0294 |
Brush bearing (OBSOLETE) |
1 |
|
| 37 |
N/A |
Not available |
1 |
(Lead assembly) |
| 38 |
199-0297 |
Slinky hose complete (OBSOLETE) |
1 |
|
| 39 |
N/A |
Not available |
1 |
(Narrow space cleaner) |
| 40 |
N/A |
Not available |
1 |
(Upholster/dusting brush) |
| 41 |
199-0181 |
Paper bags (pkg of 10) |
1 |
|
| 42a |
N/A |
Not available |
1 |
(Motor assembly) |
| 42b |
N/A |
Not available |
1 |
(Carbon brush) |
| 43a |
N/A |
Not available |
1 |
(Filter kit) |
|
|
- Commonly Asked For Parts - 199-9999 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
991-9057 |
Paper vacuum bags (pkg of 10) |
|
(NON-OEM) |
| 0.9835 |
199-0181 |
Paper bags (pkg of 10) |
|
OEM |
| 0.9835 |
199-0115 |
Duct hose |
|
|
| 0.9835 |
199-0171 |
16/3 power cord 50 foot |
|
|
|
|
