- Commonly Asked For Parts - 199-0031 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
199-0755 |
36V vacuum motor w/ gaskets |
1 |
|
|
|

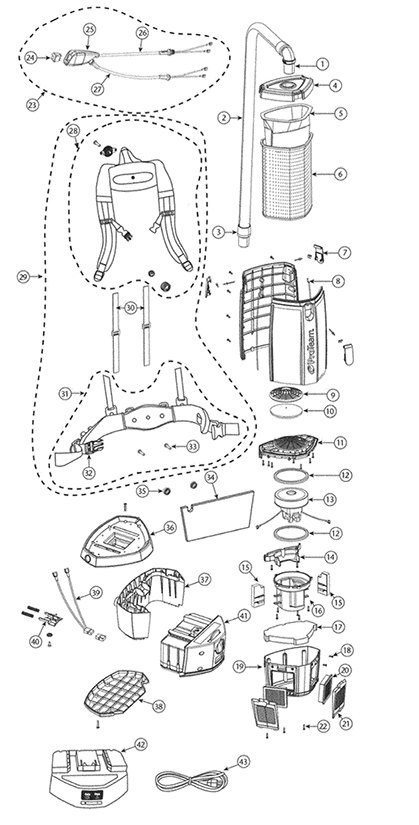

Entire Assembly - 199-0032 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
199-0256 |
1 1/2 inch double swivel elbow cuff |
1 |
(Cuff 1.5 inch) |
| 1b |
199-0344 |
1 1/4 inch double swivel elbow cuff |
1 |
(Duff 1.25 inch) |
| 2a |
199-0757 |
48 inch static-dissipating hose w/ elbow and straight cuff |
1 |
(With non-replaceable elbow and straight cuffs) |
| 2b |
199-0304 |
1 1/4 inch static-dissipating hose with cuffs |
1 |
(with 1.25 inch cuff) |
| 3a |
199-0074 |
1 1/2 inch swivel cuff |
1 |
(double swivel straight cuff) |
| 3b |
199-0428 |
1 1/4 inch swivel cuff |
1 |
(1.25 inch swivel cuff) |
| 5a |
199-0458 |
6 quart vacuum bag (pkg of 10) |
1 |
(open collar) |
| 5b |
199-0590 |
Vacuum bag (pkg of 10) |
1 |
(closed collar) |
| 6 |
199-0451 |
6 quart cloth vacuum bag |
1 |
|
| 7 |
199-0591 |
Latch and retainer w/ lock nut and screw |
1 |
|
| 8 |
199-0630 |
Gasket for tank (6 quart) |
2 |
|
| 9 |
199-0452 |
Dome filter assembly |
1 |
|
| 10 |
199-0453 |
Foam filter |
1 |
|
| 11 |
199-0594 |
Upper motor support w/ gasket |
1 |
|
| 12a |
199-0758 |
Motor gasket |
1 |
(GFFP II only) |
| 12b |
199-0759 |
Motor gasket |
1 |
(Old) |
| 13a |
199-0755 |
36V vacuum motor w/ gaskets |
1 |
(GFFP II only) |
| 13b |
199-0760 |
36V vacuum motor w/gasket |
1 |
(Old) |
| 14 |
199-0600 |
Wire cover w/ screws |
1 |
|
| 15 |
199-0761 |
Left and right baffles |
1 |
|
| 16 |
199-0601 |
Lower motor support |
1 |
|
| 17 |
199-0602 |
Lower triangular foam pad |
1 |
|
| 18 |
199-0631 |
Screw #8 x 1/2 pan head |
1 |
|
| 19 |
199-0605 |
Lower housing assembly |
1 |
|
| 20 |
199-0454 |
Hepa filter (pkg of 2) |
1 |
|
| 21 |
199-0488 |
Exhaust filter door |
1 |
|
| 22 |
199-0606 |
Screw #8 x 3/4 pan head |
1 |
|
| 23a |
199-0762 |
Switch cord and power cord assembly |
1 |
(GFFP II only) |
| 23b |
199-0607 |
Power cord assembly |
1 |
(Old) |
| 24 |
199-0165 |
Rocker switch |
1 |
|
| 26 |
199-0763 |
Switch cord assembly |
1 |
|
| 27 |
199-0764 |
Battery cord assembly |
1 |
|
| 28 |
199-0480 |
Upper harness assembly |
1 |
|
| 29 |
199-0653 |
Harness assembly |
1 |
|
| 30 |
199-0479 |
Tensioning strap (set of 2) |
1 |
|
| 31 |
199-0653 |
Harness assembly |
1 |
|
| 32 |
199-0496 |
Waist belt buckles and straps set |
1 |
|
| 33 |
199-0613 |
Screw 5/16-18 x 1 3/8 locking (pkg of 2) |
1 |
|
| 34 |
199-0603 |
Upper rectangular foam pad |
1 |
|
| 35 |
199-0614 |
Harness spacer |
2 |
|
| 36 |
199-0615 |
Upper battery housing |
1 |
|
| 37 |
199-0616 |
Lower battery housing |
1 |
|
| 38 |
199-0617 |
Battery support |
1 |
|
| 39 |
199-0489 |
Lead assembly with screw |
1 |
|
| 40 |
199-0490 |
Actuator with hardware |
1 |
|
| 41 |
199-0492 |
12Ah battery |
1 |
|
| 42 |
199-0494 |
Battery charger |
1 |
|
| 43 |
199-0618 |
Charger cord |
1 |
|
|
|
- Frequently Replaced Parts - 199-0033 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
199-0762 |
Switch cord and power cord assembly |
|
|
|
199-0607 |
Power cord assembly |
|
|
|
991-5002 |
16/3 extension cord 50 foot (orange) |
|
(NON-OEM) |
|
991-5007 |
18/3 replacement power cord 50 foot (black) |
|
(NON-OEM) |
|
991-5008 |
18/3 replacement power cord 50 foot (beige) |
|
(NON-OEM) |
|
991-5100 |
18/3 power cord 40 foot (blue) |
|
(NON-OEM) |
|
199-0458 |
6 quart vacuum bag (pkg of 10) |
|
|
|
199-0590 |
Vacuum bag (pkg of 10) |
|
|
|
199-0451 |
6 quart cloth vacuum bag |
|
|
|
991-9119 |
6 quart vacuum bags (pkg of 10) |
|
(NON-OEM) |
|
991-9151 |
6 quart paper vacuum bags (pkg of 10) |
|
(NON-OEM) |
|
199-0454 |
Hepa filter (pkg of 2) |
|
|
|
991-2127 |
Hepa filter |
|
(NON-OEM) |
|
199-0653 |
Harness assembly |
|
(includes 199-0480, 199-0479, 199-0496, and 199-0613) |
|
199-0480 |
Upper harness assembly |
|
|
|
199-0479 |
Tensioning strap (set of 2) |
|
|
|
199-0496 |
Waist belt buckles and straps set |
|
|
|
199-0613 |
Screw 5/16-18 x 1 3/8 locking (pkg of 2) |
|
|
|
199-0757 |
48 inch static-dissipating hose w/ elbow and straight cuff |
|
|
|
199-0304 |
1 1/4 inch static-dissipating hose with cuffs |
|
|
|
|
