Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Main Assembly No Heat - 228-4049 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
228-4084 |
3 gallon solution tank (black) |
1 |
|
| 2 |
228-4210 |
3 gallon recovery tank (grey) |
1 |
|
| 3 |
999-1018 |
Screw 6-32 x 1/4 pan head phillips stainless steel |
6 |
|
| 6 |
228-4212 |
Spotter handle rivet |
4 |
|
| 7 |
228-4213 |
Washer 1/8 nylon |
4 |
|
| 9 |
999-0412 |
Washer #8 SAE flat |
5 |
|
| 10 |
228-4215 |
Screw allen head |
4 |
|
| 12 |
228-4216 |
1 1/2 inch PVC slip thread |
1 |
|
| 13 |
228-4217 |
Spotter hatch cover gasket |
1 |
|
| 14 |
228-4104 |
1 1/2 inch stand pipe |
1ft |
|
| 15 |
228-4058 |
Spotter cap and float assembly |
1 |
|
| 17 |
228-4229 |
3 gallon spotter handle (black) |
1 |
|
| 18 |
228-4044 |
90 degree nylon barb |
2 |
|
| 19 |
228-4082 |
Bulkhead fitting |
1 |
|
| 20 |
228-4046 |
1/8 inch brass female coupler |
1 |
|
| 21 |
228-4083 |
1/4 inch male quick disconnect |
1 |
|
| 22 |
228-4048 |
Threaded hose (sold by the foot) |
3ft |
|
| 23 |
228-4050 |
1/8 inch straight nylon barb |
3 |
|
| 25 |
228-8024 |
55 PSI pump assembly |
1 |
|
| 26 |
228-4221 |
Left hand bracket |
1 |
|
| 27 |
228-4243 |
Oetiker clamp |
4 |
|
| 28 |
228-4079 |
Roller blade wheel |
2 |
|
| 30 |
228-8012 |
Screw (for shoulder and waist belts 228-7021) |
1 |
|
| 31 |
228-4022 |
Deflector screw |
1 |
|
| 32 |
228-4244 |
Bottom base plate |
1 |
|
| 34 |
228-4020 |
Motor screw |
2 |
|
| 35 |
228-4230 |
Screw 10-32 x 3/8 inch |
2 |
|
| 36 |
228-4231 |
Motor mount plate |
1 |
|
| 37 |
228-8036 |
Vacuum motor with gasket |
1 |
|
| 38 |
228-8037 |
Stamped motor screen |
1 |
|
| 39 |
228-4051 |
Motor gasket |
1 |
|
| 40 |
228-4162 |
Strain relief nut |
1 |
|
| 41 |
228-4233 |
Switch plate |
1 |
|
| 42 |
228-4018 |
Pigtail cord with strain relief and nut |
1 |
|
| 43 |
228-4232 |
Air mover cord |
1 |
|
| N/S |
228-4016 |
Complete hand tool internal solution |
1 |
(included in 50-1000 and 50-3000) |
| N/S |
228-4059 |
4 inch stainless steel hand tool |
1 |
(included in 50-1001 and 50-3001) |
|
|

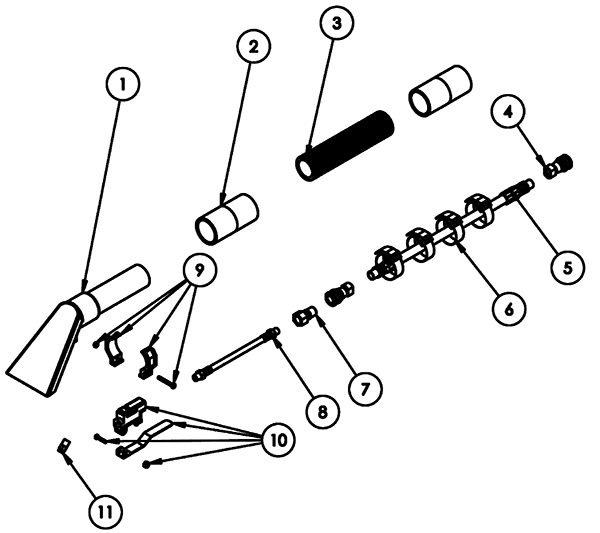

Hoses and Hand Tool With Heat Assembly - 228-4050 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
228-4059 |
4 inch stainless steel hand tool |
1 |
|
| 2 |
228-4234 |
Slip hose cuff (black) |
2 |
|
| 3 |
228-4235 |
Hose 1 1/4 inch x 15 foot (black) |
1 |
|
| 4 |
228-4129 |
Female fitting |
1 |
|
| 5 |
228-4236 |
Extractor hose 1/4 inch x 15 foot |
1 |
|
| 6 |
228-4237 |
Velcro strap |
1 |
|
| 7 |
228-4083 |
1/4 inch male quick disconnect |
1 |
|
| 8 |
228-4238 |
8 inch hose (black) |
1 |
|
|
|
Hoses and Hand Tool With No Heat Assembly - 228-4051 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
228-4195 |
4 inch stainless steel hand tool (clear) |
1 |
|
| 2 |
228-4234 |
Slip hose cuff (black) |
2 |
|
| 3 |
228-4246 |
7 foot hose (black) |
1 |
|
| 4 |
228-4247 |
1/8 inch female quick connect |
1 |
|
| 5 |
228-4248 |
Solution hose |
1 |
|
| 6 |
228-4237 |
Velcro strap |
1 |
|
| 7 |
228-4047 |
1/8 inch male quick disconnect |
1 |
|
| 8 |
228-4046 |
1/8 inch brass female coupler |
1 |
|
|
|

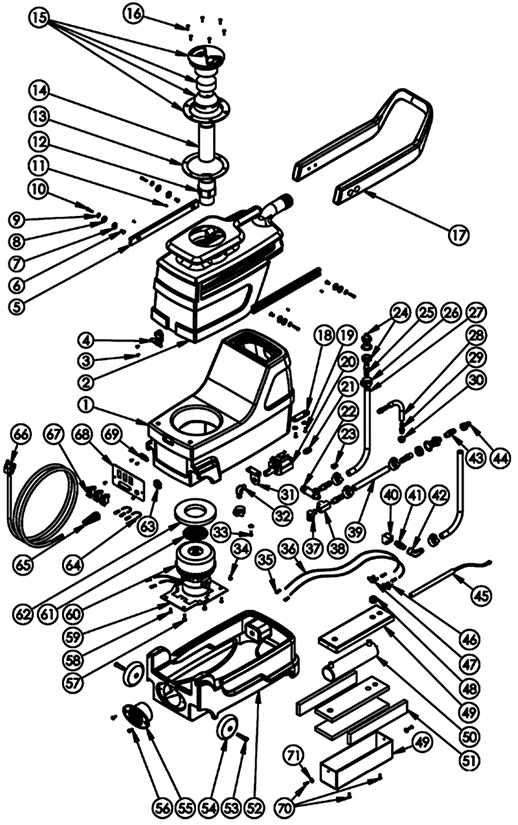

Main Assembly With Heat - 228-4052 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
228-4084 |
3 gallon solution tank (black) |
1 |
|
| 2 |
228-4249 |
3 gallon recovery tank (blue) |
1 |
|
| 3 |
999-1018 |
Screw 6-32 x 1/4 pan head phillips stainless steel |
6 |
|
| 6 |
228-4212 |
Spotter handle rivet |
4 |
|
| 7 |
228-4213 |
Washer 1/8 nylon |
4 |
|
| 9 |
999-0412 |
Washer #8 SAE flat |
11 |
|
| 10 |
228-4215 |
Screw allen head |
4 |
|
| 12 |
228-4216 |
1 1/2 inch PVC slip thread |
1 |
|
| 13 |
228-4217 |
Spotter hatch cover gasket |
1 |
|
| 14 |
228-4104 |
1 1/2 inch stand pipe |
1 |
|
| 15 |
228-4058 |
Spotter cap and float assembly |
1 |
|
| 17 |
228-4229 |
3 gallon spotter handle (black) |
1 |
|
| 20 |
228-8024 |
55 PSI pump assembly |
1 |
|
| 21 |
228-4166 |
Brass nipple |
1 |
|
| 22 |
228-4190 |
Relief valve |
1 |
|
| 23 |
228-4219 |
1/8 inch brass plug |
1 |
|
| 24 |
228-4082 |
Bulkhead fitting |
2 |
|
| 25 |
228-4220 |
Barb 3/8 x 1/4 mpt |
4 |
|
| 26 |
228-4093 |
3/8 hose clamp |
6 |
|
| 27 |
228-4125 |
3/8 inch hose (black) |
1 |
|
| 28 |
228-4048 |
Threaded hose (sold by the foot) |
1 |
|
| 29 |
228-4050 |
1/8 inch straight nylon barb |
2 |
|
| 31 |
228-4221 |
Left hand bracket |
1 |
|
| 32 |
228-4222 |
Brass fitting |
1 |
|
| 34 |
228-4022 |
Deflector screw |
1 |
|
| 35 |
228-4250 |
Female terminal connector |
10 |
|
| 36 |
228-4224 |
Wire (purple) |
|
|
| 37 |
228-4100 |
90 degree street elbow |
1 |
|
| 38 |
228-4099 |
1/4 inch brass tee |
1 |
|
| 39 |
228-4125 |
3/8 inch hose (black) |
1 |
|
| 40 |
228-4102 |
90 degee brass elbow |
1 |
|
| 42 |
228-4225 |
Fitting 3/8 x 1/4 inch |
1 |
|
| 43 |
228-4179 |
1/4 inch male nipple |
1 |
|
| 44 |
228-4083 |
1/4 inch male quick disconnect |
1 |
|
| 45 |
228-4187 |
Heater element |
1 |
|
| 48 |
228-4197 |
Strain relief |
1 |
|
| 49 |
228-4226 |
Tubular heater box |
1 |
|
| 50 |
228-4227 |
Tubular heater body |
1 |
|
| 51 |
228-4228 |
Pipewrap insulation |
1 |
|
| 52 |
228-4229 |
3 gallon spotter handle (black) |
1 |
|
| 54 |
228-4079 |
Roller blade wheel |
2 |
|
| 55 |
228-4110 |
Exhaust grate |
2 |
|
| 57 |
228-4020 |
Motor screw |
2 |
|
| 58 |
228-4230 |
Screw 10-32 x 3/8 inch |
2 |
|
| 59 |
228-4231 |
Motor mount plate |
1 |
|
| 60 |
228-8036 |
Vacuum motor with gasket |
1 |
|
| 61 |
228-8037 |
Stamped motor screen |
1 |
|
| 63 |
228-4051 |
Motor gasket |
1 |
|
| 64 |
228-4162 |
Strain relief nut |
1 |
|
| 65 |
228-4018 |
Pigtail cord with strain relief and nut |
1 |
|
| 66 |
228-4232 |
Air mover cord |
1 |
|
| 68 |
228-4233 |
Switch plate |
1 |
|
| N/S |
228-4251 |
Wire (black) |
|
|
|
|
- Commonly Asked For Parts - 228-4993 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
228-4050 |
1/8 inch straight nylon barb |
|
|
| 02 |
228-4044 |
90 degree nylon barb |
|
|
| 05 |
228-8024 |
55 PSI pump assembly |
|
|
| 06 |
228-4079 |
Roller blade wheel |
|
|
| 08 |
228-4082 |
Bulkhead fitting |
|
|
| 09 |
228-4083 |
1/4 inch male quick disconnect |
|
|
| 10 |
228-4084 |
3 gallon solution tank (black) |
|
|
| 11 |
228-4174 |
7 foot solution and vacuum hose w/ female fittings |
|
|
| 13 |
228-4059 |
4 inch stainless steel hand tool |
|
|
| 14 |
218-0032 |
Solution hose assembly |
|
|
| 15 |
228-4053 |
4 inch clear plastic hand tool w/ jets for external hoses |
|
|
| 16 |
228-4187 |
Heater element |
|
|
| 17 |
228-4253 |
Stainless steel spotter wand |
|
|
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
