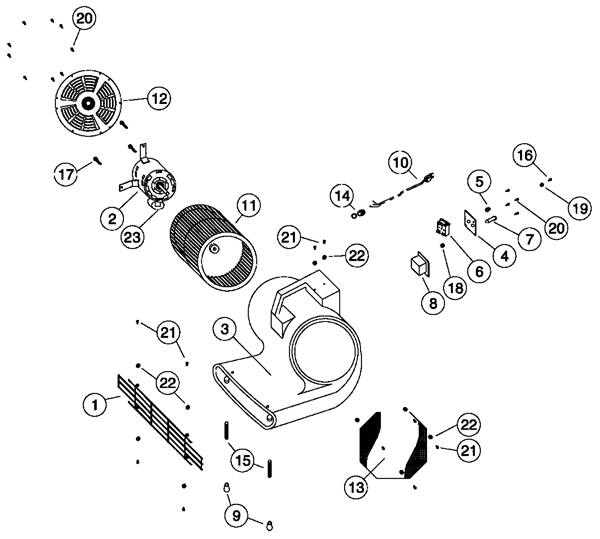

Entire Assembly - 190-9006 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2a |
189-7502 |
115 volt motor |
1 |
|
| 2b |
190-0399 |
Motor (OBSOLETE) |
1 |
|
| 3 |
N/A |
Not available |
1 |
(housing) |
| 4 |
N/A |
Not available |
1 |
(blower switch plate) |
| 6 |
190-0040 |
Switch (OBSOLETE) |
1 |
|
| 7 |
190-0403 |
Neon light with lens |
1 |
|
| 8 |
190-0404 |
Dryer switch housing |
1 |
|
| 9 |
190-0030 |
Rubber foot (black) (new style) |
2 |
|
| 10 |
N/A |
Not available |
1 |
(cord) |
| 11 |
190-0237 |
Squirrel cage with lock nut |
1 |
|
| 12 |
N/A |
Not available |
1 |
(motor cover and screen) |
| 13 |
N/A |
Not available |
1 |
(screen) |
| 14 |
216-0173 |
Strain relief |
1 |
|
| 16 |
999-0269 |
Screw 10-24 x 5/8 pan head phillips zinc plated |
1 |
|
| 17 |
190-0419 |
Screw 1/4-20 x 1/2 serrated hex |
3 |
|
| 18 |
999-0062 |
Nut 10-24 hex |
1 |
|
| 19 |
N/A |
Not available |
1 |
(shakeproof washer) |
| 20 |
999-0680 |
Screw 6 x 1/2 pan head phillips T-A sheet metal |
13 |
|
| 21 |
999-0454 |
Screw 10-24 x 1/2 truss head phillips zinc plated |
10 |
|
| 22 |
190-0405 |
Nut nylon insert lock |
10 |
|
|
|
- Commonly Asked For Parts - 190-9996 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
190-0040 |
Switch (OBSOLETE) |
|
|
| 0.9835 |
190-0030 |
Rubber foot (black) (new style) |
|
|
| 0.9835 |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
|
|
| 0.9835 |
189-7501 |
Squirrel cage fan |
|
|
| 0.9835 |
183-0563 |
16/3 power cord 20 foot |
|
|
|
|
|
