Parts List Complete for POWRFLITE PFX 1080

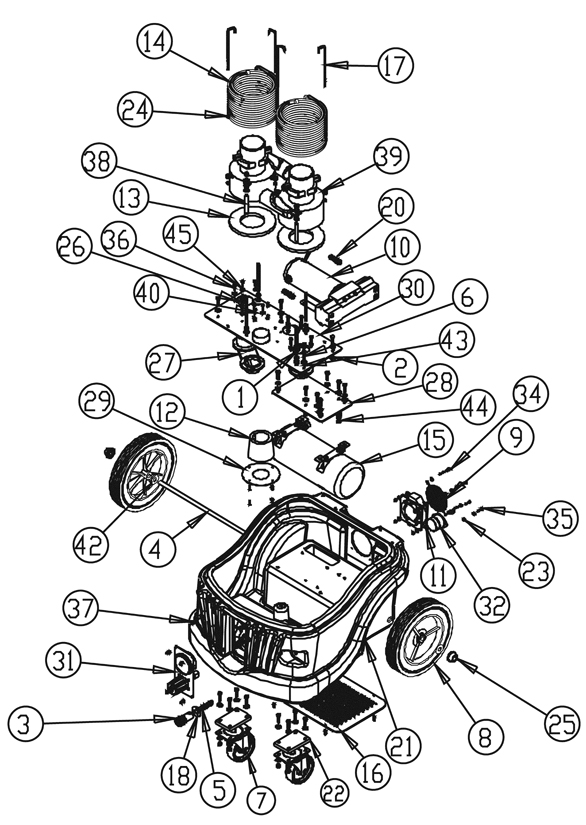

Base Assembly - 190-1234
RefNbr Part Number Description Req Notes
1 216-0091 Rod 3/16 x 5 1/2 stainless steel 8
2 999-0016 Washer 1/4 flat plain finish 16
3 216-0019 Quick disconnect valve 1
4 190-1095 Rear axle 1
5 190-1096 Hose barb 1
6 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 16
7 190-2004 4 inch caster wheel assembly (gray) 2
8 190-0444 10 inch wheel (gray) 2
9 216-0193 Fan cover 1
10a 189-5332 200PSI pump 1
10b 190-0892 100psi pump 1
10c 216-0041 Pump and motor assembly 1
11 216-0196 Cooling fan 1
12 190-1101 Muffler foam 1
13 216-0094 Vacuum motor gasket 2
14 216-0205 Heater coil 2
15 190-1103 Dual element heater 1
16 190-1104 Heater cover 1
17 190-1105 J-hook 4
18 216-0072 Washer 1
20 N/A Not available 8 (Barb)
21 N/A Not available 1 (Base)
22 190-1109 Caster spacer 2
23 999-0357 Nut 8-32 nylon insert lock stainless steel 8
24 216-0165 Nut 10-32 kep zinc 4
25 190-1003 Push nut 2
26 216-0097 Nut #10-24mm zinc 16
27 190-0594 Plastic vacuum chamber 2
28 190-1110 Pump plate 1
29 190-1111 Muffler plate 1
30 190-1112 Vacuum plate 1
31 190-1113 Pressure gauge assembly 1
32 190-0435 Receptacle 1
34 216-0178 Screw #8 x 5/8 pan head phillips 8
35 999-0697 Screw 8-32 x 3/4 pan head phillips stainless steel 4
36 999-1816 Screw 10-24 x 3/4 pan head phillips zinc plated 4
37 190-0978 Screw 1/4-20 x 1/2 phillips 4
38 216-0158 Spacer 2
39a 216-0095 115V 2 stage vacuum motor 2
39b 190-9946 3 stage motor kit 2 (blackmax 10 gallon)
39c 216-0387 Vacuum motor kit 2 (PFX 1070 and PFX 1080)
40 190-1115 Vacuum chamber gasket 2
42 216-0084 Washer 1/2 flat stainless steel 4
43 190-0269 Washer 1/4 spring lock 4
44 190-1117 Nut 8
45 190-1118 Washer 8
N/S 216-0110 Nut 1/4-20 zinc 4
N/S 216-0178 Screw #8 x 5/8 pan head phillips 4
N/S 190-1116 Washer 4
N/S 190-9271 Wiring 1

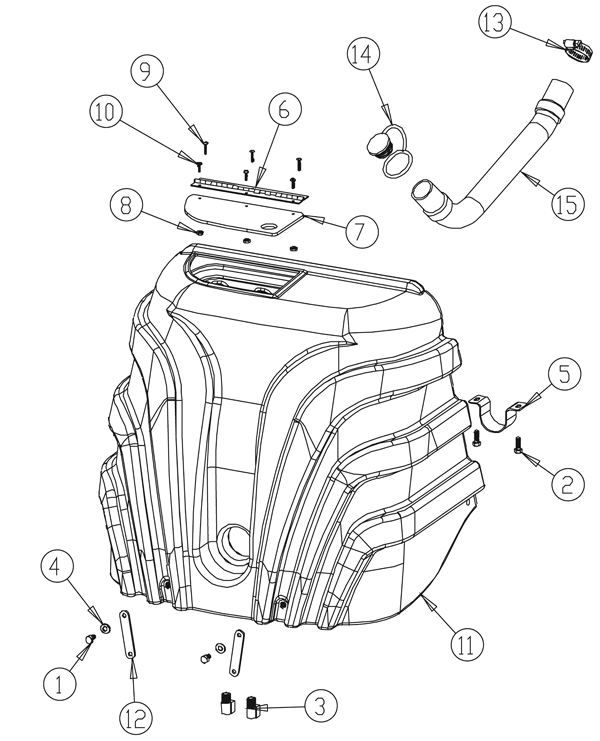

Recovery Tank Assembl - 190-1235
RefNbr Part Number Description Req Notes
1 N/A Not available 2 (Screw)
2 190-1119 Screw 1/4-20 2
3 190-1120 90 degree elbow 2
4 999-0016 Washer 1/4 flat plain finish 4
5 190-1121 Clamp 1
6 190-1122 Hinge 1
7 190-1123 Solution tank lid 1
8 999-0357 Nut 8-32 nylon insert lock stainless steel 3
9 190-1124 Screw 3
10 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 3
11 N/A Not available 1 (Solution tank)
12 190-1126 Front strap 2
13 190-0873 Clamp 1
14 190-1127 Drain hose plug 1
15 190-1128 Drain hose 1

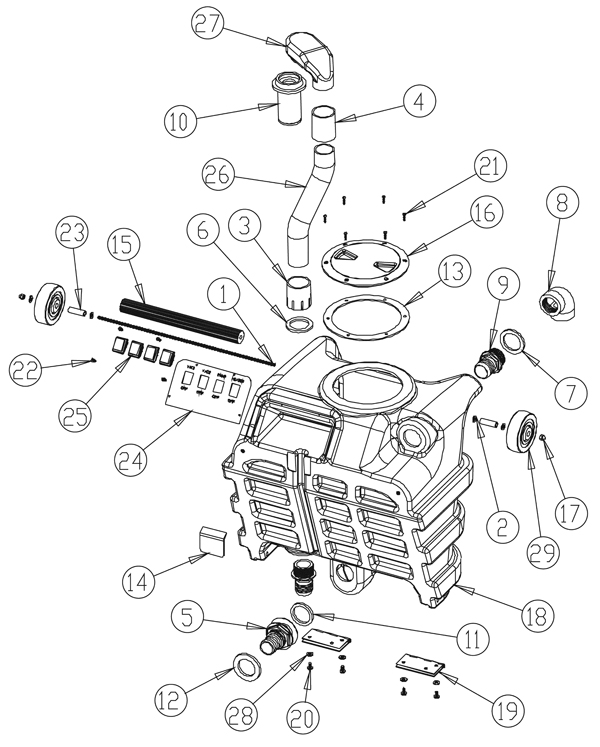

Solution Tank Assembly - 190-1236
RefNbr Part Number Description Req Notes
1 190-1129 Axle 1
2 999-0016 Washer 1/4 flat plain finish 4
3 216-0069 Coupler 1
4 216-0333 Coupling 1
5 190-1130 Drain hose fitting 1
6 190-9023 Gasket 1
7 189-2486 Vac inlet gasket 1
8 189-2496 PVC drain elbow 1
9 216-0068 Hose barb 2
10 216-0325 Float cage with ball 1
11 N/A Not available 1 (Inner drain gasket)
12 N/A Not available 1 (Outer drain gasket)
13 190-0681 Lid gasket 1
14 N/A Not available 1 (Gasket)
15 190-1134 Handle 1
16 190-9018 6 inch clear tank lid 1
17 216-0357 Nut 2
18 N/A Not available 4 (Recovery tank)
19 216-0112 Hinge 6
20 190-0978 Screw 1/4-20 x 1/2 phillips 4
21 190-1124 Screw 6
22 216-0178 Screw #8 x 5/8 pan head phillips 4
23 216-0147 Spacer 2
24 190-1138 Switch panel 1
25 189-4283 Switch rocker on/off 4
26 190-1139 Vacuum stand pipe 1
27 190-0684 Vacuum tube 1
28 190-0866 Washer 4
29 216-0341 Wheel (black) 2

- Commonly Asked For Parts - 190-9936
RefNbr Part Number Description Req Notes
01 190-0594 Plastic vacuum chamber
02 216-0094 Vacuum motor gasket
