Wiring Diagram - Single Speed - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

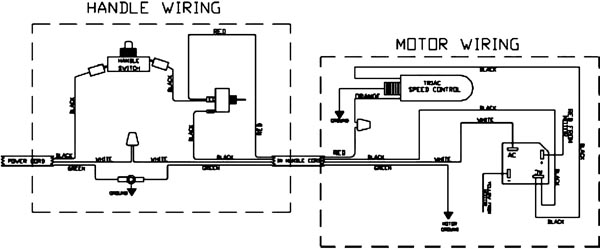

Wiring Diagram - Dual Speed - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Upper Assembly - 154-2042 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
190-0264 |
14/3 power cord 50 foot with strain relief |
|
(OEM) |
| 1b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 2c |
991-5001 |
14/3 extension cord 50 foot (yellow) |
|
(NON-OEM) |
| 2 |
189-3047 |
Strain relief washer |
|
|
| 3 |
189-7556 |
Strain relief nut |
|
|
| 6 |
189-3012 |
Handle clamp collar |
|
|
| 8 |
189-2979 |
Screw 10-24 x 1/2 pan head phillips type f |
|
|
| 9 |
190-0008 |
Handle clamp assembly |
|
(includes 6, 10, 17 and 32) |
| 11 |
190-0057 |
Right side handle brace with hole |
|
|
| 12 |
190-0056 |
Left side handle brace with slot |
|
|
| 15a |
999-0016 |
Washer 1/4 flat plain finish |
|
|
| 18a |
189-8621 |
1 1/2HP motor |
|
|
| 18b |
189-8619 |
Start capacitor |
|
|
| 18c |
189-8620 |
Run capacitor |
|
|
| 21 |
189-8622 |
Run capacitor |
|
|
| 22 |
189-8623 |
Start capacitor |
|
|
| 23 |
189-3016 |
Interconnect cord |
|
|
| 27 |
999-0883 |
Screw 8 x 1 pan head phillips zinc plated |
|
|
| 29 |
999-1389 |
Screw 8-32 x 3/4 truss head phillips stainless steel |
|
(qty of 2) |
| 30 |
190-0268 |
Spacer |
|
(qty of 2) |
| 31 |
190-0269 |
Washer 1/4 spring lock |
|
|
| 32 |
999-0024 |
Washer 5/16 flat stainless steel |
|
|
| 33 |
999-0120 |
Washer 3/8 SAE flat |
|
|
| 34 |
999-0320 |
Screw 1/4-20 x 3/4 socket head alloy plain finish |
|
|
| 35 |
999-0136 |
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
|
|
| 36 |
999-1544 |
Screw 8-32 x 1/2 truss head phillips stainless steel |
|
(qty of 4) |
| 58 |
189-8626 |
Switch box cover |
|
|
| 59 |
190-0060 |
Thumb actuation release |
|
|
| 60 |
190-0061 |
Handle trigger |
|
|
| 61 |
190-0062 |
Trigger tension spring |
|
(qty of 2) |
| 63 |
190-0064 |
Handle roll pin |
|
(qty of 2) |
| 64 |
190-0270 |
Handle grip |
|
(qty of 2) |
| 65a |
189-2979 |
Screw 10-24 x 1/2 pan head phillips type f |
|
(qty of 3) |
| 65b |
190-0066 |
Washer lock |
|
(qty of 3) |
| 66 |
190-0067 |
Insulation sheet |
|
|
| 67a |
189-2971 |
25amp switch |
|
|
| 67b |
991-2107 |
Switch |
|
(NON-OEM) |
| 68 |
190-0271 |
Handle weldment |
|
|
| 70 |
999-0320 |
Screw 1/4-20 x 3/4 socket head alloy plain finish |
|
|
| N/S |
189-8628 |
Insulation switch boot |
|
|
| N/S |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
|
|
|
|
Base Assembly - 154-2043 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 8a |
189-3021 |
Metal strain relief |
|
|
| 8d |
189-3022 |
Brass sleeve strain relief |
|
|
| 11 |
189-2976 |
Handle tube with inserts |
|
|
| 12 |
190-0008 |
Handle clamp assembly |
|
|
| 15 |
999-0694 |
Screw 1/4-20 x 1/2 flat head phillips zinc plated |
|
|
| 17 |
189-2980 |
Left side handle brace |
|
|
| 18 |
189-3013 |
Right side handle brace |
|
|
| 25 |
999-0462 |
Screw 8-32 x 1/2 pan head slotted zinc plated |
|
|
| 28 |
999-0077 |
Nut 8-32 k-lock zinc plated |
|
|
| 29 |
189-3015 |
Capacitor strap |
|
|
| 30a |
190-0273 |
Motor and gear unit |
|
|
| 30b |
190-0279 |
Upper motor bearing |
|
|
| 30c |
170-0694 |
Odum coupling |
|
|
| 30d |
190-0034 |
Stationary switch |
|
|
| 34 |
189-2979 |
Screw 10-24 x 1/2 pan head phillips type f |
|
|
| 36 |
190-0276 |
Screw 1/4-20 x 3/4 |
|
|
| 37 |
999-0464 |
Washer 3/16 flat plain finish |
|
|
| 38 |
999-0269 |
Screw 10-24 x 5/8 pan head phillips zinc plated |
|
|
| 42a |
190-0035 |
14/3 power cord 50 foot |
|
(OEM) |
| 42b |
190-0278 |
14/3 power cord 50 foot with metal strain relief & terminal |
|
(OEM) |
| 42c |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 43 |
189-2979 |
Screw 10-24 x 1/2 pan head phillips type f |
|
|
| 44 |
189-2984 |
Spring washer |
|
|
| 45 |
999-0016 |
Washer 1/4 flat plain finish |
|
|
| 46 |
189-3016 |
Interconnect cord |
|
|
| N/S |
189-3041 |
Wheel spacer |
|
|
| N/S |
999-0320 |
Screw 1/4-20 x 3/4 socket head alloy plain finish |
|
|
| N/S |
189-3045 |
Screw and nut |
|
(for short switch housing) |
| N/S |
999-0577 |
Screw 14 x 1/2 hex washer head sheet metal zinc |
|
(for long switch housing) |
|
|
Brushes - 154-9995 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 08 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
1 |
|
| 09 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
1 |
|
| 1 |
996-0047 |
18 inch heavy grit stripping brush - 80 grit |
1 |
|
| 2 |
996-0020 |
18 inch medium grit scrubbing brush - 180 grit |
1 |
|
| 3 |
996-0377 |
18 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 4 |
996-0375 |
18 inch polypropylene scrubbing brush |
1 |
|
| 5 |
996-0240 |
Carpet brush for 20 inch swing |
1 |
|
| 6 |
996-0348 |
18 inch nylon carpet scrubbing brush |
|
|
| 7 |
996-0071 |
19 inch pad driver |
1 |
|
| 8 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
1 |
|
|
|
Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad(OBSOLETE) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
