Pad Driver Assembly - 154-1128 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
154-0784 |
24 inch pad driver assembly |
1 |
(includes 1-12) |
| 0b |
154-0772 |
28 inch pad driver assembly |
1 |
(includes 1-12) |
| 1 |
154-0408 |
Pad holder stress relief ring |
1 |
|
| 2 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
6 |
|
| 3a |
154-0557 |
24 inch pad driver with studs |
1 |
|
| 3b |
154-0126 |
28 inch pad driver with studs |
1 |
|
| 4 |
154-0127 |
Velcro stud |
68 |
|
| 5a |
154-0785 |
Flexi-disc without lip 3/4 bore with insert |
1 |
(24 inch) |
| 5b |
154-0773 |
Flexi-disc without lip 3/4 bore with insert |
1 |
(28 inch) |
| 6 |
154-0312 |
Spacer ring for Center-Lok II |
1 |
|
| 7a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
1 |
|
| 7b |
991-2202 |
Big mouth pad holder set (blue) |
1 |
(NON-OEM) |
| 7c |
991-8577 |
Pad retainer |
1 |
(NON-OEM) |
| 9 |
999-0016 |
Washer 1/4 flat plain finish |
6 |
|
| 10 |
999-0124 |
Screw 1/4-20 x 1 1/4 button head socket cap plain finish |
6 |
|
| 12 |
154-1506 |
Space plate |
1 |
|
|
|
Deck Assembly - 154-1129 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
154-1507 |
24 inch deck assembly (OBSOLETE) |
1 |
(includes 1-12) |
| 0b |
154-1508 |
28 inch deck assembly (OBSOLETE) |
1 |
(includes 1-12) |
| 1a |
154-1509 |
24 inch shroud (OBSOLETE) |
1 |
|
| 1b |
154-1510 |
28 inch shroud (OBSOLETE) |
1 |
|
| 2 |
154-0777 |
Keep hands/feet decal |
1 |
|
| 3 |
154-0719 |
Steel bushing |
1 |
|
| 4 |
154-0720 |
Screw 1/4-20 x 1 1/4 socket head with loctite |
1 |
|
| 5 |
992-0002 |
Velcro hook (sold by the inch) |
108 in |
|
| 6 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 8 |
154-0779 |
28 inch scoop (OBSOLETE) |
1 |
|
| 9 |
999-0016 |
Washer 1/4 flat plain finish |
7 |
|
| 10 |
999-0235 |
Screw 1/4-20 x 3/4 button head socket plain finish |
5 |
|
| 11 |
154-0515 |
Felt for improved skirt design (sold by the foot) |
8 ft |
|
| 12 |
154-0728 |
Pop rivet 3/16 x 1/2 x 3/8 |
9 |
|
|
|
Skirt Assembly - 154-1130 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
154-1512 |
24 inch steel skirt assembly |
1 |
(includes 1-10) |
| 0b |
154-1513 |
28 inch steel skirt assembly |
1 |
(includes 1-10) |
| 1 |
999-0609 |
Nut 1/4-20 hex stainless steel |
1 |
|
| 2 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 3 |
154-0781 |
Bolt 1/4-20 x 2 1/2 inch hex head tap |
1 |
|
| 4a |
154-0790 |
24 inch skirt |
1 |
|
| 4b |
154-0782 |
28 inch skirt |
1 |
|
| 5 |
154-2087 |
Bottom skirt edging (sold by the foot) |
8 ft |
|
| 8 |
999-0006 |
Washer 3/16 flat zinc plated |
5 |
|
| 9 |
154-0516 |
Bumper molding (sold by the foot) |
7 ft |
|
| 10 |
154-0783 |
Compression insert |
1 |
|
|
|
Motion Controls Assembly - 154-1137 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0130 |
Screw 5/16-18 x 3/4 socket head alloy plain finish |
4 |
|
| 2 |
999-0089 |
Washer #10 internal star lock zinc plated |
2 |
|
| 3 |
999-1452 |
Screw 1/4-20 x 3/8 set knurled point stainless steel |
3 |
|
| 4 |
999-0028 |
Washer 5/16 split lock plain finish |
6 |
|
| 5 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
| 6 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
7 |
|
| 7 |
154-1590 |
Threaded rod (OBSOLETE) |
1 |
|
| 8 |
999-0985 |
Washer #4 SAE flat |
4 |
|
| 9 |
999-1453 |
Screw 4-40 x 1 1/2 pan head phillips stainless steel |
2 |
|
| 10 |
999-0960 |
Nut 10-24 hex stainless steel |
2 |
|
| 11 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 12 |
999-0239 |
Nut 10-32 k-lock zinc plated |
1 |
|
| 13 |
154-1196 |
Screw 10-24 x 5/16 inch set nylon tip |
1 |
|
| 14 |
154-1592 |
Torsion spring |
1 |
|
| 15 |
154-1593 |
Potentiometer linkage arm (OBSOLETE) |
1 |
|
| 18 |
154-1595 |
Right side handle bracket assembly (OBSOLETE) |
1 |
|
| 19 |
154-1596 |
Left side handle bracket assembly (OBSOLETE) |
1 |
|
| 20 |
154-1597 |
Spring winder weldment (OBSOLETE) |
1 |
|
| 21 |
154-1598 |
Outer tube weldment |
1 |
|
| 22 |
154-1599 |
Mounting plate |
1 |
|
| 23 |
154-1343 |
Female rod end |
2 |
|
| 24 |
154-1600 |
Adjustable switch cam (OBSOLETE) |
2 |
|
| 26 |
154-1601 |
Potentiometer wiring harness (OBSOLETE) |
1 |
|
| 27 |
154-1602 |
Plate (OBSOLETE) |
1 |
|
| 29 |
999-0998 |
Washer #10 flat stainless steel |
1 |
|
|
|

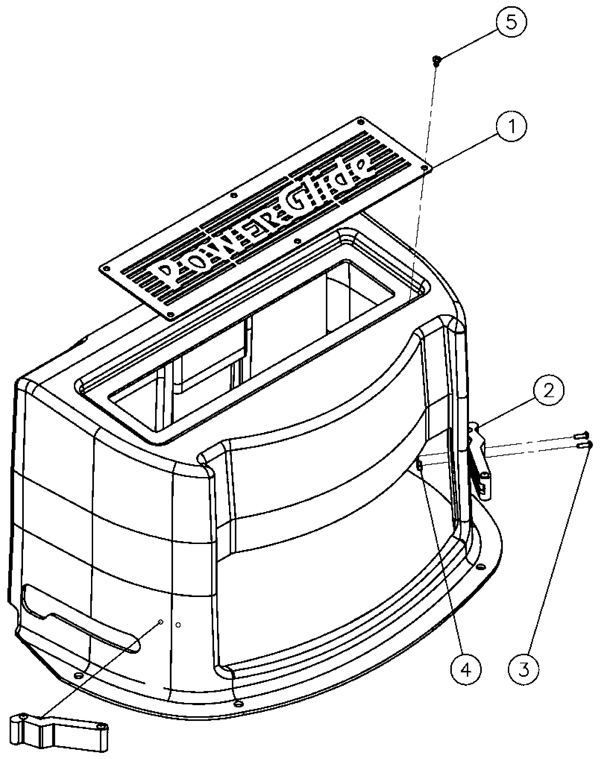

Motor Cover Assembly - 154-1138 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
154-1493 |
Grill (OBSOLETE) |
1 |
|
| 2 |
154-1752 |
Latch keeper |
2 |
|
| 3 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
3 |
|
| 4 |
999-0151 |
Nut 8-32 nylon insert lock zinc plated |
4 |
|
| 5 |
154-1272 |
Screw 8 x 3/8 |
5 |
|
|
|

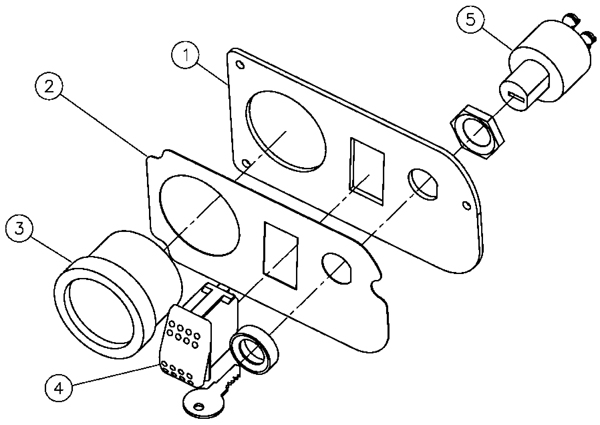

Right Dashboard Assembly - 154-1139 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
154-1606 |
Right side dash panel (OBSOLETE) |
1 |
|
| 2 |
154-1607 |
Right side dash decal (OBSOLETE) |
1 |
|
| 4 |
154-1483 |
Rocker switch with green light |
1 |
|
|
|

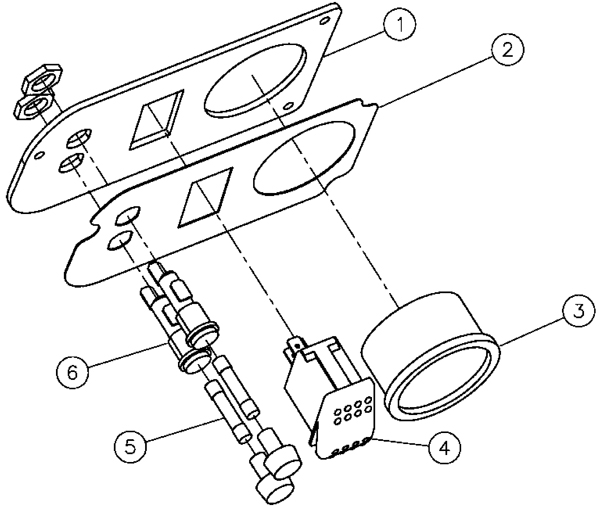

Left Dashboard Assembly - 154-1140 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
154-1604 |
Left side dash panel (OBSOLETE) |
1 |
|
| 2 |
154-1605 |
Left side dash decal (OBSOLETE) |
1 |
|
| 3 |
154-1484 |
Multi-function display |
1 |
|
| 4 |
154-1356 |
Rocker switch |
1 |
|
|
|
Left Dashboard Assembly - Manual Lift - 154-1141 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
154-1604 |
Left side dash panel (OBSOLETE) |
1 |
|
| 2 |
154-1605 |
Left side dash decal (OBSOLETE) |
1 |
|
| 3 |
154-1484 |
Multi-function display |
1 |
|
| 7 |
999-0763 |
Nut 5/16-24 hex jam plain finish |
1 |
|
|
|

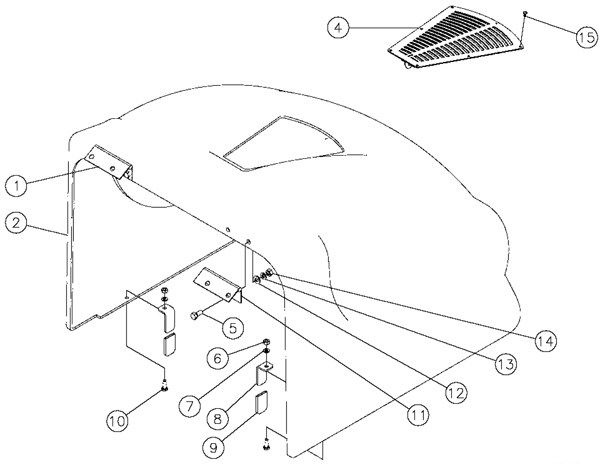

Battery Cover Assembly - 154-1142 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
154-1499 |
Left side hinge (OBSOLETE) |
1 |
|
| 2 |
154-1608 |
Battery cover (OBSOLETE) |
1 |
|
| 3 |
154-1609 |
Battery decal (OBSOLETE) |
1 |
|
| 4 |
N/A |
Not available |
1 |
(Grill) |
| 5 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
| 6 |
999-0609 |
Nut 1/4-20 hex stainless steel |
2 |
|
| 8 |
154-1611 |
Retainer bracket (OBSOLETE) |
2 |
|
| 10 |
999-1099 |
Bolt 1/4-20 x 3/4 hex head stainless steel |
2 |
|
| 11 |
154-1496 |
Right side hinge (OBSOLETE) |
1 |
|
| 12 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 13 |
999-0028 |
Washer 5/16 split lock plain finish |
4 |
|
| 14 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
| 15 |
154-1272 |
Screw 8 x 3/8 |
15 |
|
|
|

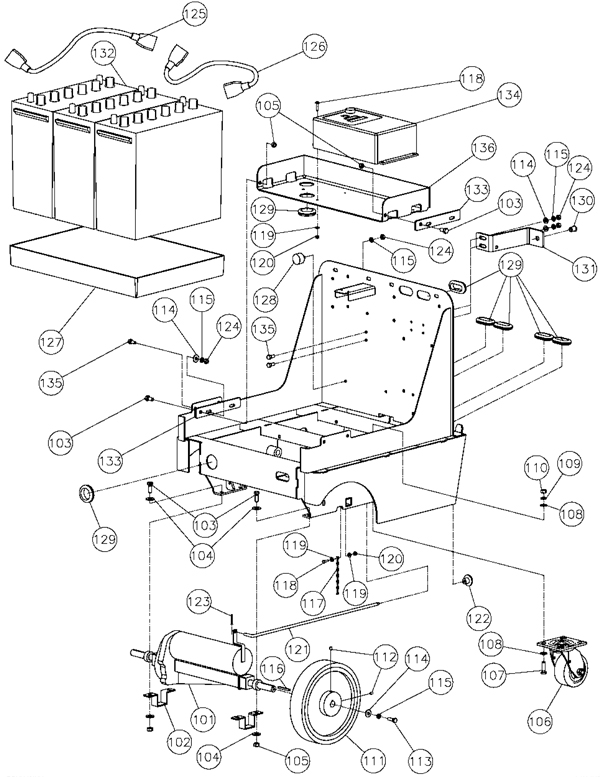

Frame Assembly 1 - 154-1143 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 101 |
154-1536 |
Transaxle assembly |
1 |
|
| 102 |
154-1535 |
Transaxle bracket |
2 |
|
| 103 |
154-0757 |
Screw 3/8 x 1 |
6 |
|
| 104 |
999-0032 |
Washer 3/8 USS flat plain finish |
8 |
|
| 105 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
6 |
|
| 106 |
154-1532 |
4 inch caster wheel with seal (gray) |
2 |
|
| 107 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
8 |
|
| 108 |
999-1254 |
Washer 3/8 SAE flat zinc plated |
16 |
|
| 109 |
154-0633 |
Lock washer |
8 |
|
| 110 |
999-0959 |
Nut 3/8-16 hex |
8 |
|
| 111 |
154-1534 |
10 inch polyurethane wheel (OBSOLETE) |
2 |
|
| 112 |
999-1452 |
Screw 1/4-20 x 3/8 set knurled point stainless steel |
4 |
|
| 113 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 114 |
999-0024 |
Washer 5/16 flat stainless steel |
8 |
|
| 115 |
999-0028 |
Washer 5/16 split lock plain finish |
10 |
|
| 116 |
154-1537 |
Square keyway |
2 |
|
| 117 |
154-1554 |
#14 chain zinc plated (sold by the inch) |
6 in |
|
| 118 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
5 |
|
| 119 |
999-0998 |
Washer #10 flat stainless steel |
6 |
|
| 120 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
5 |
|
| 121 |
154-1533 |
Transaxle rod (OBSOLETE) |
1 |
|
| 123 |
154-0646 |
Cotter pin |
1 |
|
| 124 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
10 |
|
| 125 |
154-1612 |
Battery connector cable |
1 |
|
| 126 |
154-1519 |
Battery connector cable |
1 |
|
| 127 |
154-1613 |
Battery tray |
1 |
|
| 128 |
154-2116 |
Vibration stud mount |
3 |
|
| 130 |
154-1614 |
Compression insert |
1 |
|
| 131 |
154-1615 |
Mounting bracket (OBSOLETE) |
1 |
|
| 132 |
162-0002 |
12V 185Ah wet battery (SNSR) |
3 |
|
| 133 |
154-1617 |
Adjustment bracket (OBSOLETE) |
2 |
|
| 134 |
154-1618 |
36V battery charger |
1 |
|
| 135 |
999-0130 |
Screw 5/16-18 x 3/4 socket head alloy plain finish |
6 |
|
| 136 |
154-1619 |
Charger bracket (OBSOLETE) |
1 |
|
|
|

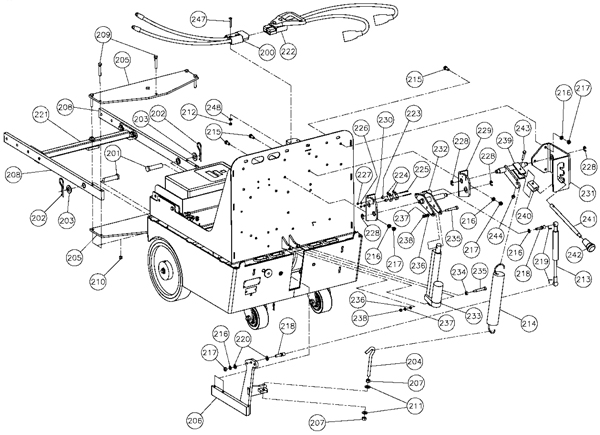

Frame Assembly 2 - 154-1144 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 200 |
154-1620 |
Battery connector cable (OBSOLETE) |
1 |
|
| 201 |
154-1540 |
Clevis pin |
2 |
|
| 202 |
997-2515 |
Cotter pin |
2 |
|
| 203 |
154-1538 |
Nylon pivot washer |
2 |
|
| 205 |
154-1542 |
Rear cross brace weldment (OBSOLETE) |
1 |
|
| 206 |
154-1572 |
Linking arm weldment (OBSOLETE) |
1 |
|
| 207 |
999-0959 |
Nut 3/8-16 hex |
2 |
|
| 208 |
154-1541 |
Lifting arm (OBSOLETE) |
2 |
|
| 209 |
999-1207 |
Screw 5/16-18 x 2 1/2 hex head stainless steel |
6 |
|
| 210 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
6 |
|
| 211 |
999-1254 |
Washer 3/8 SAE flat zinc plated |
4 |
|
| 212 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 214 |
154-1566 |
Extension spring |
1 |
|
| 215 |
999-0130 |
Screw 5/16-18 x 3/4 socket head alloy plain finish |
7 |
|
| 216 |
999-0028 |
Washer 5/16 split lock plain finish |
9 |
|
| 217 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
| 219 |
154-1573 |
Retainer pin |
2 |
|
| 220 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 221 |
154-1550 |
Front cross brace weldment (OBSOLETE) |
1 |
|
| 222 |
154-1621 |
Battery connector cable |
1 |
|
| 223 |
154-1575 |
Microswitch spacer |
2 |
|
| 224 |
154-0382 |
Microswitch (OBSOLETE) |
2 |
|
| 225 |
999-1453 |
Screw 4-40 x 1 1/2 pan head phillips stainless steel |
2 |
|
| 226 |
999-0985 |
Washer #4 SAE flat |
2 |
|
| 227 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 228 |
154-0841 |
Retaining ring |
4 |
|
| 229 |
154-1622 |
Right side actuator lifting bracket |
1 |
|
| 230 |
154-1623 |
Left side actuator lifting bracket |
1 |
|
| 231 |
154-1624 |
Pad pressure adjustment bracket |
1 |
|
| 232 |
154-1570 |
Actuator lifting arm weldment (OBSOLETE) |
1 |
|
| 233 |
154-1625 |
Actuator assembly |
1 |
|
| 234 |
154-1586 |
Nylon spacer |
1 |
|
| 235 |
154-1588 |
Screw M8 x 40mm shoulder |
2 |
|
| 236 |
999-1117 |
Washer M6 split lock stainless steel |
2 |
|
| 237 |
999-1261 |
Washer M6 flat stainless steel |
2 |
|
| 238 |
999-1308 |
Nut M6-1 hex stainless steel |
2 |
|
| 239 |
154-1626 |
Pivot weldment (OBSOLETE) |
1 |
|
| 240 |
154-1563 |
Spacer (OBSOLETE) |
1 |
|
| 241 |
154-1564 |
Adjustment rod (OBSOLETE) |
1 |
|
| 242 |
154-1565 |
Tapered knob (OBSOLETE) |
1 |
|
| 243 |
999-1260 |
Screw 1/4-20 x 1 1/2 hex cap stainless steel |
1 |
|
| 244 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 247 |
999-1451 |
Screw 10-24 x 1 1/2 truss head stainless steel |
2 |
|
| 248 |
999-0998 |
Washer #10 flat stainless steel |
2 |
|
| 249 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 250 |
999-1254 |
Washer 3/8 SAE flat zinc plated |
6 |
|
|
|

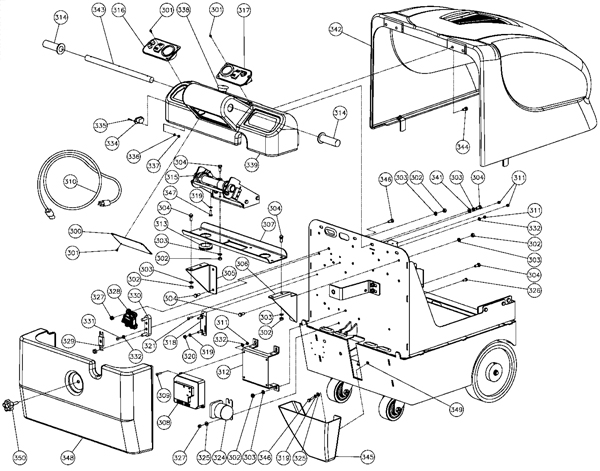

Frame Assembly 3 - 154-1145 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 300 |
154-1627 |
Access panel (OBSOLETE) |
1 |
|
| 301 |
154-1272 |
Screw 8 x 3/8 |
10 |
|
| 302 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
16 |
|
| 303 |
999-0028 |
Washer 5/16 split lock plain finish |
20 |
|
| 304 |
999-0130 |
Screw 5/16-18 x 3/4 socket head alloy plain finish |
20 |
|
| 305 |
154-1628 |
Left side bracket (OBSOLETE) |
1 |
|
| 306 |
154-1629 |
Right side bracket (OBSOLETE) |
1 |
|
| 307 |
154-1630 |
Mounting plate (OBSOLETE) |
1 |
|
| 308 |
154-1560 |
36V controller |
1 |
|
| 309 |
999-1031 |
Screw 10-24 x 1 truss head phillips stainless steel |
2 |
|
| 310 |
154-1528 |
14/3 extension cord 6 1/2 foot |
1 |
|
| 311 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
8 |
|
| 312 |
154-1631 |
Controller bracket (OBSOLETE) |
1 |
|
| 314 |
154-1758 |
Handle weldment |
2 |
|
| 315 |
154-1632 |
Motion controller assembly (OBSOLETE) |
1 |
|
| 316 |
154-1633 |
Left dashboard panel (OBSOLETE) |
1 |
|
| 317 |
154-1634 |
Right dashboard panel (OBSOLETE) |
1 |
|
| 318 |
154-1635 |
Shunt (OBSOLETE) |
1 |
|
| 319 |
154-0600 |
Lock washer |
5 |
|
| 320 |
999-0609 |
Nut 1/4-20 hex stainless steel |
2 |
|
| 321 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
| 324 |
154-3551 |
36V contactor |
1 |
|
| 325 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 326 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
| 327 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
| 329 |
154-1576 |
50amp fuse |
1 |
|
| 331 |
999-1031 |
Screw 10-24 x 1 truss head phillips stainless steel |
4 |
|
| 332 |
999-0998 |
Washer #10 flat stainless steel |
2 |
|
| 334 |
154-1518 |
Screw mounting power inlet |
1 |
|
| 335 |
999-0249 |
Screw 6-32 x 5/8 round head slotted zinc plated |
2 |
|
| 336 |
999-1158 |
Washer #6 flat stainless steel |
2 |
|
| 337 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
| 338 |
154-1481 |
Sealed switch |
1 |
|
| 339 |
154-1637 |
Dashboard cover (OBSOLETE) |
1 |
|
| 341 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 342 |
154-1638 |
Battery cover assembly (OBSOLETE) |
1 |
|
| 343 |
154-1639 |
Rod (OBSOLETE) |
1 |
|
| 344 |
999-1450 |
Bolt 5/16-18 x 5/8 hex head stainless steel |
4 |
|
| 345 |
154-1640 |
Bottom cover (OBSOLETE) |
1 |
|
| 346 |
999-0197 |
Screw 1/4-20 x 1 socket head alloy plain finish |
4 |
|
| 347 |
999-1099 |
Bolt 1/4-20 x 3/4 hex head stainless steel |
1 |
|
| 348a |
154-1641 |
Back cover (OBSOLETE) |
1 |
|
| 348b |
154-1642 |
Back cover (OBSOLETE) |
1 |
(manual lift) |
| 349 |
154-0783 |
Compression insert |
2 |
|
|
|

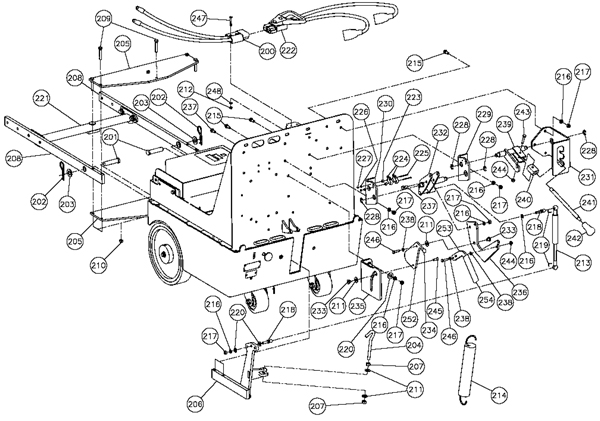

Frame Assembly - Manual Lift - 154-1146 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 200 |
154-1620 |
Battery connector cable (OBSOLETE) |
1 |
|
| 201 |
154-1540 |
Clevis pin |
2 |
|
| 202 |
997-2515 |
Cotter pin |
2 |
|
| 203 |
154-1538 |
Nylon pivot washer |
2 |
|
| 205 |
154-1542 |
Rear cross brace weldment (OBSOLETE) |
1 |
|
| 206 |
154-1572 |
Linking arm weldment (OBSOLETE) |
1 |
|
| 207 |
999-0959 |
Nut 3/8-16 hex |
2 |
|
| 208 |
154-1541 |
Lifting arm (OBSOLETE) |
2 |
|
| 209 |
999-1207 |
Screw 5/16-18 x 2 1/2 hex head stainless steel |
6 |
|
| 210 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
6 |
|
| 211 |
999-1254 |
Washer 3/8 SAE flat zinc plated |
4 |
|
| 212 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 214 |
154-1566 |
Extension spring |
1 |
|
| 215 |
999-0130 |
Screw 5/16-18 x 3/4 socket head alloy plain finish |
7 |
|
| 216 |
999-0028 |
Washer 5/16 split lock plain finish |
9 |
|
| 217 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
| 219 |
154-1573 |
Retainer pin |
2 |
|
| 220 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 221 |
154-1550 |
Front cross brace weldment (OBSOLETE) |
1 |
|
| 222 |
154-1621 |
Battery connector cable |
1 |
|
| 223 |
154-1575 |
Microswitch spacer |
2 |
|
| 224 |
154-0382 |
Microswitch (OBSOLETE) |
2 |
|
| 225 |
999-1453 |
Screw 4-40 x 1 1/2 pan head phillips stainless steel |
2 |
|
| 226 |
999-0985 |
Washer #4 SAE flat |
2 |
|
| 227 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 228 |
154-0841 |
Retaining ring |
4 |
|
| 229 |
154-1622 |
Right side actuator lifting bracket |
1 |
|
| 230 |
154-1623 |
Left side actuator lifting bracket |
1 |
|
| 231 |
154-1624 |
Pad pressure adjustment bracket |
1 |
|
| 232 |
154-1570 |
Actuator lifting arm weldment (OBSOLETE) |
1 |
|
| 233 |
154-1585 |
Pivot pin (OBSOLETE) |
2 |
|
| 235 |
154-1582 |
Manual lifting bracket (OBSOLETE) |
1 |
|
| 236 |
154-1584 |
Manual lifting arm (OBSOLETE) |
1 |
|
| 237 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 238 |
154-0600 |
Lock washer |
3 |
|
| 239 |
154-1626 |
Pivot weldment (OBSOLETE) |
1 |
|
| 240 |
154-1563 |
Spacer (OBSOLETE) |
1 |
|
| 241 |
154-1564 |
Adjustment rod (OBSOLETE) |
1 |
|
| 242 |
154-1565 |
Tapered knob (OBSOLETE) |
1 |
|
| 243 |
999-1260 |
Screw 1/4-20 x 1 1/2 hex cap stainless steel |
1 |
|
| 244 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 245 |
154-1580 |
Screw 1/4-20 x 5/8 |
1 |
|
| 246 |
999-0197 |
Screw 1/4-20 x 1 socket head alloy plain finish |
2 |
|
| 247 |
999-1451 |
Screw 10-24 x 1 1/2 truss head stainless steel |
2 |
|
| 248 |
999-0998 |
Washer #10 flat stainless steel |
2 |
|
| 249 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 250 |
999-1254 |
Washer 3/8 SAE flat zinc plated |
6 |
|
| 252 |
154-1581 |
Manual lifting latch (OBSOLETE) |
1 |
|
| 253 |
154-1579 |
Manual lifting handle weldment (OBSOLETE) |
1 |
|
| 254 |
154-1583 |
Vinyl handle grip (yellow) (OBSOLETE) |
1 |
|
|
|

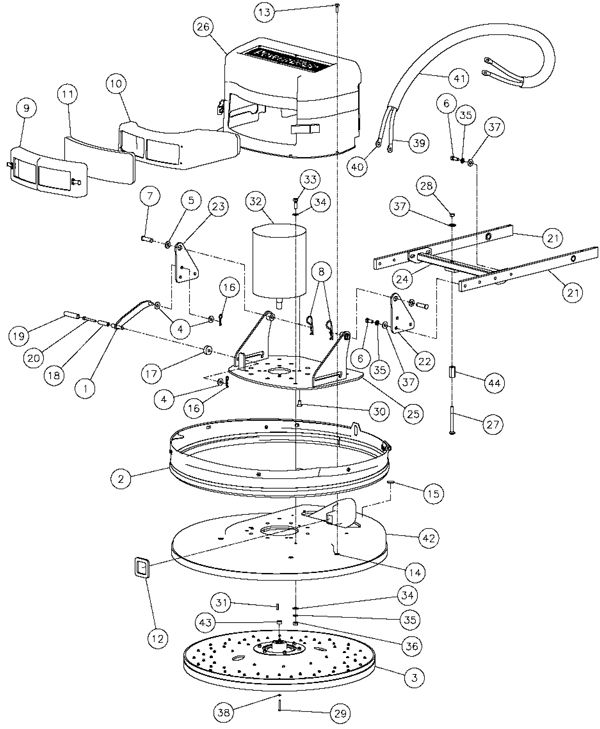

Shroud Assembly - 154-1147 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
154-1545 |
Latch weldment |
1 |
|
| 2a |
154-1512 |
24 inch steel skirt assembly |
1 |
|
| 2b |
154-1513 |
28 inch steel skirt assembly |
1 |
|
| 3a |
154-0784 |
24 inch pad driver assembly |
1 |
|
| 3b |
154-0772 |
28 inch pad driver assembly |
1 |
|
| 4 |
154-1547 |
Nylon washer |
3 |
|
| 5 |
999-0566 |
Washer 1/2 flat nylon |
2 |
|
| 6 |
154-0757 |
Screw 3/8 x 1 |
8 |
|
| 9 |
154-1494 |
Filter cover assembly (OBSOLETE) |
1 |
|
| 10 |
154-1644 |
Dust container |
1 |
|
| 11 |
154-1526 |
Dust filter |
1 |
|
| 12 |
154-1525 |
Dustbox seal |
1 |
|
| 13 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
| 14 |
154-1453 |
Compression insert |
4 |
|
| 17 |
154-1546 |
Nylon spacer |
1 |
|
| 19 |
154-1543 |
Vinyl caplug |
1 |
|
| 20 |
999-1331 |
Screw 1/4-20 x 2 1/4 hex head zinc |
1 |
|
| 21 |
154-1541 |
Lifting arm (OBSOLETE) |
2 |
|
| 22 |
154-1645 |
Left side pivot plate |
1 |
|
| 23 |
154-1646 |
Right side pivot plate |
1 |
|
| 24 |
154-1550 |
Front cross brace weldment (OBSOLETE) |
1 |
|
| 25 |
154-1553 |
Motor plate weldment (OBSOLETE) |
1 |
|
| 26a |
154-1647 |
24 inch motor cover |
1 |
|
| 26b |
154-1648 |
28 inch motor cover |
1 |
|
| 27 |
999-0242 |
Screw 3/8-16 x 4 carriage head grade 5 zinc |
1 |
|
| 28 |
999-0959 |
Nut 3/8-16 hex |
1 |
|
| 29 |
999-0384 |
Screw 1/4-20 x 1 1/2 button head socket cap plain finish |
1 |
|
| 30 |
999-0616 |
Screw 3/8-16 x 5/8 socket head alloy plain finish |
4 |
|
| 31 |
154-1459 |
Square keyway |
1 |
|
| 32 |
154-1552 |
2.5 HP motor |
1 |
|
| 33 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
4 |
|
| 34 |
999-0032 |
Washer 3/8 USS flat plain finish |
8 |
|
| 35 |
154-0633 |
Lock washer |
12 |
|
| 36 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
4 |
|
| 37 |
999-1254 |
Washer 3/8 SAE flat zinc plated |
9 |
|
| 38 |
999-0632 |
Washer 1/4 split lock stainless steel |
1 |
|
| 39 |
154-1650 |
66 inch fuse cable (OBSOLETE) |
1 |
|
| 40 |
154-1651 |
66 inch shunt cable (OBSOLETE) |
1 |
|
| 41 |
154-1649 |
Braided sleeving (sold by the foot) |
5 ft |
|
| 42a |
154-1507 |
24 inch deck assembly (OBSOLETE) |
1 |
|
| 42b |
154-1508 |
28 inch deck assembly (OBSOLETE) |
1 |
|
| 43 |
999-0337 |
Nut 6-32 nylon insert lock stainless steel |
1 |
|
| 44 |
154-1556 |
Vinyl caplug (yellow) |
1 |
|
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Wiring Diagram - Manual Lift - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pads - 24 inch - 255-2400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2440 |
24 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2435 |
24 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2464 |
24 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2442 |
24 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2412 |
24 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2477 |
24 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2438 |
24 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2421 |
24 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2450 |
24 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2465 |
24 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2430 |
24 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2469 |
24 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 13 |
255-2490 |
24 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-2470 |
24 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-2492 |
24 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-2480 |
24 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-2460 |
24 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-2452 |
24 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-2420 |
24 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-2411 |
24 inch superspped rubberized pad (pkg of 5) |
|
|
| 21 |
255-2495 |
24 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-2447 |
24 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-0174 |
24 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 24 |
255-0175 |
24 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 25 |
255-0176 |
24 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 26 |
255-0267 |
24 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 27 |
255-0268 |
24 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0269 |
24 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 29 |
255-9619 |
24 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 30 |
255-9616 |
24 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 31 |
255-9613 |
24 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 32 |
255-9617 |
24 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 33 |
255-9614 |
24 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 34 |
255-9615 |
24 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 35 |
255-9618 |
24 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 36 |
255-9649 |
24 inch Diamond starter pack (1 of each grit) |
|
|
| 37 |
255-2415 |
24 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 38 |
255-2416 |
24 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pads - 28 inch - 255-2800 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2840 |
28 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2840 |
28 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 03 |
255-2835 |
28 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 04 |
255-2835 |
28 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 05 |
255-2864 |
28 inch Blue ace pad (pkg of 5) |
|
|
| 06 |
255-2864 |
28 inch Blue ace pad (pkg of 5) |
|
|
| 07 |
255-2842 |
28 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 08 |
255-2842 |
28 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 09 |
255-2812 |
28 inch Cure white pad (pkg of 5) |
|
|
| 10 |
255-2812 |
28 inch Cure white pad (pkg of 5) |
|
|
| 11 |
255-2877 |
28 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 12 |
255-2877 |
28 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 13 |
255-2838 |
28 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 14 |
255-2821 |
28 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 15 |
255-2821 |
28 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 16 |
255-2850 |
28 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 17 |
255-2850 |
28 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 18 |
255-2865 |
28 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 19 |
255-2865 |
28 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 20 |
255-2830 |
28 inch jaguar burnishing pad (pkg of 5) |
|
|
| 21 |
255-2830 |
28 inch jaguar burnishing pad (pkg of 5) |
|
|
| 22 |
255-2890 |
28 inch premium black stripping pad (pkg of 5) |
|
|
| 23 |
255-2890 |
28 inch premium black stripping pad (pkg of 5) |
|
|
| 24 |
255-2870 |
28 inch premium blue cleaning pad (pkg of 5) |
|
|
| 25 |
255-2870 |
28 inch premium blue cleaning pad (pkg of 5) |
|
|
| 26 |
255-2892 |
28 inch premium brown stripping pad (pkg of 5) |
|
|
| 27 |
255-2892 |
28 inch premium brown stripping pad (pkg of 5) |
|
|
| 28 |
255-2880 |
28 inch premium green scrubbing pad (pkg of 5) |
|
|
| 29 |
255-2880 |
28 inch premium green scrubbing pad (pkg of 5) |
|
|
| 30 |
255-2860 |
28 inch premium red scrubbing pad (pkg of 5) |
|
|
| 31 |
255-2860 |
28 inch premium red scrubbing pad (pkg of 5) |
|
|
| 32 |
255-2852 |
28 inch premium tan polishing pad (pkg of 5) |
|
|
| 33 |
255-2852 |
28 inch premium tan polishing pad (pkg of 5) |
|
|
| 34 |
255-2820 |
28 inch premium white polishing pad (pkg of 5) |
|
|
| 35 |
255-2820 |
28 inch premium white polishing pad (pkg of 5) |
|
|
| 36 |
255-2895 |
28 inch razorback stripping pad (pkg of 5) |
|
|
| 37 |
255-2895 |
28 inch razorback stripping pad (pkg of 5) |
|
|
| 38 |
255-2811 |
28 inch superspeed rubberized pad (pkg of 5) |
|
|
| 39 |
255-2811 |
28 inch superspeed rubberized pad (pkg of 5) |
|
|
| 40 |
255-9633 |
28 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 41 |
255-9630 |
28 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 42 |
255-9627 |
28 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 43 |
255-9631 |
28 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 44 |
255-9628 |
28 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 45 |
255-9629 |
28 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 46 |
255-9632 |
28 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 47 |
255-9651 |
28 inch Diamond starter pack (1 of each grit) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
