Parts List Complete for PIONEER PIONEER33

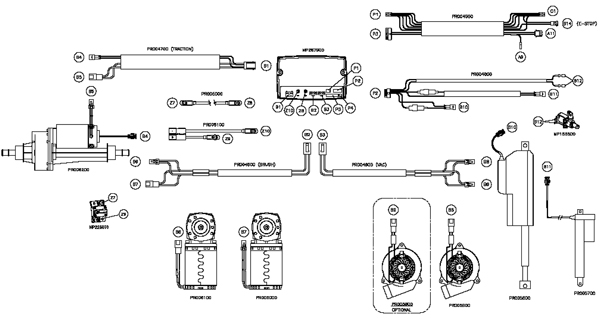

Wiring Diagram -

RefNbr Part Number Description Req Notes

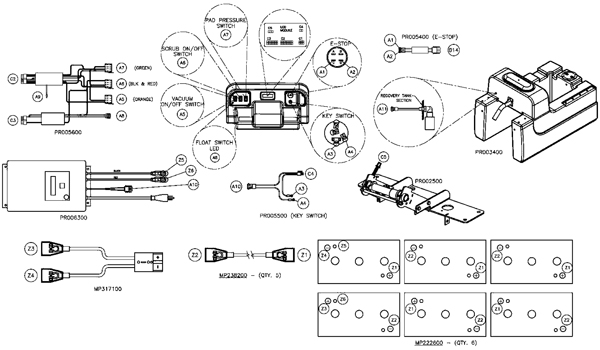

Wiring Connections 1 -

RefNbr Part Number Description Req Notes

Wiring Connections 2 -

RefNbr Part Number Description Req Notes

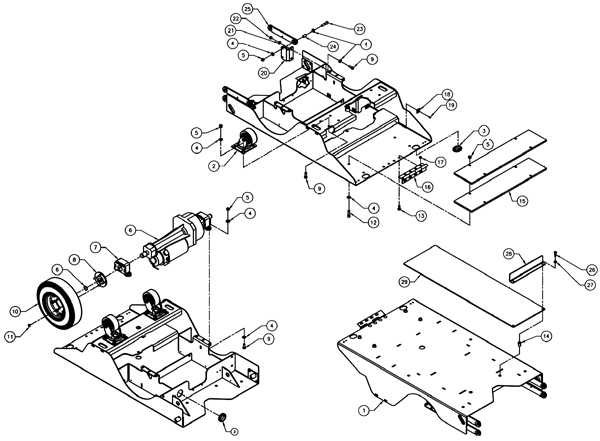

Frame Assembly - 154-1164
RefNbr Part Number Description Req Notes
1 154-2658 Frame weldment (OBSOLETE) 1
2 154-1532 4 inch caster wheel with seal (gray) 2
3 154-0584 Grommet 2
4 999-1254 Washer 3/8 SAE flat zinc plated 32
5 999-0188 Nut 3/8-16 nylon insert lock zinc plated 20
6 154-2660 Transaxle (OBSOLETE) 1
7 154-2661 Transaxle mounting bracket (OBSOLETE) 2
8 154-2662 Wheel hub 2
9 154-0757 Screw 3/8 x 1 16
10 154-1130 13 inch foam filled wheel (gray) (OBSOLETE) 2
11 154-1131 Nut 5/16-24 un-locking cone 8
12 154-2383 Bolt 3/8-16 x 1 1/2 stainless steel 4
13 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 4
14 154-1453 Compression insert 2
15 154-2663 Plate (OBSOLETE) 2
16 154-1269 Hinge (OBSOLETE) 1
17 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
18 154-2664 Cable tie mounting base (OBSOLETE) 5
19 154-0914 Pop rivet 5/32 5
20 154-2665 Mounting plate (OBSOLETE) 2
21 154-0633 Lock washer 4
22 999-0635 Nut 3/8-16 hex stainless steel 4
23 154-1203 Screw 3/8 x 1 3/4 4
24 154-2666 Bushing 4
25 154-2667 Lifting arm (OBSOLETE) 4
26 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
27 999-0028 Washer 5/16 split lock plain finish 2
28 154-2668 Front battery stop (OBSOLETE) 1

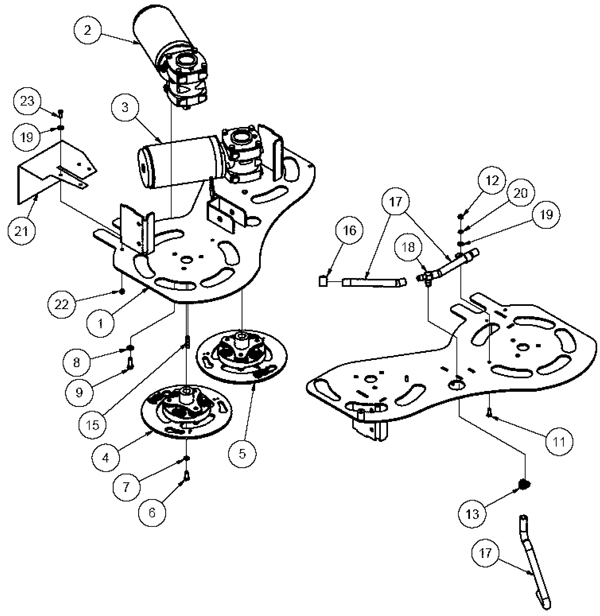

Scrub Deck Assembly - 154-1165
RefNbr Part Number Description Req Notes
1 154-2669 Scrub deck weldment (OBSOLETE) 1
2 154-2670 36V left side brush motor 1
3 154-2671 36V right side brush motor 1
4 154-2672 Left drive hub assembly (OBSOLETE) 1
5 154-2673 Right drive hub assembly (OBSOLETE) 1
6 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 2
7 999-0028 Washer 5/16 split lock plain finish 2
8 154-2403 Washer 6
9 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 6
10 154-2674 1/2 inch split loom (sold by the inch) (OBSOLETE) 19 in
11 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
12 999-0609 Nut 1/4-20 hex stainless steel 2
13 154-1222 Hose clamp 1
14 154-1780 Vinyl tubing (sold by the inch) 18 in
15 154-0549 Square keyway 2
16 154-0700 P clamp 2
17 154-1780 Vinyl tubing (sold by the inch) 6 13/16 in
18 154-1221 Tee fitting 1
19 999-0016 Washer 1/4 flat plain finish 4
20 154-0600 Lock washer 2
21 154-2675 Splash skirt 1
22 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
23 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 2

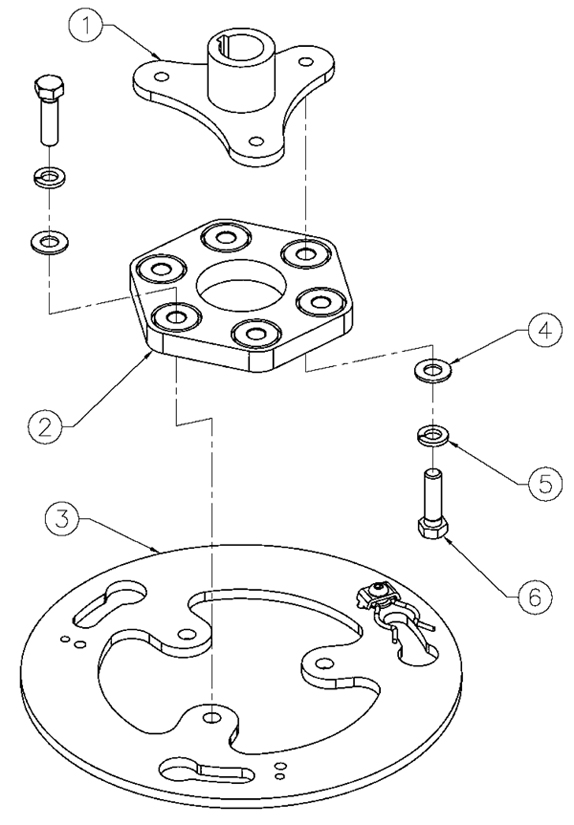

Left Drive Hub Assembly - 154-1166
RefNbr Part Number Description Req Notes
1 154-2676 Pad driver hub weldment 1
2 154-1215 Coupling 1
3 154-1216 Left side attachment plate (OBSOLETE) 1
4 999-0032 Washer 3/8 USS flat plain finish 6
5 154-0633 Lock washer 6
6 154-1203 Screw 3/8 x 1 3/4 6

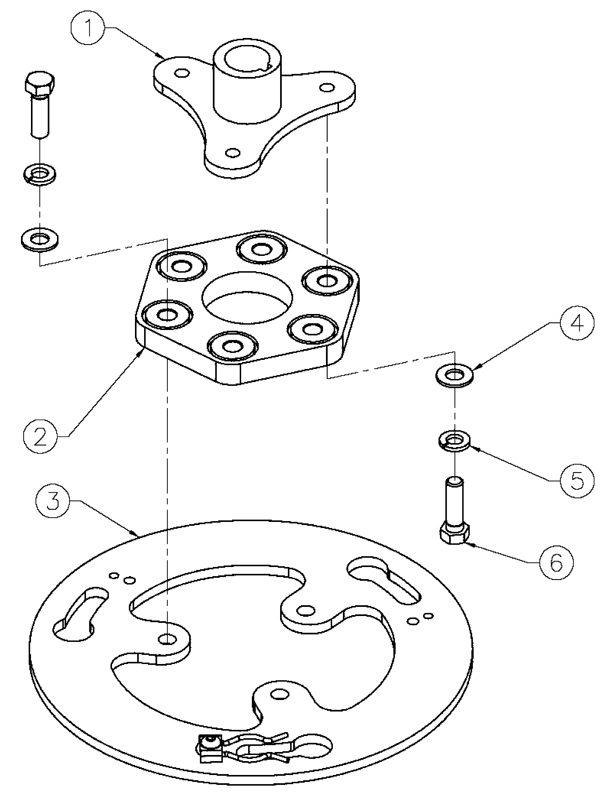

Right Drive Hub Assembly - 154-1167
RefNbr Part Number Description Req Notes
1 154-2676 Pad driver hub weldment 1
2 154-1215 Coupling 1
3 154-1220 Right side attachment plate (OBSOLETE) 1
4 999-0032 Washer 3/8 USS flat plain finish 6
5 154-0633 Lock washer 6
6 154-1203 Screw 3/8 x 1 3/4 6
70 154-3424 Main nylon brush 1
71 154-3425 Base frame (OBSOLETE) 1
72 154-3426 Lever plate (OBSOLETE) 1
73 154-3427 Pin (OBSOLETE) 4
74 154-3428 Bushing (OBSOLETE) 8
75 154-3429 Lever (OBSOLETE) 2

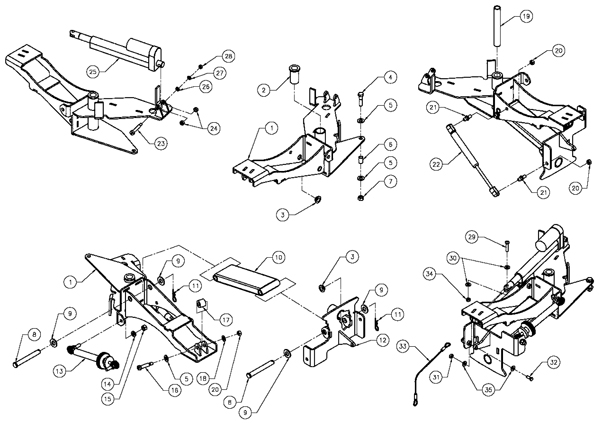

Squeegee Lift Assembly - 154-1168
RefNbr Part Number Description Req Notes
1 154-2677 Squeegee lift weldment (OBSOLETE) 1
2 154-1243 Flanged bushing 2
3 154-1206 Flanged bushing 4
4 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 1
5 999-1254 Washer 3/8 SAE flat zinc plated 3
6 154-2666 Bushing 1
7 999-0247 Nut 3/8-16 hex jam plain finish 1
8 154-1205 Clevis pin 2
9 999-0566 Washer 1/2 flat nylon 4
10 154-2678 Squeegee lifting arm weldment (OBSOLETE) 1
11 154-1207 Cotter pin 2
12 154-2679 Squeegee leveling plate 1
13 154-2680 Squeegee adjustment arm (OBSOLETE) 1
14 154-0633 Lock washer 2
15 999-0143 Nut 3/8-24 hex plain finish 2
16 154-2043 Shoulder screw 1
17 154-2681 Roller 1
18 999-0024 Washer 5/16 flat stainless steel 1
19 154-2682 Pivot sleeve (OBSOLETE) 1
20 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
21 154-2241 Stud 2
22 154-2242 Gas spring 1
23 154-1588 Screw M8 x 40mm shoulder 1
24 154-1586 Nylon spacer 2
25 154-2683 24V actuator 1
26 999-1261 Washer M6 flat stainless steel 1
27 999-1117 Washer M6 split lock stainless steel 1
28 999-1308 Nut M6-1 hex stainless steel 1
29 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1
30 999-0998 Washer #10 flat stainless steel 2
31 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
32 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
33 154-2684 Lanyard 1
35 999-0016 Washer 1/4 flat plain finish 2

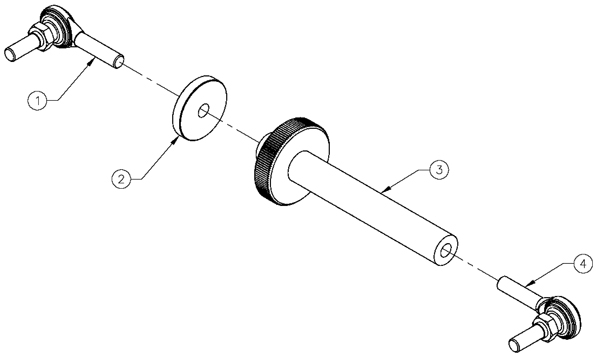

Squeegee Adjustment Arm Assembly - 154-1169
RefNbr Part Number Description Req Notes
1 154-1230 Left side end rod 1
2 154-1232 Jam nut (OBSOLETE) 1
3 154-2685 Squeegee adjustment arm (OBSOLETE) 1
4 154-1208 Left side end rod with stud 1

Motion Control Assembly -

RefNbr Part Number Description Req Notes

Solution Tank Assembly -

RefNbr Part Number Description Req Notes

Solution Tank Lid Assembly -

RefNbr Part Number Description Req Notes

Charger and Slide Latch Mounting Plate Assembly -

RefNbr Part Number Description Req Notes

Recovery Tank Assembly -

RefNbr Part Number Description Req Notes

Recovery Tank Lid Assembly -

RefNbr Part Number Description Req Notes

Control Panel Assembly -

RefNbr Part Number Description Req Notes

Right Side Control Panel Assembly -

RefNbr Part Number Description Req Notes

Left Side Control Panel Assembly -

RefNbr Part Number Description Req Notes

Rear Cover Assembly -

RefNbr Part Number Description Req Notes

Front Cover Assembly -

RefNbr Part Number Description Req Notes

Splash Skirt Assembly -

RefNbr Part Number Description Req Notes

Battery Tray Assembly -

RefNbr Part Number Description Req Notes

Vacuum Mounting Bracket Assembly -

RefNbr Part Number Description Req Notes

Final Frame and Scrub Deck Assembly -

RefNbr Part Number Description Req Notes

Final Front Assembly -

RefNbr Part Number Description Req Notes

Plumbing and Squeegee Assembly -

RefNbr Part Number Description Req Notes

Final Rear Cover and Control Panel Assembly -

RefNbr Part Number Description Req Notes

Final Squeegee Lift Assembly - 154-1189
RefNbr Part Number Description Req Notes
1 154-2657 Squeegee lift assembly (OBSOLETE) 1
2 999-1537 Bolt 1/2-13 x 8 hex head grade 5 1
3 999-0559 Washer 1/2 x 1/4 flat stainless steel 1
4 999-0050 Nut 1/2-13 hex jam plain finish 1
5 154-1241 Extension spring 1
6 154-2659 Frame assembly (OBSOLETE) 1

- Pads - 16 inch - 255-1600
RefNbr Part Number Description Req Notes
01 255-1640 16 inch aqua plus burnishing pad (pkg of 5)
02 255-1635 16 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1664 16 inch Blue ace pad (pkg of 5)
04 255-1642 16 inch Blue Jay burnishing pad (pkg of 5)
05 255-1612 16 inch Cure white pad (pkg of 5)
06 255-1677 16 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1638 16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1621 16 inch gorilla lite burnishing pad (pkg of 5)
09 255-1650 16 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1665 16 inch Heat concrete bonding pad (pkg of 5)
11 255-1630 16 inch jaguar burnishing pad (pkg of 5)
12 255-1687 16 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1690 16 inch premium black stripping pad (pkg of 5)
14 255-1670 16 inch premium blue cleaning pad (pkg of 5)
15 255-1692 16 inch premium brown stripping pad (pkg of 5)
16 255-1680 16 inch premium green scrubbing pad (pkg of 5)
17 255-1660 16 inch premium red scrubbing pad (pkg of 5)
18 255-1652 16 inch premium tan polishing pad (pkg of 5)
19 255-1620 16 inch premium white polishing pad (pkg of 5)
20 255-1611 16 inch superspeed rubberized pad (pkg of 5)
21 255-1695 16 inch razorback stripping pad (pkg of 5)
22 255-1647 16 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1655 16 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1623 16 inch sand screen driver pad (pkg of 2)
25 255-0132 16 inch Professional sand screen 100 grit (pkg of 10)
26 255-0133 16 inch Professional sand screen 120 grit (pkg of 10)
27 255-0134 16 inch Professional sand screen 150 grit (pkg of 10)
28 255-0135 16 inch Professional sand screen 180 grit (pkg of 10)
29 255-0136 16 inch Professional sand screen 220 grit (pkg of 10)
30 255-0137 16 inch Professional sand screen 400 grit (pkg of 10)
31 255-0130 16 inch Professional sand screen 60 grit (pkg of 10)
32 255-0131 16 inch Professional sand screen 80 grit (pkg of 10)
33 255-0217 16 inch Superscreen sand screen 100 grit (pkg of 10)
34 255-0218 16 inch Superscreen sand screen 120 grit (pkg of 10)
35 255-0219 16 inch Superscreen sand screen 150 grit (pkg of 10)
36 255-0220 16 inch Superscreen sand screen 180 grit (pkg of 10)
37 255-0221 16 inch Superscreen sand screen 220 grit (pkg of 10)
38 255-0222 16 inch Superscreen sand screen 400 grit (pkg of 10)
39 255-0215 16 inch Superscreen sand screen 60 grit (pkg of 10)
40 255-0216 16 inch Superscreen sand screen 80 grit (pkg of 10)
41 255-1624 16 inch Tiger carpet bonnet (pkg of 2)
42 255-9563 16 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9560 16 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9557 16 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9561 16 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9558 16 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9559 16 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9562 16 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9641 16 inch Diamond starter pack (1 of each grit)
50 255-1682 16 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1615 16 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1616 16 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
