Parts List Complete for PIONEER PE440BU

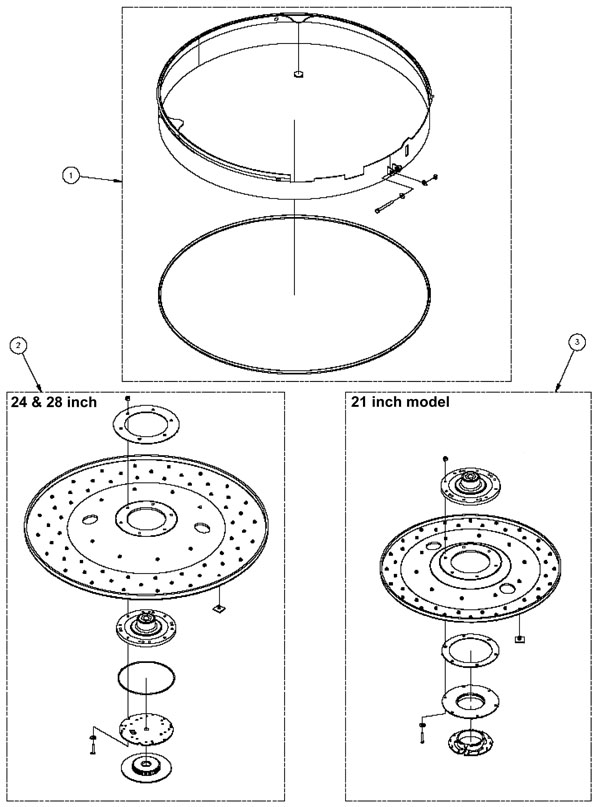

Skirt and Pad Driver Assembly - 154-2011
RefNbr Part Number Description Req Notes
1a 154-0717 28 inch steel skirt assembly 1 (28 inch vac model) (includes 1d-g and 1h)
1b 154-0709 24 inch steel skirt assembly 1 (24 inch vac model) (includes 1d-1g and 1i)
1c 154-0710 21 inch steel skirt assembly 1 (21 inch vac model) (includes 1d-1g and 1j)
1d 154-0718 Felt dot 2
1e 154-0781 Bolt 1/4-20 x 2 1/2 inch hex head tap 1
1f 999-0016 Washer 1/4 flat plain finish 2
1g 999-0609 Nut 1/4-20 hex stainless steel 1
1h 154-0466 Skirt edging (bottom) (sold by the foot) 9 ft (28 inch)
1i 154-0466 Skirt edging (bottom) (sold by the foot) 8 ft (24 inch)
1j 154-0466 Skirt edging (bottom) (sold by the foot) 7 ft (21 inch)
2a 154-0306 28 inch pad driver assembly 1 (28 inch) (includes 2c, 2e, 2f and 2h-2m)
2b 154-0534 24 inch pad driver assembly 1 (24 inch) (includes 2d, 2e, 2g and 2h-2m)
2c 154-0126 28 inch pad driver with studs 1 (28 inch)
2d 154-0557 24 inch pad driver with studs 1 (24 inch)
2e 154-0128 Flexi-disc 1
2f 154-0127 Velcro stud 68 (28 inch)
2g 154-0127 Velcro stud 76 (24 inch)
2h 154-0312 Spacer ring for Center-Lok II 1
2i 991-2201 Center-Lok II pad holder - right hand thread (black) 1
2j 999-0124 Screw 1/4-20 x 1 1/4 button head socket cap plain finish 6
2l 999-0016 Washer 1/4 flat plain finish 6
2m 154-0408 Pad holder stress relief ring 1
2n 991-2202 Big mouth pad holder set (blue) 1 (NON-OEM)
2o 991-8577 Pad retainer 1 (NON-OEM)
3a 154-0729 21 inch pad driver assembly 1 (21 inch) (includes 3b-3i)
3b 154-0134 21 inch pad driver with studs 1 (21 inch)
3c 154-0128 Flexi-disc 1
3d 154-0408 Pad holder stress relief ring 1
3e 991-2206 Center-Lok 3 pad holder 1
3f 999-0124 Screw 1/4-20 x 1 1/4 button head socket cap plain finish 6
3g 999-0016 Washer 1/4 flat plain finish 6
3h 999-0152 Nut 1/4-20 nylon insert lock zinc plated 6
3i 154-0127 Velcro stud 50

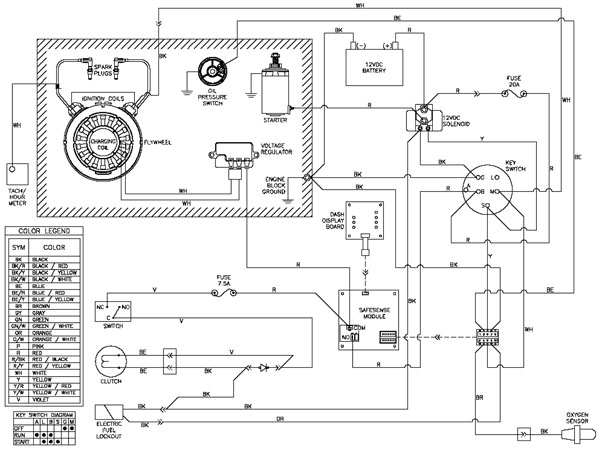

Wiring Diagram - 154-2012
RefNbr Part Number Description Req Notes
N/S 154-3495 Bulkhead wiring harness with safesense
N/S 154-0803 7 1/2amp fuse
N/S 154-0909 20amp fuse

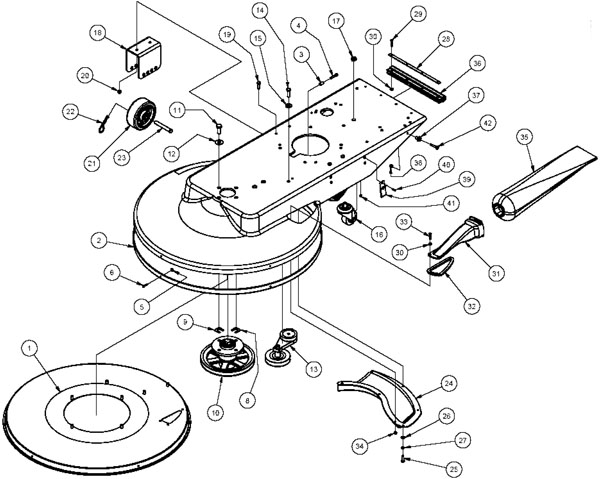

Deck Assembly - 154-2013
RefNbr Part Number Description Req Notes
1a 154-2339 21 inch shroud liner 1
1b 154-0386 24 inch shroud liner 1
1c 154-0374 28 inch shroud liner 1
2a 992-0002 Velcro hook (sold by the inch) 74 in (21 inch)
2b 992-0002 Velcro hook (sold by the inch) 85 in (24 inch)
2c 992-0002 Velcro hook (sold by the inch) 98 in (28 inch)
3 154-0719 Steel bushing 1
4 154-0720 Screw 1/4-20 x 1 1/4 socket head with loctite 1
5 999-0006 Washer 3/16 flat zinc plated 5
6 154-2340 Pop rivet 5
8 154-2324 1/32 inch shim 1
9 154-2325 1/16 inch shim 1
10a 154-0671 Spindle with 6 3/4 inch pulley 1 (21 inch)
10b 154-0394 Spindle with 7 1/4 inch pulley 1 (24 inch)
10c 154-0123 RETRO KIT - Spindle w/ 9.25 inch pulley & belt 1 (28 inch) (before SN 78741)
10d 154-0123-R Spindle assembly refurbished with new bearings 1 (28 inch)
10e 154-3526 Spindle with 9.25 inch pulley 1 (28 inch) (after SN 78741)
11 999-0200 Bolt 1/2-13 x 1 1/4 hex head 4
12 999-0033 Washer 7/16 SAE flat 4
13a 154-0024 Idler belt tensioner with v-groove pulley 1
13b 991-8595 4 inch idler pulley 1 (NON-OEM) (pulley only)
14 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 1
15 999-0032 Washer 3/8 USS flat plain finish 1
16 154-1055 Caster wheel 1
17 999-0050 Nut 1/2-13 hex jam plain finish 1
18 154-2341 Wheel bracket 2
19 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 4
20 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
21a 154-1045 Wheel 2
21b 991-8578 Wheel with ball bearing 5 x 2 inch 2
22 997-2515 Cotter pin 2
23 154-0754 Clevis pin 2
24a 154-0404 21 inch vacuum scoop 1
24b 154-0712 24 inch vacuum scoop 1
24c 154-0373 28 inch vacuum scoop 1
25 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 3
26 999-0016 Washer 1/4 flat plain finish 3
27 154-0600 Lock washer 3
28 154-2342 Bumper strap 1
29 154-2343 Pop rivet 4
30 999-0006 Washer 3/16 flat zinc plated 7
31 154-0371 Dust tube 1
32 154-0403 Dust tube seal 1
33 999-1230 Screw 10-24 x 1 hex head stainless steel 3
34 999-0086 Nut 10-32 nylon insert lock zinc plated 3
35a 154-0388 Vacuum bag 1 (For units with a plastic tube.)
35b 154-3693 12 inch dust bag 1 (For units with a metal tube.)
36 154-2345 12 inch bumper 1
37 154-0406 Support stud 1
38 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
39 154-0407 Belt clip 2
40 154-0411 Screw 8-32 x 5/8 flat head phillips 4
41 999-0151 Nut 8-32 nylon insert lock zinc plated 4
42 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel 1

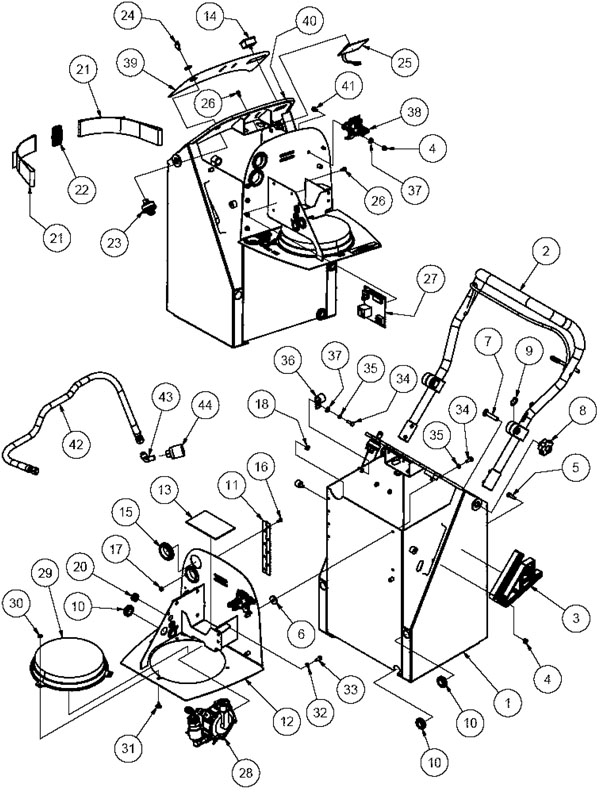

Bulkhead Assembly - 154-2014
RefNbr Part Number Description Req Notes
1 154-2351 Bulkhead with inserts assembly (OBSOLETE) 1
2 154-2352 Adjustable handle 1
3 154-0537 Handle bracket 2
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
5 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 6
6 154-2353 Rubber washer 2
7 999-0708 Screw 3/8-16 x 2 carriage head grade 5 zinc 2
8 154-0326 Knob 2
9 154-2354 Wave washer 2
10 154-0332 Grooved grommet 5
11 154-2355 Hinge with off-set holes 1
12 154-2356 Swing-out tray assembly 1
13 154-2357 Battery pad 1
14 154-1445 Hour meter 1
15 154-0584 Grommet 3
16 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 8
17 154-0649 Nut 10-24 spin lock 8
18 154-0802 Nut 1/4-20 keps 2
20 154-0331 Grooved grommet 5
21 154-1039 Tank strap 2
22 154-2330 Strap slide 1
23 154-0579 Key switch assembly with key 1 (includes 24)
24 154-2338 Key 1
25 154-0379 Display board 1
26 154-0885 Spacer 8
27 154-0532 Safe Sense module 1
28 154-2358 Regulator 1
29 154-2359 Screen guard 1
30 999-0006 Washer 3/16 flat zinc plated 3
31 154-2360 Rivet 3
32 999-0238 Washer 1/4 internal star lock zinc plated 2
33 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
34 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
35 154-0600 Lock washer 4
36 154-0700 P clamp 2
37 999-0016 Washer 1/4 flat plain finish 4
38a 154-1040 Starter solenoid 1
38b 991-9253 12V DC starter solenoid 1 (NON-OEM)
39 154-2361 Panel decal (OBSOLETE) 1
40 154-0117 Trim (sold by the foot) 24 in
41 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 2
42 154-2362 34 inch fuel hose assembly 1
43 154-0066 Fitting 49 x 6 (regulator to fuel lock) 1
44 154-1076 Female quick coupler 1
N/S 154-1363 Type S mount 2

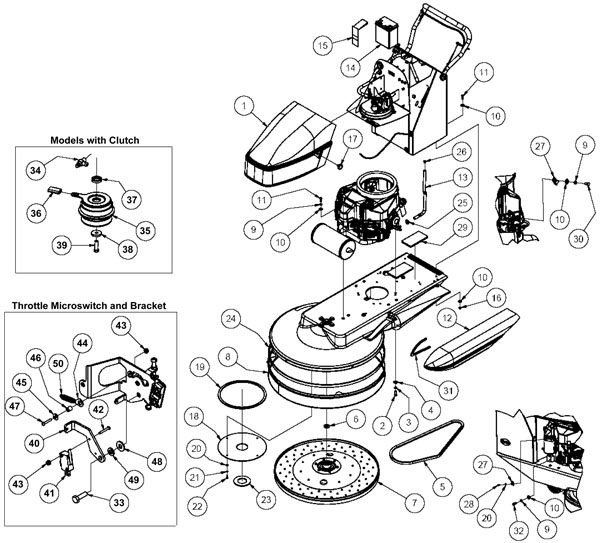

Frame Assembly - 154-2015
RefNbr Part Number Description Req Notes
1 154-2363 Bulkhead hood assembly 1
2 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
3 154-0633 Lock washer 4
4 999-0032 Washer 3/8 USS flat plain finish 4
5a 991-0001 BX46 belt 1 (21 inch)
5b 154-1070 BX49 belt 1 (24 inch)
5c 991-0021 BX56 belt 1 (28 inch)
5d 991-8541 BX-57 belt 1 (28 inch) (after SN 78741)
6 154-0938 Spacer 1
7a 154-0729 21 inch pad driver assembly 1
7b 154-0534 24 inch pad driver assembly 1
7c 154-0306 28 inch pad driver assembly 1
8 154-0717 28 inch steel skirt assembly 1 (28 inch model only)
9 999-0028 Washer 5/16 split lock plain finish 4
10 999-0024 Washer 5/16 flat stainless steel 12
11 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 6
12 154-0387 Vacuum bag cover 1
13 154-2364 Oil drain hose (OBSOLETE) 1
14 162-0007 12V 12Ah sealed battery 1
15 154-1039 Tank strap 1
16 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
17 154-2365 Knob 2
18a 154-0723 Pulley cover 1 (21 inch)
18b 154-0397 Pulley cover 1 (24 inch)
18c 154-0398 Pulley cover 1 (28 inch)
19 154-0401 Foam seal 1
20 999-0016 Washer 1/4 flat plain finish 5
21 154-0600 Lock washer 4
22 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
23 154-0400 Spindle seal 1
24a 154-0515 Felt for improved skirt design (sold by the foot) 7 ft (21 inch)
24b 154-0515 Felt for improved skirt design (sold by the foot) 8 ft (24 inch)
24c 154-0515 Felt for improved skirt design (sold by the foot) 9 ft (28 inch)
25 154-0036 Plastic hose clamp 1
26 154-0038 Oil drain cap 1
27 154-0110 Clamp 2
28 999-1449 Screw #10 x 1/2 truss head phillips stainless steel 1
29 154-2366 Rubber pad (OBSOLETE) 2
30 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 1
31 154-0401 Foam seal 8 in
32 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 1
33 154-2369 Screw M6 x 20mm 1
34 154-0362 Oil drain valve 1 (model with clutch)
35 154-0008 Electric clutch assembly 1 (model with clutch)
36 154-0015 Neoprene tubing (sold by the inch) 2 in (model with clutch)
37 154-2350 Upper clutch spacer 1 (model with clutch)
38 154-0016 Bottom clutch spacer 1 (model with clutch)
39 999-0208 Bolt 7/16-20 x 1 1/2 hex head grade 5 zinc plated 1 (model with clutch)
40 154-2370 Bracket 1
41 154-2371 Micro switch 1
42 154-0544 Screw 4-40 x 3/4 UNF round head machine 2
43 999-0295 Nut 4-40 nylon insert lock stainless steel 3
44 154-2372 Linkage with washer 1
45 999-1158 Washer #6 flat stainless steel 1
46 154-0242 Threaded spacer 1
47 154-1282 Screw 4-40 x 5/8 inch slotted 1
48 999-0016 Washer 1/4 flat plain finish 1
49 154-0600 Lock washer 1
50 154-0906 Bail return spring 1
N/S 154-0360 Engine air intake seal 1

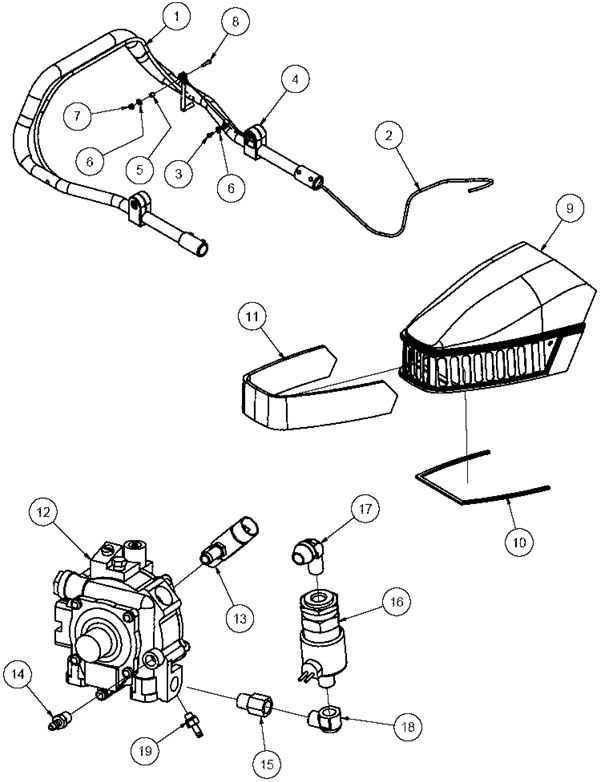

Regulator, Handle and Hood Assembly - 154-2016
RefNbr Part Number Description Req Notes
1 154-0316 Bail 1
2 154-0541 Throttle control cable 1
3 999-0576 Screw 8-18 x 1/2 pan head phillips self-drilling ss 5
4 154-9028 Guide 1
5 154-0640 Bushing 1
6 999-0006 Washer 3/16 flat zinc plated 2
7 999-0086 Nut 10-32 nylon insert lock zinc plated 1
8 999-1547 Screw 10-24 x 7/8 button head socket stainless steel 1
9 154-2363 Bulkhead hood assembly 1
10 154-0401 Foam seal 1
11 154-2368 Air filter 1
12 991-6001 Fuel regulator (T60) 1
13 154-0168 Fuel adjustment 1
14 154-0228 Hosebarb 1/8 x 1/4 inch 1
15 154-2051 Extension fitting 1
16 991-6002 12V fuel lock off (Model 152) 1
17 154-0066 Fitting 49 x 6 (regulator to fuel lock) 1
18 154-0348 90 degree elbow fitting 1
19 154-2348 Brass fitting 1
N/S 154-2371 Micro switch 1

NON-OEM Dust Bonnet and Cage Option - 178-4041
RefNbr Part Number Description Req Notes
1 991-9014 Kawasaki dust bonnet 1
2a 160-0198 3 tab filter cage with support ring for 17HP (metal) 1 (includes 2b)
2b 160-0297 Filter cage support ring for 17HP (converts 3 tab/4 tab) 1
3 999-0250 Bolt M5-.8 x 10mm hex head full thread 3 (to secure cage to ring)
4 999-0740 Nut M5-.8 hex stainless steel 3 (to secure cage to ring)
5 999-0673 Nut M6-1 acorn zinc plated 4 (to secure ring to engine)
6 999-0123 Washer 1/4 SAE flat zinc plated 7 (to secure cage and ring to engine)
7 160-0123 3 tab filter cage for 18HP (metal) 1

-Engine- Kawasaki FS481V - 189-6100
RefNbr Part Number Description Req Notes
001 178-0329 Bolt 12 x 30 1
002 178-0135 Washer 1 (DS10 only)
003 178-0137 Woodruff key 1
004 178-7107 Flywheel assembly 1
005 189-5152 Propane emission decal 1
006 189-0392 Screw #10 x 5/8 pan head phillips 2
007a 189-8544 Emissions shutdown module with oxygen sensor 1 (Betco)
007b 154-1042 SafeSense emission monitoring module retro kit 1 (Pioneer)
008a 189-3090 Oil dipstick 1 (Plastic oil dipsticks are only good for a short time because the last couple inches of the dipstick are always in oil and will eventually stain, get brittle, and then break off inside the engine due to the high heat of the oil. The pieces of plastic can cause problems inside the engine and the only way to get them out is to remove the crankcase, which is very labor intensive.)
008b 154-0367 Kawasaki dipstick 1
009a 178-0306 Dipstick tube 1
009b 178-0016 O-ring 2
010 178-0265 Voltage regulator 1
011 178-0330 Wire lead 1
012 178-0331 Screw 2
013 178-0123 Flanged bolt 4
014 178-7106 Electric starter 1
015a 178-0264 Ignition coil assembly Kawasaki FS481V 2
015b 991-7143 Ignition coil assembly 2 (NON-OEM)
016a 166-0008 Spark plug (Kawasaki FS481V) 2
016b 178-7104 Spark plug wiring harness 1
017 178-0280 Intake manifold 1
018a 178-0255 Air pre-filter 1 (OEM)
018b 991-6028 Air pre-filter 1 (NON-OEM)
019a 178-0256 Air filter 1 (Betco) (OEM)
019b 991-6029 Air filter 1 (NON-OEM)
019c 178-0256 Air filter 1 (Kawasaki)
019d 178-7207 Air filter assembly with prefilter 1 (Kawasaki)
020 178-0281 Hose clamp 1
021 178-0282 Hose 1
022 178-0279 Air filter case 1
023 178-0278 O-ring 2
024 178-0277 Thumb nut 2
025 178-0283 Hose clamp 1
026a 178-0290 Carburetor assembly 1 (Pioneer, Nilfisk, Kawasaki)
026b 189-5148 Carburetor aluminum block (keep internal parts of old carb) 1 (Betco)
027 178-0284 Stud bolt 2
028 178-0332 Plug 1
029 178-0333 Clamp 1
030 178-0195 Flanged nut 2
031 178-0334 Intake pipe 1
032 178-0042 Carb intake gasket 2
033 178-0257 Gasket 2
034 178-0036 Exhaust stud bolt 4
035 178-0335 Bolt 6 x 12 7
036 178-7108 Breather cover 1
037 178-0263 Breather gasket 1
038 189-8452 J clip stamped hook 1
039 178-7109 Breather pipe 1
040 178-0151 Screw pan head 1
041 178-7110 Breather plate 1
042 178-7111 Breather valve 1
043 178-0043 Top oil seal (upper crankshaft - Kawasaki) 1
044a 178-0113 Plug 1
044b 178-0010 Oil drain adapter 1
044c 178-0016 O-ring 2
045a 178-0254 Oil filter 1 (OEM)
045b 991-6027 Oil filter 1 (NON-OEM)
046 154-0143 Oil pressure switch with 2 prongs 1
047 178-0206 Clamp 1
048 178-7012 Plug 1
049 178-0336 Crankcase complete 1 (includes 50)
050 178-0337 Joint 1
051 178-0302 O-ring 1
052 178-0338 Pipe 3
053 178-0273 Dowell pin 6
054 178-0261 Cylinder head gasket (FS481V engine only) 2
055a 178-0304 #1 right cylinder head assembly (FS481V) 1 (Includes (1) rocker cover gasket, (2) valve springs, (1) intake valve, (1) exhaust valve, (1) cylinder head gasket, (1) intake gasket, (1) exhaust gasket, (2) exhaust studs)
055b 178-0258 Right (while operating) bare cylinder head #1 1
055c 178-0305 #2 left cylinder head assembly (FS481V) 1 (Includes (1) rocker cover gasket, (2) valve springs, (1) intake valve, (1) exhaust valve, (1) cylinder head gasket, (1) intake gasket, (1) exhaust gasket, (2) exhaust studs)
055d 178-0259 Left (while operating) bare cylinder head #2 1
056 178-0272 Head bolt 14
058 178-0339 Lift hook 1
059 178-0032 Valve stem seal 4
060 178-0124 Bolt 6 x 25 flange 10
061a 178-7112 Rocker case (cylinder #2) 1
061b 178-7113 Rocker case (cylinder #1) 1
062 178-0262 Rocker case gasket 2
064 178-0272 Head bolt 14
065 178-0036 Exhaust stud bolt 4
066 178-0271 Head bolt 6
067 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel 4
068 999-0034 Washer 3/8 split lock plain finish 4
069 178-0260 Bottom oil seal 1
071 178-0236 Plug 2
073 178-0340 Plug 1
074 178-0084 Oil seal 1
075 178-0322 Crankcase cover 1
076 178-0338 Pipe 3
077 178-0273 Dowell pin 6
078 204-0071 Bolt 1
079 999-0120 Washer 3/8 SAE flat 1
080 189-8544 Emissions shutdown module with oxygen sensor 1 (Betco)
081 189-5147 Nut 1
082a 169-0142 Muffler plug 1 (Pioneer)
082b 991-1601 Oxygen sensor 1 wire (OBSOLETE) 1
083a 189-3087 Catalytic muffler and manifold assembly 1 (Betco)
083b 154-1044 Catalytic muffler and manifold assembly (Kawasaki FS481V) 1 (Pioneer)
084 178-0286 Fan housing kit 1
090 178-7133 Bolt 4
091 178-0386 Washer 4
092 178-0098 Collet (valve keeper) (sold individually - need 2 per valve) 8
093 178-0048 Valve retainer ring 4
094 178-0276 Valve spring 4
095 178-0270 Intake valve 2
096 178-0045 Lifter 4
097 178-0268 Push rod 4
098 178-0269 Exhaust valve 2
099 178-7134 Nut 4
100 178-0353 Bracket 4
101 178-0384 Bolt 8 x 14 flange 4
102 178-7132 Collar 4
103 178-0383 Rocker arm 4
KIT 050-0007 Kawasaki FS481V 100 hour kit 1 (includes oil filter, pre-air filter, air filter and spark plug)
N/S 189-8544 Emissions shutdown module with oxygen sensor 1
N/S 991-1810 Compression tester 1
N/S 991-1832 Emission tester 1
N/S 178-0274 Throttle control plate 1
N/S 178-0313 Charging coil (stator) 1
N/S 178-0275 Spring 1
N/S 178-0316 Fan 1
N/S 991-4039 Spark plug tester 1

- Pads - 21 inch - 255-2100
RefNbr Part Number Description Req Notes
01 255-2140 21 inch aqua plus burnishing pad (pkg of 5)
02 255-2135 21 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2164 21 inch Blue ace pad (pkg of 5)
04 255-2142 21 inch Blue Jay burnishing pad (pkg of 5)
05 255-2112 21 inch Cure white pad (pkg of 5) (OBSOLETE)
06 255-2177 21 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2138 21 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2121 21 inch gorilla lite burnishing pad (pkg of 5)
09 255-2150 21 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2165 21 inch Heat concrete bonding pad (pkg of 5)
11 255-2130 21 inch jaguar burnishing pad (pkg of 5)
12 255-2167 21 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2190 21 inch premium black stripping pad (pkg of 5)
14 255-2170 21 inch premium blue cleaning pad (pkg of 5)
15 255-2192 21 inch premium brown stripping pad (pkg of 5)
16 255-2180 21 inch premium green scrubbing pad (pkg of 5)
17 255-2160 21 inch premium red scrubbing pad (pkg of 5)
18 255-2152 21 inch premium tan polishing pad (pkg of 5)
19 255-2120 21 inch premium white polishing pad (pkg of 5)
20 255-2111 21 inch superspeed rubberized pad (pkg of 5)
21 255-2195 21 inch razorback stripping pad (pkg of 5)
22 255-2147 21 inch Redwood maroon floor prep pad (pkg of 10)
23 255-2155 21 inch Ruff non-abrasive brush pad (pkg of 2)
25 255-0164 21 inch Professional sand screen 120 grit (pkg of 10)
26 255-0165 21 inch Professional sand screen 180 grit (pkg of 10)
27 255-0162 21 inch Professional sand screen 60 grit (pkg of 10)
28 255-0256 21 inch Superscreen sand screen 100 grit (pkg of 10)
29 255-0257 21 inch Superscreen sand screen 120 grit (pkg of 10)
30 255-0258 21 inch Superscreen sand screen 180 grit (pkg of 10)
31 255-0255 21 inch Superscreen sand screen 60 grit (pkg of 10)
32 255-2124 21 inch Tiger carpet bonnet (pkg of 2)
33 255-9598 21 inch Diamond by Gorilla 11000 Grit (pkg of 2)
34 255-9595 21 inch Diamond by Gorilla 1500 Grit (pkg of 2)
35 255-9592 21 inch Diamond by Gorilla 200 Grit (pkg of 2)
36 255-9596 21 inch Diamond by Gorilla 3000 Grit (pkg of 2)
37 255-9593 21 inch Diamond by Gorilla 400 Grit (pkg of 2)
38 255-9594 21 inch Diamond by Gorilla 800 Grit (pkg of 2)
39 255-9597 21 inch Diamond by Gorilla 8000 Grit (pkg of 2)
40 255-9646 21 inch Diamond starter pack (1 of each grit)
41 255-2115 21 inch Duala clean and shine pad - low speed (pkg of 5)
42 255-2116 21 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pads - 24 inch - 255-2400
RefNbr Part Number Description Req Notes
01 255-2440 24 inch aqua plus burnishing pad (pkg of 5)
02 255-2435 24 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2464 24 inch Blue ace pad (pkg of 5)
04 255-2442 24 inch Blue Jay burnishing pad (pkg of 5)
05 255-2412 24 inch Cure white pad (pkg of 5)
06 255-2477 24 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2438 24 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2421 24 inch gorilla lite burnishing pad (pkg of 5)
09 255-2450 24 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2465 24 inch Heat concrete bonding pad (pkg of 5)
11 255-2430 24 inch jaguar burnishing pad (pkg of 5)
12 255-2469 24 inch Micropolish polishing and burnishing pad (pkg of 2)
13 255-2490 24 inch premium black stripping pad (pkg of 5)
14 255-2470 24 inch premium blue cleaning pad (pkg of 5)
15 255-2492 24 inch premium brown stripping pad (pkg of 5)
16 255-2480 24 inch premium green scrubbing pad (pkg of 5)
17 255-2460 24 inch premium red scrubbing pad (pkg of 5)
18 255-2452 24 inch premium tan polishing pad (pkg of 5)
19 255-2420 24 inch premium white polishing pad (pkg of 5)
20 255-2411 24 inch superspped rubberized pad (pkg of 5)
21 255-2495 24 inch razorback stripping pad (pkg of 5)
22 255-2447 24 inch Redwood maroon floor prep pad (pkg of 10)
23 255-0174 24 inch Professional sand screen 100 grit (pkg of 10)
24 255-0175 24 inch Professional sand screen 180 grit (pkg of 10)
25 255-0176 24 inch Professional sand screen 220 grit (pkg of 10)
26 255-0267 24 inch Superscreen sand screen 100 grit (pkg of 10)
27 255-0268 24 inch Superscreen sand screen 180 grit (pkg of 10)
28 255-0269 24 inch Superscreen sand screen 220 grit (pkg of 10)
29 255-9619 24 inch Diamond by Gorilla 11000 Grit (pkg of 2)
30 255-9616 24 inch Diamond by Gorilla 1500 Grit (pkg of 2)
31 255-9613 24 inch Diamond by Gorilla 200 Grit (pkg of 2)
32 255-9617 24 inch Diamond by Gorilla 3000 Grit (pkg of 2)
33 255-9614 24 inch Diamond by Gorilla 400 Grit (pkg of 2)
34 255-9615 24 inch Diamond by Gorilla 800 Grit (pkg of 2)
35 255-9618 24 inch Diamond by Gorilla 8000 Grit (pkg of 2)
36 255-9649 24 inch Diamond starter pack (1 of each grit)
37 255-2415 24 inch Duala clean and shine pad - low speed (pkg of 5)
38 255-2416 24 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pads - 28 inch - 255-2800
RefNbr Part Number Description Req Notes
01 255-2840 28 inch aqua plus burnishing pad (pkg of 5)
02 255-2840 28 inch aqua plus burnishing pad (pkg of 5)
03 255-2835 28 inch Armadillo concrete scrubbing pad (pkg of 5)
04 255-2835 28 inch Armadillo concrete scrubbing pad (pkg of 5)
05 255-2864 28 inch Blue ace pad (pkg of 5)
06 255-2864 28 inch Blue ace pad (pkg of 5)
07 255-2842 28 inch Blue Jay burnishing pad (pkg of 5)
08 255-2842 28 inch Blue Jay burnishing pad (pkg of 5)
09 255-2812 28 inch Cure white pad (pkg of 5)
10 255-2812 28 inch Cure white pad (pkg of 5)
11 255-2877 28 inch Diamondback extreme stripping pad (pkg of 5)
12 255-2877 28 inch Diamondback extreme stripping pad (pkg of 5)
13 255-2838 28 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
14 255-2821 28 inch gorilla lite burnishing pad (pkg of 5)
15 255-2821 28 inch gorilla lite burnishing pad (pkg of 5)
16 255-2850 28 inch gorilla spray buff/polish/burnish pad (pkg of 5)
17 255-2850 28 inch gorilla spray buff/polish/burnish pad (pkg of 5)
18 255-2865 28 inch Heat concrete bonding pad (pkg of 5)
19 255-2865 28 inch Heat concrete bonding pad (pkg of 5)
20 255-2830 28 inch jaguar burnishing pad (pkg of 5)
21 255-2830 28 inch jaguar burnishing pad (pkg of 5)
22 255-2890 28 inch premium black stripping pad (pkg of 5)
23 255-2890 28 inch premium black stripping pad (pkg of 5)
24 255-2870 28 inch premium blue cleaning pad (pkg of 5)
25 255-2870 28 inch premium blue cleaning pad (pkg of 5)
26 255-2892 28 inch premium brown stripping pad (pkg of 5)
27 255-2892 28 inch premium brown stripping pad (pkg of 5)
28 255-2880 28 inch premium green scrubbing pad (pkg of 5)
29 255-2880 28 inch premium green scrubbing pad (pkg of 5)
30 255-2860 28 inch premium red scrubbing pad (pkg of 5)
31 255-2860 28 inch premium red scrubbing pad (pkg of 5)
32 255-2852 28 inch premium tan polishing pad (pkg of 5)
33 255-2852 28 inch premium tan polishing pad (pkg of 5)
34 255-2820 28 inch premium white polishing pad (pkg of 5)
35 255-2820 28 inch premium white polishing pad (pkg of 5)
36 255-2895 28 inch razorback stripping pad (pkg of 5)
37 255-2895 28 inch razorback stripping pad (pkg of 5)
38 255-2811 28 inch superspeed rubberized pad (pkg of 5)
39 255-2811 28 inch superspeed rubberized pad (pkg of 5)
40 255-9633 28 inch Diamond by Gorilla 11000 Grit (pkg of 2)
41 255-9630 28 inch Diamond by Gorilla 1500 Grit (pkg of 2)
42 255-9627 28 inch Diamond by Gorilla 200 Grit (pkg of 2)
43 255-9631 28 inch Diamond by Gorilla 3000 Grit (pkg of 2)
44 255-9628 28 inch Diamond by Gorilla 400 Grit (pkg of 2)
45 255-9629 28 inch Diamond by Gorilla 800 Grit (pkg of 2)
46 255-9632 28 inch Diamond by Gorilla 8000 Grit (pkg of 2)
47 255-9651 28 inch Diamond starter pack (1 of each grit)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

Fuel System Overview -

RefNbr Part Number Description Req Notes

- Frequently Replaced Parts - 999-0025
RefNbr Part Number Description Req Notes
01 162-0007 12V 12Ah sealed battery 1
02 154-0579 Key switch assembly with key 1
03 154-2338 Key 1
04 154-0316 Bail 1
05 154-1445 Hour meter 1
06 991-0001 BX46 belt 1 21 inch
06 154-1070 BX49 belt 1 24 inch
06 991-0021 BX56 belt 1 28 inch
07a 154-1045 Wheel 1
07b 991-8578 Wheel with ball bearing 5 x 2 inch 1
08 154-1055 Caster wheel 1
09 161-0003 Aluminum propane tank 1
09 161-0004 Steel propane tank 1
10 154-1039 Tank strap 1
10 154-2330 Strap slide 1
11 154-0729 21 inch pad driver assembly 1 21 inch
11 154-0534 24 inch pad driver assembly 1 24 inch
11 154-0306 28 inch pad driver assembly 1 28 inch
12 991-2206 Center-Lok 3 pad holder 1
13 154-0541 Throttle control cable 1
14 991-6004 Female quick coupler 1
15 991-6001 Fuel regulator (T60) 1
16 991-6002 12V fuel lock off (Model 152) 1
17a 154-0388 Vacuum bag 1 (For units with a plastic tube.)
17b 154-3693 12 inch dust bag 1 (For units with a metal tube.)
18 154-0371 Dust tube 1
Webpage Problem Reporting
