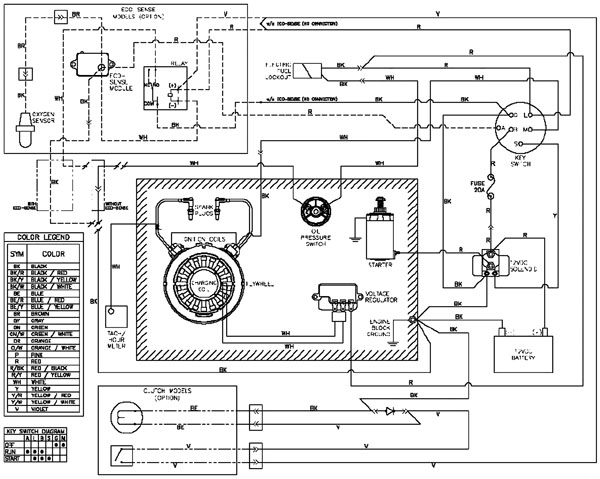

Wiring Diagram - 154-2006 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
154-3479 |
Wiring harness |
|
|
|
|

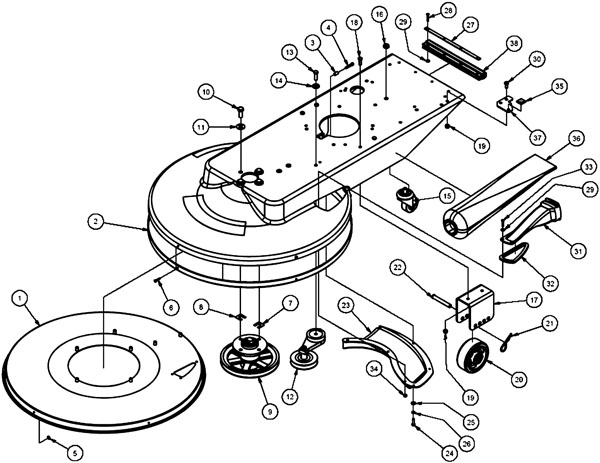

Deck Assembly - 154-2007 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
154-2339 |
21 inch shroud liner |
1 |
|
| 1b |
154-0386 |
24 inch shroud liner |
1 |
|
| 1c |
154-0374 |
28 inch shroud liner |
1 |
|
| 2a |
992-0002 |
Velcro hook (sold by the inch) |
74 in |
(21 inch) |
| 2b |
992-0002 |
Velcro hook (sold by the inch) |
85 in |
(24 inch) |
| 2c |
992-0002 |
Velcro hook (sold by the inch) |
98 in |
(28 inch) |
| 3 |
154-0719 |
Steel bushing |
1 |
|
| 4 |
154-0720 |
Screw 1/4-20 x 1 1/4 socket head with loctite |
1 |
|
| 5 |
999-0998 |
Washer #10 flat stainless steel |
5 |
|
| 7 |
154-2324 |
1/32 inch shim |
1 |
|
| 8 |
154-2325 |
1/16 inch shim |
1 |
|
| 9a |
154-0671 |
Spindle with 6 3/4 inch pulley |
1 |
(21 inch) |
| 9b |
154-0394 |
Spindle with 7 1/4 inch pulley |
1 |
(24 inch) |
| 9c |
154-0123 |
RETRO KIT - Spindle w/ 9.25 inch pulley & belt |
1 |
(28 inch) (before SN 78741) |
| 9d |
154-3526 |
Spindle with 9.25 inch pulley |
1 |
(28 inch) (after SN 78741) |
| 10 |
999-0200 |
Bolt 1/2-13 x 1 1/4 hex head |
4 |
|
| 11 |
999-0033 |
Washer 7/16 SAE flat |
4 |
|
| 12a |
154-0024 |
Idler belt tensioner with v-groove pulley |
1 |
(OEM) |
| 12b |
991-8595 |
4 inch idler pulley |
1 |
(NON-OEM) (pulley only) |
| 13 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
| 14 |
999-0032 |
Washer 3/8 USS flat plain finish |
1 |
|
| 15 |
154-1055 |
Caster wheel |
1 |
|
| 16 |
999-0050 |
Nut 1/2-13 hex jam plain finish |
1 |
|
| 17 |
154-2341 |
Wheel bracket |
2 |
|
| 18 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
| 19 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
6 |
|
| 20b |
991-8578 |
Wheel with ball bearing 5 x 2 inch |
2 |
|
| 23a |
154-0404 |
21 inch vacuum scoop |
1 |
|
| 23b |
154-0712 |
24 inch vacuum scoop |
1 |
|
| 23c |
154-0373 |
28 inch vacuum scoop |
1 |
|
| 24 |
999-0197 |
Screw 1/4-20 x 1 socket head alloy plain finish |
3 |
|
| 25 |
999-0016 |
Washer 1/4 flat plain finish |
3 |
|
| 26 |
154-0600 |
Lock washer |
3 |
|
| 27 |
154-2342 |
Bumper strap |
1 |
|
| 29 |
999-0998 |
Washer #10 flat stainless steel |
7 |
|
| 30 |
999-0130 |
Screw 5/16-18 x 3/4 socket head alloy plain finish |
2 |
|
| 32 |
154-0403 |
Dust tube seal |
1 |
|
| 33 |
999-1230 |
Screw 10-24 x 1 hex head stainless steel |
3 |
|
| 34 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
3 |
|
| 35 |
154-0127 |
Velcro stud |
1 |
|
| 36a |
154-0388 |
Vacuum bag |
1 |
(For units with a plastic tube.) |
| 36b |
154-3693 |
12 inch dust bag |
1 |
(For units with a metal tube.) |
| 36c |
154-3693 |
12 inch dust bag |
1 |
(For units at WalMart.) |
| 37 |
154-2344 |
Support bracket |
1 |
|
| 38 |
154-2345 |
12 inch bumper |
1 |
|
|
|

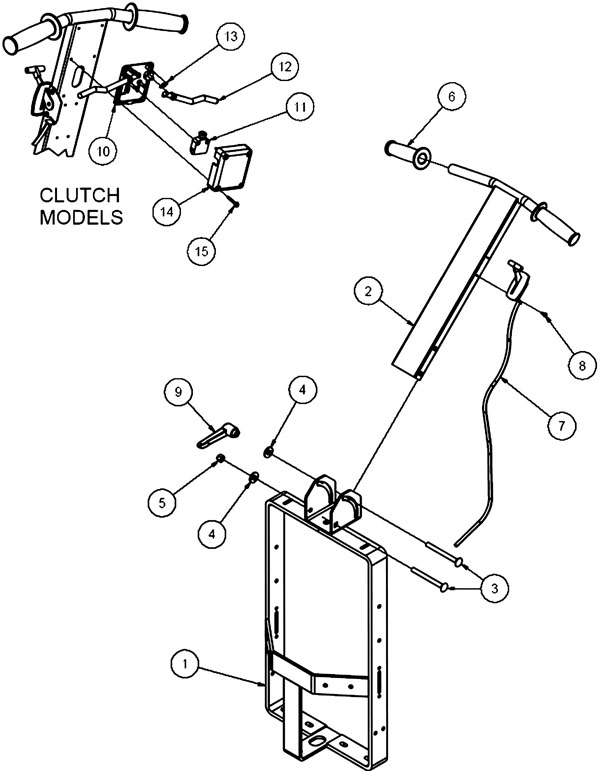

Handle Assembly - 154-2008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
154-2327 |
Bottom handle weldment |
1 |
|
| 2 |
154-2328 |
Top handle weldment |
1 |
|
| 3 |
999-0242 |
Screw 3/8-16 x 4 carriage head grade 5 zinc |
2 |
|
| 4 |
999-0032 |
Washer 3/8 USS flat plain finish |
2 |
|
| 5 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 6a |
154-2329 |
Handle grip |
2 |
|
| 6b |
991-8571 |
Handle grip |
2 |
(NON-OEM) |
| 7a |
154-1043 |
Throttle cable |
1 |
|
| 7b |
991-9254 |
THROTTLE CABLE (RIGHT) |
1 |
(NON-OEM) |
| 8 |
999-0576 |
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
2 |
|
| 9 |
154-0071 |
Adjustable handle lever |
1 |
|
| 10 |
154-0054 |
Switch box base |
1 |
|
| 11 |
154-2346 |
16amp micro switch assembly |
1 |
|
| 12 |
154-0055 |
Switch box lever |
2 |
|
| 13 |
154-0056 |
Switch box spring |
2 |
|
| 14 |
154-0060 |
Switch box cover |
1 |
|
| 15 |
999-0233 |
Screw 8 x 1 1/4 hex washer head slotted zinc plated |
4 |
|
| N/S |
991-5160 |
30amp fuse |
1 |
|
|
|

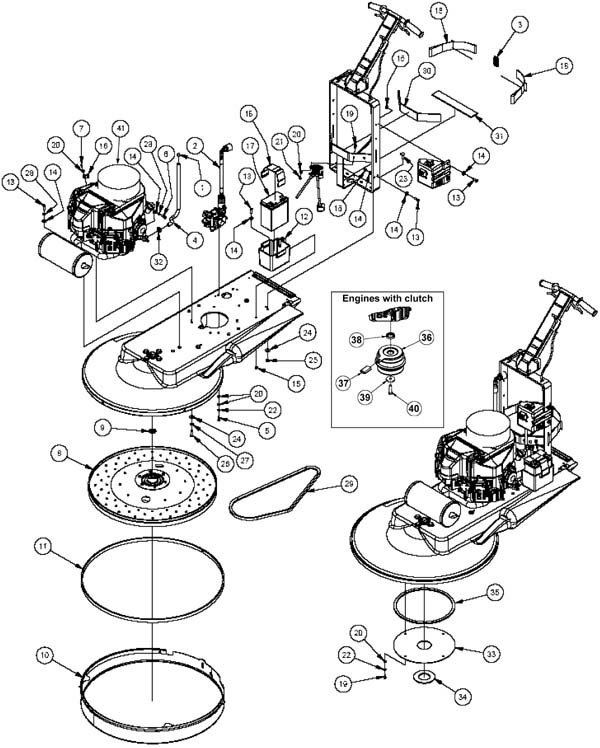

Frame Assembly - 154-2009 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
154-0038 |
Oil drain cap |
1 |
|
| 2 |
154-2347 |
Regulator assembly |
1 |
|
| 4 |
154-0037 |
Tubing 1/2 x 5/8 (clear) (sold by the foot) |
1 ft |
|
| 5 |
999-0197 |
Screw 1/4-20 x 1 socket head alloy plain finish |
2 |
|
| 6 |
999-0581 |
Bolt M8-1.25 x 25mm hex head full thread zinc |
1 |
|
| 7 |
999-1449 |
Screw #10 x 1/2 truss head phillips stainless steel |
1 |
|
| 8a |
154-0306 |
28 inch pad driver assembly |
1 |
|
| 8b |
154-0534 |
24 inch pad driver assembly |
1 |
|
| 8c |
154-0729 |
21 inch pad driver assembly |
1 |
|
| 10a |
154-0717 |
28 inch steel skirt assembly |
1 |
|
| 10b |
154-0709 |
24 inch steel skirt assembly |
1 |
|
| 10c |
154-0710 |
21 inch steel skirt assembly |
1 |
|
| 11a |
154-0515 |
Felt for improved skirt design (sold by the foot) |
9 ft |
(28 inch vac model) |
| 11b |
154-0515 |
Felt for improved skirt design (sold by the foot) |
8 ft |
(24 inch vac model) |
| 11c |
154-0515 |
Felt for improved skirt design (sold by the foot) |
7 ft |
(21 inch vac model) |
| 12 |
154-1047 |
Battery tray |
1 |
|
| 13 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
5 |
|
| 14 |
999-0024 |
Washer 5/16 flat stainless steel |
7 |
|
| 15 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
| 17 |
162-0007 |
12V 12Ah sealed battery |
1 |
|
| 19 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
6 |
|
| 20 |
999-0016 |
Washer 1/4 flat plain finish |
10 |
|
| 21 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 22 |
154-0600 |
Lock washer |
6 |
|
| 23 |
999-0232 |
Screw 3/8-16 x 1 1/4 carriage head grade 5 zinc |
3 |
|
| 24 |
999-0032 |
Washer 3/8 USS flat plain finish |
7 |
|
| 25 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
3 |
|
| 26 |
999-0039 |
Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
| 27 |
999-0034 |
Washer 3/8 split lock plain finish |
4 |
|
| 28 |
999-0028 |
Washer 5/16 split lock plain finish |
2 |
|
| 29a |
991-0021 |
BX56 belt |
1 |
(28 inch) |
| 29b |
154-1070 |
BX49 belt |
1 |
(24 inch) |
| 29c |
991-0001 |
BX46 belt |
1 |
(21 inch) |
| 29d |
991-8541 |
BX-57 belt |
1 |
(28 inch) (after SN 78741) |
| 30 |
992-0001 |
Velcro loop (sold by the inch) |
15 in |
|
| 31 |
992-0001 |
Velcro loop (sold by the inch) |
12 in |
|
| 32 |
154-0036 |
Plastic hose clamp |
2 |
|
| 33 |
154-0398 |
Pulley cover |
1 |
|
| 34 |
154-0400 |
Spindle seal |
1 |
|
| 36 |
154-0008 |
Electric clutch assembly |
1 |
(models with clutch) |
| 37 |
154-0015 |
Neoprene tubing (sold by the inch) |
1 |
(models with clutch) |
| 38 |
154-2350 |
Upper clutch spacer |
1 |
(models with clutch) |
| 39 |
154-0016 |
Bottom clutch spacer |
1 |
(models with clutch) |
| 40 |
999-0208 |
Bolt 7/16-20 x 1 1/2 hex head grade 5 zinc plated |
1 |
(models with clutch) |
| 41a |
154-3442 |
Dust bonnet |
1 |
|
| 41b |
991-9014 |
Kawasaki dust bonnet |
1 |
|
| N/S |
154-3567 |
Clutch wiring harness |
|
(models with clutch) |
|
|

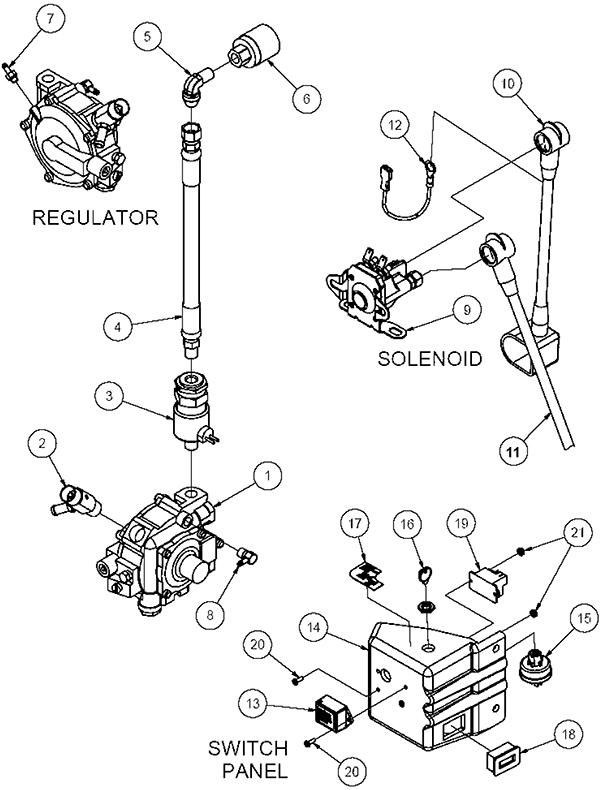

Regulator, Solenoid and Switch Panel Assembly - 154-2010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-6001 |
Fuel regulator (T60) |
1 |
|
| 2 |
154-0168 |
Fuel adjustment |
1 |
|
| 3 |
991-6002 |
12V fuel lock off (Model 152) |
1 |
|
| 4 |
991-6007 |
Propane fuel hose |
1 |
|
| 5 |
154-0066 |
Fitting 49 x 6 (regulator to fuel lock) |
1 |
|
| 6 |
991-6004 |
Female quick coupler |
1 |
|
| 7 |
154-2348 |
Brass fitting |
1 |
|
| 8 |
154-2349 |
Brass elbow fitting |
1 |
|
| 9a |
154-1040 |
Starter solenoid |
1 |
|
| 9b |
991-9253 |
12V DC starter solenoid |
1 |
(NON-OEM) |
| 10a |
998-0010 |
Battery jumper cable - ring type (red) |
2 |
|
| 10b |
991-6025 |
Wire 4 x14.5, 3/8 ring x 3/8 ring |
2 |
(NON-OEM) |
| 11 |
154-0659 |
14 inch positive battery cable |
1 |
|
| 12 |
154-2336 |
Wire (solenoid to battery) |
1 |
|
| 13 |
154-1042 |
SafeSense emission monitoring module retro kit |
1 |
|
| 14 |
154-1041 |
Switch panel |
1 |
|
| 15 |
154-0579 |
Key switch assembly with key |
1 |
|
| 17 |
154-2337 |
Starter switch decal |
1 |
|
| 19 |
154-0665 |
12V circuit relay board |
1 |
|
| 20 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 21 |
999-0151 |
Nut 8-32 nylon insert lock zinc plated |
4 |
|
|
|
Skirt and Pad Driver Assembly - 154-2011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
154-0717 |
28 inch steel skirt assembly |
1 |
(28 inch vac model) (includes 1d-g and 1h) |
| 1b |
154-0709 |
24 inch steel skirt assembly |
1 |
(24 inch vac model) (includes 1d-1g and 1i) |
| 1c |
154-0710 |
21 inch steel skirt assembly |
1 |
(21 inch vac model) (includes 1d-1g and 1j) |
| 1e |
154-0781 |
Bolt 1/4-20 x 2 1/2 inch hex head tap |
1 |
|
| 1f |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 1g |
999-0609 |
Nut 1/4-20 hex stainless steel |
1 |
|
| 1h |
154-0466 |
Skirt edging (bottom) (sold by the foot) |
9 ft |
(28 inch) |
| 1i |
154-0466 |
Skirt edging (bottom) (sold by the foot) |
8 ft |
(24 inch) |
| 1j |
154-0466 |
Skirt edging (bottom) (sold by the foot) |
7 ft |
(21 inch) |
| 2a |
154-0306 |
28 inch pad driver assembly |
1 |
(28 inch) (includes 2c, 2e, 2f and 2h-2m) |
| 2b |
154-0534 |
24 inch pad driver assembly |
1 |
(24 inch) (includes 2d, 2e, 2g and 2h-2m) |
| 2c |
154-0126 |
28 inch pad driver with studs |
1 |
(28 inch) |
| 2d |
154-0557 |
24 inch pad driver with studs |
1 |
(24 inch) |
| 2f |
154-0127 |
Velcro stud |
68 |
(28 inch) |
| 2g |
154-0127 |
Velcro stud |
76 |
(24 inch) |
| 2h |
154-0312 |
Spacer ring for Center-Lok II |
1 |
|
| 2i |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
1 |
|
| 2j |
999-0124 |
Screw 1/4-20 x 1 1/4 button head socket cap plain finish |
6 |
|
| 2l |
999-0016 |
Washer 1/4 flat plain finish |
6 |
|
| 2m |
154-0408 |
Pad holder stress relief ring |
1 |
|
| 2n |
991-2202 |
Big mouth pad holder set (blue) |
1 |
(NON-OEM) |
| 2o |
991-8577 |
Pad retainer |
1 |
(NON-OEM) |
| 3a |
154-0729 |
21 inch pad driver assembly |
1 |
(21 inch) (includes 3b-3i) |
| 3b |
154-0134 |
21 inch pad driver with studs |
1 |
(21 inch) |
| 3d |
154-0408 |
Pad holder stress relief ring |
1 |
|
| 3e |
991-2206 |
Center-Lok 3 pad holder |
1 |
|
| 3f |
999-0124 |
Screw 1/4-20 x 1 1/4 button head socket cap plain finish |
6 |
|
| 3g |
999-0016 |
Washer 1/4 flat plain finish |
6 |
|
| 3h |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
6 |
|
| 3i |
154-0127 |
Velcro stud |
50 |
|
|
|
- Commonly Asked For Parts - 154-8996 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
154-5211 |
Dust box container |
|
|
| 02 |
154-5212 |
5 inch pulley arm assembly |
|
|
| 03 |
154-5213 |
Heat insulation |
|
|
| 04 |
154-5214 |
5 inch flat idler |
|
|
| 05 |
154-5215 |
Filter retainer assembly |
|
|
| 06 |
154-5216 |
Vacuum scoop weldment |
|
|
| 07 |
154-5217 |
Dust tube weldment |
|
|
| 08 |
154-5218 |
21 inch shroud liner assembly |
|
|
| 09 |
154-5219 |
28 inch shroud liner assembly |
|
|
| 10 |
154-5220 |
24 inch shroud liner assembly |
|
|
| 11 |
154-5221 |
Dust tube gasket |
|
|
| 12 |
999-0714 |
Nut 1/2-20 hex jam stainless steel |
|
|
|
|
NON-OEM Dust Bonnet and Cage Option - 178-4041 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-9014 |
Kawasaki dust bonnet |
1 |
|
| 2a |
160-0198 |
3 tab filter cage with support ring for 17HP (metal) |
1 |
(includes 2b) |
| 2b |
160-0297 |
Filter cage support ring for 17HP (converts 3 tab/4 tab) |
1 |
|
| 3 |
999-0250 |
Bolt M5-.8 x 10mm hex head full thread |
3 |
(to secure cage to ring) |
| 4 |
999-0740 |
Nut M5-.8 hex stainless steel |
3 |
(to secure cage to ring) |
| 5 |
999-0673 |
Nut M6-1 acorn zinc plated |
4 |
(to secure ring to engine) |
| 6 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
7 |
(to secure cage and ring to engine) |
| 7 |
160-0123 |
3 tab filter cage for 18HP (metal) |
1 |
|
|
|
-Engine- Kawasaki FS481V - 189-6100 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
178-0329 |
Bolt 12 x 30 |
1 |
|
| 002 |
178-0135 |
Washer |
1 |
(DS10 only) |
| 003 |
178-0137 |
Woodruff key |
1 |
|
| 004 |
178-7107 |
Flywheel assembly |
1 |
|
| 005 |
189-5152 |
Propane emission decal |
1 |
|
| 006 |
189-0392 |
Screw #10 x 5/8 pan head phillips |
2 |
|
| 007a |
189-8544 |
Emissions shutdown module with oxygen sensor |
1 |
(Betco) |
| 007b |
154-1042 |
SafeSense emission monitoring module retro kit |
1 |
(Pioneer) |
| 008a |
189-3090 |
Oil dipstick |
1 |
(Plastic oil dipsticks are only good for a short time because the last couple inches of the dipstick are always in oil and will eventually stain, get brittle, and then break off inside the engine due to the high heat of the oil. The pieces of plastic can cause problems inside the engine and the only way to get them out is to remove the crankcase, which is very labor intensive.) |
| 008b |
154-0367 |
Kawasaki dipstick |
1 |
|
| 009a |
178-0306 |
Dipstick tube |
1 |
|
| 010 |
178-0265 |
Voltage regulator |
1 |
|
| 013 |
178-0123 |
Flanged bolt |
4 |
|
| 014 |
178-7106 |
Electric starter |
1 |
|
| 015a |
178-0264 |
Ignition coil assembly Kawasaki FS481V |
2 |
|
| 015b |
991-7143 |
Ignition coil assembly |
2 |
(NON-OEM) |
| 016a |
166-0008 |
Spark plug (Kawasaki FS481V) |
2 |
|
| 016b |
178-7104 |
Spark plug wiring harness |
1 |
|
| 017 |
178-0280 |
Intake manifold |
1 |
|
| 018a |
178-0255 |
Air pre-filter |
1 |
(OEM) |
| 018b |
991-6028 |
Air pre-filter |
1 |
(NON-OEM) |
| 019a |
178-0256 |
Air filter |
1 |
(Betco) (OEM) |
| 019b |
991-6029 |
Air filter |
1 |
(NON-OEM) |
| 019c |
178-0256 |
Air filter |
1 |
(Kawasaki) |
| 019d |
178-7207 |
Air filter assembly with prefilter |
1 |
(Kawasaki) |
| 020 |
178-0281 |
Hose clamp |
1 |
|
| 022 |
178-0279 |
Air filter case |
1 |
|
| 025 |
178-0283 |
Hose clamp |
1 |
|
| 026a |
178-0290 |
Carburetor assembly |
1 |
(Pioneer, Nilfisk, Kawasaki) |
| 026b |
189-5148 |
Carburetor aluminum block (keep internal parts of old carb) |
1 |
(Betco) |
| 030 |
178-0195 |
Flanged nut |
2 |
|
| 031 |
178-0334 |
Intake pipe |
1 |
|
| 032 |
178-0042 |
Carb intake gasket |
2 |
|
| 034 |
178-0036 |
Exhaust stud bolt |
4 |
|
| 035 |
178-0335 |
Bolt 6 x 12 |
7 |
|
| 036 |
178-7108 |
Breather cover |
1 |
|
| 037 |
178-0263 |
Breather gasket |
1 |
|
| 038 |
189-8452 |
J clip stamped hook |
1 |
|
| 039 |
178-7109 |
Breather pipe |
1 |
|
| 040 |
178-0151 |
Screw pan head |
1 |
|
| 041 |
178-7110 |
Breather plate |
1 |
|
| 042 |
178-7111 |
Breather valve |
1 |
|
| 043 |
178-0043 |
Top oil seal (upper crankshaft - Kawasaki) |
1 |
|
| 044b |
178-0010 |
Oil drain adapter |
1 |
|
| 045a |
178-0254 |
Oil filter |
1 |
(OEM) |
| 045b |
991-6027 |
Oil filter |
1 |
(NON-OEM) |
| 046 |
154-0143 |
Oil pressure switch with 2 prongs |
1 |
|
| 049 |
178-0336 |
Crankcase complete |
1 |
(includes 50) |
| 053 |
178-0273 |
Dowell pin |
6 |
|
| 054 |
178-0261 |
Cylinder head gasket (FS481V engine only) |
2 |
|
| 055a |
178-0304 |
#1 right cylinder head assembly (FS481V) |
1 |
(Includes (1) rocker cover gasket, (2) valve springs, (1) intake valve, (1) exhaust valve, (1) cylinder head gasket, (1) intake gasket, (1) exhaust gasket, (2) exhaust studs) |
| 055b |
178-0258 |
Right (while operating) bare cylinder head #1 |
1 |
|
| 055c |
178-0305 |
#2 left cylinder head assembly (FS481V) |
1 |
(Includes (1) rocker cover gasket, (2) valve springs, (1) intake valve, (1) exhaust valve, (1) cylinder head gasket, (1) intake gasket, (1) exhaust gasket, (2) exhaust studs) |
| 055d |
178-0259 |
Left (while operating) bare cylinder head #2 |
1 |
|
| 056 |
178-0272 |
Head bolt |
14 |
|
| 059 |
178-0032 |
Valve stem seal |
4 |
|
| 060 |
178-0124 |
Bolt 6 x 25 flange |
10 |
|
| 061a |
178-7112 |
Rocker case (cylinder #2) |
1 |
|
| 061b |
178-7113 |
Rocker case (cylinder #1) |
1 |
|
| 062 |
178-0262 |
Rocker case gasket |
2 |
|
| 064 |
178-0272 |
Head bolt |
14 |
|
| 065 |
178-0036 |
Exhaust stud bolt |
4 |
|
| 067 |
999-1489 |
Screw 3/8-16 x 1 1/2 hex head stainless steel |
4 |
|
| 068 |
999-0034 |
Washer 3/8 split lock plain finish |
4 |
|
| 069 |
178-0260 |
Bottom oil seal |
1 |
|
| 075 |
178-0322 |
Crankcase cover |
1 |
|
| 077 |
178-0273 |
Dowell pin |
6 |
|
| 079 |
999-0120 |
Washer 3/8 SAE flat |
1 |
|
| 080 |
189-8544 |
Emissions shutdown module with oxygen sensor |
1 |
(Betco) |
| 082a |
169-0142 |
Muffler plug |
1 |
(Pioneer) |
| 082b |
991-1601 |
Oxygen sensor 1 wire (OBSOLETE) |
1 |
|
| 083a |
189-3087 |
Catalytic muffler and manifold assembly |
1 |
(Betco) |
| 083b |
154-1044 |
Catalytic muffler and manifold assembly (Kawasaki FS481V) |
1 |
(Pioneer) |
| 084 |
178-0286 |
Fan housing kit |
1 |
|
| 092 |
178-0098 |
Collet (valve keeper) (sold individually - need 2 per valve) |
8 |
|
| 093 |
178-0048 |
Valve retainer ring |
4 |
|
| 094 |
178-0276 |
Valve spring |
4 |
|
| 095 |
178-0270 |
Intake valve |
2 |
|
| 098 |
178-0269 |
Exhaust valve |
2 |
|
| 101 |
178-0384 |
Bolt 8 x 14 flange |
4 |
|
| 103 |
178-0383 |
Rocker arm |
4 |
|
| KIT |
050-0007 |
Kawasaki FS481V 100 hour kit |
1 |
(includes oil filter, pre-air filter, air filter and spark plug) |
| N/S |
189-8544 |
Emissions shutdown module with oxygen sensor |
1 |
|
| N/S |
991-1810 |
Compression tester |
1 |
|
| N/S |
991-1832 |
Emission tester |
1 |
|
| N/S |
178-0274 |
Throttle control plate |
1 |
|
| N/S |
178-0313 |
Charging coil (stator) |
1 |
|
| N/S |
991-4039 |
Spark plug tester |
1 |
|
|
|
- Pads - 21 inch - 255-2100 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2140 |
21 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2135 |
21 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2164 |
21 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2142 |
21 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2112 |
21 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-2177 |
21 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2138 |
21 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2121 |
21 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2150 |
21 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2165 |
21 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2130 |
21 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2167 |
21 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2190 |
21 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-2170 |
21 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-2192 |
21 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-2180 |
21 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-2160 |
21 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-2152 |
21 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-2120 |
21 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-2111 |
21 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-2195 |
21 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-2147 |
21 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-2155 |
21 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 25 |
255-0164 |
21 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 26 |
255-0165 |
21 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 27 |
255-0162 |
21 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 28 |
255-0256 |
21 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0257 |
21 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0258 |
21 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0255 |
21 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-2124 |
21 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 33 |
255-9598 |
21 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 34 |
255-9595 |
21 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 35 |
255-9592 |
21 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 36 |
255-9596 |
21 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 37 |
255-9593 |
21 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 38 |
255-9594 |
21 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 39 |
255-9597 |
21 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 40 |
255-9646 |
21 inch Diamond starter pack (1 of each grit) |
|
|
| 41 |
255-2115 |
21 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 42 |
255-2116 |
21 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pads - 24 inch - 255-2400 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2440 |
24 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2435 |
24 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2464 |
24 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2442 |
24 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2412 |
24 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2477 |
24 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2438 |
24 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2421 |
24 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2450 |
24 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2465 |
24 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2430 |
24 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2469 |
24 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 13 |
255-2490 |
24 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-2470 |
24 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-2492 |
24 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-2480 |
24 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-2460 |
24 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-2452 |
24 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-2420 |
24 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-2411 |
24 inch superspped rubberized pad (pkg of 5) |
|
|
| 21 |
255-2495 |
24 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-2447 |
24 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-0174 |
24 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 24 |
255-0175 |
24 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 25 |
255-0176 |
24 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 26 |
255-0267 |
24 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 27 |
255-0268 |
24 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0269 |
24 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 29 |
255-9619 |
24 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 30 |
255-9616 |
24 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 31 |
255-9613 |
24 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 32 |
255-9617 |
24 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 33 |
255-9614 |
24 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 34 |
255-9615 |
24 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 35 |
255-9618 |
24 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 36 |
255-9649 |
24 inch Diamond starter pack (1 of each grit) |
|
|
| 37 |
255-2415 |
24 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 38 |
255-2416 |
24 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pads - 28 inch - 255-2800 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2840 |
28 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2840 |
28 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 03 |
255-2835 |
28 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 04 |
255-2835 |
28 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 05 |
255-2864 |
28 inch Blue ace pad (pkg of 5) |
|
|
| 06 |
255-2864 |
28 inch Blue ace pad (pkg of 5) |
|
|
| 07 |
255-2842 |
28 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 08 |
255-2842 |
28 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 09 |
255-2812 |
28 inch Cure white pad (pkg of 5) |
|
|
| 10 |
255-2812 |
28 inch Cure white pad (pkg of 5) |
|
|
| 11 |
255-2877 |
28 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 12 |
255-2877 |
28 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 13 |
255-2838 |
28 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 14 |
255-2821 |
28 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 15 |
255-2821 |
28 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 16 |
255-2850 |
28 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 17 |
255-2850 |
28 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 18 |
255-2865 |
28 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 19 |
255-2865 |
28 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 20 |
255-2830 |
28 inch jaguar burnishing pad (pkg of 5) |
|
|
| 21 |
255-2830 |
28 inch jaguar burnishing pad (pkg of 5) |
|
|
| 22 |
255-2890 |
28 inch premium black stripping pad (pkg of 5) |
|
|
| 23 |
255-2890 |
28 inch premium black stripping pad (pkg of 5) |
|
|
| 24 |
255-2870 |
28 inch premium blue cleaning pad (pkg of 5) |
|
|
| 25 |
255-2870 |
28 inch premium blue cleaning pad (pkg of 5) |
|
|
| 26 |
255-2892 |
28 inch premium brown stripping pad (pkg of 5) |
|
|
| 27 |
255-2892 |
28 inch premium brown stripping pad (pkg of 5) |
|
|
| 28 |
255-2880 |
28 inch premium green scrubbing pad (pkg of 5) |
|
|
| 29 |
255-2880 |
28 inch premium green scrubbing pad (pkg of 5) |
|
|
| 30 |
255-2860 |
28 inch premium red scrubbing pad (pkg of 5) |
|
|
| 31 |
255-2860 |
28 inch premium red scrubbing pad (pkg of 5) |
|
|
| 32 |
255-2852 |
28 inch premium tan polishing pad (pkg of 5) |
|
|
| 33 |
255-2852 |
28 inch premium tan polishing pad (pkg of 5) |
|
|
| 34 |
255-2820 |
28 inch premium white polishing pad (pkg of 5) |
|
|
| 35 |
255-2820 |
28 inch premium white polishing pad (pkg of 5) |
|
|
| 36 |
255-2895 |
28 inch razorback stripping pad (pkg of 5) |
|
|
| 37 |
255-2895 |
28 inch razorback stripping pad (pkg of 5) |
|
|
| 38 |
255-2811 |
28 inch superspeed rubberized pad (pkg of 5) |
|
|
| 39 |
255-2811 |
28 inch superspeed rubberized pad (pkg of 5) |
|
|
| 40 |
255-9633 |
28 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 41 |
255-9630 |
28 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 42 |
255-9627 |
28 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 43 |
255-9631 |
28 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 44 |
255-9628 |
28 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 45 |
255-9629 |
28 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 46 |
255-9632 |
28 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 47 |
255-9651 |
28 inch Diamond starter pack (1 of each grit) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
Fuel System Overview - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Frequently Replaced Parts - 999-0019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
162-0007 |
12V 12Ah sealed battery |
|
|
| 02 |
154-0579 |
Key switch assembly with key |
|
|
| 04 |
154-0055 |
Switch box lever |
|
|
| 04 |
154-0056 |
Switch box spring |
|
|
| 04 |
154-2346 |
16amp micro switch assembly |
|
|
| 06 |
991-0001 |
BX46 belt |
|
21 inch |
| 06 |
154-1070 |
BX49 belt |
|
24 inch |
| 06 |
991-0021 |
BX56 belt |
|
28 inch |
| 07b |
991-8578 |
Wheel with ball bearing 5 x 2 inch |
|
|
| 09 |
161-0003 |
Aluminum propane tank |
|
|
| 09 |
161-0004 |
Steel propane tank |
|
|
| 10b |
991-8571 |
Handle grip |
|
(NON-OEM) |
| 12 |
154-0729 |
21 inch pad driver assembly |
|
21 inch |
| 12 |
154-0534 |
24 inch pad driver assembly |
|
24 inch |
| 12 |
154-0306 |
28 inch pad driver assembly |
|
28 inch |
| 13 |
991-2206 |
Center-Lok 3 pad holder |
|
|
| 14a |
154-1043 |
Throttle cable |
|
|
| 14b |
991-9254 |
THROTTLE CABLE (RIGHT) |
|
(NON-OEM) |
| 15 |
991-6004 |
Female quick coupler |
|
|
| 16 |
991-6001 |
Fuel regulator (T60) |
|
|
| 17 |
991-6002 |
12V fuel lock off (Model 152) |
|
|
| 18a |
154-0388 |
Vacuum bag |
|
(For units with a plastic tube.) |
| 18b |
154-3693 |
12 inch dust bag |
|
(For units with a metal tube.) |
|
|
