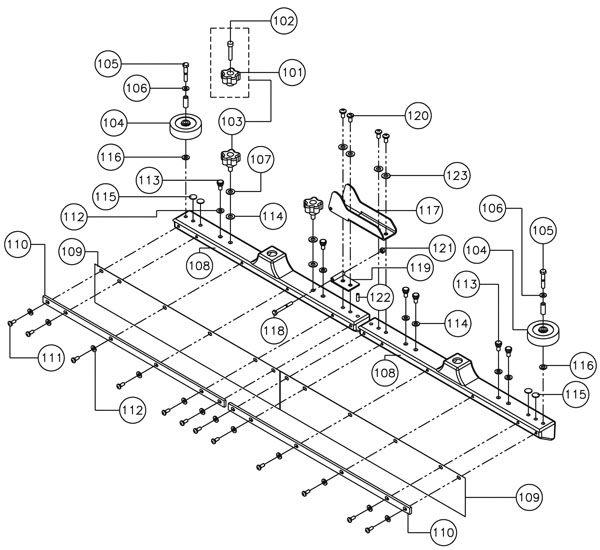

Chemical Dispensing Bar Assembly - 154-2024 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 102 |
154-2383 |
Bolt 3/8-16 x 1 1/2 stainless steel |
2 |
|
| 103 |
154-1776 |
Knob assembly |
2 |
(includes 101 and 102) |
| 104 |
154-0302 |
3 inch gray wheel |
2 |
|
| 105 |
999-0552 |
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
2 |
|
| 106 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 107 |
999-1446 |
Washer 3/8 x 1 1/2 fender stainless steel |
2 |
|
| 108a |
154-2467 |
Chemical dispensing bar (OBSOLETE) |
2 |
(HydroStar 48) |
| 108b |
154-2467 |
Chemical dispensing bar (OBSOLETE) |
1 |
(HydroStar 24) |
| 109a |
154-2468 |
Chemical dispensing blade (OBSOLETE) |
2 |
(HydroStar 48) |
| 109b |
154-2468 |
Chemical dispensing blade (OBSOLETE) |
1 |
(HydroStar 24) |
| 110a |
154-2469 |
Retaining bar (OBSOLETE) |
2 |
(HydroStar 48) |
| 110b |
154-2469 |
Retaining bar (OBSOLETE) |
1 |
(HydroStar 24) |
| 111a |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
12 |
(HydroStar 48) |
| 111b |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
6 |
(HydroStar 24) |
| 112a |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
12 |
(HydroStar 48) |
| 112b |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
(HydroStar 24) |
| 113a |
154-2470 |
Thumb screw |
6 |
(HydroStar 48) |
| 113b |
154-2470 |
Thumb screw |
2 |
(HydroStar 24) |
| 114a |
154-1295 |
Washer 5/16 bonded neoprene |
8 |
(HydroStar 48) |
| 114b |
154-1295 |
Washer 5/16 bonded neoprene |
4 |
(HydroStar 24) |
| 116 |
154-2471 |
Bonded neoprene washer |
2 |
|
| 117 |
154-2472 |
Pivot bracket (OBSOLETE) |
1 |
(HydroStar 48) |
| 118 |
999-1456 |
Bolt 1/4-20 x 2 1/4 hex head stainless steel |
1 |
(HydroStar 48) |
| 119 |
154-2473 |
Hinge plate (OBSOLETE) |
1 |
(HydroStar 48) |
| 120 |
999-1454 |
Bolt 5/16-18 x 5/8 pan head stainless steel |
4 |
(HydroStar 48) |
| 121 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
(HydroStar 48) |
| 122 |
154-2474 |
Set screw |
1 |
(HydroStar 48) |
| 123 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
(HydroStar 48) |
|
|

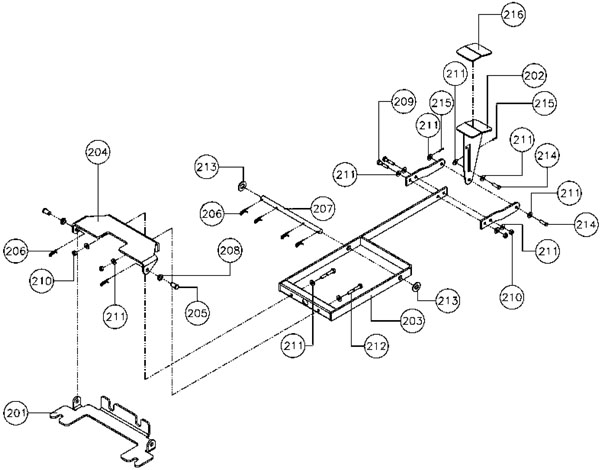

Dispensing Bar Lift Assembly - 154-2025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 201 |
154-2475 |
Break away bracket (OBSOLETE) |
1 |
|
| 202 |
154-2451 |
Foot pedal weldment (OBSOLETE) |
1 |
|
| 203 |
154-2452 |
Lifting arm (OBSOLETE) |
1 |
|
| 204 |
154-2476 |
Squeegee adjustment bracket (OBSOLETE) |
1 |
|
| 205 |
154-2465 |
Clevis pin |
2 |
|
| 206 |
154-1207 |
Cotter pin |
6 |
|
| 207 |
154-2455 |
Pin (OBSOLETE) |
1 |
|
| 208 |
154-2456 |
I-glide bearing |
2 |
|
| 209 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
| 210 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
| 211 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
12 |
|
| 212 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
2 |
|
| 213 |
999-0566 |
Washer 1/2 flat nylon |
2 |
|
| 214 |
154-2122 |
Clevis pin |
2 |
|
| 215 |
170-3541 |
Cotter pin |
2 |
|
| 216 |
154-2458 |
Non-slip pedal tread |
1 |
|
|
|

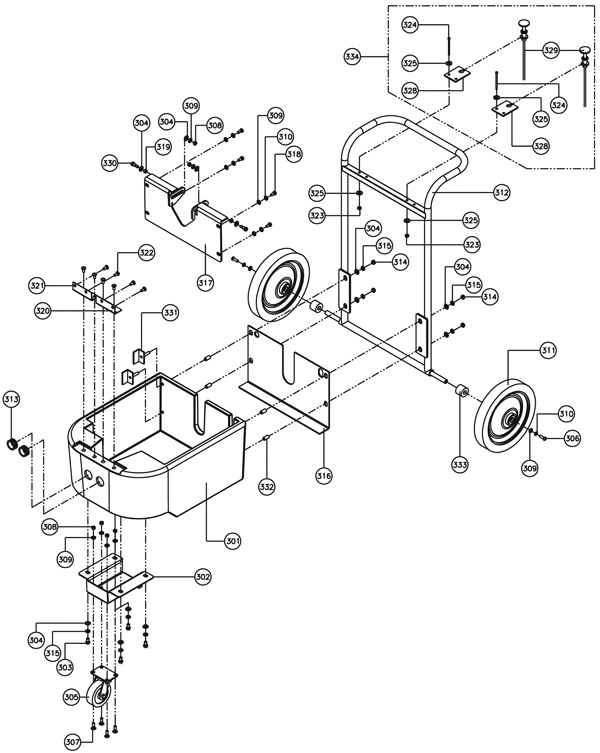

Frame Assembly - 154-2026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 301 |
154-2477 |
Chassis (OBSOLETE) |
1 |
|
| 302 |
154-2397 |
Weldment (OBSOLETE) |
1 |
|
| 303 |
999-0631 |
Bolt 3/8-16 x 5/8 hex head grade 5 zinc plated |
4 |
|
| 304 |
999-0120 |
Washer 3/8 SAE flat |
12 |
|
| 305 |
154-2398 |
Caster wheel (OBSOLETE) |
1 |
|
| 306 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 307 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
| 308 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
| 309 |
999-0024 |
Washer 5/16 flat stainless steel |
12 |
|
| 310 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
6 |
|
| 311 |
154-2399 |
12 inch wheel |
2 |
|
| 312a |
154-2400 |
Handle (OBSOLETE) |
1 |
(HydroStar 48 and 24 standard model) |
| 312b |
154-2401 |
Handle (OBSOLETE) |
1 |
(HydroStar 24 low profile model) |
| 314 |
999-0635 |
Nut 3/8-16 hex stainless steel |
4 |
|
| 316 |
154-2404 |
Plate (OBSOLETE) |
1 |
|
| 317a |
154-2479 |
Support plate |
1 |
(HydroStar 48) |
| 317b |
154-2496 |
Support plate (OBSOLETE) |
1 |
(HydroStar 24) |
| 318 |
999-1450 |
Bolt 5/16-18 x 5/8 hex head stainless steel |
4 |
|
| 319 |
154-2407 |
Tank pivot roller |
2 |
|
| 320 |
154-1499 |
Left side hinge (OBSOLETE) |
1 |
|
| 321 |
154-1496 |
Right side hinge (OBSOLETE) |
1 |
|
| 322 |
999-1454 |
Bolt 5/16-18 x 5/8 pan head stainless steel |
8 |
|
| 323a |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
(HydroStar 48) |
| 323b |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
(HydroStar 24) |
| 324a |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
4 |
(HydroStar 48) |
| 324b |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
2 |
(HydroStar 24) |
| 325a |
999-0998 |
Washer #10 flat stainless steel |
8 |
(HydroStar 48) |
| 325b |
999-0998 |
Washer #10 flat stainless steel |
4 |
(HydroStar 24) |
| 328a |
154-2480 |
Mounting plate |
2 |
(HydroStar 48) |
| 329a |
154-2481 |
Push/pull cable |
2 |
(HydroStar 48) |
| 329b |
154-2481 |
Push/pull cable |
1 |
(HydroStar 24) |
| 330 |
154-2245 |
Screw 5/16-18 x 1/2 shoulder stainless steel |
2 |
|
| 331 |
154-2413 |
Support bracket (OBSOLETE) |
4 |
|
| 333 |
154-2415 |
Bushing (OBSOLETE) |
2 |
|
| 334a |
154-2482 |
Push/pull cable retrofit kit (OBSOLETE) |
1 |
(HydroStar 48) |
| 334b |
154-2497 |
Push/pull cable retrofit kit |
1 |
(HydroStar 24) |
|
|

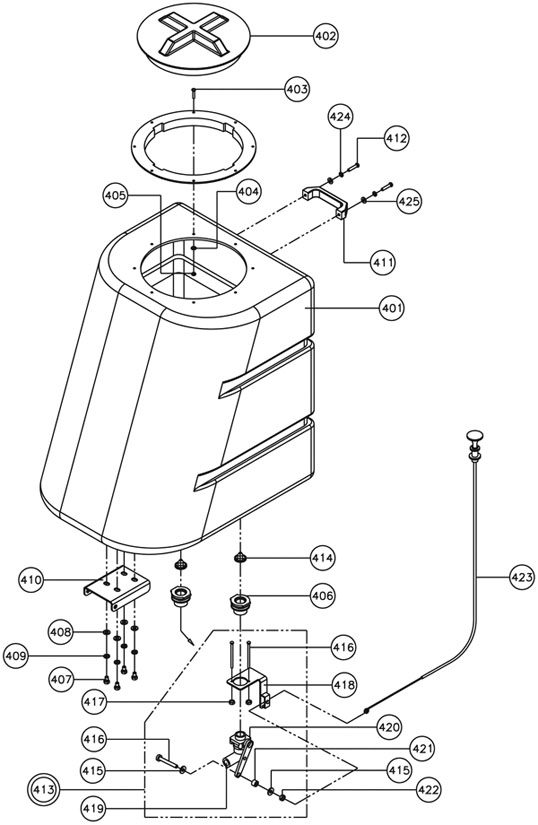

Tank Assembly - 154-2027 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 401a |
154-2483 |
Tank |
1 |
(HydroStar 48) |
| 401b |
154-2498 |
Tank (OBSOLETE) |
1 |
(HydroStar 24) (standard model) |
| 401c |
154-2499 |
Tank |
1 |
(HydroStar 24) (low profile model) |
| 403 |
999-9067 |
Screw 10-32 x 1 pan head phillips zinc plated |
8 |
|
| 404 |
999-0998 |
Washer #10 flat stainless steel |
8 |
|
| 405 |
999-0960 |
Nut 10-24 hex stainless steel |
8 |
|
| 406 |
154-2485 |
Fitting (OBSOLETE) |
2 |
|
| 407 |
999-1450 |
Bolt 5/16-18 x 5/8 hex head stainless steel |
4 |
|
| 408 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 409 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 410 |
154-2419 |
Lifting bracket (OBSOLETE) |
1 |
|
| 411 |
154-2423 |
Lifting handle (OBSOLETE) |
1 |
|
| 412 |
999-0342 |
Screw 1/4-20 x 1 pan head phillips stainless steel |
2 |
|
| 413 |
154-2486 |
Dispensing valve assembly |
2 |
(includes 415-422) |
| 414 |
154-2487 |
Filter with washer |
2 |
|
| 415 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 416 |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
6 |
|
| 417 |
999-0960 |
Nut 10-24 hex stainless steel |
4 |
|
| 418 |
154-1756 |
Extended valve bracket |
2 |
|
| 419 |
154-2488 |
90 degree elbow fitting (OBSOLETE) |
2 |
|
| 420 |
154-2489 |
Dispensing valve |
2 |
|
| 422 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 423 |
154-2481 |
Push/pull cable |
2 |
|
| 425 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
|
Entire Assembly - 154-2032 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 501 |
999-0566 |
Washer 1/2 flat nylon |
2 |
|
| 502a |
154-2500 |
Hose with cuffs |
1 |
(HydroStar 24) |
| 502b |
154-2490 |
Hose with cuffs |
1 |
(HydroStar 48) |
| 503 |
154-1256 |
Hose clamp |
1 |
|
| 504 |
154-2436 |
Arm (OBSOLETE) |
1 |
|
| 505 |
154-2437 |
Clevis pin |
1 |
|
| 506 |
154-1207 |
Cotter pin |
1 |
|
| 507a |
154-2501 |
Tank assembly (OBSOLETE) |
1 |
(HydroStar 24) (standard model) |
| 507b |
154-2502 |
Tank assembly |
1 |
(HydroStar 24) (low profile model) |
| 507c |
154-2491 |
Tank assembly (OBSOLETE) |
1 |
(HydroStar 48) |
| 508a |
154-2503 |
Frame assembly (OBSOLETE) |
1 |
(HydroStar 24) (standard model) |
| 508b |
154-2504 |
Frame assembly (OBSOLETE) |
1 |
(HydroStar 24) (low profile model) |
| 508c |
154-2492 |
Frame assembly (OBSOLETE) |
1 |
(HydroStar 48) |
| 509 |
154-2493 |
Lifting assembly (OBSOLETE) |
1 |
|
| 510a |
154-2505 |
Chemical dispensing bar |
1 |
(HydroStar 24) |
| 510b |
154-2494 |
Chemical dispensing bar |
1 |
(HydroStar 48) |
|
|
