Parts List Complete for PIONEER FLOORSHARK SH3200

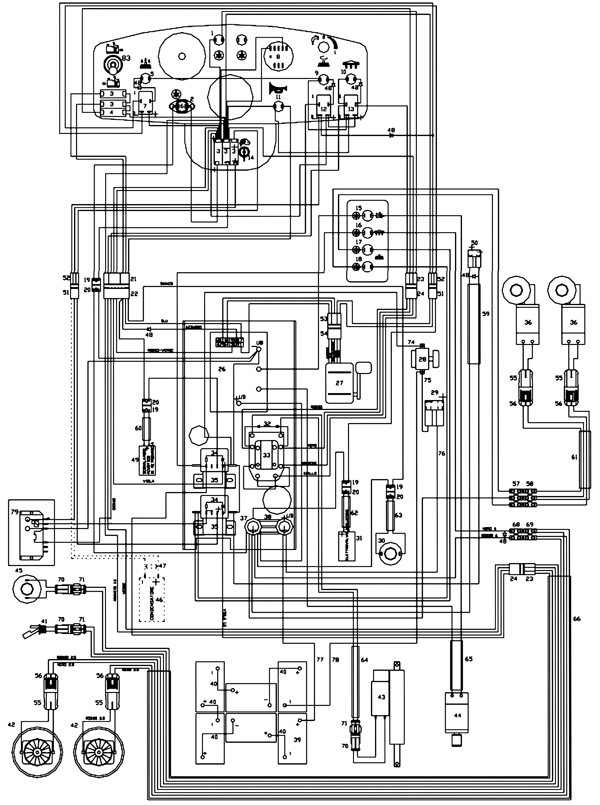

Wiring Diagram - Standard - 154-1190
RefNbr Part Number Description Req Notes
1 154-3000 Overload cutout (OBSOLETE) 1
2 154-3001 Fuse holder (OBSOLETE) 1
3 154-3002 Open contact (OBSOLETE) 4
4 154-3003 Closed contact (OBSOLETE) 1
5 154-3004 Lamp holder (OBSOLETE) 1
6 154-3005 10amp fuse (OBSOLETE) 1
7 154-3006 Snap switch (OBSOLETE) 1
8 154-3007 Battery indicator (OBSOLETE) 1
9 154-3004 Lamp holder (OBSOLETE) 1
10 154-3004 Lamp holder (OBSOLETE) 1
11 154-3008 Press switch (OBSOLETE) 1
12 154-3006 Snap switch (OBSOLETE) 1
13 154-3006 Snap switch (OBSOLETE) 1
14 154-3009 Key switch (OBSOLETE) 1
15 154-3010 Overload cutout (OBSOLETE) 1
16 154-3010 Overload cutout (OBSOLETE) 1
17 154-3011 Overload cutout 1
18 154-3011 Overload cutout 1
19 154-1858 Female plug 3
20 154-1859 Male plug 3
21 154-3012 Connector 1
22 154-3013 Connector 1
23 154-3014 Connector 2
24 154-3015 Connector 2
26 154-3016 Control box 1
27 154-3017 Accelerator assembly (OBSOLETE) 1
28 154-3018 Emergency switch 1
29 154-3019 Battery charger plug 1
30 154-3020 Motor horn (OBSOLETE) 1
31 154-3021 Solenoid valve 1
32 154-3022 Net 1
33 154-3023 Relay (OBSOLETE) 1
34 154-3024 Net 2
35 154-3025 Remote control switch 2
36 154-3026 36V brush motor with gearbox 2
37 154-3027 Terminal board support (OBSOLETE) 2
38 154-3028 120amp fuse (OBSOLETE) 1
40a 998-0010 Battery jumper cable - ring type (red) 5
40b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 5 (NON-OEM)
42 154-3031 36V vacuum motor (OBSOLETE) 2
43 154-3032 Squeegee actuator (OBSOLETE) 1
44 154-3033 36V brush motor (OBSOLETE) 1
45 154-3034 Lightbulb cover 1
46 154-3035 Motor capacitor 1
47 154-3036 Resistance 1
48 154-1863 Diode 7
49 154-3037 Reverse motion buzzer 1
50 991-2105 SB50 50amp charger plug with pins (gray) 1
51 154-3039 3 pole connector 2
52 154-3040 3 pole connector 2
54 154-3042 Connector 1
55 154-3043 Connector (OBSOLETE) 4
56 154-3044 Connector (OBSOLETE) 4
57 154-3045 Terminal board (OBSOLETE) 1
58 154-3046 Terminal board (OBSOLETE) 1
59 154-3047 Sweeping system wire 1
60 154-3048 Reverse motion buzzer with cable 1
61 154-3049 Brush motor wire 1
62 154-3050 Solenoid valve wire 1
63 154-3051 Electric horn wire 1
64 154-3052 Squeegee actuator wire 1
65 154-3053 Drive motor wire 1
66 154-3054 Vacuum motor wire (OBSOLETE) 1
68 154-3056 Terminal board 1
69 154-3057 Terminal board 1
70 154-3058 Connector (OBSOLETE) 3
71 154-3059 Connector (OBSOLETE) 3
74 154-3060 Electric wire (OBSOLETE) 1
75 154-3061 Electric wire (OBSOLETE) 1
76 154-3062 Electric wire (OBSOLETE) 1
77 154-3063 Electric wire (OBSOLETE) 1
78 154-3064 Electric wire (OBSOLETE) 1
79 154-3065 Timer (OBSOLETE) 1
83 154-3069 Rocker switch 1
N/S 154-3041 Connector (OBSOLETE) 1
N/S 154-3055 Wire (OBSOLETE) 1
N/S 154-3066 Lamp (OBSOLETE) 2
N/S 154-3067 Red lamp cap 2
N/S 154-3068 Cap (OBSOLETE) 2
N/S 154-3070 Power wire (OBSOLETE) 1

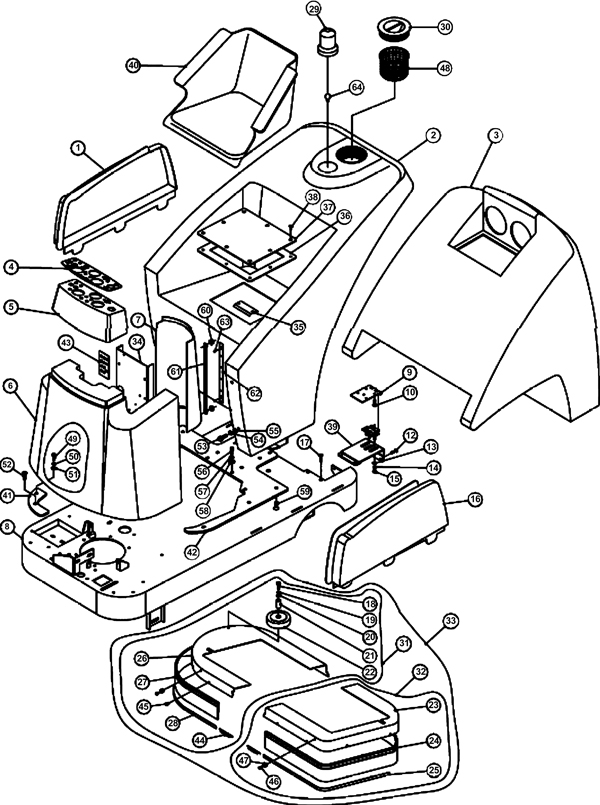

Body Assembly - 154-1191
RefNbr Part Number Description Req Notes
1 154-3071 Right side battery panel 1
2 154-3072 Solution tank 1
3 154-3073 Recovery tank 1
4 154-3074 Decal 1
5 154-3075 Dashboard (OBSOLETE) 1
6 154-3076 Front panel 1
7 154-3077 Dashboard holder 1
8 154-3078 Base frame 1
9 154-3079 Recovery tank hinge 1
10 154-3080 Screw (OBSOLETE) 10
12 154-3081 Screw 2
13 154-2607 Washer 6
14 154-3082 Washer (OBSOLETE) 6
15 154-3083 Nut 6
16 154-3084 Left side battery panel 1
17 154-3081 Screw 2
18 154-3085 Screw 1
19 154-1900 Washer 1
20 154-1879 Washer 2
21 154-2594 Bushing 1
22 154-3086 Wheel 1
23 154-3087 Cover 1
24 154-3088 Splash guard bumper 1
25 154-3089 Bumper weldment (OBSOLETE) 1
26 154-3090 Cover 1
27 154-3091 Splash guard bumper (OBSOLETE) 1
28 154-3092 Bumper weldment (OBSOLETE) 1
29 154-3034 Lightbulb cover 1
30 154-3093 Solution tank cap (OBSOLETE) 1
31 154-3094 Right side brush cover assembly (OBSOLETE) 1 (includes 18-22, 26-28, 44 and 45)
32 154-3095 Left side brush cover assembly (OBSOLETE) 1 (includes 23-25, 46 and 47)
33 154-3096 Right and left brush cover assembly (OBSOLETE) 1 (includes 31 and 32)
34 154-3097 Electrical assembly support 1
35 154-3098 Plate 1
36 154-3099 Gasket (OBSOLETE) 1
37 154-3100 Plate (OBSOLETE) 1
38 154-3101 Screw (OBSOLETE) 8
39 154-3102 Plate 1
40 154-3103 Seat (OBSOLETE) 1
41 154-3104 Plate 1
42 154-3105 Solution tank plate 1
43 154-3106 Fuse decal (OBSOLETE) 1
44 154-1891 Galvanized spring 4
45 154-1893 Screw 8
46 154-2555 Screw 4
47 154-3107 Plastic spacer (OBSOLETE) 4
48 154-3108 Filter 1
49 154-3109 Screw (OBSOLETE) 3
50 154-1900 Washer 3
51 154-1879 Washer 3
52 154-3110 Screw (OBSOLETE) 1
53 154-3111 Screw (OBSOLETE) 2
54 154-1964 Washer (OBSOLETE) 2
55 154-3112 Washer 2
56 154-3113 Screw (OBSOLETE) 6
57 154-1898 Washer 6
58 154-3114 Washer (OBSOLETE) 6
59 154-3115 Screw 6
60 154-3116 Gasket (OBSOLETE) 2
61 154-3117 Hose (OBSOLETE) 1
62 154-3118 Decal 1
63 154-3119 Screw 2
64 154-3120 Lightbulb 1

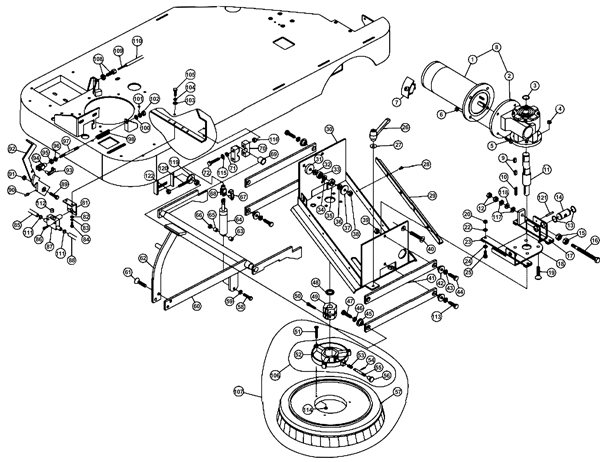

Brush Assembly - 154-1192
RefNbr Part Number Description Req Notes
1 154-3121 36V brush motor (motor only) (OBSOLETE) 2
2 154-3122 Reduction gear (OBSOLETE) 2
3 154-3123 Snap ring 2
4 154-3124 Self locking nut 4
5 154-3125 Screw 8
6 154-1926 Self locking nut 8
7 154-3126 Carbon brush (sold individually) (OBSOLETE) 2
8 154-3026 36V brush motor with gearbox 2 (includes 1 and 2)
9 154-3127 Square keyway 4
10 154-1952 Square keyway 2
11 154-3128 Motor pin (OBSOLETE) 2
12 154-1946 Nut (OBSOLETE) 2
13 154-3123 Snap ring 2
14 154-3129 Pin 1
15 154-3130 Nut 2
16 154-3132 Tie rod 1
17 154-3133 Plate 1
18 154-3134 Support 1
19 154-3135 Screw 4
20 154-3136 Nut 4
22 154-3137 Washer 4
23 154-3138 Plate 1
24 154-3137 Washer 4
25 154-3186 Screw 4
26 154-2627 Knob 2
27 154-3139 Washer 2
28 154-3140 Screw (OBSOLETE) 8
29 154-3141 Brush cover plate 2
30 154-3142 Brush holding plate 1
31 154-3143 Spacer 2
32 154-3144 Washer 2
33 154-3145 Ball bearing 2
34 154-3144 Washer 2
35 154-3145 Ball bearing 2
36 154-3144 Washer 2
37 154-3146 Washer 2
38 154-3124 Self locking nut 2
39 154-3124 Self locking nut 4
40 154-3147 Screw 2
41 154-3148 Lifting lever 4
42 154-3149 Bushing 4
43 154-1964 Washer (OBSOLETE) 4
44 154-3150 Screw 2
45 154-3149 Bushing 4
46 154-1964 Washer (OBSOLETE) 4
47 154-3150 Screw 4
48 154-3152 Spacer (OBSOLETE) 2
49 154-3153 Brush shaft (OBSOLETE) 2
50 154-3154 Screw (OBSOLETE) 4
51 154-3155 Screw (OBSOLETE) 6
52 154-3201 Brush attachment assembly 2
53 154-3157 Spring 2
54 154-3158 Tension pin 2
55 154-3159 Pin 2
56 154-3160 Ring nut 2
58 154-1923 Screw 1
59 154-1898 Washer 1
60 154-3167 Lifting lever (OBSOLETE) 1
61 154-3115 Screw 2
62 154-3168 Lifting lever (OBSOLETE) 1
63 154-3169 Spacer 1
64 154-3170 Absorber (OBSOLETE) 1
65 154-3169 Spacer 1
66 154-1926 Self locking nut 1
67 154-3171 Pin with spring 1
68 154-3172 Joint 1
69 154-3173 Bushing 2
70 154-3174 Support 4
71 154-1898 Washer 4
72 154-1923 Screw 4
81 154-3175 Support 1
82 154-1977 Washer 2
83 154-1978 Washer 2
84 154-1985 Screw 2
85 154-3176 Pipe (OBSOLETE) 1
86 154-3177 Screw 2
87 154-3178 Distributor 1
88 154-3179 Pipe (OBSOLETE) 1
89 154-3180 Screw 1
90 154-3181 Greaser (OBSOLETE) 1
91 154-1926 Self locking nut 1
92 154-3182 Locking lever plate (OBSOLETE) 1
93 154-3171 Pin with spring 1
94 154-3172 Joint 1
95 154-2567 Nut 1
96 154-1898 Washer 1
97 154-3183 Tie rod 1
98 154-3184 Spring 1
100 154-3185 Washer 1
101 154-1898 Washer 1
102 154-1926 Self locking nut 1
103 154-1898 Washer 1
104 154-1900 Washer 1
105 154-2586 Screw 1
106 154-3201 Brush attachment assembly 2 (includes 52-56)
107 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 2
108 154-3193 Brake wire regulator 1
109 154-3194 Brake wire (OBSOLETE) 1
110 154-3195 Sheathing 1
111 154-3196 Clamp 2
112 154-3197 Plug 2
113 154-1938 Screw 2
114 154-1873 Self locking nut 6
115 154-1900 Washer 4
116 154-2567 Nut 4
117 154-3112 Washer 2
118 154-3198 Washer (OBSOLETE) 1
119 154-3124 Self locking nut 4
120 154-3199 Tie rod 2
121 154-3200 Tension pin (OBSOLETE) 1
122 154-1926 Self locking nut 1

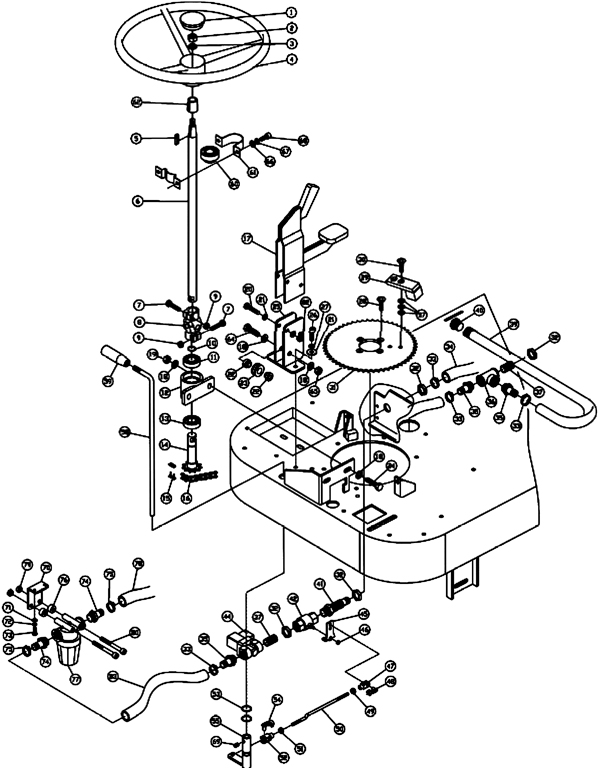

Front Steering Assembly - 154-1193
RefNbr Part Number Description Req Notes
1 154-3151 Plug 1
2 154-3202 Self locking nut (OBSOLETE) 1
3 154-3203 Washer 1
4 154-3204 Wheel 1
5 154-3205 Square keyway 1
6 154-3206 Steering shaft (OBSOLETE) 1
7 154-1895 Screw 2
8 154-3207 Steering joint 1
9 154-1926 Self locking nut 2
10 154-3208 Snap ring 1
11 154-3209 Ball bearing (OBSOLETE) 1
12 154-3210 Support 1
13 154-3209 Ball bearing (OBSOLETE) 1
14 154-3211 Pin (OBSOLETE) 1
15 154-3212 Master link 1
16 154-3213 Chain (OBSOLETE) 1
17 154-3214 Parking brake 1
18 154-1926 Self locking nut 6
19 154-1895 Screw 2
20 154-2586 Screw 2
21 154-1900 Washer 6
22 154-3215 Bushing 2
23 154-3216 Wire pulley 1
24 154-3215 Bushing 1
25 154-3217 Brake support 1
26 154-1895 Screw 2
27 154-1900 Washer 2
28 154-3218 Screw 4
29 154-3219 Pin 1
30 154-3110 Screw (OBSOLETE) 2
31 154-3220 Ring gear 1
32 154-3221 Ring nut 4
33 154-3196 Clamp 4
34 154-3222 Pipe 1
35 154-3223 Union 3
36 154-3430 Union (OBSOLETE) 1
37 154-3224 Union 2
39 154-3225 Hose (OBSOLETE) 1
40 154-3221 Ring nut 1
41 154-3226 Nipple (OBSOLETE) 1
42 154-3227 Solution valve 1
44 154-3223 Union 1
45 154-3228 Valve lever (OBSOLETE) 1
46 154-2551 Nut 1
47 154-2556 Joint 1
48 154-2557 Pin 1
49 154-2551 Nut 1
50 154-3229 Tie rod (OBSOLETE) 1
51 154-2551 Nut 1
52 154-2556 Joint 1
53 154-3208 Snap ring 2
54 154-2557 Pin 1
55 154-3230 Transmission lever 1
57 154-3231 Spacer 6
58 154-3232 Solution lever 1
59 154-3233 Knob 1
60 154-3234 Bearing 1
61 154-3235 Bearing support 1
62 154-3236 Bushing 1
64 154-3237 Screw 1
65 154-3124 Self locking nut 1
66 154-1898 Washer 2
67 154-1900 Washer 2
68 154-3113 Screw (OBSOLETE) 2
69 154-3238 Dowel (OBSOLETE) 1
70 154-3239 Filter support plate (OBSOLETE) 1
71 154-1977 Washer 2
72 154-1978 Washer 2
73 154-1979 Screw 2
74 154-3223 Union 2
75 154-3196 Clamp 2
76 154-3231 Spacer 2
77 154-3240 Solution filter 1
78 154-3241 Hose (OBSOLETE) 1
79 154-2567 Nut 2
80 154-3242 Screw 2
82 154-2567 Nut 4
83 154-3243 Hose (OBSOLETE) 1

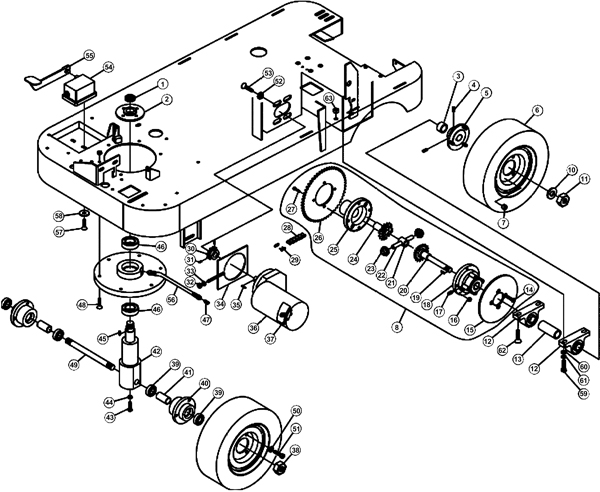

Drive Assembly - 154-1194
RefNbr Part Number Description Req Notes
1 154-3244 Self locking ring nut 1
2 154-3245 Gear flange 1
3 154-3246 Spacer (OBSOLETE) 2
4 154-3247 Dowel (OBSOLETE) 4
5 154-3248 Wheel hub (OBSOLETE) 2
6 154-3249 Wheel (OBSOLETE) 4
7 154-3250 Nut (OBSOLETE) 6
8 154-3251 Differential assembly (OBSOLETE) 1 (includes 14-27)
10 154-3252 Washer (OBSOLETE) 2
11 154-3253 Nut (OBSOLETE) 2
12 154-3254 Bearing 4
13 154-3255 Bushing (OBSOLETE) 2
14 154-3256 Screw 4
15 154-3257 Brake disk 1
16 154-3258 Self locking nut 4
17 154-3181 Greaser (OBSOLETE) 1
18 154-3259 Right side hub 1
19 154-3260 Square keyway 2
20 154-3261 Axle shaft (OBSOLETE) 1
21 154-3262 Pin support 1
22 154-3263 Side pinion 1
23 154-3264 Side pinion 2
24 154-3261 Axle shaft (OBSOLETE) 1
25 154-3265 Left side hub 1
26 154-3266 Ring gear (OBSOLETE) 1
27 154-3109 Screw (OBSOLETE) 4
28 154-3267 Chain (OBSOLETE) 1
29 154-3212 Master link 1
30 154-3268 Pinion (OBSOLETE) 1
31 154-3269 Dowel (OBSOLETE) 2
32 154-1926 Self locking nut 1
33 154-1898 Washer 1
34 154-3270 Tie rod 1
35 154-3271 Square keyway 1
36 154-3033 36V brush motor (OBSOLETE) 1
37 154-3272 Motor brush (OBSOLETE) 1
38 154-3273 Nut 2
39 154-3209 Ball bearing (OBSOLETE) 4
40 154-3274 Wheel hub 2
41 154-3275 Spacer 2
42 154-3276 Pin 1
43 154-3150 Screw 1
44 154-1946 Nut (OBSOLETE) 1
45 154-3277 Square keyway 1
46 154-3278 Bearing 2
47 154-3279 Greaser 1
48 154-3280 Screw 6
49 154-3281 Wheel axis 1
50 154-1964 Washer (OBSOLETE) 6
51 154-3282 Screw (OBSOLETE) 6
52 154-3283 Countersunk bushing 4
53 154-3110 Screw (OBSOLETE) 4
54 154-3017 Accelerator assembly (OBSOLETE) 1
55 154-3284 Pedal lever 1
56 154-3285 Extension (OBSOLETE) 1
57 154-3218 Screw 2
58 154-2637 Washer 2
59 154-3150 Screw 7
60 154-3112 Washer 7
61 154-1964 Washer (OBSOLETE) 7
62 154-3286 Screw (OBSOLETE) 1
63 154-1946 Nut (OBSOLETE) 8

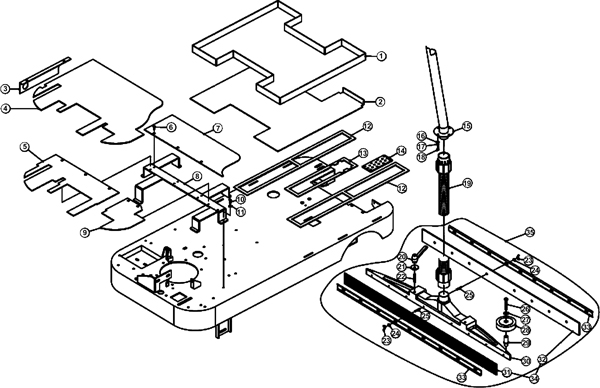

Battery Tray Assembly - 154-1195
RefNbr Part Number Description Req Notes
1 154-3287 Battery tray (OBSOLETE) 1
2 154-3288 Sliding battery plate 1
3 154-3289 Bracket (OBSOLETE) 1
4 154-3290 Plate (OBSOLETE) 1
5 154-3291 Plate (OBSOLETE) 1
6 154-3292 Screw (OBSOLETE) 8
7 154-3293 Plate (OBSOLETE) 1
8 154-3294 Support (OBSOLETE) 1
9 154-3295 Plate 1
10 154-1985 Screw 2
11 154-1977 Washer 2
12 154-3296 Plate (OBSOLETE) 2
13 154-3297 Plate (OBSOLETE) 1
14 154-3298 Bracket 5
15 154-3299 Pipe (OBSOLETE) 1
16 154-1978 Washer 4
17 154-1977 Washer 4
18 154-1985 Screw 4
19 154-3300 Hose with fittings 1
20 154-3301 Knob 2
21 154-3302 Washer (OBSOLETE) 2
22 154-3303 Thread (OBSOLETE) 2
23 154-2587 Nut 17
24 154-3304 Washer 17
25 154-3305 Thread 17
26 154-3242 Screw 2
27 154-1879 Washer 2
28 154-3086 Wheel 2
29 154-3306 Bushing 2
30 154-3307 Squeegee weldment (OBSOLETE) 1
31 154-3308 Squeegee blade front 1
32 154-3309 Squeegee blade rear 1
33 154-3310 Squeegee blade strip (OBSOLETE) 2
34 154-3311 Squeegee blade assembly 1 (includes 31 and 32)
35 154-3312 Squeegee assembly 1 (includes 20-33)

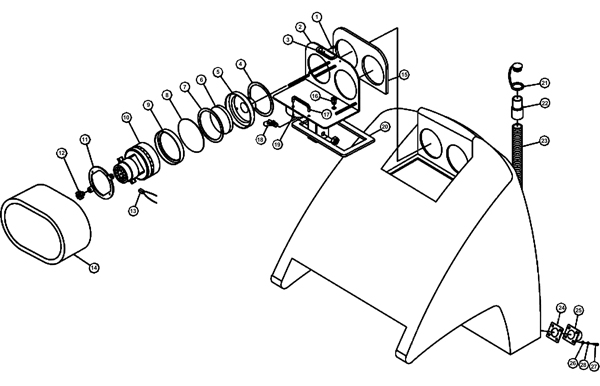

Vacuum Assembly - 154-1196
RefNbr Part Number Description Req Notes
1 154-3329 Screw (OBSOLETE) 2
2 154-3314 Motor support (OBSOLETE) 1
3 154-3315 Cover handle (OBSOLETE) 1
4 154-3316 Float gasket 2
5 154-3317 Floating flange (OBSOLETE) 2
6 154-3318 Float filter 2
7 154-3316 Float gasket 2
8 154-3320 Screen 2
9 154-3321 Motor gasket 2
10 154-3031 36V vacuum motor (OBSOLETE) 2
11 154-3322 Motor support bracket (OBSOLETE) 2
12 154-3323 Knob (OBSOLETE) 4
13 154-3324 Carbon brush (sold individually) 4
14 154-3325 Gasket 1
15 154-3326 Upper gasket 1
16 154-3327 Guide (OBSOLETE) 1
17 154-3315 Cover handle (OBSOLETE) 1
19 154-3329 Screw (OBSOLETE) 2
20 154-3330 Lower gasket 1
21 154-2645 Drain hose plug 1
22 154-3331 Hose cuff (black) 1
23 154-3332 Hose 1
24 154-3333 Gasket (OBSOLETE) 1
25 154-3334 Flange (OBSOLETE) 1
26 154-1977 Washer 4
27 154-3335 Screw 4
28 154-1978 Washer 4

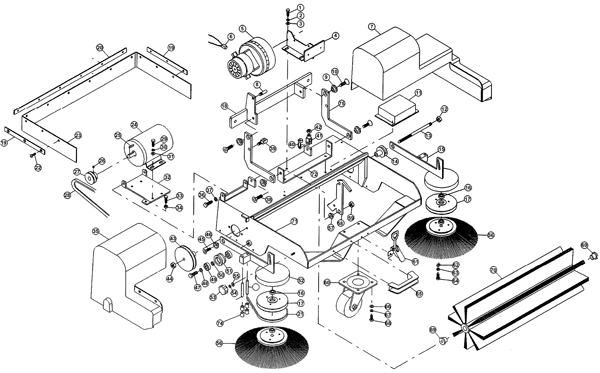

Sweeper Attachment Assembly 1 - Optional - 154-1197
RefNbr Part Number Description Req Notes
1 154-3336 Screw 2
2 154-1900 Washer 2
3 154-1898 Washer 2
4 154-3337 Vacuum motor support (OBSOLETE) 1
5 154-3031 36V vacuum motor (OBSOLETE) 1
6 154-3324 Carbon brush (sold individually) 2
7 154-3338 Vacuum motor cover (OBSOLETE) 1
8 154-3339 Block pin (OBSOLETE) 1
9 154-3340 Bushing (OBSOLETE) 4
10 154-3115 Screw 3
11 154-3016 Control box 1
12 154-3124 Self locking nut 1
13 154-3341 Main brush shaft (OBSOLETE) 1
14 154-3342 Left side brush pulley (OBSOLETE) 1
15 154-3343 Left side brush support (OBSOLETE) 1
16 154-3319 Bearing (OBSOLETE) 4
17 154-3328 Side brush pulley (OBSOLETE) 2
18 154-3313 Lever support (OBSOLETE) 1
19 154-3344 Side anti dust rubber strip (OBSOLETE) 2
20 154-3345 Rear anti dust rubber strip (OBSOLETE) 1
21 154-3346 Belt 2
22 154-1936 Screw 12
23 154-3347 Rear anti dust blade (OBSOLETE) 1
24 154-3348 Brush motor (OBSOLETE) 1
25 154-3349 Square keyway 1
26 154-3350 Dowel (OBSOLETE) 2
27 154-3351 Brush motor pulley (OBSOLETE) 1
28 154-3352 Belt 1
29 154-2586 Screw 4
30 154-1900 Washer 4
31 154-1898 Washer 4
32 154-3353 Brush motor support (OBSOLETE) 1
33 154-3354 Screw 1
34 154-2567 Nut 1
35 154-3355 Brush motor cover (OBSOLETE) 1
36 154-2586 Screw 2
37 154-1900 Washer 2
38 154-3147 Screw 1
39 154-3356 Fastening pin (OBSOLETE) 2
40 154-3171 Pin with spring 2
41 154-3172 Joint 2
42 154-2567 Nut 6
43 154-3357 Main brush pulley (OBSOLETE) 1
44 154-3124 Self locking nut 1
45 154-3358 Screw (OBSOLETE) 2
46 154-3359 Countersunk bushing (OBSOLETE) 2
47 154-3150 Screw 2
48 154-1898 Washer 2
49 154-3360 Ball bearing (OBSOLETE) 4
50 154-3361 Spacer (OBSOLETE) 2
51 154-3362 Pulley (OBSOLETE) 2
52 154-3363 Left side brush support (OBSOLETE) 1
53 154-3364 Knob 2
54 154-1978 Washer 2
55 154-3304 Washer 2
56 154-3365 Side brush 2
57 154-3366 Bushing (OBSOLETE) 1
58 154-3367 Lever (OBSOLETE) 1
59 154-3124 Self locking nut 1
60 154-3368 Caster wheel (OBSOLETE) 1
61 154-3369 Adjustment hook (OBSOLETE) 1
62 154-3304 Washer 6
63 154-1978 Washer 6
64 154-3335 Screw 6
65 154-3370 Plastic handle (OBSOLETE) 1
66 154-1898 Washer 4
67 154-1900 Washer 4
68 154-2586 Screw 4
69 154-3371 Bushing (OBSOLETE) 2
70 154-3424 Main nylon brush 1
71 154-3425 Base frame (OBSOLETE) 1
72 154-3426 Lever plate (OBSOLETE) 1
73 154-3428 Bushing (OBSOLETE) 4
74 154-3428 Bushing (OBSOLETE) 8
75 154-3429 Lever (OBSOLETE) 2

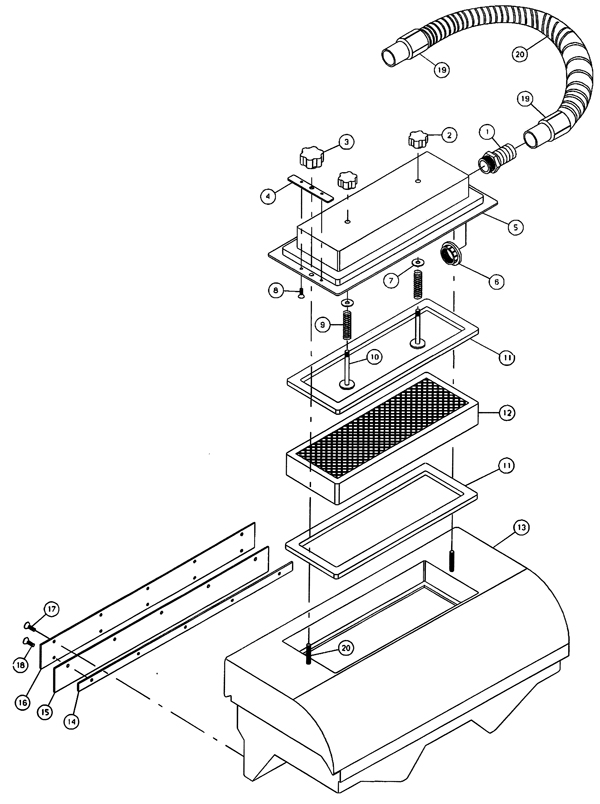

Sweeper Attachment Assembly 2 - Optional - 154-1198
RefNbr Part Number Description Req Notes
1 154-3372 Fitting 1
2 154-3373 Knob (OBSOLETE) 2
3 154-3374 Knob (OBSOLETE) 2
4 154-3375 Filter cover plate (OBSOLETE) 2
5 154-3376 Vacuum filter cover (OBSOLETE) 1
6 154-3377 Ring nut (OBSOLETE) 1
7 154-1879 Washer 2
8 154-3292 Screw (OBSOLETE) 4
10 154-3378 Filter shaker plate (OBSOLETE) 2
11 154-3379 Vacuum filter gasket (OBSOLETE) 2
12 154-3380 Vacuum filter (OBSOLETE) 1
13 154-3381 Tank (OBSOLETE) 1
14 154-3382 Front anti dust strip (OBSOLETE) 1
15 154-3383 Front rubber anti dust molding 1
16 154-3384 Front rubber molding (OBSOLETE) 1
17 154-3385 Screw (OBSOLETE) 5
18 154-1936 Screw 5
19 154-3331 Hose cuff (black) 2
20 154-3386 Hose 1

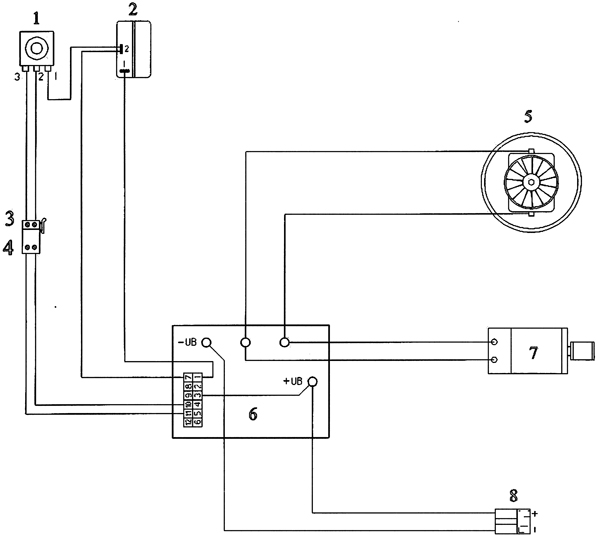

Wiring Diagram - Sweeper Attachment - 154-1199
RefNbr Part Number Description Req Notes
1 154-3387 Potentiometer assembly (OBSOLETE) 1
2 154-3006 Snap switch (OBSOLETE) 1
3 154-1859 Male plug 1
4 154-1858 Female plug 1
5 154-3031 36V vacuum motor (OBSOLETE) 1
6 154-3016 Control box 1
7 154-3033 36V brush motor (OBSOLETE) 1
8 991-2105 SB50 50amp charger plug with pins (gray) 1

- Batteries, Brushes and Chargers - 154-8997
RefNbr Part Number Description Req Notes
03 162-5062 36V 20amp battery charger with small SB50 gray plug 1 (configured for wet batteries; can be changed to support AGM batteries)
05 991-2105 SB50 50amp charger plug with pins (gray) 1
06 996-0171 15 inch heavy grit stripping brush - 80 grit 2
07 996-0122 15 inch medium grit scrubbing brush - 180 grit 2
08 996-0098 15 inch lite grit scrubbing brush - 500 grit 2
09 996-0287 15 inch polypropylene scrubbing brush 2
10 996-0599 15 inch Pad driver 2
11 996-0341 Drive lugs - plastic (pkg of 3) 2
N/S 162-9024 36V 12amp battery charger with small SB50 gray plug

- Pads - 16 inch - 255-1600
RefNbr Part Number Description Req Notes
01 255-1640 16 inch aqua plus burnishing pad (pkg of 5)
02 255-1635 16 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1664 16 inch Blue ace pad (pkg of 5)
04 255-1642 16 inch Blue Jay burnishing pad (pkg of 5)
05 255-1612 16 inch Cure white pad (pkg of 5)
06 255-1677 16 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1638 16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1621 16 inch gorilla lite burnishing pad (pkg of 5)
09 255-1650 16 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1665 16 inch Heat concrete bonding pad (pkg of 5)
11 255-1630 16 inch jaguar burnishing pad (pkg of 5)
12 255-1687 16 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1690 16 inch premium black stripping pad (pkg of 5)
14 255-1670 16 inch premium blue cleaning pad (pkg of 5)
15 255-1692 16 inch premium brown stripping pad (pkg of 5)
16 255-1680 16 inch premium green scrubbing pad (pkg of 5)
17 255-1660 16 inch premium red scrubbing pad (pkg of 5)
18 255-1652 16 inch premium tan polishing pad (pkg of 5)
19 255-1620 16 inch premium white polishing pad (pkg of 5)
20 255-1611 16 inch superspeed rubberized pad (pkg of 5)
21 255-1695 16 inch razorback stripping pad (pkg of 5)
22 255-1647 16 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1655 16 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1623 16 inch sand screen driver pad (pkg of 2)
25 255-0132 16 inch Professional sand screen 100 grit (pkg of 10)
26 255-0133 16 inch Professional sand screen 120 grit (pkg of 10)
27 255-0134 16 inch Professional sand screen 150 grit (pkg of 10)
28 255-0135 16 inch Professional sand screen 180 grit (pkg of 10)
29 255-0136 16 inch Professional sand screen 220 grit (pkg of 10)
30 255-0137 16 inch Professional sand screen 400 grit (pkg of 10)
31 255-0130 16 inch Professional sand screen 60 grit (pkg of 10)
32 255-0131 16 inch Professional sand screen 80 grit (pkg of 10)
33 255-0217 16 inch Superscreen sand screen 100 grit (pkg of 10)
34 255-0218 16 inch Superscreen sand screen 120 grit (pkg of 10)
35 255-0219 16 inch Superscreen sand screen 150 grit (pkg of 10)
36 255-0220 16 inch Superscreen sand screen 180 grit (pkg of 10)
37 255-0221 16 inch Superscreen sand screen 220 grit (pkg of 10)
38 255-0222 16 inch Superscreen sand screen 400 grit (pkg of 10)
39 255-0215 16 inch Superscreen sand screen 60 grit (pkg of 10)
40 255-0216 16 inch Superscreen sand screen 80 grit (pkg of 10)
41 255-1624 16 inch Tiger carpet bonnet (pkg of 2)
42 255-9563 16 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9560 16 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9557 16 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9561 16 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9558 16 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9559 16 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9562 16 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9641 16 inch Diamond starter pack (1 of each grit)
50 255-1682 16 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1615 16 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1616 16 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
