Parts List Complete for PARKER VAC-35


Handle Assembly -

RefNbr Part Number Description Req Notes

Honda 8 HP Engine -

RefNbr Part Number Description Req Notes

Kohler 8.5 HP Engine -

RefNbr Part Number Description Req Notes

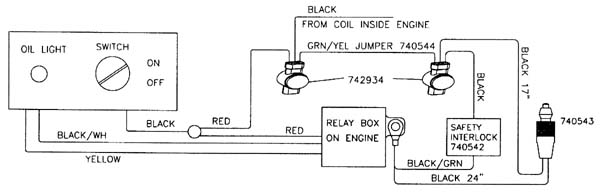

Kohler Wiring Diagram -

RefNbr Part Number Description Req Notes

Briggs and Straton 10 HP Engine -

RefNbr Part Number Description Req Notes

Briggs and Straton 6.5 HP Engine -

RefNbr Part Number Description Req Notes

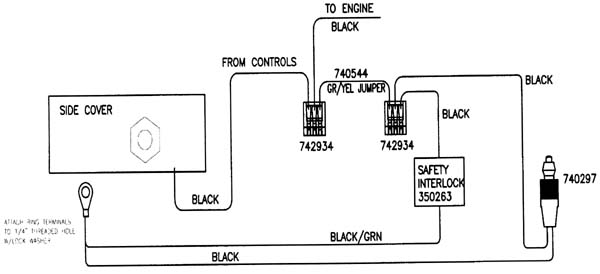

Briggs 10 HP Wiring Diagram -

RefNbr Part Number Description Req Notes

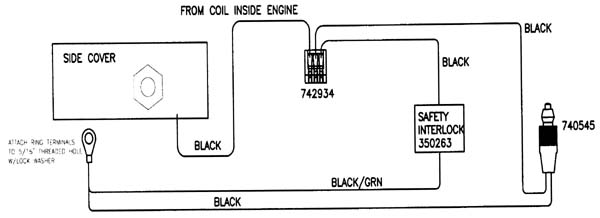

Briggs 6.5 HP Wiring Diagram -

RefNbr Part Number Description Req Notes

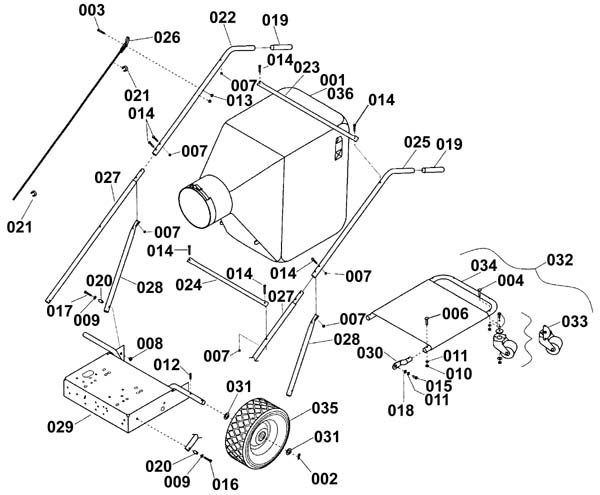

Main Assembly -

RefNbr Part Number Description Req Notes

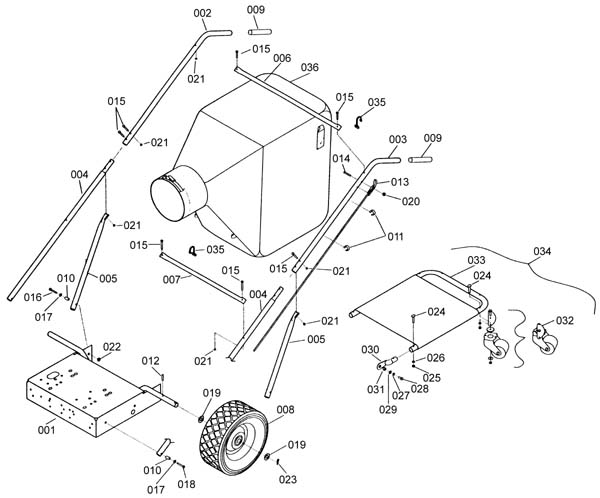

Handle Assembly - 174-2038
RefNbr Part Number Description Req Notes
001 174-1053 Chassis weldment 1
002 174-1054 Right upper handle 1
003 174-1055 Left upper handle 1
004 174-1056 Lower handle 2
005 174-1057 Handle back brace 2
006 174-1058 Upper cross brace 1
007 174-1059 Lower cross brace 1
008 174-1060 Wheel assembly 2
009 174-0864 Black handle grip 2
010 174-1061 Insert 4
011 174-1062 Snap-on clamp 2
012 174-0971 Roll pin 3/16 x 1 1/2 2
013b 174-1063 Throttle control assembly 1
014 999-0223 Screw 10-24 x 1 1/4 round head slotted zinc plated 2
015 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 8
016 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 2
017 999-0024 Washer 5/16 flat stainless steel 4
018 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 2
019 999-0630 Washer 3/4 SAE flat 4
020 999-0442 Nut 10-24 nylon insert lock stainless steel 2
021 999-0190 Nut 1/4-20 hex plain finish 8
022 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
023 174-1066 Cotter pin 2
024 174-2414 Bolt 1/4-20 x 1 1/2 contour head 6
025 999-0190 Nut 1/4-20 hex plain finish 6
026 999-0060 Washer 1/4 split lock plain finish 6
027 999-0028 Washer 5/16 split lock plain finish 2
028 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 2
029 174-1067 Special washer 2
030 174-1068 Tubing end cap 2
031 174-1069 Spacer 2
032 N/A Not available 1 (Caster and plate assembly)
033 174-1071 Frame and bag platform 1
034 N/A Not available 1 (Bag platform)
035 174-1073 Bag hook 4
036a 174-1074 Vacuum dust bag (OBSOLETE) 1
036b 174-1147 Disposable vacuum bag (OBSOLETE) 1

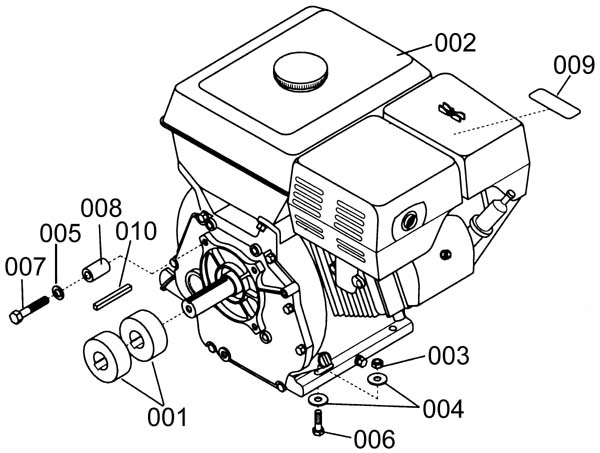

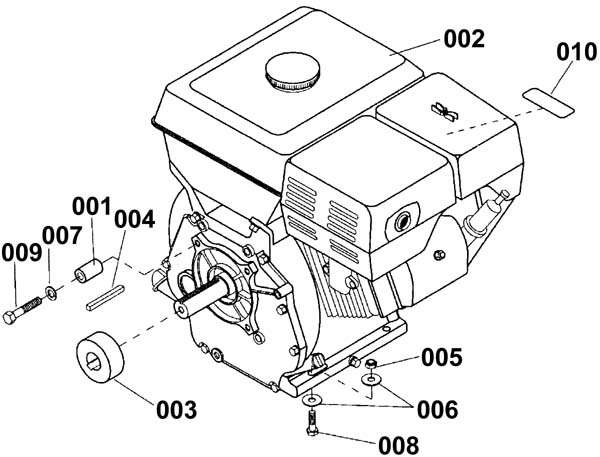

Honda Engine Interlock System - 174-2039
RefNbr Part Number Description Req Notes
001 174-1076 Spacer 1
002 174-1077 8 HP Honda engine (OBSOLETE) 1
003 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
005 999-0034 Washer 3/8 split lock plain finish 4
006 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated 4
007 174-1079 Bolt 3/8-16 x 2 1/4 hex head grade 5 4
008 174-1080 Spacer 4
009 174-1081 Muffler decal 1
010 174-1082 Square keyway 1

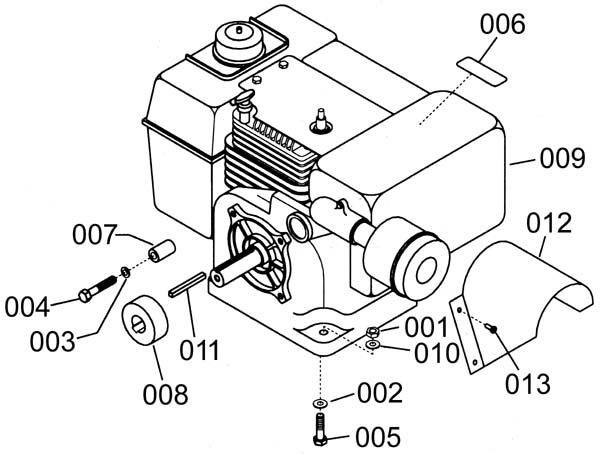

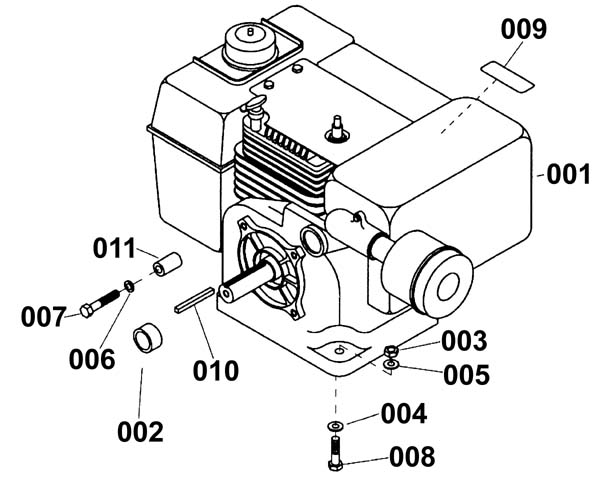

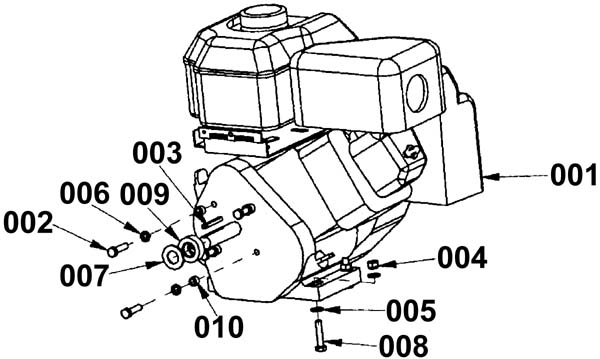

Kohler Engine Interlock System - 174-2040
RefNbr Part Number Description Req Notes
001 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
002 999-0328 Washer 7/16 USS flat 4
003 999-0034 Washer 3/8 split lock plain finish 4
004 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 4
005 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 4
006 174-1081 Muffler decal 1
007 174-1083 Spacer 4
008 174-1084 Spacer 1
009 174-1085 8 HP kohler enginge 1
010 999-0120 Washer 3/8 SAE flat 4
011 174-1082 Square keyway 1
012 174-1086 Muffler cover 1

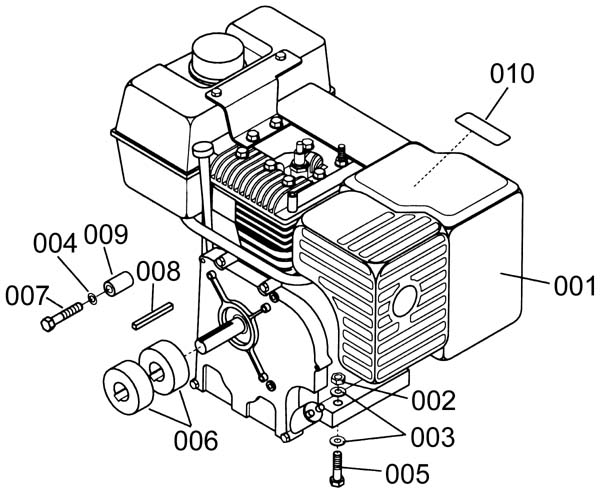

Briggs and Stratton Engine Interlock System - 174-2041
RefNbr Part Number Description Req Notes
001a 174-1087 Engine 8HP briggs & stratton 1
001b 174-1088 Vacuum hose 1 1/2 x 43 inch (clear) 1
002 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
003 999-0024 Washer 5/16 flat stainless steel 8
004a 999-0034 Washer 3/8 split lock plain finish 4
004b 999-0028 Washer 5/16 split lock plain finish 4
005a 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 4
005b 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 4
006a 174-1076 Spacer 2
006b 174-1089 Spacer 1
007a 174-1079 Bolt 3/8-16 x 2 1/4 hex head grade 5 4
007b 174-2408 Bolt 5/16-18 x 1 #5 hex head 4
008a 174-1082 Square keyway 1
008b 174-1090 Key 3/16 x 1 3/4 long 1
009a 174-1091 Spacer 4
009b 174-1092 Spacer 4
010 174-1081 Muffler decal 1
019 999-0016 Washer 1/4 flat plain finish 10

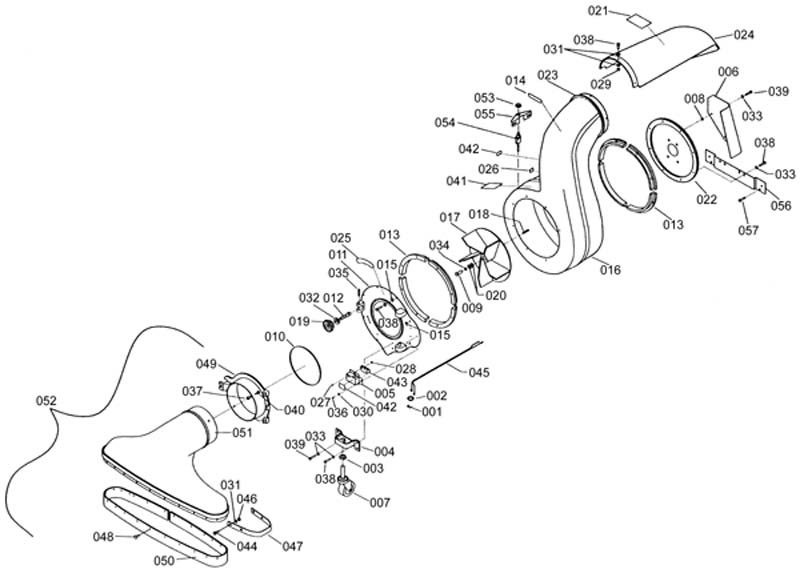

Vacuum Assembly Repair Parts - 174-2042
RefNbr Part Number Description Req Notes
001 174-2058 Strain relief 1
002 174-1093 Rubber grommet 1
003 174-2409 Nut 3/4 jam 1
004 N/A Not available 1 (Caster bracket)
005 174-1094 Switch bracket 1
006 174-1095 Heat shield 1
007 N/A Not available 1 (Caster wheel)
008 174-1096 Spacer 2
009 999-0043 Bolt 7/16-20 x 1 1/4 hex head grade 5 zinc plated 1
010 174-1097 O-ring gasket 1
011 174-1098 Front plate 1
012 174-1099 Pivot bolt 1
013 174-1100 Anti-wrap segment (OBSOLETE) 8
014 174-1111 Spin Pak decal 1
015 174-1112 Cable clip (OBSOLETE) 2
016 174-1113 Housing assembly (OBSOLETE) 1
017 174-1114 Fan wheel with 1 inch bore (OBSOLETE) 1
018 174-1082 Square keyway 1
019 174-1115 Adjusting knob 1
020 174-5343 Area washer 2
021 174-1116 Caution decal 1
022 174-1117 Back plate and gasket 1
023 174-1118 Retaining ring 1
024 174-1119 Spin Pak deflector (OBSOLETE) 1
025 174-1120 Warning decal 1
026 174-1121 Cord clip 1
027 999-0410 Screw 8-32 x 5/8 pan head slotted zinc plated 2
028 999-0151 Nut 8-32 nylon insert lock zinc plated 2
029 999-0190 Nut 1/4-20 hex plain finish 4
030 999-0006 Washer 3/16 flat zinc plated 3
031 999-0016 Washer 1/4 flat plain finish 16
032 999-0187 Washer 1/2 flat plain finish 1
033 999-0060 Washer 1/4 split lock plain finish 18
034 174-5344 Washer 7/16 belleville 1
035 174-1122 Spring pin 1
036 999-0817 Screw 10-24 x 5/8 round head zinc plated 3
037 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
038 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 14
039 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 4
040 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
041 174-1049 Warning decal 1
042 174-1051 Safety interlock decal 2
043 174-0430 Switch 1
044 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 8
045a 174-1124 Wire lead (Briggs) 1
045b 174-1125 Wire lead (Kohler) 1
045c 174-1126 Wire lead (Honda) 1
046 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
047 174-1127 Guard (OBSOLETE) 2
048 198-0002 Fastener 15
049 174-1128 Collar 1
050a 174-1129 Skirt (24 inch intake) 1
050b 174-1130 Skirt (30 inch intake) (OBSOLETE) 1
050c 174-1131 Skirt (36 inch intake) (OBSOLETE) 1
051a 174-1132 Intake housing 1
051b 174-1133 Intake housing 1
051c 174-1137 36 inch intake housing 1
052a 174-1135 24 inch intake 1
052b 174-1136 30 inch intake (OBSOLETE) 1
052c 174-1137 36 inch intake housing 1
053 174-1045 Switch nut 1
054a 174-1138 Safety switch (Briggs) (OBSOLETE) 1
054b 174-1044 Safety switch (Honda) 1
054c 174-1139 Safety switch (Kohler) (OBSOLETE) 1
055 174-1140 Safety switch bracket 1
056 174-1141 Housing support 1
057 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4

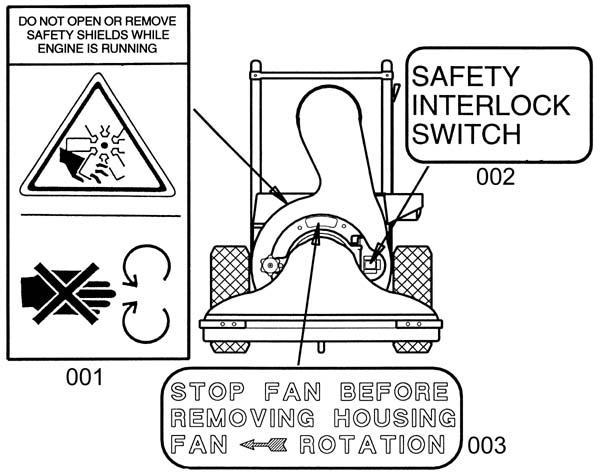

Safety Assembly - 174-2043
RefNbr Part Number Description Req Notes
001 174-1049 Warning decal
002 174-1051 Safety interlock decal
003 174-1120 Warning decal

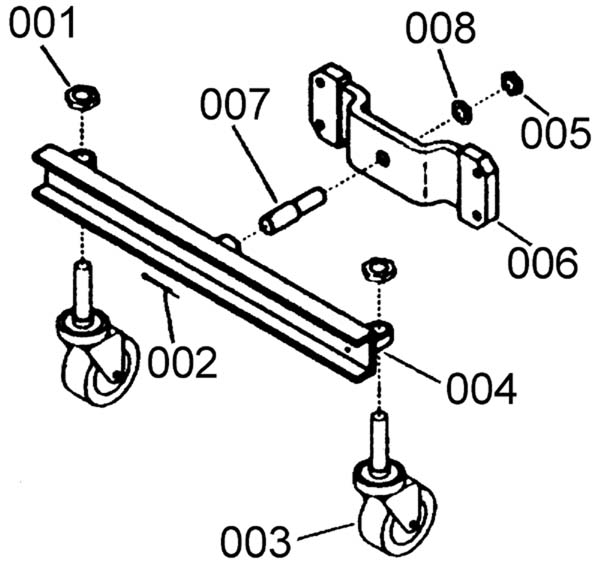

Dual Caster Turf Package - 174-2044
RefNbr Part Number Description Req Notes
001 174-2409 Nut 3/4 jam 2
002 174-0340 Square keyway 1
003 N/A Not available 2 (Caster wheel)
004 174-1142 Axle support weldment (OBSOLETE) 1
005 174-1143 Hex nut 1
006 174-1144 Mount plate 1
007 174-1145 Pivot pin 1
008 999-0260 Washer 1/2 internal starlock 1
009 174-1147 Disposable vacuum bag (OBSOLETE) 1
