Parts List Complete for PARKER Scavenger


Housing and Drive Assembly - 174-2035
RefNbr Part Number Description Req Notes
001 174-0966 Upper handle 1
002 174-0967 Cross bar 2
003 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 6
004 999-0190 Nut 1/4-20 hex plain finish 16
005 174-0864 Black handle grip 2
006a 174-7022 Cloth bag with lanyard 1
006b 174-0968 Lumite with lanyard 1
006c 174-0969 Lumite with lanyard 1
007 174-0970 Spacer 2
008 174-0971 Roll pin 3/16 x 1 1/2 2
009 174-0972 Axle 1
010 174-0973 Height adjustment 1
011 174-0974 Pivot 2
012 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated 4
013 174-7020 Cotter pin 2
014 174-0975 Lower handle (OBSOLETE) 2
015 174-0976 Spacer 2
016 174-7019 Wheel 2
017 174-7021 Bolt 1/2-20 x 5 hex head 2
018 999-0182 Nut 1/2-20 hex plain finish 2
019 174-0977 Deflector 1
020 174-0978 Bag hook 4
021 174-0979 Special washer 4
022 174-0980 Upper handle 1
023 174-0981 Clutch handle assembly 1
024 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated 1
025 999-0016 Washer 1/4 flat plain finish 4
026 174-0982 Spacer 1
027 174-0983 Clutch cable 1
028 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
029 174-0984 Clamp 2
030 999-0410 Screw 8-32 x 5/8 pan head slotted zinc plated 2
031 999-0151 Nut 8-32 nylon insert lock zinc plated 2
032 174-0985 Pinion and wheel support (right) 1
033 174-0986 Pinion and wheel support (left) 1
034 999-0349 Washer 5/8 SAE flat 2
035 174-0988 Bearing 2
036 174-0989 Gear 2
037 174-7018 Wheel 2
038 999-0514 Screw 1/4-20 x 2 1/2 carriage head zinc 8
039 174-0537 Washer 3/8 helical stainless steel 1
040 999-0024 Washer 5/16 flat stainless steel 1
041 999-0028 Washer 5/16 split lock plain finish 1
042 174-0990 Knob 1
043 999-0430 Nut 5/16-18 hex jam plain finish 1
044 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 3
046 999-0146 Screw 10-24 x 1 1/2 round head slotted zinc plated 2
047 999-0442 Nut 10-24 nylon insert lock stainless steel 2

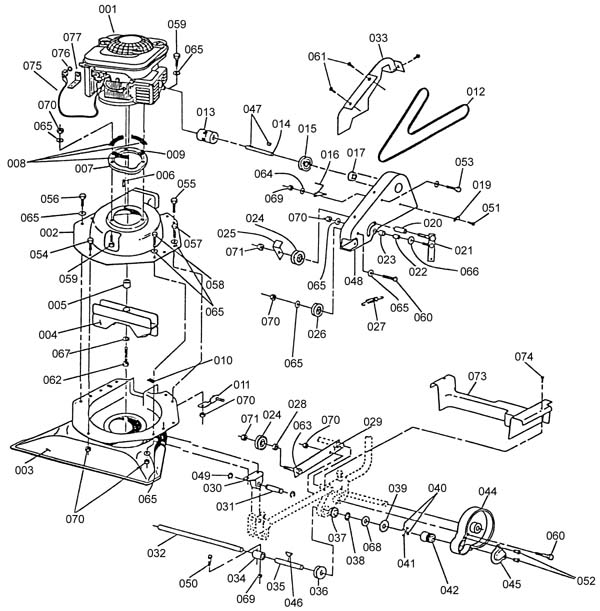

Handle and Bag Assembly - 174-2036
RefNbr Part Number Description Req Notes
001a 174-0992 Engine, 6 HP B/S vertical 1
001b 174-0993 Engine, 6 HP B/S vertical 1
002 174-0994 Upper blower housing 1
003 174-0995 Lower housing 1
004 174-0996 Impeller assembly complete 1
005 174-0997 Spacer 1
006 174-0998 Key 1
007 174-0999 Engine spacer adapter 1
008 174-1000 Plastic dust cup 1
009 174-1001 Gasket 1
010 174-1002 Rubber shim 1
011 174-1003 Adjustment bracket weldment 1
012 174-1004 Vee belt 1
013 174-1005 Flex coupling 1
014 174-1006 Shaft clutch 1
015 174-1007 Sheave 1
016 174-1008 Belt popper 1
017 174-1009 Flanged bearing 1
018 174-1010 Side plate 1
019 174-1011 Clutch cable mounting bracket 1
020 174-1012 Spacer 1
021 174-1013 Clutch arm weldment 1
022 174-1014 Spacer 1
023 174-1015 Bushing 1
024 174-1016 Machined clutch pulley 2
025 174-1017 Belt popper 1
026 174-1018 Sheave bearing assembly 1
027 174-1019 Extension spring 1
028 174-1020 Spacer 1
029 174-1021 Idler arm 2
030 174-1022 Machined hinge 2
031 174-1023 Pivot pin 2
032 174-1024 Shaft split drive 1
033 174-1025 Upper belt guard 1
034 174-1026 Coupling shaft 1
035 174-1027 Split drive 1
036 174-1028 Sheave 1
037 174-0988 Bearing 2
038 174-1029 Retaining ring 2
039 174-1030 Special washer (OBSOLETE) 2
040 174-1031 Roll pawl 4
041 174-1032 Pawl spring 4
042 174-1033 Pinion (left) 1
043 174-1034 Pinion (right) (OBSOLETE) 1
044 174-1035 Dust cover 2
045 174-1036 Cover pinion 2
046 174-1037 Key 2
047 174-1038 Shaft key 1
048 174-1039 Cotter pin 1/8 x 1 1
049 174-1040 Retaining ring 4
050 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 2
051 999-0256 Screw 10-32 x 1/2 truss head slotted zinc plated 1
052 999-0419 Screw 1/4-20 x 5/8 flat head slotted zinc plated 4
053 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
054 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
055 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 3
056 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 4
057 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 1
058 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2
059a 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 2
059b 999-0602 Bolt 5/16-18 x 3 hex head flange grade 8.2 zinc 1
060 999-0283 Bolt 5/16-18 x 2 1/4 hex head grade 5 zinc plated 2
061 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 3
062 174-1041 Bolt 3/8-24 x 2 1/2 hex head 1
063 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 1
064 999-0016 Washer 1/4 flat plain finish 2
065 999-0024 Washer 5/16 flat stainless steel 16
066 174-1042 Washer flat stainless steel 1
067 999-0034 Washer 3/8 split lock plain finish 1
068 999-0349 Washer 5/8 SAE flat 2
069 999-0190 Nut 1/4-20 hex plain finish 3
070 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 17
071 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2
073 174-1043 Belt guard lower axle 1
074 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
075 174-1044 Safety switch (Honda) 1
076 174-1045 Switch nut 1
077 174-1046 Switch bracket 1

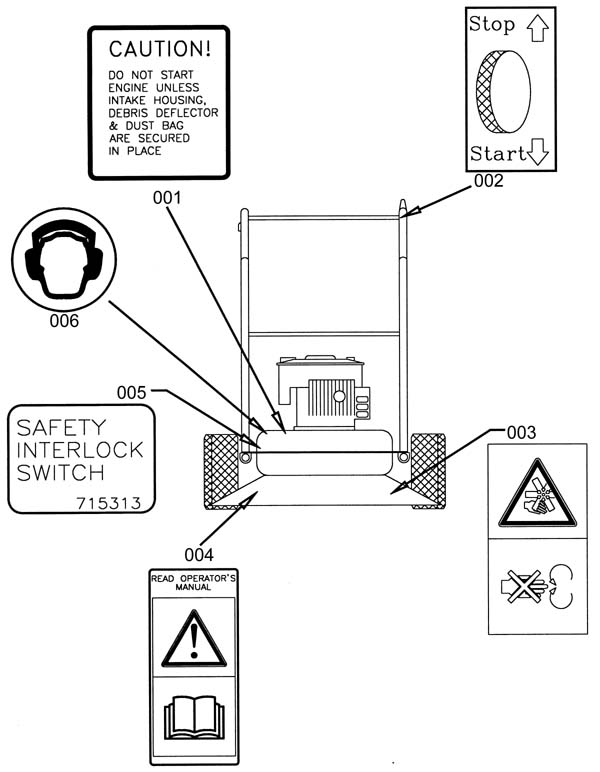

Safety Decals - 174-2037
RefNbr Part Number Description Req Notes
001 174-1047 Do not start engine decal
002 174-1048 Clutch engage decal
003 174-1049 Warning decal
004 174-1050 Read operation manual decal
005 174-1051 Safety interlock decal
006 174-1052 Hearing protection decal
