- Frequently Replaced Parts - 206-0118 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
|
|
206-5028 |
Strain relief assembly (OBSOLETE) |
1 |
|
|
206-5065 |
Wheel 4 inch (OBSOLETE) |
2 |
|
|
206-3024 |
Caster (OBSOLETE) |
1 |
|
|
996-1216 |
Pad driver (OBSOLETE) |
1 |
|
|
206-0812 |
Pad holder assembly |
1 |
|
|
206-0431 |
Flex pad assembly 19 diameter |
1 |
|
|
|

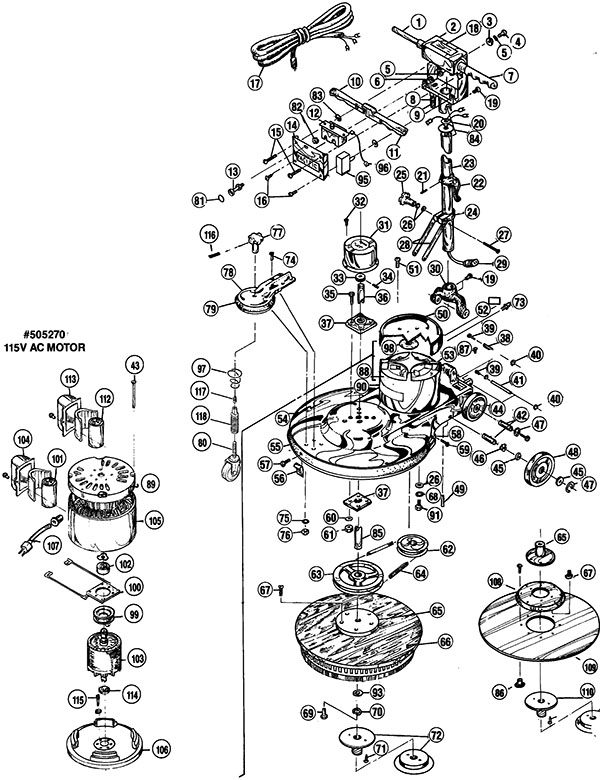

Entire Assembly - 206-8036 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-5022 |
Handle nipple (OBSOLETE) |
2 |
|
| 2a |
206-5053 |
Switch box (OBSOLETE) |
1 |
|
| 2b |
206-0383 |
Switch box-DC with breaker (OBSOLETE) |
1 |
|
| 2c |
206-0438 |
Switch box without breaker-painted (OBSOLETE) |
1 |
|
| 2d |
206-0433 |
Switch box with breaker-painted (OBSOLETE) |
1 |
|
| 4 |
999-0414 |
Screw 10-32 x 3/4 pan head slotted zinc plated |
1 |
|
| 5 |
206-5055 |
Washer flat (OBSOLETE) |
2 |
|
| 6 |
206-5019 |
Nut 10-32 elastic stop |
1 |
|
| 7 |
206-0384 |
Handle grip (OBSOLETE) |
2 |
|
| 8 |
206-5029 |
Strain relief brass clamp |
1 |
|
| 9 |
206-5028 |
Strain relief assembly (OBSOLETE) |
1 |
|
| 10 |
206-5004 |
Right switch lever (OBSOLETE) |
1 |
|
| 11 |
206-5018 |
Left switch lever (OBSOLETE) |
1 |
|
| 12 |
206-5002 |
Switch assembly (OBSOLETE) |
1 |
|
| 13 |
206-5014 |
Interlock switch assembly (OBSOLETE) |
1 |
|
| 14a |
206-0434 |
Switch plate cover-polished (OBSOLETE) |
1 |
|
| 14b |
206-0435 |
Switch plate cover-painted (OBSOLETE) |
1 |
|
| 15 |
206-0385 |
Screw 10-32 x 1 3/4 oval head (OBSOLETE) |
2 |
|
| 16 |
999-0074 |
Screw 10-32 x 1/2 round head slotted zinc plated |
2 |
|
| 17 |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
|
| 18 |
206-0389 |
Warning label (OBSOLETE) |
1 |
|
| 19 |
999-0508 |
Screw 1/4-20 x 1/2 pan head phillips zinc plated |
3 |
|
| 20 |
206-5021 |
Strain relief bushing |
1 |
|
| 21 |
206-5038 |
Screw 1/4-20 x 3/8 set |
1 |
|
| 22 |
206-5032 |
Cord hook (OBSOLETE) |
1 |
|
| 23 |
206-0390 |
Handle tube (OBSOLETE) |
1 |
|
| 24 |
206-5035 |
Handle clamp (OBSOLETE) |
1 |
|
| 26 |
999-0032 |
Washer 3/8 USS flat plain finish |
2 |
|
| 27 |
999-1607 |
Bolt 5/16-18 x 2 1/2 carriage stainless steel |
1 |
|
| 29a |
206-0436 |
Handle cord assembly AC model (OBSOLETE) |
1 |
(AC models) |
| 29b |
206-0392 |
Handle cord assembly (OBSOLETE) |
1 |
(DC models) |
| 30 |
206-5041 |
Handle yoke (OBSOLETE) |
1 |
|
| 32 |
999-0321 |
Screw 10-32 x 3/8 pan head slotted zinc plated |
3 |
|
| 33 |
206-0394 |
Upper shaft collar |
1 |
|
| 34 |
999-0346 |
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
1 |
|
| 35 |
999-0542 |
Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated |
4 |
|
| 36 |
206-0395 |
Drive shaft |
1 |
|
| 37 |
206-0396 |
Bearing block |
2 |
|
| 38 |
206-0397 |
Yoke brace (OBSOLETE) |
1 |
|
| 39 |
999-0508 |
Screw 1/4-20 x 1/2 pan head phillips zinc plated |
2 |
|
| 40 |
206-5054 |
Yoke rod snap ring |
2 |
|
| 41 |
206-5044 |
Handle pivot shaft |
1 |
|
| 43 |
206-0437 |
Bolt motor thru (OBSOLETE) |
4 |
|
| 44 |
206-5065 |
Wheel 4 inch (OBSOLETE) |
2 |
|
| 45 |
206-5049 |
Fiber washer |
12 |
|
| 46 |
206-5048 |
Wave washer |
8 |
|
| 47 |
206-5064 |
Snap ring (OBSOLETE) |
4 |
|
| 48 |
206-5001 |
5 inch wheel |
2 |
|
| 49 |
999-1478 |
Screw 10-32 x 3/8 socket set stainless steel |
1 |
|
| 50a |
206-5089 |
Drip cover (OBSOLETE) |
1 |
(AC models) |
| 50b |
206-0439 |
Motor cover bumper AC (OBSOLETE) |
1 |
(AC models) |
| 50c |
N/A |
Not available |
1 |
(DC models) |
| 50d |
206-0399 |
Motor cover 1500 (OBSOLETE) |
1 |
(DC models) |
| 51a |
999-0481 |
Screw 12-24 x 5/8 pan head slotted zinc plated |
3 |
|
| 51b |
206-0233 |
Screw 8-32x1/2 |
3 |
|
| 52 |
206-0401 |
Brush indicator label |
1 |
|
| 53a |
N/A |
Not available |
1 |
(AC models) |
| 53b |
206-5008 |
DC motor 115v |
1 |
(DC models) |
| 54a |
206-0442 |
Base casting polished AC models (OBSOLETE) |
1 |
(AC models) |
| 54b |
206-0443 |
Base casting polished DC models (OBSOLETE) |
1 |
(DC models) |
| 54c |
206-0444 |
Base casting painted DC models (OBSOLETE) |
1 |
(DC models) |
| 54d |
206-0445 |
Base casting painted AC models (OBSOLETE) |
1 |
(AC models) |
| 55 |
206-5005 |
Base bumper |
1 |
|
| 56 |
206-5006 |
Bumper clips |
3 |
|
| 57 |
206-5059 |
Screw 10-32 x 1/4 flat head phillips |
3 |
|
| 59 |
999-0321 |
Screw 10-32 x 3/8 pan head slotted zinc plated |
2 |
|
| 60 |
999-0032 |
Washer 3/8 USS flat plain finish |
4 |
|
| 61 |
999-0170 |
Nut 3/8-16 hex plain finish |
4 |
|
| 62a |
206-0404 |
Pulley motor |
1 |
(1040AC, 1500DC, and 2000DC models) |
| 62b |
206-0446 |
Pulley motor 1500AC (OBSOLETE) |
1 |
(1500AC) |
| 62c |
206-0447 |
Pulley motor 1280AC (OBSOLETE) |
1 |
(1280AC) |
| 63a |
N/A |
Not available |
1 |
(AC models) |
| 63b |
206-0448 |
Pulley pad driver 2000DC (OBSOLETE) |
1 |
(2000DC) |
| 63c |
206-0406 |
Pulley pad driver |
1 |
(1500DC) |
| 64a |
206-0407 |
Belt 1500 |
1 |
(1500AC and 1500DC) |
| 64b |
N/A |
Not available |
1 |
(1280AC) |
| 64c |
206-0408 |
Belt 800-1500 |
1 |
(1040AC) |
| 64d |
206-0450 |
Belt 2000DC (OBSOLETE) |
1 |
(2000DC) |
| 65a |
206-0451 |
Flange 1040, 1280, 1500AC. 2000DC (OBSOLETE) |
1 |
(1040AC, 1280AC, 1500AC, and 2000DC models) |
| 65b |
206-0452 |
Flange 1500DC (OBSOLETE) |
1 |
(1500DC) |
| 65c |
206-0409 |
Flange flex driver |
1 |
(1500DCP) |
| 66 |
996-1216 |
Pad driver (OBSOLETE) |
1 |
|
| 67a |
206-0454 |
Screw 10 x 1 1/2 wood (OBSOLETE) |
6 |
|
| 67b |
206-0455 |
Screw 10 x 1 1/4 wood (OBSOLETE) |
6 |
|
| 67c |
999-0348 |
Screw 1/4-20 x 1 flat head phillips zinc plated |
6 |
|
| 68 |
206-0410 |
Washer 3/8 lock |
4 |
|
| 69 |
206-0411 |
Bolt 5/16-18x3/4 allen |
1 |
|
| 70 |
206-0412 |
Washer 5/16 lock (OBSOLETE) |
1 |
|
| 71 |
206-0456 |
Screw 10 x 3/4 wood (OBSOLETE) |
3 |
|
| 72 |
206-0812 |
Pad holder assembly |
1 |
|
| 73 |
206-0432 |
Light indicator brush wear |
1 |
|
| 74 |
999-0510 |
Screw 1/4-20 x 1 pan head phillips zinc plated |
4 |
|
| 75 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 76 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 77 |
206-3021 |
Caster knob adjuster (OBSOLETE) |
1 |
|
| 78 |
206-3022 |
Caster housing (OBSOLETE) |
1 |
|
| 79 |
206-3023 |
Bumper (OBSOLETE) |
1 |
|
| 80 |
206-3024 |
Caster (OBSOLETE) |
1 |
|
| 81 |
206-0417 |
Sw. int. label |
1 |
|
| 82 |
999-0143 |
Nut 3/8-24 hex plain finish |
1 |
|
| 83 |
206-5016 |
Rubber washer (OBSOLETE) |
2 |
|
| 84 |
206-5020 |
Handle tube washer |
1 |
|
| 86 |
206-0419 |
T-nut and screws kit (8ea per pkg) (OBSOLETE) |
1 |
|
| 87 |
206-0420 |
Screw 2x1/4 drive (OBSOLETE) |
2 |
|
| 88 |
206-0421 |
Mylar motor label (OBSOLETE) |
1 |
|
| 89 |
206-0457 |
End bell motor top (OBSOLETE) |
1 |
|
| 90 |
206-0458 |
1500DC label (OBSOLETE) |
1 |
|
| 91 |
206-0423 |
Screw 3/8-16x1 hex head |
4 |
|
| 93 |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
|
| 95 |
206-5003 |
18amp circuit breaker |
1 |
|
| 96 |
206-0424 |
Lead assembly circuit breaker (OBSOLETE) |
1 |
|
| 98 |
206-5043 |
Felt washer |
1 |
|
| 99 |
206-0459 |
Rotary switch |
1 |
|
| 101 |
206-0461 |
Capacitor-start (OBSOLETE) |
4 |
|
| 102 |
206-0462 |
Motor top bearing |
1 |
|
| 103 |
206-0463 |
Rotor assembly (OBSOLETE) |
1 |
|
| 104 |
206-0464 |
Capacitor cover (OBSOLETE) |
1 |
|
| 105 |
206-0465 |
Field assembly (OBSOLETE) |
1 |
|
| 106 |
206-0466 |
End bell motor (OBSOLETE) |
1 |
|
| 107 |
206-0467 |
Motor cord (OBSOLETE) |
1 |
|
| 108 |
206-0431 |
Flex pad assembly 19 diameter |
1 |
|
| 109 |
206-0431 |
Flex pad assembly 19 diameter |
1 |
|
| 110 |
306-0002 |
Center lok base (OBSOLETE) |
1 |
|
| 112 |
206-0470 |
Capacitor-run (OBSOLETE) |
1 |
|
| 113 |
206-0471 |
Cover-run capacitor (OBSOLETE) |
1 |
|
| 114 |
206-0235 |
Bearing (OBSOLETE) |
1 |
|
| 115 |
206-0239 |
Screw (OBSOLETE) |
6 |
|
| 116 |
206-5099 |
Screw 8-32 1/4 allen set (OBSOLETE) |
1 |
|
| 117 |
206-3026 |
Screw 1/4 - 20 x 3/8 allen set |
1 |
|
| 118 |
206-3027 |
Caster stud |
1 |
|
| N/S |
206-0469 |
Ring-center lock (OBSOLETE) |
1 |
|
|
|

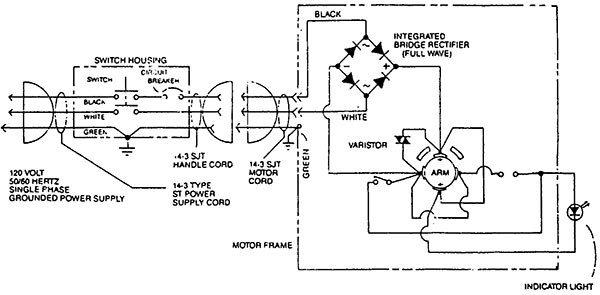

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Commonly Asked For Parts - 206-9965 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-5008 |
DC motor 115v |
|
|
| 02 |
206-0242 |
Carbon brush (sold individually) (OBSOLETE) |
|
|
| 03 |
206-3024 |
Caster (OBSOLETE) |
|
|
|
|
- Pads - 19 inch - 255-1900 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1940 |
19 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1935 |
19 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1964 |
19 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1942 |
19 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1912 |
19 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1977 |
19 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1938 |
19 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1921 |
19 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1950 |
19 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1965 |
19 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1930 |
19 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1967 |
19 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1990 |
19 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1970 |
19 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1992 |
19 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1980 |
19 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1960 |
19 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1952 |
19 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1920 |
19 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1911 |
19 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1995 |
19 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1947 |
19 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1955 |
19 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1923 |
19 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0151 |
19 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0152 |
19 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0153 |
19 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0154 |
19 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0155 |
19 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0156 |
19 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0150 |
19 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0062 |
19 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0241 |
19 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0242 |
19 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0243 |
19 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0244 |
19 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0245 |
19 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 38 |
255-0246 |
19 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0239 |
19 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0240 |
19 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1924 |
19 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9584 |
19 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9581 |
19 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9578 |
19 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9582 |
19 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9579 |
19 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9580 |
19 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9583 |
19 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9644 |
19 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1982 |
19 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1915 |
19 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1916 |
19 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
