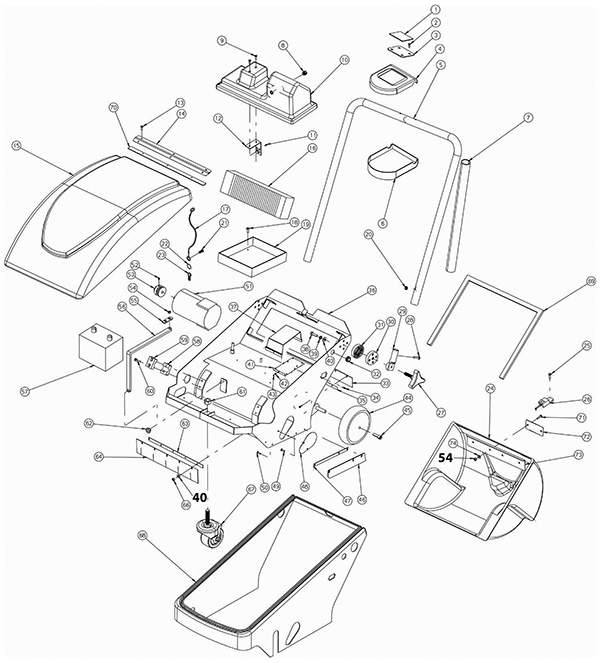

Upper Assembly - 206-0103 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 4 |
206-6111 |
Upper cover for controller |
1 |
|
| 6 |
206-6113 |
Lower cover for controller |
1 |
|
| 7 |
206-6114 |
Protection cover |
2 |
|
| 8 |
206-6115 |
Cable retainer |
2 |
|
| 9 |
999-9085 |
Screw M6-1 x 12mm flat head phillips |
2 |
|
| 10 |
206-6116 |
Vacuum motor cover |
1 |
|
| 11 |
999-9228 |
Screw M3 x 8 flat head |
4 |
|
| 12 |
206-6117 |
Filter bracket |
1 |
|
| 14 |
206-6119 |
Upper hood hinge |
1 |
|
| 15 |
206-6120 |
Upper hood cover |
1 |
|
| 16 |
206-6121 |
Vacuum filter |
1 |
|
| 19 |
206-6124 |
Battery tray |
1 |
|
| 23 |
206-6128 |
Hood cable hook |
1 |
|
| 24 |
206-6129 |
Dirt hopper |
1 |
|
| 29 |
206-6134 |
Handle support |
2 |
|
| 30 |
206-6135 |
Handle hinge |
2 |
|
| 31 |
206-6136 |
Handle hinge |
2 |
|
| 33 |
206-6138 |
Rear bumper |
1 |
|
| 34 |
999-9141 |
Screw M4-.7 x 20mm pan flat head phillips stainless steel |
2 |
|
| 35 |
206-6139 |
Rear bumper strap |
1 |
|
| 36 |
206-6140 |
Basic frame |
1 |
|
| 37 |
206-6141 |
Electrical system cover |
1 |
|
| 41 |
206-6145 |
Electrical system support |
1 |
|
| 45 |
206-6149 |
Screw M5 x 50 |
2 |
|
| 46 |
206-6150 |
Side bumper |
2 |
|
| 47 |
206-6151 |
Bumper strap |
2 |
|
| 48 |
206-6152 |
Rubber protection |
1 |
|
| 49 |
999-1422 |
Screw M6-1 x 16mm flat head zinc plated |
16 |
|
| 51 |
206-6154 |
Central brush motor |
1 |
|
| 52 |
206-6155 |
Dowel (stainless steel) |
2 |
|
| 53 |
206-6156 |
Traction pulley motor |
1 |
|
| 55 |
206-6158 |
Closing plate |
1 |
|
| 56 |
206-6159 |
Battery belt |
1 |
|
| 57 |
162-0001 |
12V 35Ah AGM battery |
1 |
|
| 58 |
206-6160 |
Shaft support |
2 |
|
| 59 |
206-6161 |
Machined support shaft |
1 |
|
| 63 |
206-6165 |
Front bumper strap |
1 |
|
| 64 |
206-6166 |
Front bumper |
1 |
|
| 66 |
206-6167 |
Nut stainless steel |
5 |
|
| 67 |
206-6168 |
Caster wheel |
1 |
|
| 68 |
206-6169 |
Machine cover |
1 |
|
| 69 |
206-6170 |
Inner gasket |
1 |
|
| 70 |
206-6171 |
Reinforcement strap |
1 |
|
| 72 |
206-6173 |
External strengthening sheet |
1 |
|
| 73 |
206-6174 |
Internal strengthening sheet |
1 |
|
| N/S |
206-6176 |
Control board card |
1 |
|
| N/S |
206-6177 |
Transformer |
1 |
|
| N/S |
206-6182 |
50amp plug (red) |
2 |
|
| N/S |
206-6185 |
Electronic control cable |
1 |
|
| N/S |
206-6187 |
2 way connector |
1 |
|
| N/S |
206-6188 |
2 way connector |
1 |
|
| N/S |
206-6190 |
2 pole connector |
2 |
|
| N/S |
206-6192 |
2 pole connector |
2 |
|
|
|
Lower Assembly - 206-0104 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
206-6196 |
Central brush pulley |
1 |
|
| 4 |
206-6197 |
Brush lifting jackscrew |
2 |
|
| 6 |
206-6199 |
Jackscrew strainer |
1 |
|
| 8 |
206-6201 |
Pin with spring |
1 |
|
| 9 |
999-1663 |
Bolt M6-1 x 70mm hex head stainless steel |
1 |
|
| 12 |
206-6204 |
Central brush level |
1 |
|
| 14 |
206-6206 |
Right hand bushing |
1 |
|
| 15 |
206-6207 |
Seeger ring |
1 |
|
| 18 |
206-6209 |
Central brush shaft |
1 |
|
| 21 |
206-6211 |
Squeegee spring |
1 |
|
| 22 |
206-6212 |
Seeger ring |
4 |
|
| 23 |
206-6213 |
Side brush lifting lever |
2 |
|
| 28 |
206-6216 |
Brake spring |
1 |
|
| 29 |
206-6217 |
Seeger clip |
1 |
|
| 30 |
206-6218 |
Ball bearing |
1 |
|
| 32 |
206-6220 |
Central brush lever |
1 |
|
| 35 |
206-6223 |
Handle cover |
1 |
|
| 38 |
206-6167 |
Nut stainless steel |
1 |
|
| 41 |
206-6226 |
Side brush shaft |
1 |
|
| 42 |
206-6024 |
Central brush |
1 |
|
| 43 |
206-6227 |
Side brush gear motor |
2 |
|
| 45 |
206-6229 |
Side brush cover |
1 |
|
| 48 |
206-6231 |
Side brush flange |
1 |
|
| 53 |
206-6233 |
Central brush shaft |
1 |
|
| N/S |
206-6193 |
Shaker motor filter |
1 |
|
| N/S |
206-6194 |
Vacuum fan |
1 |
|
|
|
-Frequently Replaced Parts - 206-0105 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
206-6156 |
Traction pulley motor |
1 |
|
|
206-6196 |
Central brush pulley |
1 |
|
|
|
- Commonly Asked For Parts - 999-9147 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
