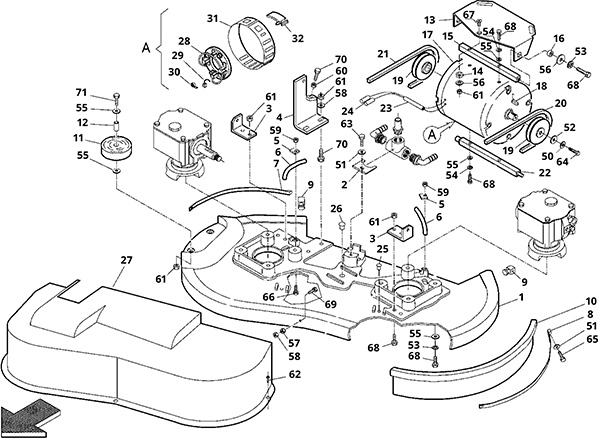

Brush Base Assembly - 206-0028 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-4894 |
Brush drive base (OBSOLETE) |
1 |
|
| 2 |
206-4895 |
Plate (OBSOLETE) |
1 |
|
| 3 |
206-4896 |
Support (OBSOLETE) |
2 |
|
| 4 |
206-4897 |
Support (OBSOLETE) |
1 |
|
| 5 |
206-4898 |
Plate (OBSOLETE) |
2 |
|
| 6 |
206-4899 |
Pipe (OBSOLETE) |
2 |
|
| 7 |
206-0750 |
Squeegee blade (OBSOLETE) |
1 |
|
| 8 |
206-0756 |
Squeegee blade (OBSOLETE) |
1 |
|
| 9 |
206-0748 |
Coupling (OBSOLETE) |
2 |
|
| 10 |
206-0755 |
Splash guard (OBSOLETE) |
1 |
|
| 13 |
206-4900 |
Support (OBSOLETE |
1 |
|
| 14 |
206-4901 |
Bushing (OBSOLETE) |
1 |
|
| 15 |
206-4902 |
Support (OBSOLETE) |
1 |
|
| 16 |
206-5116 |
Bushing (OBSOLETE) |
2 |
|
| 17a |
289-0027 |
36v brush drive motor |
1 |
(after SN 8670) |
| 17b |
289-0026 |
36V traction motor |
1 |
(before SN 8671) |
| 18 |
206-4903 |
Key (OBSOLETE) |
2 |
|
| 19 |
206-4904 |
Motor pulley (OBSOLETE) |
2 |
|
| 20 |
206-4905 |
Belt (OBSOLETE) |
1 |
|
| 21 |
206-4906 |
Belt (OBSOLETE) |
1 |
|
| 22 |
206-4907 |
Support (OBSOLETE) |
1 |
|
| 23 |
206-4908 |
Sheath (OBSOLETE) |
1 |
|
| 24 |
206-4909 |
Pipe (OBSOLETE) |
2 |
|
| 25 |
206-4910 |
Cap (OBSOLETE) |
2 |
|
| 26 |
206-4911 |
Cap (OBSOLETE) |
1 |
|
| 27 |
206-0753 |
Base cover (OBSOLETE) |
1 |
|
| 28 |
206-4912 |
Carbon brush holder (OBSOLETE) |
1 |
|
| 29 |
206-0867 |
Carbon brush motor (OBSOLETE) |
4 |
|
| 30 |
206-4913 |
Spring (OBSOLETE) |
4 |
|
| 31 |
206-4914 |
Clamp (OBSOLETE) |
1 |
|
| 32 |
206-4915 |
Hook asssembly (OBSOLETE) |
1 |
|
| 50 |
206-5135 |
Washer lock (OBSOLETE) |
1 |
|
| 51 |
206-0607 |
Washer (OBSOLETE) |
1 |
|
| 52 |
206-5168 |
Washer (OBSOLETE) |
1 |
|
| 53 |
206-5171 |
Washer lock (OBSOLETE) |
1 |
|
| 54 |
206-0712 |
Washer (OBSOLETE) |
1 |
|
| 55 |
206-0540 |
Washer (OBSOLETE) |
1 |
|
| 56 |
206-0035 |
Washer (OBSOLETE) |
1 |
|
| 57 |
206-0636 |
Nut (OBSOLETE) |
1 |
|
| 58 |
206-0498 |
Lock nut (OBSOLETE) |
1 |
|
| 59 |
206-0553 |
Nut lock (OBSOLETE) |
1 |
|
| 60 |
206-0556 |
Nut (OBSOLETE) |
1 |
|
| 61 |
206-0494 |
Nut lock (OBSOLETE) |
1 |
|
| 62 |
206-0754 |
Screw M5 x 10 (OBSOLETE) |
1 |
|
| 63 |
206-0555 |
Screw (OBSOLETE) |
1 |
|
| 64 |
206-4916 |
Screw M6x18 |
1 |
|
| 65 |
206-0749 |
Screw M6 x 35 (OBSOLETE) |
1 |
|
| 66 |
206-4917 |
Screw M6x35 (OBSOLETE) |
1 |
|
| 67 |
206-0557 |
Screw (OBSOLETE) |
1 |
|
| 68 |
206-0495 |
Screw (OBSOLETE) |
1 |
|
| 69 |
206-4918 |
Screw M5x30 (OBSOLETE) |
1 |
|
| 70 |
206-0503 |
Screw (OBSOLETE) |
1 |
|
| 71 |
206-0751 |
Screw M8 x 45 (OBSOLETE) |
1 |
|
|
|
Gears Assembly - 206-0029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
206-4919 |
Polyurethane brush (OBSOLETE) |
1 |
|
| 1b |
206-4920 |
Pad driver (OBSOLETE) |
1 |
|
| 2 |
206-4921 |
Flexible coupling (OBSOLETE) |
2 |
|
| 3 |
206-4922 |
Spacer (OBSOLETE) |
6 |
|
| 4 |
206-4923 |
Flange (OBSOLETE) |
2 |
|
| 5 |
206-4924 |
Bushing (OBSOLETE) |
6 |
|
| 6 |
206-4925 |
O-ring (OBSOLETE) |
2 |
|
| 7 |
206-4926 |
Pulley (OBSOLETE) |
2 |
|
| 8 |
206-4927 |
Spacer (OBSOLETE) |
2 |
|
| 9 |
206-4928 |
Oil seal (OBSOLETE) |
2 |
|
| 10 |
206-4929 |
Bearing (OBSOLETE) |
4 |
|
| 11 |
206-4930 |
Spring (OBSOLETE) |
2 |
|
| 12 |
206-4931 |
Right hand bevel gear pair (red) (OBSOLETE) |
1 |
|
| 13 |
206-4932 |
Spacer (OBSOLETE) |
2 |
|
| 14 |
206-4933 |
Holdfast (OBSOLETE) |
4 |
|
| 15 |
206-4934 |
Support (OBSOLETE) |
2 |
|
| 16 |
206-4935 |
Key (OBSOLETE) |
2 |
|
| 17 |
206-4936 |
Gasket (OBSOLETE) |
2 |
|
| 18 |
206-4937 |
Breather (OBSOLETE) |
2 |
|
| 19 |
206-4938 |
Gasket (OBSOLETE) |
2 |
|
| 20 |
206-4939 |
Cover (OBSOLETE) |
2 |
|
| 21 |
206-4940 |
Gasket (OBSOLETE) |
2 |
|
| 22 |
206-4941 |
Bearing (OBSOLETE) |
4 |
|
| 23 |
206-4942 |
Spacer (OBSOLETE) |
2 |
|
| 24 |
206-4943 |
Left hand reduction gear box (OBSOLETE) |
1 |
|
| 25 |
206-4944 |
Level plug (OBSOLETE) |
2 |
|
| 26 |
206-4945 |
Gasket (OBSOLETE) |
2 |
|
| 27 |
206-4946 |
Oil seal (OBSOLETE) |
2 |
|
| 28 |
206-4947 |
O-ring (OBSOLETE) |
2 |
|
| 29 |
206-4948 |
Spacer (OBSOLETE) |
2 |
|
| 30 |
206-4949 |
Plate (OBSOLETE) |
2 |
|
| 31 |
206-4950 |
Washer (OBSOLETE) |
2 |
|
| 50 |
206-0541 |
Washer (OBSOLETE) |
1 |
|
| 51 |
206-0503 |
Screw (OBSOLETE) |
2 |
|
| 52 |
206-5171 |
Washer lock (OBSOLETE) |
2 |
|
| 53 |
206-0035 |
Washer (OBSOLETE) |
2 |
|
| 54 |
206-4951 |
Split washer (OBSOLETE) |
2 |
|
| 55 |
206-0712 |
Washer (OBSOLETE) |
1 |
|
| 56 |
206-4952 |
Screw M8x18 (OBSOLETE) |
1 |
|
| 57 |
206-4953 |
Screw M6x10 (OBSOLETE) |
1 |
|
| 58 |
206-5135 |
Washer lock (OBSOLETE) |
1 |
|
| 59 |
206-5168 |
Washer (OBSOLETE) |
1 |
|
| 60 |
206-0540 |
Washer (OBSOLETE) |
1 |
|
| 61 |
206-0576 |
Washer (OBSOLETE) |
1 |
|
| 62 |
206-0577 |
Nut lock (OBSOLETE) |
1 |
|
| 63 |
206-5134 |
Screw (OBSOLETE) |
2 |
|
| 64 |
206-4954 |
Washer 10x16 (OBSOLETE) |
1 |
|
| 65 |
206-4955 |
Screw M10x12 (OBSOLETE) |
1 |
|
| N/S |
206-4956 |
Right hand reduction gear assembly (OBSOLETE) |
2 |
|
|
|

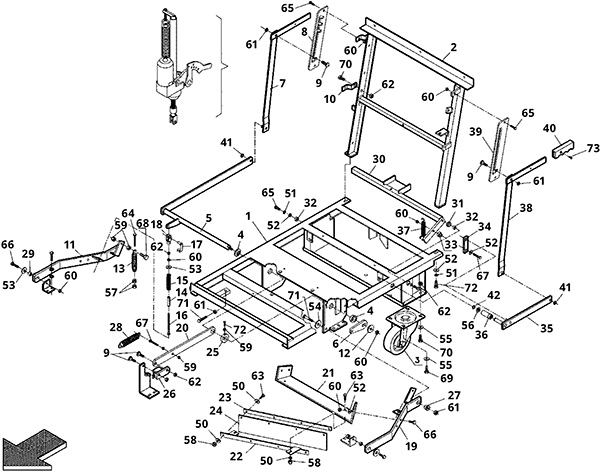

Frame Assembly - 206-0030 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-4957 |
Frame (OBSOLETE) |
1 |
|
| 2 |
206-4958 |
Rear frame (OBSOLETE) |
1 |
|
| 3 |
206-4959 |
Castor wheel (OBSOLETE) |
2 |
|
| 4 |
206-4960 |
Bushing (OBSOLETE) |
2 |
|
| 5 |
206-4961 |
Shaft (OBSOLETE) |
1 |
|
| 6 |
206-4962 |
Left hand lever (OBSOLETE) |
1 |
|
| 7 |
206-4963 |
Lever (OBSOLETE) |
1 |
|
| 8 |
206-4964 |
Blade (OBSOLETE) |
1 |
|
| 9 |
206-0845 |
Pin (OBSOLETE) |
4 |
|
| 10 |
206-4965 |
Bracket (OBSOLETE) |
1 |
|
| 11 |
206-4966 |
Right arm (OBSOLETE) |
1 |
|
| 12 |
206-4950 |
Washer (OBSOLETE) |
1 |
|
| 14 |
206-4967 |
Pipe (OBSOLETE) |
2 |
|
| 15 |
206-4968 |
Spring (OBSOLETE) |
2 |
|
| 16 |
206-4969 |
Screw M8x130 (OBSOLETE) |
2 |
|
| 17 |
206-0916 |
Pin (OBSOLETE) |
2 |
|
| 18 |
206-0918 |
Fork (OBSOLETE) |
2 |
|
| 19 |
206-4970 |
Left arm (OBSOLETE) |
1 |
|
| 20 |
206-4971 |
Arm (OBSOLETE) |
1 |
|
| 21 |
206-4972 |
Bar (OBSOLETE) |
1 |
|
| 22 |
206-4973 |
Support (OBSOLETE) |
1 |
|
| 23 |
206-4974 |
Blade (OBSOLETE) |
1 |
|
| 24 |
206-4975 |
Splash guard (OBSOLETE) |
1 |
|
| 25 |
206-4976 |
Stop ring (OBSOLETE) |
1 |
|
| 26 |
206-4977 |
Joint (OBSOLETE) |
1 |
|
| 27 |
206-4978 |
Bushing (OBSOLETE) |
2 |
|
| 28 |
206-4979 |
Spring (OBSOLETE) |
1 |
|
| 29 |
206-4980 |
Bushing (OBSOLETE) |
2 |
|
| 30 |
206-4981 |
Shaft (OBSOLETE) |
1 |
|
| 31 |
206-4982 |
Bushing (OBSOLETE) |
1 |
|
| 32 |
206-5116 |
Bushing (OBSOLETE) |
2 |
|
| 33 |
206-4983 |
Bushing (OBSOLETE) |
1 |
|
| 34 |
206-4984 |
Rod (OBSOLETE) |
1 |
|
| 35 |
206-4985 |
Lever (OBSOLETE) |
1 |
|
| 36 |
206-0847 |
Bushing (OBSOLETE) |
1 |
|
| 38 |
206-4986 |
Lever (OBSOLETE) |
1 |
|
| 39 |
206-4987 |
Blade (OBSOLETE) |
1 |
|
| 40 |
206-5156 |
Knob (OBSOLETE) |
2 |
|
| 41 |
206-0849 |
Seeger ring (OBSOLETE) |
2 |
|
| 42 |
206-0667 |
Seeger ring (OBSOLETE) |
1 |
|
| 50 |
206-4988 |
Washer 6x12 (OBSOLETE) |
3 |
|
| 51 |
206-0712 |
Washer (OBSOLETE) |
2 |
|
| 52 |
206-0540 |
Washer (OBSOLETE) |
4 |
|
| 53 |
206-0035 |
Washer (OBSOLETE) |
2 |
|
| 54 |
283-1787 |
WASHER 10X2.5X2.5 GROWER DIN 7980 GAL |
1 |
|
| 55 |
206-0504 |
Washer (OBSOLETE) |
2 |
|
| 56 |
206-0848 |
Washer (OBSOLETE) |
1 |
|
| 57 |
999-1308 |
Nut M6-1 hex stainless steel |
1 |
|
| 58 |
206-0655 |
Nut lock (OBSOLETE) |
2 |
|
| 59 |
206-0556 |
Nut (OBSOLETE) |
3 |
|
| 60 |
206-0494 |
Nut lock (OBSOLETE) |
7 |
|
| 61 |
206-5103 |
Nut (OBSOLETE) |
4 |
|
| 63 |
206-4989 |
Screw M6x16 (OBSOLETE) |
2 |
|
| 64 |
206-4990 |
Screw M6x60 (OBSOLETE) |
1 |
|
| 65 |
206-4991 |
Screw M8x22 (OBSOLETE) |
3 |
|
| 66 |
206-0503 |
Screw (OBSOLETE) |
2 |
|
| 67 |
999-0786 |
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
| 68 |
206-0751 |
Screw M8 x 45 (OBSOLETE) |
1 |
|
| 69 |
206-4955 |
Screw M10x12 (OBSOLETE) |
1 |
|
| 70 |
206-4992 |
Screw M10x22 (OBSOLETE) |
2 |
|
| 71 |
206-4993 |
Screw M10x55 (OBSOLETE) |
2 |
|
| 72 |
206-5134 |
Screw (OBSOLETE) |
2 |
|
| 73 |
206-0754 |
Screw M5 x 10 (OBSOLETE) |
1 |
|
|
|

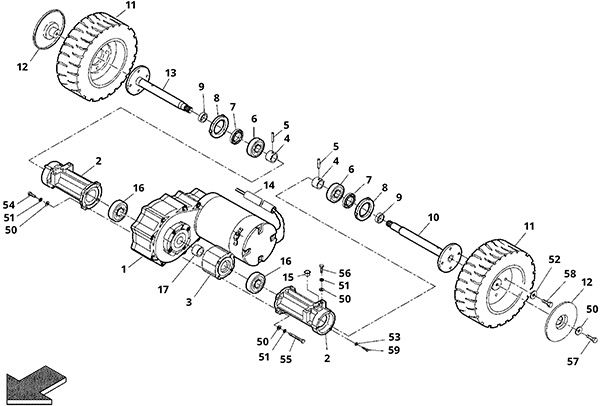

Traction Assembly - 206-0031 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
206-4994 |
36V 450W geared motor (OBSOLETE) |
1 |
|
| 1b |
206-4995 |
36V 450W motor (OBSOLETE) |
1 |
(motor only) |
| 1c |
206-4996 |
Carbon brushes (OBSOLETE) |
4 |
|
| 2 |
206-4997 |
Support (OBSOLETE) |
2 |
|
| 3 |
206-4998 |
Spacer (OBSOLETE) |
1 |
|
| 4 |
206-4999 |
Spacer (OBSOLETE) |
2 |
|
| 5 |
206-5486 |
Spring pin (OBSOLETE) |
2 |
|
| 6 |
206-5487 |
Bearing (OBSOLETE) |
2 |
|
| 7 |
206-5488 |
Oil seal (OBSOLETE) |
2 |
|
| 8 |
206-5489 |
Cover (OBSOLETE) |
2 |
|
| 9 |
206-5490 |
Spacer (OBSOLETE) |
2 |
|
| 10 |
206-5491 |
Left hand axle shaft (OBSOLETE) |
1 |
|
| 11a |
206-5492 |
Rubber wheel (OBSOLETE) |
2 |
|
| 11b |
206-5493 |
Rubber wheel (OBSOLETE) |
2 |
|
| 11c |
206-5494 |
Antiskid wheel (OBSOLETE) |
2 |
|
| 12 |
206-5495 |
Wheel cover (OBSOLETE) |
2 |
|
| 13 |
206-5496 |
Right hand axle shaft (OBSOLETE) |
1 |
|
| 14 |
206-0480 |
Sheath (OBSOLETE) |
1 |
|
| 15 |
206-5497 |
Cap (OBSOLETE) |
4 |
|
| 17 |
206-5498 |
Spacer (OBSOLETE) |
1 |
|
| 50 |
206-0540 |
Washer (OBSOLETE) |
4 |
|
| 51 |
206-0712 |
Washer (OBSOLETE) |
3 |
|
| 52 |
206-0504 |
Washer (OBSOLETE) |
1 |
|
| 53 |
206-5351 |
Washer lock (OBSOLETE) |
1 |
|
| 54 |
206-0495 |
Screw (OBSOLETE) |
1 |
|
| 55 |
206-5499 |
Screw M8x50 (OBSOLETE) |
1 |
|
| 56 |
206-4991 |
Screw M8x22 (OBSOLETE) |
1 |
|
| 57 |
206-1013 |
Screw (OBSOLETE) |
1 |
|
| 58 |
206-4992 |
Screw M10x22 (OBSOLETE) |
1 |
|
| 59 |
206-5500 |
Screw M5x16 (OBSOLETE) |
1 |
|
|
|

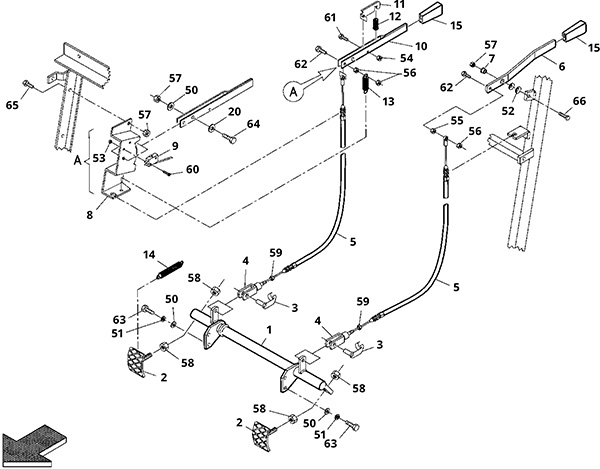

Brake Assembly - 206-0032 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-5501 |
Shaft (OBSOLETE) |
1 |
|
| 2 |
206-5502 |
Pad (OBSOLETE) |
2 |
|
| 3 |
206-0924 |
Pin (OBSOLETE) |
2 |
|
| 4 |
206-0923 |
Fork (OBSOLETE) |
2 |
|
| 5 |
206-5503 |
Brake cable (OBSOLETE) |
2 |
|
| 6 |
206-5504 |
Lever (OBSOLETE) |
1 |
|
| 7 |
206-5505 |
Bushing (OBSOLETE) |
1 |
|
| 8 |
206-5506 |
Support (OBSOLETE) |
1 |
|
| 9 |
206-0716 |
Microswitch (OBSOLETE) |
1 |
|
| 10 |
206-5311 |
Lever (OBSOLETE) |
1 |
|
| 11 |
206-5314 |
Lever (OBSOLETE) |
1 |
|
| 12 |
206-0991 |
Spring (OBSOLETE) |
1 |
|
| 14 |
206-4979 |
Spring (OBSOLETE) |
1 |
|
| 15 |
206-5286 |
Knob (OBSOLETE) |
2 |
|
| 20 |
N/A |
Not available |
1 |
(washer) |
| 50 |
206-0540 |
Washer (OBSOLETE) |
3 |
|
| 51 |
206-0712 |
Washer (OBSOLETE) |
2 |
|
| 52 |
206-5507 |
Washer (OBSOLETE) |
1 |
|
| 53 |
206-5348 |
Nut lock (OBSOLETE) |
1 |
|
| 54 |
206-0606 |
Nut lock (OBSOLETE) |
1 |
|
| 55 |
999-1308 |
Nut M6-1 hex stainless steel |
1 |
|
| 56 |
206-0553 |
Nut lock (OBSOLETE) |
3 |
|
| 57 |
206-0494 |
Nut lock (OBSOLETE) |
3 |
|
| 58 |
999-0503 |
Nut M12-1.75 hex stainless steel |
4 |
|
| 59 |
206-0556 |
Nut (OBSOLETE) |
2 |
|
| 60 |
206-5350 |
Screw M3 x 20mm (OBSOLETE) |
1 |
|
| 61 |
999-0528 |
Screw M4-.7 x 16mm pan head slotted zinc |
1 |
|
| 62 |
206-5508 |
Screw M6x25 (OBSOLETE) |
2 |
|
| 63 |
206-5134 |
Screw (OBSOLETE) |
2 |
|
| 64 |
206-4991 |
Screw M8x22 (OBSOLETE) |
1 |
|
| 65 |
206-0495 |
Screw (OBSOLETE) |
1 |
|
| 66 |
206-0503 |
Screw (OBSOLETE) |
1 |
|
|
|
Squeegee Frame Assembly - 206-0033 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-5509 |
Support (OBSOLETE) |
1 |
|
| 2 |
206-5510 |
Joint (OBSOLETE) |
1 |
|
| 3 |
206-5511 |
Pin (OBSOLETE) |
1 |
|
| 4 |
206-5512 |
Clip (OBSOLETE) |
2 |
|
| 5 |
206-5513 |
Arm (OBSOLETE) |
1 |
|
| 6 |
206-5514 |
Support (OBSOLETE) |
2 |
|
| 7 |
206-5515 |
Bushing (OBSOLETE) |
2 |
|
| 8 |
206-0844 |
Bumper wheels (pkg of 2) (OBSOLETE) |
2 |
|
| 9 |
206-5516 |
Spring (OBSOLETE) |
2 |
|
| 10 |
206-5517 |
Knob (OBSOLETE) |
2 |
|
| 11 |
206-5518 |
Handwheel (OBSOLETE) |
1 |
|
| 12 |
206-5519 |
Aduster (OBSOLETE) |
1 |
|
| 13 |
206-5520 |
Spring (OBSOLETE) |
1 |
|
| 14 |
206-5521 |
Push button (OBSOLETE) |
1 |
|
| 15 |
206-0594 |
Split pin (OBSOLETE) |
1 |
|
| 17 |
206-0020 |
Split pin (OBSOLETE) |
1 |
|
| 18 |
206-5523 |
Sheath (OBSOLETE) |
1 |
|
| 19 |
206-5524 |
Chain (OBSOLETE) |
1 |
|
| 20 |
206-5525 |
Bearing (OBSOLETE) |
1 |
|
| 21 |
206-5526 |
Arm (OBSOLETE) |
1 |
|
| 22 |
206-5527 |
Roller (OBSOLETE) |
1 |
|
| 23 |
206-5528 |
Snap ring (OBSOLETE) |
2 |
|
| 50 |
206-0540 |
Washer (OBSOLETE) |
2 |
|
| 51 |
206-0504 |
Washer (OBSOLETE) |
1 |
|
| 52 |
206-0035 |
Washer (OBSOLETE) |
1 |
|
| 53 |
206-5529 |
Washer (OBSOLETE) |
2 |
|
| 54 |
206-0576 |
Washer (OBSOLETE) |
1 |
|
| 55 |
206-5171 |
Washer lock (OBSOLETE) |
4 |
|
| 56 |
206-0494 |
Nut lock (OBSOLETE) |
2 |
|
| 57 |
206-0577 |
Nut lock (OBSOLETE) |
1 |
|
| 58 |
206-5103 |
Nut (OBSOLETE) |
2 |
|
| 59 |
206-0556 |
Nut (OBSOLETE) |
2 |
|
| 60 |
206-0927 |
Screw (OBSOLETE) |
1 |
|
| 61 |
206-5530 |
Screw M8x14 (OBSOLETE) |
1 |
|
| 62 |
206-5134 |
Screw (OBSOLETE) |
1 |
|
| 63 |
206-0495 |
Screw (OBSOLETE) |
1 |
|
| 64 |
206-0536 |
Screw (OBSOLETE) |
1 |
|
|
|

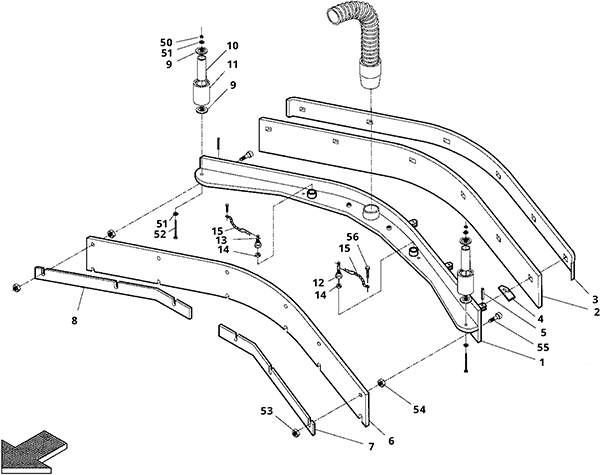

Squeegee Assembly - 206-0034 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-5531 |
Squeegee body (OBSOLETE) |
1 |
|
| 2a |
189-4378 |
Squeegee blade gum rubber |
1 |
|
| 2b |
206-0024 |
Squeegee blade gum rubber center (OBSOLETE) |
1 |
|
| 2c |
206-5532 |
Rear oil resistant squeegee rubber (OBSOLETE) |
1 |
|
| 3 |
206-0743 |
Squeegee blade (OBSOLETE) |
1 |
|
| 4 |
206-5533 |
Plate (OBSOLETE) |
6 |
|
| 5 |
206-5534 |
Spring pin (OBSOLETE) |
6 |
|
| 6 |
206-0744 |
Squeegee blade gum rubber front (OBSOLETE) |
1 |
|
| 7 |
206-5535 |
Left hand blade (OBSOLETE) |
1 |
|
| 8 |
206-5536 |
Right hand blade (OBSOLETE) |
1 |
|
| 9 |
206-5537 |
Special washer (OBSOLETE) |
4 |
|
| 10 |
206-5538 |
Pin (OBSOLETE) |
2 |
|
| 12 |
206-0745 |
Stud bolt (OBSOLETE) |
1 |
|
| 13 |
206-0746 |
Stud bolt (OBSOLETE) |
1 |
|
| 14 |
206-0747 |
Nut (OBSOLETE) |
2 |
|
| 15 |
206-5539 |
Chain with clip |
2 |
|
| 51 |
206-0504 |
Washer (OBSOLETE) |
2 |
|
| 52 |
206-5540 |
Screw (OBSOLETE) |
1 |
|
| 53 |
999-9131 |
Nut M6 x 1 nylon lock stainless steel |
1 |
|
| 54 |
206-0659 |
Nut (OBSOLETE) |
1 |
|
| 55 |
206-0657 |
Screw (OBSOLETE) |
1 |
|
| 56 |
206-0754 |
Screw M5 x 10 (OBSOLETE) |
1 |
|
|
|

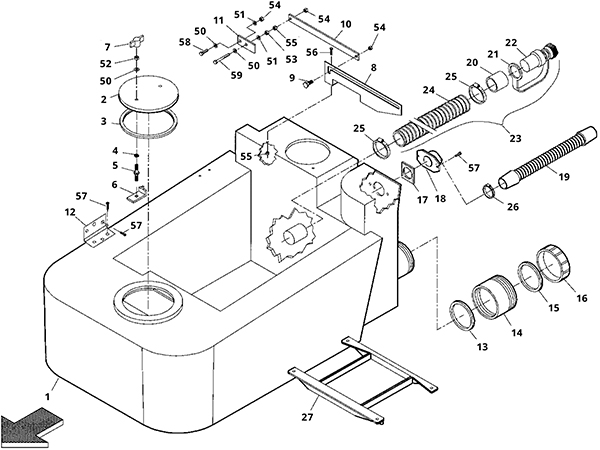

Recovery Tank Assembly - 206-0035 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-5541 |
Recovery tank (OBSOLETE) |
1 |
|
| 2 |
206-5218 |
Recovery tank lid (OBSOLETE) |
1 |
|
| 3 |
206-5542 |
Gasket (OBSOLETE) |
1 |
|
| 4 |
206-5219 |
Recovery tank lid gasket (OBSOLETE) |
2 |
|
| 5 |
206-5543 |
Stud bolt (OBSOLETE) |
2 |
|
| 6 |
206-5544 |
Holdfast (OBSOLETE) |
2 |
|
| 7 |
206-5545 |
Wing nut (OBSOLETE) |
2 |
|
| 8 |
206-5546 |
Support (OBSOLETE) |
1 |
|
| 9 |
206-5547 |
Stud bolt (OBSOLETE) |
1 |
|
| 10 |
206-5548 |
Support (OBSOLETE) |
1 |
|
| 11 |
206-5549 |
Plate (OBSOLETE) |
1 |
|
| 12 |
206-5550 |
Hinge (OBSOLETE) |
2 |
|
| 13 |
206-5551 |
Gasket (OBSOLETE) |
1 |
|
| 14 |
206-5552 |
Extension tube (OBSOLETE) |
1 |
|
| 15 |
206-3836 |
Drain cover gasket (OBSOLETE) |
1 |
|
| 16 |
206-5553 |
Cover (OBSOLETE) |
1 |
|
| 18 |
206-5554 |
Fitting (OBSOLETE) |
1 |
|
| 19 |
206-5555 |
Suction hose (OBSOLETE) |
1 |
|
| 20 |
206-5430 |
Sleeve (OBSOLETE) |
1 |
|
| 21 |
206-5429 |
Clamp (OBSOLETE) |
1 |
|
| 22 |
206-5405 |
Drain plug (OBSOLETE) |
1 |
|
| 23 |
206-5428 |
Drain hose assembly (OBSOLETE) |
1 |
(includes 20-25) |
| 24 |
206-5217 |
Drain hose (OBSOLETE) |
1 |
|
| 27 |
206-5556 |
Support (OBSOLETE) |
1 |
|
| 50 |
206-0952 |
Washer (OBSOLETE) |
3 |
|
| 51 |
206-0540 |
Washer (OBSOLETE) |
2 |
|
| 52 |
999-1424 |
Nut M8-1.25 hex stainless steel |
1 |
|
| 53 |
206-0556 |
Nut (OBSOLETE) |
1 |
|
| 54 |
206-0494 |
Nut lock (OBSOLETE) |
2 |
|
| 55 |
206-0655 |
Nut lock (OBSOLETE) |
1 |
|
| 56 |
206-5558 |
Screw M6x25 (OBSOLETE) |
1 |
|
| 57 |
283-1584 |
SCREW 5X20 UNI7687 GALV |
3 |
|
| 58 |
206-5559 |
Screw M8x25 (OBSOLETE) |
1 |
|
| 59 |
206-5560 |
Screw M8x60 (OBSOLETE) |
1 |
|
|
|

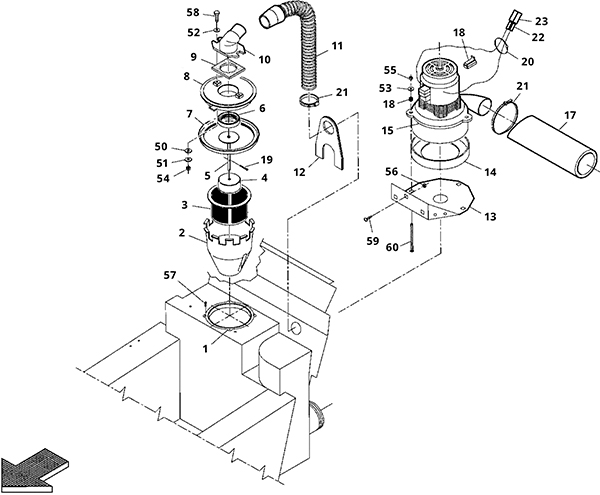

Vacuum Assembly - 206-0036 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-0585 |
Filter holder (OBSOLETE) |
1 |
|
| 2 |
206-0597 |
Protection (OBSOLETE) |
1 |
|
| 3 |
206-5561 |
Filter (OBSOLETE) |
1 |
|
| 5 |
206-5562 |
Rod (OBSOLETE) |
1 |
|
| 6 |
206-0592 |
Gasket (OBSOLETE) |
1 |
|
| 7 |
206-0590 |
Gasket (OBSOLETE) |
1 |
|
| 10 |
206-0587 |
Opening (OBSOLETE) |
1 |
|
| 11 |
206-5555 |
Suction hose (OBSOLETE) |
1 |
|
| 12 |
206-5563 |
Protection (OBSOLETE) |
1 |
|
| 13 |
206-5564 |
Support (OBSOLETE) |
1 |
|
| 14 |
206-5565 |
Shroud (OBSOLETE) |
1 |
|
| 15 |
206-5221 |
Vacuum motor (OBSOLETE) |
1 |
|
| 17 |
206-5566 |
Deadening hose (OBSOLETE) |
1 |
|
| 18 |
206-0602 |
Fairlead (OBSOLETE) |
3 |
|
| 19 |
206-0594 |
Split pin (OBSOLETE) |
2 |
|
| 22 |
283-1834 |
CONNECTOR CONTACT 30A |
2 |
|
| 23 |
189-6323 |
30amp electrical housing connector |
2 |
|
| 50 |
206-0605 |
Washer (OBSOLETE) |
1 |
|
| 51 |
206-5265 |
Washer 4 x 9 (OBSOLETE) |
1 |
|
| 53 |
206-0554 |
Washer (OBSOLETE) |
1 |
|
| 54 |
206-5319 |
Nut (OBSOLETE) |
1 |
|
| 55 |
206-0553 |
Nut lock (OBSOLETE) |
1 |
|
| 56 |
206-0498 |
Lock nut (OBSOLETE) |
1 |
|
| 57 |
206-0581 |
Screw (OBSOLETE) |
1 |
|
| 59 |
206-5567 |
Screw M5x16 (OBSOLETE) |
1 |
|
| 60 |
206-5568 |
Screw M6x90 (OBSOLETE) |
1 |
|
| N/S |
206-1004 |
Carbon brush motor (OBSOLETE) |
2 |
|
| KIT1 |
206-5569 |
Filter Assembly (OBSOLETE) |
1 |
(includes 2-7, 19) |
|
|

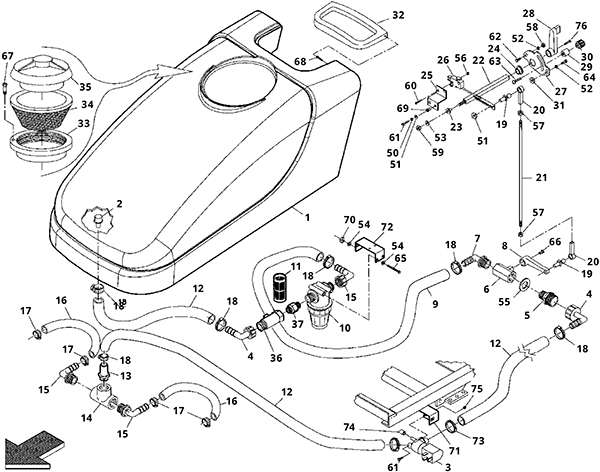

Solution Tank Asembly - 206-0037 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-5570 |
Solution tank (OBSOLETE) |
1 |
|
| 2 |
206-5571 |
Connector (OBSOLETE) |
1 |
|
| 3 |
206-0028 |
Solenoid valve (OBSOLETE) |
1 |
|
| 4 |
206-5572 |
Connector (OBSOLETE) |
3 |
|
| 5 |
206-0970 |
1/2 inch fitting (OBSOLETE) |
1 |
|
| 6 |
206-5216 |
Manual solution valve (OBSOLETE) |
1 |
|
| 7 |
206-5573 |
Connector (OBSOLETE) |
2 |
|
| 8 |
206-5574 |
Cock lever (OBSOLETE) |
1 |
|
| 9 |
206-5575 |
Hose (OBSOLETE) |
1 |
|
| 10 |
206-5427 |
Solution filter (OBSOLETE) |
1 |
|
| 11 |
206-5576 |
Filter catridge (OBSOLETE) |
1 |
|
| 12 |
206-5577 |
Hose (OBSOLETE) |
3 |
|
| 13 |
206-5578 |
Connector (OBSOLETE) |
1 |
|
| 14 |
206-5579 |
Fitting (OBSOLETE) |
1 |
|
| 15 |
206-5580 |
Connector (OBSOLETE) |
3 |
|
| 16 |
206-5581 |
Hose (OBSOLETE) |
2 |
|
| 17 |
206-5582 |
Clamp (OBSOLETE) |
4 |
|
| 18 |
206-0620 |
Clamp (OBSOLETE) |
6 |
|
| 19 |
206-5583 |
Pin (OBSOLETE) |
2 |
|
| 20 |
206-5584 |
Adjustable head (OBSOLETE) |
2 |
|
| 21 |
206-5585 |
Rod (OBSOLETE) |
1 |
|
| 22 |
206-5586 |
Valve lever (OBSOLETE) |
1 |
|
| 23 |
206-5587 |
Bushing (OBSOLETE) |
1 |
|
| 24 |
206-5588 |
Bushing (OBSOLETE) |
1 |
|
| 25 |
206-5589 |
Support (OBSOLETE) |
1 |
|
| 26 |
206-0716 |
Microswitch (OBSOLETE) |
1 |
|
| 27 |
206-5590 |
Adjuster (OBSOLETE) |
1 |
|
| 28 |
206-5591 |
Valve lever (OBSOLETE) |
1 |
|
| 29 |
206-5592 |
Spacer (OBSOLETE) |
1 |
|
| 30 |
206-5593 |
Knob (OBSOLETE) |
1 |
|
| 31 |
206-5594 |
Special washer (OBSOLETE) |
1 |
|
| 32 |
206-5595 |
Door (OBSOLETE) |
1 |
|
| 33 |
206-5596 |
Ring with gasket (OBSOLETE) |
1 |
|
| 34 |
206-5597 |
Filter (OBSOLETE) |
1 |
|
| 35 |
206-5598 |
Cover (OBSOLETE) |
1 |
|
| 36 |
206-5599 |
Cock (OBSOLETE) |
1 |
|
| 37 |
206-5600 |
Nipple (OBSOLETE) |
1 |
|
| 50 |
206-0534 |
Washer lock (OBSOLETE) |
1 |
|
| 51 |
206-0913 |
Washer (OBSOLETE) |
2 |
|
| 52 |
206-0508 |
Washer (OBSOLETE) |
2 |
|
| 53 |
206-0607 |
Washer (OBSOLETE) |
1 |
|
| 54 |
206-0540 |
Washer (OBSOLETE) |
1 |
|
| 55 |
206-5529 |
Washer (OBSOLETE) |
1 |
|
| 56 |
206-5348 |
Nut lock (OBSOLETE) |
1 |
|
| 57 |
206-0636 |
Nut (OBSOLETE) |
2 |
|
| 58 |
206-5601 |
Nut M5 brass (OBSOLETE) |
1 |
|
| 59 |
206-0553 |
Nut lock (OBSOLETE) |
1 |
|
| 60 |
206-5350 |
Screw M3 x 20mm (OBSOLETE) |
1 |
|
| 61 |
999-0521 |
Screw M4-.7 x 12mm pan head phillips zinc |
2 |
|
| 62 |
206-5602 |
Screw M5x8 (OBSOLETE) |
1 |
|
| 63 |
206-0911 |
Screw (OBSOLETE) |
1 |
|
| 64 |
206-0574 |
Screw (OBSOLETE) |
1 |
|
| 65 |
206-5603 |
Screw M8x70 (OBSOLETE) |
1 |
|
| 66 |
206-5604 |
Screw 3/16 inch x 1/4 inch (OBSOLETE) |
1 |
|
| 67 |
206-5605 |
Screw (OBSOLETE) |
1 |
|
| 68 |
206-5606 |
Screw (OBSOLETE) |
1 |
|
| 69 |
206-5607 |
Insert M4 (OBSOLETE) |
2 |
|
| 70 |
206-0494 |
Nut lock (OBSOLETE) |
1 |
|
| 71 |
206-5608 |
Support (OBSOLETE) |
1 |
|
| 72 |
206-5609 |
Support (OBSOLETE) |
1 |
|
| 73 |
206-0623 |
Clamp (OBSOLETE) |
2 |
|
| 74 |
206-0029 |
Plug (OBSOLETE) |
1 |
|
| 75 |
206-0606 |
Nut lock (OBSOLETE) |
2 |
|
| 76 |
206-5610 |
Screw (OBSOLETE) |
1 |
|
|
|

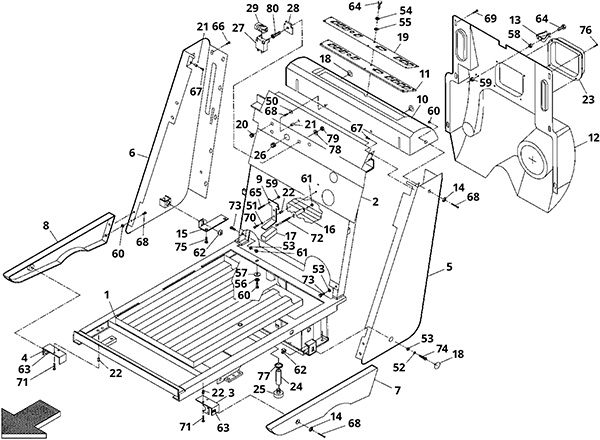

Body Assembly - 206-0038 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-5611 |
Panel (OBSOLETE) |
1 |
|
| 2 |
206-5612 |
Plate (OBSOLETE) |
1 |
|
| 3 |
206-5609 |
Support (OBSOLETE) |
1 |
|
| 4 |
206-5613 |
Right hand support (OBSOLETE) |
1 |
|
| 5 |
206-5614 |
Left hand panel (OBSOLETE) |
1 |
|
| 6 |
206-5615 |
Right hand panel (OBSOLETE) |
1 |
|
| 7 |
206-5616 |
Left hand cover (OBSOLETE) |
1 |
|
| 8 |
206-5617 |
Right hand cover (OBSOLETE) |
1 |
|
| 9 |
206-5618 |
Support (OBSOLETE) |
1 |
|
| 10 |
206-5619 |
Instrument board (OBSOLETE) |
1 |
|
| 11 |
206-5620 |
Plate (OBSOLETE) |
1 |
|
| 12 |
206-5621 |
Rear cover (OBSOLETE) |
1 |
|
| 13 |
206-0571 |
Hook (OBSOLETE) |
1 |
|
| 14 |
206-0573 |
Washer special (OBSOLETE) |
2 |
|
| 15 |
206-5622 |
Support (OBSOLETE) |
1 |
|
| 16 |
206-4967 |
Pipe (OBSOLETE) |
1 |
|
| 17 |
206-5623 |
Gasket (OBSOLETE) |
1 |
|
| 18 |
206-5624 |
Cap (OBSOLETE) |
3 |
|
| 19 |
206-5625 |
Decal (OBSOLETE) |
1 |
|
| 20 |
206-0602 |
Fairlead (OBSOLETE) |
2 |
|
| 21 |
206-5626 |
M5 insert (OBSOLETE) |
8 |
|
| 22 |
206-5627 |
M6 insert (OBSOLETE) |
9 |
|
| 23 |
206-5628 |
Cover (OBSOLETE) |
1 |
|
| 24 |
206-5629 |
Hose (OBSOLETE) |
1 |
|
| 25 |
206-0965 |
Cap (OBSOLETE) |
1 |
|
| 26 |
206-5345 |
Fairlead (OBSOLETE) |
1 |
|
| 27 |
206-0686 |
Fuse holder (OBSOLETE) |
1 |
|
| 28 |
206-0687 |
Plaque (OBSOLETE) |
1 |
|
| 29 |
206-5353 |
Cover (OBSOLETE) |
1 |
|
| 51 |
206-0607 |
Washer (OBSOLETE) |
1 |
|
| 52 |
206-5171 |
Washer lock (OBSOLETE) |
1 |
|
| 53 |
206-0540 |
Washer (OBSOLETE) |
3 |
|
| 55 |
206-5630 |
Washer (OBSOLETE) |
1 |
|
| 56 |
206-0712 |
Washer (OBSOLETE) |
1 |
|
| 57 |
206-0035 |
Washer (OBSOLETE) |
1 |
|
| 58 |
206-5349 |
Nut (OBSOLETE) |
1 |
|
| 59 |
206-0606 |
Nut lock (OBSOLETE) |
2 |
|
| 60 |
206-0498 |
Lock nut (OBSOLETE) |
3 |
|
| 61 |
206-0494 |
Nut lock (OBSOLETE) |
2 |
|
| 62 |
999-1651 |
Nut M8-1 hex stainless steel |
2 |
|
| 63 |
206-0979 |
Nut (OBSOLETE) |
2 |
|
| 64 |
206-5631 |
Screw M4x16 (OBSOLETE) |
2 |
|
| 65 |
206-5632 |
Screw M4x30 (OBSOLETE) |
1 |
|
| 66 |
206-0754 |
Screw M5 x 10 (OBSOLETE) |
1 |
|
| 67 |
206-0709 |
Screw (OBSOLETE) |
2 |
|
| 68 |
206-5633 |
Screw M5x16 (OBSOLETE) |
4 |
|
| 69 |
206-5634 |
Screw M5x20 (OBSOLETE) |
1 |
|
| 70 |
206-0555 |
Screw (OBSOLETE) |
1 |
|
| 71 |
206-5558 |
Screw M6x25 (OBSOLETE) |
2 |
|
| 72 |
206-5635 |
Screw M6x100 (OBSOLETE) |
1 |
|
| 73 |
206-5134 |
Screw (OBSOLETE) |
2 |
|
| 74 |
206-4991 |
Screw M8x22 (OBSOLETE) |
1 |
|
| 75 |
206-5295 |
Bolt M10 x 25 hex (OBSOLETE) |
1 |
|
| 76 |
206-5636 |
Screw M4x20 (OBSOLETE) |
1 |
|
| 77 |
206-0620 |
Clamp (OBSOLETE) |
1 |
|
| 78 |
206-1018 |
Washer (OBSOLETE) |
1 |
|
| 79 |
206-5359 |
Nut (OBSOLETE) |
1 |
|
| 80 |
206-5637 |
Screw M3x10 (OBSOLETE) |
1 |
|
|
|

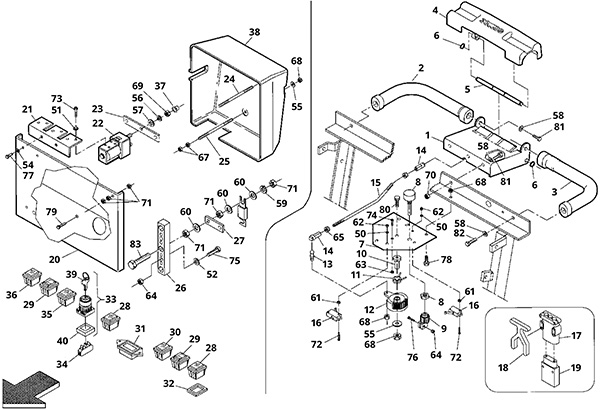

Electrical Components and Drive Control Assembly - 206-0039 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-5638 |
Support (OBSOLETE) |
1 |
|
| 2 |
206-5639 |
Right hand handle bar (OBSOLETE) |
1 |
|
| 3 |
206-5640 |
Left hand handle bar (OBSOLETE) |
1 |
|
| 4 |
206-5641 |
Lever (OBSOLETE) |
1 |
|
| 5 |
206-5642 |
Pin (OBSOLETE) |
1 |
|
| 6 |
206-0849 |
Seeger ring (OBSOLETE) |
2 |
|
| 7 |
206-5643 |
Control base (OBSOLETE) |
1 |
|
| 8 |
206-5644 |
Potentiometer (OBSOLETE) |
1 |
|
| 9 |
206-5645 |
Pinion (OBSOLETE) |
1 |
|
| 10 |
206-5646 |
Bushing (OBSOLETE) |
1 |
|
| 11 |
206-5647 |
Spring (OBSOLETE) |
1 |
|
| 12 |
206-5648 |
Cam wheel (OBSOLETE) |
1 |
|
| 13 |
206-5583 |
Pin (OBSOLETE) |
2 |
|
| 14 |
206-5584 |
Adjustable head (OBSOLETE) |
2 |
|
| 15 |
206-5649 |
Tie rod (OBSOLETE) |
1 |
|
| 16 |
206-5182 |
Microswitch 3x22 (OBSOLETE) |
2 |
|
| 17 |
206-1026 |
2 cables black-red and connector 80a (OBSOLETE) |
1 |
|
| 18 |
206-1015 |
Connector lever (OBSOLETE) |
1 |
|
| 19 |
250-1232 |
Female connector |
1 |
|
| 20 |
206-5650 |
Panel (OBSOLETE) |
1 |
|
| 21 |
206-5651 |
Support (OBSOLETE) |
1 |
|
| 22 |
206-5652 |
Remote control switch (OBSOLETE) |
3 |
|
| 23 |
206-5653 |
Bridge (OBSOLETE) |
1 |
|
| 24 |
206-5654 |
Stud bolt (OBSOLETE) |
2 |
|
| 25 |
206-0603 |
Bolt stud (OBSOLETE) |
1 |
|
| 26 |
206-5655 |
Fuseholder (OBSOLETE) |
2 |
|
| 27 |
206-5656 |
Bridge (OBSOLETE) |
1 |
|
| 28 |
206-5657 |
Signal lamp (green) (OBSOLETE) |
2 |
|
| 29 |
206-5215 |
Toggle switch (OBSOLETE) |
2 |
|
| 30 |
206-0720 |
Battery signal |
1 |
|
| 31 |
206-5658 |
Hour meter (OBSOLETE) |
1 |
(optional) |
| 32 |
206-5344 |
Gasket (OBSOLETE) |
7 |
|
| 33 |
206-5214 |
Master switch (OBSOLETE) |
1 |
(includes 39-40) |
| 34 |
189-6342 |
Key switch contact |
1 |
|
| 35 |
206-1043 |
Switch (OBSOLETE) |
1 |
|
| 36 |
206-5659 |
Signal lamp (red) (OBSOLETE) |
1 |
|
| 37 |
206-0880 |
Cover (OBSOLETE) |
6 |
|
| 38 |
206-5660 |
Protection (OBSOLETE) |
1 |
|
| 40 |
189-6343 |
Switch flange |
1 |
|
| 50 |
206-1018 |
Washer (OBSOLETE) |
2 |
|
| 51 |
206-0534 |
Washer lock (OBSOLETE) |
1 |
|
| 52 |
N/A |
Not available |
1 |
(washer) |
| 54 |
206-0607 |
Washer (OBSOLETE) |
1 |
|
| 55 |
206-0554 |
Washer (OBSOLETE) |
2 |
|
| 56 |
206-0712 |
Washer (OBSOLETE) |
1 |
|
| 57 |
206-0713 |
Washer (OBSOLETE) |
1 |
|
| 58 |
206-0540 |
Washer (OBSOLETE) |
3 |
|
| 59 |
283-1787 |
WASHER 10X2.5X2.5 GROWER DIN 7980 GAL |
1 |
|
| 60 |
206-5661 |
Washer brass (OBSOLETE) |
3 |
|
| 61 |
206-5662 |
Nut M3 brass (OBSOLETE) |
2 |
|
| 62 |
206-5348 |
Nut lock (OBSOLETE) |
2 |
|
| 63 |
206-5349 |
Nut (OBSOLETE) |
1 |
|
| 64 |
206-0606 |
Nut lock (OBSOLETE) |
2 |
|
| 65 |
206-0636 |
Nut (OBSOLETE) |
1 |
|
| 66 |
206-0498 |
Lock nut (OBSOLETE) |
1 |
|
| 67 |
999-1308 |
Nut M6-1 hex stainless steel |
1 |
|
| 68 |
206-0553 |
Nut lock (OBSOLETE) |
3 |
|
| 69 |
206-0711 |
Nut brass (OBSOLETE) |
1 |
|
| 70 |
206-0494 |
Nut lock (OBSOLETE) |
1 |
|
| 71 |
206-5663 |
Nut M10 brass (OBSOLETE) |
4 |
|
| 72 |
206-5350 |
Screw M3 x 20mm (OBSOLETE) |
2 |
|
| 74 |
206-5631 |
Screw M4x16 (OBSOLETE) |
1 |
|
| 75 |
206-5664 |
Screw M4x20 (OBSOLETE) |
1 |
|
| 76 |
206-5665 |
Screw M4x20 (OBSOLETE) |
1 |
|
| 77 |
206-0682 |
Screw (OBSOLETE) |
1 |
|
| 78 |
206-0555 |
Screw (OBSOLETE) |
1 |
|
| 79 |
206-5508 |
Screw M6x25 (OBSOLETE) |
1 |
|
| 80 |
206-0699 |
Screw (OBSOLETE) |
1 |
|
| 81 |
206-1013 |
Screw (OBSOLETE) |
2 |
|
| 82 |
206-5134 |
Screw (OBSOLETE) |
1 |
|
| 83 |
206-5666 |
Screw M10x16 (OBSOLETE) |
1 |
|
| N/S |
206-0912 |
Washer (OBSOLETE) |
1 |
|
| N/S |
250-1640 |
Screw M8 x 14mm |
1 |
|
|
|

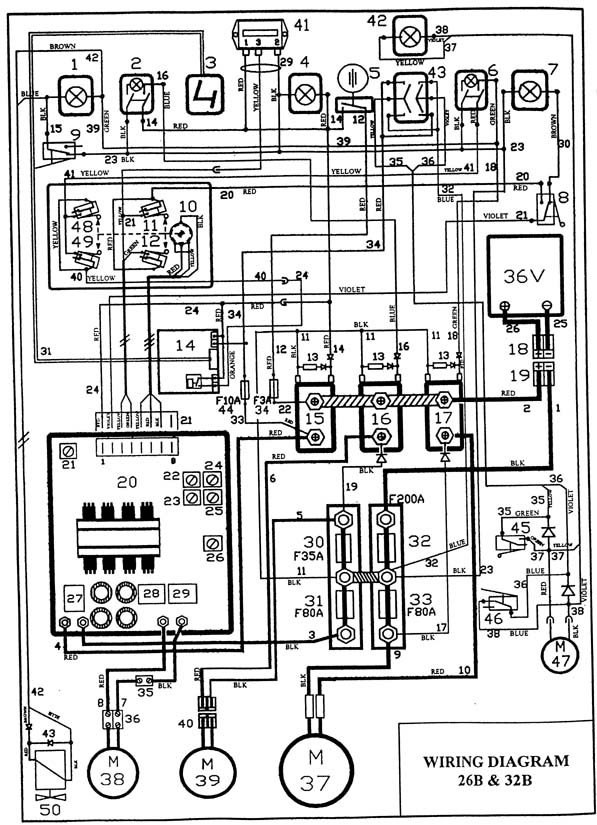

Wiring Diagram 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

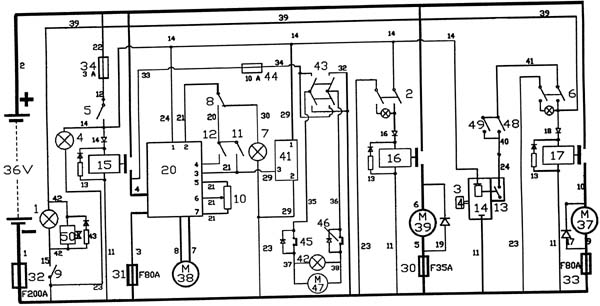

Wiring Diagram 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

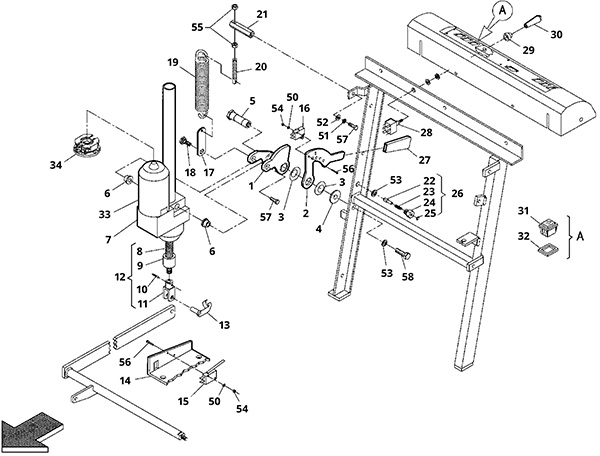

Actuator Assembly - 206-1004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-5667 |
Support (OBSOLETE) |
1 |
|
| 2 |
206-5668 |
Lever (OBSOLETE) |
1 |
|
| 3 |
206-5669 |
Washer (OBSOLETE) |
2 |
|
| 4 |
206-5670 |
Bushing (OBSOLETE) |
1 |
|
| 5 |
206-5671 |
Pin (OBSOLETE) |
1 |
|
| 6 |
206-5672 |
Bushing (OBSOLETE) |
2 |
|
| 7 |
206-0832 |
Actuator assembly (OBSOLETE) |
1 |
|
| 8 |
206-5673 |
Threaded shaft (OBSOLETE) |
1 |
|
| 9 |
206-5674 |
Spacer (OBSOLETE) |
1 |
|
| 10 |
206-5675 |
Spring pin (OBSOLETE) |
1 |
|
| 11 |
206-5676 |
Fork (OBSOLETE) |
1 |
|
| 12 |
206-5677 |
Shaft (OBSOLETE) |
1 |
|
| 13 |
206-5678 |
Pin (OBSOLETE) |
1 |
|
| 14 |
206-5679 |
Right hand support (OBSOLETE) |
1 |
|
| 15 |
206-5680 |
Brush up microswitch (OBSOLETE) |
1 |
|
| 16 |
206-5681 |
Brush down microswitch (OBSOLETE) |
1 |
|
| 17 |
206-5682 |
Tie rod (OBSOLETE) |
1 |
|
| 18 |
206-5683 |
Special screw (OBSOLETE) |
1 |
|
| 19 |
206-5684 |
Spring (OBSOLETE) |
1 |
|
| 20 |
206-5685 |
Tie rod (OBSOELTE) |
1 |
|
| 21 |
206-5686 |
Stud bolt (OBSOLETE) |
1 |
|
| 22 |
206-5687 |
Pin (OBSOLETE) |
1 |
|
| 23 |
206-5688 |
Spring (OBSOLETE) |
1 |
|
| 24 |
206-5689 |
Bracket (OBSOLETE) |
1 |
|
| 25 |
206-0667 |
Seeger ring (OBSOLETE) |
1 |
|
| 26 |
206-5690 |
Pin assembly (OBSOLETE) |
1 |
|
| 27 |
206-5286 |
Knob (OBSOLETE) |
1 |
|
| 28 |
206-5691 |
Commutator (OBSOLETE) |
1 |
|
| 29 |
206-5692 |
Cap (OBSOLETE) |
1 |
|
| 30 |
206-0627 |
Knob (OBSOLETE) |
1 |
|
| 31 |
206-5693 |
Signal lamp (yellow) (OBSOLETE) |
1 |
|
| 32 |
206-5344 |
Gasket (OBSOLETE) |
1 |
|
| 33 |
206-5694 |
Motor and pinion (OBSOLETE) |
1 |
|
| 34 |
206-5695 |
Carbon brush holder assembly (OBSOLETE) |
1 |
|
| 50 |
206-5696 |
Washer (OBSOLETE) |
2 |
|
| 51 |
206-0712 |
Washer (OBSOLETE) |
1 |
|
| 52 |
206-0540 |
Washer (OBSOLETE) |
1 |
|
| 53 |
206-5697 |
Lock washer (OBSOLETE) |
2 |
|
| 54 |
206-5348 |
Nut lock (OBSOLETE) |
2 |
|
| 55 |
206-0556 |
Nut (OBSOLETE) |
2 |
|
| 56 |
206-5350 |
Screw M3 x 20mm (OBSOLETE) |
2 |
|
| 57 |
206-5134 |
Screw (OBSOLETE) |
2 |
|
| 58 |
999-0504 |
Bolt M12-1.75 x 35mm hex hd stainless steel full thread |
1 |
|
|
|
- Batteries, Brushes, and Chargers - 206-8014 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
996-3078 |
16 inch value stripping brush assembly (OBSOLETE) |
2 |
Carlisle |
| 0.9835 |
996-0415 |
16 inch polypropylene scrubbing brush |
2 |
|
| 0.9835 |
996-0414 |
16 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 0.9835 |
996-0412 |
16 inch heavy grit stripping brush - 80 grit |
2 |
|
| 0.9835 |
996-0341 |
Drive lugs - plastic (pkg of 3) |
2 |
|
| 0.9835 |
996-0417 |
16 inch Pad driver |
2 |
|
| 0.9835 |
996-0413 |
16 inch medium grit scrubbing brush - 180 grit |
2 |
|
|
|
- Commonly Asked For Parts - 206-9991 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-0743 |
Squeegee blade (OBSOLETE) |
|
|
| 02 |
206-0024 |
Squeegee blade gum rubber center (OBSOLETE) |
|
|
| 03 |
206-0744 |
Squeegee blade gum rubber front (OBSOLETE) |
|
|
| 04 |
206-0745 |
Stud bolt (OBSOLETE) |
|
|
| 05 |
206-0746 |
Stud bolt (OBSOLETE) |
|
|
| 06 |
206-0747 |
Nut (OBSOLETE) |
|
|
| 07 |
206-0748 |
Coupling (OBSOLETE) |
|
|
| 08 |
206-0494 |
Nut lock (OBSOLETE) |
|
|
| 10 |
206-0607 |
Washer (OBSOLETE) |
|
|
| 11 |
206-0749 |
Screw M6 x 35 (OBSOLETE) |
|
|
| 12 |
206-0750 |
Squeegee blade (OBSOLETE) |
|
|
| 14 |
206-0751 |
Screw M8 x 45 (OBSOLETE) |
|
|
| 15 |
206-0752 |
Washer 3/4 ID (OBSOLETE) |
|
|
| 16 |
206-0753 |
Base cover (OBSOLETE) |
|
|
| 17 |
206-0754 |
Screw M5 x 10 (OBSOLETE) |
|
|
| 18 |
206-0755 |
Splash guard (OBSOLETE) |
|
|
| 19 |
206-0756 |
Squeegee blade (OBSOLETE) |
|
|
|
|
- Pads - 17 inch - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Frequently Replaced Parts - 999-9643 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0003 |
6V 225Ah wet battery (SNSR) |
6 |
|
|
162-0043 |
6V 224Ah AGM battery (Group GC2) |
6 |
|
|
162-5062 |
36V 20amp battery charger with small SB50 gray plug |
1 |
|
|
162-9024 |
36V 12amp battery charger with small SB50 gray plug |
1 |
|
|
991-2112 |
175amp charger plug with pins (gray) SB175 |
1 |
|
|
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
|
206-5539 |
Chain with clip |
2 |
|
|
206-0028 |
Solenoid valve (OBSOLETE) |
1 |
|
|
206-5427 |
Solution filter (OBSOLETE) |
1 |
|
|
206-0750 |
Squeegee blade (OBSOLETE) |
1 |
|
|
206-0756 |
Squeegee blade (OBSOLETE) |
1 |
|
|
189-4378 |
Squeegee blade gum rubber |
1 |
|
|
206-0024 |
Squeegee blade gum rubber center (OBSOLETE) |
1 |
|
|
206-5532 |
Rear oil resistant squeegee rubber (OBSOLETE) |
1 |
|
|
206-0743 |
Squeegee blade (OBSOLETE) |
1 |
|
|
206-5218 |
Recovery tank lid (OBSOLETE) |
1 |
|
|
206-5219 |
Recovery tank lid gasket (OBSOLETE) |
2 |
|
|
206-5405 |
Drain plug (OBSOLETE) |
1 |
|
|
206-5217 |
Drain hose (OBSOLETE) |
1 |
|
|
206-5221 |
Vacuum motor (OBSOLETE) |
1 |
(OEM) |
|
991-1202 |
36V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
|
206-4996 |
Carbon brushes (OBSOLETE) |
4 |
|
|
206-4919 |
Polyurethane brush (OBSOLETE) |
1 |
|
|
206-4920 |
Pad driver (OBSOLETE) |
1 |
|
|
|
