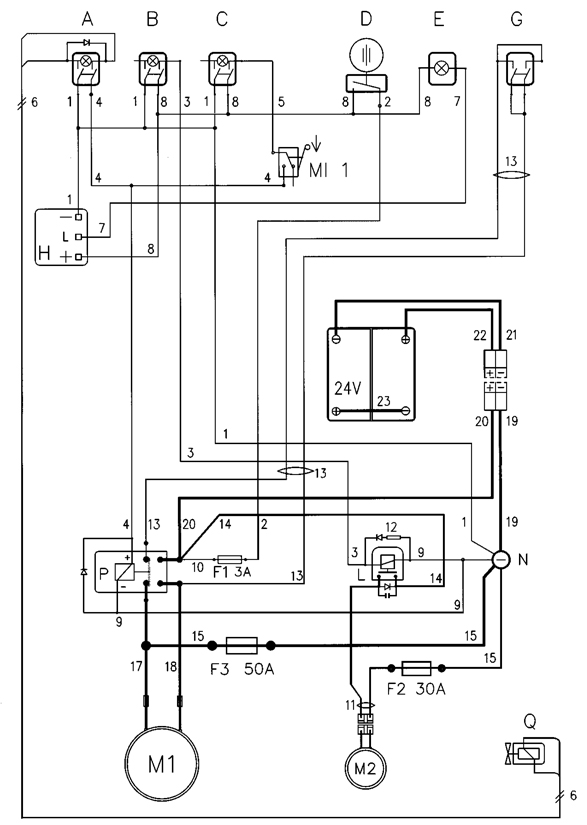

Wiring Diagram 1 - 206-0015 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A |
206-5177 |
Bipolar switch green (OBSOLETE) |
|
(solenoid valve solution) |
| B |
206-5177 |
Bipolar switch green (OBSOLETE) |
|
(vacuum motor) |
| C |
206-5177 |
Bipolar switch green (OBSOLETE) |
|
(motor brushes) |
| Da |
206-0023 |
Contact (OBSOLETE) |
|
(on/off general) (before 08-2000) |
| Db |
189-6342 |
Key switch contact |
|
(on/off general) (after 08-2000) |
| E |
206-5178 |
Green signal protected 24v (OBSOLETE) |
|
(control batteries) |
| F1 |
206-0685 |
3amp fuse (OBSOLETE) |
|
(controls) |
| F2 |
206-0702 |
30amp fuse (OBSOLETE) |
|
(vacuum motor) |
| F3 |
206-0701 |
Fuse 50A (OBSOLETE) |
|
(brush motor) |
| H |
206-5180 |
Check card control batteries 24v (OBSOLETE) |
|
|
| H1 |
N/A |
Not available |
|
(check card control gel batteries 24V) |
| L |
206-5354 |
24V 30amp relay (OBSOLETE) |
|
(vacuum motor) |
| M1 |
206-5127 |
Motor (OBSOLETE) |
|
|
| M2 |
206-5181 |
24V vacuum motor |
|
|
| MI-1 |
206-5182 |
Microswitch 3x22 (OBSOLETE) |
|
(motor brushes) |
| N |
206-5183 |
Insulator M5x25 ff (OBSOLETE) |
|
(negative general) |
| P |
206-5184 |
Remote control switch 24v double w/ diode (OBSOLETE) |
|
(brush motor) |
| Q |
N/A |
Not available |
|
(coil) |
| 1/6 |
206-5269 |
Switch Series Cables and Connectors (OBSOLETE) |
|
|
| 1 |
206-1021 |
4 cables black no. 1 (OBSOLETE) |
|
|
| 2 |
206-1022 |
Cable brown no. 2 (OBSOLETE) |
|
|
| 3 |
206-1023 |
Cable blue no. 3 (OBSOLETE) |
|
|
| 4 |
206-1024 |
3 cables red no. 4-5 (OBSOLETE) |
|
|
| 5 |
206-1024 |
3 cables red no. 4-5 (OBSOLETE) |
|
|
| 6 |
206-5190 |
2 cables brown-blue no.6 (OBSOLETE) |
|
|
| 7 |
206-5191 |
Cable blue no.7 (OBSOLETE) |
|
|
| 8 |
206-5192 |
4 cables red no.8 (OBSOLETE) |
|
|
| 9 |
206-5193 |
2 cables black no.9 (OBSOLETE) |
|
|
| 10 |
206-5194 |
Cable red no.10 (OBSOLETE) |
|
|
| 11 |
206-5195 |
Cables suction motor no.11 (OBSOLETE) |
|
|
| 12 |
206-0732 |
Diode and Resistances with Terminal (OBSOLETE) |
|
|
| 13 |
206-5196 |
Series cables and connector brush release no.13 (OBSOLETE) |
|
|
| 14 |
206-5197 |
Cable red and condenser and diode no.14 (OBSOLETE) |
|
|
| 15 |
206-1025 |
Cable black no. 15 (OBSOLETE) |
|
|
| 17 |
206-5188 |
Cable blue no.3 (OBSOLETE) |
|
|
| 18 |
206-5188 |
Cable blue no.3 (OBSOLETE) |
|
|
| 19 |
206-1026 |
2 cables black-red and connector 80a (OBSOLETE) |
|
|
| 20 |
206-1026 |
2 cables black-red and connector 80a (OBSOLETE) |
|
|
| 21 |
250-1232 |
Female connector |
|
|
| 22 |
250-1232 |
Female connector |
|
|
| 23 |
206-5201 |
Cable bridge with battery terminals (OBSOLETE) |
|
|
|
|

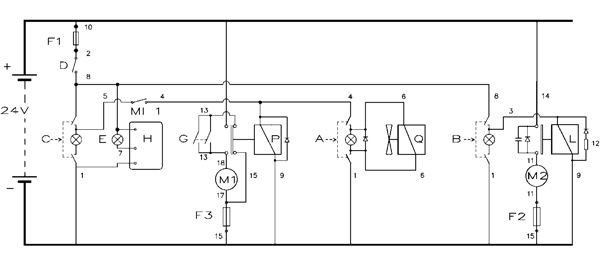

Wiring Diagram 2 - 206-0016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A |
206-5177 |
Bipolar switch green (OBSOLETE) |
|
(solenoid vavle solution) |
| B |
206-5177 |
Bipolar switch green (OBSOLETE) |
|
(vacuum motor) |
| C |
206-5177 |
Bipolar switch green (OBSOLETE) |
|
(motor brushes) |
| Da |
206-0023 |
Contact (OBSOLETE) |
|
(on/off general) (before 8/2000) |
| Db |
189-6342 |
Key switch contact |
|
(on/off general) (after 8/2000) |
| E |
206-5178 |
Green signal protected 24v (OBSOLETE) |
|
(control batteries) |
| F1 |
206-0685 |
3amp fuse (OBSOLETE) |
|
(controls) |
| F2 |
206-0702 |
30amp fuse (OBSOLETE) |
|
(vacuum motor) |
| F3 |
206-0701 |
Fuse 50A (OBSOLETE) |
|
(brush motor) |
| H |
206-5180 |
Check card control batteries 24v (OBSOLETE) |
|
|
| H1 |
N/A |
Not available |
|
(check card control gel batteries 24V) |
| L |
206-5354 |
24V 30amp relay (OBSOLETE) |
|
(vacuum motor) |
| M1 |
206-5127 |
Motor (OBSOLETE) |
|
|
| M2 |
206-5181 |
24V vacuum motor |
|
|
| MI-1 |
206-5182 |
Microswitch 3x22 (OBSOLETE) |
|
(motor brushes) |
| N |
206-5183 |
Insulator M5x25 ff (OBSOLETE) |
|
(negative general) |
| P |
206-5184 |
Remote control switch 24v double w/ diode (OBSOLETE) |
|
(brush motor) |
| Q |
206-1000 |
Light brush indicator (OBSOLETE) |
|
|
| 1/6 |
206-5269 |
Switch Series Cables and Connectors (OBSOLETE) |
|
|
| 1 |
206-1021 |
4 cables black no. 1 (OBSOLETE) |
|
|
| 2 |
206-1022 |
Cable brown no. 2 (OBSOLETE) |
|
|
| 3 |
206-1023 |
Cable blue no. 3 (OBSOLETE) |
|
|
| 4 |
206-1024 |
3 cables red no. 4-5 (OBSOLETE) |
|
|
| 5 |
206-1024 |
3 cables red no. 4-5 (OBSOLETE) |
|
|
| 6 |
206-5190 |
2 cables brown-blue no.6 (OBSOLETE) |
|
|
| 7 |
206-5191 |
Cable blue no.7 (OBSOLETE) |
|
|
| 8 |
206-5192 |
4 cables red no.8 (OBSOLETE) |
|
|
| 9 |
206-5193 |
2 cables black no.9 (OBSOLETE) |
|
|
| 10 |
206-5194 |
Cable red no.10 (OBSOLETE) |
|
|
| 11 |
206-5195 |
Cables suction motor no.11 (OBSOLETE) |
|
|
| 12 |
206-0732 |
Diode and Resistances with Terminal (OBSOLETE) |
|
|
| 13 |
206-5196 |
Series cables and connector brush release no.13 (OBSOLETE) |
|
|
| 14 |
206-5197 |
Cable red and condenser and diode no.14 (OBSOLETE) |
|
|
| 15 |
206-1025 |
Cable black no. 15 (OBSOLETE) |
|
|
| 17 |
206-5188 |
Cable blue no.3 (OBSOLETE) |
|
|
| 18 |
206-5188 |
Cable blue no.3 (OBSOLETE) |
|
|
| 19 |
206-1026 |
2 cables black-red and connector 80a (OBSOLETE) |
|
|
| 20 |
206-1026 |
2 cables black-red and connector 80a (OBSOLETE) |
|
|
| 21 |
250-1232 |
Female connector |
|
|
| 22 |
250-1232 |
Female connector |
|
|
| 23 |
206-5201 |
Cable bridge with battery terminals (OBSOLETE) |
|
|
|
|

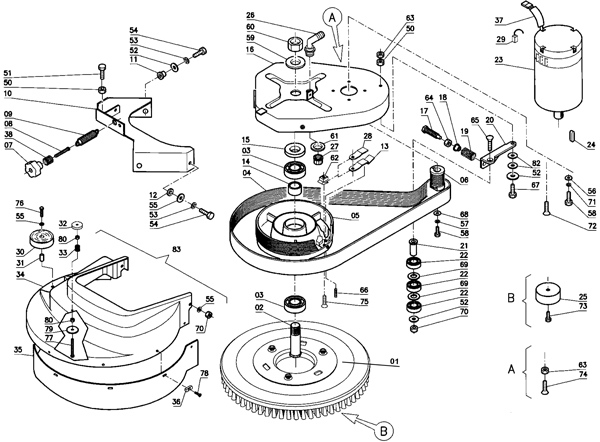

Brush Base Assembly - 206-0017 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-5120 |
Brush (OBSOLETE) |
1 |
|
| 02 |
206-5106 |
Shaft (OBSOLETE) |
1 |
|
| 03 |
206-5107 |
Bearing (OBSOLETE) |
2 |
|
| 04 |
206-5108 |
Belt (OBSOLETE) |
1 |
|
| 05 |
206-5109 |
Pulley (OBSOLETE) |
1 |
|
| 06 |
206-5110 |
Motor pulley (OBSOLETE) |
1 |
|
| 07 |
206-0866 |
Knob (OBSOLETE) |
1 |
|
| 08 |
206-5112 |
Adjuster (OBSOLETE) |
1 |
|
| 09 |
206-5113 |
Spring (OBSOLETE) |
1 |
|
| 10 |
206-5114 |
Support (OBSOLETE) |
1 |
|
| 11 |
206-5115 |
Bushing (OBSOLETE) |
2 |
|
| 12 |
206-5116 |
Bushing (OBSOLETE) |
2 |
|
| 13 |
206-5117 |
Spring (OBSOLETE) |
2 |
|
| 14 |
206-5118 |
Spacer (OBSOLETE) |
1 |
|
| 15 |
206-5119 |
Spacer (OBSOLETE) |
1 |
|
| 16 |
206-5120 |
Brush (OBSOLETE) |
1 |
|
| 17 |
206-5121 |
Adjuster (OBSOLETE) |
1 |
|
| 18 |
206-5122 |
Bushing (OBSOLETE) |
1 |
|
| 19 |
206-5123 |
Spring (OBSOLETE) |
1 |
|
| 20 |
206-5124 |
Support (OBSOLETE) |
1 |
|
| 21 |
206-5125 |
Bushing (OBSOLETE) |
1 |
|
| 22 |
206-5126 |
Bearing (OBSOLETE) |
3 |
|
| 23 |
206-5127 |
Motor (OBSOLETE) |
1 |
|
| 24 |
206-5128 |
Key (OBSOLETE) |
1 |
|
| 25 |
206-5129 |
Special washer (OBSOLETE) |
1 |
|
| 26 |
206-0868 |
Connector (OBSOLETE) |
1 |
|
| 27 |
206-0869 |
Ring nut (OBSOLETE) |
1 |
|
| 28 |
206-5133 |
Spring (OBSOLETE) |
3 |
|
| 29 |
206-0867 |
Carbon brush motor (OBSOLETE) |
4 |
|
| 32 |
206-5158 |
Handwheel (OBSOLETE) |
1 |
|
| 34 |
206-5160 |
Base cover (OBSOLETE) |
1 |
|
| 35 |
206-5161 |
Splash guard (OBSOLETE) |
1 |
|
| 36 |
206-5162 |
Plaque (OBSOLETE) |
8 |
|
| 37 |
206-0480 |
Sheath (OBSOLETE) |
1 |
|
| 38 |
206-0870 |
Spring (OBSOLETE) |
1 |
|
| 50 |
206-0556 |
Nut (OBSOLETE) |
3 |
|
| 51 |
206-0503 |
Screw (OBSOLETE) |
1 |
|
| 52 |
206-0035 |
Washer (OBSOLETE) |
2 |
|
| 53 |
206-0712 |
Washer (OBSOLETE) |
1 |
|
| 54 |
206-5134 |
Screw (OBSOLETE) |
2 |
|
| 55 |
206-0540 |
Washer (OBSOLETE) |
2 |
|
| 56 |
206-0607 |
Washer (OBSOLETE) |
3 |
|
| 57 |
206-5135 |
Washer lock (OBSOLETE) |
1 |
|
| 59 |
206-5136 |
Washer (OBSOLETE) |
1 |
|
| 60 |
206-5137 |
Nut (OBSOLETE) |
1 |
|
| 61 |
206-0871 |
Lock washer (OBSOLETE) |
1 |
|
| 62 |
206-0872 |
Nut (OBSOLETE) |
1 |
(after SN 01002447) |
| 63 |
206-5138 |
Nut (OBSOLETE) |
1 |
|
| 64 |
206-5139 |
Nut (OBSOLETE) |
1 |
|
| 65 |
206-0873 |
Screw (OBSOLETE) |
1 |
|
| 66 |
206-0874 |
Dowel (OBSOLETE) |
1 |
(after SN 01002447) |
| 67 |
206-5141 |
Screw (OBSOLETE) |
1 |
|
| 68 |
206-0578 |
Washer (OBSOLETE) |
1 |
|
| 69 |
206-5142 |
Washer brass (OBSOLETE) |
2 |
|
| 70 |
206-0494 |
Nut lock (OBSOLETE) |
1 |
|
| 71 |
283-1770 |
WASHER 6X2.5X1.8 GROWER GALV. |
4 |
|
| 72 |
283-1699 |
SCREW M6X16 UNI5933 DIN7991 (10.9) Z |
1 |
|
| 73 |
206-0875 |
Screw (OBSOLETE) |
1 |
|
| 74 |
206-5145 |
Screw (OBSOLETE) |
1 |
|
| 75 |
206-0507 |
Screw |
1 |
(after SN 01002447) |
| 76 |
206-0876 |
Screw (OBSOLETE) |
1 |
|
| 77 |
206-6001 |
Screw (OBSOLETE) |
1 |
|
| 78 |
189-6237 |
Screw M4 x 15mm flat |
8 |
|
| 80 |
283-1714 |
NUT M6 UNI 5587 ST.STEEL HIGH |
2 |
|
| 82 |
206-5132 |
Spring (OBSOLETE) |
2 |
|
| 83 |
206-5176 |
Base cover assembly (OBSOLETE) |
|
(includes 30-36, 55, 70, and 77-80)
(includes 30-36, 55, 70, and 77-80) |
|
|

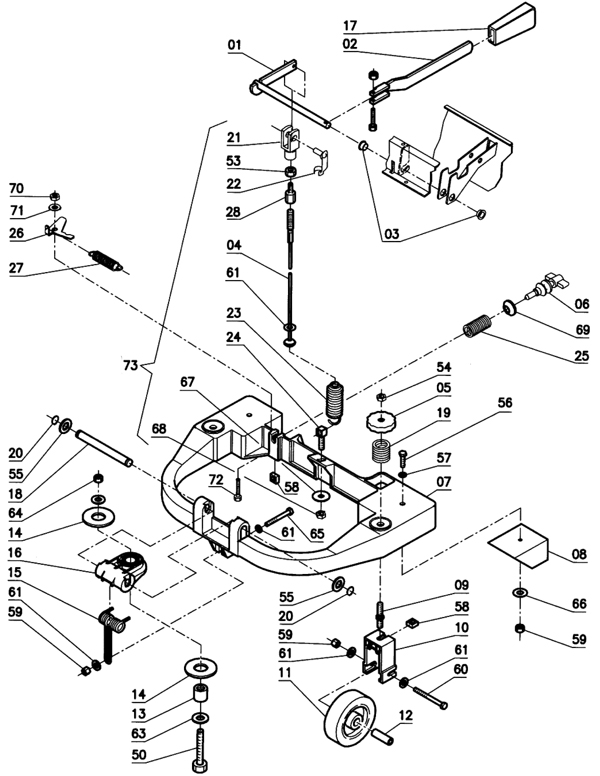

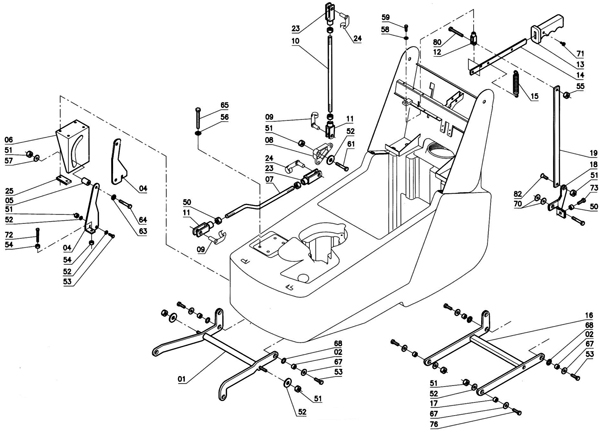

Brush Control Assembly - 206-0018 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-0914 |
Arm (OBSOLETE) |
1 |
|
| 02 |
206-5148 |
Bushing (OBSOLETE) |
2 |
|
| 04 |
206-5149 |
Support (OBSOLETE) |
1 |
|
| 04a |
206-5149 |
Support (OBSOLETE) |
1 |
|
| 05 |
206-5150 |
Roller (OBSOLETE) |
1 |
|
| 06 |
206-5151 |
Support (OBSOLETE) |
1 |
|
| 07 |
206-0915 |
Tie rod (OBSOLETE) |
1 |
|
| 08 |
206-5381 |
Rocker arm (OBSOLETE) |
1 |
|
| 09 |
206-0916 |
Pin (OBSOLETE) |
3 |
|
| 10 |
206-0917 |
Tie rod (OBSOLETE) |
1 |
|
| 11 |
206-0918 |
Fork (OBSOLETE) |
3 |
|
| 13 |
206-5156 |
Knob (OBSOLETE) |
1 |
|
| 14 |
206-0919 |
Lever (OBSOLETE) |
1 |
|
| 16 |
206-0920 |
Lever (OBSOLETE) |
1 |
|
| 17 |
206-5116 |
Bushing (OBSOLETE) |
2 |
|
| 18 |
206-0921 |
Coupling (OBSOLETE) |
1 |
|
| 19 |
206-0922 |
Prop (OBSOLETE) |
1 |
|
| 23 |
206-0923 |
Fork (OBSOLETE) |
1 |
|
| 24 |
206-0924 |
Pin (OBSOLETE) |
1 |
|
| 25 |
206-0925 |
Plate (OBSOLETE) |
2 |
|
| 50 |
206-5138 |
Nut (OBSOLETE) |
5 |
|
| 51 |
206-0494 |
Nut lock (OBSOLETE) |
5 |
|
| 52 |
206-0540 |
Washer (OBSOLETE) |
4 |
(before SN 99007212) |
| 53 |
206-0495 |
Screw (OBSOLETE) |
1 |
|
| 55 |
206-0553 |
Nut lock (OBSOLETE) |
1 |
|
| 56 |
206-0607 |
Washer (OBSOLETE) |
1 |
|
| 57 |
206-0539 |
Washer (OBSOLETE) |
1 |
|
| 58 |
206-0554 |
Washer (OBSOLETE) |
1 |
|
| 61 |
206-0927 |
Screw (OBSOLETE) |
1 |
|
| 63 |
206-0712 |
Washer (OBSOLETE) |
1 |
|
| 64 |
206-0751 |
Screw M8 x 45 (OBSOLETE) |
1 |
|
| 65 |
206-5169 |
Screw (OBSOLETE) |
1 |
|
| 67 |
206-0035 |
Washer (OBSOLETE) |
4 |
|
| 68 |
206-5171 |
Washer lock (OBSOLETE) |
2 |
|
| 70 |
206-0928 |
Washer (OBSOLETE) |
2 |
|
| 71 |
206-0609 |
Screw (OBSOLETE) |
1 |
|
| 72 |
206-5174 |
Screw (OBSOLETE) |
1 |
|
| 73 |
999-0786 |
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
| 76 |
206-0503 |
Screw (OBSOLETE) |
2 |
|
| 80 |
206-0930 |
Screw (OBSOLETE) |
1 |
|
| 82 |
206-0931 |
Screw (OBSOLETE) |
1 |
|
|
|

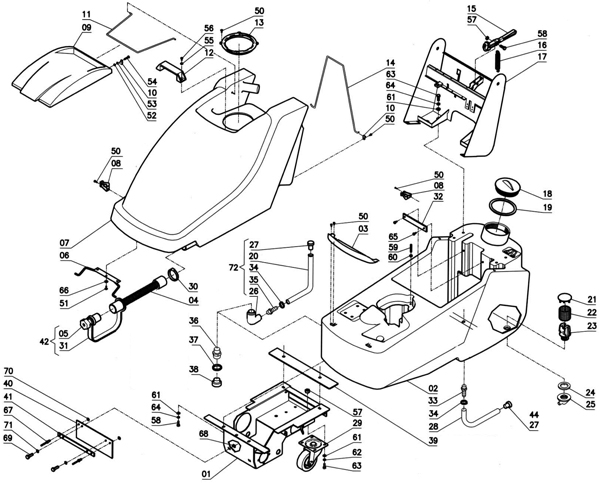

Frame and Tank Assembly - 206-0019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-5237 |
Frame (OBSOLETE) |
1 |
|
| 02 |
206-0953 |
Solution tank (OBSOLETE) |
1 |
|
| 03 |
206-0954 |
Cover (OBSOLETE) |
1 |
|
| 05 |
206-0629 |
Drain hose plug (OBSOLETE) |
1 |
|
| 06 |
206-0956 |
Hinge (OBSOLETE) |
1 |
|
| 07 |
206-0957 |
Recovery tank (OBSOLETE) |
1 |
|
| 08 |
206-0571 |
Hook (OBSOLETE) |
1 |
|
| 09 |
206-5243 |
Cover (OBSOLETE) |
1 |
|
| 10 |
206-5244 |
Cable fastener |
4 |
|
| 11 |
206-5245 |
Hinge (OBSOLETE) |
1 |
|
| 12 |
206-5246 |
Handle (OBSOLETE) |
1 |
|
| 13 |
206-0585 |
Filter holder (OBSOLETE) |
1 |
|
| 14 |
206-5247 |
Prop (OBSOLETE) |
1 |
|
| 15 |
N/A |
Not available |
1 |
(Lever) |
| 16 |
206-5249 |
Spring (OBSOLETE) |
1 |
|
| 17 |
206-0958 |
Frame (OBSOLETE) |
1 |
|
| 19 |
206-0959 |
Gasket (OBSOLETE) |
1 |
|
| 20 |
206-0960 |
Pipe (OBSOLETE) |
1 |
|
| 21 |
206-5254 |
Cover (OBSOLETE) |
1 |
|
| 22 |
206-5255 |
Filter (OBSOLETE) |
1 |
|
| 23 |
206-0961 |
Base (OBSOLETE) |
1 |
|
| 25 |
N/A |
Not available |
1 |
(Ring nut) |
| 26 |
206-0964 |
Elbow (OBSOLETE) |
1 |
|
| 27 |
206-0965 |
Cap (OBSOLETE) |
2 |
|
| 28 |
206-0966 |
Pipe (OBSOLETE) |
1 |
|
| 29 |
206-5262 |
Castor wheel (OBSOLETE) |
1 |
|
| 30 |
206-0599 |
Clamp (OBSOLETE) |
1 |
|
| 31 |
206-0628 |
Clamp (OBSOLETE) |
1 |
|
| 32 |
206-0967 |
Guide (OBSOLETE) |
1 |
|
| 33 |
206-0968 |
Connector (OBSOLETE) |
1 |
|
| 34 |
206-0620 |
Clamp (OBSOLETE) |
1 |
|
| 35 |
206-0969 |
Connector (OBSOLETE) |
1 |
|
| 36 |
206-0970 |
1/2 inch fitting (OBSOLETE) |
1 |
(before SN 03000713) |
| 37 |
206-0612 |
Gasket (OBSOLETE) |
1 |
(before SN 03000713) |
| 37a |
206-0971 |
Gasket (OBSOLETE) |
1 |
(after SN 03000712) |
| 38 |
206-0611 |
Cap (OBSOLETE) |
1 |
(before SN 03000713) |
| 38a |
206-0972 |
Plug exhaust pipe (OBSOLETE) |
1 |
(after SN 03000712) |
| 39 |
206-0973 |
Support bracket (OBSOLETE) |
1 |
(before SN 01002520) |
| 40 |
206-0974 |
Splash guard (OBSOLETE) |
1 |
|
| 42 |
206-0629 |
Drain hose plug (OBSOLETE) |
|
|
| 50 |
206-0976 |
Screw (OBSOLETE) |
12 |
|
| 51 |
206-0656 |
Screw (OBSOLETE) |
3 |
|
| 52 |
206-0606 |
Nut lock (OBSOLETE) |
2 |
|
| 53 |
206-5265 |
Washer 4 x 9 (OBSOLETE) |
2 |
|
| 54 |
206-5266 |
Screw (OBSOLETE) |
2 |
|
| 55 |
206-0508 |
Washer (OBSOLETE) |
2 |
|
| 56 |
206-5267 |
Screw (OBSOLETE) |
2 |
|
| 57 |
206-0494 |
Nut lock (OBSOLETE) |
5 |
|
| 58 |
999-0786 |
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
| 59 |
N/A |
Not available |
1 |
Dowel |
| 60 |
206-5167 |
Nut (OBSOLETE) |
2 |
|
| 61 |
206-0540 |
Washer (OBSOLETE) |
10 |
|
| 62 |
206-5171 |
Washer lock (OBSOLETE) |
4 |
|
| 63 |
206-0977 |
Screw (OBSOLETE) |
8 |
|
| 64 |
206-0712 |
Washer (OBSOLETE) |
6 |
|
| 65 |
206-0583 |
Screw (OBSOLETE) |
2 |
|
| 66 |
206-0912 |
Washer (OBSOLETE) |
3 |
|
| 67 |
206-0978 |
Rivet (OBSOLETE) |
2 |
|
| 68 |
206-0979 |
Nut (OBSOLETE) |
2 |
|
| 69 |
206-0980 |
Screw (OBSOLETE) |
2 |
|
| 70 |
206-0981 |
Washer (OBSOLETE) |
2 |
|
| 71 |
206-0582 |
Washer (OBSOLETE) |
2 |
|
| 72 |
206-0982 |
Drain hose kit (OBSOLETE) |
|
(optional) (includes 20, 26-27, 34-35) |
|
|
Squeegee Control Assembly - 206-0020 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-0937 |
Lever (OBSOLETE) |
1 |
|
| 02 |
206-5271 |
Lever (OBSOLETE) |
1 |
|
| 03 |
206-5272 |
Bushing (OBSOLETE) |
2 |
|
| 04 |
N/A |
Not available |
1 |
(after SN 01003909) (Squeegee lift cable) |
| 05 |
206-5274 |
Handwheel (OBSOLETE) |
3 |
|
| 06 |
206-0938 |
Adjuster (OBSOLETE) |
2 |
(after SN 01007527) |
| 07 |
N/A |
Not available |
1 |
(Arm) |
| 08 |
206-5277 |
Ballast (OBSOLETE) |
2 |
|
| 09 |
206-5278 |
Pin (OBSOLETE) |
2 |
|
| 10 |
206-5279 |
Support (OBSOLETE) |
2 |
|
| 11 |
N/A |
Not available |
1 |
(Wheel) |
| 12 |
206-5281 |
Bushing (OBSOLETE) |
2 |
|
| 13 |
206-0939 |
Bushing (OBSOLETE) |
1 |
|
| 14 |
206-5283 |
Special washer (OBSOLETE) |
2 |
|
| 15 |
206-5284 |
Spring (OBSOLETE) |
1 |
|
| 16 |
206-5285 |
Coupling (OBSOLETE) |
1 |
|
| 17 |
206-5286 |
Knob (OBSOLETE) |
1 |
|
| 18 |
206-5287 |
Pin (OBSOLETE) |
1 |
|
| 19 |
206-0940 |
Spring (OBSOLETE) |
2 |
|
| 21 |
N/A |
Not available |
1 |
Fork |
| 22 |
206-0672 |
Clip (OBSOLETE) |
1 |
(after SN 01003909) |
| 23 |
189-6223 |
Spring |
1 |
(after SN 01003909) |
| 24 |
206-0943 |
Coupling (OBSOLETE) |
1 |
(after SN 01003909) |
| 25 |
206-0944 |
Spring (OBSOLETE) |
1 |
(after SN 01007527) |
| 26 |
206-0945 |
Coupler (OBSOLETE) |
1 |
(after SN 01007527) |
| 27 |
206-0946 |
Spring (OBSOLETE) |
1 |
(after SN 01007527) |
| 28 |
206-0678 |
Extension tube (OBSOLETE) |
1 |
(after SN 01003909) |
| 50 |
206-0947 |
Screw (OBSOLETE) |
1 |
|
| 53 |
999-0740 |
Nut M5-.8 hex stainless steel |
1 |
(after SN 01003909) |
| 54 |
206-5138 |
Nut (OBSOLETE) |
2 |
|
| 55 |
206-0681 |
Washer (OBSOLETE) |
2 |
|
| 56 |
206-5172 |
Screw (OBSOLETE) |
2 |
|
| 57 |
283-1770 |
WASHER 6X2.5X1.8 GROWER GALV. |
2 |
|
| 58 |
206-5292 |
Special nut (OBSOLETE) |
3 |
(after SN 01003909) |
| 59 |
206-0553 |
Nut lock (OBSOLETE) |
5 |
(after SN 99006380) |
| 60 |
206-5293 |
Screw (OBSOLETE) |
2 |
|
| 61 |
206-0607 |
Washer (OBSOLETE) |
6 |
(after SN 01003909) |
| 63 |
206-0948 |
Lock washer (OBSOLETE) |
1 |
|
| 65 |
206-5172 |
Screw (OBSOLETE) |
1 |
|
| 66 |
206-5168 |
Washer (OBSOLETE) |
2 |
(after SN 99006380) |
| 67 |
999-1261 |
Washer M6 flat stainless steel |
1 |
(after SN 01003909) |
| 68 |
206-0655 |
Nut lock (OBSOLETE) |
1 |
(after SN 01003909) |
| 69 |
206-0950 |
Washer (OBSOLETE) |
1 |
(after SN 01007527) |
| 70 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
1 |
(after SN 01007527) |
| 71 |
206-0952 |
Washer (OBSOLETE) |
1 |
(after SN 01007527) |
| 72 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
(after SN 01003909) |
| 73 |
206-5273 |
Cable (OBSOLETE) |
|
(after SN 01003909) (includes 04, 21-24, 28, 53, 61, 67-68, 72) |
|
|

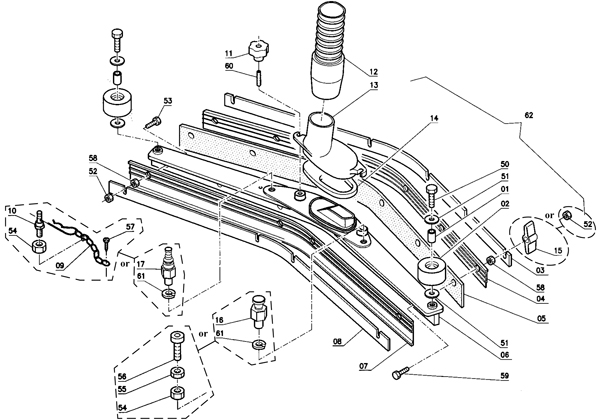

Squeegee Assembly - 206-0021 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-0649 |
Bushing (OBSOLETE) |
2 |
|
| 02 |
206-0648 |
Wheel (OBSOLETE) |
2 |
|
| 04 |
N/A |
Not available |
1 |
(Rear squeegee blade) |
| 05a |
N/A |
Not available |
1 |
(Middle smooth squeegee blade) |
| 05b |
N/A |
Not available |
1 |
(Middle squeegee blade) |
| 05c |
206-0932 |
Middle oil resistant squeegee blade |
|
|
| 06 |
206-5297 |
Squeegee body (OBSOLETE) |
1 |
|
| 07 |
N/A |
Not available |
1 |
(Front squeegee blade) |
| 08 |
206-5298 |
Blade (OBSOLETE) |
1 |
|
| 09 |
206-0645 |
Chain (OBSOLETE) |
|
|
| 10 |
206-5299 |
Bolt stud (OBSOLETE) |
|
|
| 11 |
206-0866 |
Knob (OBSOLETE) |
2 |
|
| 12 |
N/A |
Not available |
1 |
(Suction hose) |
| 13 |
N/A |
Not available |
1 |
Opening |
| 14 |
N/A |
Not available |
1 |
(squeegee gasket) |
| 15 |
206-0650 |
Nut wing (OBSOLETE) |
8 |
|
| 16 |
206-0933 |
Stud bolt (OBSOLETE) |
1 |
|
| 17 |
N/A |
Not available |
1 |
(stud bolt) |
| 50 |
206-0503 |
Screw (OBSOLETE) |
2 |
|
| 51 |
206-0540 |
Washer (OBSOLETE) |
2 |
|
| 52 |
206-0655 |
Nut lock (OBSOLETE) |
|
|
| 53 |
206-0654 |
Screw (OBSOLETE) |
4 |
|
| 54 |
206-5301 |
Nut (OBSOLETE) |
|
|
| 55 |
206-5103 |
Nut (OBSOLETE) |
|
|
| 56 |
206-0935 |
Screw (OBSOLETE) |
|
|
| 57 |
206-5302 |
Screw 3.9 x 10mm (OBSOLETE) |
|
|
| 58 |
206-0659 |
Nut (OBSOLETE) |
12 |
|
| 59 |
206-0657 |
Screw (OBSOLETE) |
8 |
|
| 60 |
N/A |
Not available |
2 |
Dowel |
| 61 |
283-1787 |
WASHER 10X2.5X2.5 GROWER DIN 7980 GAL |
2 |
|
| 62 |
206-5303 |
Squeegee assembly (OBSOLETE) |
|
(includes 01-11, 13-17, and 50-61) (with cotter pins) |
| 62 |
206-0936 |
Squeegee assembly (OBSOLETE) |
|
(includes 01-11, 13-17, and 50-61) (with quick connects) |
|
|

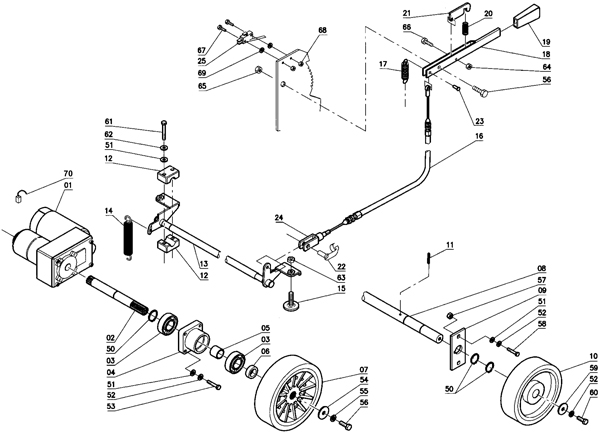

Brake and Traction Assembly - 206-0023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
189-4373 |
24V drive motor |
1 |
|
| 02 |
206-0984 |
Axle shaft (OBSOLETE) |
2 |
|
| 03 |
N/A |
Not available |
4 |
(bearing) |
| 04 |
N/A |
Not available |
2 |
(support) |
| 05 |
206-0986 |
Spacer (OBSOLETE) |
2 |
|
| 06 |
206-0987 |
Spacer (OBSOLETE) |
2 |
|
| 07 |
206-0988 |
Traction wheel (OBSOLETE) |
2 |
|
| 08 |
206-5304 |
Shaft (OBSOLETE) |
1 |
|
| 09 |
206-5305 |
Support (OBSOLETE) |
2 |
|
| 11 |
N/A |
Not available |
1 |
(spring pin) |
| 12 |
189-6241 |
Pivot block |
4 |
|
| 13 |
206-0990 |
Shaft (OBSOLETE) |
1 |
|
| 15 |
206-5309 |
Pad (OBSOLETE) |
2 |
|
| 16 |
206-5310 |
Brake cable (OBSOLETE) |
1 |
|
| 18 |
206-5311 |
Lever (OBSOLETE) |
1 |
|
| 19 |
206-5286 |
Knob (OBSOLETE) |
1 |
|
| 20 |
206-0991 |
Spring (OBSOLETE) |
1 |
|
| 21 |
206-5314 |
Lever (OBSOLETE) |
1 |
|
| 22 |
206-5163 |
Clip (OBSOLETE) |
1 |
|
| 23 |
206-5165 |
Pin (OBSOLETE) |
1 |
|
| 25 |
206-0716 |
Microswitch (OBSOLETE) |
1 |
|
| 50 |
206-5306 |
Seeger ring |
4 |
|
| 51 |
206-0607 |
Washer (OBSOLETE) |
8 |
|
| 52 |
206-5135 |
Washer lock (OBSOLETE) |
8 |
|
| 53 |
N/A |
Not available |
8 |
(screw) |
| 56 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
3 |
|
| 57 |
206-0553 |
Nut lock (OBSOLETE) |
4 |
|
| 59 |
206-5168 |
Washer (OBSOLETE) |
2 |
|
| 60 |
206-0555 |
Screw (OBSOLETE) |
2 |
|
| 62 |
283-1770 |
WASHER 6X2.5X1.8 GROWER GALV. |
4 |
|
| 63 |
206-5138 |
Nut (OBSOLETE) |
2 |
|
| 64 |
206-0995 |
Lock nut (OBSOLETE) |
1 |
|
| 65 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
| 66 |
999-0528 |
Screw M4-.7 x 16mm pan head slotted zinc |
1 |
|
| 67 |
206-0996 |
Screw (OBSOLETE) |
2 |
|
| 68 |
999-1161 |
Nut M3-.5 hex nylock stainless steel |
2 |
|
| 69 |
206-5358 |
Washer (OBSOLETE) |
2 |
|
| 70 |
206-0983 |
Carbon brushes |
2 |
|
|
|

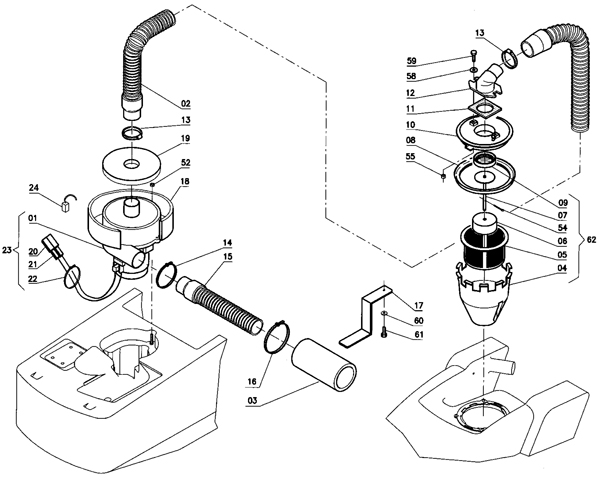

Vacuum Assembly - 206-0024 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-5315 |
Vacuum motor |
1 |
|
| 02 |
206-0742 |
Vacuum hose (OBSOLETE) |
1 |
|
| 03 |
206-1005 |
Sound deadening hose (OBSOLETE) |
1 |
|
| 04 |
206-0597 |
Protection (OBSOLETE) |
1 |
|
| 05 |
206-0596 |
Filter (OBSOLETE) |
1 |
|
| 07 |
206-0593 |
Rod (OBSOLETE) |
1 |
|
| 08 |
206-0590 |
Gasket (OBSOLETE) |
1 |
|
| 09 |
206-0592 |
Gasket (OBSOLETE) |
1 |
|
| 12 |
206-0587 |
Opening (OBSOLETE) |
1 |
|
| 13 |
206-0599 |
Clamp (OBSOLETE) |
1 |
|
| 15 |
206-1006 |
Pipe (OBSOLETE) |
1 |
|
| 17 |
206-1008 |
Support (OBSOLETE) |
1 |
|
| 18 |
206-1009 |
Deading hose (OBSOLETE) |
1 |
|
| 19 |
189-5142 |
Sound deadening foam |
1 |
|
| 20 |
189-6323 |
30amp electrical housing connector |
2 |
|
| 21 |
283-1834 |
CONNECTOR CONTACT 30A |
2 |
|
| 23 |
206-5181 |
24V vacuum motor |
1 |
(includes 01, 20-22, 24) |
| 24 |
206-1004 |
Carbon brush motor (OBSOLETE) |
2 |
|
| 52 |
206-0655 |
Nut lock (OBSOLETE) |
1 |
|
| 54 |
206-0594 |
Split pin (OBSOLETE) |
2 |
|
| 55 |
206-1011 |
Lock nut (OBSOLETE) |
2 |
|
| 59 |
206-0584 |
Screw (OBSOLETE) |
2 |
|
| 60 |
206-0540 |
Washer (OBSOLETE) |
1 |
|
| 61 |
206-1013 |
Screw (OBSOLETE) |
1 |
|
| 62 |
206-0610 |
Float assembly (OBSOLETE) |
1 |
(includes 04-07, 09, 54) |
|
|

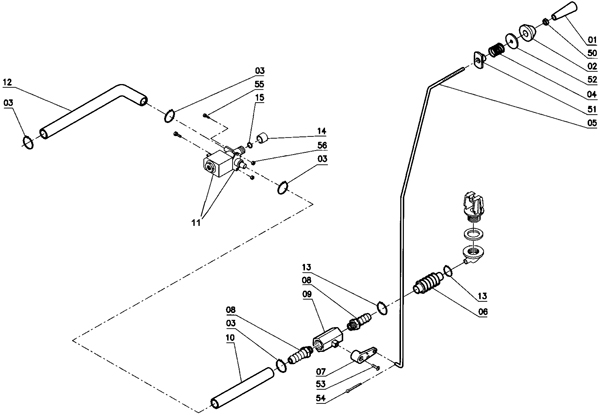

Water Unit Assembly - 206-0025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-0627 |
Knob (OBSOLETE) |
1 |
|
| 02 |
206-0573 |
Washer special (OBSOLETE) |
1 |
|
| 04 |
206-5159 |
Spring (OBSOLETE) |
1 |
|
| 05 |
206-5322 |
Rod (OBSOLETE) |
1 |
|
| 06 |
206-0997 |
Bellows (OBSOLETE) |
1 |
|
| 07 |
N/A |
Not available |
1 |
(Valve lever) |
| 08 |
206-0616 |
Fitting (OBSOLETE) |
2 |
|
| 09 |
N/A |
Not available |
1 |
(valve) |
| 10 |
206-0998 |
Pipe (OBSOLETE) |
1 |
|
| 11 |
N/A |
Not available |
1 |
(Solenoid valve kit) |
| 11a |
206-0999 |
Switch box cover (OBSOLETE) |
|
|
| 12 |
206-1001 |
Pipe (OBSOLETE) |
1 |
(20B) |
| 12a |
206-1002 |
Pipe (OBSOLETE) |
1 |
(18B) |
| 14 |
206-1003 |
Cap (OBSOLETE) |
1 |
|
| 15 |
206-5259 |
O-ring (OBSOLETE) |
1 |
|
| 50 |
206-0636 |
Nut (OBSOLETE) |
|
|
| 51 |
206-5328 |
Nut (OBSOLETE) |
|
|
| 52 |
206-0635 |
Washer (OBSOLETE) |
|
|
| 53 |
206-5266 |
Screw (OBSOLETE) |
|
|
| 54 |
206-5330 |
Split pin (OBSOLETE) |
|
|
| 55 |
999-0521 |
Screw M4-.7 x 12mm pan head phillips zinc |
|
|
| 26 |
206-5346 |
Handle bar body (OBSOLETE) |
1 |
|
| 56 |
206-0606 |
Nut lock (OBSOLETE) |
|
|
| 28 |
206-0734 |
Battery check card (OBSOLETE) |
1 |
(after SN 99004073) |
| 29 |
206-1046 |
Decal (OBSOLETE) |
1 |
(20BT) |
| 29a |
N/A |
Not available |
1 |
(18BT) |
|
|

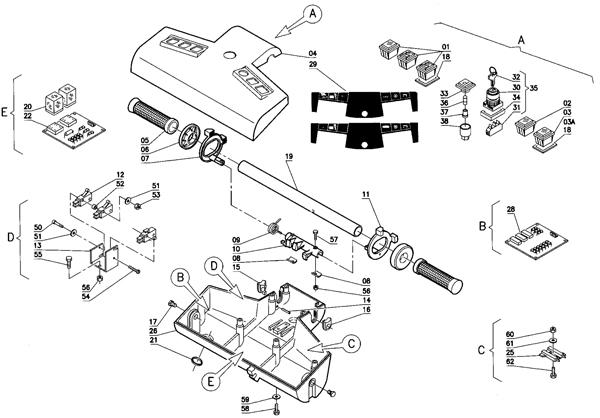

Handle Assembly - With Traction - 206-0026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-5177 |
Bipolar switch green (OBSOLETE) |
3 |
|
| 02 |
206-0720 |
Battery signal |
1 |
|
| 03a |
206-5179 |
Bipolar switch yellow (OBSOLETE) |
1 |
(20B) |
| 03b |
206-1043 |
Switch (OBSOLETE) |
1 |
(18B) |
| 04 |
206-5332 |
Handle bar cover (OBSOLETE) |
1 |
|
| 05 |
206-5333 |
Knob (OBSOLETE) |
2 |
|
| 06 |
206-5334 |
Special washer (OBSOLETE) |
2 |
|
| 07 |
206-5335 |
Lever (OBSOLETE) |
1 |
|
| 08 |
206-5336 |
Retaining clip (OBSOLETE) |
2 |
|
| 09 |
206-5337 |
Spring (OBSOLETE) |
1 |
|
| 10 |
206-5338 |
Shaft (OBSOLETE) |
1 |
|
| 11 |
206-5339 |
Lever (OBSOLETE) |
1 |
|
| 12 |
206-5182 |
Microswitch 3x22 (OBSOLETE) |
1 |
|
| 13 |
206-1044 |
Support (OBSOLETE) |
1 |
|
| 14 |
206-5289 |
Spring pin (OBSOLETE) |
1 |
|
| 15 |
206-5341 |
Right retainer (OBSOLETE) |
1 |
|
| 16 |
206-5342 |
Left retainer (OBSOLETE) |
1 |
|
| 17 |
N/A |
Not available |
2 |
(Screw) |
| 18 |
206-5344 |
Gasket (OBSOLETE) |
5 |
|
| 19 |
206-1045 |
Pipe (OBSOLETE) |
1 |
|
| 20 |
206-1029 |
24V 20amp relay (OBSOLETE) |
2 |
|
| 21 |
206-5345 |
Fairlead (OBSOLETE) |
1 |
|
| 22 |
206-1028 |
24V chopper card without relays (OBSOLETE) |
1 |
|
| 25 |
206-1030 |
Braking resistors (OBSOLETE) |
1 |
|
| 26 |
206-5346 |
Handle bar body (OBSOLETE) |
1 |
|
| 28 |
206-0734 |
Battery check card (OBSOLETE) |
1 |
(after SN 99004073) |
| 29a |
206-1046 |
Decal (OBSOLETE) |
1 |
(20BT) |
| 29b |
N/A |
Not available |
1 |
(decal - 18BT) |
| 30a |
206-0022 |
Switch with keys (OBSOLETE) |
|
(no cover) (before SN 00007458 and August 2000) |
| 30b |
206-5214 |
Master switch (OBSOLETE) |
1 |
(gray cover) (after SN 00007457 and August 2008) |
| 31a |
206-0023 |
Contact (OBSOLETE) |
|
(before SN 00007458 and August 2000) |
| 31b |
189-6342 |
Key switch contact |
1 |
(after SN 00007457 and August 2008) |
| 32a |
206-5347 |
Keys (pkg of 2) (OBSOLETE) |
|
(no cover) (before SN 00007458 and August 2000) |
| 32b |
189-2658 |
Key |
1 |
(gray cover) (after SN 00007457 and August 2008) |
| 33 |
206-1031 |
36V parking lamp (red) (OBSOLETE) |
1 |
|
| 34 |
189-6343 |
Switch flange |
1 |
|
| 35a |
N/A |
Not available |
|
(switch kit) (no cover) (includes 30a, 31a, 32a, 34) (before SN 00007458 and August 2000) |
| 35b |
206-5404 |
Key switch assembly (OBSOLETE) |
1 |
(gray cover) (includes 30b, 31b, 32b, 34) (after SN 00007457 and August 2008) |
| 36 |
206-1049 |
Bulb (OBSOLETE) |
1 |
|
| 37 |
206-1050 |
Bulb holder (OBSOLETE) |
1 |
|
| 38 |
206-1051 |
Body (OBSOLETE) |
1 |
|
| 50 |
206-1019 |
Screw (OBSOLETE) |
3 |
|
| 53 |
206-5348 |
Nut lock (OBSOLETE) |
2 |
|
| 54 |
206-1054 |
Screw (OBSOLETE) |
1 |
|
| 55 |
999-0528 |
Screw M4-.7 x 16mm pan head slotted zinc |
4 |
|
| 56 |
206-5349 |
Nut (OBSOLETE) |
2 |
|
| 57 |
206-5350 |
Screw M3 x 20mm (OBSOLETE) |
2 |
|
| 58 |
206-1055 |
Screw (OBSOLETE) |
6 |
|
| 59 |
206-5351 |
Washer lock (OBSOLETE) |
6 |
|
| 60 |
206-0499 |
Nut (OBSOLETE) |
1 |
|
| 62 |
999-1589 |
Screw M5-.8 x 35mm phillips oval head stainless steel |
1 |
|
|
|

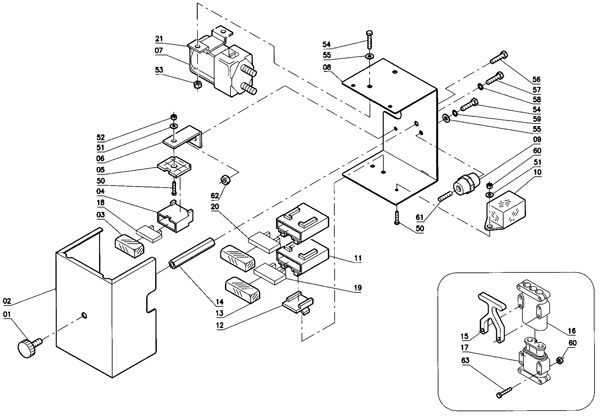

Electric Components Assembly - 206-0027 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-5111 |
Knob (OBSOLETE) |
1 |
|
| 02 |
206-5352 |
Cover (OBSOLETE) |
1 |
|
| 03 |
206-5353 |
Cover (OBSOLETE) |
1 |
|
| 04 |
206-0686 |
Fuse holder (OBSOLETE) |
1 |
|
| 05 |
206-0687 |
Plaque (OBSOLETE) |
1 |
|
| 06 |
206-1014 |
Support (OBSOLETE) |
1 |
|
| 07 |
206-5363 |
Double remote control switch (OBSOLETE) |
1 |
(20B) |
| 07a |
206-0708 |
24V contactor (OBSOLETE) |
1 |
(18B) |
| 08 |
206-5364 |
Cover (OBSOLETE) |
1 |
|
| 09 |
206-5183 |
Insulator M5x25 ff (OBSOLETE) |
1 |
|
| 10 |
206-5354 |
24V 30amp relay (OBSOLETE) |
1 |
|
| 12 |
189-3308 |
Fuse block end cap |
1 |
|
| 14 |
206-5356 |
Bolt stud (OBSOLETE) |
1 |
|
| 15 |
206-1015 |
Connector lever (OBSOLETE) |
1 |
|
| 16 |
189-6371 |
Male connector (French style) |
1 |
|
| 18 |
206-0685 |
3amp fuse (OBSOLETE) |
1 |
|
| 19 |
206-0702 |
30amp fuse (OBSOLETE) |
1 |
|
| 20 |
206-0701 |
Fuse 50A (OBSOLETE) |
1 |
|
| 21 |
N/A |
Not available |
1 |
(support) |
| 50 |
206-5357 |
Screw (OBSOLETE) |
2 |
|
| 51 |
206-1018 |
Washer (OBSOLETE) |
2 |
|
| 52 |
206-5359 |
Nut (OBSOLETE) |
1 |
|
| 53 |
206-0498 |
Lock nut (OBSOLETE) |
3 |
|
| 54 |
206-0709 |
Screw (OBSOLETE) |
3 |
|
| 55 |
206-0508 |
Washer (OBSOLETE) |
3 |
|
| 56 |
206-0710 |
Screw (OBSOLETE) |
1 |
|
| 57 |
206-5146 |
Screw (OBSOLETE) |
1 |
|
| 58 |
206-5135 |
Washer lock (OBSOLETE) |
1 |
|
| 59 |
206-5351 |
Washer lock (OBSOLETE) |
3 |
|
| 60 |
206-5348 |
Nut lock (OBSOLETE) |
3 |
|
| 61 |
206-5362 |
Dowel (OBSOLETE) |
1 |
|
| 62 |
206-0606 |
Nut lock (OBSOLETE) |
1 |
|
| 63 |
206-1019 |
Screw (OBSOLETE) |
2 |
|
|
|

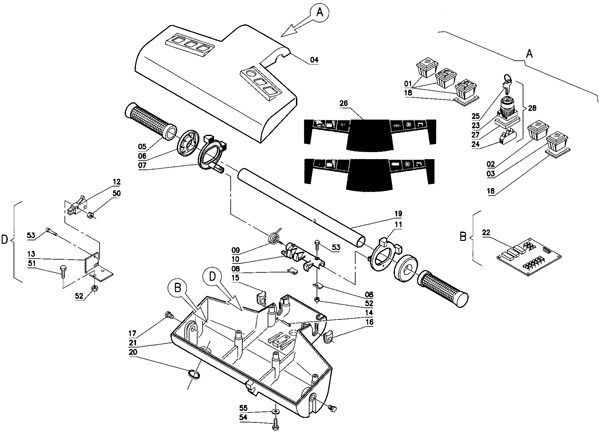

Handle Assembly - Without Traction - 206-0046 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-5177 |
Bipolar switch green (OBSOLETE) |
3 |
|
| 02 |
206-5178 |
Green signal protected 24v (OBSOLETE) |
1 |
|
| 03a |
206-5179 |
Bipolar switch yellow (OBSOLETE) |
1 |
(20B) |
| 04 |
206-5332 |
Handle bar cover (OBSOLETE) |
1 |
|
| 05 |
206-5333 |
Knob (OBSOLETE) |
2 |
|
| 06 |
206-5334 |
Special washer (OBSOLETE) |
2 |
|
| 07 |
206-5335 |
Lever (OBSOLETE) |
1 |
|
| 08 |
206-5336 |
Retaining clip (OBSOLETE) |
2 |
|
| 09 |
206-5337 |
Spring (OBSOLETE) |
1 |
|
| 10 |
206-5338 |
Shaft (OBSOLETE) |
1 |
|
| 11 |
206-5339 |
Lever (OBSOLETE) |
1 |
|
| 12 |
206-5182 |
Microswitch 3x22 (OBSOLETE) |
1 |
|
| 13 |
206-1058 |
Support (OBSOLETE) |
1 |
|
| 14 |
206-5289 |
Spring pin (OBSOLETE) |
1 |
|
| 15 |
206-5341 |
Right retainer (OBSOLETE) |
1 |
|
| 16 |
206-5342 |
Left retainer (OBSOLETE) |
1 |
|
| 17 |
N/A |
Not available |
2 |
(SCrew) |
| 18 |
206-5344 |
Gasket (OBSOLETE) |
5 |
|
| 19 |
206-1045 |
Pipe (OBSOLETE) |
1 |
|
| 20 |
206-5345 |
Fairlead (OBSOLETE) |
1 |
|
| 21 |
206-5346 |
Handle bar body (OBSOLETE) |
1 |
|
| 22 |
206-1059 |
Check card batteries (OBSOLETE) |
1 |
|
| 23a |
206-0022 |
Switch with keys (OBSOLETE) |
1 |
(no cover) (before SN 00007458 and August 2000) |
| 23b |
206-5214 |
Master switch (OBSOLETE) |
1 |
(gray rubber cover) (after SN 00007457 and August 2000) |
| 24a |
206-0023 |
Contact (OBSOLETE) |
1 |
(before SN 00007458 and August 2000) |
| 24b |
189-6342 |
Key switch contact |
1 |
(after SN 00007457 and August 2000) |
| 25a |
206-5347 |
Keys (pkg of 2) (OBSOLETE) |
1 |
(no cover) (before SN 00007458 and August 2000) |
| 25b |
189-2658 |
Key |
1 |
gray rubber cover) (after SN 00007457 and August 2000) |
| 26a |
N/A |
Not available |
1 |
(decal 20B) |
| 26b |
N/A |
Not available |
1 |
(decal 18B) |
| 27 |
189-6343 |
Switch flange |
1 |
|
| 28b |
206-5404 |
Key switch assembly (OBSOLETE) |
1 |
gray rubber cover) (includes 23b, 24b, 25b, 27) (after SN 00007457 and August 2000) |
| 50 |
206-5348 |
Nut lock (OBSOLETE) |
5 |
|
| 51 |
999-0528 |
Screw M4-.7 x 16mm pan head slotted zinc |
4 |
|
| 52 |
206-5349 |
Nut (OBSOLETE) |
2 |
|
| 53 |
206-5350 |
Screw M3 x 20mm (OBSOLETE) |
4 |
|
| 54 |
206-1055 |
Screw (OBSOLETE) |
8 |
|
| 55 |
206-5351 |
Washer lock (OBSOLETE) |
2 |
|
|
|
- Batteries, Brushes, and Chargers - 206-8019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0011 |
12V 105Ah wet battery (SNSR) |
2 |
|
| 2 |
162-0042 |
12V 115Ah AGM battery (Group 31) |
2 |
|
| 3 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
1 |
|
| 4 |
162-5070 |
24V 20amp AGM battery charger with small SB50 red plug |
1 |
|
| 5 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
|
|
- Commonly Asked For Parts - 206-9900 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-0824 |
Screw (OBSOLETE) |
|
|
| 02 |
N/A |
Not available |
|
(Middle smooth squeegee blade) |
| 03 |
N/A |
Not available |
|
(Rear squeegee blade) |
| 04 |
N/A |
Not available |
|
(Front squeegee blade) |
| 05 |
N/A |
Not available |
|
(Rear squeegee blade) |
| 06 |
N/A |
Not available |
|
(Middle squeegee blade) |
| 07 |
N/A |
Not available |
|
(Front squeegee blade) |
| 08 |
206-0742 |
Vacuum hose (OBSOLETE) |
|
|
| 09 |
N/A |
Not available |
|
(Solenoid valve kit) |
| 10 |
206-3036 |
Pad driver (OBSOLETE) |
|
|
| 11 |
N/A |
Not available |
|
(Squeegee lift cable) |
| 12 |
206-6001 |
Screw (OBSOLETE) |
|
|
| 13 |
206-0672 |
Clip (OBSOLETE) |
|
|
| 15 |
999-0740 |
Nut M5-.8 hex stainless steel |
|
|
| 16 |
283-1714 |
NUT M6 UNI 5587 ST.STEEL HIGH |
|
|
| 18 |
206-3793 |
Potentiometer |
|
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad(OBSOLETE) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Batteries - 999-5053 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0011 |
12V 105Ah wet battery (SNSR) |
2 |
|
| 2 |
162-0042 |
12V 115Ah AGM battery (Group 31) |
2 |
|
|
|
- Chargers - 999-5065 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
1 |
|
| 2 |
162-5070 |
24V 20amp AGM battery charger with small SB50 red plug |
1 |
|
| 3 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 4a |
162-5079 |
SCR assembly kit |
1 |
|
| 4b |
372-1254 |
Fuse assembly |
1 |
|
| 5 |
162-5087 |
AC cord set kit |
1 |
|
| 6 |
162-5081 |
Control board assembly |
1 |
|
|
|
