Parts List Complete for PACIFIC MSE-19 ORB

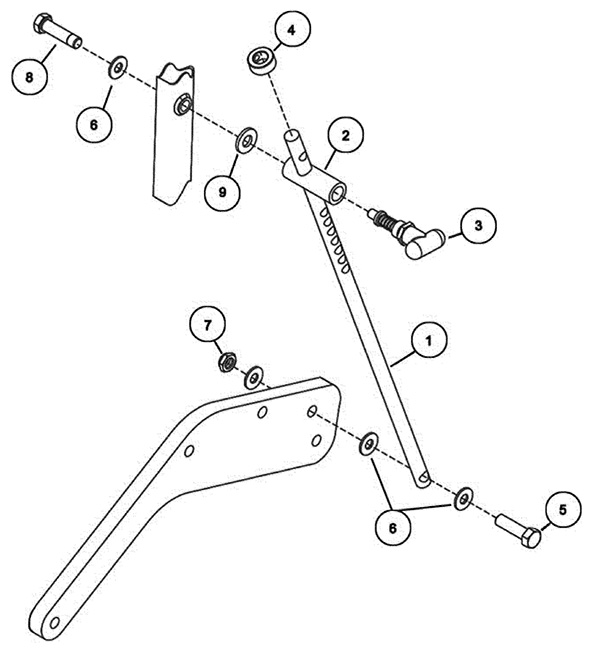

Handle Adjustment Assembly - 206-3120
RefNbr Part Number Description Req Notes
1 206-6311 Handle Rod 1
2 206-6312 Pull latch body 1
3 206-6313 Pull latch 1
4 206-6314 Shaft collar 1
5 206-6315 Screw 1/2-13 x 2 inch 1
6 999-0566 Washer 1/2 flat nylon 3
7 206-6316 Nut hex lock 1
8 206-6315 Screw 1/2-13 x 2 inch 1
9 206-6317 Washer plastic 2

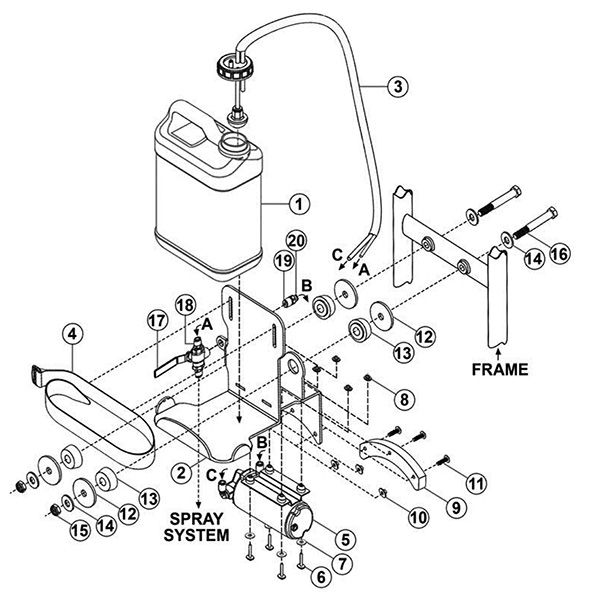

Solution and Cage Assembly - 206-3121
RefNbr Part Number Description Req Notes
1 206-6318 3-gallon bottle cartridge 1
2 206-6319 Cage assembly 1
3 206-6320 Bottle cap assembly 1
4 206-6321 Velcro strap 2 x 36 inch (pk of 2) 1
5 206-6322 120v pump 1
6 206-6323 Screw 6-32 x 1 1/4 inch 4
7 999-6688 Nut 6-32 hex nylon insert lock stainless steel 4
8 206-6324 Washer 4
9 206-6325 Motor stop 1
10 206-1757 Bumper threaded insert 3
11 206-1744 Rear motor cover mounting screw 1/4-20 x 1 inch 3
12 206-6326 Washer 1/2 x 2 1/4 inch 4
13 206-6327 Rubber damper 4
14 206-6317 Washer plastic 2
15 206-6316 Nut hex lock 2
16 206-6328 Screw 1/2-13 x 4-1/2 inch 2
17 206-6310 3-way control valve assembly 1
18 206-6329 Flow control quick connect coupler 2
19 206-6330 Hex nipple pipe 1
20 206-6331 Flow control coupler 1

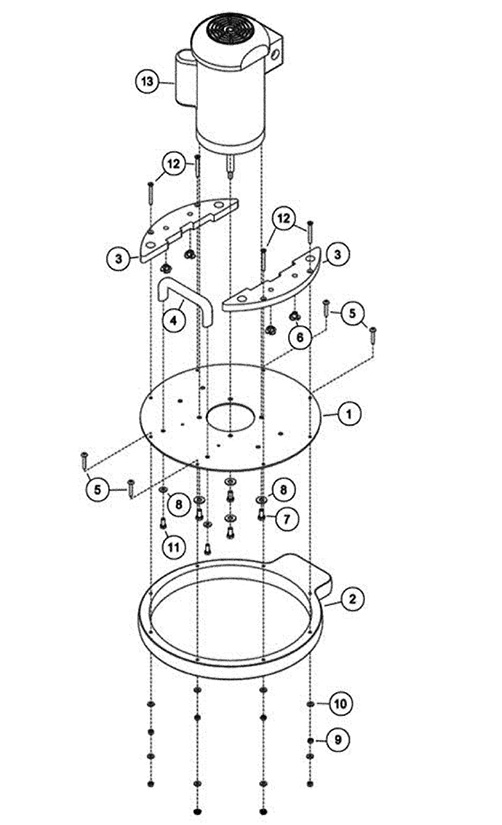

Motor and Base Assembly - 206-3122
RefNbr Part Number Description Req Notes
1 206-6332 Base 1
2 206-6333 19 inch bumper 1
3 206-6334 Weight plate assembly 2
4 206-6335 Handle base 1
5 206-6336 Screw 1/4-20 x 1 1/2 inch 4
6 206-6337 Nut 1/4-20 x 5/16 4
7 206-6338 Screw 3/8-16 x 3/4 inch 4
8 206-6339 Washer 6
9 206-6340 Nut hex lock 8
10 206-6341 Washer 1/4 x 5/8 8
11 206-6342 Screw 5/16-18 x 3/4 inch 2
12 206-6343 Screw 1/4-20 x 2-1/4 inch 4
13 206-6344 Motor 1

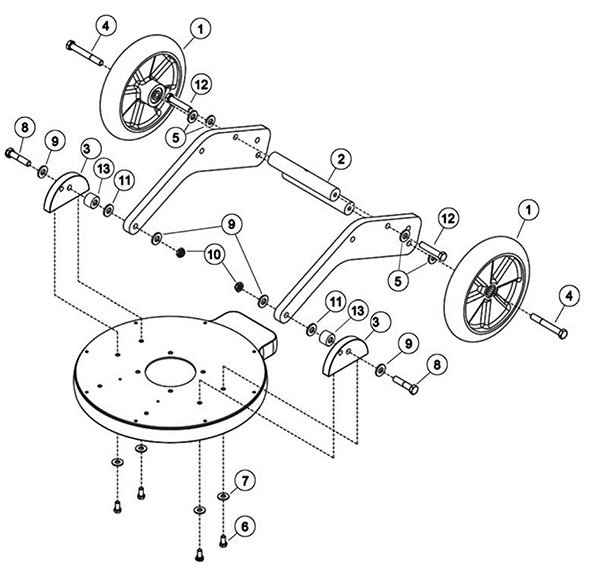

Wheel Kit Assembly - 206-3123
RefNbr Part Number Description Req Notes
1 206-6345 10 inch wheel 2
2 206-6346 Rod 2
3a 206-6347 Left ear with pin 1
3b 206-6348 Right ear with pin 1
4 206-6349 Screw 1/2-13 x 3-3/4 inch 2
5 206-6317 Washer plastic 4
6 206-6338 Screw 3/8-16 x 3/4 inch 4
7 206-6339 Washer 4
8 206-6350 Screw 1/2-13 x 2-1/4 inch 2
9 206-6317 Washer plastic 4
10 206-6316 Nut hex lock 2
11 206-6351 Washer nylon 2
12 206-6315 Screw 1/2-13 x 2 inch 2
13 206-6352 Bushing 1 x 1/2 plastic 2

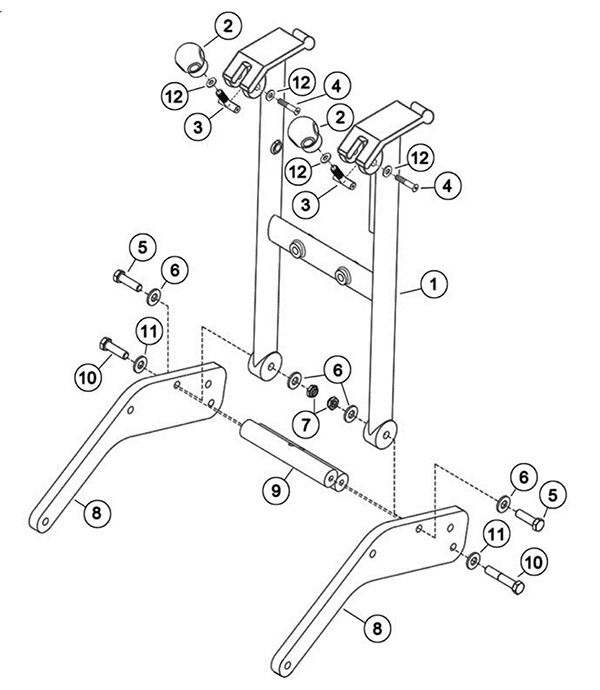

Lower Handle Frame Assembly - 206-3124
RefNbr Part Number Description Req Notes
1 206-6353 Lower handle assembly 1
2 206-6354 Locking postition knob 2
3 206-6355 T screw 2
4 206-6356 Screw 1/4-20 x 1 1/2 inch 2
5 206-6315 Screw 1/2-13 x 2 inch 2
6 206-6317 Washer plastic 4
7 206-6316 Nut hex lock 2
8 206-6357 Left and right arm (SOLD SEPARATELY) 2 (MUST ORDER X2 TO RECEIVE LEFT AND RIGHT ARMS)
9 206-6346 Rod 2
10 206-6349 Screw 1/2-13 x 3-3/4 inch 2
11 206-6317 Washer plastic 2
12 206-6358 Washer nylon 4

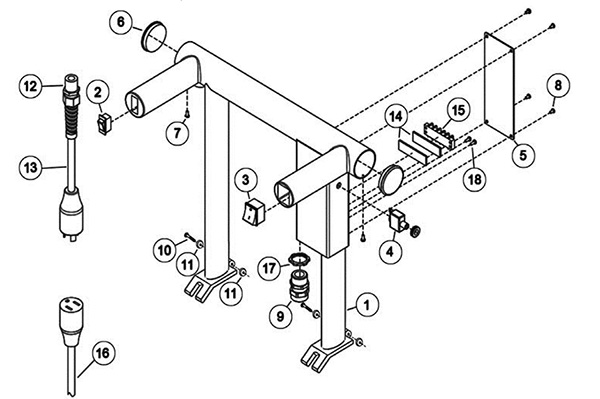

Upper Handle Frame Assembly - 206-3125
RefNbr Part Number Description Req Notes
1a 206-6359 Upper handle assembly 1
1b 206-6360 Main handle 7 conductor harness 1
2a 206-6361 Double pole rocker switch 1
2b 206-6362 Sprayer switch harness 1
3a 206-6363 On/off double pole rocker switch 1
3b 206-6364 On/off switch harness 1
4 206-6365 125/250vac breaker 20amp 32vdc 1
5 206-6366 Cover plate 1
6 206-6367 Handle tube cap 2
7 206-6368 Screw 2
8 206-6369 Screw 8-32 x 1/4 inch 4
9 206-6370 Wire mount 1
10 206-6371 Screw 3/8-16 x 1 1/4 inch 2
11 206-6358 Washer nylon 4
12 206-6372 Power cord strain relief 1
13 206-6373 110V pigtail cord 1
14 206-6374 Velcro terminal switch 1
15 206-6375 Terminal switch 1
16 206-6376 Power cord 50 feet 1
17 206-6377 Lock nut 1
18 206-6378 Screw 2

Motor Assembly - 206-3126
RefNbr Part Number Description Req Notes
1 206-6379 Screw 10-32 x 3/8 3
2 206-6380 Fan motor cover 1
3 206-6381 Motor fan 1
4 206-6377 Lock nut 2
5 206-6382 Screw 2
6 206-6383 Blue plug cord 100-120V 1
7 206-6384 Black plug cord 100-120V 1
8 206-6370 Wire mount 1
9 206-6385 Elbow 3/4 inch 1
10 206-6386 Socket set screw 1
11 206-6344 Motor 1 (includes 1-3)
12 206-6387 Washer 3/4 inch serrated 1
13 206-6360 Main handle 7 conductor harness 1
14 206-6388 Lock nut 1/2 inch 1

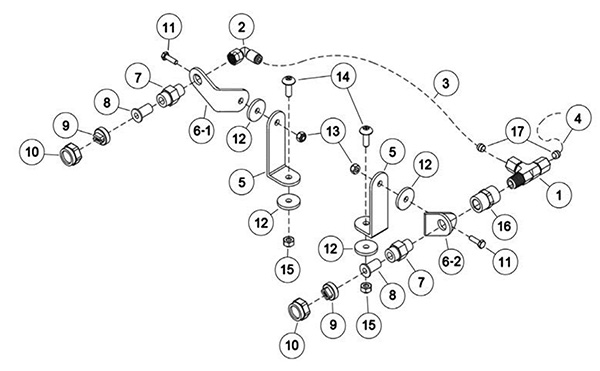

Spray Nozzle Assembly - 206-3127
RefNbr Part Number Description Req Notes
1 206-6389 Quick connect 1/4 inch tee spray nozzle 1
2 206-6390 Elbow 1/4 inch 1
3 206-6391 Hose 1
4 206-6392 T-hose 1
5 206-6393 L-bracket 2
6a 206-6394 Bracket top left hand 1
6b 206-6395 Bracket top right hand 1
7 206-6033 Spray jet body (OBSOLETE) 2
8 206-6032 Check valve strainer 2
9 206-6031 Spray jet tip 2
10 206-6396 Spray cap 2
11 206-6397 Screw 10-32 x 3/4 inch 2
12 206-6398 Washer 2
13 999-1353 Nut 10-32 hex nylon lock insert stainless steel 2
14 206-6399 Screw 1/4-20 x 3/4 inch 2
15 206-6034 Nut 10-32 hex nylock (OBSOLETE) 2
16 206-6400 Coupler 1
17 206-6401 Compression sleeve 2

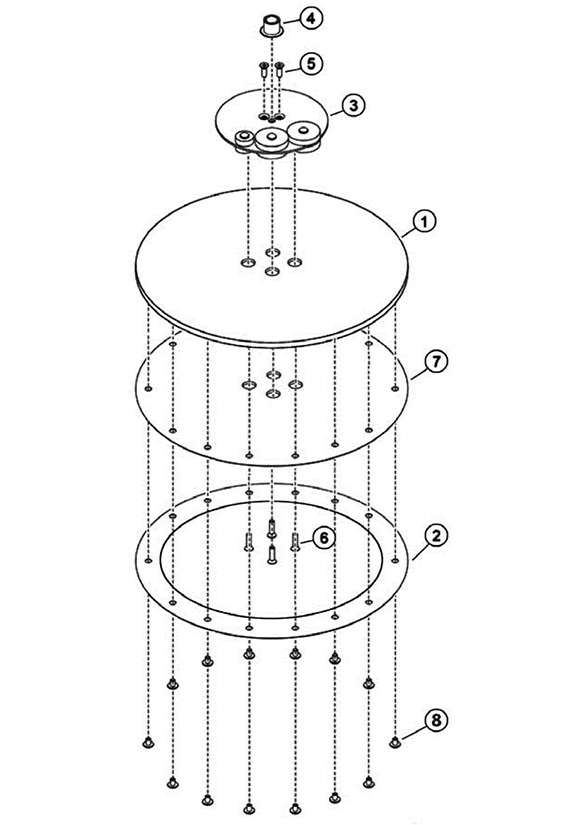

Disc Driver Assembly - 206-3128
RefNbr Part Number Description Req Notes
1 206-6402 19 inch disc driver 1
2 206-6403 Retaining ring 1
3 206-6404 Counterweight assembly (includes bearings) 1
4 206-6405 Shaft support 1
5 206-6406 Screw 1/4-20 x 3/4 inch 2
6 206-6407 Screw 1/4-20 x 1 inch 4
7 206-6408 19 inc velcro pad plate 1
8 206-6409 Screw 1/4-20 x 3/8 inch 14

Wiring Diagram -

RefNbr Part Number Description Req Notes
