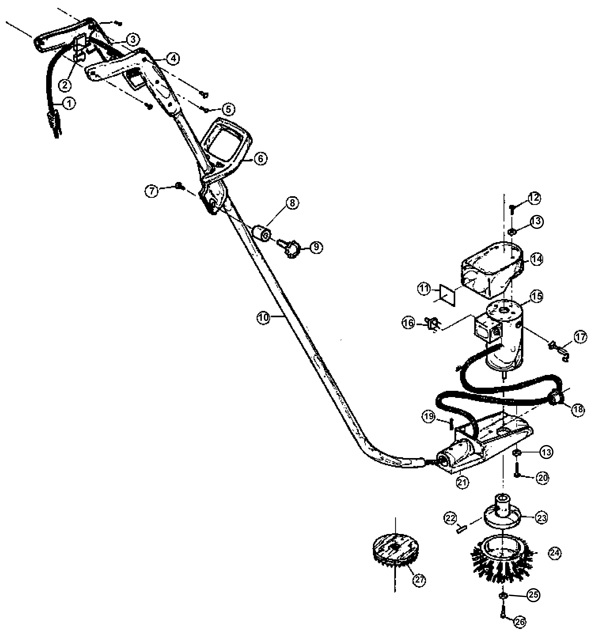

Entire Assembly - 206-4015 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
206-0037 |
Trigger switch |
1 |
|
| 4 |
206-0210 |
Right handle |
1 |
|
| 6 |
206-0038 |
Adjusting handle |
1 |
|
| 7 |
999-1820 |
Bolt 5/16-18 x 2 3/4 carriage head stainless steel |
1 |
|
| 10 |
206-0215 |
Tube handle |
1 |
|
| 11 |
206-1244 |
Warning decal |
2 |
|
| 12 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 13 |
999-0053 |
Washer #10 split lock plain finish |
6 |
|
| 14 |
206-0220 |
Motor cover |
1 |
|
| 15 |
206-1240 |
115V motor assembly |
1 |
|
| 16 |
206-0229 |
Motor rectifier |
1 |
|
| 17 |
206-1240 |
115V motor assembly |
2 |
|
| 18 |
206-0219 |
Snap bushing |
1 |
|
| 19 |
206-5038 |
Screw 1/4-20 x 3/8 set |
2 |
|
| 20 |
999-0481 |
Screw 12-24 x 5/8 pan head slotted zinc plated |
1 |
|
| 22 |
206-0230 |
Screw 1/4-20x1/2 allen set |
2 |
|
| 23 |
206-0224 |
Motor adapter |
1 |
|
| 24 |
206-0039 |
Scrub brush |
1 |
|
| 25 |
999-0105 |
Washer 5/16 external star lock zinc plated |
1 |
|
| 26 |
206-0225 |
Screw 5/16-24x1 1/4 flat head |
1 |
|
| 27 |
206-0226 |
Pad drive disc |
1 |
|
| N/S |
206-1242 |
Splash guard |
1 |
|
| N/S |
999-0321 |
Screw 10-32 x 3/8 pan head slotted zinc plated |
3 |
|
| N/S |
206-5479 |
6.5 inch black pad (case of 15) |
1 |
|
| N/S |
206-0822 |
6.5 inch brown pad (case of 15) |
1 |
|
| N/S |
206-5480 |
6.5 inch green pad (case of 15) (OBSOLETE) |
1 |
|
| N/S |
206-5481 |
6.5 inch red pad (case of 15) |
1 |
|
| N/S |
206-5482 |
6.5 inch white pad (case of 15) |
1 |
|
| N/S |
206-5483 |
6.5 inch carpet bonnet (case of 6) |
1 |
|
| N/S |
206-5484 |
Poly scrub brush |
1 |
|
| N/S |
206-3049 |
Nylon brush |
1 |
|
|
|

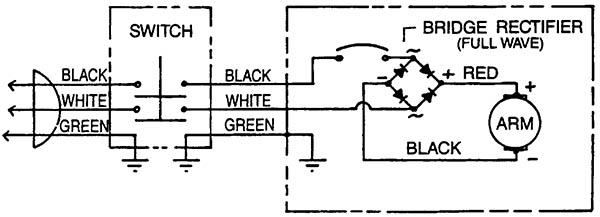

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Commonly Asked For Parts - 206-9003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
206-0226 |
Pad drive disc |
1 |
|
| 02 |
206-0822 |
6.5 inch brown pad (case of 15) |
1 |
|
|
|
