Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
- Frequently Replaced Parts - 206-0086 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
991-5001 |
14/3 extension cord 50 foot (yellow) |
1 |
|
|
206-2068 |
Start capacitor |
1 |
|
|
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
1 |
|
|
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
1 |
|
|
991-2206 |
Center-Lok 3 pad holder |
1 |
|
|
|

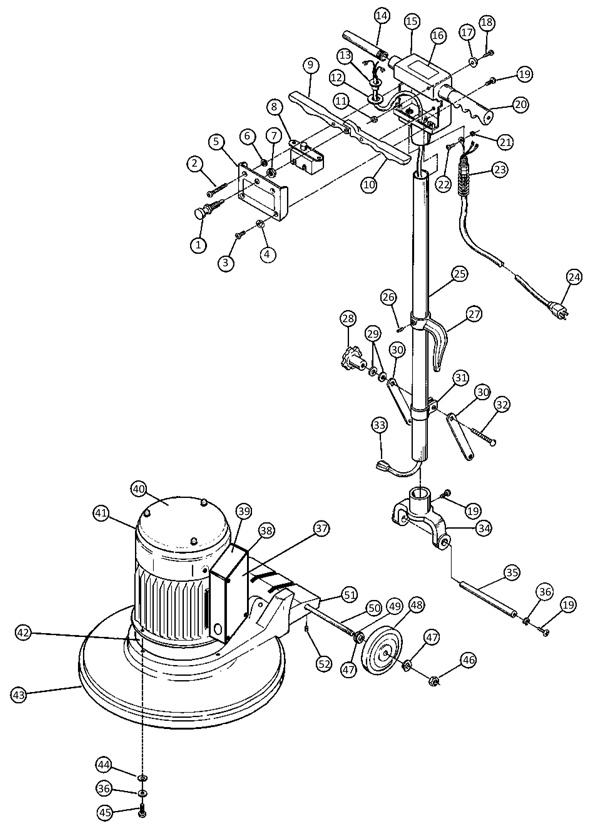

Entire Assembly - Before SN 104361 - 206-4022 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-5014 |
Interlock switch assembly (OBSOLETE) |
1 |
|
| 2 |
206-0385 |
Screw 10-32 x 1 3/4 oval head (OBSOLETE) |
2 |
|
| 3 |
999-0074 |
Screw 10-32 x 1/2 round head slotted zinc plated |
2 |
|
| 4 |
206-5030 |
Washer 10 counter sink |
1 |
|
| 5 |
206-3035 |
Complete handle assembly with cords (OBSOLETE) |
1 |
|
| 6 |
206-5016 |
Rubber washer (OBSOLETE) |
2 |
|
| 7 |
999-0143 |
Nut 3/8-24 hex plain finish |
1 |
|
| 8 |
206-5002 |
Switch assembly (OBSOLETE) |
1 |
|
| 9 |
206-5004 |
Right switch lever (OBSOLETE) |
1 |
|
| 10 |
206-5018 |
Left switch lever (OBSOLETE) |
1 |
|
| 11 |
206-5019 |
Nut 10-32 elastic stop |
1 |
|
| 12 |
206-5020 |
Handle tube washer |
1 |
|
| 13 |
206-5021 |
Strain relief bushing |
1 |
|
| 14 |
206-5022 |
Handle nipple (OBSOLETE) |
2 |
|
| 15 |
206-3035 |
Complete handle assembly with cords (OBSOLETE) |
1 |
|
| 16 |
206-5024 |
Warning decal (OBSOLETE) |
1 |
|
| 18 |
999-0414 |
Screw 10-32 x 3/4 pan head slotted zinc plated |
1 |
|
| 19 |
999-0508 |
Screw 1/4-20 x 1/2 pan head phillips zinc plated |
6 |
|
| 20a |
206-5026 |
Handle grip (gray) |
2 |
|
| 20b |
206-5027 |
Handle grip (blue) |
2 |
|
| 21 |
999-0053 |
Washer #10 split lock plain finish |
2 |
|
| 22 |
999-0321 |
Screw 10-32 x 3/8 pan head slotted zinc plated |
2 |
|
| 23a |
206-5028 |
Strain relief assembly (OBSOLETE) |
1 |
|
| 23b |
206-5029 |
Strain relief brass clamp |
1 |
|
| 24 |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
|
| 25 |
206-5031 |
Handle tube |
1 |
|
| 26 |
206-5038 |
Screw 1/4-20 x 3/8 set |
1 |
|
| 27 |
206-5032 |
Cord hook (OBSOLETE) |
1 |
|
| 29 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 30 |
206-5036 |
Handle support arm (OBSOLETE) |
2 |
|
| 31 |
206-5035 |
Handle clamp (OBSOLETE) |
1 |
|
| 32 |
999-1607 |
Bolt 5/16-18 x 2 1/2 carriage stainless steel |
1 |
|
| 33 |
206-0392 |
Handle cord assembly (OBSOLETE) |
1 |
|
| 34 |
206-5041 |
Handle yoke (OBSOLETE) |
1 |
|
| 35 |
206-5044 |
Handle pivot shaft |
1 |
|
| 36 |
999-0060 |
Washer 1/4 split lock plain finish |
6 |
|
| 37 |
206-1259 |
Capacitor box cover |
1 |
|
| 38 |
206-1260 |
Cover gasket |
1 |
|
| 39 |
206-1261 |
Capacitor box |
1 |
|
| 40 |
206-1262 |
Motor cover (OBSOLETE) |
1 |
|
| 41 |
206-1263 |
1.5HP motor |
1 |
|
| 42 |
206-1264 |
Gear assembly |
1 |
|
| 43a |
206-5050 |
17 inch bumper |
1 |
|
| 43b |
206-5051 |
20 inch bumper |
1 |
|
| 44 |
206-3376 |
Rubber washer (OBSOLETE) |
4 |
|
| 45 |
999-0510 |
Screw 1/4-20 x 1 pan head phillips zinc plated |
4 |
|
| 46 |
206-1120 |
Snap axle cap |
2 |
|
| 47 |
206-5048 |
Wave washer |
2 |
|
| 49 |
206-5049 |
Fiber washer |
2 |
|
| 50 |
206-1248 |
Wheel axle (OBSOLETE) |
1 |
|
| 51a |
206-1249 |
17 inch base |
1 |
|
| 51b |
206-1250 |
20 inch base |
1 |
|
| 52 |
999-1478 |
Screw 10-32 x 3/8 socket set stainless steel |
1 |
|
|
|

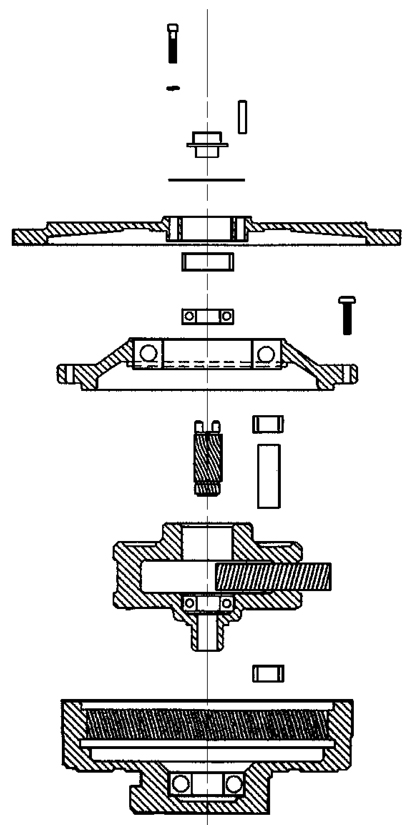

Motor and Gearbox Assembly - Before SN 104361 - 206-4023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
206-1251 |
Ring gear housing bearing (OBSOLETE) |
1 |
|
|
N/A |
Not available |
1 |
(ring gear housing) |
|
N/A |
Not available |
3 |
(idler gear) |
|
206-1273 |
Idler gear housing |
1 |
|
|
206-0256 |
Shaft idler (OBSOLETE) |
3 |
|
|
N/A |
Not available |
1 |
(ring gear cover) |
|
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
6 |
|
|
206-1276 |
Retaining ring |
1 |
|
|
206-1277 |
Drive coupling |
1 |
|
|
206-1278 |
1/4 x 1 dowel pin (OBSOLETE) |
2 |
|
|
N/A |
Not available |
6 |
(washer 1/4 inch lock) |
|
206-1279 |
Socket head cap screw (OBSOLETE) |
6 |
|
|
206-1265 |
Stator assembly (OBSOLETE) |
1 |
|
|
206-1266 |
Rotor assembly (OBSOLETE) |
1 |
|
|
N/A |
Not available |
1 |
(motor cord assembly) |
|
206-1262 |
Motor cover (OBSOLETE) |
1 |
|
|
206-1259 |
Capacitor box cover |
1 |
|
|
206-1271 |
370V capacitor |
1 |
|
|
206-1272 |
125V capacitor |
1 |
|
|
|

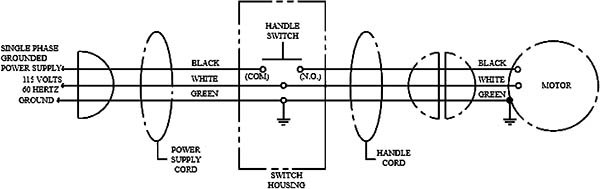

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

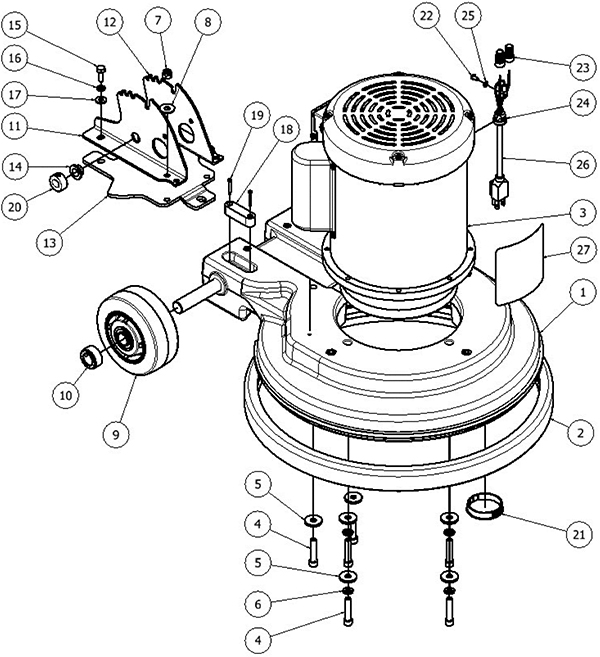

Base Assembly - After SN 104360 - 206-4026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-1351 |
17 inch base (OBSOLETE) |
1 |
|
| 2 |
206-5050 |
17 inch bumper |
1 |
|
| 4 |
999-0131 |
Screw 5/16-18 x 1 1/2 socket head stainless steel |
6 |
|
| 5 |
999-1364 |
Washer 5/16 x 1 fender zinc finish |
6 |
|
| 6 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 7 |
999-0593 |
Nut 5/16-18 hex stainless steel |
2 |
|
| 8 |
206-5233 |
Washer 5/16 x .040 flat |
2 |
|
| 9 |
206-1353 |
5 inch wheel |
2 |
|
| 10 |
206-0394 |
Upper shaft collar |
2 |
|
| 11 |
206-1290 |
Right hand handle bracket |
1 |
|
| 12 |
206-1291 |
Left hand handle bracket |
1 |
|
| 13 |
206-1354 |
Adapter plate |
1 |
|
| 14 |
206-3301 |
Flange bushing |
2 |
|
| 15 |
999-1099 |
Bolt 1/4-20 x 3/4 hex head stainless steel |
2 |
|
| 16 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 18 |
206-1288 |
Level indicator |
1 |
|
| 19 |
206-1289 |
Screw tapping #6 x 1 |
2 |
|
| 20 |
206-1287 |
1/2 inch clamp collar |
2 |
|
| 21 |
206-1292 |
2 inch hole plug |
1 |
|
| 23 |
206-3594 |
Wire terminal (yellow) |
2 |
|
| 24 |
206-0245 |
Strain relief |
1 |
|
| 25 |
999-1083 |
Washer #8 internal star lock stainless steel |
1 |
|
| 26 |
206-0244 |
Cord assembly motor |
1 |
|
| 27 |
206-1175 |
Pacific Floorcare decal |
1 |
|
|
|

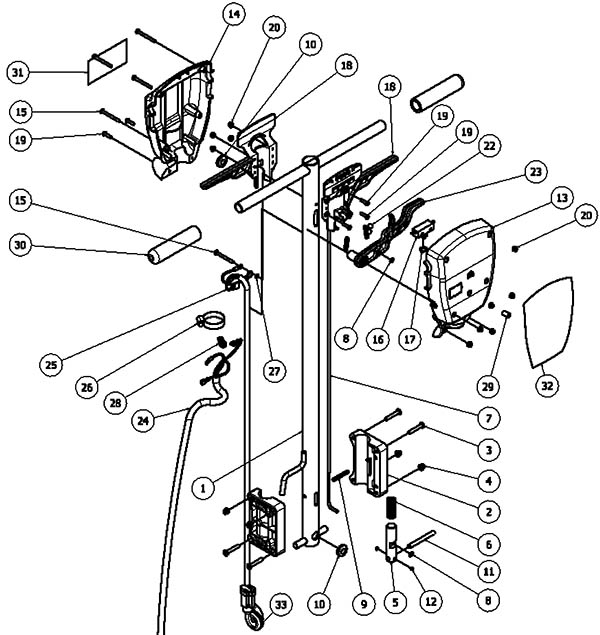

Handle Assembly - After SN 104360 - 206-4028 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-1297 |
Handle weldment |
1 |
|
| 2 |
206-1298 |
Handle clamp block |
2 |
|
| 3 |
999-0523 |
Screw 1/4-20 x 1 1/2 pan head phillips stainless steel |
4 |
|
| 4 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
| 5 |
206-1299 |
Plunger handle |
1 |
|
| 6 |
206-1300 |
Compression spring |
1 |
|
| 7 |
206-1301 |
Long handle rod |
1 |
|
| 8 |
206-1302 |
3/16 inch retaining ring |
2 |
|
| 9 |
206-1303 |
Spring pin 1/4 x 1 3/4 |
1 |
|
| 11 |
206-1305 |
Dowel pin 5/16 x 3 |
1 |
|
| 12 |
999-0156 |
Screw 1/4-20 x 3/16 cup point socket set alloy plain finish |
2 |
|
| 13 |
206-1306 |
Front housing |
1 |
|
| 14 |
206-1307 |
Rear housing |
1 |
|
| 15 |
999-1818 |
Screw 10-32 x 2 pan head phillips stainless steel |
5 |
|
| 16 |
217-0014 |
On/off switch |
1 |
|
| 17 |
999-0201 |
Washer 3/8 internal star lock |
1 |
|
| 18 |
206-1309 |
Molded trigger |
2 |
|
| 19 |
999-0414 |
Screw 10-32 x 3/4 pan head slotted zinc plated |
6 |
|
| 20 |
206-5019 |
Nut 10-32 elastic stop |
11 |
|
| 21 |
206-3387 |
Extension spring |
2 |
|
| 22 |
206-1310 |
Ball bearing 3/8 |
2 |
|
| 24 |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
|
| 25 |
206-1246 |
Handle cord assembly |
1 |
|
| 27 |
206-5030 |
Washer 10 counter sink |
1 |
|
| 29 |
206-0099 |
1/4 inch hose (clear) (sold by the inch) |
1 |
|
| 30 |
206-1314 |
Closed grip |
2 |
|
| 31 |
206-1244 |
Warning decal |
1 |
|
|
|

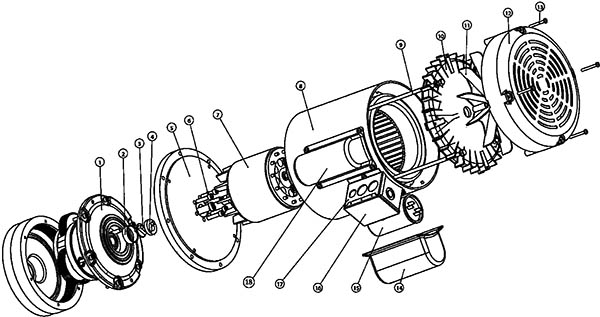

Motor and Gearbox Assembly - After SN 104360 - 206-4029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-1356 |
Gear box assembly |
1 |
|
| 7 |
206-1360 |
Rotor assembly |
1 |
|
| 9 |
206-1362 |
Screw hex head |
4 |
|
| 13 |
206-1366 |
Screw pan head |
4 |
|
| 14 |
206-1328 |
Capacitor cover |
2 |
|
| 15 |
206-1322 |
Run capacitor |
1 |
|
| 16 |
206-1367 |
Wiring box cover |
1 |
|
| 18 |
206-2068 |
Start capacitor |
1 |
|
|
|

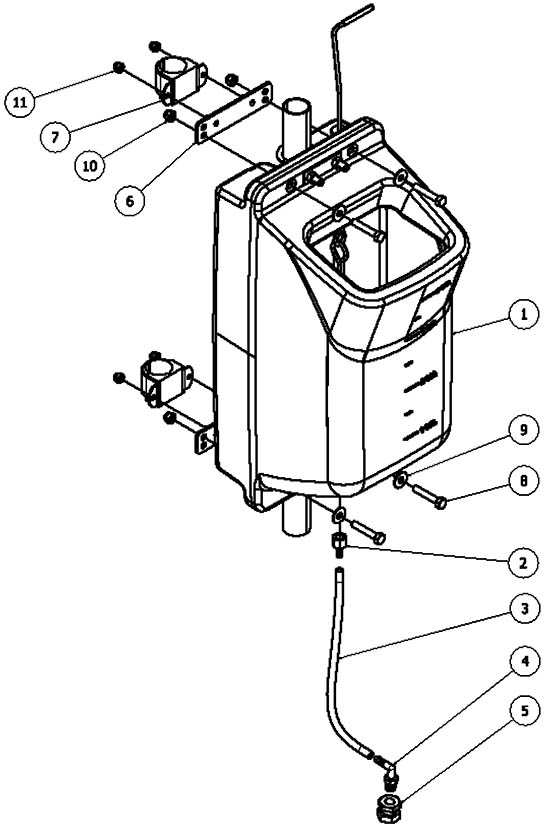

Solution Tank Assembly - After SN 104360 - 206-4030 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
206-1332 |
Tank assembly |
1 |
|
| 2 |
206-1333 |
Brass fitting |
1 |
|
| 4 |
206-1334 |
Elbow fitting |
1 |
|
| 5 |
206-3120 |
1/4 inch brass coupling |
1 |
|
| 6 |
206-1335 |
Tank adapter plate |
2 |
|
| 7 |
206-1336 |
U-shaped clamp |
2 |
|
| 8 |
999-0551 |
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
4 |
|
| 9 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 10 |
999-0593 |
Nut 5/16-18 hex stainless steel |
4 |
|
| 11 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
|

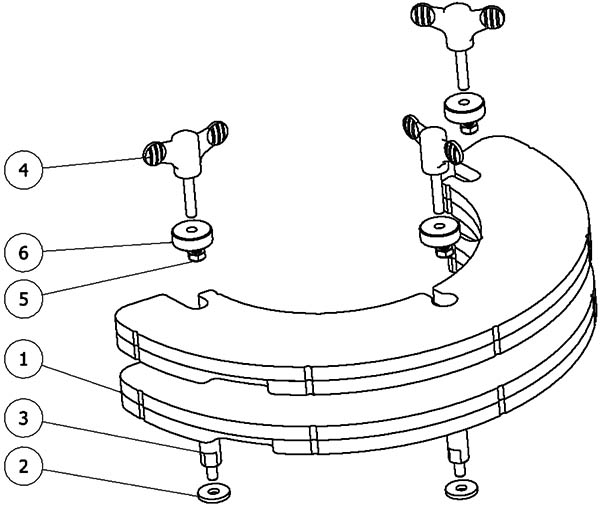

Weight Kit Assembly - After SN 104360 - 206-4031 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
999-1364 |
Washer 5/16 x 1 fender zinc finish |
3 |
|
| 3 |
206-1370 |
Weight retention shaft |
3 |
|
| 5 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
|
|
- Pads - 17 inch - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
