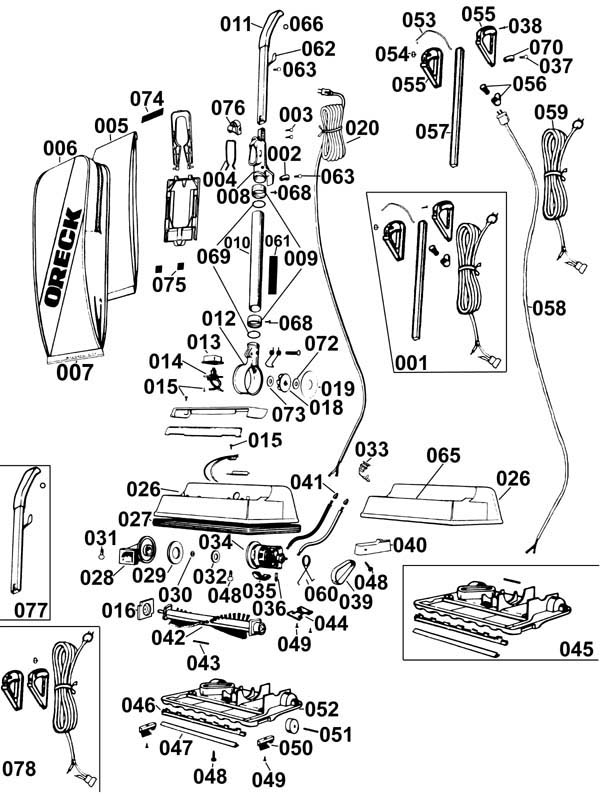

Entire Assembly - 239-2005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
239-0500 |
Handle assembly |
1 |
XL2000RH, XL2100RH, XL2090RHM includes items 038, 053 thru 057 and 059 |
| 001b |
239-0501 |
Handle assembly |
1 |
(XL2100HH) |
| 002 |
239-0587 |
Cord clamp |
1 |
|
| 003 |
239-0588 |
Screw 10 x 1/2 w/washer |
2 |
|
| 004 |
239-0506 |
Bag retainer spring (OBSOLETE) |
1 |
|
| 005a |
239-0507 |
Dust bag reg 8pk new style |
1 |
|
| 005b |
239-0508 |
Dust bag reg 25pk new style |
1 |
|
| 005c |
239-0509 |
Dust bag reg 9pk old style (OBSOLETE) |
1 |
|
| 005d |
239-0510 |
Dust bag reg 25pk old style |
1 |
|
| 005e |
239-0559 |
Dust bag 25pk hypo allergenic (OBSOLETE) |
1 |
|
| 005f |
239-0567 |
Dust bag 9pk hypo allergenic |
1 |
|
| 005g |
239-0568 |
Dust bag 25pk hypo allergenic |
1 |
|
| 005h |
239-0734 |
Paper vacuum bag (pkg of 8) |
1 |
|
| 005i |
239-0735 |
HEPA paper vacuum bag (pkg of 8) (OBSOLETE) |
1 |
|
| 006a |
239-0511 |
Outer bag |
1 |
XL2000RH |
| 006b |
239-0569 |
Outer bag (OBSOLETE) |
1 |
XL2000HH |
| 007 |
239-0514 |
Bag clip red (OBSOLETE) |
1 |
XL2000RH |
| 008 |
239-0517 |
Connector assembly with deflector and stiffener comm. welded |
1 |
|
| 009 |
239-0519 |
Collar (OBSOLETE) |
2 |
|
| 010 |
239-0520 |
Tube assembly |
1 |
|
| 011 |
239-0551 |
Grips set red type 2 units only (OBSOLETE) |
1 |
XL2000RS |
| 012 |
239-0521 |
Fan housing assembly with rivet and spring |
1 |
|
| 013 |
239-0577 |
Switch cover |
1 |
|
| 014 |
239-0578 |
Switch assembly |
1 |
|
| 015 |
239-0589 |
Screw 8x1/2 phillips |
|
|
| 016 |
239-0522 |
End cap left (OBSOLETE) |
1 |
|
| 018 |
239-0523 |
Metaxalloy Fan kit with washers |
1 |
|
| 019 |
239-0524 |
Fan cup seal |
1 |
|
| 020a |
239-5651 |
D-handle 35ft Red power cord |
1 |
XL2000RS and XL2100RS |
| 020b |
239-0561 |
Cord assembly black |
1 |
XL2090RSM |
| 026a |
239-0525 |
Red housing with label |
1 |
XL2000RH |
| 026b |
239-0526 |
Blue housing with label |
1 |
XL2100RH |
| 026c |
239-0527 |
Kelly green housing with label |
1 |
XL2090RHM |
| 026d |
239-0581 |
Red housing with label |
1 |
XL2000RS |
| 026e |
239-0582 |
Blue housing with label |
1 |
XL2100RS |
| 026f |
239-0583 |
Kelly green housing with label |
1 |
XL2090RSM |
| 027 |
239-0528 |
Clear bumper |
1 |
|
| 028 |
239-0529 |
Intake pivot assembly with felt seal |
1 |
|
| 030 |
239-0590 |
Nut 1/2-32 yellow crome |
1 |
|
| 031 |
239-0591 |
Screw 8 x 5/8 phillips |
1 |
|
| 032 |
239-0531 |
Motor felt seal |
1 |
|
| 033 |
239-0532 |
Cord retainer |
1 |
|
| 035 |
239-0534 |
Motor seal |
2 |
|
| 036 |
239-0535 |
Motor brush 2pk (OBSOLETE) |
2 |
|
| 037 |
239-0592 |
Screw 8x1 1/4 phillips |
|
|
| 038 |
239-0593 |
Screw 8x3/4 phillips |
4 |
|
| 040a |
239-0537 |
Belt door (red) (OBSOLETE) |
1 |
XL2000RH |
| 040b |
239-0538 |
Belt door (blue) |
1 |
XL2100RH |
| 040c |
239-0539 |
Belt door (kelly green) |
1 |
XL2090RHM |
| 042 |
239-0540 |
Brush roll, pulley and bearing assembly red (OBSOLETE) |
1 |
|
| 043 |
239-0541 |
Base plate seal (OBSOLETE) |
1 |
|
| 044 |
239-0542 |
Plastic detent |
1 |
Uses two 239-0596 screws |
| 045 |
239-0543 |
Base plate assembly with micro sweep (OBSOLETE) |
1 |
Includes items 043, 046, 047 and 052 |
| 046 |
239-0544 |
Micro sweep blade |
1 |
|
| 048 |
239-0595 |
Screw 8x3/4 phillips |
|
|
| 049 |
239-0596 |
Screw 7x .38 phillips |
|
|
| 050 |
239-0546 |
Corner brush without wheels |
2 |
|
| 051 |
239-0547 |
Front and rear wheel axle |
2 |
|
| 052 |
239-0548 |
Soft rear wheel black |
2 |
|
| 053 |
239-0549 |
Static wire |
1 |
|
| 054 |
239-0550 |
2 Position switch assembly (OBSOLETE) |
1 |
|
| 055a |
239-0551 |
Grips set red type 2 units only (OBSOLETE) |
1 |
XL2000RH Type 1 units order assembly 078 for grips |
| 055b |
239-0552 |
Grips set blue type 2 units only |
1 |
XL2100RH Type 1 units order assembly 078 for grips |
| 055c |
239-0553 |
Grips set kelly green type 2 units only |
1 |
XL2090RHM Type 1 units order assembly 078 for grips |
| 056a |
239-0554 |
Cord wrap assembly with post and cord wrap (OBSOLETE) |
1 |
XL2000RH |
| 056b |
239-0555 |
Cord wrap assembly with post and cord wrap |
1 |
XL2100RH |
| 056c |
239-0556 |
Cord wrap assembly with post and cord wrap |
1 |
XL2090RHM |
| 057a |
239-0557 |
Handle tube |
1 |
XL2000RH |
| 057b |
239-0558 |
Handle tube |
1 |
XL2100RH and XL2090RHM |
| 058a |
239-0560 |
Cord assembly red (OBSOLETE) |
1 |
|
| 058b |
239-0561 |
Cord assembly black |
1 |
XL2090RHM |
| 059a |
239-0562 |
35 foot red power cord (OBSOLETE) |
1 |
Type 1 units order assembly 2 for cord set |
| 059b |
239-0563 |
Cord set black type 2 units only |
1 |
Type 1 units order assembly 2 for cord set |
| 060 |
239-0564 |
Motor spring |
2 |
|
| 061 |
239-0565 |
Tube label |
1 |
|
| 062a |
239-0584 |
Cord bracket (OBSOLETE) |
1 |
XL2000RS |
| 062b |
239-0585 |
Cord bracket |
1 |
XL2100RS |
| 062c |
239-0584 |
Cord bracket (OBSOLETE) |
1 |
XL2090RSM |
| 063 |
239-0597 |
Screw 10 x 1/2 phillips head |
|
|
| 065 |
239-0566 |
Name plate label |
1 |
|
| 068 |
239-0598 |
Screw 6-20x1/4 |
2 |
|
| 069 |
239-0599 |
O-Ring (OBSOLETE) |
2 |
|
| 070 |
239-0600 |
Handle cord clamp |
1 |
|
| 073 |
239-0602 |
Washer external lock tooth |
1 |
|
| 074 |
239-0603 |
Bag support loop fastener 1x3in |
1 |
|
| 075 |
239-0604 |
Bag dock hook fastener 1x1in |
2 |
|
| 076 |
239-0518 |
Deflector black snap type 1 and 2 units only |
1 |
|
| 077a |
239-0571 |
Handle assembly |
1 |
XL2000RS |
| 077b |
239-0572 |
Handle assembly |
1 |
XL2100RS |
| 077c |
239-0573 |
Handle assembly |
1 |
XL2090RSM |
| 078a |
239-0503 |
Torturous grip and cord assembly |
1 |
XL2000RH includes items 054, 055 and 059 |
| 078b |
239-0504 |
Torturous grip and cord assembly |
1 |
XL2100RH includes items 054, 055 and 059 |
| 078c |
239-0505 |
Torturous grip and cord assembly |
1 |
XL2090RHM includes items 054, 055 and 059 |
| N/S |
239-0688 |
Scent tabs 12 pack (OBSOLETE) |
1 |
|
| N/S |
239-5678 |
Cord kit (red) |
1 |
|
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
|
