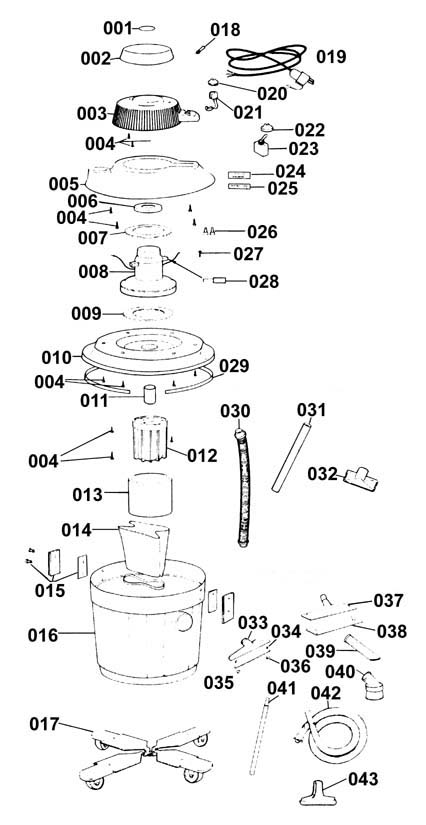

Entire Assembly - 239-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
239-0002 |
Upper vent cover |
|
|
| 003 |
239-0003 |
Lower vent cover |
|
|
| 005 |
239-0005 |
Upper motor housing |
|
|
| 006 |
239-0006 |
Upper motor mtg ring |
|
|
| 007a |
239-0007 |
Lower motor isolator |
|
|
| 009b |
239-0011 |
Lower fan isolator |
|
|
| 010 |
239-0012 |
Lower motor housing |
|
|
| 012 |
239-0003 |
Lower vent cover |
|
|
| 013 |
239-0015 |
Foam filter (OBSOLETE) |
|
|
| 014 |
239-0016 |
Filter bags (OBSOLETE) |
|
|
| 016 |
239-0018 |
Lower housing assembly |
|
|
| 019 |
239-0021 |
Cord and adapter |
|
|
| 021 |
239-0023 |
Strain relief |
|
|
| 023 |
239-0025 |
Switch assembly |
|
|
| 024 |
239-0026 |
Specification label |
|
|
| 025 |
239-0027 |
Warning label |
|
|
| 026 |
239-0028 |
Wire connectors |
|
|
| 028 |
239-0030 |
Motor brush assembly |
|
|
| 030 |
239-0032 |
Hose assembly (OBSOLETE) |
|
|
| 032a |
239-0034 |
Utility tool |
|
|
| 032b |
239-0035 |
Accessory kit |
|
includes #030-032 |
| 037 |
239-0040 |
Wet pickup tool |
|
|
| 038 |
239-0041 |
Bottom plate and squeegee assembly |
|
|
| 039 |
239-0042 |
Crevice tool |
|
|
| 040 |
239-0043 |
Dusting brush |
|
|
| 042 |
239-0045 |
Hose assembly |
|
|
| 043 |
239-0046 |
Upholstery tool |
|
|
| KIT |
239-0047 |
Foam filter kit (OBSOLETE) |
|
|
|
|
|
