Parts List Complete for ONYX DX32

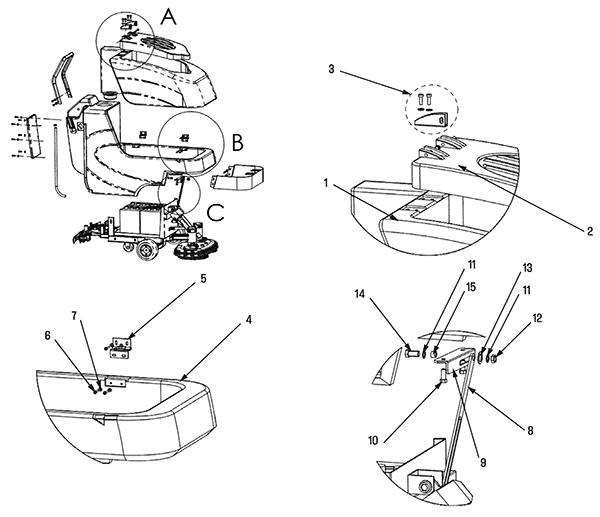

Recovery Tank - Hinges Assembly - 252-9919
RefNbr Part Number Description Req Notes
1 252-9599 Recovery water tank 1
2 252-9600 Recovery tank cover 1
3 252-9601 Pivot bracket assembly w/ hardware 1
4 252-9602 Recovery tank 1
5 252-9603 Hinge 1
6 N/A Not available 2 (Bolt M8 x 15MM socket head)
7 999-9097 Washer M8 flat stainless steel 2
8 252-9604 Support rod 1
9 252-9605 Bracket 1
10 N/A Not available 2 (Bolt M8 x 15MM socket head)
11 999-9097 Washer M8 flat stainless steel 2
12 999-1651 Nut M8-1 hex stainless steel 1
13 252-9606 Bushing nylon 1
14 N/A Not available 1 (Bolt M8 x 15MM socket head)
15 252-9607 Spacer M8 steel 1

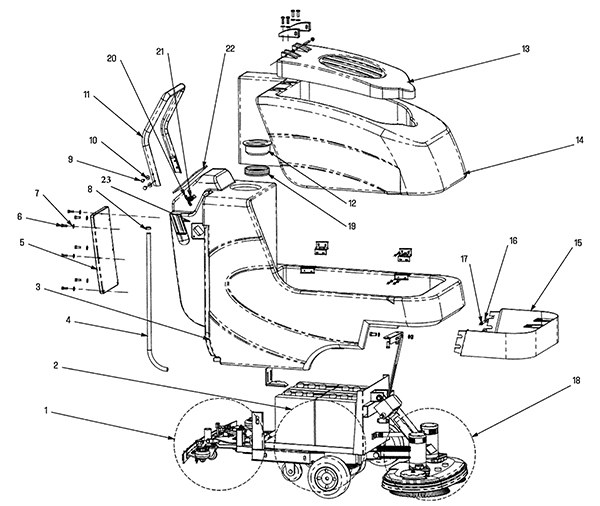

Main Assembly - 252-9920
RefNbr Part Number Description Req Notes
1 252-9598 46 inch squeegee assembly 1
2 N/A Not available 4 (See Frame, Wheel and Battery Assembl)
3 252-9599 Recovery water tank 1
4 252-9608 Water level hose 1
5 252-9609 Cover plate 1
6 N/A Not available 7 (Round head bolt)
7 N/A Not available 7 (Large washer)
8 252-9069 Hose clamp 1
9 N/A Not available 2 (Round head bolt)
10 252-9610 Washer M6 curved 2
11 252-9611 Handle with F/M 1
12 252-9264 Fresh water inlet cover 1
13 252-9600 Recovery tank cover 1
14 252-9602 Recovery tank 1
15 252-9612 Front cover 1
16 N/A Not available 2 (Large washer)
17 N/A Not available 2 (Hex bolt)
18 N/A Not available 1 (See Brush Head Assembly)
19 252-9265 Fresh water inlet filter screen 1
20 252-9613 Accelerator trigger 1
21 252-9614 Accelerator 1
22 252-9615 Control panel 1
23 252-9616 Side cover plate 1

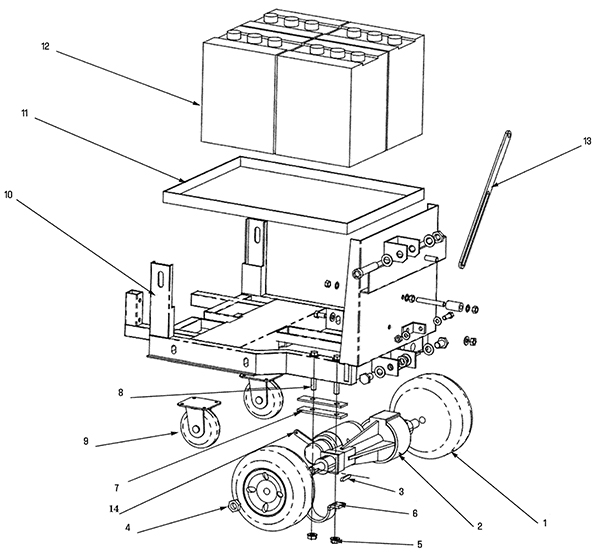

Frame, Wheel, and Batteries Assembly - 252-9921
RefNbr Part Number Description Req Notes
1 252-9308 10 inch rear wheel 2
2 252-9309 24V drive motor 1
3 252-9617 Motor pin 1
4 252-9618 M12 nut 2
5 999-1651 Nut M8-1 hex stainless steel 2
6 252-9619 U bracket 1
7 252-9620 Balance block 1
8 N/A Not available 2 (M8 screw)
9 252-9621 Swivel caster 2
10 252-9622 Frame weldment 1
11 252-9623 Battery tray 1
12 252-9597 6V battery 4
13 252-9604 Support rod 1
14 252-9311 Electric brake 1

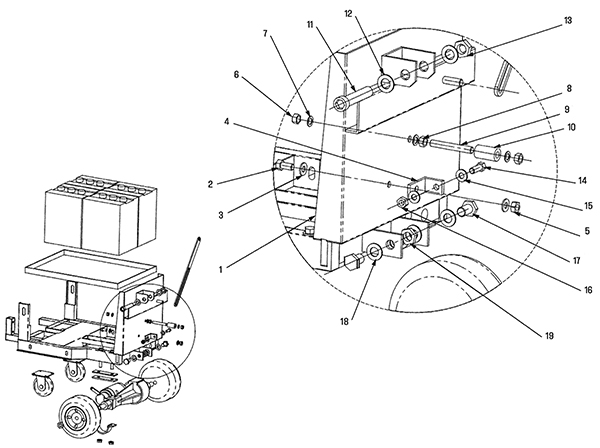

Front Frame Assembly - 252-9922
RefNbr Part Number Description Req Notes
1 252-9622 Frame weldment 1
2 N/A Not available 1 (Bolt M8 x 25 hex)
3 999-9097 Washer M8 flat stainless steel 1
5 999-1651 Nut M8-1 hex stainless steel 1
6 999-1651 Nut M8-1 hex stainless steel 1
7 999-9097 Washer M8 flat stainless steel 1
8 999-9097 Washer M8 flat stainless steel 1
9 252-9626 Sleeve 1
10 252-9627 Spacer nylon 1
11 999-1429 Bolt M10-1.5 x 60mm hex head stainless steel 1
12 999-9099 Washer M10 flat stainless steel 1
13 999-9133 Nut M10-1.5 nut hex head stainless steel 1
14 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 1
15 999-9097 Washer M8 flat stainless steel 1
16 999-1651 Nut M8-1 hex stainless steel 1
17 N/A Not available 1 (Bolt M8 x 35mm )
18 999-9097 Washer M8 flat stainless steel 1
19 999-1651 Nut M8-1 hex stainless steel 1

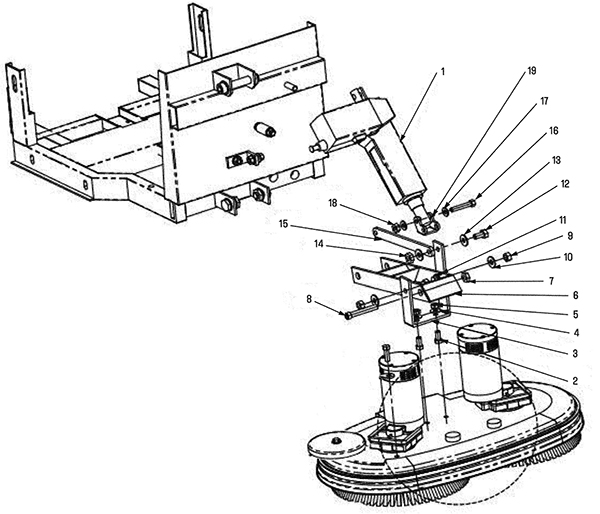

Head Lifiting Assembly - 1 - 252-9923
RefNbr Part Number Description Req Notes
1 252-9628 Head lifiting motor 1
2 N/A Not available 2 (Bolt M10 x 40 hex)
3 N/A Not available 1 (U bracket)
4 252-9625 Bracket 1
5 999-9133 Nut M10-1.5 nut hex head stainless steel 2
6 N/A Not available 1 (Bracket)
7 999-1651 Nut M8-1 hex stainless steel 1
8 N/A Not available 1 (Screw M8 x 70)
9 252-9626 Sleeve 2
10 252-9627 Spacer nylon 2
11 999-1651 Nut M8-1 hex stainless steel 2
12 N/A Not available 1 (M8 screw)
13 999-1261 Washer M6 flat stainless steel 2
14 999-1651 Nut M8-1 hex stainless steel 1
15 N/A Not available 1 (Adjustment lever)
16 N/A Not available 1 (Screw M8 x 45)
17 999-9099 Washer M10 flat stainless steel 2
18 999-9133 Nut M10-1.5 nut hex head stainless steel 1
19 N/A Not available 1 (Bracket)

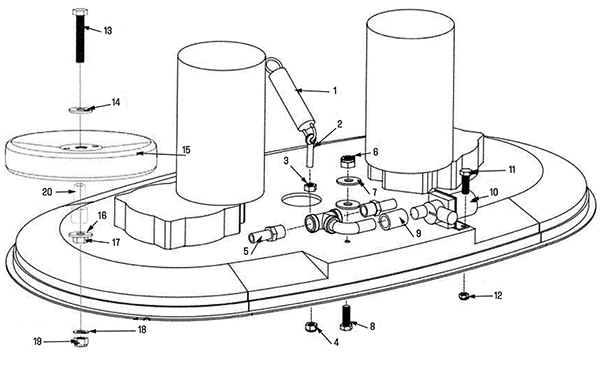

Head Lifiting Assembly - 2 - 252-9924
RefNbr Part Number Description Req Notes
1 252-9629 Spring 1
2 N/A Not available 1 (Screw M8 x 30 fisheye)
3 999-1651 Nut M8-1 hex stainless steel 1
5 252-9282 G1/2-D13 pipe joint 1
6 999-9131 Nut M6 x 1 nylon lock stainless steel 1
7 N/A Not available 1 (Washer M6 large)
8 N/A Not available 1 (Bolt M6 x 30 hex)
9 252-9630 Hose 1
10 252-9167 Water shut off solenoid valve 1
11 N/A Not available 1 (Bolt M6 x 30 hex)
12 999-0955 Nut M4-.7 hex nylon lock 1
13 N/A Not available 1 (Bolt M8 x 60 hex)
14 N/A Not available 1 (Washer M8 large)
15 252-9631 Bumper wheel 1
16 N/A Not available 1 (Washer M8 large)
17 999-1651 Nut M8-1 hex stainless steel 1
18 999-9097 Washer M8 flat stainless steel 1
20 252-9632 Bumper wheel sleeve 1

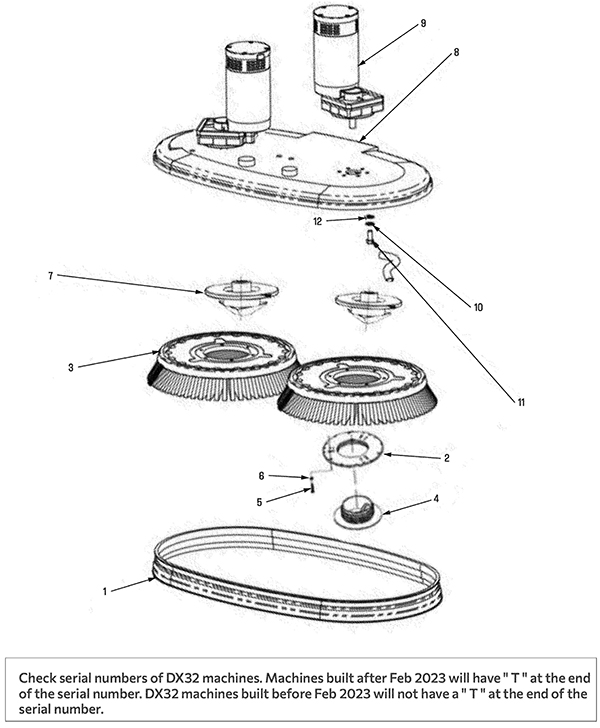

Brush Head Assembly - 252-9925
RefNbr Part Number Description Req Notes
1a 252-9633 32 inch brush skirt 1 (DX 32 models SN without T in SN)
1b 252-9634 32 inch brush skirt 1 (DX 32 models SN with T in SN)
2a 252-9635 16 inch pad driver 2 (DX 32 models SN with T in SN)
2b 252-9636 15 inch pad driver 2 (DX 32 models SN without T in SN)
2c 252-9153 13 inch pad driver 2 (DX 26)
3a 252-9637 15 inch brush standard 2 (DX 32 models SN without T in SN)
3b 252-9638 15 inch brush extra stiff 2 (DX 32 models SN without T in SN)
3c 252-9639 16 inch brush standard 2 (DX 32 models SN with T in SN)
3d 252-9640 16 inch brush extra stiff 2 (DX 32 models SN with T in SN)
3e 252-9641 13 inch brush standard 2 (DX 26)
3f 252-9642 13 inch brush extra stiff 2
4 252-9053 Pad holder assembly 2
5 N/A Not available 6 (Screw M4 x 25 phillips)
6 999-9089 Washer M4 flat stainless steel 6
7 252-9186 Triangle pad driver 2
8a 252-9643 32 inch brush cover 1 (DX 32 models SN without T in SN)
8b 252-9644 32 inch brush cover 1 (DX 32 models SN with T in SN)
8c 252-9645 26 inch brush cover 1 (DX 26)
9 252-9179 Brush head motor 2
10 999-9097 Washer M8 flat stainless steel 2
11 N/A Not available 2 (Screw M8)
N/S 252-9646 Elbow 2
N/S 252-9647 Fresh water hose 1
N/S 252-9200 13mm ID fresh water hose 1

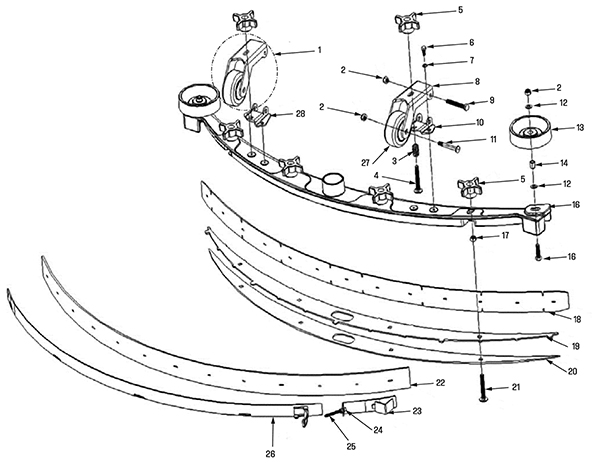

Squeegee Assembly - 252-9926
RefNbr Part Number Description Req Notes
1 252-9648 Squeegee wheel and bracket 2
2 999-1651 Nut M8-1 hex stainless steel 4
3 252-9649 Spring 2
4 N/A Not available 2 (Screw M8 x 60)
5 252-9650 Tightening knob w/ M8 nut 6
6 N/A Not available 2 (Screw M8 x 15)
7 999-9097 Washer M8 flat stainless steel 2
8 252-9651 Squeegee bracket wheel 2
9 N/A Not available 2 (Screw M8 x 60)
10 252-9652 Right hand squeegee wheel bracket mount 1
11 N/A Not available 2 (Screw M8 x 60)
12 999-9097 Washer M8 flat stainless steel 4
13 252-9187 Bumper wheel 2
14 252-9653 Sleeve 2
15 252-9654 Squeegee body 1
16 N/A Not available 2 (Screw M8 x 30)
17 999-1651 Nut M8-1 hex stainless steel 6
18 252-9655 46 inch squeegee blade front 1
19 252-9656 Upper squeegee mount 1
20 252-9657 Lower squeegee mount 1
21 N/A Not available 6 (Screw M8 x 60)
22 252-9658 46 inch squeegee blade rear 1
23 252-9659 Right hand squeegee clamp 1
24 N/A Not available 1 (Screw M5 x 50)
25 999-0740 Nut M5-.8 hex stainless steel 1
26 252-9660 Left hand squeegee clamp 1
27 252-9661 Squeegee wheel 2
28 252-9662 Left hand squeegee wheel bracket mount 1

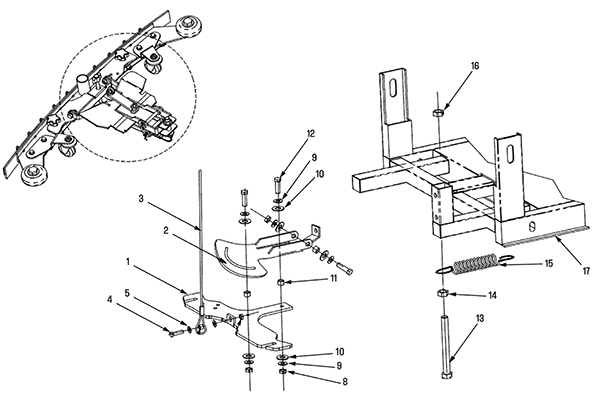

Squeegee Mounting Assembly - 252-9927
RefNbr Part Number Description Req Notes
1 252-9663 Squeegee bracket mount 1
2 252-9664 Squeegee pivot bracket 1
3 252-9665 Steel cable 1
4 N/A Not available 1 (Screw M6)
5 999-1261 Washer M6 flat stainless steel 1
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
10 999-9214 Washer M8 flat nylon 4
11 252-9666 Spacer M8 steel 2
12 N/A Not available 2 (Bolt M8)
13 252-9667 M10 bolt 1
14 999-0503 Nut M12-1.75 hex stainless steel 1
15 252-9668 Spring 1
17 252-9622 Frame weldment 1
N/S 252-9669 Spacer M6 steel 1
N/S 999-1308 Nut M6-1 hex stainless steel 1

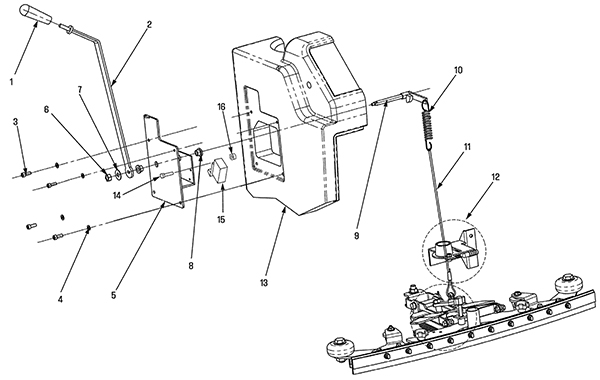

Squeegee Lifting Assembly - 252-9928
RefNbr Part Number Description Req Notes
1 252-9670 Handle 1
2 252-9671 Squeegee lifiting lever 1
3 N/A Not available 4 (Screw M6 x20)
4 999-1261 Washer M6 flat stainless steel 4
5 252-9672 Squeegee lever bracket 1
6 N/A Not available 1 (Screw M6 cross round head)
7 999-9097 Washer M8 flat stainless steel 1
8 252-9673 Nylon sleeve 2
9 252-9674 Squeegee lever axle 1
10 252-9675 Spring 1
11 252-9665 Steel cable 1
12 N/A Not available 1 (Cable guide bracket assembly)
13 N/A Not available 1 (Fresh water tank)
14 N/A Not available 1 (Bolt M3 x 40 cross round head)
15 252-9676 Microswitch 1
16 N/A Not available 1 (Nut M3 lock)

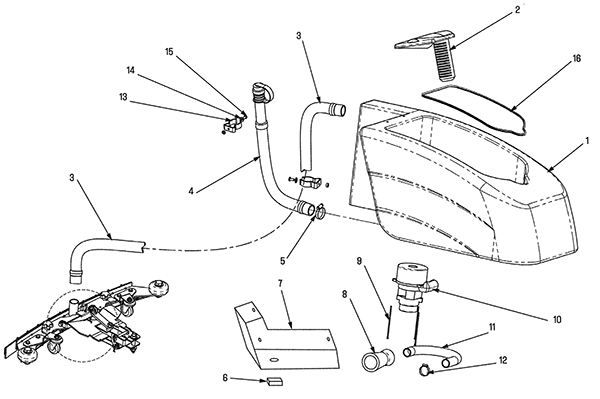

Vacuum System Assembly - 252-9929
RefNbr Part Number Description Req Notes
1 252-9602 Recovery tank 1
2 252-9677 Ball float shutoff tube 1
3 252-9678 Vacuum hose 1
4 252-9679 Drain hose 1
5 252-9049 Hose clamp 1
6 252-9231 Small charger socket housing (includes 2 metal connectors) 1
7 252-9680 Vacuum dust cover 1
8 252-9061 Noise muffler 1
9 252-9681 M6 screw 3
10 252-9682 24V vacuum motor 1
11 N/A Not available 1 (Noise muffler pipe)
12 252-9683 Hose clamp 1
13 252-9239 Pipe hanger clip 1
14 999-1261 Washer M6 flat stainless steel 2
15 999-1308 Nut M6-1 hex stainless steel 2
16 252-9240 Recovery tank cover seal 1

Water Components Assembly - 252-9930
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Water tank outlet)
2 252-9684 Brass coupler 2
3 252-9283 Inline water filter with 2 gaskets 3
4 252-9685 Water pump 4
5 252-9069 Hose clamp 3
6 252-9200 13mm ID fresh water hose 1
7 252-9167 Water shut off solenoid valve 1
8 N/A Not available 2 (Gasket washer)
9 252-9686 Pump elbow 1
10 N/A Not available 1 (10 inch hose)
11 N/A Not available 1 (8 inch hose)
12 252-9687 Elbow joint 1
13 252-9202 Water flow control valve 1
14 252-9688 Water valve bracket 1
15 252-9646 Elbow 1

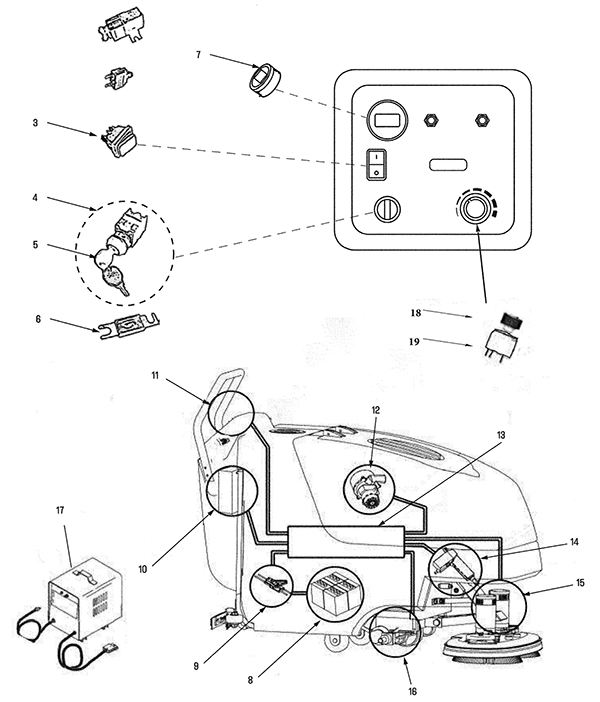

Electrical Components Assembly - 252-9931
RefNbr Part Number Description Req Notes
1 252-9223 24V relay/contactor 1
2a 252-9156 5 amp circuit breaker 1
2b 252-9224 10A circuit breaker 1
2c 252-9225 20A circuit breaker 1
2d 252-9226 40A circuit breaker 1
3 252-9229 Toggle switch 1
4 252-9098 Key switch with 2 keys 1 (includes 5)
5 252-9099 Main on/off switch key 1
6a 252-9227 80A fuse 1
6b 252-9228 150A fuse 1
7 252-9092 Round hour and battery meter 1
8 252-9597 6V battery 4
9 252-9689 Charger socket housing 1
10 252-9690 Circuit board 1
11 252-9615 Control panel 1
12 252-9682 24V vacuum motor 1
13 252-9691 Wire harness 1
14 252-9628 Head lifiting motor 1
15 252-9179 Brush head motor 2
16 252-9309 24V drive motor 1
17 252-9154 24V battery charger 1
18 252-9692 Speed governor dial knob 1
19 252-9693 Speed governor dial switch 1

- Commonly Asked For Parts - 252-9961
RefNbr Part Number Description Req Notes
01 252-9153 13 inch pad driver
02 252-9154 24V battery charger
