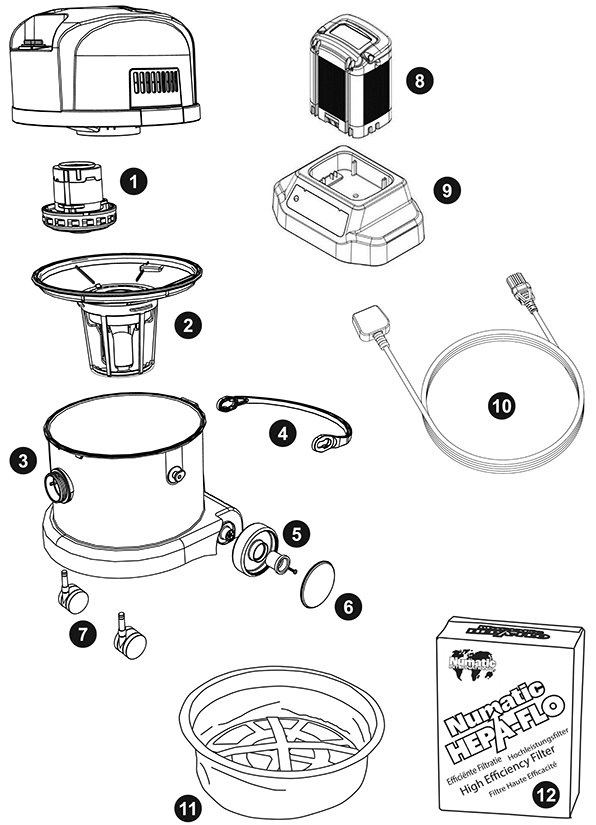

Entire Assembly - 193-0030 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
193-2199 |
36V cinderson bypass vacuum motor assembly |
1 |
|
| 2 |
193-2198 |
Wet filter assembly |
1 |
|
| 3 |
193-2200 |
Drum assembly (blue) |
1 |
|
| 5b |
220-0107 |
2 shot wheel |
1 |
|
| 5c |
193-1073 |
Screw plastite M8 x 5/8 inch |
1 |
|
| 6 |
220-0110 |
Trim (black) |
1 |
|
| 7 |
220-4005 |
Caster wheel |
2 |
|
| 8 |
220-2056 |
36V lithium Ion battery |
1 |
|
| 9 |
220-5148 |
Lithium battery charger |
1 |
|
| 10 |
193-2183 |
NX charging cable |
1 |
|
| 11 |
193-2192 |
12 inch tritex filter |
1 |
|
| 12 |
193-0005 |
Filter bag (pkg of 10) |
1 |
|
|
|

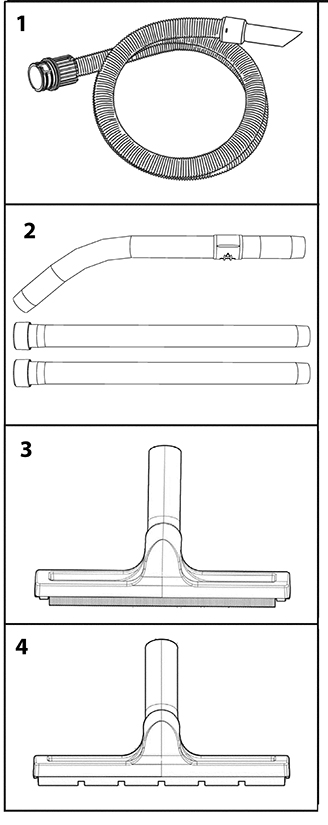

-Accessories - 193-0031 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
193-2197 |
2 inch parallel hose |
1 |
|
| 2a |
220-4000 |
Volume control wand with bend |
1 |
|
| 2b |
220-0399 |
Stainless steel extension tube |
2 |
|
| 3 |
193-2204 |
Wet floor tool |
1 |
|
| 4 |
193-2203 |
Proflo dry floor tool |
1 |
|
|
|

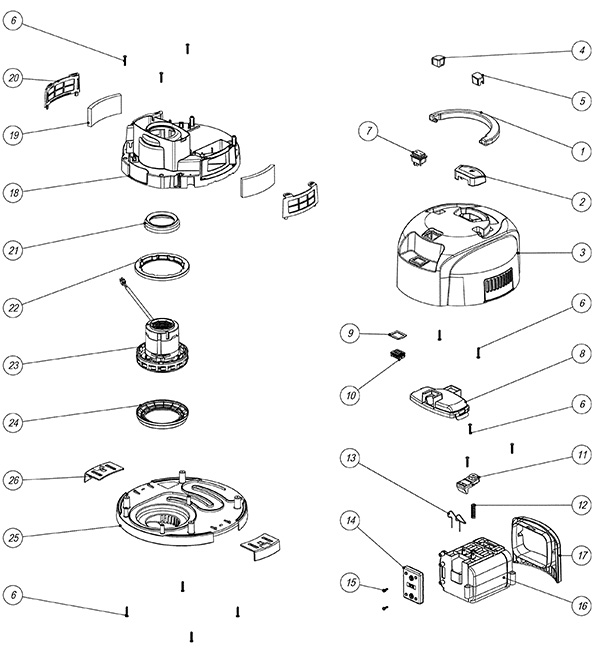

Head Assembly - 193-0033 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
193-2179 |
Rewind handle |
1 |
|
| 2 |
193-3090 |
Eject button |
1 |
|
| 4 |
193-3092 |
Left hand handle retainer |
1 |
|
| 5 |
193-3093 |
Right hand handle retainer |
1 |
|
| 6 |
193-1057 |
Screw #8 x 1 plastite |
12 |
|
| 7 |
193-3094 |
On/off rocker switch |
1 |
|
| 8 |
193-3095 |
Top motor cover |
1 |
|
| 9 |
193-3096 |
Switch gasket |
1 |
|
| 10 |
220-2015 |
LED battery indicator light |
1 |
|
| 11 |
193-3097 |
Battery latch |
1 |
|
| 12 |
193-3098 |
Coil spring 11mm |
1 |
|
| 13 |
193-3099 |
Battery release spring |
1 |
|
| 14 |
220-4955 |
PCB assembly |
1 |
|
| 15 |
193-2007 |
Screw 8 x 1/2 inch stainless steel |
2 |
|
| 16 |
193-3100 |
Battery housing |
1 |
|
| 18 |
193-3102 |
Top motor housing |
1 |
|
| 19 |
193-3103 |
Exhuast foam |
2 |
|
| 20 |
193-3104 |
Foam retainer |
2 |
|
| 23 |
193-2199 |
36V cinderson bypass vacuum motor assembly |
1 |
|
| 24 |
193-3107 |
Bottom motor gasket |
1 |
|
| 25 |
193-3108 |
Bottom motor housing |
1 |
|
| 26 |
193-2216 |
Toggle switch (single shot) |
2 |
|
|
|
