Parts List Complete for NUMATIC TWINTEC TTB3450


- Commonly Asked For Parts - 193-9986
RefNbr Part Number Description Req Notes
1 193-1788 Control back plate
2 193-1789 Fuse holder
3 193-1790 30amp fuse
4 193-1791 40amp fuse
5 193-1792 Screw
6 193-0205 Washer M5-A stainless steel
7 193-1793 Controller mounting plate
8 193-1794 Screw
9 193-1218 Nylon spacer
10 193-1795 Current shunt pcb
11 193-1022 Nut M5 nyloc stainless steel
12 193-1039 Screw M5 x 20mm pan head
13 193-1796 Master key switch and key
14 193-1348 Screw M6 x 20mm
15 193-1738 Nylon insert nut
16 193-1797 Motor control
17 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel
18 193-0176 Nut M4 nylon insert stainless steel
19 193-1798 Plate
20 193-1799 Fuse cover
21 193-1800 Contactor
22 193-1053 Screw M4 x 6mm pan head taptite
23 193-1801 Screw
24 193-1802 Bus bar
25 193-1118 Washer M8 shakeproof
26 193-1030 M6 shakeproof washer
27 193-1803 Washer
28 193-1804 Washer
29 193-1805 Bolt
30 193-1806 Screw
31 193-1807 Washer
32 193-1808 Wire
33 193-1809 Wire assembly
34 193-1810 Contactor lead assembly
35 193-1811 Washer
36 193-1256 Screw
37 193-1812 Fuse
38 193-1813 Maxi fuse puller
39 193-1814 2amp 20mm quick blow fuse
40 193-1815 Back plate
41a 193-1816 230v 25amp battery charger
41b 193-1817 120v battery charger assembly
42 193-1066 Screw M4 x 12mm sems
43 193-1818 Socket mounting plate
44 193-1819 Top socket plate
45a 193-1820 Socket cover
45b 193-1821 Socket cover
46 193-1822 Socket mounting plate
47 193-1823 3 pin appliance socket
48a 193-1824 230V neon indicator lens (red)
48b 193-1825 120V neon indicator lens (red)
49 193-1826 Stainless steel bar
50 193-1827 Flap molding
51 193-1828 Spring
52 193-1829 3mm diameter starlock
53 193-1216 Screw
54 193-1830 Window plug
55 193-1202 Hose clip (OBSOLETE)
56 193-1831 700mm charger lead assembly
57a 193-1832 Charging lead (ac)
57b 193-1833 Charging lead (ac)
58a 193-1834 Charging lead (uk)
58b 193-1835 Charging lead (euro)
58c 193-1836 Charging lead (usa)
60 193-1838 Positive battery terminal converter
61 193-1839 Negative battery terminal convertor
62 193-1840 Cap (red)
63 193-1841 Cap (black)
64 193-1842 Clip
65 193-1843 Extension tube
66 193-1844 Charger mounting bracket
67 193-1845 Screw
68 193-1846 Rear panel gasket
69 193-1847 Lead assembly
70 193-1848 Lead assembly
71 193-1849 Gasket

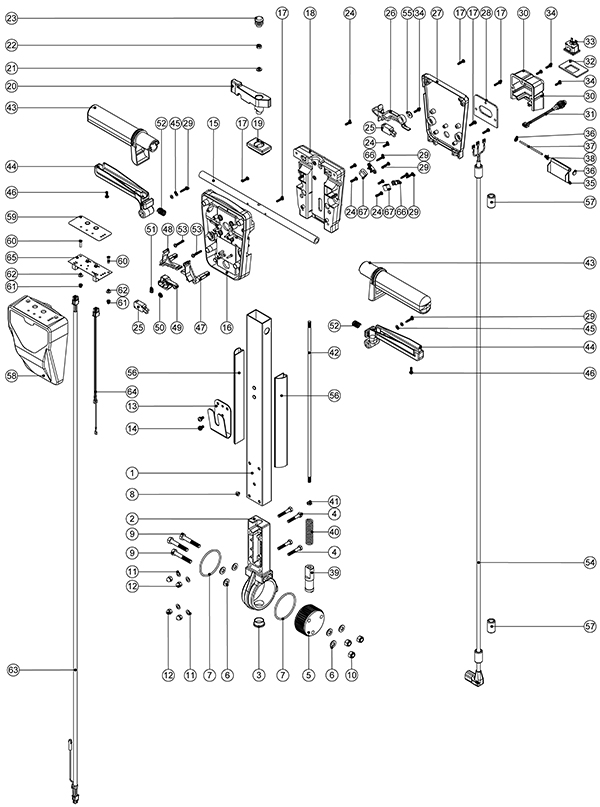

Handle Assembly - 220-0000
RefNbr Part Number Description Req Notes
1 220-1350 430mm aluminum handle 1
2 220-0174 Handle casting 1
3 220-0180 Plug 1
4 220-4099 Bolt M6 x 35 4
5 220-0175 Adjustment gear 1
6 220-0164 Washer 6
7 220-0176 O ring 2
8 220-0195 Plug 1
9 220-4163 Bolt M8 x 25mm 3
10 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
11 193-0225 Washer M6-B 4
12 220-4165 Dome nut 4
13 193-1732 Separator hanging bracket 1
14 220-4162 Screw 2
15 220-0182 Tube 1
16a 220-0183 Front inner molding 1 (standard)
16b 220-0996 Front inner half moulding 1 (flame retardant)
17 220-0109 Screw 6
18a 220-0184 Rear inner molding 1 (standard)
18b 220-0997 Rear inner half moulding 1 (flame retardant)
19 220-0197 Handle plug 1
20 220-0193 Adjustment lever 1
21 193-0219 Washer M6 nylon 1
22 193-0139 Nut M6 nylon insert stainless steel 1
23 220-0205 Tube end stop (black) 1
24 193-0107 Screw 8 x 1/2 plastite 7
25 220-0208 Snap switch 2
26 220-0196 Interlock lever 1
27a 220-0254 Rear cover 1 (standard)
27b 220-1004 Rear cover moulding 1 (flame retardant)
28 220-1005 Socket cover sealing gasket 1
29 193-0028 Plastic screw 6
30a 193-1412 Drilled socket cover 2 (standard)
30b 193-1413 Drilled socket cover 2 (flame retardant)
31a 193-1824 230V neon indicator lens (red) 1
31b 193-1402 120V neon indicator (red) 1
32 193-1415 Socket mounting plate 1
33 193-1416 3 pin charging socket 1
34a 220-2030 Screw 8 x 3/8 plastite 4 (after 10/2011)
34b 999-0434 Screw 6 x 3/8 pan head phillips 4 (between 02/2005 and 02/2009
34c 220-2030 Screw 8 x 3/8 plastite 4 (between 02/2005 and 02/2009
35 193-1414 Flap moulding 1
36 193-1419 Starlock cap 2
37 193-1417 3mm stainless steel bar 1
38 193-1418 Torsion spring 1
39 220-0177 Gear locking pin 1
40 220-0178 Spring 1
41 193-0223 Half nut M6 1
42 220-0998 440mm handle locking rod 1
43 220-0124 Hand grip molding 2
44 193-0217 Trigger moulding 2
45 193-0221 Washer M4-A 4
46 193-0218 Screw 8 x 1/2 inch pan head self tap 2
47 220-0190 Left hand switch lever 1
48 220-0191 Right hand switch lever 1
49 220-0192 Center switch lever 1
50 220-0209 4mm spirefix 1
51 220-0211 Switch compression spring 1
52 220-0210 Trigger compression spring 2
53 193-0220 Screw 8 x 1 inch pan head self tap 2
54 193-2055 AC charging lead assembly 1
55 220-4157 Washer 1
56 220-1349 Self-adhesive cable ducting 2 (between 01/2006 and 12/2011)
57 193-1368 Axial ferrite bead 2 (between 09/2006 and 12/2011)
58a 193-0233 Front cover moulding 1 (after 10/2011)
58b 220-0255 Front cover 1 (between 09/2006 and 02/2009)
58c 220-1514 Front cover 1 (between 09/2006 and 02/2009)
58d 220-1515 Front cover with USB plug 1 (between 07/2006 and 02/2009)
58e 220-1516 Front cover molding 1 (between 07/2006 and 02/2009)
58f 220-0255 Front cover 1 (between 02/2005 and 07/2006)
58g 220-1513 Front cover 1 (between 02/2005 and 07/2006)
59a 193-0230 Control panel overlay 1 (after 10/2011)
59b 193-1757 Self adhesive lens gasket 1 (between 02/2005 and 02/2009
60 193-0234 Screw M4 x 16mm pan head countersunk 2 (after 10/2011)
61 999-0954 Nut M4-.7 nylon insert lock stainless steel 2 (after 10/2011)
62 193-0235 Nylon washer 2 (after 10/2011)
63a 220-1347 4 core loom assembly 1 (after 10/2011)
63b 220-0284 Handle harness 1 (between 02/2005 and 02/2009
64 193-0236 3 core handle loom 1 (after 10/2011)
65a 220-1348 Power control board 1 (after 10/2011)
65b 220-0283 Control PCB 1 (between 02/2005 and 02/2009
65c 220-1511 USB power control board 1 (between 07/2006 and 02/2009)
66a 193-0226 Handle cable clamp 2 (after 10/2011)
66b 220-0203 Cable clamp (black) 2 (between 02/2005 and 02/2009
67 193-1429 V6 open cell natural sponge 2
N/S 220-1512 Lens molding 1 (lens molding) (between 02/2005 and 02/2009)
N/S 193-1758 Switch cover 2 (switch cover) (between 02/2005 and 02/2009
N/S 220-0456 On/off push switch 2 (push button switch) (between 02/2005 and 02/2009
N/S 193-1783 USB plug molding 1 (USB plug molding) (between 07/2006 and 02/2009)
N/S 220-4119 Cable clip 2 (cable clip) (03/2005)

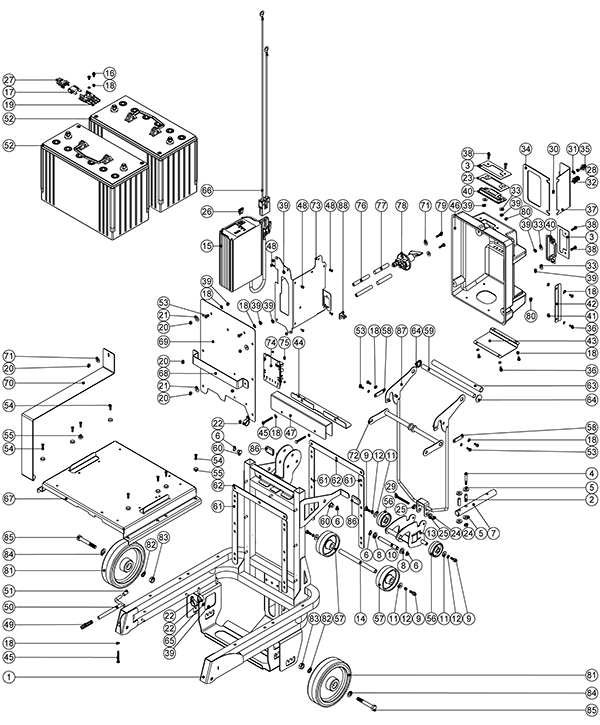

Chassis Assembly - 220-0001
RefNbr Part Number Description Req Notes
1 220-1308 Chassis assembly 1
2 193-1441 Spiro spacer 2
3 220-1309 Lens cover plate 2
4 193-0215 Bolt M6 x 40mm socket button head 1
5 193-1443 Slide nylon spacer 4
6 193-1219 Circlip 4
7 220-1310 Floor tool pivot tube 1
8 193-1631 Nylon washer 2
9 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5
10 220-1311 Chariot pivot tube 1
11 220-4090 Washer 5
12 193-1807 Washer 5
13 220-1312 Floor tool connector 1
14 220-1313 Tapped rear axle 1
15a 220-1314 230/24V 10amp battery charger 1
15b 220-0359 115V/24V 10amp onboard charger 1
16 193-1384 Screw M5 x 8mm pozi pan head 2
17 220-0627 40amp fuse 1
18 220-4166 Shakeproof washer 16
19 220-0335 Fuse holder 1
20 220-2033 Self locking nut 4
21 999-9100 Washer M5 flat stainless steel 3
22 220-4115 P clip 3
23 193-1757 Self adhesive lens gasket 1
24 999-0497 Nut M6-1 nylon insert lock stainless steel 4
25 220-0090 Screw insulator 2
26 220-1315 20amp fuse 1
27 193-1813 Maxi fuse puller 1
28 999-0740 Nut M5-.8 hex stainless steel 1
29 999-1116 Bolt M6-1 x 50mm hex head stainless steel 1
30 193-0176 Nut M4 nylon insert stainless steel 1
31 220-1316 Washer M5 retaining 1
32 220-1317 Knob 1
33 193-0264 Washer M5-G stainless steel 3
34 220-1318 Fuse cover gasket 1
35 220-1319 Knob M5 knurled 1
36 193-0198 Screw M5 x 10mm pan head stainless steel 5
37 220-1320 Fuse cover plate 1
38 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 4
39 193-0163 Nut M5 nylon insert stainless steel 10
40 220-1321 Lens molding 2
41 220-1322 Nylon spacer 1
42 220-1323 Fuse cover retaining plate 1
43 220-1324 Exhaust cover plate 2
44 220-1325 Splash guard 1
45 220-1326 Screw M5 x 40 pozi pan head 3
46 220-1327 Processed enclosure box 1
47 220-1328 Cover plate 1
48 999-1602 Screw #6 x 3/8 pan head stainless steel 6
49 220-1329 Stainless steel compression spring 1
50 220-1330 Locking bar 1
51 220-4114 Tip end 1
52 162-6022 12V 102Ah gel battery (SNSR) 2
53 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 6
54 220-1331 Screw M5 x 16mm pozi pan head countersunk 8
55 193-0178 Screw insulator 8
56 193-1331 50mm wheel (black) 2
57 220-0967 80mm wheel (white) 2
58 220-1332 Fixing bracket 2
59 220-1333 235mm stainless steel tube 1
60 193-1399 Pivot bush 2
61 220-1334 Vertical chassis gasket 4
62 220-1335 Horizontal chassis gasket 2
63 220-1336 218mm nylon tube (black) 1
64 220-0067 Starlock chrome cap 2
65 193-0205 Washer M5-A stainless steel 1
66 220-0361 DC charging lead assembly 1
67 220-1337 Battery tray 1
68 220-1338 Battery support bracket 1
69 220-1339 Power electronics back plate 1
70 220-1340 Battery strap 1
71 220-4157 Washer 3
72 220-1344 Floor tool pivot link assembly 1
73 220-1341 Charger mounting bracket 1
74 220-1000 PCB control kit 4
75 193-0160 Nut M3 nylon insert 1
76 220-1342 70mm aluminum spacer 2
77 220-1018 70 x 10mm pvc sleeving 2
78 193-1796 Master key switch and key 1
79 220-4159 Screw M5 x 16mm 2
80 220-4086 Dome nut 2
81 220-0031 Non marking wheel kit (gray) (pkg of 2) 2
82 220-4110 Spring washer 2
83 220-4111 Nut 2
84 220-4108 Washer 2
85 220-4109 Bolt M10 x 70mm 2
86 220-1346 Handle cover 2
87 220-1345 Floor tool lifting frame 1
88 220-1343 16mm high clip 1

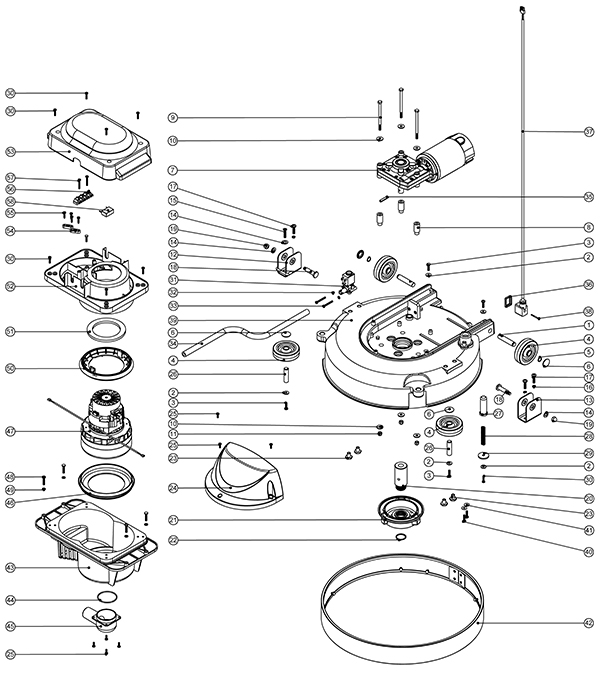

Base Assembly - 220-0002
RefNbr Part Number Description Req Notes
1 220-0242 Rear wheel pin 2
2 220-4157 Washer 5
3 220-4159 Screw M5 x 16mm 4
4 220-0220 3 inch wheel 4
5 220-0243 12mm external circlip 2
6 220-0067 Starlock chrome cap 3
7a 220-0074 24V motor and gear box 1
7b 220-1300 24V motor/gearbox 1 (power electronics)
8 220-0166 Motor mounting spacer 3 (after 09/2011)
9 220-0167 Screw 3
10 220-0168 Washer 6
11 220-0170 Nylon nut 1
12a 220-0162 Pivot bracket weldment 1 (before 09/2011)
12b 193-2041 Pivot bracket welded assembly 1 (after 09/2011)
13a 220-0246 Non-locking pivot bracket 1 (before 09/2011)
13b 220-1307 Pivot bracket punch and form (without locking slot) 1 (after 09/2011)
14 220-0164 Washer 3
15 220-4161 Screw M6 1
16 220-4160 Single coil washer 1
17 220-0163 Screw M6 2
18 220-0247 Pivot pin 2
19 220-4158 Dome nut 2
20 220-0072 Drive shaft 1
21 220-0160 Chuck 1
22 220-0159 26mm external clip 1
23 220-0165 Bracket spacer 4
24 220-1301 Motor shroud 1
26 220-0221 Wheel pin 2
27 220-0230 Plunger 1 (03/2005)
28 220-0231 Compression spring 1 (03/2005)
29 220-4156 Washer 1 (03/2005)
30 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 9
31 220-0114 24V solenoid valve 1
32 193-0221 Washer M4-A 2
33 193-0193 Screw M4 x 35mm pan head stainless steel 2
34 220-0033 38 inch silicone tube 1
35 193-1380 6mm roll pin 1
36 220-4132 Connector gasket 1
37a 220-1302 Solenoid lead assembly 1
37b 220-1303 Solenoid lead assembly 1 (power electronics) (after 09/2011)
38 220-0989 Screw M3 1
39 220-0161 Base molding (gray) 1
40 220-4137 Screw M5 x 20mm 2
41 193-0264 Washer M5-G stainless steel 2
42a 193-2034 Splash skirt assembly 1 (between 02/2005 and 05/2005)
42b 220-0024 450mm splash skirt molding (OBSOLETE) 1 (07/2005)
42c 220-1306 450mm splash skirt molding 1 (10/2011)
43 220-4202 Bottom motor housing 1
44 220-4121 O-ring 1
45 220-4203 Inlet tube molding 1
46 220-4123 Bottom motor gasket 1
47 193-0017 24V vacuum motor 1
48 220-4122 Screw 2
49 220-4131 Washer 2
50 220-0252 Motor gasket 1
51 193-0086 Gasket 1
52 220-4124 Top motor housing 1
53 220-4129 Top cover moulding 1
54 220-0203 Cable clamp (black) 2
55 193-0028 Plastic screw 4
56 193-0150 Terminal block 1
57 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel 2
58a 220-1304 Suppressor 1
58b 220-1305 Suppressor 1 (power electronics) (after 09/2011)

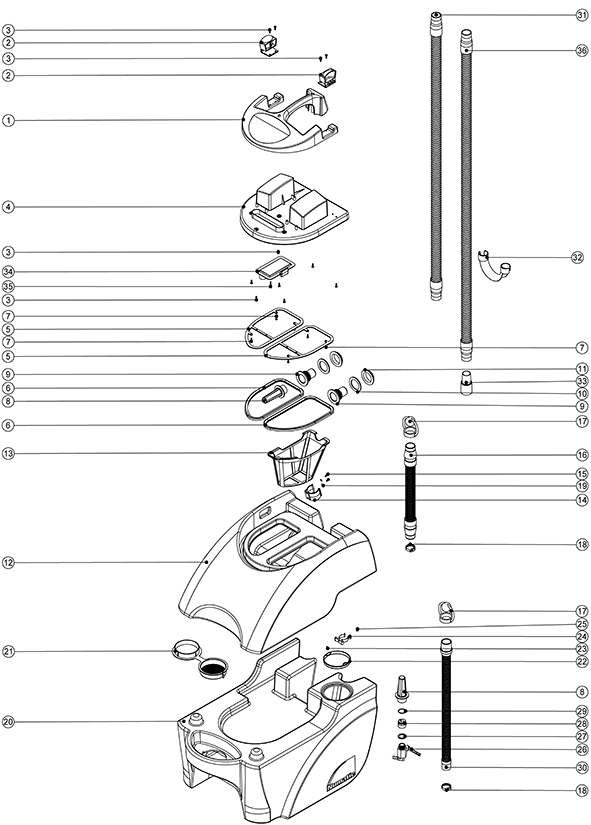

Tank Assembly - 220-0003
RefNbr Part Number Description Req Notes
1 193-0284 Separtor top 1
2 193-0129 Clip molding 2
4a 193-0092 Seperator molding 1 (between 03/2005 and 11/2001)
4b 193-0092 Seperator molding 1 (between 10/2004 and 05/2005)
5 193-0286 Gasket 2
6a 193-0093 Sealing gasket 2
6b 220-4101 Sealing gasket 2 (between 10/2004 and 10/2007)
7a 193-1968 Screw 3 (between 10/2006 and 11/2011)
7b 193-0174 Screw #6 x 1/2 inch 3 (between 10/2004 and 09/2006)
8a 193-1204 Barrel filter 2 (after 09/2011)
8b 220-0155 Barrel filter 1 (between 10/2004 and 10/2007)
9 220-0152 Drain hose connector 2
10 220-0151 Rubber washer 2
11 220-0150 Moulded nut (black) 2
12 220-4207 Recovery tank 1
13 220-0334 Filter basket 1
14 193-1684 Hose clip molding 1 (between 12/2006 and 11/2011)
15 193-0198 Screw M5 x 10mm pan head stainless steel 2 (between 12/2006 and 11/2011)
16a 220-0292 Hose with cap 1 (between 12/2008 and 11/2011)
16b 193-0090 Pump hose 1 (between 10/2004 and 12/2006)
17 220-0073 Hose closure 2
18a 193-0091 Stainless steel jubilee clip 2
18b 220-0131 Hose assembly 1 (between 12/2006 and 10/2007)
19 220-4166 Shakeproof washer 1 (between 12/2006 and 11/2011)
20 220-4209 Bottom tank (blue) 1
21 193-0289 Solution cap with filter (OBSOLETE) 1
22 193-0288 Plug 1
23 193-0194 Washer M4-A stainless steel 1
24 220-0253 Tool clip 1
25 220-0332 Screw M4 x 8mm pozi pan head stainless steel 1
26 220-0158 Ball valve 1
27 220-1352 Washer bonded 1 (between 12/2008 and 11/2011)
28 220-4102 Filter connector 1
29 220-4103 O-ring 1 (between 12/2008 and 11/2011)
30a 220-0130 Dump hose assembly 1 (between 12/2005 and 11/2011)
30b 220-0130 Dump hose assembly 1 (between 10/2004 and 10/2005)
31a 220-0051 Squeegee vac hose 1 (between 12/2005 and 11/2011)
31b 193-0126 Hose assembly 1 (between 07/2006 and 11/2011)
31c 220-0250 Vacuum hose 1 (between 12/2005 and 11/2011)
31d 220-1353 1850mm suction hose assembly 1 (between 08/2007 and 11/2011)
31e 220-0051 Squeegee vac hose 1 (09/2005)
31f 220-0250 Vacuum hose 1 (between 06/2005 and 10/2005)
31g 220-0250 Vacuum hose 1 (between 10/2004 and 05/2005)
32 193-1687 Hose hook 1 (between 12/2008 and 11/2011)
33 193-2054 Adapater 1
34a 220-0153 Separator float moulding 1 (after 09/2011)
34b 193-0010 Float 1 (between 10/2006 and 10/2007)
34c 220-0153 Separator float moulding 1 (between 10/2004 and 12/2005)
35 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 1 (between 12/2008 and 11/2011)
36a 193-0126 Hose assembly 1 (between 12/2006 and 11/2011)
36b 220-1353 1850mm suction hose assembly 1 (between 12/2008 and 11/2011)
36c 220-2131 Suction hose 1800mm (OBSOLETE) 1 (between 07/2006 and 06/2007)
36d 220-0250 Vacuum hose 1 (between 06/2005 and 10/2005)
36e 220-0051 Squeegee vac hose 1 (between 10/2004 and 05/2005
N/S 193-0285 Tube end stop 2 (25.4 mm tube end stop) (between 10/2004 and 10/2007)

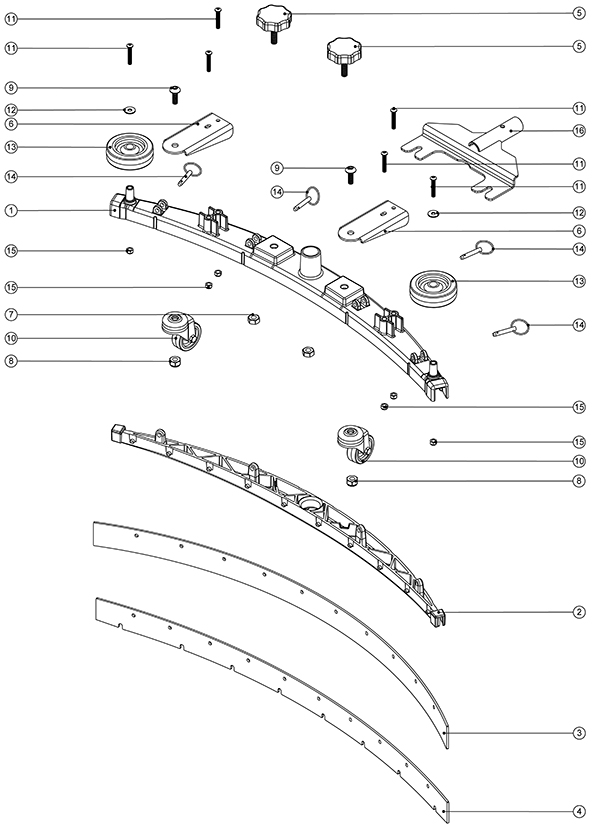

Squeegee Assembly - 220-0004
RefNbr Part Number Description Req Notes
1 220-0357 Squeegee weldment 1
2 193-1572 650mm blade holder moulding 1
3a 193-0095 Squeegee blade kit 26 inch 1
3b 193-1573 Squeegee blade 650mm poly rear 1
3c 193-0095 Squeegee blade kit 26 inch 1
4a 193-0095 Squeegee blade kit 26 inch 1
4b 193-1574 Squeegee blade 650mm poly front 1
4c 193-0095 Squeegee blade kit 26 inch 1
5 193-1569 Quick release knob 2
6 193-1570 Caster plate 2
7 999-6697 Nut M10-1.5 hex stainless steel 2
8 999-1120 Nut M10-1.5 nylon insert lock stainless steel 2
9 193-1438 Screw M10 x 25mm button head socket stainless steel 2
10 193-1571 50mm caster 2
11 999-1953 Screw M6-1 x 35mm socket stainless steel 6
12 220-4090 Washer 2
13 220-0220 3 inch wheel 2
14 193-1468 Detent pins 4
15 193-1520 M6 nyloc half nut 6
16 220-1351 Floor tool bracket assembly 1

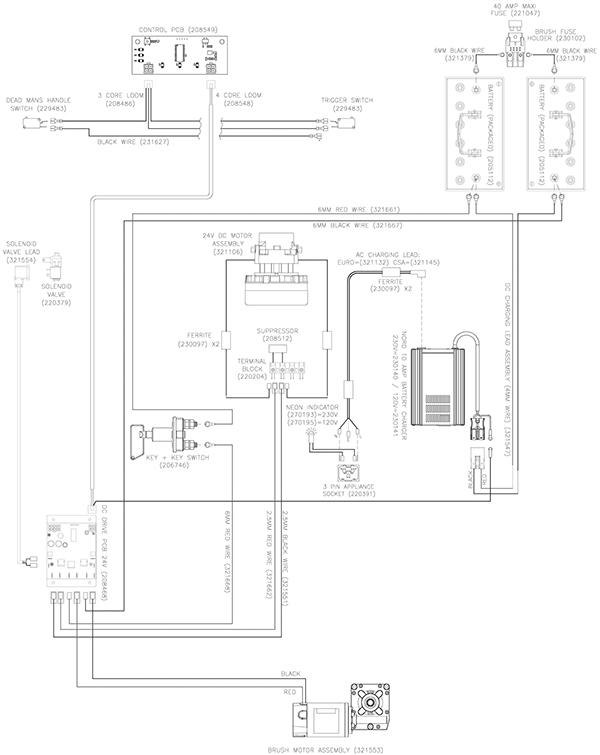

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Batteries, Brushes, and Chargers - 220-9896
RefNbr Part Number Description Req Notes
996-0092 16 inch heavy grit stripping brush - 80 grit 1
996-0091 16 inch medium grit scrubbing brush - 180 grit 1
996-0090 16 inch lite grit scrubbing brush - 500 grit 1
996-0419 16 inch polypropelene scrubbing brush 1
996-0070 17 inch pad driver 1
991-2208 3 hole clutch plate (formerly 6 hole) 1

- Commonly Asked For Parts - 220-9908
RefNbr Part Number Description Req Notes
01 220-0071 Polypropelene scrubbing brush
02 220-0060 Control unit 1
03 220-0061 115V 10A charger 1
04 220-0064 Right side switch lever
05 220-0158 Ball valve
06 220-0114 24V solenoid valve
07 193-0291 LED switch panel
08 220-0362 Charging lead
09 220-0067 Starlock chrome cap
10 220-4107 Spacer
11 220-0071 Polypropelene scrubbing brush

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
