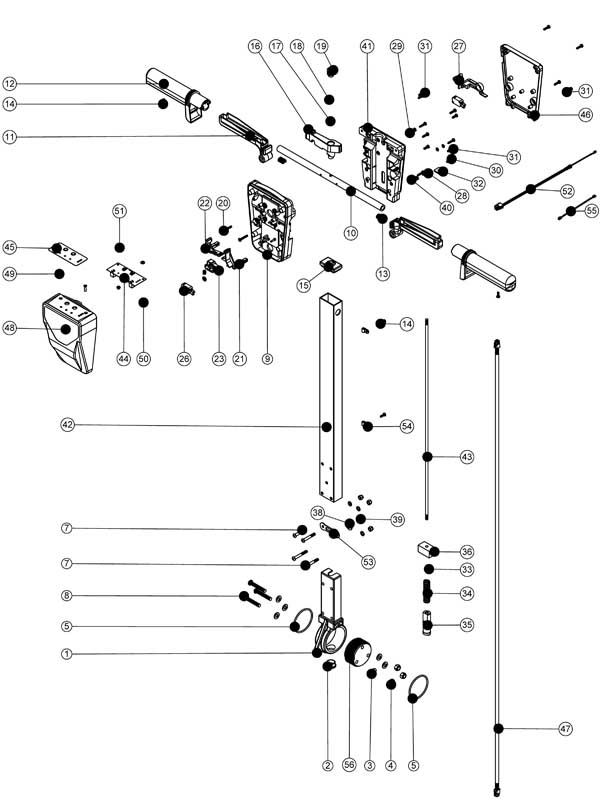

Handle Assembly - For Models Starting with SN 1115 - 193-0001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
220-0174 |
Handle casting |
1 |
|
| 4 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
| 6 |
193-0214 |
Screw M6 x 45mm socket button head |
1 |
|
| 7 |
193-0215 |
Bolt M6 x 40mm socket button head |
3 |
|
| 8 |
193-0216 |
Bolt M8 x 50mm socket button head stainless steel |
3 |
|
| 9 |
220-0183 |
Front inner molding |
1 |
|
| 11 |
193-0217 |
Trigger moulding |
2 |
|
| 12 |
220-0124 |
Hand grip molding |
2 |
|
| 13 |
220-0210 |
Trigger compression spring |
2 |
|
| 14 |
193-0218 |
Screw 8 x 1/2 inch pan head self tap |
4 |
|
| 15 |
220-0197 |
Handle plug |
1 |
|
| 16 |
220-0193 |
Adjustment lever |
1 |
|
| 17 |
193-0219 |
Washer M6 nylon |
1 |
|
| 18 |
193-0139 |
Nut M6 nylon insert stainless steel |
1 |
|
| 19 |
220-0205 |
Tube end stop (black) |
1 |
|
| 20 |
193-0220 |
Screw 8 x 1 inch pan head self tap |
2 |
|
| 21 |
220-0190 |
Left hand switch lever |
1 |
|
| 22 |
220-0191 |
Right hand switch lever |
1 |
|
| 23 |
220-0192 |
Center switch lever |
1 |
|
| 24 |
220-0209 |
4mm spirefix |
1 |
|
| 25 |
220-0211 |
Switch compression spring |
1 |
|
| 26 |
220-0208 |
Snap switch |
2 |
|
| 27 |
220-0196 |
Interlock lever |
1 |
|
| 28 |
193-0028 |
Plastic screw |
4 |
|
| 29 |
193-0221 |
Washer M4-A |
4 |
|
| 30 |
193-0107 |
Screw 8 x 1/2 plastite |
4 |
|
| 33 |
193-0223 |
Half nut M6 |
1 |
|
| 35 |
220-0177 |
Gear locking pin |
1 |
|
| 36 |
193-0224 |
Anti-vibration pad |
1 |
|
| 37 |
193-0225 |
Washer M6-B |
3 |
|
| 40 |
193-0226 |
Handle cable clamp |
1 |
|
| 41 |
220-0184 |
Rear inner molding |
1 |
|
| 42 |
193-0227 |
Painted handle |
1 |
|
| 43 |
193-0228 |
Handle locking rod |
1 |
|
| 44 |
193-0229 |
Control board |
1 |
|
| 45 |
193-0230 |
Control panel overlay |
1 |
|
| 46 |
193-0231 |
Rear cover moulding |
1 |
|
| 47 |
193-0232 |
Core loom assembly |
1 |
|
| 48 |
193-0233 |
Front cover moulding |
1 |
|
| 49 |
193-0234 |
Screw M4 x 16mm pan head countersunk |
2 |
|
| 50 |
999-0954 |
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
| 51 |
193-0235 |
Nylon washer |
2 |
|
| 52 |
193-0236 |
3 core handle loom |
1 |
|
| 55 |
193-0238 |
Black link wire |
1 |
|
| 56 |
220-0175 |
Adjustment gear |
1 |
|
|
|

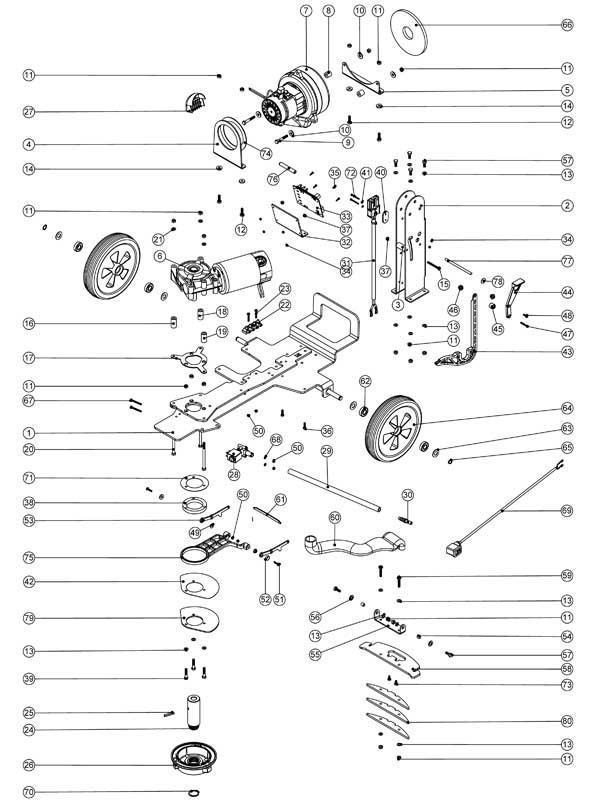

Base Assembly - For Models Starting with SN 1115 - 193-0002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
193-0138 |
Chassis weldment assembly |
1 |
|
| 2 |
193-0131 |
Handle mounting bracket |
1 |
|
| 3 |
193-0132 |
Handle spacer |
1 |
|
| 4 |
193-0133 |
Front motor plate |
1 |
|
| 5 |
193-0134 |
Rear vacuum motor plate |
1 |
|
| 6 |
193-0135 |
Brush drive motor and gearbox assembly |
1 |
|
| 7 |
193-0136 |
24V 2 stage vacuum motor |
1 |
|
| 9 |
999-1147 |
Bolt M6-1 x 40mm hex head stainless steel |
2 |
|
| 11 |
193-0139 |
Nut M6 nylon insert stainless steel |
20 |
|
| 12 |
999-1312 |
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
| 13 |
193-0141 |
Washer M6-B stainless steel |
17 |
|
| 14 |
193-0142 |
Rubber spacer |
4 |
|
| 15 |
193-0143 |
Bolt M5 x 45mm hex head stainless steel |
1 |
|
| 16 |
193-0144 |
30mm gearbox spacer |
1 |
|
| 17 |
193-0145 |
Nut retaining plate |
1 |
|
| 18 |
193-0146 |
29mm gearbox spacer |
1 |
|
| 19 |
193-0147 |
28mm gearbox spacer |
1 |
|
| 20 |
999-1609 |
Bolt M6-1 x 90mm hex head stainless steel |
3 |
|
| 21 |
193-0149 |
Washer M6-A stainless steel |
3 |
|
| 22 |
193-0150 |
Terminal block |
1 |
|
| 23 |
193-0151 |
Scrwe M4 x 20mm pan head |
2 |
|
| 24 |
193-0152 |
Drive shaft |
1 |
|
| 25 |
193-1380 |
6mm roll pin |
1 |
|
| 27 |
193-0154 |
Vacuum diffuser |
1 |
|
| 28 |
220-0114 |
24V solenoid valve |
1 |
|
| 29 |
193-0155 |
Solenoid tube |
1 |
|
| 30 |
193-0156 |
Barbed connector |
1 |
|
| 31 |
193-0157 |
Connector assembly |
1 |
|
| 32 |
193-0158 |
Control board mounting plate |
1 |
|
| 33 |
220-1000 |
PCB control kit |
1 |
|
| 34 |
193-0160 |
Nut M3 nylon insert |
6 |
|
| 35 |
193-0161 |
Screw M3 x 10mm slotted |
4 |
|
| 36 |
999-1618 |
Bolt M5-.8 x 16mm hex head stainless steel |
2 |
|
| 37 |
193-0163 |
Nut M5 nylon insert stainless steel |
3 |
|
| 38 |
193-0164 |
Swing arm center pivot |
1 |
|
| 39 |
193-0165 |
Bolt M6 x 30mm hex head stainless steel |
3 |
|
| 40 |
193-0166 |
Connector back plate |
1 |
|
| 42 |
193-0168 |
Swing arm nylon plate |
1 |
|
| 43 |
193-0169 |
Squeegee lift arm |
1 |
|
| 44 |
193-0170 |
Squeegee lift handle |
1 |
|
| 45 |
193-0171 |
Lift spacer |
1 |
|
| 47 |
193-0173 |
Screw #6 x 1 inch pan head |
1 |
|
| 48 |
193-0174 |
Screw #6 x 1/2 inch |
1 |
|
| 50 |
193-0176 |
Nut M4 nylon insert stainless steel |
6 |
|
| 51 |
193-0177 |
Screw M4 x 16mm pan head stainless steel |
2 |
|
| 52 |
193-0178 |
Screw insulator |
2 |
|
| 53 |
193-0179 |
Squeegee pivot arm |
2 |
|
| 55 |
193-0181 |
Pipe connecting bracket |
1 |
|
| 56 |
193-0182 |
Washer M8-A stainless steel |
2 |
|
| 57 |
193-0183 |
Bolt M6 x 16mm hex head stainless steel |
6 |
|
| 58 |
193-0184 |
Squeegee skid plate |
1 |
|
| 59 |
193-0185 |
Screw M6 x 30mm pan head stainless steel |
2 |
|
| 61 |
193-0187 |
Squeegee lift plate |
1 |
|
| 62 |
193-0188 |
Stainless steel bearing |
4 |
|
| 63 |
193-0189 |
Wheel washer |
4 |
|
| 64 |
193-0190 |
Wheel assembly |
2 |
|
| 65 |
220-0243 |
12mm external circlip |
2 |
|
| 66 |
193-0192 |
Vacuum motor gasket |
1 |
|
| 67 |
193-0193 |
Screw M4 x 35mm pan head stainless steel |
2 |
|
| 68 |
193-0194 |
Washer M4-A stainless steel |
2 |
|
| 69 |
193-0195 |
Solenoid lead terminals |
1 |
|
| 70 |
220-0159 |
26mm external clip |
1 |
|
| 72 |
193-0197 |
Screw M3 x 30mm pan head |
2 |
|
| 73 |
193-0198 |
Screw M5 x 10mm pan head stainless steel |
2 |
|
| 74 |
193-0199 |
Vacuum disc plate |
1 |
|
| 76 |
193-0201 |
Retaining bar cap |
1 |
|
| 77 |
193-0202 |
Hose retaining bar |
1 |
|
| 79 |
193-0203 |
Swing arm bottom plate |
1 |
|
|
|

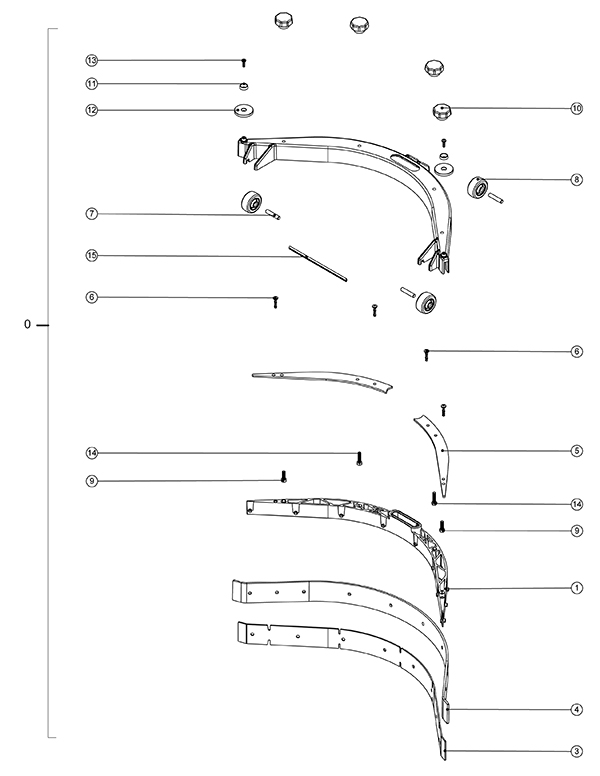

Squeegee Assembly - 193-0003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
220-0363 |
Squeegee assembly |
1 |
|
| 1 |
193-0241 |
Squeegee inner moulding |
1 |
|
| 2 |
193-0242 |
Squeegee outer moulding |
1 |
|
| 3 |
193-0243 |
Squeegee blade kit |
1 |
(front blade sold only in kit) |
| 4 |
193-0243 |
Squeegee blade kit |
1 |
(rear blade sold only in kit) |
| 5 |
193-0245 |
Squeegee side plate |
2 |
|
| 6 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
4 |
|
| 7a |
193-0252 |
Squeegee axle |
3 |
(SN starting with 1115) |
| 7b |
193-0252 |
Squeegee axle |
3 |
(SN starting with 1232) |
| 8 |
193-2165 |
Squeegee wheel |
3 |
|
| 9a |
193-0247 |
Screw M5 x 16mm hex head |
2 |
(SN starting with 1115) |
| 9b |
999-1322 |
Screw M5-.8 x 20mm hex head stainless steel |
2 |
(SN starting with 1232) |
| 10 |
193-0248 |
Squeegee knob |
4 |
|
| 11a |
193-0178 |
Screw insulator |
2 |
(SN starting with 1115) |
| 11b |
193-0253 |
Washer nylon (black) |
2 |
(SN starting with 1232) |
| 12 |
193-0249 |
Buffer wheel |
2 |
|
| 13a |
193-0250 |
Screw #6 x 1/2 inch pan head |
2 |
(SN starting with 1115) |
| 13b |
193-0254 |
Screw 3 1/2 x 12mm pan head stainless steel |
2 |
(SN starting with 1232) |
| 14 |
999-1322 |
Screw M5-.8 x 20mm hex head stainless steel |
2 |
|
| 15 |
193-0251 |
Squeegee seal extrusion |
1 |
|
| N/S |
193-0242 |
Squeegee outer moulding |
1 |
|
|
|

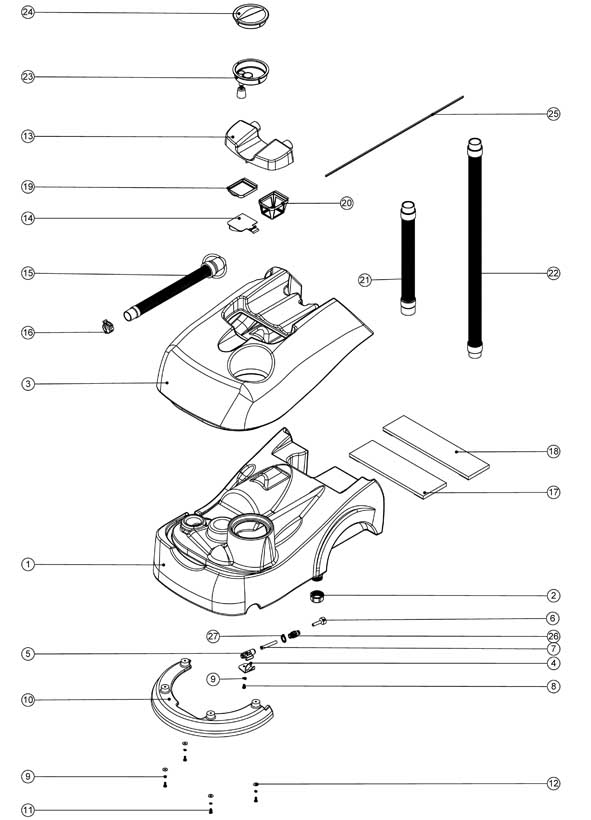

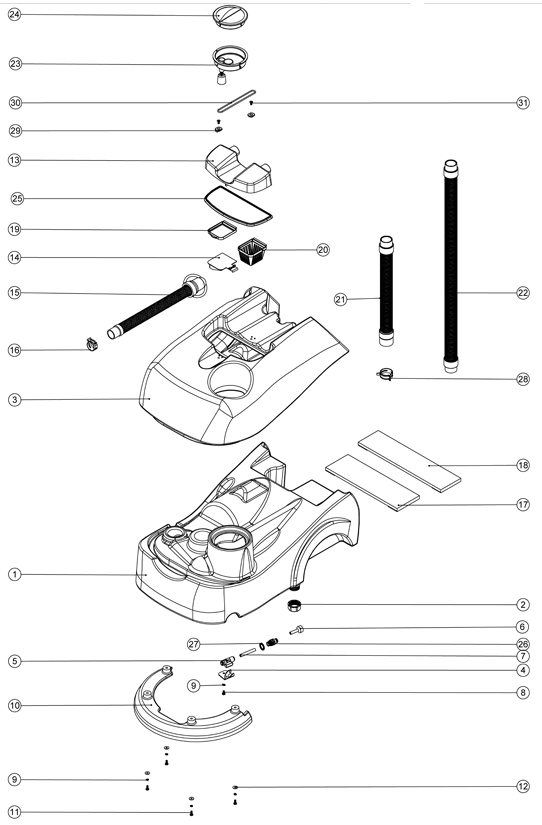

Tank Assembly - For Models Starting with SN 1115 - 193-0004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
193-0256 |
Tank drain cap kit |
1 |
|
| 3 |
193-0257 |
Collection tank |
1 |
|
| 5 |
193-0259 |
Mini ball valve |
1 |
|
| 6 |
193-0260 |
Tank filter assembly |
1 |
|
| 7 |
193-0261 |
Tank filter tube |
1 |
|
| 8 |
193-0198 |
Screw M5 x 10mm pan head stainless steel |
1 |
|
| 9 |
193-0262 |
Washer M5 single coil stainless steel |
5 |
|
| 10 |
193-0263 |
Deck moulding |
1 |
|
| 11 |
999-9109 |
Screw M5-.8 x 12mm pan head phillips stainless steel |
4 |
|
| 12 |
193-0264 |
Washer M5-G stainless steel |
4 |
|
| 13 |
193-0265 |
Separator moulding |
1 |
|
| 14 |
193-0266 |
Shut off flap |
1 |
|
| 15 |
193-0267 |
Dump hose assembly |
1 |
|
| 16 |
193-0268 |
Tension clip |
1 |
|
| 19 |
193-0271 |
Air filter panel |
1 |
|
| 20 |
193-0272 |
Grit basket |
1 |
|
| 21 |
193-0273 |
Vacuum hose with cuffs |
1 |
|
| 22 |
193-0274 |
Suction hose |
1 |
|
| 23 |
220-0305 |
Filler cap assembly |
1 |
|
| 24 |
193-0275 |
Filler cap lid |
1 |
|
| 25 |
193-0276 |
Seperator seal extrusion |
1 |
|
| 26 |
193-0277 |
Fitting 8mm push fit metal bulkhead |
1 |
|
| 27 |
193-0278 |
Bonded seal |
1 |
|
|
|

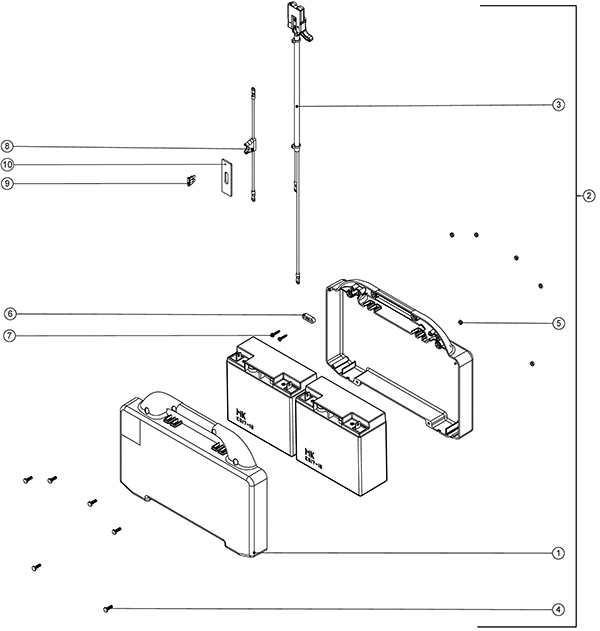

Battery Pack Assembly - 193-0005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
193-0207 |
Battery case (half) |
2 |
|
| 2 |
193-0287 |
Battery pack kit |
1 |
|
| 3 |
193-0208 |
Battery lead assembly |
1 |
|
| 4 |
999-0901 |
Screw M5-.8 x 16mm pan head phillips stainless steel |
6 |
|
| 5 |
193-0209 |
Nut M5 full stainless steel |
6 |
|
| 6 |
220-0203 |
Cable clamp (black) |
1 |
(for models starting with SN 1115 only) |
| 7 |
193-0028 |
Plastic screw |
2 |
|
| 8 |
193-0210 |
30amp fuse holder assembly |
1 |
|
| 9a |
193-0211 |
30amp fuse |
1 |
(for models starting with SN 1115) |
| 9b |
193-0212 |
40amp fuse |
1 |
(for models starting with SN 1327) |
| 10 |
193-0213 |
Battery pack fuse plate |
1 |
(for models starting with SN 1327 only) |
| N/S |
220-0336 |
Battery charger |
1 |
|
|
|

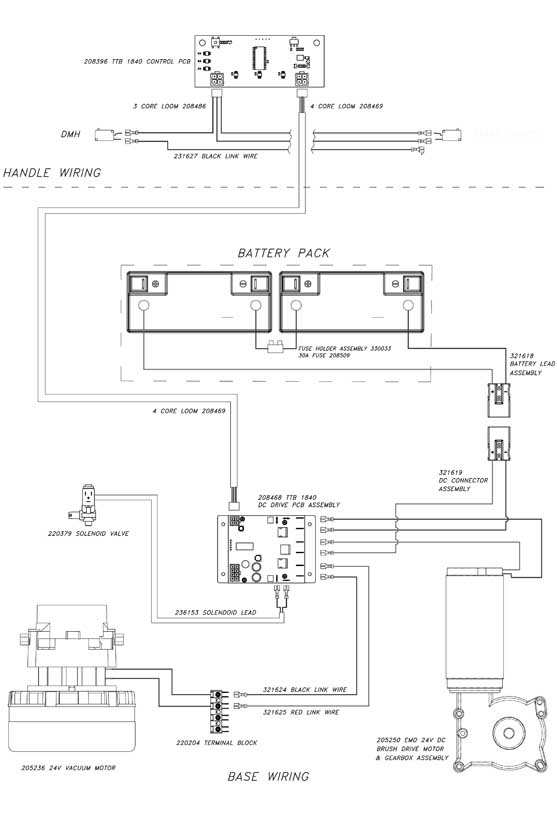

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

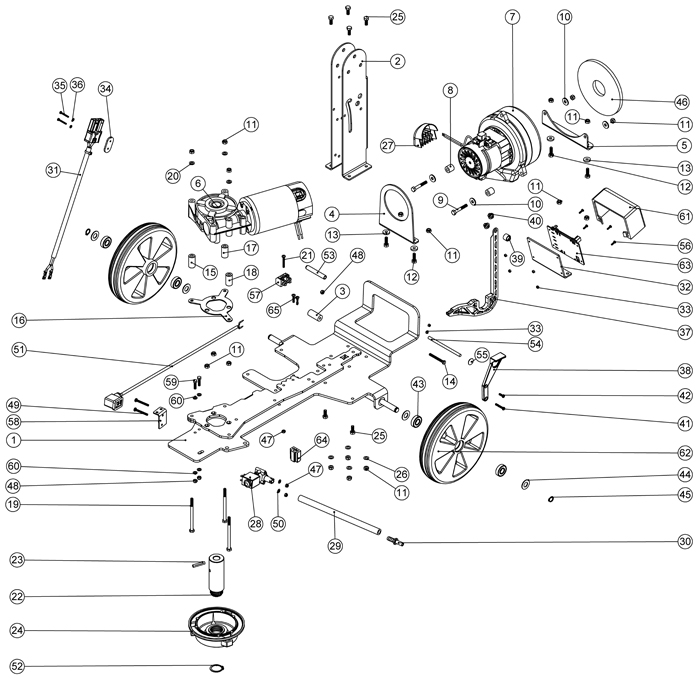

Base Assembly - For Models Starting with SN 1336 - 193-0007 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
193-0138 |
Chassis weldment assembly |
1 |
|
| 2 |
193-0131 |
Handle mounting bracket |
1 |
|
| 3 |
193-0132 |
Handle spacer |
1 |
|
| 4 |
193-0133 |
Front motor plate |
1 |
|
| 5 |
193-0134 |
Rear vacuum motor plate |
1 |
|
| 6 |
193-0140 |
24V brush motor and gearbox assembly |
1 |
|
| 7 |
193-0136 |
24V 2 stage vacuum motor |
1 |
|
| 9 |
999-1147 |
Bolt M6-1 x 40mm hex head stainless steel |
2 |
|
| 11 |
193-0139 |
Nut M6 nylon insert stainless steel |
18 |
|
| 12 |
999-1312 |
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
| 13 |
193-0142 |
Rubber spacer |
4 |
|
| 14 |
193-0143 |
Bolt M5 x 45mm hex head stainless steel |
1 |
|
| 15 |
193-0144 |
30mm gearbox spacer |
1 |
|
| 16 |
193-0145 |
Nut retaining plate |
1 |
|
| 17 |
193-0146 |
29mm gearbox spacer |
1 |
|
| 18 |
193-0147 |
28mm gearbox spacer |
1 |
|
| 19 |
999-1609 |
Bolt M6-1 x 90mm hex head stainless steel |
3 |
|
| 20 |
193-0149 |
Washer M6-A stainless steel |
3 |
|
| 21 |
999-1672 |
Screw M4-.7 x 30mm pan head phillips stainless steel |
1 |
|
| 22 |
193-0152 |
Drive shaft |
1 |
|
| 23 |
193-1380 |
6mm roll pin |
1 |
|
| 25 |
193-0183 |
Bolt M6 x 16mm hex head stainless steel |
6 |
|
| 26 |
193-0141 |
Washer M6-B stainless steel |
4 |
|
| 27 |
193-0154 |
Vacuum diffuser |
1 |
|
| 28 |
220-0114 |
24V solenoid valve |
1 |
|
| 29 |
193-0155 |
Solenoid tube |
1 |
|
| 30 |
193-0156 |
Barbed connector |
1 |
|
| 31 |
193-0157 |
Connector assembly |
1 |
|
| 32 |
193-0158 |
Control board mounting plate |
1 |
|
| 33 |
193-0160 |
Nut M3 nylon insert |
6 |
|
| 34 |
193-0166 |
Connector back plate |
1 |
|
| 35 |
999-1221 |
Screw M3-.5 x 25mm pan head stainless steel |
2 |
|
| 37 |
193-0169 |
Squeegee lift arm |
1 |
|
| 38 |
193-0170 |
Squeegee lift handle |
1 |
|
| 39 |
193-0171 |
Lift spacer |
1 |
|
| 41 |
193-0173 |
Screw #6 x 1 inch pan head |
1 |
|
| 42 |
193-0174 |
Screw #6 x 1/2 inch |
1 |
|
| 43 |
193-0188 |
Stainless steel bearing |
4 |
|
| 44 |
193-0189 |
Wheel washer |
4 |
|
| 45 |
220-0243 |
12mm external circlip |
2 |
|
| 46 |
193-0192 |
Vacuum motor gasket |
1 |
|
| 47 |
193-0176 |
Nut M4 nylon insert stainless steel |
3 |
|
| 48 |
193-0163 |
Nut M5 nylon insert stainless steel |
3 |
|
| 49 |
193-0193 |
Screw M4 x 35mm pan head stainless steel |
2 |
|
| 50 |
193-0194 |
Washer M4-A stainless steel |
2 |
|
| 51 |
193-0195 |
Solenoid lead terminals |
1 |
|
| 52 |
220-0159 |
26mm external clip |
1 |
|
| 53 |
193-0201 |
Retaining bar cap |
1 |
|
| 54 |
193-0202 |
Hose retaining bar |
1 |
|
| 56 |
999-1222 |
Screw M3-.5 x 10mm pan head stainless steel |
4 |
|
| 57 |
193-0148 |
Tab terminal |
1 |
|
| 58 |
193-0162 |
Solenoid bracket |
1 |
|
| 59 |
999-1322 |
Screw M5-.8 x 20mm hex head stainless steel |
2 |
|
| 60 |
193-0205 |
Washer M5-A stainless steel |
4 |
|
| 61 |
193-0206 |
Control board cover |
1 |
|
| 62 |
193-0190 |
Wheel assembly |
2 |
|
| 63 |
220-1000 |
PCB control kit |
1 |
|
| 64 |
193-0191 |
Upper lift block |
1 |
|
| 65 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
2 |
|
| N/S |
220-0435 |
Pad driver |
1 |
|
|
|

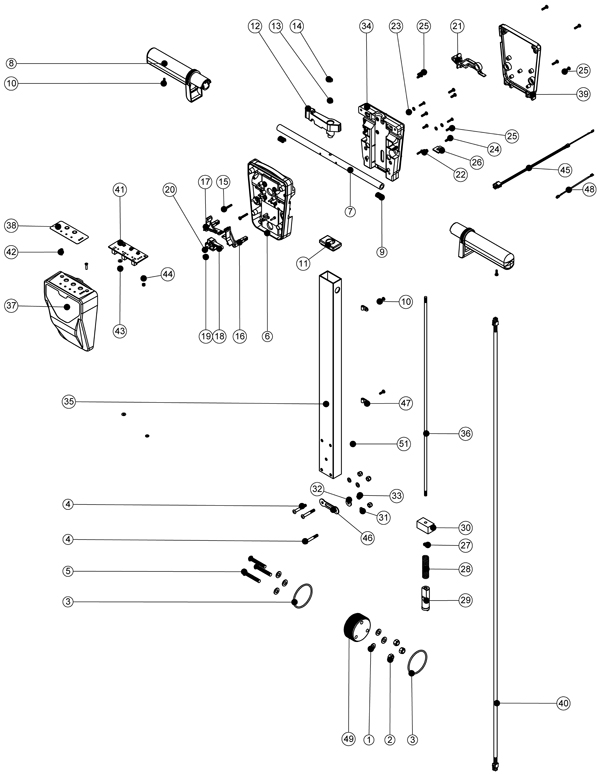

Handle Assembly - For Models Starting with SN 1305 - 193-0008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
| 4 |
193-0215 |
Bolt M6 x 40mm socket button head |
3 |
|
| 5 |
193-0216 |
Bolt M8 x 50mm socket button head stainless steel |
3 |
|
| 6 |
220-0183 |
Front inner molding |
1 |
|
| 8 |
220-0124 |
Hand grip molding |
2 |
|
| 9 |
220-0210 |
Trigger compression spring |
2 |
|
| 10 |
193-0218 |
Screw 8 x 1/2 inch pan head self tap |
4 |
|
| 11 |
220-0197 |
Handle plug |
1 |
|
| 12 |
220-0193 |
Adjustment lever |
1 |
|
| 13 |
193-0219 |
Washer M6 nylon |
1 |
|
| 14 |
193-0139 |
Nut M6 nylon insert stainless steel |
1 |
|
| 15 |
193-0220 |
Screw 8 x 1 inch pan head self tap |
2 |
|
| 16 |
220-0190 |
Left hand switch lever |
1 |
|
| 17 |
220-0191 |
Right hand switch lever |
1 |
|
| 18 |
220-0192 |
Center switch lever |
1 |
|
| 19 |
220-0209 |
4mm spirefix |
1 |
|
| 20 |
220-0211 |
Switch compression spring |
1 |
|
| 21 |
220-0196 |
Interlock lever |
1 |
|
| 22 |
193-0028 |
Plastic screw |
4 |
|
| 23 |
193-0221 |
Washer M4-A |
4 |
|
| 24 |
193-0107 |
Screw 8 x 1/2 plastite |
4 |
|
| 27 |
193-0223 |
Half nut M6 |
1 |
|
| 29 |
220-0177 |
Gear locking pin |
1 |
|
| 30 |
193-0224 |
Anti-vibration pad |
1 |
|
| 31 |
193-0225 |
Washer M6-B |
3 |
|
| 34 |
220-0184 |
Rear inner molding |
1 |
|
| 35 |
193-0227 |
Painted handle |
1 |
|
| 36 |
193-0228 |
Handle locking rod |
1 |
|
| 37 |
193-0239 |
Front cover moulding |
1 |
|
| 38 |
193-0230 |
Control panel overlay |
1 |
|
| 39 |
193-0231 |
Rear cover moulding |
1 |
|
| 40 |
193-0232 |
Core loom assembly |
1 |
|
| 42 |
193-0234 |
Screw M4 x 16mm pan head countersunk |
2 |
|
| 43 |
999-0954 |
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
| 44 |
193-0235 |
Nylon washer |
3 |
|
| 45 |
193-0236 |
3 core handle loom |
1 |
|
| 48 |
193-0238 |
Black link wire |
1 |
|
| 49 |
220-0175 |
Adjustment gear |
1 |
|
| 50 |
193-0194 |
Washer M4-A stainless steel |
1 |
|
|
|
Tank Assembly - For Models Starting with SN 1248 - 193-0009 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
193-0256 |
Tank drain cap kit |
1 |
|
| 3 |
193-0257 |
Collection tank |
1 |
|
| 5 |
193-0259 |
Mini ball valve |
1 |
|
| 6 |
193-0260 |
Tank filter assembly |
1 |
|
| 7 |
193-0261 |
Tank filter tube |
1 |
|
| 8 |
193-0198 |
Screw M5 x 10mm pan head stainless steel |
1 |
|
| 9 |
193-0262 |
Washer M5 single coil stainless steel |
5 |
|
| 10 |
193-0263 |
Deck moulding |
1 |
|
| 11 |
999-9109 |
Screw M5-.8 x 12mm pan head phillips stainless steel |
4 |
|
| 12 |
193-0264 |
Washer M5-G stainless steel |
4 |
|
| 13 |
193-0265 |
Separator moulding |
1 |
|
| 14 |
193-0266 |
Shut off flap |
1 |
|
| 15 |
193-0267 |
Dump hose assembly |
1 |
|
| 16 |
193-0268 |
Tension clip |
1 |
|
| 19 |
193-0271 |
Air filter panel |
1 |
|
| 20 |
193-0272 |
Grit basket |
1 |
|
| 21 |
193-0273 |
Vacuum hose with cuffs |
1 |
|
| 22 |
193-0274 |
Suction hose |
1 |
|
| 23 |
220-0305 |
Filler cap assembly |
1 |
|
| 24 |
193-0275 |
Filler cap lid |
1 |
|
| 25 |
193-0276 |
Seperator seal extrusion |
1 |
|
| 26 |
193-0277 |
Fitting 8mm push fit metal bulkhead |
1 |
|
| 27 |
193-0278 |
Bonded seal |
1 |
|
| 28 |
193-0279 |
Vacuum hose tension clip |
1 |
|
| 29 |
193-0280 |
O-ring clip moulding |
2 |
|
| 31 |
193-0282 |
Screw M5 x 10mm pan head stainless steel |
2 |
|
|
|
- Commonly Asked For Parts - 193-9981 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
220-0305 |
Filler cap assembly |
1 |
|
| 02 |
193-0287 |
Battery pack kit |
1 |
|
| 04 |
220-0436 |
Polypropelene scrubbing brush |
|
|
| 05 |
193-1723 |
Fluid tube kit |
1 |
|
|
|
- Pads - 16 inch - 255-1600 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1640 |
16 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1635 |
16 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1664 |
16 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1642 |
16 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1612 |
16 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1677 |
16 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1638 |
16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1621 |
16 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1650 |
16 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1665 |
16 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1630 |
16 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1687 |
16 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1690 |
16 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1670 |
16 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1692 |
16 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1680 |
16 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1660 |
16 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1652 |
16 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1620 |
16 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1611 |
16 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1695 |
16 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1647 |
16 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1655 |
16 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1623 |
16 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0132 |
16 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0133 |
16 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0134 |
16 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0135 |
16 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0136 |
16 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0137 |
16 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0130 |
16 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0131 |
16 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0217 |
16 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0218 |
16 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0219 |
16 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0220 |
16 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0221 |
16 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 38 |
255-0222 |
16 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0215 |
16 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0216 |
16 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1624 |
16 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9563 |
16 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9560 |
16 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9557 |
16 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9561 |
16 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9558 |
16 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9559 |
16 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9562 |
16 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9641 |
16 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1682 |
16 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1615 |
16 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1616 |
16 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
