Parts List Complete for NSS WRANGLER 27 M/B


Drive Motor - 164-0021
RefNbr Part Number Description Req Notes
625 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated 3
626 164-0320 Top cover 1
627 N/A Not available 1 (Top end bell with brush board assembly)
628 N/A Not available 1 (Heyco strain relief)
629 164-0323 Lead assembly (1 wire with terminals) 2
630 164-0324 Carbon brush spring 4
631 999-0174 Screw 10-32 x 3/8 pan head slotted brass 4
632 164-0325 Carbon brush with lead and terminal (sold individually) 4
633 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 3
634 164-0326 Brush ring assembly with springs and carbon brush 1
635 164-0327 Stator frame assembly with magnets 1
636 164-0328 Washer 1 7/8 wave 1
637 164-0329 Top rotor bearing 1 (commutator end)
638 164-0330 Armature assembly with bearings 1
639 164-0132 Square keyway 1/4 x 1/4 1
640 164-0332 Bearing (shaft end) 1
641 164-0333 Bottom end bell 1
642 N/A Not available 2 (Thru bolt)
643 164-0335 Shaft seal 1
644a 164-0172 36V drive motor 1 (includes 625-643) (OEM)
644b 991-5114 36V drive motor 1 (includes 625-643) (NON-OEM)

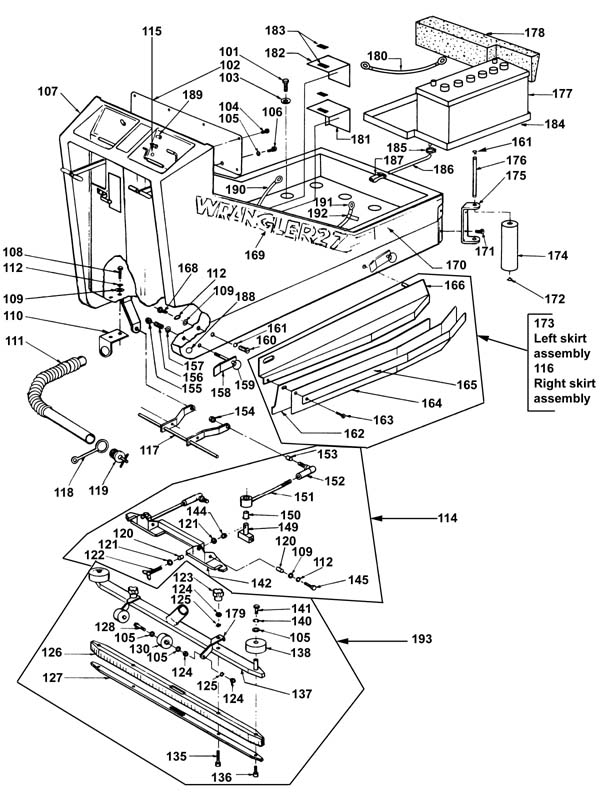

Body, Squeegee, Skirts, and Battery - 164-0022
RefNbr Part Number Description Req Notes
101 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 7
102 N/A Not available 1 (not available) Switch panel
103 999-0035 Washer 3/8 x 1 1/2 fender 7
104 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 6
105 999-0024 Washer 5/16 flat stainless steel 9
106 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 3
107 N/A Not available 1 (not available) Chassis housing
108 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
109 999-0016 Washer 1/4 flat plain finish 10
110 N/A Not available 1 Drain hose bracket (FSO)
111 N/A Not available 1 (not available) Recovery tank drain hose
112 999-0060 Washer 1/4 split lock plain finish 8
114 164-0479 Squeegee mount assembly no blades (OBSOLETE) 1 No blades included
115a 164-1077 60amp circuit breaker (OBSOLETE) 1
115b 164-1086 70amp circuit breaker assembly 1
115c 164-3019 Breaker plate 1 Breaker plate only
116 N/A Not available 1 (not available) Right skirt assembly
117 N/A Not available 1 (not available) Squeegee lift bracket
118 164-0207 Plug strap 1
119a 164-0043 Drain plug 1 (OEM)
119b 991-5113 Drain plug 1 (NON-OEM)
120 164-0136 Bushing 6
121 999-0123 Washer 1/4 SAE flat zinc plated 4
122 164-0428 Screw 1/4-20 x 1 7/8 hex head cap 2
123 164-1565 Knob 2
124 999-0069 Nut 5/16-18 hex 6
125 999-0105 Washer 5/16 external star lock zinc plated 4
126 164-0041 Squeegee blade 32 inch linatex kit (red) (front and rear) 1
127 164-0250 Inner channel for Wrangler 26 and 2625 1
128 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 2
130 991-2005 Small roller wheel (gray) 2
135 999-0131 Screw 5/16-18 x 1 1/2 socket head stainless steel 2
136 999-0641 Screw 5/16-18 x 3/4 socket head stainless steel 2
137 164-0433 Squeegee housing (OBSOLETE) 1
138 991-2009 3 inch bumper wheel 2
140 999-0028 Washer 5/16 split lock plain finish 2
141 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 2
142 164-0435 Squeegee mount (OBSOLETE) 1
144 999-0181 Nut 1/4-20 hex jam plain finish 2
145 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
149 164-0437 Pivot block (OBSOLETE) 2
150 164-0438 Flange bearing (OBSOLETE) 2
151 164-0480 Pivot arm assembly with bearing (OBSOLETE) 2
152 164-0439 Ball joint 2
153 164-0130 Bushing 2
154 999-0182 Nut 1/2-20 hex plain finish 2
155 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 4
156 164-0442 Spring 4
157 999-0187 Washer 1/2 flat plain finish 4
158 N/A Not available 4 (not available) Latch
159 164-0445 Split key ring 4
160 N/A Not available 2 (not available) Rear skirt pin
161 164-0106 Retaining ring 6
162 991-5116 Side wiper urethane 2
163 999-0008 Screw 10-24 x 5/8 round head slotted zinc plated 16
164 N/A Not available 2 (not available) Splash guard
165 N/A Not available 2 (not available) Retainer strap
166a 164-0451 Right skirt only (FSO) (OBSOLETE) 1
166b N/A Not available 1 (Left skirt only)
168 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 2
169a 164-0452 Left wrangler label (FSO) (OBSOLETE) 1
169b 164-0453 Right wrangler label (FSO) (OBSOLETE) 1
170 N/A Not available 6 ft Front body stripe (FSO)
171 999-0185 Screw 3/8-16 x 3/4 flat head slotted zinc plated 4
173 N/A Not available 1 (not available) Left skirt assembly
174 N/A Not available 2 (not available) Bumper roller
175 164-0457 Bumper roller bracket (FSO) (OBSOLETE) 2
176 N/A Not available 2 Bumper roller axle
177 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages
178 164-0460 Battery block (FSO) (OBSOLETE) 1
179 164-0461 Squeegee roller bracket (OBSOLETE) 2
180a 998-0010 Battery jumper cable - ring type (red) 2 (For use with top, bolt type post batteries)
180b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 2 (NON-OEM)
181 N/A Not available 1 (Right brush motor shield)
182 N/A Not available 1 (Left brush motor shield)
183a 992-0002 Velcro hook (sold by the inch) 6 inch Sold by inch
183b 992-0001 Velcro loop (sold by the inch) 6 inch Sold by inch
184 N/A Not available 1 Battery tray assembly
185 997-2002 Hose clamp #6 1
186 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 18 in
187 164-0398 Control valve (white clamp) 1
188 164-0222 Plug 1
189 164-0287 Rubber switch boot 1
190 N/A Not available 1 (not available) Positive battery cable to forward solenoid
191 N/A Not available 1 (not available) Wire from forward solenoid to brush motor
192 164-0475 Battery terminal warning label 1
193 164-0476 Squeegee assembly 32 inch (OBSOLETE) 1 Includes items 123 - 141 and 179

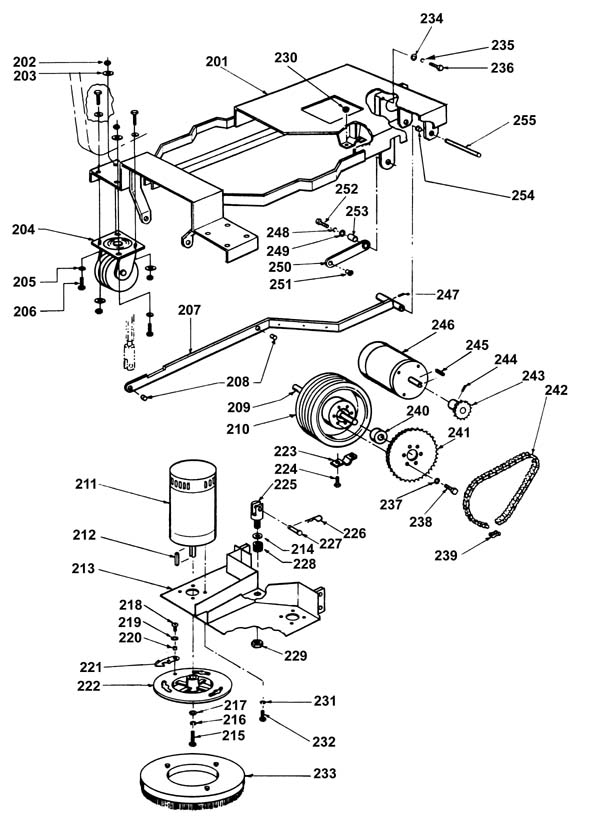

Frame and Undercarriage - 164-0023
RefNbr Part Number Description Req Notes
201 N/A Not available 1 Base plate
202 999-0170 Nut 3/8-16 hex plain finish 8
203 999-0032 Washer 3/8 USS flat plain finish 8
204a 991-2006 Caster wheel assembly (red) 2
204b 991-2008 4 inch caster wheel with bearings (red) 2
205 999-0032 Washer 3/8 USS flat plain finish 8
206 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 1
207 N/A Not available 2 (not available) Lift arm
208 164-0130 Bushing 1
209 N/A Not available 1 (not available) Drive wheel axle
210 N/A Not available 1 (not available) 10 inch drive wheel
211 N/A Not available 2 (not available) Brush drive motor
212 164-0132 Square keyway 1/4 x 1/4 2
213 N/A Not available 1 Motor plate
214 164-0524 Brush pressure washer (FSO) 1
215 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
216 999-0105 Washer 5/16 external star lock zinc plated 2
217 999-0024 Washer 5/16 flat stainless steel 2
218 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
219 999-0034 Washer 3/8 split lock plain finish 2
220 164-0136 Bushing 2
221 164-0135 Latch 2
222a 164-0492 Drive plate 2
222b 164-0493 Right brush drive assembly 1
222c 164-0494 Left brush drive assembly 1
223 164-0495 Axle clamp (FSO) (OBSOLETE) 2
224 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4
225 164-0496 Clevis (FSO) (OBSOLETE) 1
226 164-0497 Hair spring cotter pin (FSO) (OBSOLETE) 1
227 164-0498 Clevis pin (OBSOLETE) 1
228 164-0499 Brush pressure spring (FSO) (OBSOLETE) 1
229 999-0403 Nut 5/8-18 nylon insert lock grade 8 yellow zinc 1
230 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
231 999-0632 Washer 1/4 split lock stainless steel 8
232 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 8
233a 996-0673 13 inch Pad driver 2 Wrangler 27
233c 991-2209 Split retainer - pad holder ring (OBSOLETE) 2
233d 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE) 2 Center Lock
233e 991-2202 Big mouth pad holder set (blue) 2 Center Lock
233f 991-2205 Deep lock ring and pad grip ring 2 Center Lock
233g 996-0341 Drive lugs - plastic (pkg of 3) 6
233h 164-0510 Mounting screws (pad holder base) 1 Package of 3
233i 996-0675 Medium grit scrubbing brush - 180 grit 2 Wrangler 27
233j 996-0339 Drive lugs - metal 6
233k 991-2201 Center-Lok II pad holder - right hand thread (black) 2 (NON-OEM)
233l 991-2214 Center-Lok II pad holder - left hand thread (red) 2 (NON-OEM)
234 999-0060 Washer 1/4 split lock plain finish 4
235 999-0016 Washer 1/4 flat plain finish 4
236 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4
237 999-0028 Washer 5/16 split lock plain finish 6
238 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 6
239 991-0103 Master link 1
240 164-0332 Bearing (shaft end) 2
241 164-0513 Wheel sprocket 1
242 991-0101 Chain (sold by the link) 66 Sold by link
243 164-0515 Motor sprocket includes set screws 1 Includes screws
244 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish 2
245 164-0132 Square keyway 1/4 x 1/4 1
246a 164-0172 36V drive motor 1 (OEM)
246b 991-5114 36V drive motor 1 (NON-OEM)
247 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish 1
248 999-0126 Washer 1/2 split lock 8
249 999-0187 Washer 1/2 flat plain finish 8
250 164-0518 Lift arm assembly with flange bearing (FSO) (OBSOLETE) 4
251 164-0519 Flanged bearing 8
252 999-0200 Bolt 1/2-13 x 1 1/4 hex head 8
253 164-0130 Bushing 8
254 164-0519 Flanged bearing 2
255 164-0523 Lift arm pin (FSO) (OBSOLETE) 1

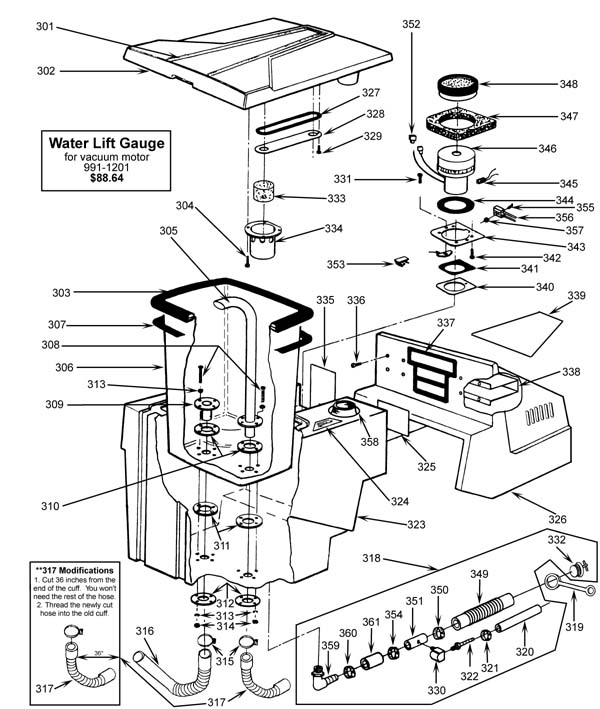

Lid, Front Cover and Tanks - 164-0024
RefNbr Part Number Description Req Notes
301 N/A Not available 1 (not available) Vacuum Cover Label
302 N/A Not available 1 (not available) Top cover
303 164-0072 Gasket material 1/2 x 1 x 1 (sold by the foot) 7 ft
304 999-0103 Screw 1/4-20 x 3/4 truss head slotted zinc 4
305 N/A Not available 1 (not available) Inlet tube
306 N/A Not available 1 (not available) Recovery tank
307 164-0073 Gasket sponge 1/2 x 1 (sold by the foot) (OBSOLETE) 8 ft
308 999-0662 Screw 1/4-20 x 2 round head phillips zinc plated 8
309 N/A Not available 1 (not available) Drain tube weldment
310 164-0532 Drain tube gasket (OBSOLETE) 2
311 N/A Not available 2 (not available) Drain tube gasket
312 164-0534 Washer (FSO) 2
313 999-0060 Washer 1/4 split lock plain finish 8
314 999-0190 Nut 1/4-20 hex plain finish 8
315 997-2000 Hose clamp 2 .
316 N/A Not available 1 (not available) Recovery drain hose.
317a 164-0089 Squeegee vacuum hose with cuffs 1 (NSS no longer makes the original vacuum hose assembly. See note on diagram on how to modify part 164-0089 to fit your scrubber.)
317b 991-8568 Squeegee vacuum hose 1 (NON-OEM)
317c 991-1904 Squeegee vacuum hose with straight cuffs 1 (NON-OEM)
318 N/A Not available 1 (not available) Drain hose assembly
319 164-0569 Plug strap (FSO) (OBSOLETE) 1
320 164-0568 1/2 ID solution hose (sold by the foot) (OBSOLETE) 2 ft
321 997-2004 Hose clamp 1
322 164-0566 Brass hose barb 1/4 NPT x 1/2 inch (OBSOLETE) 1
323a N/A Not available 1 (not available) Solution tank (call to check availability of a salvaged solution tank.)
323b 164-0557 Solution tank filter (OBSOLETE) 1
324 N/A Not available 1 Clean water label (FSO)
325 N/A Not available 1 Battery & charger label (FSO)
326 N/A Not available 1 (not available) Battery cover
327 164-0074 Vacuum chamber gasket 1
328 N/A Not available 1 (not available) Vacuum chamber plate
329 999-0071 Screw 10-24 x 1/2 flat head slotted zinc plated 6
330 164-0565 90 degree brass elbow 1
331 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
332 164-0564 Solution drain plug 1
333 164-0544 Float shut off assembly (FSO) (OBSOLETE) 1
334 164-0545 Float chamber (FSO) (OBSOLETE) 1
335 N/A Not available 1 Warning label (FSO)
336 999-0569 Screw 10 x 1/2 pan head phillips sheet metal 8
337 164-0547 Hood cover gasket (FSO) (OBSOLETE) 1
338 N/A Not available 1 (not available) Air duct
339 N/A Not available 1 side skirt mount bracket
340 N/A Not available 1 (not available) Air plate
341 N/A Not available 1 (not available) Gasket
342 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting 4
343 N/A Not available 1 (not available) Mount plate
344 164-0803 Vac motor/float gasket 1
345a 991-1222 Plastic covered carbon brush (sold individually) 2 sold individually
345b 991-1221 Carbon brush without plastic cover (pkg of 2) 2 sold individually
346 991-1212 36V 3 stage vacuum motor peripheral 1
347 164-0807 Vacuum exhaust gasket (OBSOLETE) 1
348a 274-0768 FILTER-DOME 1 (OEM)
348b 991-5119 Vacuum motor filter 1 (NON-OEM)
348c 164-0549 Vacuum filter with extruded gasket (OBSOLETE) 1 gasket on top of filter
348d 164-0072 Gasket material 1/2 x 1 x 1 (sold by the foot) 7 ft
349 N/A Not available 1 (not available) Solution drain hose
350 997-2005 Hose clamp 1
351 N/A Not available 1 (Solution pipe)
352 N/A Not available 2 (not available) Wire clip
353 164-0554 Wire clip (OBSOLETE) 1
354 997-2005 Hose clamp 1
355 999-0102 Screw 6-32 x 1 round head slotted zinc plated 2
356a 991-2106 50amp gray charger plug SB50 assembly w/ wires 1
356b 991-2105 SB50 50amp charger plug with pins (gray) 1
357 999-0195 Nut 6-32 hex plain 2
358 164-0557 Solution tank filter (OBSOLETE) 2
359 164-0558 1 90 degree vinyl hose barb 1
360 997-2005 Hose clamp 1
361 N/A Not available (not available) 2 inch hose

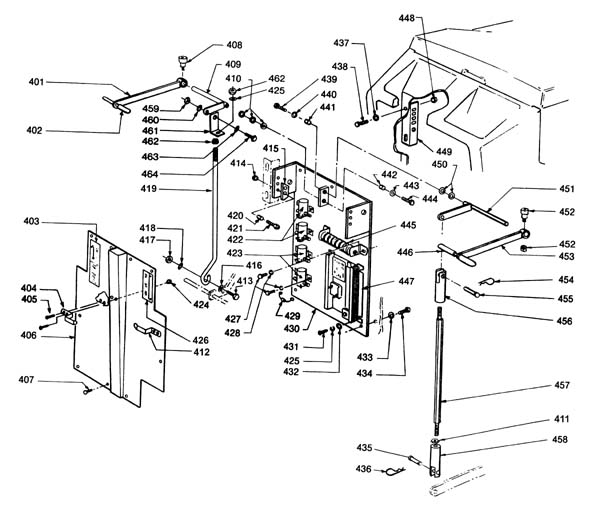

Back Panel and Levers - 164-0025
RefNbr Part Number Description Req Notes
401 164-0598 Brush lift handle (FSO) (OBSOLETE) 1
402 164-0572 Handle grip (FSO) (OBSOLETE) 2
403 N/A Not available 1 Squeege control label (FSO)
404 N/A Not available 1 (not available) Hose clip
405 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 4
406 N/A Not available 1 Rear panel
407 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 9
408 999-0745 Screw 10-24 x 1 1/4 socket head shoulder 1
409 164-0577 Squeegee lift shaft (OBSOLETE) 1
410 999-0187 Washer 1/2 flat plain finish 3
411 999-0202 Nut 1/2-13 hex plain finish 1
412 N/A Not available 1 (not available) Hose clip
413 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 1
414 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
415b 164-0579 Lift block 1
416 999-0032 Washer 3/8 USS flat plain finish 1
417 999-0170 Nut 3/8-16 hex plain finish 1
418 999-0201 Washer 3/8 internal star lock 1
419 164-0605 Squeegee lift rod threaded 1
420 164-0136 Bushing 1
421a 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 3
421b 999-0198 Screw 1/4-20 x 1 1/4 socket cap alloy plain finish 1
422a 991-1223 36V solenoid contactor with 4 post 2 (4 post) Top solenoid is for the brushes. 2nd from the top is for master switch
422b 164-0583 Silicon rectifier (diode) 2
423a 164-0581 Solenoid 2 (6 post) 3rd solenoid from top is reverse. The bottom one is forward.
423b 164-0583 Silicon rectifier (diode) 2
424 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
425 999-0060 Washer 1/4 split lock plain finish 4
426 N/A Not available 1 Brush control label (FSO)
427 999-0135 Screw 1/4-20 x 3/8 truss head slotted zinc 10
428 999-0060 Washer 1/4 split lock plain finish 10
429 164-0583 Silicon rectifier (diode) 4
430 N/A Not available 1 (not available) Control panel
431 999-0088 Screw 10-24 x 3/8 round head slotted zinc plated 4
432 999-0006 Washer 3/16 flat zinc plated 4
433 999-0028 Washer 5/16 split lock plain finish 8
434 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 8
435 N/A Not available 1 (not available) Clevis pin
436 164-0497 Hair spring cotter pin (FSO) (OBSOLETE) 1
437 999-0123 Washer 1/4 SAE flat zinc plated 4
438 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
439 999-0200 Bolt 1/2-13 x 1 1/4 hex head 1
440 999-0187 Washer 1/2 flat plain finish 1
441 164-0130 Bushing 1
442 164-0130 Bushing 1
443 999-0187 Washer 1/2 flat plain finish 1
444 999-0200 Bolt 1/2-13 x 1 1/4 hex head 1
445 164-0591 Resister (OBSOLETE) 1 Reduces reverse by 20 percent
446 164-0572 Handle grip (FSO) (OBSOLETE) 1
447a N/A Not available 1 (not available) Speed control includes potentiometer
447b N/A Not available 1 (not available) Speed control
447c 164-1092 Potentiometer for Dart speed control 1
447d 172-2039 5K potentiometer 1 Potentiometer only
448 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
449 N/A Not available 2 (not available) Angle support
450 999-0187 Washer 1/2 flat plain finish 2
451 N/A Not available 1 (not available) Brush lift shaft
452a 999-0745 Screw 10-24 x 1 1/4 socket head shoulder 1
452b 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
453 164-0598 Brush lift handle (FSO) (OBSOLETE) 1
454 164-0497 Hair spring cotter pin (FSO) (OBSOLETE) 1
455 N/A Not available 1 Clevis pin 3/8 x 1 1/4
456 N/A Not available 1 (not available) Top clevis
457 N/A Not available 1 (not available) Brush lift rod
458 N/A Not available 1 (not available) Lower clevis
459 999-0170 Nut 3/8-16 hex plain finish 1
460 999-0201 Washer 3/8 internal star lock 1
461 N/A Not available 1 (not available) Lift rod bracket
462 999-0190 Nut 1/4-20 hex plain finish 1
463 999-0032 Washer 3/8 USS flat plain finish 1
464 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 1

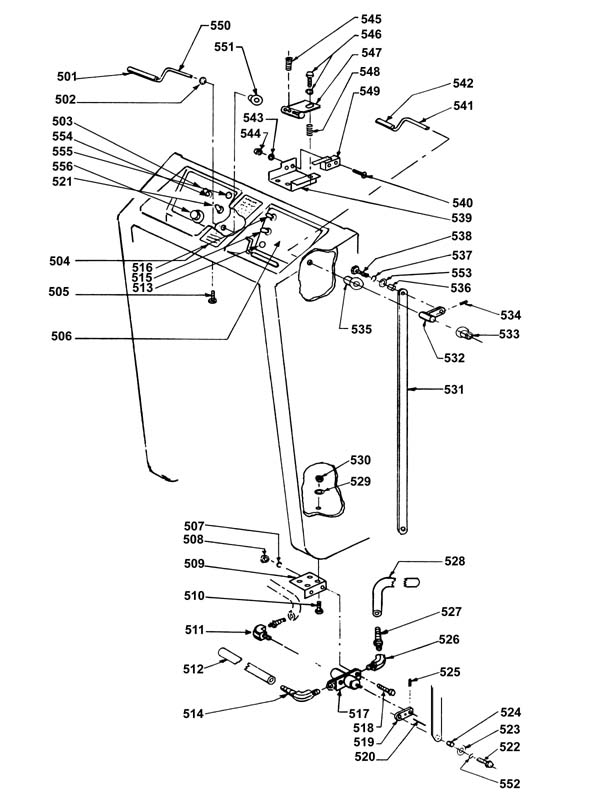

Control Panel and Solution Lever - 164-0026
RefNbr Part Number Description Req Notes
501 164-0608 Handle grip (FSO) (OBSOLETE) 2
502 N/A Not available 2 Retaining ring (FSO)
503 164-0610 Left control label (FSO) (OBSOLETE) 1
504 N/A Not available 1 Operating label (FSO)
505 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
506 164-0612 Right control label (FSO) (OBSOLETE) 1
507 999-0060 Washer 1/4 split lock plain finish 2
508 999-0190 Nut 1/4-20 hex plain finish 2
509 164-0613 Valve bracket (FSO) (OBSOLETE) 1
510 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
511a 164-0565 90 degree brass elbow 1
511b 164-0566 Brass hose barb 1/4 NPT x 1/2 inch (OBSOLETE) 1
512 991-1401 Clear vinyl tubing (sold by the inch) 32 in to left brush
513a 164-1077 60amp circuit breaker (OBSOLETE) 1
513b 164-1086 70amp circuit breaker assembly 1
513c 164-3019 Breaker plate 1
514 164-0617 90 degree hose barb 1
515 164-0023 Toggle switch 1 (brush)
516 164-0290 Toggle switch 1 (vac)
517 164-0618 Solution valve 1
518 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
519 164-0619 Valve lever 1
521 164-0023 Toggle switch 1 ( master switch)
522 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
523 999-0016 Washer 1/4 flat plain finish 1
524 164-0136 Bushing 1
525 999-0732 Spring pin 3/32 x 5/8 steel 1
526 164-0947 45 degree elbow 1
527 164-0551 Hose barb x 1/4 MPT 1
528 991-1401 Clear vinyl tubing (sold by the inch) 21 in to right brush
529 999-0016 Washer 1/4 flat plain finish 4
530 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
531 N/A Not available 1 Valve link (FSO)
532 N/A Not available 1 Valve arm (FSO)
533 164-0626 Flange bearing (FSO) (OBSOLETE) 1
534 999-0203 Screw 10-24 x 3/4 cup point socket set alloy plain finish 1
535 164-0626 Flange bearing (FSO) (OBSOLETE) 1
536 164-0136 Bushing 1
537 999-0060 Washer 1/4 split lock plain finish 1
538 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
539 N/A Not available 1 Switch bracket (FSO)
540 999-0102 Screw 6-32 x 1 round head slotted zinc plated 2
541 N/A Not available 1 Valve handle
542 164-0631 Valve handle grip (FSO) (OBSOLETE) 1
543 999-0148 Washer #6 external star lock zinc plated 2
544 999-0195 Nut 6-32 hex plain 2
545 999-0061 Screw 1/4-20 x 5/16 cup point socket set alloy plain finish 4
546a 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated 1
546b 999-0032 Washer 3/8 USS flat plain finish 1
547 N/A Not available 1 Handle mount
548 N/A Not available 1 (not available) Spring
549 164-0026 Snap switch 1
550 N/A Not available 2 Switch handle (FSO)
551 N/A Not available 2 Flange bearing (FSO)
552 999-0060 Washer 1/4 split lock plain finish 1
553 999-0016 Washer 1/4 flat plain finish 1
554 164-2000 Forward/reverse switch (6 prong) 1
555 164-0283 Indicator light with clip (green) 1
556a 164-1087 Knob with set screw 1
556b 172-2039 5K potentiometer 1

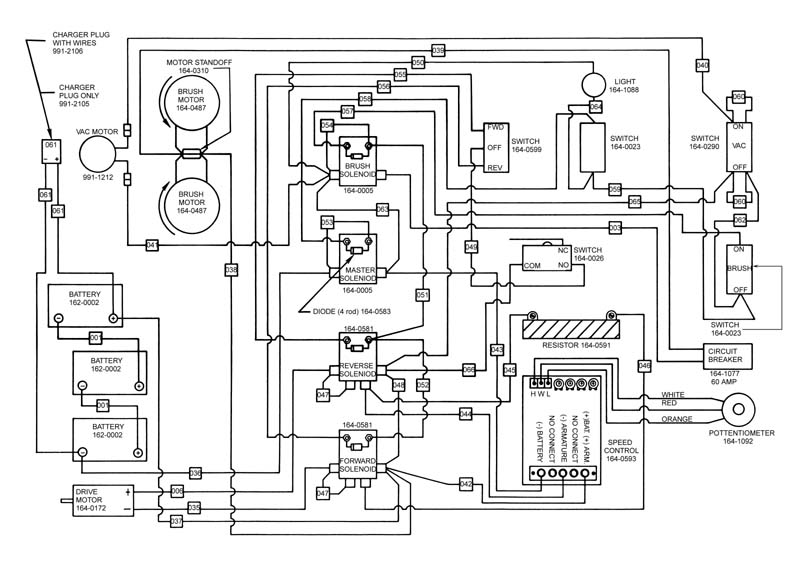

Wiring - 164-0027
RefNbr Part Number Description Req Notes
001a 998-0010 Battery jumper cable - ring type (red) (For use with top, bolt type post batteries)
001b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring (NON-OEM)
003 164-0671 Circuit breaker lead
006 164-0672 Positive lead (OBSOLETE)
035 N/A Not available Wire from drive motor to forward solenoid (FSO)
036 164-0473 Positive battery cable to forward solenoid (FSO) (OBSOLETE)
037 N/A Not available (not available) Positive battery cable to forward solenoid
038 N/A Not available (not available) Wire from forward solenoid to brush motor
039 N/A Not available Wire from brush motor to circuit breaker (FSO)
040 N/A Not available Wire from vacuum motor to switch (FSO)
041 N/A Not available Wire from brush solenoid to brush switch
042 164-0680 Wire from forward solenoid to speed control (FSO) (OBSOLETE) (to positive battery on speed control)
043 N/A Not available Wire from master switch to speed control (FSO)
044 N/A Not available Wire from reverse solenoid to speed control (FSO)
045 N/A Not available Wire from reverse solenoid to resister (FSO)
046 N/A Not available Wire from reverse solenoid to speed control (FSO)
047 164-0685 Forward and reverse solenoid terminal wires
048 N/A Not available Wire from reverse solenoid to speed control (FSO)
049 164-0687 Wire from forward/reverse switch to deadman switch
050 N/A Not available Wire from brush solenoid to light (FSO)
051 N/A Not available Wire from brush solenoid to reverse solenoid (FSO)
052 N/A Not available Wire from reverse solenoid to forward solenoid (FSO)
053 164-0691 Wire from master solenoid to terminal (OBSOLETE)
054 N/A Not available Wire from Brush solenoid terminal to terminal (FSO)
055 N/A Not available Wire from reverse solenoid to forward/reverse switch (FSO)
056 N/A Not available Wire from forward solenoid to forward/reverse switch (FSO)
057 N/A Not available Wire from brush solenoid to brush switch
058 N/A Not available Wire from master solenoid to master switch (FSO)
059 164-0697 Wire from master switch to brush switch
060 164-0698 Vacuum switch jumper wire (FSO) (OBSOLETE)
061a 991-2106 50amp gray charger plug SB50 assembly w/ wires FEMALE
061b 991-2105 SB50 50amp charger plug with pins (gray) MALE
061c N/A Not available (not available) Wire from charger plug to battery
061d N/A Not available (not available) Wire from charger plug to battery
062 164-0700 Wire from vacuum switch to brush switch
063 N/A Not available Wire from master solenoid to brush solenoid (FSO)
064 N/A Not available Wire from master switch to light (FSO)
065 N/A Not available Wire from reverse switch to vacuum switch (FSO)
066 164-0704 Wire from reverse solenoid to deadman switch (OBSOLETE)

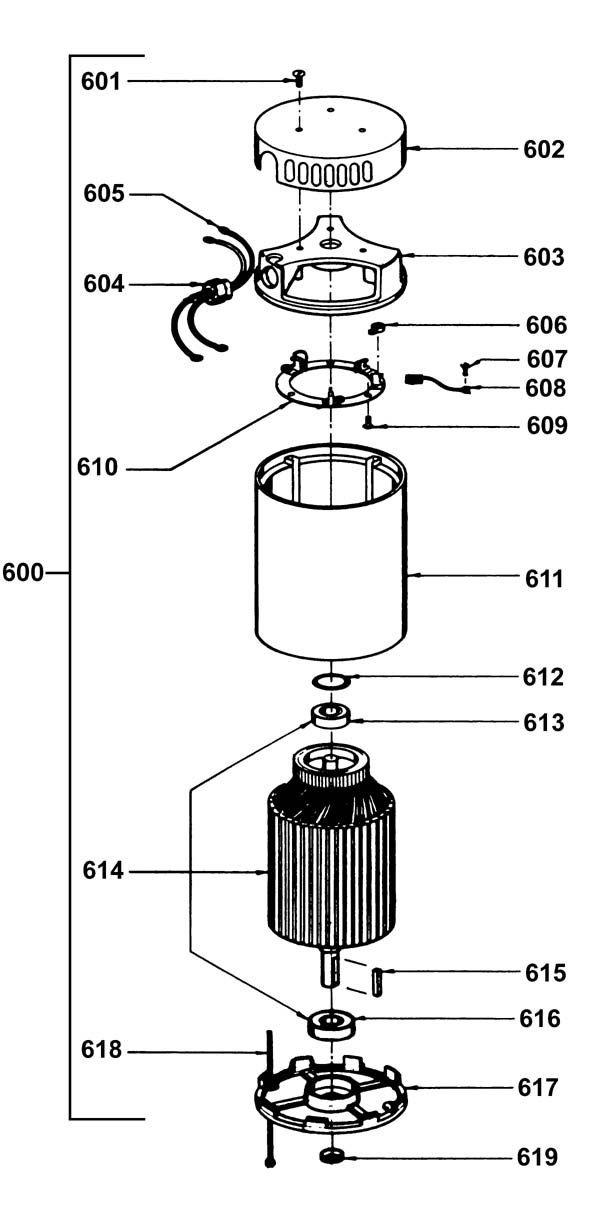

Brush Motor - 164-0028
RefNbr Part Number Description Req Notes
600 N/A Not available 1 Brush drive motor
601 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated 3
602 164-0637 Top cover (OBSOLETE) 1
603 164-0638 Top end bell with brush board assembly (OBSOLETE) 1
604 N/A Not available 1 Heyco strain relief
605 164-0323 Lead assembly (1 wire with terminals) 2 1 wire with terminals
606 164-0324 Carbon brush spring 4
607 999-0174 Screw 10-32 x 3/8 pan head slotted brass 4
608 N/A Not available 4 (not available) Brush assembly (Carbon brush with lead and terminal)
609 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 3
610 164-0643 Brush board assembly with springs & brushes (OBSOLETE) 1
611 N/A Not available 1 Stator frame assembly with magnets
612 164-0328 Washer 1 7/8 wave 1
613 164-0329 Top rotor bearing 1 Commutator end
614 N/A Not available 1 (not available) Armature assembly with bearings.
615 164-0132 Square keyway 1/4 x 1/4 1
616 164-0332 Bearing (shaft end) 1
617 164-0650 Bottom end bell (OBSOLETE) 1
618 164-0651 Thru bolt (OBSOLETE) 2
619 164-0335 Shaft seal 1

- Batteries, Brushes, and Chargers - 164-9974
RefNbr Part Number Description Req Notes
1 162-0002 12V 185Ah wet battery (SNSR) 3
2 162-0047 12V 215Ah AGM battery (Group J185) 3
3 162-5062 36V 20amp battery charger with small SB50 gray plug 1 (configured for wet batteries; can be changed to support AGM batteries)
162-9024 36V 12amp battery charger with small SB50 gray plug
3.75 991-2105 SB50 50amp charger plug with pins (gray) 1
4 996-0169 13 inch heavy grit stripping brush - 80 grit 2
5 996-0120 13 inch medium grit scrubbing brush - 180 grit 2
6 996-0096 13 inch lite grit scrubbing brush - 500 grit 2
7 996-3065 13 inch value daily cleaning brush assembly (OBSOLETE) 2
8 996-0061 13 inch Pad driver 2
9 996-0341 Drive lugs - plastic (pkg of 3) 2

- Pads - 255-1400
RefNbr Part Number Description Req Notes
01 255-1440 14 inch aqua plus burnishing pad (pkg of 5)
02 255-1435 14 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1464 14 inch Blue ace pad (pkg of 5)
04 255-1442 14 inch Blue Jay burnishing pad (pkg of 5)
05 255-1412 14 inch Cure white pad (pkg of 5)
06 255-1477 14 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1438 14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1421 14 inch gorilla lite burnishing pad (pkg of 5)
09 255-1450 14 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1465 14 inch Heat concrete bonding pad (pkg of 5)
11 255-1430 14 inch jaguar burnishing pad (pkg of 5)
12 255-1487 14 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1490 14 inch premium black stripping pad (pkg of 5)
14 255-1470 14 inch premium blue cleaning pad (pkg of 5)
15 255-1492 14 inch premium brown stripping pad (pkg of 5)
16 255-1480 14 inch premium green scrubbing pad (pkg of 5)
17 255-1460 14 inch premium red scrubbing pad (pkg of 5)
18 255-1452 14 inch premium tan polishing pad (pkg of 5)
19 255-1420 14 inch premium white polishing pad (pkg of 5)
20 255-1411 14 inch superspeed rubberized pad (pkg of 5)
21 255-1495 14 inch razorback stripping pad (pkg of 5)
22 255-1447 14 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1455 14 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1423 14 inch sand screen driver pad (pkg of 2)
25 255-0120 14 inch Professional sand screen 100 grit (pkg of 10)
26 255-0121 14 inch Professional sand screen 120 grit (pkg of 10)
27 255-0122 14 inch Professional sand screen 180 grit (pkg of 10)
28 255-0119 14 inch Professional sand screen 60 grit (pkg of 10)
29 255-0205 14 inch Superscreen sand screen 100 grit (pkg of 10)
30 255-0206 14 inch Superscreen sand screen 120 grit (pkg of 10)
31 255-0207 14 inch Superscreen sand screen 180 grit (pkg of 10)
32 255-0204 14 inch Superscreen sand screen 60 grit (pkg of 10)
33 255-1424 14 x 20 inch Tiger carpet bonnet (pkg of 2)
34 255-9549 14 inch Diamond by Gorilla 11000 Grit (pkg of 2)
35 255-9546 14 inch Diamond by Gorilla 1500 Grit (pkg of 2)
36 255-9543 14 inch Diamond by Gorilla 200 Grit (pkg of 2)
37 255-9547 14 inch Diamond by Gorilla 3000 Grit (pkg of 2)
38 255-9544 14 inch Diamond by Gorilla 400 Grit (pkg of 2)
39 255-9545 14 inch Diamond by Gorilla 800 Grit (pkg of 2)
40 255-9548 14 inch Diamond by Gorilla 8000 Grit (pkg of 2)
41 255-9639 14 inch Diamond starter pack (1 of each grit)
42 255-1482 14 inch Turbostrip segmented rotary pad (pkg of 4)
43 255-1415 14 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1416 14 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Frequently Replaced Parts - 999-0004
RefNbr Part Number Description Req Notes
1 162-0002 12V 185Ah wet battery (SNSR) (3)
2 162-0047 12V 215Ah AGM battery (Group J185) (3)
3 162-5062 36V 20amp battery charger with small SB50 gray plug
162-9024 36V 12amp battery charger with small SB50 gray plug
5 991-2105 SB50 50amp charger plug with pins (gray)
6 998-0010 Battery jumper cable - ring type (red)
7 164-0023 Toggle switch (key switch)
8 164-0290 Toggle switch (vac)
9 164-0023 Toggle switch (brush)
10 991-0101 Chain (sold by the link) (66)
11 991-0103 Master link
12 164-0618 Solution valve
13 164-0041 Squeegee blade 32 inch linatex kit (red) (front and rear)
14 164-0557 Solution tank filter (OBSOLETE)
15 164-0041 Squeegee blade 32 inch linatex kit (red) (front and rear)
16a 164-0089 Squeegee vacuum hose with cuffs
16b 991-8568 Squeegee vacuum hose (NON-OEM)
17 164-0072 Gasket material 1/2 x 1 x 1 (sold by the foot) (7 ft)
18a 164-0043 Drain plug (OEM)
18b 991-5113 Drain plug (NON-OEM)
19 991-1212 36V 3 stage vacuum motor peripheral
20 991-1221 Carbon brush without plastic cover (pkg of 2) (for Lamb# 116)
21 991-1222 Plastic covered carbon brush (sold individually) (for Lamb# 119)
22 996-0169 13 inch heavy grit stripping brush - 80 grit
23 996-0120 13 inch medium grit scrubbing brush - 180 grit
24 996-0096 13 inch lite grit scrubbing brush - 500 grit
26 996-0061 13 inch Pad driver
27 996-0339 Drive lugs - metal (6)
28 996-0341 Drive lugs - plastic (pkg of 3)
29 991-2206 Center-Lok 3 pad holder
Webpage Problem Reporting
