Parts List Complete for NSS WRANGLER 2625 DB

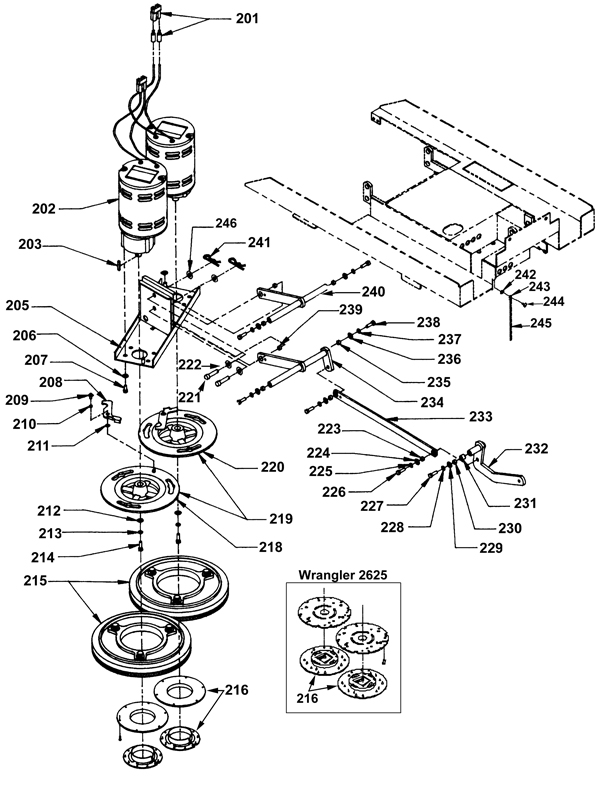

Scrub Deck and Lifting Arm Assembly - 164-0001
RefNbr Part Number Description Req Notes
201 991-2103 50amp charger plug SB50 with pins (red) 2
202a 164-0835 24V brush gear motor assembly 2 (OEM) (Wrangler 26)
202b 164-7932 24V brush gear motor assembly 2 (OEM) (Wrangler 2625)
202c 991-2121 24V .75HP brush motor assembly with gear box 1 (NON-OEM) (Wrangler 26 and 2625)
203 164-0132 Square keyway 1/4 x 1/4 2
205 164-0837 Brush motor mount 1
206 999-0034 Washer 3/8 split lock plain finish 8
207 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 8
208 164-0135 Latch 2
209 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 2
210 164-0136 Bushing 2
211 164-0137 Washer 3/8 spring 2
212 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
213 999-0553 Washer 5/16 medium split lock stainless steel 2
214 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
215a 996-3064 12 inch value daily cleaning brush assembly (OBSOLETE) 2 (Wrangler 26)
215b 996-1591 12 inch lite grit scrubbing brush - 500 grit 2 (Wrangler 26)
215c 996-1593 12 inch medium grit scrubbing brush - 180 grit 2 (Wrangler 26)
215d 996-1592 12 inch heavy grit stripping brush - 80 grit 2 (Wrangler 26)
215e 996-0681 Nylon brush 2 (Wrangler 26)
215f 996-1595 12 inch Pad driver 2 (Wrangler 26)
216a 991-2202 Big mouth pad holder set (blue) 2 (Wrangler 26)
216b 991-2206 Center-Lok 3 pad holder 2 (Wrangler 2625)
216c 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 3 (Wrangler 2625)
216d 991-2201 Center-Lok II pad holder - right hand thread (black) 2 (NON-OEM)
216e 991-2205 Deep lock ring and pad grip ring 2 (NON-OEM)
216f 991-2214 Center-Lok II pad holder - left hand thread (red) 2 (NON-OEM)
218 164-0494 Left brush drive assembly 1 (includes 208-214, 219)
219 164-0492 Drive plate 2
220 164-0493 Right brush drive assembly 1 (includes 208-214, 219)
221 164-1158 Clevis pin 2
222 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
223 164-0234 Bushing 2
224 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
225 999-0560 Washer 1/2 lock stainless steel 2
226 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 2
227 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 1
228 999-0560 Washer 1/2 lock stainless steel 1
229 999-0559 Washer 1/2 x 1/4 flat stainless steel 1
230 164-0130 Bushing 1
231 164-0841 Bushing 1
232 164-0842 Rear brush lift arm 1
233 164-0843 Brush lift bar 1
234 164-0844 Front brush lift arm 1
235 164-0130 Bushing 4
236 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
237 999-0560 Washer 1/2 lock stainless steel 4
238 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 4
239 164-0130 Bushing 2
240 164-0845 Brush lifting guide 1
241 164-0263 Cotter pin 2
242 999-0311 Washer #10 external star lock zinc plated 1 (Wrangler 2625)
243 164-1502 End coupling 1 (Wrangler 2625)
244 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 1 (Wrangler 2625)
245 164-1503 8 inch round bead chain 1 (Wrangler 2625)
246 999-0559 Washer 1/2 x 1/4 flat stainless steel 2

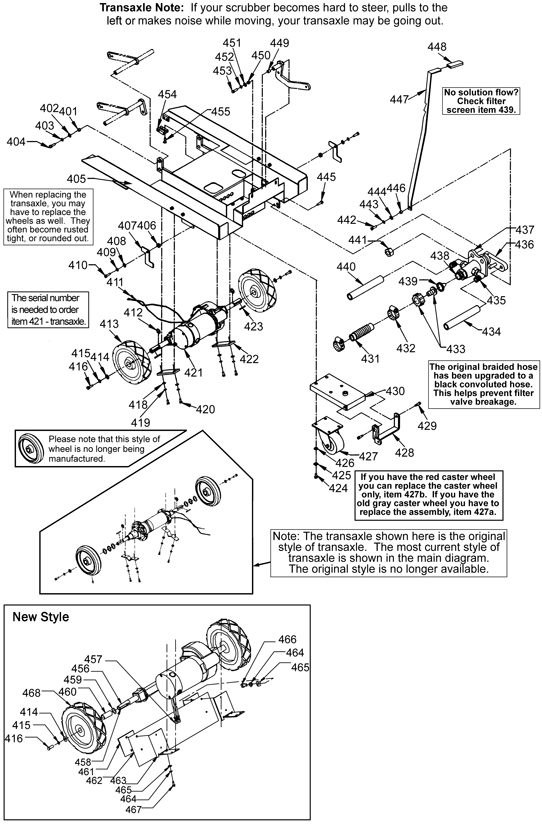

Transaxle and Frame Assembly - 164-0002
RefNbr Part Number Description Req Notes
401 164-0130 Bushing 4
402 999-0114 Washer 1/2 SAE flat 4
403 999-0126 Washer 1/2 split lock 4
404 999-0116 Bolt 1/2-13 x 1 1/2 hex head grade 5 4
405 164-0846 Frame assembly (OBSOLETE) 1
406 164-0161 Skirt latch pin 2
407 164-0162 Skirt latch 2
408 999-0016 Washer 1/4 flat plain finish 2
409 999-0060 Washer 1/4 split lock plain finish 2
410 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
411 998-0001 1/4 spade male terminal 10-12 gauge 2
412 164-1007 Rubber handle grip (black) 2
413 164-0058 Drive wheel 2 This wheel is used if customer has not replaced their transaxle since 01/2012
414 999-0033 Washer 7/16 SAE flat 2
415 999-0034 Washer 3/8 split lock plain finish 2
416a 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2 (Wrangler 26)
416b 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 2 (Wrangler 2625)
418 999-0016 Washer 1/4 flat plain finish 4
419 999-0060 Washer 1/4 split lock plain finish 4
420 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
421a 164-0847 24 inch transaxle assembly (old style)(OBSOLETE) 1 (before 2.4.00) (includes 421c thru 421j)
421b 164-8120 Transaxle with wheels kit 1 (after 2.4.00) (includes 421c thru 421j)
421c 164-1523 Motor 1
421d 164-1524 Rubber grommet 2
421e 164-1007 Rubber handle grip (black) 2
421f N/A Not available 4 (Bevel gear)
421g N/A Not available 1 (Magnet and housing)
421h 164-1528 Carbon brush 4
421i 164-1529 Brush holder 4
421j 164-1530 Anti-seize lubricant 1 (for axles)
422 164-1188 Transaxle bracket 2 (new style)
423 164-0059 Square keyway 2
424 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
425 999-0034 Washer 3/8 split lock plain finish 4
426 999-0033 Washer 7/16 SAE flat 4
427a 991-2006 Caster wheel assembly (red) 1 (includes 427b)
427b 991-2008 4 inch caster wheel with bearings (red) 1
428 164-0852 Squeegee lifting bracket 1
429 999-0338 Screw 1/4-20 x 1/2 socket head shoulder 2
430 164-0853 Squeegee pivot bracket 1
431 164-1107 6 1/2 inch convoluted tubing 1
432 997-2002 Hose clamp #6 2
433 164-0182 Hose barb and collar 1
434 991-1401 Clear vinyl tubing (sold by the inch) 44 in
435 164-0187 90 degree elbow barb 2
436 164-0619 Valve lever 1
437a 164-0077 Solution valve assembly with fittings and lever 1 (includes 437b)
437b 164-0618 Solution valve 1
438 164-0083 Valve filter fitting 1
439 164-0065 Filter screen 1
440 991-1401 Clear vinyl tubing (sold by the inch) 49 in
441 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
442 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
443 999-0060 Washer 1/4 split lock plain finish 1
444 999-0016 Washer 1/4 flat plain finish 1
445 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
446 164-0136 Bushing 1
447 164-0190 Solution valve lever 1
448 164-0285 Valve lever grip 1
449 164-0841 Bushing 1
450 164-0130 Bushing 1
451 999-0114 Washer 1/2 SAE flat 1
452 999-0126 Washer 1/2 split lock 1
453 999-0116 Bolt 1/2-13 x 1 1/2 hex head grade 5 1
454 991-2103 50amp charger plug SB50 with pins (red) 2
455 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated 4
456a 164-8120 Transaxle with wheels kit 1 (new style) (includes rubber grommet, 456b-467, 414-415, and 416b)
456b 164-8169 Alloyaxles 1 (includes 457c-458)
456c 164-8170 Brush kit 1
457 998-0001 1/4 spade male terminal 10-12 gauge 1
458 164-8172 Square keyway 2
459 999-0863 Washer 3/4 x 14 gauge narrow bushing 2
460 164-9160 Axle sleeve 2
461 164-9161 Transaxle flap bracket 2
462 164-9162 Transaxle flap 1
463 164-9163 Transaxle bracket 2
464 999-0060 Washer 1/4 split lock plain finish 8
465 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
466 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 4
467 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 4
468 164-8173 Drive wheel 2 This wheel is only used if the customer has replaced their transaxle since 01/2012.
N/S 164-1184 Transaxle axle clamp 2

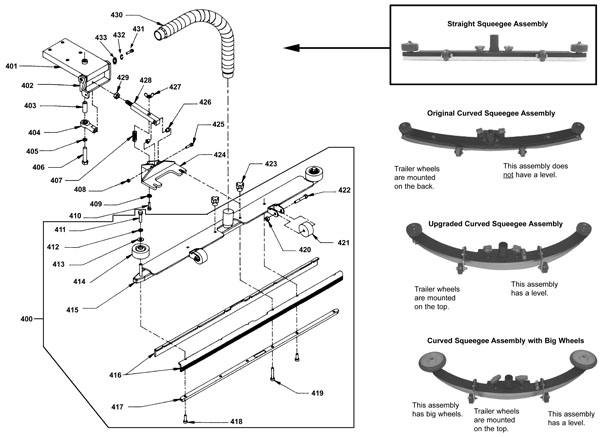

Straight Squeegee Assembly - 164-0003
RefNbr Part Number Description Req Notes
400 164-0247 Squeegee assembly (narrow mount) 1 (includes 411-422)
401 164-0853 Squeegee pivot bracket 1
402 164-0852 Squeegee lifting bracket 1
403 164-0855 Squeegee pivot spacer 1
404 164-0238 Ball joint 1
405a 999-0114 Washer 1/2 SAE flat 1 (Wrangler 26)
405b 164-6007 Spacer 1 (Wrangler 2625)
406 999-0640 Bolt 1/2-13 x 3 18-8 hex head stainless steel 1
407 164-0856 Height adjustment spring 1
408 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
409 999-0028 Washer 5/16 split lock plain finish 1
410 999-0129 Bolt 5/16-18 x 2 1/2 tap hd full thread grade 5 zinc plated 1
411 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel 2
412 999-0548 Washer 5/16 external star lock stainless steel 2
413 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
414 991-2009 3 inch bumper wheel 2
415 164-0243 Squeegee weldment (narrow mount) 1
416 164-0041 Squeegee blade 32 inch linatex kit (red) (front and rear) 1
417 164-0250 Inner channel for Wrangler 26 and 2625 1
418 999-0641 Screw 5/16-18 x 3/4 socket head stainless steel 4
419 999-0131 Screw 5/16-18 x 1 1/2 socket head stainless steel 2
420 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
421 991-2005 Small roller wheel (gray) 2
422a 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2 (Wrangler 26)
422b 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2 (Wrangler 2625)
423 164-1565 Knob 2
424 164-0857 Squeegee mounting bracket 1
425 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated 1
426 164-0858 Flanged bushing 2
427 999-0133 Nut 5/16-18 wing zinc plated 1
428 164-0859 Squeegee shaft 1
429 999-0134 Nut 1/2-20 hex jam plain finish 1
430a 164-0089 Squeegee vacuum hose with cuffs 1
430b 991-8568 Squeegee vacuum hose 1
430c 991-1904 Squeegee vacuum hose with straight cuffs 1 (NON-OEM)
431 999-0338 Screw 1/4-20 x 1/2 socket head shoulder 2 (Wrangler 26)
432 999-0553 Washer 5/16 medium split lock stainless steel 2 (Wrangler 26)
433 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2 (Wrangler 26)
N/S 164-3985 Fully insulated m-etc trim 2

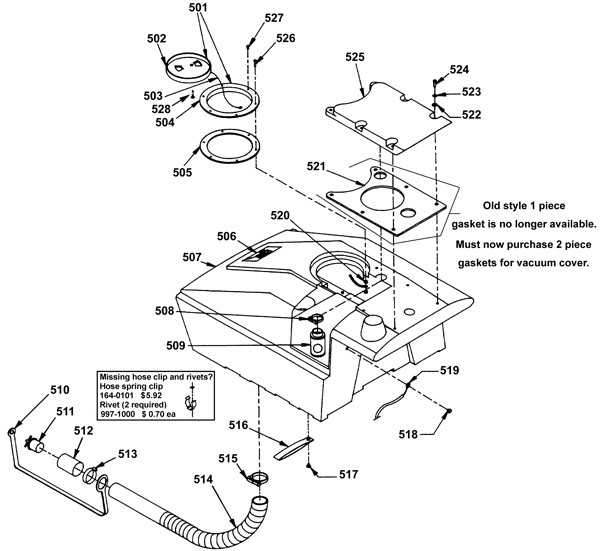

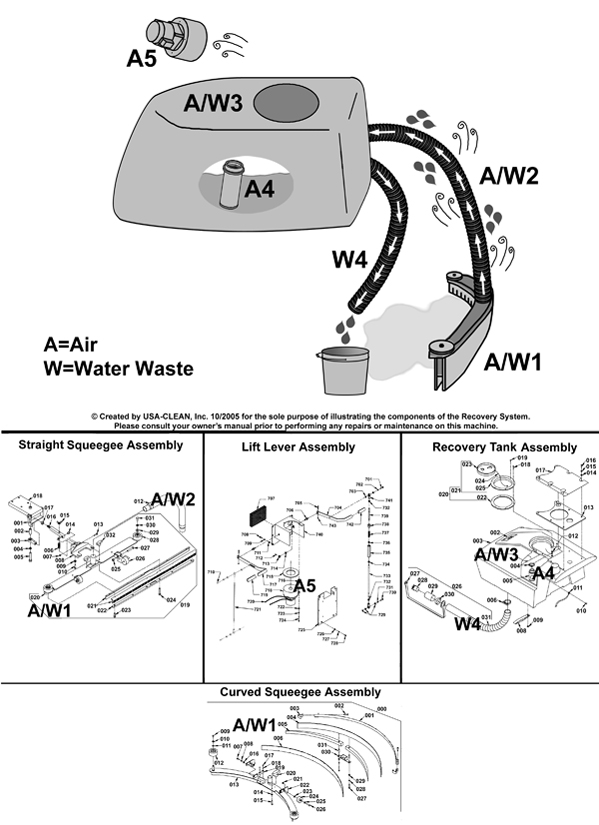

Recovery Tank Assembly - 164-0004
RefNbr Part Number Description Req Notes
501a 164-0860 Recovery tank lid and gasket assembly 1 (includes 502-505)
501b 164-0202 Tank lid assembly 1 (includes 502-504)
502a 164-0044 Tank lid (clear) 1
502b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
503 164-0204 Recovery tank lid chain 1
504 164-0205 Tank lid ring (black) 1
505 164-0206 Gasket 1
506a 164-1175 Wrangler 26 color decal kit 1
506b 164-9140 Wrangler 2625 color decal kit 1
507 164-0874 Solution tank 1
508 164-0218 Nylon hose clamp 1
509 164-0046 Float screen assembly 1
510 164-0207 Plug strap 1
511a 164-0043 Drain plug 1 (OEM)
511b 991-5113 Drain plug 1 (NON-OEM)
512 164-0208 Tube 1
513 997-2000 Hose clamp 1
514a 164-0210 Recovery tank drain hose 1 (Wrangler 26)
514b 164-0863 Drain hose assembly 1 (Wrangler 2625) (includes 510-514)
515 997-2003 Hose clamp 1
516 164-0865 Tank support strap 1
517a 999-0113 Screw 1/4-20 x 1/2 truss head slotted 1 (Wrangler 26)
517b 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 1 (Wrangler 2625)
518 999-0135 Screw 1/4-20 x 3/8 truss head slotted zinc 2
519 164-0220 Recovery tank strap 1
520 999-0004 Nut 10-24 k-lock zinc plated 2
521a 164-0866 Gasket retro kit 1 (This kit includes both gaskets needed)
521b 164-8027 Vacuum cover motor gasket 1
521c 164-8028 Vacuum cover tank gasket 1
522 999-0123 Washer 1/4 SAE flat zinc plated 6
523 999-0060 Washer 1/4 split lock plain finish 6
524 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 6
525 164-0867 Top vacuum box 1
526 999-0642 Screw 10-24 x 1 3/4 round head phillips stainless steel 1
527 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 5
528 999-0680 Screw 6 x 1/2 pan head phillips T-A sheet metal 1 (holds chain to lid)
N/S 164-0101 Hose holder 1
N/S 997-1000 Pop rivet 1/8 x 5/8 2

Solution Tank Assembly - 164-0005
RefNbr Part Number Description Req Notes
601 164-0868 Front cover bracket 1
602a 164-0869 Solution tank filter assembly 1 (includes 602b and 602c)
602b 164-2564 Filter bag screen 1
602c 164-2565 Filter bag frame 1
603 164-0870 Front cover 1
604 164-0871 Front cover retainer 1
605 999-0643 Screw 10-24 x 5/8 flat head phillips stainless steel 3
606 999-0123 Washer 1/4 SAE flat zinc plated 2
607 999-0060 Washer 1/4 split lock plain finish 2
608 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 2
609a 164-1175 Wrangler 26 color decal kit 1
609b 164-9140 Wrangler 2625 color decal kit 1
611 164-0874 Solution tank 1
612 164-0398 Control valve (white clamp) 1
613 164-0402 Hose barb 1
614 997-2001 Hose clamp 1
615 991-1401 Clear vinyl tubing (sold by the inch) 44 in
616 164-0401 Hose clip 1
617 999-0123 Washer 1/4 SAE flat zinc plated 1
618 999-0060 Washer 1/4 split lock plain finish 1
619 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
620 164-1163 90 degree hose barb 1
621 997-2002 Hose clamp #6 2
622 164-1107 6 1/2 inch convoluted tubing 1
623 997-2005 Hose clamp 1
624 164-0399 Solution tank drain hose fitting 1
625a 164-0405 22 inch solution drain hose 1 This hose holds the solution level gauge and drains the solution tank
625b 164-2566 3/4ID x 21 inch Vnyl hse, soltn drn 1 26VS
626 164-0406 Solution hose drain gauge decal 1
627 164-0407 90 degree hose barb 1
628 164-0408 Spring 1
629 999-0004 Nut 10-24 k-lock zinc plated 1
630 164-0409 Tube adaptor 1
631 164-0410 Tube adaptor gasket 1
632 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
633 999-0053 Washer #10 split lock plain finish 1
634 164-0877 Recovery tank hinge 1
635 999-0060 Washer 1/4 split lock plain finish 11
636 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 11
637a 164-1174 Vacuum tube gasket 1 (Wrangler 26)
637b 164-2659 Vacuum tube gasket 1 (Wrangler 2625)
738 164-8140 Bulkhead fitting 1
739 164-8141 Bottle cap with hole 1
740 164-8142 F-style bottle
741 164-8143 Bottle holder insert 1
742 164-8144 Bottle holder gasket 1
743 164-1240 Nylon cable clamp 1
744a 164-8130 25 foot nylon tubing 1
744b 999-0569 Screw 10 x 1/2 pan head phillips sheet metal 1
745 164-8146 Solution tank 1
746 164-8147 Bottle strainer 1
747 164-8148 Screw 10 x 2 inch pan head phillips 2
748 164-8130 25 foot nylon tubing 1

Lift Lever Assembly - 164-0006
RefNbr Part Number Description Req Notes
701 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 1
702 999-0034 Washer 3/8 split lock plain finish 1
703a 999-0120 Washer 3/8 SAE flat 2 (Wrangler 26)
703b 999-0033 Washer 7/16 SAE flat 4 (Wrangler 2625)
704 164-0262 Brush lift handle 1
705 164-0267 Clevis pin 2
706 164-0266 Pivot stud 2
707 164-0199 Vacuum motor intake filter 1
708 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 6
709 999-0060 Washer 1/4 split lock plain finish 6
710a 999-0646 Screw 5/16-18 x 3/8 socket head shoulder 2 (Wrangler 26)
710b 164-1458 Bolt 5/16-18 x 3/8 long socket head 2 (Wrangler 2625)
711 999-0123 Washer 1/4 SAE flat zinc plated 6
712 164-0263 Cotter pin 2
713 999-0647 Nut 1/2-13 slotted hex plain finish 2
714 999-0114 Washer 1/2 SAE flat 2
715a 164-0881 Vacuum motor gasket 1
715b 991-3029 Vacuum motor gasket 1 (NON-OEM)
716 164-0882 Mounting spacer 3
717 164-0271 Squeegee lift handle 1
718a 164-7997 24V 3 stage vacuum motor 1 (NSS)
718b 991-1210 24V 3 stage vacuum motor tangential 1 (NON-OEM)
718c 991-1221 Carbon brush without plastic cover (pkg of 2) 2
719 164-0261 Handle grip 1
720 998-0001 1/4 spade male terminal 10-12 gauge 2
721 164-0269 Lifting rod kit 1
722 999-0123 Washer 1/4 SAE flat zinc plated 3
723 999-0060 Washer 1/4 split lock plain finish 3
724 999-0648 Screw 1/4-20 x 2 1/4 round head phillips zinc plated 3
725 164-0885 Mounting plate 1
726 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
727 999-0028 Washer 5/16 split lock plain finish 2
728 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
729a 999-0120 Washer 3/8 SAE flat 3 (Wrangler 26)
729b 999-0033 Washer 7/16 SAE flat 6 (Wrangler 2625)
730 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 1
731 999-0034 Washer 3/8 split lock plain finish 1
732 999-0143 Nut 3/8-24 hex plain finish 2
733 164-0273 Lifting rod 1
734 999-0635 Nut 3/8-16 hex stainless steel 1
735a 164-0274 Spring housing 1 (brush lift)
735b 164-0887 Brush lift rod assembly 1 (includes 732-739, 741)
736 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
737 164-0056 Pressure spring 1
738 164-0275 Spring housing retainer 1
739 164-0276 Short lifting rod 1
740 164-0886 Arm mount 1
741 164-0277 Ball joint 2
742 164-0261 Handle grip 1
743 164-0268 Cotter ring 1
744 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated 2
745 999-0148 Washer #6 external star lock zinc plated 2
746 164-8004 Anderson to solenoid wire assembly 1

Side Skirt and Mounting Bracket Assembly - 164-0008
RefNbr Part Number Description Req Notes
101a 997-1000 Pop rivet 1/8 x 5/8 2 (Wrangler 26, 27 and 33)
101b 164-9147 Dome head blind rivet 1/8 x 1/4 2 (Wrangler 2625)
102 164-0101 Hose holder 1
103a 164-1175 Wrangler 26 color decal kit 1 (Wrangler 26, 27 and 33)
103b 164-9140 Wrangler 2625 color decal kit 1 (Wrangler 2625)
104a 164-0822 Skirt mounting bracket 1 (Wrangler 26 and 2625)
104b 164-0103 Skirt mounting bracket (OBSOLETE) 1 (Wrangler 27)
104c 164-0104 Skirt mounting bracket (OBSOLETE) 1 (Wrangler 33)
105a 164-0823 Clevis pin with retainer 2 (Wrangler 26 and 2625)
105b 164-0105 Skirt pin 2 (Wrangler 27 and 33)
106 164-0106 Retaining ring 4
107a 164-0824 Bumper wheel axle 2 (Wrangler 26 and 2625)
107b 164-0107 Roller wheel axle 2 (Wrangler 27 and 33)
108a 164-0827 Left side skirt for Wrangler 26 and 2625 1
108b 164-0108 Left side skirt for Wrangler 27 1
108d 164-0828 Left skirt assembly for Wrangler 26 and 2625 1 (includes 106-113)
108e 164-0109 Left side skirt assembly for Wrangler 27 (OBSOLETE) 1 (includes 106-113)
108f 164-0111 Left side skirt assembly Wrangler 33 1 (includes 106-113)
109a 991-2009 3 inch bumper wheel 2 (Wrangler 26 and 2625)
109b 164-0112 Bumper wheel 2 (Wrangler 27 and 33)
110a 999-0554 Screw 10-24 x 1/2 flat head slotted stainless steel 11 (Wrangler 26)
110b 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated 6 (Wrangler 2625)
110c 999-0071 Screw 10-24 x 1/2 flat head slotted zinc plated 8 (Wrangler 27 and 33)
111 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 8 (Wrangler 26 and 2625 has qty of 7)
112a 164-0825 Left skirt strap for Wrangler 26 and 2625 1
112b 164-0113 Left skirt strap for Wrangler 27 (OBSOLETE) 1
112c 164-0114 Left skirt strap for Wrangler 33 1
113a 164-0826 Left wiper for Wrangler 26 and 2625 1
113b 164-0115 Left wiper for Wrangler 27 1
113c 164-0120 Left/right wiper for Wrangler 33 1
114a 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 6 (Wrangler 26, 27 and 33)
114b 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2 (Wrangler 2625)
115 999-0553 Washer 5/16 medium split lock stainless steel 6
116a 164-0829 Right side skirt for Wrangler 26 and 2625 1
116b 164-0117 Right side skirt for Wrangler 27 1
116d 164-0830 Right side skirt assembly for Wrangler 26 and 2625 1 (includes 106-108 and 116-118)
116e 164-0118 Right side skirt assembly for Wrangler 27 (OBSOLETE) 1 (includes 106, 107, 109-111, 116-118)
116f 164-0418 Right side skirt assembly for Wrangler 33 1 (includes 106, 107, 109-111, 116-118)
117a 164-0831 Right side wiper for Wrangler 26 and 2625 1
117b 164-0119 Right side wiper for Wrangler 27 1
117c 164-0120 Left/right wiper for Wrangler 33 1
118a 164-0832 Right skirt strap for Wrangler 26 and 2625 1
118b 164-0121 Right skirt strap for Wrangler 27 1
118c 164-0114 Left skirt strap for Wrangler 33 1
119 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated 5 (Wrangler 2625)
120 164-0824 Bumper wheel axle 1
121 164-0106 Retaining ring 1

Upgraded Curved Squeegee Assembly - 164-0010
RefNbr Part Number Description Req Notes
000a 164-1122 Squeegee assembly curved 1 (Wrangler 26 and 2625) (includes 001-031)
000b 164-1445 Squeegee assembly curved 1 (Wrangler 27) (includes 001-031)
000c 164-1445 Squeegee assembly curved 1 (Wrangler 33) (includes 001-031)
001a 164-1117 Rear securing strap for Wrangler 26 and 2625 1
001b 164-1123 Rear securing strap Wrangler 27 1
001c 164-1124 Rear securing strap 1
002 999-0639 Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated 2
003 164-1125 End hook 2
004a 164-1118 Squeegee blade 39 inch gum rubber rear (tan) 1 (Wrangler 26 and 2625) (OEM)
004b 164-1118 Squeegee blade 39 inch gum rubber rear (tan) 1 (Wrangler 26 and 2625) (NON-OEM)
004c 164-1126 Squeegee blade 43 inch curved gum rubber rear (tan) 1 (Wrangler 27) (OEM)
004d 994-0007 Squeegee blade 43 inch curved gum rubber rear (tan) 1 (Wrangler 27) (NON-OEM)
004e 164-1127 Squeegee blade 46 inch curved gum rubber rear (tan) 1 (Wrangler 33) (OEM)
004f 164-1127 Squeegee blade 46 inch curved gum rubber rear (tan) 1 (Wrangler 33) (NON-OEM)
005a 164-1119 Center wedge for Wrangler 26 and 2625 2
005b 164-1128 End wedge Wranger 27 2
005c 164-1129 Wedge 2
006a 164-1120 Squeegee blade 37 inch neoprene front (black) 1 (Wrangler 26 and 2625) (OEM)
006b 994-0006 Squeegee blade 37 inch neoprene front (black) 1 (Wrangler 26 and 2625) (NON-OEM)
006c 164-1130 Squeegee blade 40 5/8 inch curved gum rubber front (black) 1 (Wrangler 27) (OEM)
006d 994-0009 Squeegee blade 40 inch curved gum rubber front (black) 1 (Wrangler 27) (NON-OEM)
006e 164-1131 Squeegee blade 44 1/2 inch curved neoprene front (black) 1 (Wrangler 33) (OEM)
006f 994-0010 Squeegee blade 44 3/8 inch curved neoprene front (black) 1 (Wrangler 33) (NON-OEM)
007 999-0123 Washer 1/4 SAE flat zinc plated 4
008 999-0060 Washer 1/4 split lock plain finish 4
009 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
010 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 2
011 999-0105 Washer 5/16 external star lock zinc plated 2
012 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
013 991-2009 3 inch bumper wheel 2
014a 164-1121 Squeegee weldment 1 (Wrangler 26 and 2625)
014b 164-1132 Squeegee weldment (OBSOLETE) 1 (Wrangler 27)
014c 164-1446 Squeegee weldment 1 (Wrangler 33)
015 999-0028 Washer 5/16 split lock plain finish 2
016 999-0639 Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated 2
017a 999-0245 Screw 6-32 x 3/4 round head phillips zinc plated 2 (Wrangler 26)
017b 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated 2 (Wrangler 2625)
018 999-0051 Washer #6 medium split lock 2
019a 164-1136 Squeegee level 1 (Wrangler 26)
019b 164-1139 Spacer 1 (Wrangler 2625)
020 164-1565 Knob 2
021 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
022 164-1137 Dolly wheel mounting bracket 2
023 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
024 991-2005 Small roller wheel (gray) 2
025 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
026 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2
027 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 2
028 999-0060 Washer 1/4 split lock plain finish 2
029 999-0016 Washer 1/4 flat plain finish 2
030 164-1138 Wedge bracket 1
031 164-1139 Spacer 2

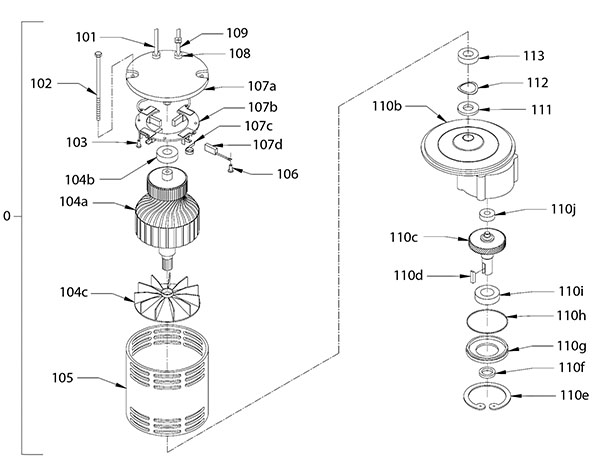

Brush Motor Assembly - NON-OEM - 164-0011
RefNbr Part Number Description Req Notes
000a 991-2121 24V .75HP brush motor assembly with gear box 1 (includes 001-027)
000b 991-2122 36V .75HP brush motor assembly with gear box 1 (includes 001-027) (you will also need to order 000c and 000d)
000c 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
000d 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 1 (Needed for mounting the hub on the shaft)
001 164-1157 Bolt 1/4-20 x 7 3/4 thru 2
002 164-1095 Negative lead 1
003a 164-0337 Top end bell (OBSOLETE) 1
003b N/A Not available 1 (Commutator bracket assembly)
004 N/A Not available 1 (Brush board assembly)
005 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 2
006 164-0329 Top rotor bearing 1 (Commutator end)
007a 164-1084 24V armature assembly (OBSOLETE) 1
007b 164-0341 36V armature assembly 1
008 164-0342 Armature vent fan 1
009 164-0343 Stator frame assembly with magnets 1
010 164-0355 Bottom bearing large 1
011 164-1096 Positive lead 1
012 164-0345 Strain relief (OBSOLETE) 2
013 164-0324 Carbon brush spring 4
014 991-1505 Carbon brush (sold individually) 4
015 999-0111 Screw 10-32 x 1/2 round head slotted brass 4
016 164-0328 Washer 1 7/8 wave 1
017 164-0349 Oil seal 1
018 164-0350 Gear box housing 1
019 164-0352 Top bearing small 1
020 164-0353 Gear shaft 1
021 164-0132 Square keyway 1/4 x 1/4 1
022 164-0355 Bottom bearing large 1
023 164-0356 O-ring 1
024 164-0357 End cap 1
025 164-0358 Oil seal 1
026 164-0359 Snap ring 1
027a 164-0351 Gear box assembly 1 (includes 017-026) (OEM)
027b 991-5115 Gear box assembly 1 (includes 017-026) (also need to order 027c) (NON-OEM)
027c 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4 (needed with 027b)

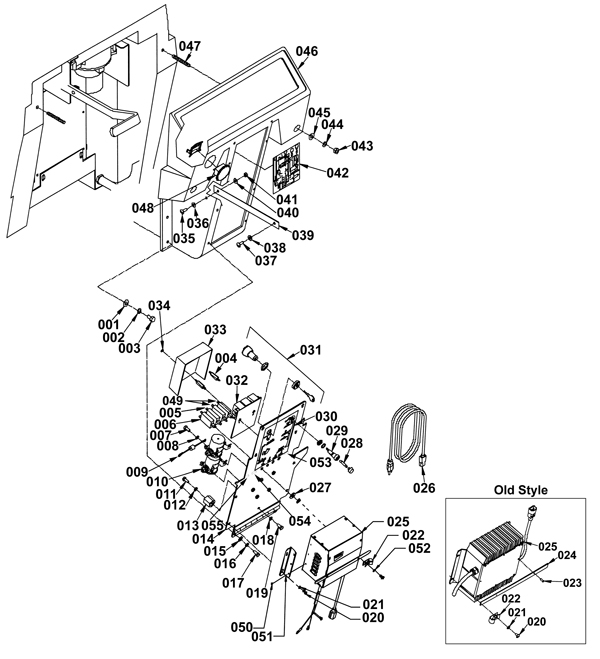

Rear Cover Panel Assembly - 164-0148
RefNbr Part Number Description Req Notes
001 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 5
002 999-0060 Washer 1/4 split lock plain finish 5
003 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 5
004 164-0314 Cover stand off 2
005a 991-1609 25amp circuit breaker 3 (vacuum) (old style)
005b 991-1618 30amp circuit breaker 1 (new style)
006 991-1610 15amp circuit breaker 1 (drive)
007 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
008 999-0060 Washer 1/4 split lock plain finish 4
009 164-0583 Silicon rectifier (diode) 2
010 164-0892 24V solenoid contactor 2
011 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 1
012 999-0017 Washer 1/4 external star lock 1
013 164-0310 Insulated stand off 1
014 164-0893 Rear cover panel for Wrangler 26 1
015 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
016 999-0060 Washer 1/4 split lock plain finish 6
017 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 6
018 999-0060 Washer 1/4 split lock plain finish 1
019 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
020a 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 4 (old style)
020b 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4 (new style)
021 999-0017 Washer 1/4 external star lock 1
022 164-9118 P clamp 2
023 164-9112 Screw M3-.5 x 19mm pan head phillips (pkg of 5) 1
024 164-9113 Cord wrap 1
025a 164-7967 24V onboard charger retro kit (Wrangler 26) 1 (old style)
025b 164-9178 24V 25amp onboard battery charger 1 (includes 024) (new style)
025c 164-7292 Replacement AC cord and panel assembly (Delta Q) (OBSOLETE) 1 (old style)
026 164-6477 Onboard charger extension cord 1
027 999-0024 Washer 5/16 flat stainless steel 4
028 164-6480 4amp fuse 1
029 164-1328 Fuse holder with nut and washer 1 (includes cap) (cap cannot be purchased separately)
030 164-9140 Wrangler 2625 color decal kit 1
031a 164-1660 Key switch and key 1
031b 164-1661 Key (pkg of 2) 1
032 164-0895 24V Curtis speed control for Wrangler 26 1
033 164-0315 Speed control cover 1
034 999-0308 Nut 8-32 plain 2
035 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 5
036 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
037 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 5
038 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
039 164-0865 Tank support strap 1
040 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
041 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
042 164-9140 Wrangler 2625 color decal kit 1
043 999-0247 Nut 3/8-16 hex jam plain finish 2
044 999-0034 Washer 3/8 split lock plain finish 2
045 999-0033 Washer 7/16 SAE flat 4
046 164-2656 Control panel with hour meter 1
047 999-1354 Screw 3/8-16 x 3 set cup point stainless steel 2
048 164-1451 Hour meter 1
049 164-8007 35amp circuit breaker 2 (new style)
050 999-0569 Screw 10 x 1/2 pan head phillips sheet metal 6
051 164-8029 Onboard charger mounting bracket 2 (new style)
052 999-0060 Washer 1/4 split lock plain finish 1 (new style)
053 164-8149 Max incline decal 1
054 164-8150 Max climbing incline decal 1

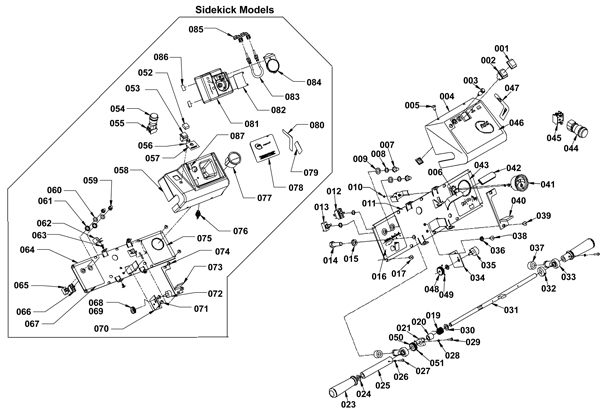

Control Panel Assembly - 164-0149
RefNbr Part Number Description Req Notes
001 164-0281 Push button switch boot 1
002 164-0001 Master switch 1
003 164-0888 Indicator light with clip (green) 1
004a 164-0279 Control panel cover 1
004b 164-2655 Emergency stop (OBSOLETE) 1 (optional)
005 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
006 164-0190 Solution valve lever 1
007 164-0287 Rubber switch boot 2
008 999-0260 Washer 1/2 internal starlock 2
009 999-0024 Washer 5/16 flat stainless steel 4
010 999-0195 Nut 6-32 hex plain 2
011 164-0296 Control plate 1
012 164-0290 Toggle switch 1 (vacuum)
013 164-0023 Toggle switch 1 (brush motor)
014 999-0145 Bolt 1/2-20 x 1 3/4 hex head grade 5 plain finish 2
015 999-0126 Washer 1/2 split lock 1
016 164-0288 Battery meter and left control plate decal kit 1
017 999-0135 Screw 1/4-20 x 3/8 truss head slotted zinc 4
019 164-1329 Torsion spring 1
020 164-9142 Sleeved bearing 1
021 164-9143 Torsion spring driver 1
023a 164-0304 Handle grip 2
023b 991-8571 Handle grip 2 (NON-OEM)
024 999-0024 Washer 5/16 flat stainless steel 2
025 164-0303 Handle grip base 2
026 999-0150 Washer #8 medium split lock 2
027 999-0080 Screw 8-32 x 7/8 round head slotted zinc plated 2
028 999-0150 Washer #8 medium split lock 1
029 999-0055 Screw 8-32 x 3/4 round head slotted zinc plated 1
030 999-0187 Washer 1/2 flat plain finish 1
031 164-9144 Handle bar 1
032 164-9120 1/2 inch shaft collar 1 (includes clamping screw)
033 164-0238 Ball joint 2
034 164-2658 Potentiometer bracket 1
035 172-2039 5K potentiometer 1
036 999-0017 Washer 1/4 external star lock 2
037 164-0292 Handle bar spacer 2
038 999-0113 Screw 1/4-20 x 1/2 truss head slotted 1
039 999-0113 Screw 1/4-20 x 1/2 truss head slotted 1
040 164-2579 Torsion spring stop 1
041 164-0889 Battery meter 1
042 164-0285 Valve lever grip 1
043 164-0288 Battery meter and left control plate decal kit 1
044a 164-2024 Emergency stop 1 (includes 044b)
044b 164-3311 Emergency stop washer 1
045 164-2025 Emergency stop block (red button) 1 (for use with Curtis Control Board 164-0070) (optional)
046 164-5078 Decal kit 1 (fire warning)
047 164-9145 Decal kit 1 (master switch decal)
048 164-0293 Drive gear 1 (includes 049)
049 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish 1
050 164-0300 Drive gear 1 (includes 051)
051 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish 1
052 164-0281 Push button switch boot 1
053 164-0001 Master switch 1
054 164-2024 Emergency stop 1
055 164-2025 Emergency stop block (red button) 1
056 164-0888 Indicator light with clip (green) 1
057 164-8151 On/off decal 1
058a 164-8152 Throttle housing 1
058b 164-8153 Throttle housing 1 (aldi) (optional)
059 164-0287 Rubber switch boot 2
060 999-0260 Washer 1/2 internal starlock 2
061 164-0289 Washer flat stainless steel 2
062 164-9118 P clamp 1
063 999-0113 Screw 1/4-20 x 1/2 truss head slotted 4
064 164-0296 Control plate 1
065 164-0023 Toggle switch 1
066 164-0290 Toggle switch 1
067 164-0288 Battery meter and left control plate decal kit 1
068 164-0293 Drive gear 1
069 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish 2
070 164-2658 Potentiometer bracket 1
071 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
072 172-2039 5K potentiometer 1
073 164-2579 Torsion spring stop 1
074 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
075 164-0288 Battery meter and left control plate decal kit 1
076 164-8154 Fitting 1 (sidekick only)
077 164-8005 Battery meter with hardware 1
078 164-8155 Sidekick ready decal 1
079 164-5078 Decal kit 1
080 164-8156 Water control decal 1
081a 164-8157 Sidekick chemical dispensor kit 1 (optional)
081c 164-8159 Top housing replacement pump 1
081d 164-8160 Bottom housing replacement pump 1
081e 164-8161 Replacement roller spring 2
082a 164-8162 Sidekick control cover kit 1 (optional)
082b 164-8163 Dilution control cover 1
082c 164-8164 Screw #6 x 1/2 inch tamperproof 2
082d 164-8165 Tamperproof screw tool 1
083 164-8166 Squeeze tube with fittings 1
084 164-8185 Squeeze tube cover 1
085 164-8168 90 degree elbow 2
086 992-0001 Velcro loop (sold by the inch) 2 (sidekick only)
087 992-0002 Velcro hook (sold by the inch) 2 (sidekick only)

Accessories - 164-0155
RefNbr Part Number Description Req Notes
01 164-4946 Squeegee blade 15 inch gum rubber 2 Blade for the 15 inch squeegee tool
02 164-2347 5 inch aluminum connector 1
03 164-1585 Vacuum hose 1
04 164-4937 15 inch squeegee tool assembly with wheels 1
05 164-6230 1 1/2 inch 2 piece steel wand 1
06 164-2362 Hose straps - Wrangler 20 1
07 992-0002 Velcro hook (sold by the inch) 1
08 992-0001 Velcro loop (sold by the inch) 1
09 164-2347 5 inch aluminum connector 1
10 164-2337 Steel wand 1
11 164-1585 Vacuum hose 1
12 164-2888 Squeegee tool with brush 1
13 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 1

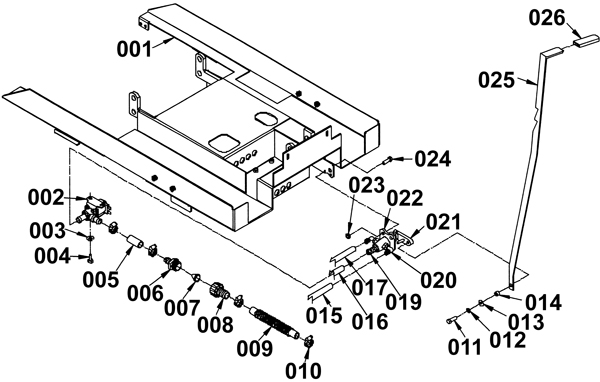

Solution Valve Assembly - Old Style - 164-0156
RefNbr Part Number Description Req Notes
001 164-0846 Frame assembly (OBSOLETE) 1
002 164-2495 Solenoid valve 1
003 999-0060 Washer 1/4 split lock plain finish 4
004 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
005 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 4 in
006 164-2570 1/2 male hose fitting 1
007 164-0065 Filter screen 1
008 164-0182 Hose barb and collar 1
009 164-1107 6 1/2 inch convoluted tubing 1
010 997-2002 Hose clamp #6 4
011 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 1
012 999-0060 Washer 1/4 split lock plain finish 1
013 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
014 164-0136 Bushing 1
015 991-1401 Clear vinyl tubing (sold by the inch) 44 in
016 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 18 in
017 991-1401 Clear vinyl tubing (sold by the inch) 48 in
019 164-1330 Hose barb 1
020 164-0187 90 degree elbow barb 2
021 164-0619 Valve lever 1
022 164-0618 Solution valve 1
023 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
024 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 4
025 164-0190 Solution valve lever 1
026 164-0285 Valve lever grip 1

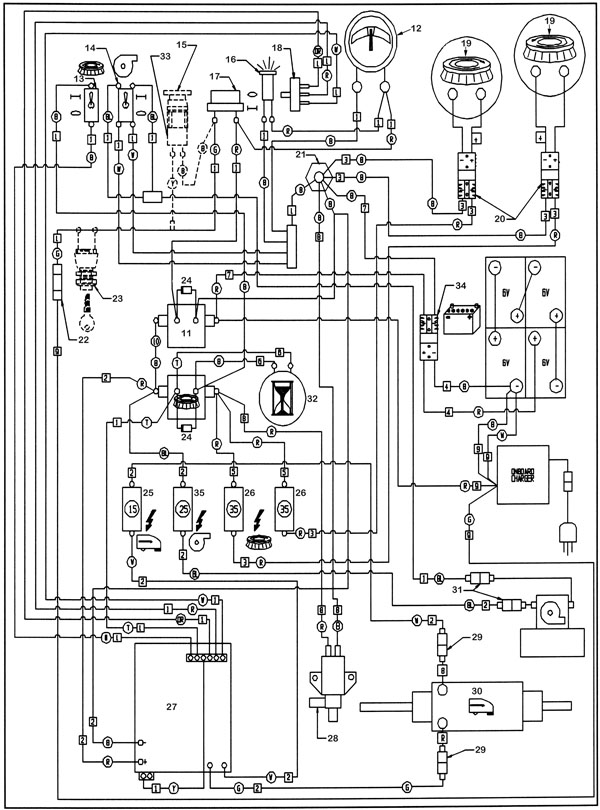

Wiring Diagram - 164-0159
RefNbr Part Number Description Req Notes
1 164-7288 Upper wiring harness 1
2 164-8000 Lower wiring harness 1
3 164-8001 Brush motor wiring assembly 1
4a 164-8002 Anderson to battery wire assembly 1
4b 991-2103 50amp charger plug SB50 with pins (red) 1
5 164-8003 Positive brush jumper 1
6 164-2571 Hour meter wire assembly 1
7 164-8004 Anderson to solenoid wire assembly 1
9a 164-7967 24V onboard charger retro kit (Wrangler 26) 1
9b 164-6477 Onboard charger extension cord 1
10 164-0685 Forward and reverse solenoid terminal wires 1
11 164-0892 24V solenoid contactor 2
12 164-0889 Battery meter 1
13 164-0023 Toggle switch 1 (brush motor)
14 164-0290 Toggle switch 1 (vacuum motor)
15 164-2024 Emergency stop 1
16 164-0888 Indicator light with clip (green) 1
17 164-0001 Master switch 1
18 172-2039 5K potentiometer 1
19a 164-7932 24V brush gear motor assembly 2 (OEM)
19b 991-2121 24V .75HP brush motor assembly with gear box 2 (NON-OEM)
20 991-2103 50amp charger plug SB50 with pins (red) 4
21 164-0310 Insulated stand off 1
22 164-6480 4amp fuse 1
23 164-2631 Key switch - installed at NSS (OBSOLETE) 1
24 164-0583 Silicon rectifier (diode) 2
25 991-1610 15amp circuit breaker 1
26 164-8007 35amp circuit breaker 2
27 164-0895 24V Curtis speed control for Wrangler 26 1
28 164-2495 Solenoid valve 1
29 998-0001 1/4 spade male terminal 10-12 gauge 2
30 164-8120 Transaxle with wheels kit 1
31 164-4644 Female terminal 2
32 164-1451 Hour meter 1
33 164-2025 Emergency stop block (red button) 1 (for use with Curtis Control Board 164-0070)
34 164-7933 120amp charger plug with pins (red) SB120 2
35 991-1609 25amp circuit breaker 1
N/S 998-0010 Battery jumper cable - ring type (red) 3
N/S 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 3 (NON-OEM)
N/S 991-2102 50amp charger plug SB50 only (red) 6
N/S 164-7997 24V 3 stage vacuum motor 1 (NSS)
N/S 991-1210 24V 3 stage vacuum motor tangential 1 (NON-OEM)
N/S 164-2569 #6 ring terminal 18-22 gauge 2
N/S 164-2653 Jumper to emergency stop wire (OBSOLETE) 1
N/S 164-2654 Emergency stop to master wire (OBSOLETE) 1
N/S 164-0387 Hour meter kit (optional) (OBSOLETE) 1
N/S 164-1328 Fuse holder with nut and washer 1
N/S 264-0095 I-drive controller 1

-Simplified Solution System -

RefNbr Part Number Description Req Notes

-Simplified Recovery System -

RefNbr Part Number Description Req Notes

-Simplified Electrical System -

RefNbr Part Number Description Req Notes

Brush Motor Assembly - 164-3063
RefNbr Part Number Description Req Notes
0 164-0834 24V brush gear motor assembly 1 (includes 101-113)
101 164-1095 Negative lead 1
102 164-1157 Bolt 1/4-20 x 7 3/4 thru 2
103 999-0555 Screw 10-24 x 1/2 round head slotted stainless steel 2
104a 164-1084 24V armature assembly (OBSOLETE) 1
104b 164-0329 Top rotor bearing 1
104c 164-0342 Armature vent fan 1
105 164-0343 Stator frame assembly with magnets 1
106 999-0111 Screw 10-32 x 1/2 round head slotted brass 4
N/A N/A Not available 1 (top end bracket with brush board assembly) (includes 107a)
107a 164-0337 Top end bell (OBSOLETE) 1
107b 164-9490 Brush board assembly 1
107c 991-1505 Carbon brush (sold individually) 4
107d 164-0324 Carbon brush spring 4
108 164-0345 Strain relief (OBSOLETE) 2
109 164-1096 Positive lead 1
110a 164-0351 Gear box assembly 1 (not shown) (includes 110b)
110b 164-0350 Gear box housing 1
110c 164-0353 Gear shaft 1
110d 164-0132 Square keyway 1/4 x 1/4 1
110e 164-0359 Snap ring 1
110f 164-0358 Oil seal 1
110g 164-0357 End cap 1
110h 164-0356 O-ring 1
110i 164-0355 Bottom bearing large 1
110j 164-0352 Top bearing small 1
111 164-0349 Oil seal 1
112 164-0328 Washer 1 7/8 wave 1
113 164-0355 Bottom bearing large 1

Solution Valve Assembly - New Style - 164-3067
RefNbr Part Number Description Req Notes
301 164-8174 Chassis 1
302 991-1401 Clear vinyl tubing (sold by the inch) 2 feet (20-1/4 inch long)
303 991-1401 Clear vinyl tubing (sold by the inch) 1 foot (6-1/8 inch long)
304 164-1484 Tee 3
305 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 2 feet (16-1/2 inch long)
306 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1 foot (1-3/4 inch long)
307 164-8175 Barbed elbow 1
308 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1 foot (11-1/4 inch long)
309 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
310 999-0060 Washer 1/4 split lock plain finish 2
311 164-8176 Solenoid valve 1
312 164-2584 Nylon fitting 1
313a 164-9126 Inline canister strainer 1 (includes 313b and 313c)
313b 164-9128 Strainer element 1
313c 164-8177 Bowl and gasket kit 1 (includes 313d and 313e)
313d 164-9129 Gasket 1
313e 164-8178 Bowl 1
313f 991-6024 Inline canister strainer
314 164-1520 U-bolt 2
315 164-1330 Hose barb 1
316 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1 foot (9 inch long)
317 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1 foot (3 inch long)
318 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 1
319 999-0060 Washer 1/4 split lock plain finish 1
320 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
321 164-0136 Bushing 1
322 164-8179 Solution valve lever 1
323 164-0190 Solution valve lever 1
324 164-0285 Valve lever grip 1
325 999-0060 Washer 1/4 split lock plain finish 2
326 164-1168 Solution valve 1
327 164-1520 U-bolt 1
328 164-2584 Nylon fitting 2
329 999-0060 Washer 1/4 split lock plain finish 4
330 164-8180 Solution valve bracket 1
331 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 2 feet (13-1/4 inch long) (sidekick only)
332 164-8127 3/8 fpt hose barb 2 (sidekick only)
333a 164-8128 Flow sensor with connector 1 (sidekick only) (includes 333b and 333c)
333b 164-8181 Female connector 1
333c 164-8182 Female terminal 3
334 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1 foot (4-3/4 inch long) (sidekick only)
335 164-8129 Tee fitting 1
336 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1 (2-3/4 inch long) (sidekick only)
337 164-8131 Fitting 1 (sidekick only)
338 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1 foot (2-1/2 inch long) (sidekick only)
339 164-0565 90 degree brass elbow 1
340 991-1401 Clear vinyl tubing (sold by the inch) 2 feet (13-1/2 inch long)

- Know Your Machine -

RefNbr Part Number Description Req Notes

- Batteries, Brushes, and Chargers - 164-9966
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 4
2 162-0043 6V 224Ah AGM battery (Group GC2) 4
3 164-9178 24V 25amp onboard battery charger 1
4 164-7967 24V onboard charger retro kit (Wrangler 26) 1
5 162-5060 24V 20amp battery charger with small SB50 red plug 1 (configured for wet batteries; can be changed to support AGM batteries)
5.5 162-5070 24V 20amp AGM battery charger with small SB50 red plug 1 (configured for AGM batteries; can be changed to support wet batteries)
6 991-2103 50amp charger plug SB50 with pins (red) 1
7 996-1592 12 inch heavy grit stripping brush - 80 grit 2
8 996-1593 12 inch medium grit scrubbing brush - 180 grit 2
9 996-1591 12 inch lite grit scrubbing brush - 500 grit 2
10 996-3064 12 inch value daily cleaning brush assembly (OBSOLETE) 2
11 996-1595 12 inch Pad driver 2
12 996-1535 Tall metal drive lugs (pkg of 3) 2
13 255-1312 13 inch Cure white pad (pkg of 5) 2
14 255-1320 13 inch premium white polishing pad (pkg of 5) 2
15 255-1360 13 inch premium red scrubbing pad (pkg of 5) 2
16 255-1370 13 inch premium blue cleaning pad (pkg of 5) 2
17 255-1380 13 inch premium green scrubbing pad (pkg of 5) 2
18 255-1390 13 inch premium black stripping pad (pkg of 5) 2
19 255-1395 13 inch razorback stripping pad (pkg of 5) 2

- Pads - 255-1400
RefNbr Part Number Description Req Notes
01 255-1440 14 inch aqua plus burnishing pad (pkg of 5)
02 255-1435 14 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1464 14 inch Blue ace pad (pkg of 5)
04 255-1442 14 inch Blue Jay burnishing pad (pkg of 5)
05 255-1412 14 inch Cure white pad (pkg of 5)
06 255-1477 14 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1438 14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1421 14 inch gorilla lite burnishing pad (pkg of 5)
09 255-1450 14 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1465 14 inch Heat concrete bonding pad (pkg of 5)
11 255-1430 14 inch jaguar burnishing pad (pkg of 5)
12 255-1487 14 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1490 14 inch premium black stripping pad (pkg of 5)
14 255-1470 14 inch premium blue cleaning pad (pkg of 5)
15 255-1492 14 inch premium brown stripping pad (pkg of 5)
16 255-1480 14 inch premium green scrubbing pad (pkg of 5)
17 255-1460 14 inch premium red scrubbing pad (pkg of 5)
18 255-1452 14 inch premium tan polishing pad (pkg of 5)
19 255-1420 14 inch premium white polishing pad (pkg of 5)
20 255-1411 14 inch superspeed rubberized pad (pkg of 5)
21 255-1495 14 inch razorback stripping pad (pkg of 5)
22 255-1447 14 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1455 14 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1423 14 inch sand screen driver pad (pkg of 2)
25 255-0120 14 inch Professional sand screen 100 grit (pkg of 10)
26 255-0121 14 inch Professional sand screen 120 grit (pkg of 10)
27 255-0122 14 inch Professional sand screen 180 grit (pkg of 10)
28 255-0119 14 inch Professional sand screen 60 grit (pkg of 10)
29 255-0205 14 inch Superscreen sand screen 100 grit (pkg of 10)
30 255-0206 14 inch Superscreen sand screen 120 grit (pkg of 10)
31 255-0207 14 inch Superscreen sand screen 180 grit (pkg of 10)
32 255-0204 14 inch Superscreen sand screen 60 grit (pkg of 10)
33 255-1424 14 x 20 inch Tiger carpet bonnet (pkg of 2)
34 255-9549 14 inch Diamond by Gorilla 11000 Grit (pkg of 2)
35 255-9546 14 inch Diamond by Gorilla 1500 Grit (pkg of 2)
36 255-9543 14 inch Diamond by Gorilla 200 Grit (pkg of 2)
37 255-9547 14 inch Diamond by Gorilla 3000 Grit (pkg of 2)
38 255-9544 14 inch Diamond by Gorilla 400 Grit (pkg of 2)
39 255-9545 14 inch Diamond by Gorilla 800 Grit (pkg of 2)
40 255-9548 14 inch Diamond by Gorilla 8000 Grit (pkg of 2)
41 255-9639 14 inch Diamond starter pack (1 of each grit)
42 255-1482 14 inch Turbostrip segmented rotary pad (pkg of 4)
43 255-1415 14 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1416 14 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Frequently Replaced Parts - 999-2009
RefNbr Part Number Description Req Notes
0.9835 164-9126 Inline canister strainer
1 162-0003 6V 225Ah wet battery (SNSR) (4)
2 162-0043 6V 224Ah AGM battery (Group GC2) (4)
3 162-5060 24V 20amp battery charger with small SB50 red plug
4 162-5070 24V 20amp AGM battery charger with small SB50 red plug
7 991-2103 50amp charger plug SB50 with pins (red)
8 998-0010 Battery jumper cable - ring type (red)
9 164-1660 Key switch and key (power)
10 164-1661 Key (pkg of 2)
11 164-0290 Toggle switch (vacuum)
12 164-0023 Toggle switch (brush)
13 164-0077 Solution valve assembly with fittings and lever
14 164-0869 Solution tank filter assembly
15 164-1118 Squeegee blade 39 inch gum rubber rear (tan) 1 (OEM)
15.1 164-1118 Squeegee blade 39 inch gum rubber rear (tan) 1 (NON-OEM)
16 164-1120 Squeegee blade 37 inch neoprene front (black) 1 (OEM)
16.1 994-0006 Squeegee blade 37 inch neoprene front (black) 1 (NON-OEM)
17 164-0041 Squeegee blade 32 inch linatex kit (red) (front and rear)
18a 164-0089 Squeegee vacuum hose with cuffs
18b 991-8568 Squeegee vacuum hose (NON-OEM)
19a 164-0044 Tank lid (clear)
19b 991-1928 Tank lid (clear) (OBSOLETE) (NON-OEM)
20 164-0206 Gasket
21 164-0863 Drain hose assembly
22 164-7997 24V 3 stage vacuum motor (OEM)
23 991-1210 24V 3 stage vacuum motor tangential (NON-OEM)
24 991-1221 Carbon brush without plastic cover (pkg of 2)
25 996-1592 12 inch heavy grit stripping brush - 80 grit
26 996-1593 12 inch medium grit scrubbing brush - 180 grit
27 996-1591 12 inch lite grit scrubbing brush - 500 grit
28 996-3064 12 inch value daily cleaning brush assembly (OBSOLETE)
29 996-1595 12 inch Pad driver
30 996-1535 Tall metal drive lugs (pkg of 3)

- Batteries - 999-5047
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 4
2 162-0043 6V 224Ah AGM battery (Group GC2) 4

- Chargers - 999-5101
RefNbr Part Number Description Req Notes
1 162-5060 24V 20amp battery charger with small SB50 red plug 1
2 162-5070 24V 20amp AGM battery charger with small SB50 red plug 1
3a 164-9178 24V 25amp onboard battery charger 1
3b 164-6477 Onboard charger extension cord 1
4 991-2103 50amp charger plug SB50 with pins (red) 1
5a 162-5079 SCR assembly kit 1
5b 372-1254 Fuse assembly 1
6 162-5087 AC cord set kit 1
7 162-5081 Control board assembly 1
Webpage Problem Reporting
