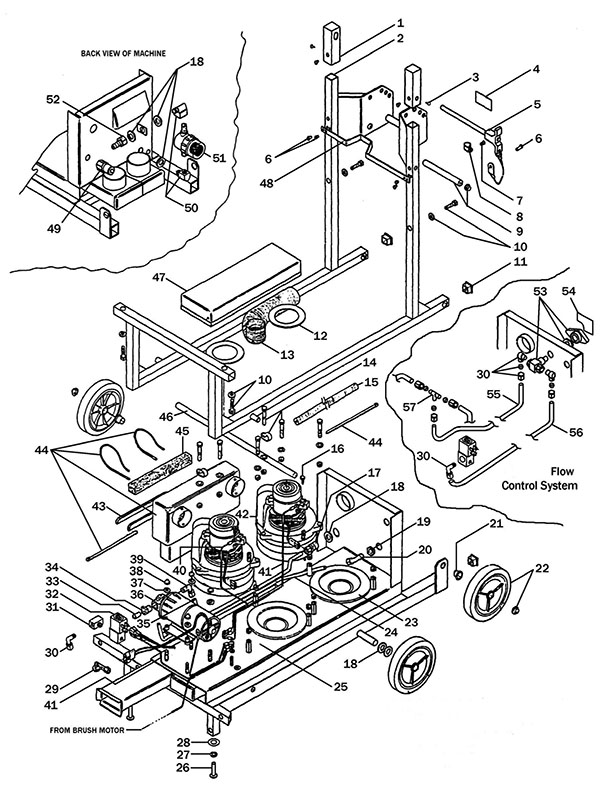

Frame Assembly - 164-1138 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
164-8457 |
Frame extension vac lid pivot |
2 |
|
| 2 |
164-8458 |
Upper frame (OBSOLETE) |
1 |
(Upper frame - OBSOLETE) |
| 3 |
999-0458 |
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
4 |
|
| 4 |
164-8460 |
Drain hose decal |
1 |
|
| 5 |
999-0458 |
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
1 |
|
| 6 |
164-8462 |
1/8 inch rivet |
5 |
|
| 7 |
999-0569 |
Screw 10 x 1/2 pan head phillips sheet metal |
1 |
|
| 8 |
164-8463 |
7/16 inch cable clamp |
1 |
|
| 9 |
164-8464 |
Handle shaft assembly |
1 |
|
| 10 |
164-8291 |
Solution tank mounting kit |
1 |
|
| 11 |
164-8465 |
7/8 inch square end cap |
4 |
|
| 12 |
164-8466 |
Cooling air duct gasket |
2 |
|
| 13 |
164-8467 |
Exhaust hose 2 inch x 18 inch |
1 |
|
| 14 |
164-8468 |
Vacuum motor mounting kit (OBSOLETE) |
1 |
(Vacuum motor mounting kit - OBSOLETE) |
| 15 |
164-8469 |
26 inch corrugated loom |
1 |
|
| 16 |
999-6679 |
Screw #10-32 x 3/8 hex head slotted grounding |
2 |
|
| 18 |
164-8471 |
Nylon spacer 1/2 x 1 x 3/16 inch (OBSOLETE) |
8 |
(1/2 x 1 x 3/16 inch nylon spacer - OBSOLETE) |
| 19 |
164-8472 |
Nut 1/4 hex nickel plated thread |
1 |
|
| 20 |
164-8473 |
90 degree elbow fitting |
1 |
|
| 21 |
164-8474 |
1/2 inch nyliner bushing (OBSOLETE) |
2 |
(1/2 inch nyliner bushing - OBSOLETE) |
| 22 |
164-8118 |
Wheel and cap assembly (pkg of 2) |
2 |
|
| 23 |
164-8135 |
Vacuum motor gasket |
2 |
|
| 24 |
164-8475 |
Copper tubing |
1 |
|
| 25 |
164-8476 |
Lower frame assembly |
1 |
|
| 26 |
999-6680 |
Screw 1/4-20 x 3 pan head phillips stainless steel |
2 |
|
| 27 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 28 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 29 |
164-8477 |
Male branch tee |
1 |
|
| 30 |
164-8478 |
90 degree elbow fitting (OBSOLETE) |
3 |
(90 degree elbow fitting, 1/8 inch male NPT x 1/4 inch compression tube - OBSOLETE) |
| 31 |
164-8479 |
1/8 inch female nickel plated thread tee |
1 |
|
| 33 |
164-8480 |
1/8 inch nickel plated thread short nipple |
1 |
(1/8 inch nickel plated thread short nipple - OBSOLETE) |
| 34 |
164-8481 |
Bushing 3/8 x 1/8 inch |
1 |
(3/8 x 1/8 inch bushing - OBSOLETE) |
| 35 |
164-8482 |
Pump to tank tube |
1 |
|
| 37 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 38 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
4 |
|
| 39 |
164-8483 |
90 degree elbow fitting (OBSOLETE) |
1 |
(90 degree elbow fitting, 3/8 inch male NPT x 1/4 inch compression tube - OBSOLETE) |
| 40 |
164-8484 |
Wire assembly |
1 |
|
| 41 |
164-8485 |
Ground wire |
2 |
|
| 42 |
164-8133 |
115V 2 stage vacuum motor |
2 |
|
| 43 |
164-8486 |
Muffler clips |
2 |
|
| 44 |
164-8134 |
Muffler assembly |
1 |
|
| 45 |
164-8487 |
Muffler support foam |
1 |
|
| 47 |
164-8489 |
Cooling duct |
1 |
|
| 48 |
164-8490 |
2 inch hose guide |
1 |
|
| 49 |
164-8491 |
Quick disconnect |
1 |
|
| 50 |
164-8492 |
90 degree elbow fitting |
2 |
|
| 51 |
164-7459 |
In line filter |
1 |
|
| 52 |
164-8493 |
Connector (OBSOLETE) |
1 |
(3/8 inch barb x 1/4 inch female NPT connector - OBSOLETE) |
| 54 |
164-8494 |
Solution flow decal |
1 |
|
| 55 |
164-8495 |
28 1/2 inch copper tubing |
1 |
|
| 56 |
164-8496 |
30 1/2 inch copper tubing |
1 |
|
| 57 |
164-8497 |
1/4 inch compression tube tee |
1 |
|
|
|

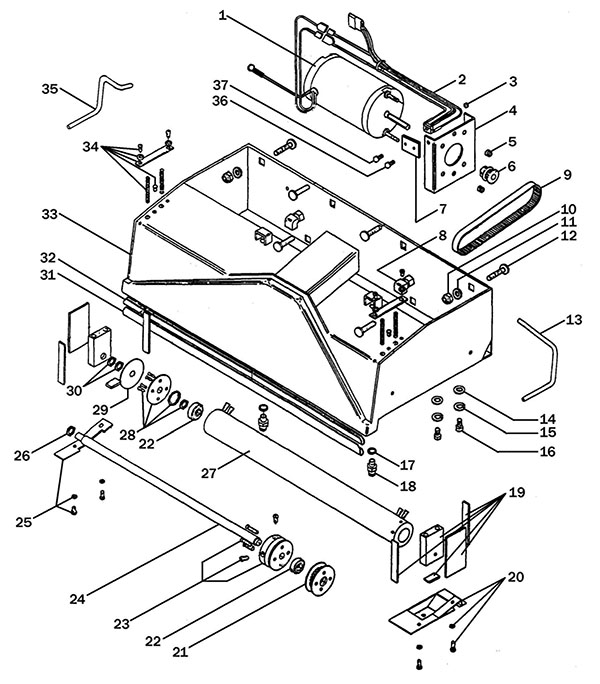

Brush Assembly - 164-1139 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
164-8498 |
Brush motor assembly |
1 |
|
| 3 |
999-6681 |
Nut #6-32 hex nylon |
1 |
|
| 4 |
164-8500 |
Brush motor bracket |
1 |
|
| 5 |
999-1269 |
Nut 10-32 nylon insert jam stainless steel |
2 |
|
| 6 |
164-8501 |
Motor pulley |
1 |
|
| 7 |
164-8502 |
Rectifier mounting board (OBSOLETE) |
1 |
(Rectifier mounting board - OBSOLETE) |
| 8 |
164-8503 |
90 degree elbow fitting |
2 |
|
| 10 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
| 11 |
999-0016 |
Washer 1/4 flat plain finish |
6 |
|
| 12 |
999-6682 |
Bolt 1/4-20 x 1 1/2 carriage plain finish |
6 |
|
| 13 |
164-8504 |
Solenoid to tip copper tube |
1 |
|
| 14 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 15 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 16 |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
2 |
|
| 17 |
164-8505 |
Washer 7/16 x 1 1/16 nylon |
2 |
|
| 18a |
164-8307 |
50psi male spray tip |
2 |
(50 PSI) |
| 18b |
164-8309 |
100psi male spray tip |
2 |
(1000 PSI) |
| 19 |
164-8506 |
Sliding block assembly |
2 |
|
| 20 |
164-8507 |
Pulley end cover plate assembly |
1 |
|
| 21 |
164-8508 |
Brush pulley |
1 |
|
| 22 |
164-8509 |
Brush bearing |
2 |
|
| 23 |
164-8510 |
Rotary brush slinger assembly |
1 |
|
| 24 |
164-8511 |
18 inch brush shaft |
1 |
|
| 25 |
164-8512 |
Open end cover plate assembly |
1 |
|
| 27 |
164-8310 |
12 inch brush - CYLINDRICAL |
1 |
|
| 28 |
164-8514 |
String guard assembly |
1 |
|
| 30 |
164-8516 |
Brush chamber brush spacer |
2 |
|
| 31 |
164-8517 |
Brush chamber front lip guide |
1 |
|
| 32 |
164-8518 |
Brush chamber rear lip guide |
1 |
|
| 33 |
164-8519 |
Brush chamber assembly |
1 |
(Includes front and back guides) |
| 34 |
164-8520 |
Spring cover plate assembly |
2 |
|
| 35 |
164-8521 |
Solenoid to tip copper tube |
1 |
|
| 36 |
999-6683 |
Screw #6-32 x 1/2 hex slotted head stainless steel |
1 |
|
| 37 |
164-8522 |
Screw #6-32 x 5/8 pan head nylon |
1 |
|
|
|

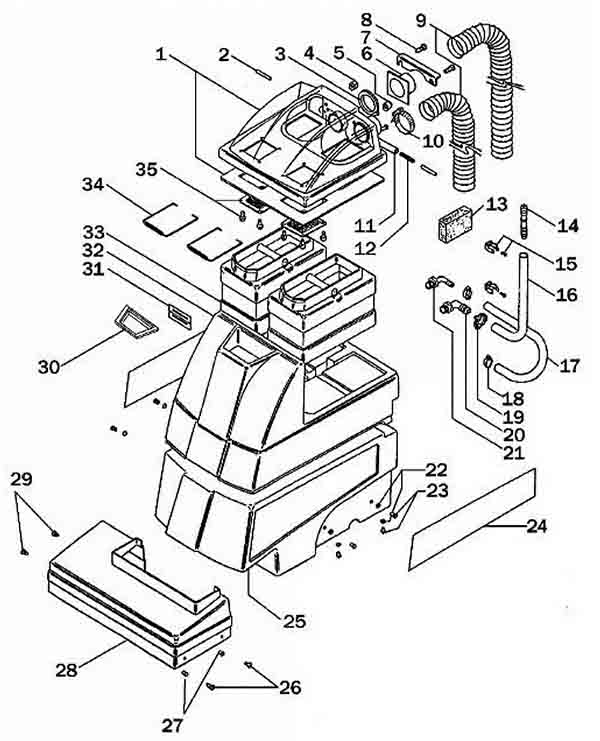

Plastic Body Assembly - 164-1140 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
164-8013 |
Tank lid assembly with shaft |
1 |
(Includes shaft) |
| 1b |
164-8014 |
Tank lid gasket |
1 |
|
| 2 |
164-8525 |
Hose adaptor |
2 |
|
| 3 |
164-8523 |
Vacuum intake seal |
1 |
|
| 4 |
999-0971 |
Nut 1/4-20 jam stainless steel |
1 |
|
| 5 |
164-8524 |
Spacer (OBSOLETE) |
1 |
(OBSOLETE) |
| 6 |
164-8525 |
Hose adaptor |
1 |
|
| 7 |
164-8526 |
Retainer clip adapter |
1 |
|
| 8 |
999-1540 |
Screw 1/4-20 x 3/4 truss head phillips |
2 |
|
| 9 |
164-8527 |
2 inch vacuum hose |
6 ft |
(Sold by the foot) |
| 10 |
164-8528 |
Screw clamp |
1 |
|
| 12 |
164-8530 |
Dome pivot spring |
1 |
|
| 13 |
164-8531 |
Solution tank plug |
1 |
|
| 14 |
164-8532 |
Drain nozzle coupling |
1 |
|
| 15 |
164-8533 |
Drain hose clip assembly |
1 |
|
| 17 |
164-8534 |
Solution hose (OBSOLETE) |
1 |
(OBSOLETE) |
| 18 |
164-8535 |
5/8 inch hose clamp |
2 |
|
| 19 |
164-8536 |
Nylon hose clamp |
1 |
|
| 20 |
164-8537 |
90 degree elbow |
1 |
|
| 21 |
164-8538 |
90 degree elbow (OBSOLETE) |
1 |
(OBSOLETE) |
| 22 |
164-8539 |
1/8 inch backup washer |
8 |
|
| 23 |
164-8462 |
1/8 inch rivet |
8 |
|
| 24 |
164-5503 |
Manta-long side decal (OBSOLETE) |
1 |
|
| 25 |
164-8540 |
Motor housing |
1 |
|
| 26 |
164-8541 |
Screw #8 x 1 pan head sheet metal |
2 |
|
| 27 |
164-8542 |
Spacer (OBSOLETE) |
2 |
(OBSOLETE) |
| 28 |
164-8543 |
Brush chamber cover |
1 |
|
| 29 |
999-0569 |
Screw 10 x 1/2 pan head phillips sheet metal |
2 |
|
| 30 |
164-7460 |
Solution tank filter |
1 |
|
| 31 |
164-8544 |
Solution info decal |
1 |
|
| 32 |
164-8545 |
Solution tank |
1 |
|
| 33 |
164-8546 |
Recovery pail |
2 |
|
| 34 |
164-8547 |
Recovery pail handle (OBSOLETE) |
2 |
(OBSOLETE) |
| 35 |
164-8548 |
Lid screen assembly |
2 |
|
|
|

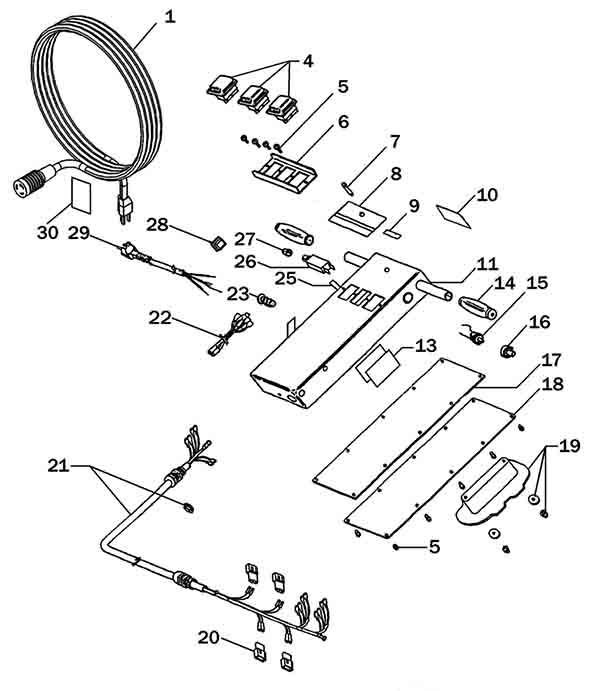

Handle Assembly - 164-1141 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
164-7461 |
50 ft extension cord with twist lock plug |
1 |
|
| 4 |
164-8305 |
On/off rocker switch |
3 |
|
| 5 |
999-0458 |
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
14 |
|
| 6 |
164-8549 |
Switch plate cover |
1 |
|
| 7 |
164-8550 |
Green indicator light |
1 |
|
| 8 |
164-8551 |
Switch/handle decal |
1 |
|
| 9 |
164-8552 |
Patent decal |
1 |
|
| 10 |
164-8553 |
Stallion 12SC decal (OBSOLETE) |
1 |
(OBSOLETE) |
| 13 |
164-8555 |
Serial number cover |
1 |
|
| 14 |
164-8556 |
Vinyl handle grip |
2 |
|
| 15 |
164-8557 |
Momentary toggle switch |
1 |
|
| 16 |
164-8558 |
Toggle boot |
1 |
|
| 17 |
164-8559 |
Handle gasket |
1 |
|
| 18 |
164-8560 |
Handle cover |
1 |
|
| 19 |
164-8561 |
Cord wrap assembly |
1 |
|
| 20 |
164-8562 |
Female 3-C molex |
4 |
|
| 21 |
164-8563 |
Handle-frame wire harness |
1 |
|
| 22 |
164-8564 |
Power cord to switches wire harness |
1 |
|
| 23 |
164-8304 |
Strain relief |
1 |
|
| 25 |
164-8565 |
Circuit breaker reset decal |
1 |
|
| 26 |
164-8566 |
Circuit breaker |
1 |
|
| 27 |
164-8567 |
Circuit breaker flex boot |
1 |
|
| 28 |
164-8568 |
1 inch square closure plug |
1 |
|
| 29 |
164-7462 |
12/3 pigtail cord |
1 |
|
| 30 |
164-8569 |
Equipment info decal |
1 |
|
| 31 |
164-8570 |
Spray switch |
1 |
|
|
|

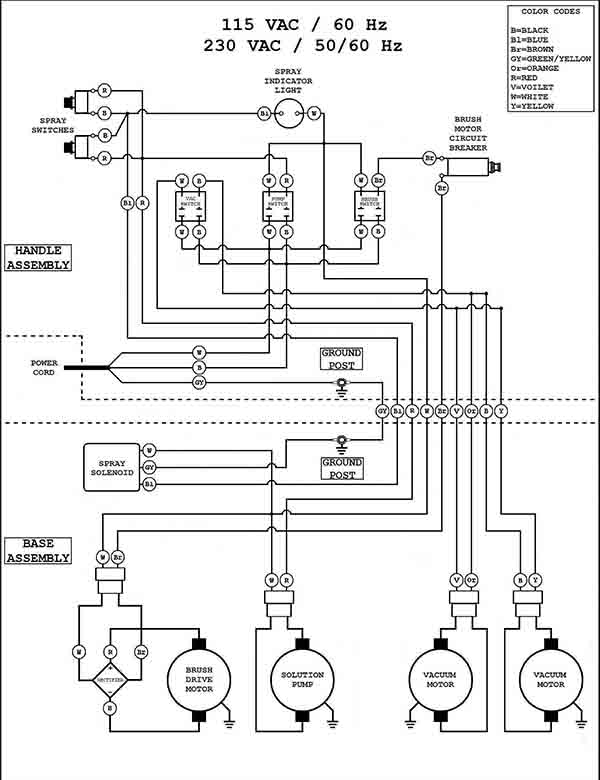

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Accessories - 164-1143 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
164-2888 |
Squeegee tool with brush |
1 |
|
| 2 |
164-8571 |
15 inch vacuum hose with adaptor |
1 |
(Includes NS4892981) |
| 3 |
164-8572 |
1 1/2 foot hose adaptor |
1 |
|
| 4 |
164-3705 |
15 ft low pressure solution hose |
1 |
|
| 5 |
164-3410 |
15 ft. solution hose |
1 |
|
| 6 |
164-3389 |
15' extension solution hose |
1 |
|
| 7 |
164-3650 |
Female quick connect adapter |
1 |
|
| 9 |
164-3649 |
12 inch 3 jet stainless steel wand |
1 |
|
| 10 |
164-3663 |
30 inch x 9 3/4 stair tool |
1 |
|
| 11 |
164-3672 |
6 inch stair hand tool |
1 |
|
| 12 |
164-3681 |
4 inch upholstery tool |
1 |
|
| 13 |
164-3687 |
3 1/2 detail tool |
1 |
|
| 14 |
164-3706 |
Crevice tool- internal spray |
1 |
|
| 15 |
164-8587 |
Hose connector |
1 |
|
| 17 |
164-3970 |
Bottom vacuum motor gasket |
1 |
|
| 18 |
164-8577 |
Upholstery kit |
1 |
(Includes NS4096841, NS4892981, NS2598551, NS4098021) |
| 19 |
164-3681 |
4 inch upholstery tool |
1 |
|
| 20 |
164-8572 |
1 1/2 foot hose adaptor |
1 |
|
| 21 |
164-2610 |
15 ft vacuum hose |
1 |
|
| 22 |
164-3705 |
15 ft low pressure solution hose |
1 |
|
| 23 |
164-8578 |
Jet wand tool kit |
1 |
(Includes NS4093251, NS4892971, NS4098021) |
| 25 |
164-8571 |
15 inch vacuum hose with adaptor |
1 |
|
| 26 |
164-3705 |
15 ft low pressure solution hose |
1 |
|
|
|
- Frequently Replaced Parts - 164-4545 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
164-7461 |
50 ft extension cord with twist lock plug |
|
|
|
164-8305 |
On/off rocker switch |
|
|
|
N/A |
Not available |
|
(Solenoid valve) |
|
164-8013 |
Tank lid assembly with shaft |
|
|
|
164-8133 |
115V 2 stage vacuum motor |
|
|
|
164-8307 |
50psi male spray tip |
|
|
|
164-8309 |
100psi male spray tip |
|
|
|
164-8310 |
12 inch brush - CYLINDRICAL |
|
|
|
164-8118 |
Wheel and cap assembly (pkg of 2) |
|
|
|
|
- Commonly Asked For Parts - 164-9012 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
164-8118 |
Wheel and cap assembly (pkg of 2) |
|
|
| 02 |
164-8133 |
115V 2 stage vacuum motor |
|
|
| 03 |
164-8134 |
Muffler assembly |
|
|
| 04 |
164-8135 |
Vacuum motor gasket |
|
|
| 05 |
164-7462 |
12/3 pigtail cord |
|
|
| 06 |
164-7461 |
50 ft extension cord with twist lock plug |
|
|
| 07 |
164-7459 |
In line filter |
|
|
| 08 |
164-7460 |
Solution tank filter |
|
|
| 10 |
164-8118 |
Wheel and cap assembly (pkg of 2) |
2 |
|
| 11 |
164-8291 |
Solution tank mounting kit |
|
|
| 12 |
999-1540 |
Screw 1/4-20 x 3/4 truss head phillips |
|
|
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
