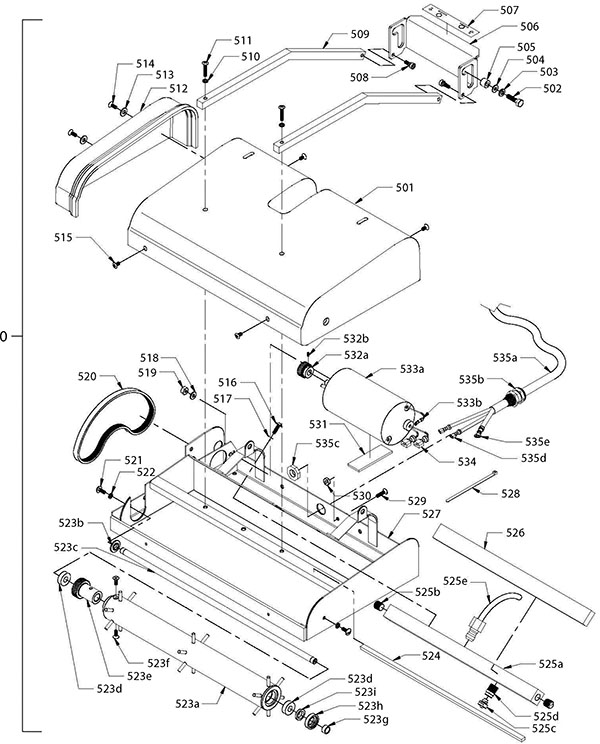

Brush Deck Assembly - 164-6001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
164-4639 |
120V brush housing assembly |
1 |
(includes 501-535e) |
| 0b |
164-4640 |
240v brush housing assembly |
1 |
(includes 501-535e) |
| 501 |
164-4603 |
Brush housing cover |
1 |
|
| 502 |
999-1103 |
Bolt 1/4-20 x 3/4 hex head with nylon patch |
2 |
|
| 503 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 504 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 505 |
164-4598 |
Brush lift guide |
2 |
|
| 506 |
164-4599 |
Foot pedal |
1 |
|
| 507 |
164-4513 |
Stallion decal kit |
1 |
|
| 508 |
164-4601 |
Screw 1/4 - 3/16 with 10 - 24 thread shoulder |
2 |
|
| 509 |
164-4602 |
Brush lift arm |
2 |
|
| 510 |
999-0053 |
Washer #10 split lock plain finish |
2 |
|
| 511 |
164-6340 |
Screw (pkg of 10) |
2 |
|
| 512 |
164-4617 |
Belt cover |
1 |
|
| 513 |
164-6034 |
Brass eyelet |
2 |
|
| 514 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 515 |
999-0008 |
Screw 10-24 x 5/8 round head slotted zinc plated |
4 |
|
| 516 |
999-0571 |
Screw 10-24 x 3/8 pan head phillips stainless steel |
2 |
|
| 517 |
999-0053 |
Washer #10 split lock plain finish |
2 |
|
| 518 |
164-9190 |
Washer #10-7/32 x 1/2 flat (pkg of 10) |
2 |
|
| 519 |
999-1353 |
Nut 10-32 hex nylon lock insert stainless steel |
2 |
|
| 520 |
164-4622 |
Poly belt with teeth |
1 |
|
| 521 |
999-0231 |
Screw 10-24 x 1/2 round head slotted zinc plated |
2 |
|
| 522 |
999-0053 |
Washer #10 split lock plain finish |
2 |
|
| 523a |
164-4629 |
Brush - CYLINDRICAL |
1 |
|
| 523c |
164-4621 |
Brush axle |
1 |
|
| 523e |
164-4624 |
Brush pulley |
1 |
|
| 523f |
999-0087 |
Screw 10-32 x 5/8 flat head slotted zinc plated |
2 |
|
| 523h |
164-4627 |
Brush thread guard |
1 |
|
| 523i |
164-4625 |
Shaft seal |
1 |
|
| 524 |
164-4619 |
Gasket neoprene 3/16 x 5/16 |
1.3 |
|
| 525a |
164-4633 |
Spray bar |
1 |
|
| 525b |
164-4632 |
Pipe plug |
2 |
|
| 525c |
164-4638 |
Spray tip and body |
3 |
(includes 525d and 525e) |
| 525d |
164-4635 |
Spray nozzle only (8002) |
3 |
|
| 525e |
164-4637 |
Spray body stainless steel |
3 |
|
| 525f |
164-4563 |
21 inch solution hose |
1 |
|
| 525g |
991-8023 |
1/4 inch brass vee jet 8002 |
3 |
(NON-OEM) |
| 525h |
991-8070 |
1/4 inch stainless vee jet 8002 |
3 |
(NON-OEM) |
| 525i |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
3 |
(NON-OEM) |
| 526 |
164-0072 |
Gasket material 1/2 x 1 x 1 (sold by the foot) |
1.3 |
|
| 527 |
164-4618 |
Brush frame weldment |
1 |
|
| 529 |
999-0314 |
Screw 10-24 x 3/4 round head phillips zinc plated |
2 |
|
| 530 |
999-0004 |
Nut 10-24 k-lock zinc plated |
3 |
|
| 531 |
164-4613 |
Gasket neoprene 1 x 1/8 inch |
1 |
|
| 532a |
164-4608 |
Motor pulley |
1 |
(includes 532b) |
| 532b |
164-9087 |
Screw 10-32 x 1/4 set cup point |
2 |
|
| 533a |
164-8198 |
120v brush motor |
1 |
(includes 533c) |
| 533b |
164-4610 |
240V brush drive motor sealed |
1 |
(includes 533c) |
| 533c |
164-4649 |
10 ring terminal |
1 |
|
| 534 |
998-0001 |
1/4 spade male terminal 10-12 gauge |
2 |
|
| 535a |
164-4605 |
Brush motor cord |
1 |
(includes 535b) |
| 535b |
164-4606 |
Heyco strain relief |
1 |
(includes 535c) |
| 535c |
164-4516 |
Strain relief nut |
1 |
|
| 535d |
998-0044 |
12-10 nylon female connector |
4 |
|
| 535e |
164-4649 |
10 ring terminal |
2 |
|
| N/S |
164-4630 |
Brush assembly |
1 |
(includes 523a-524) |
| N/S |
164-4634 |
Spray bar assembly |
1 |
(includes 525a-525c) |
| N/S |
164-4636 |
O-ring |
3 |
(included in 525c) |
|
|
Recovery Solution Tank Assembly - 164-6002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 301 |
164-4524 |
Recovery tank |
1 |
|
| 302 |
164-4513 |
Stallion decal kit |
1 |
|
| 303 |
164-4538 |
Recovery tank hold down bracket |
1 |
|
| 304 |
999-0017 |
Washer 1/4 external star lock |
2 |
|
| 305 |
999-0405 |
Screw 1/4-20 x 5/8 round head slotted zinc plated |
2 |
|
| 306a |
992-0002 |
Velcro hook (sold by the inch) |
.25 |
|
| 306b |
992-0001 |
Velcro loop (sold by the inch) |
.25 |
|
| 307a |
164-0080 |
Solution tank filter assembly |
1 |
(includes 307b and 307c) |
| 307b |
164-4542 |
Filter screen bag |
1 |
|
| 308 |
164-4544 |
Solution tank |
1 |
|
| 309 |
164-0289 |
Washer flat stainless steel |
1 |
|
| 310 |
164-4546 |
Brass bushing |
1 |
|
| 311 |
164-4547 |
Filter screen |
1 |
|
| 312 |
164-4549 |
Tank hinge |
2 |
|
| 313 |
164-4548 |
Hinge pin (OBSOLETE) |
2 |
|
| 314 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 315 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 316 |
999-1103 |
Bolt 1/4-20 x 3/4 hex head with nylon patch |
2 |
|
| 317 |
164-0969 |
Rubber stop |
2 |
|
| 318 |
164-4587 |
Tank support strap |
1 |
|
| 319 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
1 |
|
| 320 |
999-0060 |
Washer 1/4 split lock plain finish |
1 |
|
| 321 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
| 322 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
| 323 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 324 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
| 325 |
164-4520 |
Vacuum hose nozzle |
2 |
|
| 326 |
997-2000 |
Hose clamp |
1 |
|
| 327 |
164-4591 |
Base assembly |
1 |
|
| 328 |
164-5000 |
Hex nut (pkg of 10) |
2 |
|
| 329 |
164-1171 |
Bolt 5/16 x 3/8 socket head shoulder |
2 |
|
| 330a |
164-4639 |
120V brush housing assembly |
1 |
|
| 330b |
164-4640 |
240v brush housing assembly |
1 |
|
| 331 |
164-4605 |
Brush motor cord |
1 |
|
| 332 |
164-4604 |
Heyco strain relief |
1 |
|
| 334 |
164-3991 |
Hose retaining ring |
1 |
|
| 335 |
999-0017 |
Washer 1/4 external star lock |
1 |
|
| 336 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
| 338 |
164-4554 |
Washer stainless steel |
1 |
|
| 339 |
164-0947 |
45 degree elbow |
1 |
|
| 340 |
164-4518 |
Vacuum hose |
1 |
|
| 341 |
164-4558 |
Drip cover |
1 |
|
| 343 |
999-0405 |
Screw 1/4-20 x 5/8 round head slotted zinc plated |
2 |
|
| 344 |
999-0017 |
Washer 1/4 external star lock |
2 |
|
|
|

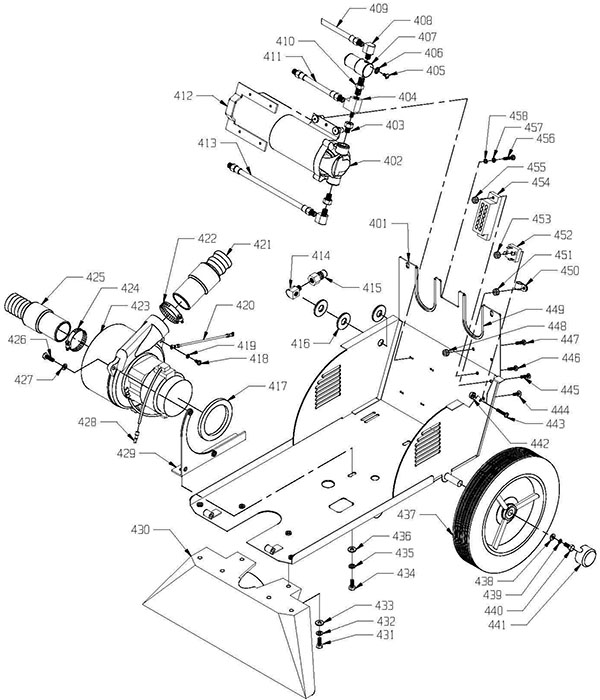

Frame Assembly - 164-6003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 401 |
164-4591 |
Base assembly |
1 |
|
| 402a |
164-4573 |
50 PSI solution pump |
1 |
|
| 402b |
164-9489 |
120V 80 PSI pump |
1 |
|
| 402c |
164-4572 |
240v 100 PSI pump |
1 |
|
| 403 |
164-4546 |
Brass bushing |
2 |
|
| 404 |
164-4568 |
1/4 inch tee |
1 |
(not available on model 4808052) |
| 405 |
999-1366 |
Screw 8-32 x 3/8 round head phillips stainless steel |
1 |
|
| 406 |
999-0092 |
Washer #8 internal star lock zinc plated |
1 |
|
| 407a |
164-4564 |
120V solenoid valve |
1 |
|
| 407b |
164-4566 |
240V solenoid valve |
1 |
|
| 408 |
164-0565 |
90 degree brass elbow |
2 |
|
| 409 |
164-4563 |
21 inch solution hose |
1 |
|
| 410 |
164-4567 |
1/4 inch brass hex nipple |
1 |
|
| 411 |
164-4576 |
Hose (pump to accessory) |
1 |
(not available on model 4808052) |
| 412 |
164-4577 |
Tapping plate (pump motor) |
1 |
|
| 413 |
164-4578 |
Hose assembly (tank to pump) |
1 |
|
| 414 |
164-0565 |
90 degree brass elbow |
1 |
(not available on model 4808052) |
| 415 |
164-3334 |
Male quick connect |
1 |
(not available on model 4808052) |
| 416 |
164-4554 |
Washer stainless steel |
3 |
|
| 417 |
164-4585 |
Neoprene motor seal |
1 |
|
| 418 |
999-0663 |
Screw 10-24 x 3/8 pan head phillips thread cutting |
1 |
|
| 419 |
999-0053 |
Washer #10 split lock plain finish |
1 |
|
| 420 |
164-4035 |
Ground to motor wire, green |
2 |
|
| 421 |
164-4584 |
Vacuum motor exhaust hose |
1 |
|
| 422 |
997-2003 |
Hose clamp |
1 |
|
| 423a |
164-8011 |
120V 3 stage vacuum motor |
1 |
|
| 423b |
164-4583 |
240V vacuum motor |
1 |
|
| 424 |
997-2000 |
Hose clamp |
1 |
|
| 425 |
164-4518 |
Vacuum hose |
1 |
|
| 426 |
999-1103 |
Bolt 1/4-20 x 3/4 hex head with nylon patch |
2 |
|
| 427 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 428 |
164-4647 |
Push on terminal |
2 |
|
| 429 |
164-4586 |
Vacuum motor bracket |
1 |
|
| 430 |
164-4590 |
Vacuum shoe |
1 |
|
| 431 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
4 |
|
| 432 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 433 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 434 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
| 435 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 436 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 437 |
164-4592 |
10 inch plastic wheel (white) |
2 |
|
| 438 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 439 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 440 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
| 441 |
N/A |
Not available |
2 |
(hubcap) |
| 442 |
999-0004 |
Nut 10-24 k-lock zinc plated |
3 |
|
| 443 |
999-0314 |
Screw 10-24 x 3/4 round head phillips zinc plated |
1 |
|
| 444 |
999-0314 |
Screw 10-24 x 3/4 round head phillips zinc plated |
1 |
|
| 445 |
999-0008 |
Screw 10-24 x 5/8 round head slotted zinc plated |
1 |
|
| 446 |
999-0080 |
Screw 8-32 x 7/8 round head slotted zinc plated |
2 |
|
| 447 |
999-0314 |
Screw 10-24 x 3/4 round head phillips zinc plated |
1 |
|
| 448 |
999-0004 |
Nut 10-24 k-lock zinc plated |
3 |
|
| 449 |
164-4597 |
Vinyl trim (sold by the foot) |
1.41 |
|
| 451 |
999-0004 |
Nut 10-24 k-lock zinc plated |
2 |
|
| 452b |
163-0063 |
240V rectifier |
1 |
|
| 453 |
999-0004 |
Nut 10-24 k-lock zinc plated |
1 |
|
| 454 |
164-4594 |
Terminal block |
1 |
|
| 455 |
999-0308 |
Nut 8-32 plain |
2 |
|
| 456 |
999-0009 |
Screw 10-24 x 1 round head slotted zinc plated |
4 |
|
| 457 |
999-0053 |
Washer #10 split lock plain finish |
4 |
|
| 458 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
|
|

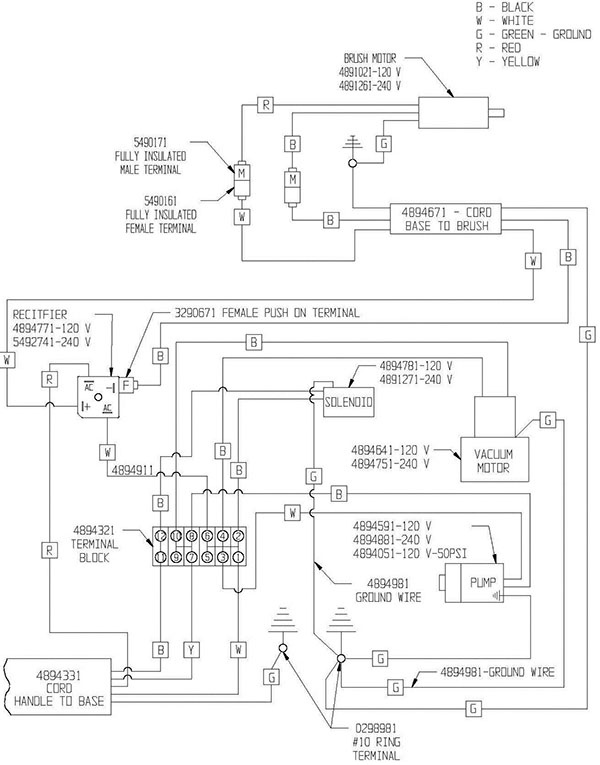

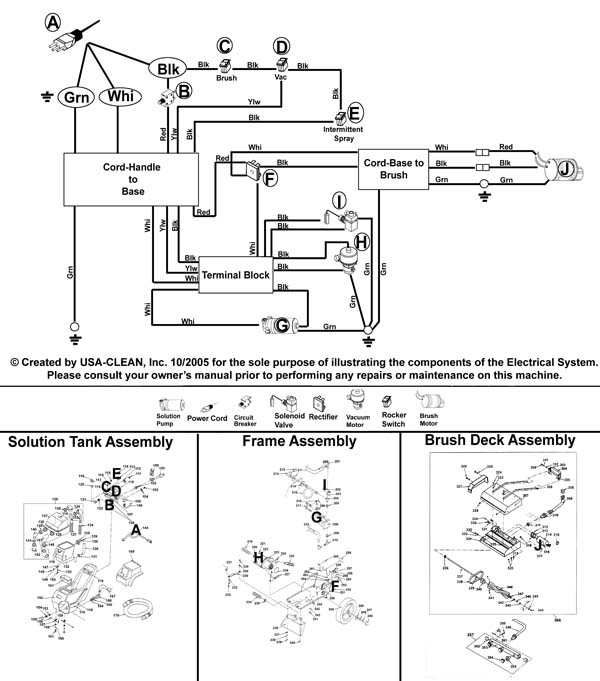

Wiring Diagram - Frame and Brush Head - 164-6004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 51 |
193-1994 |
Washer M5 stainless steel |
2 |
|
| 58 |
220-0332 |
Screw M4 x 8mm pozi pan head stainless steel |
4 |
|
|
|

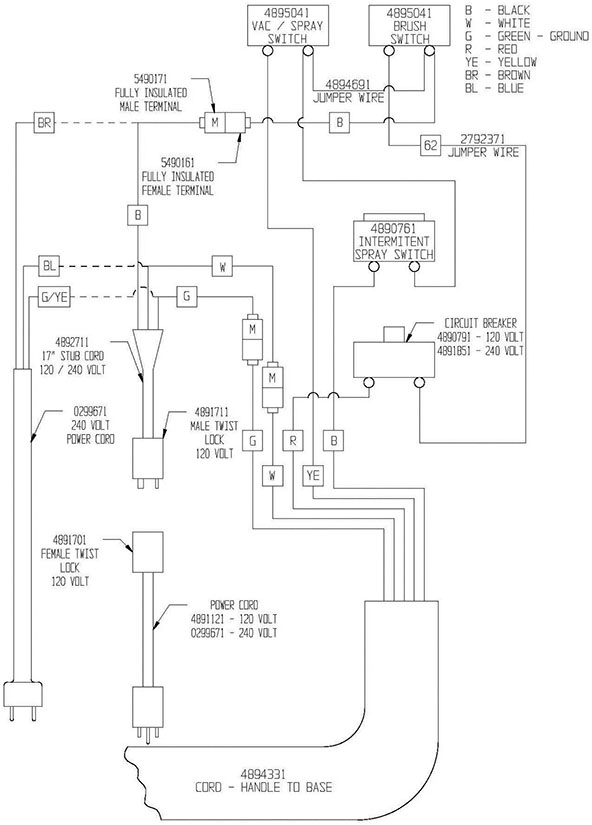

Wiring Diagram - Control Handle - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Know Your Machine - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Simplified Solution System - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

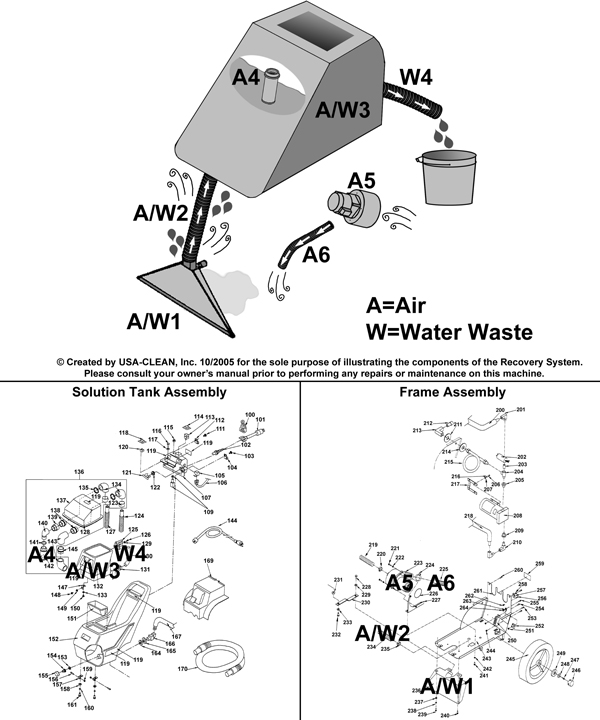

- Simplified Recovery System - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

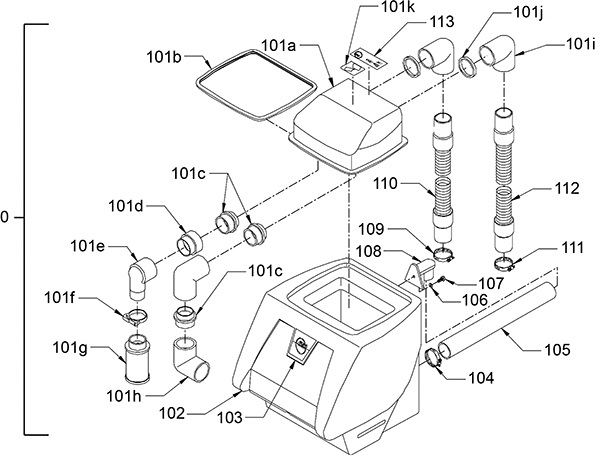

Dome Assembly - 164-9989 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
164-4529 |
Lid assembly |
1 |
(includes 101a-101k) |
| 101a |
164-4528 |
Tank lid (clear) |
1 |
|
| 101b |
164-4521 |
Lid gasket |
1 |
|
| 101c |
164-4530 |
Female adaptor |
3 |
|
| 101d |
164-4531 |
Male adaptor |
1 |
|
| 101e |
164-4532 |
90 degree hose barb |
1 |
|
| 101f |
164-0218 |
Nylon hose clamp |
1 |
|
| 101g |
164-0046 |
Float screen assembly |
1 |
|
| 101i |
164-4525 |
Elbow (includes tube) |
2 |
|
| 101j |
164-4526 |
Drain valve gasket |
2 |
|
| 101k |
164-4513 |
Stallion decal kit |
1 |
|
| 102 |
164-4524 |
Recovery tank |
1 |
|
| 103 |
164-4513 |
Stallion decal kit |
1 |
|
| 104 |
997-2000 |
Hose clamp |
1 |
|
| 105 |
164-4522 |
Drain hose |
1 |
|
| 106 |
999-0060 |
Washer 1/4 split lock plain finish |
1 |
|
| 107 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
1 |
|
| 108 |
164-4519 |
Drain hose plug |
1 |
|
| 109 |
997-2000 |
Hose clamp |
1 |
|
| 110 |
164-4518 |
Vacuum hose |
1 |
|
| 111 |
997-2000 |
Hose clamp |
1 |
|
| 112 |
164-4520 |
Vacuum hose nozzle |
1 |
|
|
|

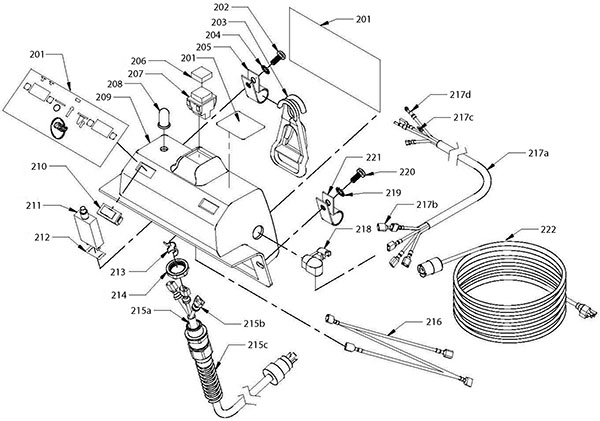

Switch Box Assembly - 264-0001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 201 |
164-4513 |
Stallion decal kit |
1 |
|
| 202 |
999-0405 |
Screw 1/4-20 x 5/8 round head slotted zinc plated |
1 |
|
| 203 |
164-4500 |
Strain relief |
1 |
|
| 204 |
999-0017 |
Washer 1/4 external star lock |
1 |
|
| 206 |
164-0281 |
Push button switch boot |
1 |
|
| 207 |
164-4510 |
Momentary spray switch |
1 |
|
| 208 |
164-4511 |
Circuit breaker button seal |
1 |
|
| 209 |
164-4506 |
Switch box |
1 |
|
| 210 |
164-4036 |
Rocker switch with boot |
2 |
(includes boot) |
| 211a |
991-1608 |
2amp circuit breaker |
1 |
|
| 211b |
164-4508 |
240V 1amp circuit breaker |
1 |
|
| 212 |
164-4033 |
Circuit breaker insulator |
1 |
|
| 213 |
164-4515 |
Strain relief cord clamp |
1 |
|
| 214 |
164-4516 |
Strain relief nut |
1 |
|
| 215a |
164-4501 |
14/3 17 inch pigtail cord with twist lock |
1 |
(includes 215b and 215c) |
| 215b |
164-0553 |
Male push on coupler |
3 |
|
| 215c |
164-4502 |
Strain relief |
1 |
|
| 216 |
164-4642 |
Jumper wire (switch box) |
1 |
|
| 217a |
164-4505 |
Interconnect cord |
1 |
(includes 217b-217d) |
| 217b |
164-4644 |
Female terminal |
6 |
|
| 217c |
998-0017 |
1/4 female insulated connector |
3 |
|
| 217d |
164-4649 |
10 ring terminal |
1 |
|
| 218 |
164-4504 |
Heyco strain relief |
1 |
|
| 219 |
999-0017 |
Washer 1/4 external star lock |
1 |
|
| 220 |
999-0405 |
Screw 1/4-20 x 5/8 round head slotted zinc plated |
1 |
|
| 222a |
164-4560 |
120V 50 foot power cord with twist lock |
1 |
|
| 222b |
164-4562 |
Shuko cord 240v 75ft |
1 |
|
|
|
- Frequently Replaced Parts - 999-0033 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
164-4501 |
14/3 17 inch pigtail cord with twist lock |
|
|
| 2 |
164-4560 |
120V 50 foot power cord with twist lock |
|
|
| 6 |
164-4036 |
Rocker switch with boot |
|
(power, vacuum and brush) |
| 7 |
164-4564 |
120V solenoid valve |
|
|
| 9 |
164-4528 |
Tank lid (clear) |
|
|
| 11 |
164-4519 |
Drain hose plug |
|
|
| 13 |
164-8011 |
120V 3 stage vacuum motor |
|
(NSS) |
| 14 |
991-1204 |
120V 3 stage vacuum motor tangential with snout |
|
(Ametek-Lamb) |
| 15 |
991-1238 |
Carbon brush (sold individually) |
|
|
| 16 |
164-4573 |
50 PSI solution pump |
|
|
| 17 |
164-9489 |
120V 80 PSI pump |
|
|
| 18 |
164-0046 |
Float screen assembly |
|
|
| 19 |
164-4635 |
Spray nozzle only (8002) |
|
|
| 20 |
164-4547 |
Filter screen |
|
|
| 21 |
164-4630 |
Brush assembly |
|
|
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
