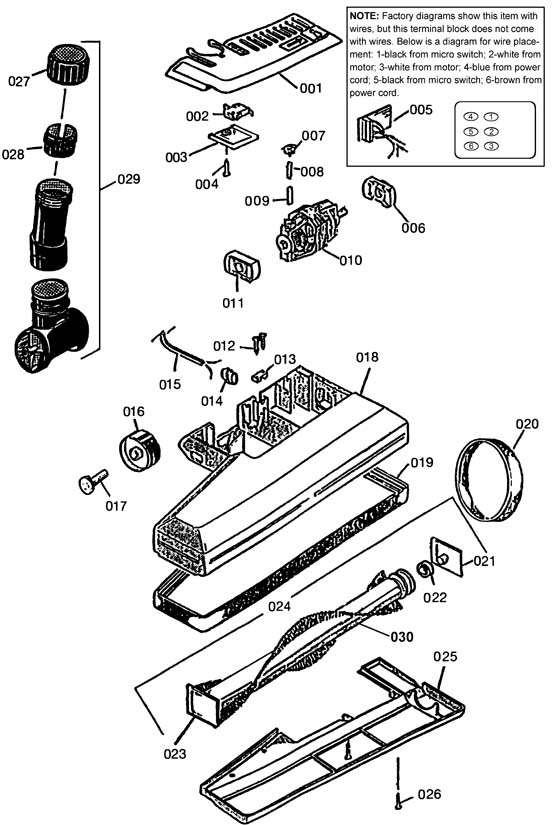

PowerWand Assembly
-
164-2003
RefNbr
Part Number
Description
Req
Notes
001a
164-6056
Top cover (OBSOLETE)
1
001b
999-0458
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc
3
001c
999-0526
Screw 8 x 5/8 pan head slotted zinc
1
002
164-6057
Micro switch
1
(This part no longer comes with wires that go to the terminal block. You should match up wires on the machine and get them at a hardware store)
003
164-6058
Switch cover plate (OBSOLETE)
1
004
999-0072
Screw 4 x 1 pan head slotted zinc T-A sheet metal
1
005
164-6059
Terminal block (OBSOLETE)
1
006
164-6060
Pulley end motor mount
1
007
N/A
Not available
2
(Brush spring cap)
008
164-6062
Carbon brush spring
2
009
164-6063
Carbon brush (for PowerWand) (OBSOLETE)
2
010
164-0010
120V brush drive motor with mounts
1
(includes 006 and 011) (comes with the wires that go to the terminal block)
011
164-6065
Motor mount opposite pulley (OBSOLETE)
1
(Mounts)
012
999-0073
Screw 6 x 3/4 pan head slotted T-A sheet metal zinc
2
013
N/A
Not available
1
(Hose clamp)
014
N/A
Not available
1
(Strain relief)
015a
164-6067
4 1/2 foot power cord
1
015b
164-6068
18 foot PowerWand cord with electric fittings
1
016a
164-6070
Wheel with wheel pin
2
(includes 016 and 017)
016b
164-6069
Wheel only
2
017
164-6071
Wheel pin
2
018
164-6072
Brush cover mount
1
019
164-6073
Bumper
1
020
164-0011
Brush drive belt
1
021
164-6106
Bearing mount plate for pulley end
1
022
164-6077
Brush bearing
2
023
164-6075
Bearing mount plate for opposite the pulley end
1
024
164-6080
Brush assembly (OBSOLETE)
1
(includes 021-023)
025
164-6087
Bottom shoe plate
1
026
999-0527
Screw 8 x 5/8 flat head slotted zinc
4
027
164-6083
Threaded collar
1
028
164-6084
Split friction ring
1
029
164-6085
Swivel joint assembly with collar and split friction ring
1
(includes 027 and 028)

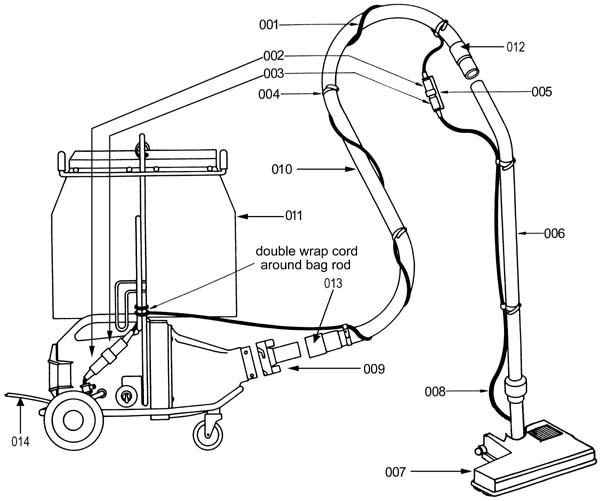

PowerWand and Accessories
-
164-2004
RefNbr
Part Number
Description
Req
Notes
001
164-6068
18 foot PowerWand cord with electric fittings
1
002
164-6089
Female plug
2
003
164-6094
Male plug
2
004
164-6090
Vinyl cord strap
4
(for hose)
005
164-6092
Plastic cord strap
1
(for electric cord)
006
164-6093
Handle tube
1
007
164-0088
16 inch power head (OBSOLETE)
1
008
164-6067
4 1/2 foot power cord
1
009
164-6054
Swivel coupling assembly
1
010
164-0090
Hose 1 5/8 x 10 foot superthane with two cuffs
1
011a
164-6219
Universal zippered bag (use with or without paper bags)
1
011b
164-0081
Paper bags (pkg of 6) (M1-Pig)
1
(OEM)
011c
991-9021
Paper bags (pkg of 3)
1
(NON-OEM)
011d
164-5321
Hose for bag 2 x 2 1/4 inch
1
012
164-6234
Plastic swivel cuff
1
013
164-6233
Plastic non-swivel cuff
1
014a
164-2117
16/3 power cord 35 foot
1
(vacuum to wall) (OEM)
014b
991-5006
16/3 replacement power cord 50 foot (yellow)
1
(vacuum to wall) (NON-OEM)
014c
991-5002
16/3 extension cord 50 foot (orange)
1
(NON-OEM)
N/S
164-1557
12 Inch plastic crevice tool
1
N/S
164-2846
Tool - 1.5 x 12 inch Alum crevice
1
N/S
164-6237
28 inch crevice tool
1
N/S
164-2844
Tool - 1.5 x 28 inch Alum. Crevice
1
N/S
164-6218
12 inch bumper
1
(round bumper)
N/S
164-2343
5ft Extension tube w/ elbow
1
N/S
164-2607
1-5/8 inch x 7 ft. super flex hose
1
N/S
164-0090
Hose 1 5/8 x 10 foot superthane with two cuffs
1
N/S
164-2880
16 inch Tool With Lint-Lifter Shoes
1
N/S
164-6996
Basic wand kit with 10 foot hose
1
N/S
164-6104
3 inch round brush with nylon bristles
1
N/S
164-6098
Aluminum wand for use with 12 inch shoe tool 164-6099
1
N/S
164-6103
10 foot extension tube kit
1
N/S
164-6105
5 foot extension tube with sleeves (OBSOLETE)
1
N/S
164-6099
12 inch Tool With Plain Shoes
1
N/S
164-6214
Rubber bumper for 12 inch shoe tool
1
N/S
164-2817
Repl 14 in bumper
1
N/S
164-2343
5ft Extension tube w/ elbow
1
N/S
164-2337
Steel wand
1
N/S
164-2338
1.5 inch alum tube handle - short
1
N/S
164-6091
Hose coupling gasket (for PowerWand hose)
1
N/S
164-2347
5 inch aluminum connector
1
