Brush Head - 164-0315 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
164-0811 |
Safety filter |
1 |
|
| 002 |
164-0812 |
Exhaust filter |
1 |
|
| 003a |
164-6101 |
14 inch brush strip (black) |
1 |
(214) |
| 003b |
164-6174 |
Brush strip\red hard |
1 |
(214) |
| 003c |
164-6215 |
Black brush strip |
1 |
(218) |
| 003d |
164-6205 |
Brush strip |
1 |
(218) |
| 004 |
164-6208 |
Micro filter |
1 |
|
| 005 |
164-6207 |
Micro filter bags (5 pack) |
1 |
|
| 006 |
164-0066 |
Filter bags (10 pack) |
1 |
|
| 008 |
164-6102 |
Upholstery tool- Marshall |
1 |
|
| 009 |
164-6210 |
Crevice tool |
1 |
|
|
|

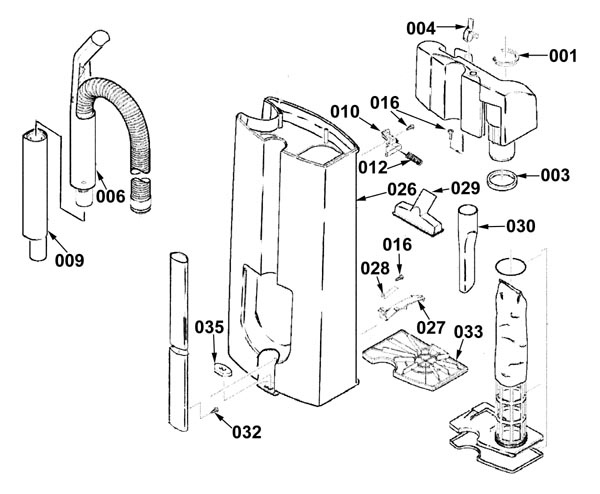

Top Part - 164-2600 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
164-6107 |
Hose retainer clip |
1 |
|
| 004 |
164-6109 |
Clip upholstery nozzle |
1 |
|
| 005 |
164-7274 |
Housing - top with hose for light - black |
1 |
|
| 006 |
164-6111 |
Suction tube w/ handle |
1 |
|
| 009 |
164-6112 |
Lower suction tube |
1 |
|
| 010 |
164-6113 |
Safety stop (OBSOLETE) |
1 |
|
| 012 |
164-6114 |
Spring safety stop |
1 |
|
| 015a |
164-6208 |
Micro filter |
1 |
(OEM) |
| 015b |
164-6207 |
Micro filter bags (5 pack) |
1 |
(OEM) |
| 015c |
991-9052 |
Paper vacuum bags (pkg of 10) |
1 |
(NON-OEM) |
| 016 |
164-7275 |
Screw M4 x 12, oval head |
6 |
|
| 026 |
164-7276 |
Housing - lower black |
1 |
|
| 027 |
164-6116 |
Guide filter |
1 |
|
| 028 |
164-6117 |
Compression spring |
1 |
|
| 029 |
164-6102 |
Upholstery tool- Marshall |
1 |
|
| 030 |
164-6210 |
Crevice tool |
1 |
|
| 032 |
999-0534 |
Screw M4-.7 x 10mm pan head slotted zinc |
7 |
|
| 035 |
164-6119 |
Stop handle tube |
1 |
|
|
|

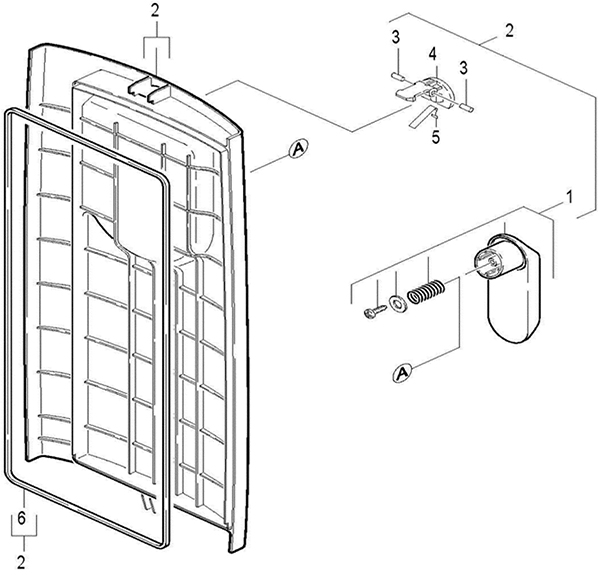

Cover - 164-2601 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
164-0085 |
Cord hook assembly (OBSOLETE) |
1 |
|
| 2 |
164-6684 |
Door with seal, latch, hook-black |
1 |
(includes 1, 3-6) |
| 3 |
164-6120 |
Pin grooved latch (OBSOLETE) |
2 |
|
| 4 |
164-6121 |
Tank door latch |
1 |
|
| 5 |
164-6122 |
Spring latch (OBSOLETE) |
1 |
|
| 6 |
164-6123 |
Tank door seal |
1 |
|
|
|

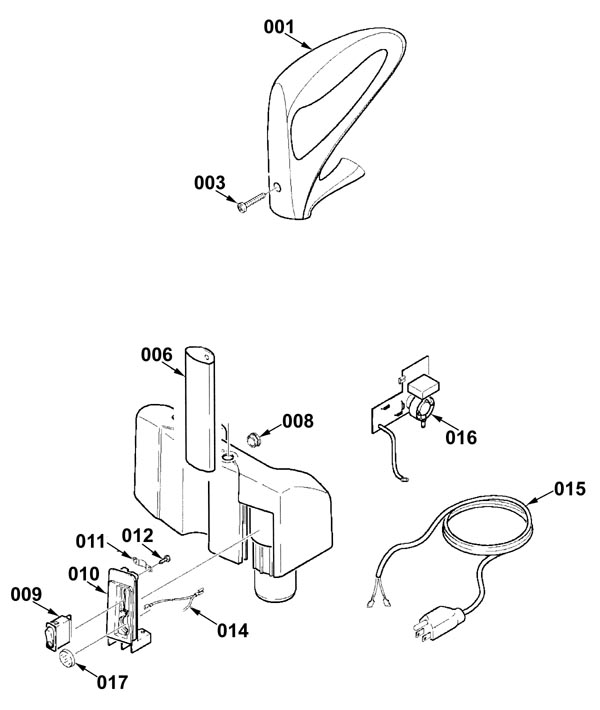

Handle - 164-2602 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
164-6724 |
Handle complete |
1 |
|
| 003 |
164-6747 |
Screw 5 x 40 |
1 |
|
| 006 |
164-7277 |
Tube handle |
1 |
|
| 008 |
164-6129 |
Cable bushing |
1 |
|
| 009 |
164-0814 |
Vacuum switch |
1 |
|
| 010 |
164-6130 |
Housing switch |
1 |
|
| 011 |
164-6131 |
Wire clip vaclight (OBSOLETE) |
1 |
|
| 012 |
999-0529 |
Screw M3-.5 x 12mm pan head slotted zinc |
2 |
|
| 014a |
164-6761 |
Internal cable only for led board |
1 |
|
| 014b |
164-7278 |
Bag fulled - 240v |
1 |
|
| 015a |
164-1324 |
16/3 cord set |
1 |
|
| 015b |
164-6657 |
Cord, 2 wire, 100V/240V internal |
1 |
|
| 016a |
164-6766 |
Brush pc board-120V-handle assembly |
1 |
|
| 016b |
164-6757 |
Circuit board with led-bag full |
1 |
|
| 017 |
164-6760 |
Lens-bag full light |
1 |
|
|
|

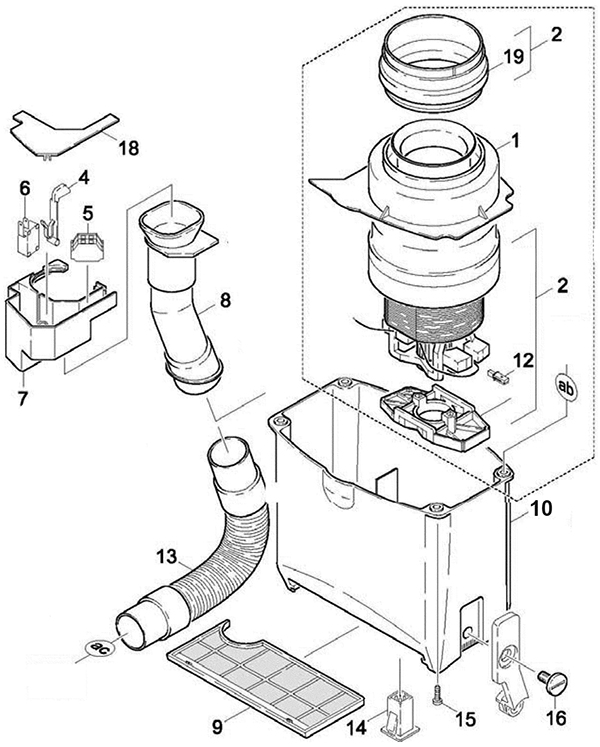

Motor - 164-2603 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
164-6136 |
Seal vacuum motor |
1 |
|
| 2a |
164-6762 |
Vac motor, 115V |
1 |
(includes 003, 012a, 019) |
| 2b |
164-7279 |
Vacuum motor 240V (OBSOLETE) |
1 |
(includes 003, 012b, 019) |
| 3 |
164-6763 |
Motor support |
1 |
|
| 4 |
164-6139 |
Plastic lever micro switch |
1 |
|
| 5 |
164-6140 |
Terminal block |
1 |
|
| 6 |
164-6141 |
Micro switch |
1 |
|
| 7a |
164-6142 |
Connecting tube cover |
1 |
|
| 7b |
164-6767 |
Cover-connecting tube-240 volt |
1 |
|
| 8 |
164-6143 |
Hose connecting tube (OBSOLETE) |
1 |
|
| 9 |
164-0812 |
Exhaust filter |
1 |
|
| 10a |
164-6144 |
Vac motor housing |
1 |
|
| 10b |
164-7281 |
Housing vacuum motor 240V |
1 |
|
| 12a |
164-6735 |
Carbon brush set |
1 |
|
| 12b |
164-7280 |
Carbon brush set 240v (OBSOLETE) |
1 |
|
| 13 |
164-6145 |
Brush head hose |
1 |
|
| 14 |
164-0810 |
Female receptacle electric plug |
1 |
|
| 15 |
164-6678 |
Screw M5 x 16 oval head |
4 |
|
| 16 |
164-1146 |
Thumb screw |
2 |
|
| 18 |
164-6147 |
Plate tube cover |
1 |
|
| 19 |
164-6764 |
Intermediate ring |
1 |
|
|
|

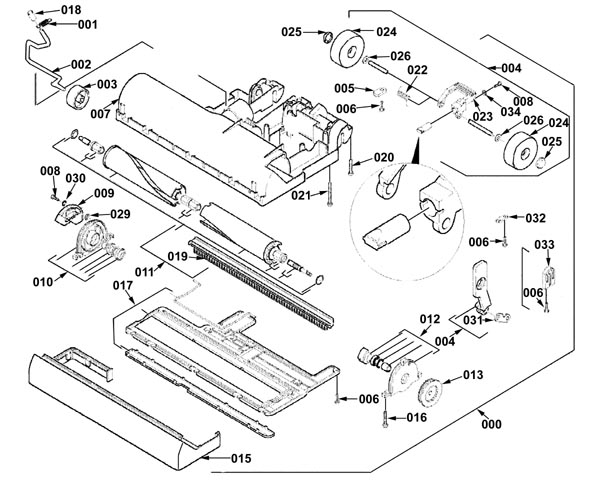

Brush Head-Top-218 - 164-2605 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
164-7272 |
Brush head assembly |
1 |
(includes 1-34) (includes top and bottom assembly) |
| 000b |
164-7282 |
Brush head assembly 240V, black |
1 |
(includes 1-34) (includes top and bottom assembly) |
| 001 |
164-6161 |
Spring extension |
1 |
|
| 002 |
164-6162 |
Height adjustment axle |
1 |
|
| 003 |
164-6163 |
Height adjustment wheel |
1 |
|
| 004 |
164-6164 |
Axle & pedal assembly |
1 |
|
| 005 |
164-6165 |
Axle retainer clip |
2 |
|
| 006 |
164-6744 |
Screw 3 1/2 x 12 |
1 |
|
| 007a |
164-2005 |
Bottom brush housing |
1 |
|
| 007b |
164-7285 |
Bottom brush housing 240V only |
1 |
|
| 008 |
999-0530 |
Screw M4-.7 x 8mm pan head slotted zinc |
2 |
|
| 009a |
164-6167 |
Cover brush accessory |
1 |
|
| 009b |
164-6167 |
Cover brush accessory |
1 |
|
| 010 |
164-6168 |
End plate with bearing |
1 |
|
| 011 |
164-6169 |
Brush roller assembly |
1 |
(includes 019a-019b) |
| 012 |
164-6170 |
End plate pulley |
1 |
|
| 013 |
164-6171 |
Brush pulley |
1 |
|
| 016 |
164-7284 |
Screw M4 x 16 oval head |
4 |
|
| 017 |
164-6172 |
Brush shoe |
1 |
|
| 018 |
N/A |
Not available |
1 |
(sleeve bushing) |
| 019a |
164-6101 |
14 inch brush strip (black) |
1 |
|
| 019b |
164-6174 |
Brush strip\red hard |
1 |
|
| 020 |
164-6678 |
Screw M5 x 16 oval head |
1 |
|
| 021 |
999-0532 |
Screw M5-.8 x 30mm pan head slotted zinc |
3 |
|
| 022 |
164-6176 |
Foot pedal spring |
1 |
|
| 023 |
164-6177 |
Foot pedal |
1 |
|
| 024 |
164-2002 |
Wheel only |
2 |
|
| 025 |
164-2003 |
Wheel retainer |
2 |
|
| 026 |
164-6178 |
Wheel axle washer |
2 |
|
| 027 |
164-6179 |
Brass lock screw |
1 |
|
| 029 |
164-6180 |
Washer plastic |
1 |
|
| 030 |
999-0533 |
Washer M4 split lock plain finish |
1 |
|
| 031 |
164-6182 |
Axle support link |
1 |
|
| 033 |
164-6184 |
Axle support block |
1 |
|
|
|
