- Commonly Asked For Parts - 164-9929 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
164-9269 |
Right hand handle clamp |
|
|
| 02 |
164-9270 |
Left hand handle clamp |
|
|
| 03 |
164-9471 |
Speed selector switch |
|
|
| 04 |
164-9472 |
Speed selector plate |
|
|
| 05 |
164-9473 |
Solution valve assembly |
|
|
|
|

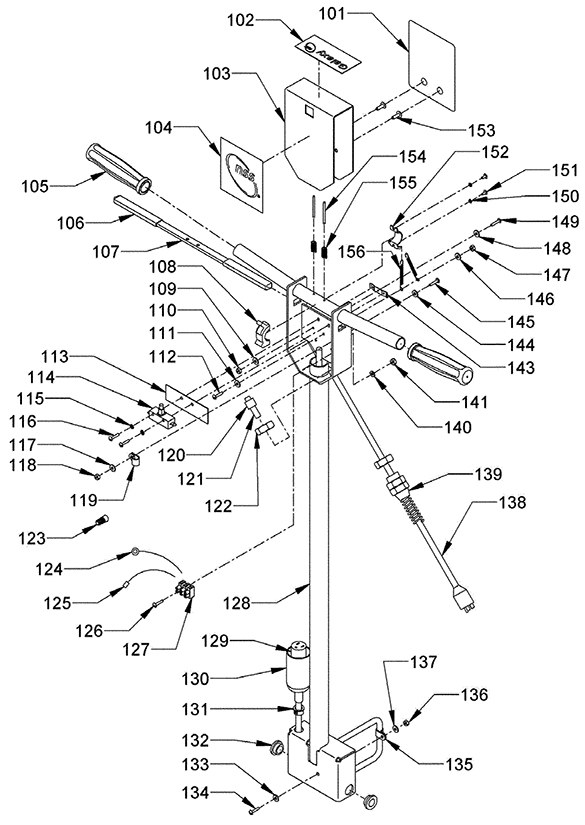

Handle Tube Assembly - 164-9987 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 101 |
164-1816 |
Safety decal |
1 |
|
| 102 |
164-7378 |
Galaxy decal (OBSOLETE) |
1 |
|
| 103 |
164-1840 |
Switch box cover |
1 |
|
| 104 |
164-1857 |
Decal (OBSOLETE) |
1 |
|
| 105 |
164-0016 |
Handle grip |
2 |
|
| 106 |
164-5054 |
Switch lever grip |
2 |
|
| 107 |
164-1844 |
Switch lever |
1 |
|
| 108 |
164-1856 |
Safety lockout |
1 |
|
| 109 |
164-1878 |
Washer M4 flat |
1 |
|
| 110 |
999-0955 |
Nut M4-.7 hex nylon lock |
2 |
|
| 111 |
164-1878 |
Washer M4 flat |
1 |
|
| 112 |
164-1880 |
Screw M4 - 5/64 x 16mm phillips pan head |
1 |
|
| 113 |
164-1846 |
Switch insulator |
1 |
|
| 115 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 116 |
999-0102 |
Screw 6-32 x 1 round head slotted zinc plated |
2 |
|
| 117 |
164-1878 |
Washer M4 flat |
1 |
|
| 118 |
999-0955 |
Nut M4-.7 hex nylon lock |
1 |
|
| 119 |
N/A |
Not available |
1 |
(Cord clamp) |
| 120 |
164-1836 |
Crimp on cord clamp |
1 |
|
| 121 |
164-7171 |
Vinyl tube |
2ft |
|
| 122 |
164-5074 |
Strain relief nut |
2 |
|
| 123 |
998-0061 |
Wire nut (orange) |
1 |
|
| 124 |
164-1818 |
Ground and Terminal Wire |
1 |
|
| 125 |
164-1819 |
Dead and Terminal Wire |
1 |
|
| 126 |
999-1221 |
Screw M3-.5 x 25mm pan head stainless steel |
1 |
|
| 127 |
N/A |
Not available |
1 |
(230V Terminal block) |
| 129 |
164-1850 |
Handle cord (OBSOLETE) |
1 |
|
| 130 |
164-1862 |
Interconnect cord cover |
1 |
|
| 131 |
164-1839 |
Heyco cord grommet |
1 |
|
| 132 |
164-1863 |
Lower handle bushing |
2 |
|
| 133 |
164-1878 |
Washer M4 flat |
1 |
|
| 134 |
164-1880 |
Screw M4 - 5/64 x 16mm phillips pan head |
1 |
|
| 135 |
N/A |
Not available |
1 |
(Cord clamp) |
| 136 |
999-0955 |
Nut M4-.7 hex nylon lock |
1 |
|
| 137 |
164-1878 |
Washer M4 flat |
1 |
|
| 138a |
164-5075 |
Cord strain relief |
1 |
|
| 138b |
164-1852 |
Shuko Cord - 50 Feet - 16-3 |
1 |
|
| 138b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
|
| 139 |
164-5075 |
Cord strain relief |
1 |
|
| 140 |
164-1874 |
Washer M3 flat |
1 |
|
| 141 |
164-1875 |
Nut M3-.05 hex nylon lock |
1 |
|
| 143 |
164-5057 |
Double hole switch speed nut |
1 |
|
| 144 |
164-1878 |
Washer M4 flat |
1 |
|
| 145 |
164-1880 |
Screw M4 - 5/64 x 16mm phillips pan head |
1 |
|
| 146 |
164-1878 |
Washer M4 flat |
1 |
|
| 147 |
999-0955 |
Nut M4-.7 hex nylon lock |
1 |
|
| 148 |
164-1878 |
Washer M4 flat |
1 |
|
| 149 |
164-1880 |
Screw M4 - 5/64 x 16mm phillips pan head |
2 |
|
| 150 |
164-1873 |
Washer M3 exterior star lock |
2 |
|
| 151 |
164-1877 |
Screw M3-.05 x 8mm pan head phillips thread cutting |
2 |
|
| 152 |
164-5049 |
Safety lockout bracket |
1 |
|
| 153 |
164-1882 |
Screw M5 - 5/64 x 20mm phillips pan head |
2 |
|
| 155 |
164-1843 |
Switch lever spring |
2 |
|
|
|

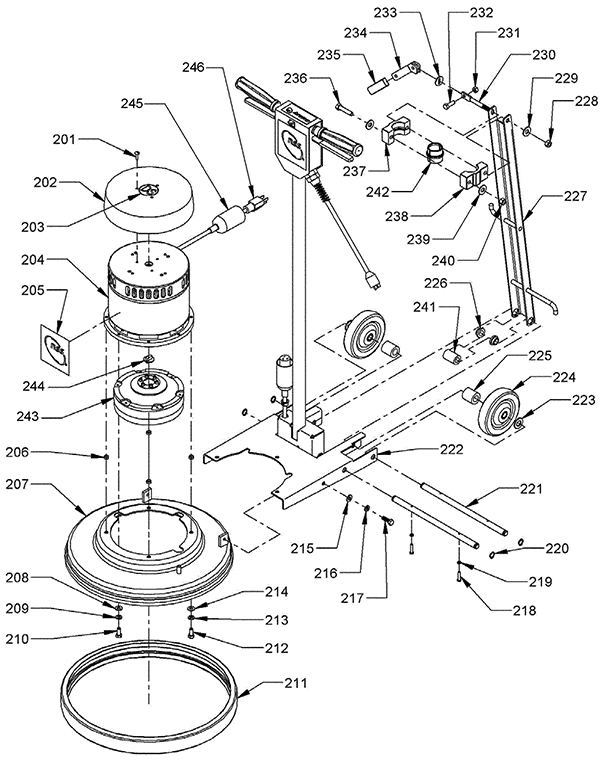

Base and Handle Assembly - 164-9988 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 201 |
999-0256 |
Screw 10-32 x 1/2 truss head slotted zinc plated |
1 |
|
| 202 |
164-9559 |
Drip cover |
1 |
|
| 204a |
164-9561 |
120V motor and gearbox |
1 |
(inlcudes 243-246) |
| 204b |
164-9562 |
240V motor and gearbox |
1 |
(inlcudes 243-246) |
| 205 |
164-1857 |
Decal (OBSOLETE) |
1 |
|
| 207a |
164-1827 |
17 inch skirt and bumper assembly |
1 |
|
| 207b |
164-1828 |
20 inch skirt and bumper assembly |
1 |
|
| 208 |
164-1868 |
Washer 11/32 x 11/16 flat |
3 |
|
| 209 |
164-9564 |
Washer 5/16-18 split lock |
3 |
|
| 210 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
3 |
|
| 211a |
164-1827 |
17 inch skirt and bumper assembly |
1 |
|
| 211b |
164-1828 |
20 inch skirt and bumper assembly |
1 |
|
| 212 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
4 |
|
| 213 |
164-9564 |
Washer 5/16-18 split lock |
4 |
|
| 214 |
164-1868 |
Washer 11/32 x 11/16 flat |
4 |
|
| 215 |
164-1868 |
Washer 11/32 x 11/16 flat |
2 |
|
| 216 |
164-9564 |
Washer 5/16-18 split lock |
2 |
|
| 217 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
| 218 |
N/A |
Not available |
2 |
(Screw) |
| 219 |
999-0743 |
Nut M5-.8 hex coarse thread |
2 |
|
| 220 |
164-1833 |
Retaining ring |
4 |
|
| 221 |
164-1831 |
Axle and handle pivot |
2 |
|
| 223 |
164-1888 |
Washer M14 flat |
2 |
|
| 224 |
164-1832 |
5 inch wheel (gray) |
2 |
|
| 225 |
164-1826 |
Wheel spacer |
2 |
|
| 226 |
164-1863 |
Lower handle bushing |
2 |
|
| 227 |
164-9565 |
Handle brace |
1 |
|
| 228 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 229 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 230 |
164-5160 |
Clamp bolt |
1 |
|
| 231 |
164-1885 |
Nut M8 x 1.25 hex with nylok insert |
1 |
|
| 232 |
164-1886 |
Bolt M8 x 1.25 x 25mm hex head |
1 |
|
| 233 |
164-1823 |
Washer slotted |
1 |
|
| 234 |
164-5159 |
Clamp lever |
1 |
|
| 235 |
164-0020 |
Handle grip |
1 |
|
| 236 |
999-1381 |
Screw M8 -1.25 x 65mm hex head |
1 |
|
| 237 |
164-9269 |
Right hand handle clamp |
1 |
|
| 238 |
164-9270 |
Left hand handle clamp |
1 |
|
| 239 |
164-1884 |
Washer M8 flat |
2 |
|
| 240 |
164-1885 |
Nut M8 x 1.25 hex with nylok insert |
1 |
|
| 241 |
164-9566 |
Handle spacer |
1 |
|
| 242 |
164-9567 |
Split bushing |
1 |
|
| 244 |
170-0694 |
Odum coupling |
1 |
|
| 245 |
164-1861 |
Plug and cord motor cover |
1 |
|
| 246 |
164-7375 |
Motor cord |
1 |
|
|
|

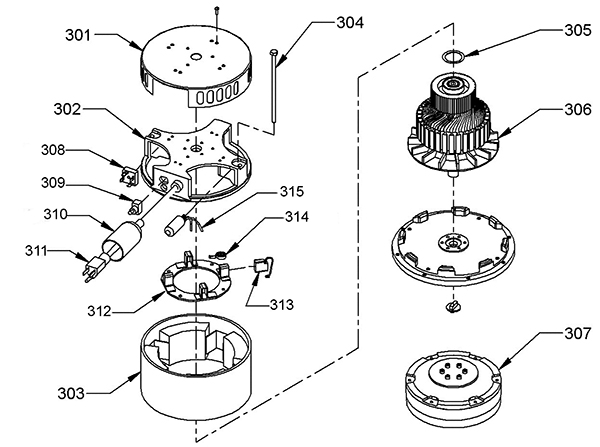

Motor Assembly - 164-9991 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 301 |
164-9568 |
Motor cover (chromate) |
1 |
|
| 302a |
164-9569 |
120V commutator bracket assembly |
1 |
(includes 308-315) |
| 302b |
164-9570 |
240V commutator bracket assembly |
1 |
(includes 308-315) |
| 302c |
164-5320 |
Commutator bracket (Mustang 300DS) |
1 |
|
| 303 |
164-5288 |
Stator frame assembly with clips & magnets |
1 |
|
| 305 |
N/A |
Not available |
1 |
(washer) |
| 306a |
164-5316 |
Armature 115V (Mustang 300DS) |
1 |
(includes 306c) |
| 306b |
164-9571 |
240V armature |
1 |
(includes 306c) |
| 306c |
164-5291 |
Top end bearing |
1 |
|
| 307a |
164-5318 |
Gearbox, Imperial (Mustang 300DS) |
1 |
|
| 307b |
170-0694 |
Odum coupling |
1 |
|
| 308 |
163-0063 |
240V rectifier |
1 |
|
| 309a |
164-9471 |
Speed selector switch |
1 |
|
| 309b |
164-9472 |
Speed selector plate |
1 |
|
| 309c |
164-0287 |
Rubber switch boot |
1 |
|
| 310 |
164-1861 |
Plug and cord motor cover |
1 |
|
| 311 |
164-7375 |
Motor cord |
1 |
|
| 312a |
164-5297 |
Brush board assembly |
1 |
(inlcudes 313 and 314) |
| 312b |
164-9572 |
240V brush board assembly |
1 |
(inlcudes 313 and 314) |
| 313 |
164-2454 |
Carbon brush (sold individually) |
4 |
|
| 314 |
164-0324 |
Carbon brush spring |
4 |
|
| 315a |
164-5319 |
Speed control 115V (Mustang 300DS) |
1 |
|
| 315b |
164-9573 |
240V speed control |
1 |
|
|
|
Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
- Pads - 17 inch - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pads - 20 inch - 255-2000 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad(OBSOLETE) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
